PB-154

< REMOVAL AND INSTALLATION >

PARKING BRAKE CONTROL

PARKING BRAKE CONTROL

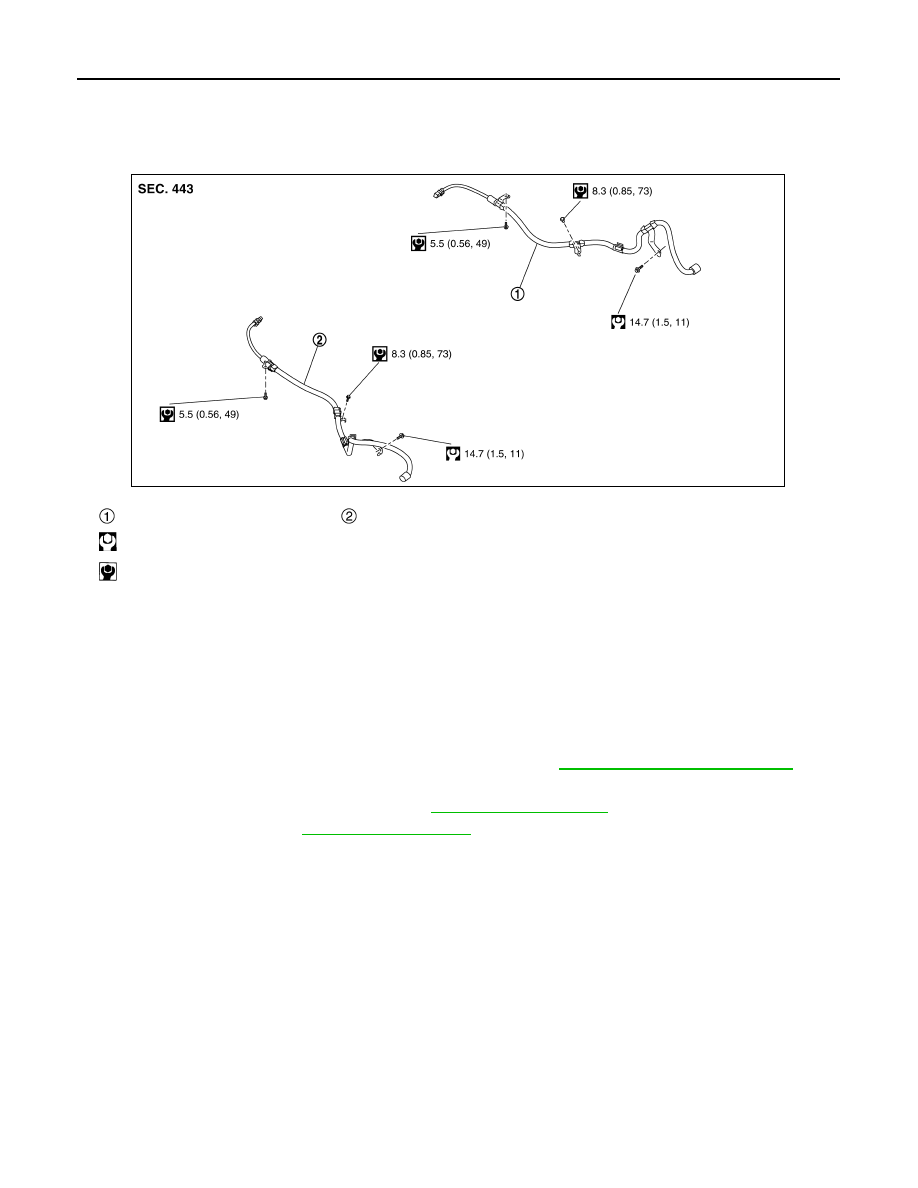

Exploded View

INFOID:0000000010723035

Removal and Installation

INFOID:0000000010723036

REMOVAL

1.

Turn the ignition switch ON.

CAUTION:

Never start the engine.

2.

Release the parking brake.

CAUTION:

If the brake cannot be released, release it manually. Refer to

PB-148, "Diagnosis Procedure"

.

3.

Turn the ignition switch OFF.

4.

Disconnect battery negative terminal. Refer to

PB-50, "Work Procedure"

.

5.

Remove rear tires. Refer to

WT-61, "Exploded View"

.

6.

Disconnect parking brake actuator harness connector.

7.

Remove parking brake actuator harness mounting bolts.

8.

Remove parking brake actuator harness from the vehicle.

INSTALLATION

Install the reverse order of the removal.

Parking brake actuator harness RH

Parking brake actuator harness LH

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JSFIA2487GB

PARKING BRAKE ACTUATOR

PB-155

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PARKING BRAKE ACTUATOR

Removal and Installation

INFOID:0000000010723037

Never remove parking brake actuator from rear brake caliper assembly. When replacing parking brake actua-
tor, replace rear brake caliper assembly. Refer to

BR-63, "BRAKE CALIPER ASSEMBLY : Removal and

Installation"

.

PB-156

< REMOVAL AND INSTALLATION >

PARKING BRAKE SWITCH

PARKING BRAKE SWITCH

Removal and Installation

INFOID:0000000010723038

REMOVAL

1.

Remove the console finisher assembly. Refer to

IP-25, "Removal and Installation"

 (LHD),

IP-52, "Removal

and Installation"

 (RHD).

2.

Remove parking brake switch.

INSTALLATION

Install in the reverse order of removal.

PCS

PCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

PCS

A

O

P

N

CONTENTS

POWER CONTROL SYSTEM

IPDM E/R

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precautions for Removing Battery Terminal  .............

3

SYSTEM DESCRIPTION  ..............................

5

COMPONENT PARTS  ........................................

5

Component Parts Location ........................................

5

Smart FET .................................................................

6

SYSTEM ..............................................................

7

RELAY CONTROL SYSTEM  ......................................

7

RELAY CONTROL SYSTEM : System Descrip-
tion ............................................................................

7

RELAY CONTROL SYSTEM : Fail-safe  ...................

8

POWER CONTROL SYSTEM  ...................................

11

POWER CONTROL SYSTEM : System Descrip-
tion ..........................................................................

11

SIGNAL BUFFER SYSTEM  ......................................

11

SIGNAL BUFFER SYSTEM : System Description

....

12

POWER CONSUMPTION CONTROL SYSTEM  .......

12

POWER CONSUMPTION CONTROL SYSTEM :
System Description  .................................................

12

ENERGY MANAGEMENT SYSTEM .........................

13

ENERGY MANAGEMENT SYSTEM : System De-
scription ...................................................................

13

DIAGNOSIS SYSTEM (IPDM E/R) .....................

14

CONSULT Function (IPDM E/R)  .............................

14

ECU DIAGNOSIS INFORMATION ..............

22

IPDM E/R  ............................................................

22

Reference Value ......................................................

22

Fail-safe ...................................................................

34

DTC Inspection Priority Chart ..................................

37

DTC Index  ...............................................................

38

WIRING DIAGRAM  ......................................

41

IPDM E/R ...........................................................

41

Wiring Diagram ........................................................

41

BASIC INSPECTION  ...................................

47

ADDITIONAL SERVICE WHEN REPLACING
IPDM E/R ...........................................................

47

Description ...............................................................

47

Work Procedure .......................................................

47

CONFIGURATION (IPDM E/R)  .........................

48

Description ...............................................................

48

Work Procedure .......................................................

48

Configuration list ......................................................

49

CUMULATIVE BATTERY DISCHARGE CUR-
RENT CLEAR ....................................................

51

Description ...............................................................

51

Work Procedure .......................................................

51

DTC/CIRCUIT DIAGNOSIS  .........................

52

U1000 CAN COMM CIRCUIT  ...........................

52

DTC Description  ......................................................

52

Diagnosis Procedure  ...............................................

53

B120E IPDM E/R ...............................................

54

DTC Description  ......................................................

54

Diagnosis Procedure  ...............................................

54

B20DD IGNITION RELAY ON CIRCUIT  ...........

55

DTC Description  ......................................................

55

Diagnosis Procedure  ...............................................

55

B20DE IGNITION RELAY OFF CIRCUIT  .........

58

DTC Description  ......................................................

58
