PB-50

< BASIC INSPECTION >

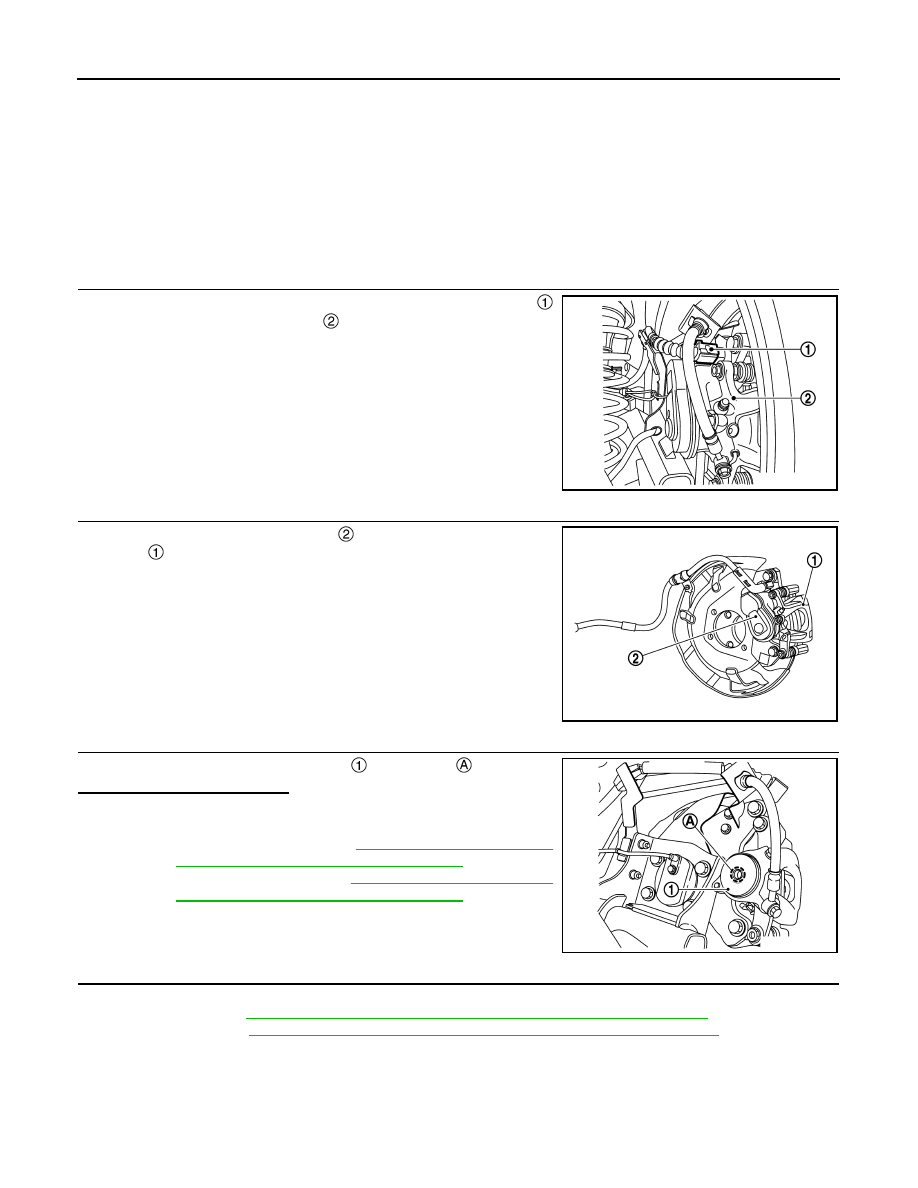

INSTRUCTIONS FOR RELEASING PARKING BRAKE WHERE PARKING

BRAKE SWITCH CANNOT BE USED

INSTRUCTIONS FOR RELEASING PARKING BRAKE WHERE PARKING
BRAKE SWITCH CANNOT BE USED

Description

INFOID:0000000010722935

Disconnecting the battery negative terminal with the parking brake on, prevents the parking brake from releas-
ing. Releasing is performed mechanically.

Work Procedure

INFOID:0000000010722936

1.

DISCONNECT PARKING BRAKE ACTUATOR HARNES CONNECTOR

1.

Disconnect the parking brake actuator harness connector
from the rear caliper assembly

.

>> GO TO 2.

2.

REMOVE PARKING BRAKE ACTUATOR

Remove the parking brake actuator

 from the rear brake caliper

assembly .

>> GO TO 3.

3.

RELEASE OF PARKING BRAKE

Rotate the rear brake caliper assembly

 spindle part

 clockwise.

Is the parking brake released?

YES

>> GO TO 4.

NO

>>

Check the rear brake caliper assembly.

• LHD models: Refer to

BR-66, "BRAKE CALIPER

ASSEMBLY : Inspection and Adjustment"

.

• RHD models: Refer to

BR-126, "BRAKE CALIPER

ASSEMBLY : Inspection and Adjustment"

.

4.

REPLACE REAR CALIPER ASSEMBLY

Replace the rear caliper assembly.
• LHD models: Refer to

BR-63, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

• RHD models: Refer to

BR-123, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

CAUTION:

Never reuse the parking brake actuator.

>> End of work.

JSFIA2443ZZ

JSFIA2426ZZ

JSFIA2444ZZ

ADDITIONAL SERVICE WHEN REPLACING ELECTRIC PARKING BRAKE CON-

TROL MODULE

PB-51

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

ADDITIONAL SERVICE WHEN REPLACING ELECTRIC PARKING BRAKE
CONTROL MODULE

Work Procedure

INFOID:0000000010722937

When replacing the electric parking brake control module be sure to perform the following procedure.

1.

CONFIGURATION

Perform the configuration. Refer to

PB-47, "Work Procedure"

.

>> GO TO 2.

2.

CALIBRATION OF G SENSOR

Perform the calibration of G sensor. Refer to

PB-57, "Work Procedure"

.

M/T models>>GO TO 3.
CVT models>>GO TO 4.

3.

RESET OF CLUTCH PEDAL STROKE SENSOR (M/T MODELS)

Perform the reset of clutch stroke sensor. Refer to

PB-59, "Work Procedure"

.

>> GO TO 5.

4.

AUTOMATIC ACTIVATION ON SETTING (CVT MODELS)

Perform the automatic activation ON setting: Refer to

PB-67, "Work Procedure"

.

>> GO TO 5.

5.

ADJUSTMENT OF REAR BRAKE CALIPER INITIAL POSITION

Perform the adjustment of rear brake caliper initial position: Refer to

PB-55, "Work Procedure"

.

>> GO TO 6.

6.

OPERATION OF REAR BRAKE CALIPER

Perform the operation of rear brake caliper: Refer to

PB-61, "Work Procedure"

.

>> GO TO 7.

7.

RELEASE OF REAR BRAKE CALIPER

Perform the release of rear brake caliper: Refer to

PB-63, "Work Procedure"

.

>> GO TO 8.

8.

CHANGE OF SYSTEM MODE

Perform the change of system mode: Refer to

PB-65, "Work Procedure"

.

>> End of work.

PB-52

< BASIC INSPECTION >

REPLACEMENT OF REAR BRAKE PAD

REPLACEMENT OF REAR BRAKE PAD

Description

INFOID:0000000010722938

CAUTION:

When performing the following operations, always use CONSULT, for performing “START BRAKE PAD
REPLACEMENT”, “FINISH BRAKE PAD REPLACEMENT”, “INITIALIZATION POSITION ADJUSTMENT”,
“BRAKE OPERATION” and “BRAKE RELEASE” of “WORK SUPPORT”.

×

: Required

 —: not required

*: M/T models

Work Procedure

INFOID:0000000010722939

CAUTION:

When performing the following operations, always use CONSULT. (It cannot be performed by any
means other than CONSULT.)
• Removing/installing rear brake pad (When pressing piston of rear brake caliper assembly)
• Replacing rear brake pad
• Replacing rear brake caliper assembly

1.

BEFORE REMOVAL/REPLACEMENT OF REAR BRAKE PAD OR REAR CALIPER ASSEMBLY

With CONSULT

1.

Turn the ignition switch OFF to ON.

CAUTION:

Never start the engine.

2.

Select “EHS/PKB”, “WORK SUPPORT”, and “START BRAKE PAD REPLACEMENT” according to this
order.

CAUTION:

• Never operate the parking brake switch.
• Never depress the brake pedal.

3.

Touch “START”.

>> GO TO 2.

2.

REMOVAL AND INSTALLATION/REPLACEMENT OF REAR BRAKE PAD OR REAR BRAKE CALIPER

Procedure

• START BRAKE PAD REPLACEMENT
• FINISH BRAKE PAD REPLACEMENT
• INITIALIZATION POSITION ADJUSTMENT
• BRAKE OPERATION
• BRAKE RELEASE

Removing/installing electric parking brake control module

—

Replacing electric parking brake control module

—

Removing/installing rear brake pad (When not pressing piston of rear
brake caliper assembly)

—

Removing/installing rear brake pad (When pressing piston of rear brake
caliper assembly)

×

Replacing rear brake pad

×

Removing/installing rear brake caliper assembly

—

Replacing rear brake caliper assembly

×

Removing/installing parking brake switch

—

Replacing parking brake switch

—

Removing/installing clutch stroke sensor

*

—

Replacing clutch stroke sensor

*

—

Removing/installing clutch pedal

*

—

Replacing clutch pedal

*

—

REPLACEMENT OF REAR BRAKE PAD

PB-53

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

ASSEMBLY

Replace the rear brake pad or rear brake caliper.
• Rear brake pad
- LHD models: Refer to

BR-60, "BRAKE PAD : Removal and Installation"

.

- RHD models: Refer to

BR-120, "BRAKE PAD : Removal and Installation"

.

• Rear brake caliper assembly
- LHD models: Refer to

BR-63, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

- RHD models: Refer to

BR-123, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

>> GO TO 3.

3.

AFTER INSTALLATION/REPLACEMENT OF REAR BRAKE PAD OR REAR CALIPER ASSEMBLY

With CONSULT

1.

Select “EHS/PKB”, “WORK SUPPORT”, and “FINISH BRAKE PAD REPLACEMENT” according to this
order.

CAUTION:

• Never operate the parking brake switch.
• Never depress the brake pedal.

2.

Touch “START”.

>> GO TO 4.

4.

PERFORM INITIALIZATION POSITION ADJUSTMENT

With CONSULT

1.

Select “EHS/PKB”, “WORK SUPPORT”, and “INITIALIZATION POSITION ADJUSTMENT” according to
this order.

CAUTION:

• Never operate the parking brake switch.
• Never depress the brake pedal.

2.

Touch “START”.

>> GO TO 5.

5.

PERFORM BRAKE OPERATION

With CONSULT

1.

Select “EHS/PKB”, “WORK SUPPORT”, and “BRAKE OPERATION” according to this order.

CAUTION:

• Never operate the parking brake switch.
• Never depress the brake pedal.

2.

Touch “START”.

>> GO TO 6.

6.

PERFORM BRAKE RELEASE

With CONSULT

1.

Select “EHS/PKB”, “WORK SUPPORT”, and “BRAKE RELEASE” according to this order.

CAUTION:

• Never operate the parking brake switch.
• Never depress the brake pedal.

2.

Touch “START”.

>> GO TO 7.

7.

PERFORM THE SELF-DIAGNOSIS

With CONSULT

1.

Pull parking brake switch to activate electric parking brake.

2.

Push parking brake switch to release electric parking brake.

3.

Perform “EHS/PKB” self-diagnosis.
