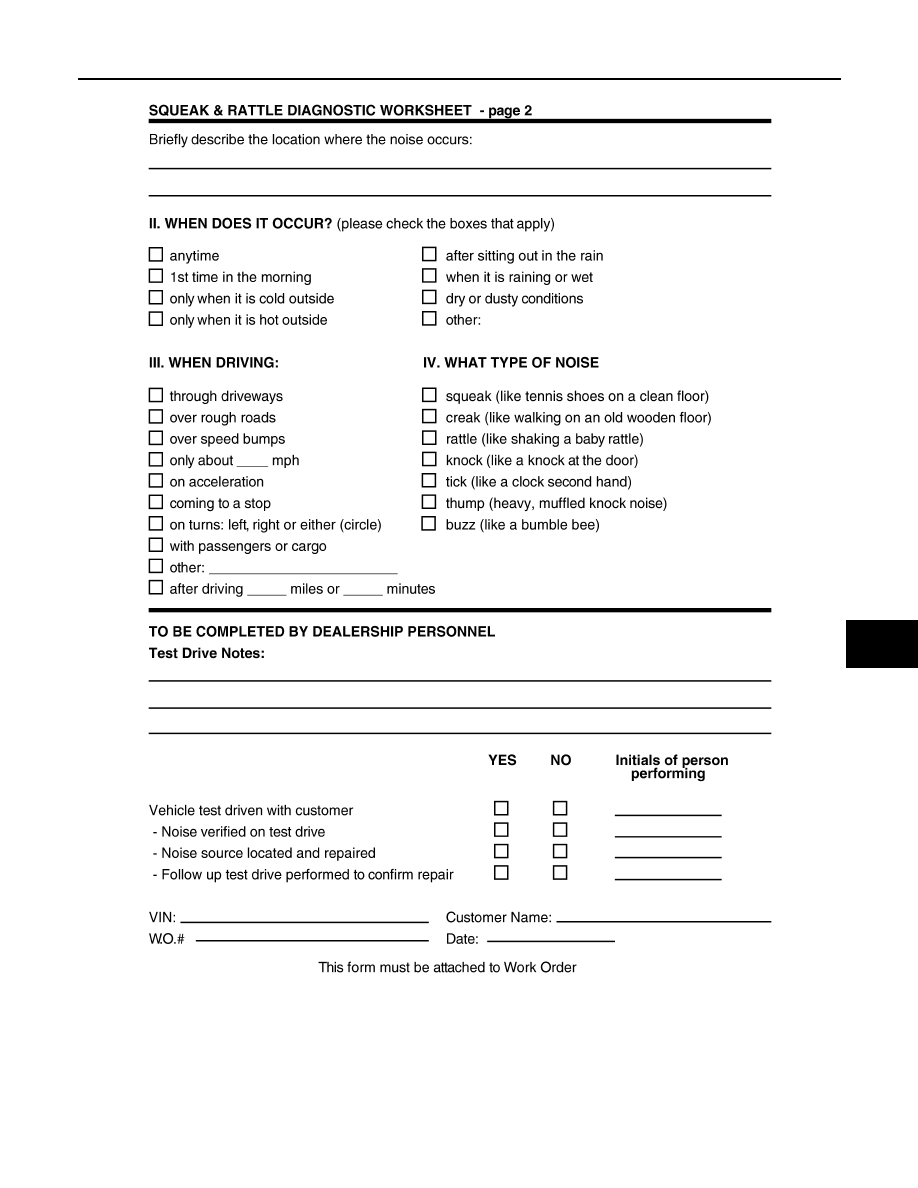

SQUEAK AND RATTLE TROUBLE DIAGNOSES

INT-13

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

PIIB8742E

INT-14

< REMOVAL AND INSTALLATION >

FRONT DOOR FINISHER

REMOVAL AND INSTALLATION

FRONT DOOR FINISHER

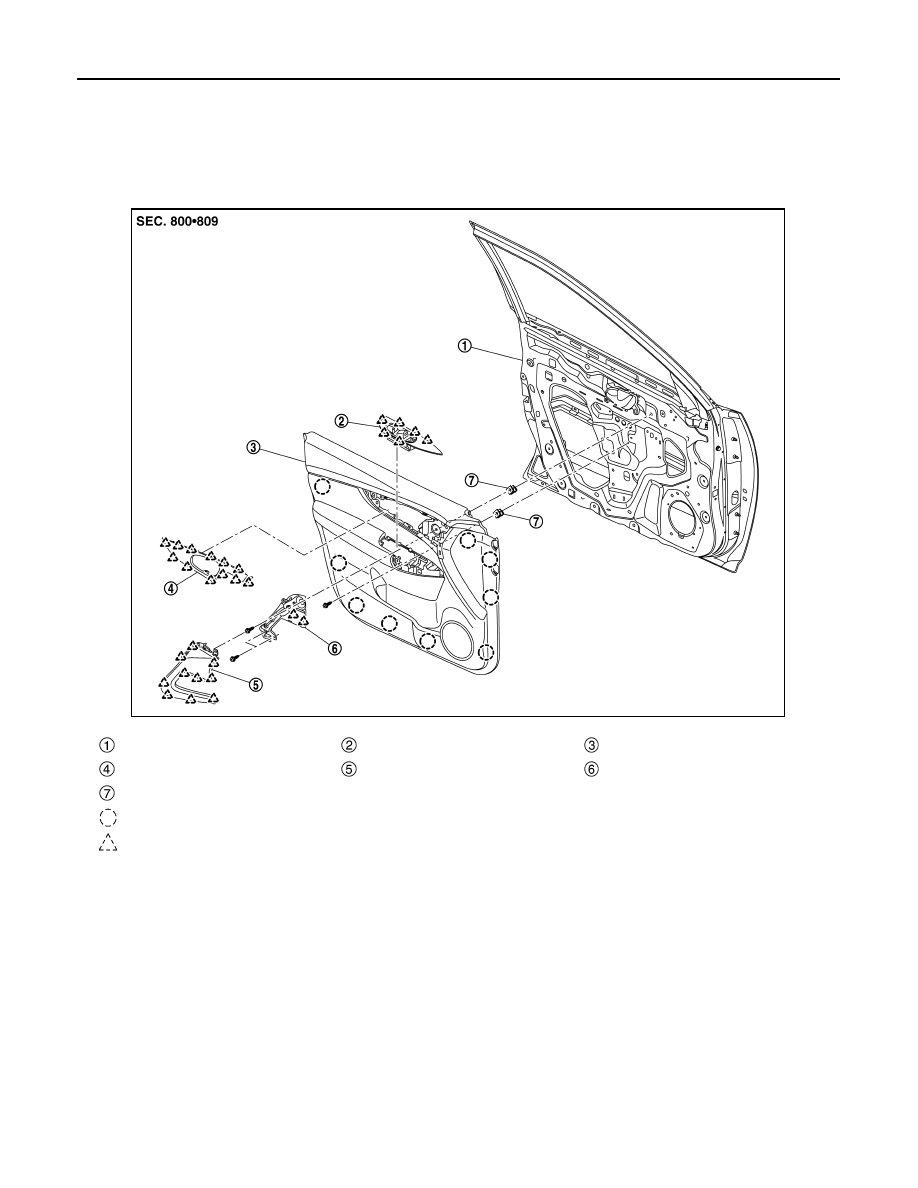

Exploded View

INFOID:0000000010730545

Removal and Installation

INFOID:0000000010730546

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the front door glass and the front door panel.

REMOVAL

1.

Remove inside handle escutcheon.

Front door panel

Power window switch finisher

Front door finisher

Inside handle escutcheon

Front door grip cap

Front door grip assembly

Grommet

: Clip

: Pawl

JMJIB0165ZZ

FRONT DOOR FINISHER

INT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

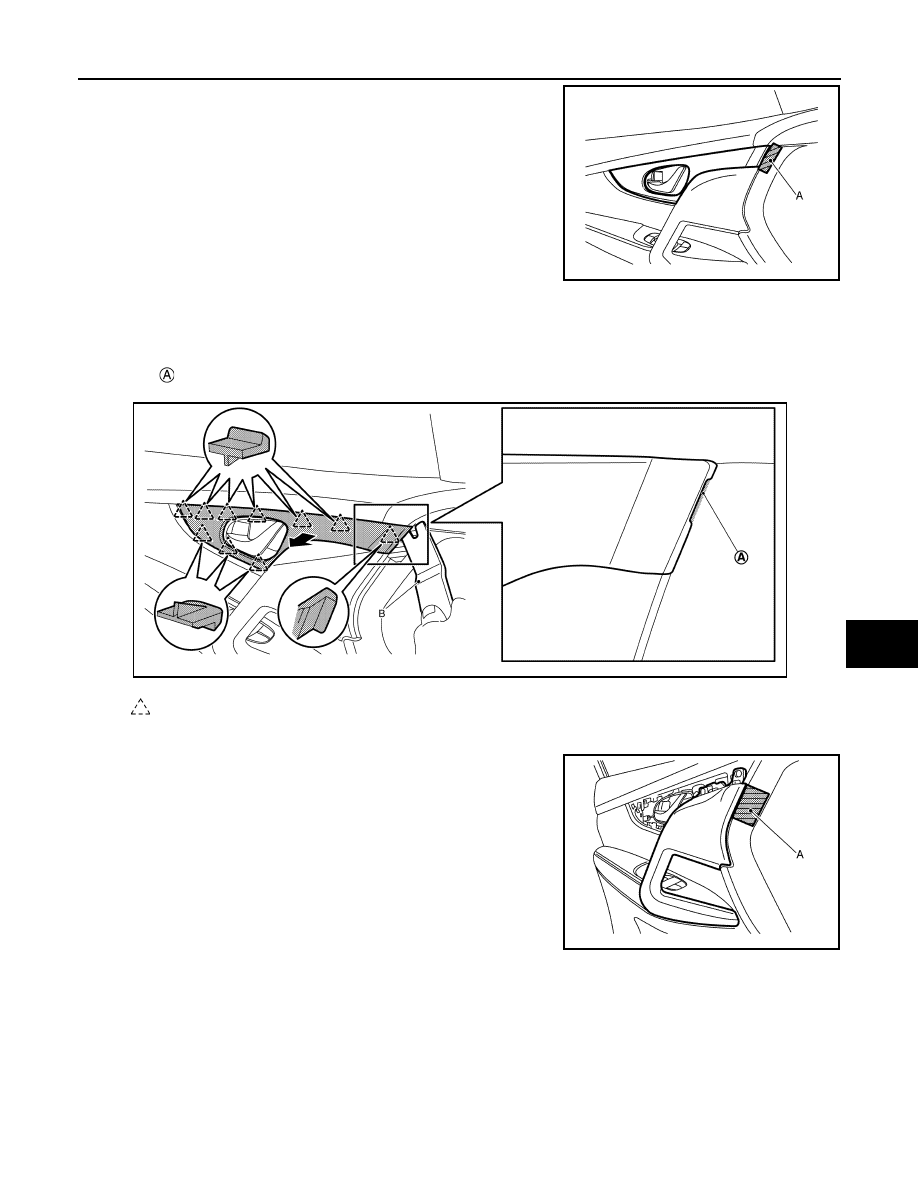

a.

Apply protective tape (A) on front door finisher to protect it from
damage.

b.

Disengage inside handle escutcheon fixing pawls using a remover tool (B), and then remove inside han-
dle escutcheon.

CAUTION:

• Because there is no gap between inside handle escutcheon and front door finisher, use the work

hole

 on the inside handle escutcheon front end.

• Never damage mirror remote control switch by contact with inside handle escutcheon.

2.

Remove front door grip cap.

a.

Apply protective tape (A) on front door finisher to protect it from
damage.

JMJIB0146ZZ

: Pawl

JMJIB0147ZZ

JMJIB0148ZZ

INT-16

< REMOVAL AND INSTALLATION >

FRONT DOOR FINISHER

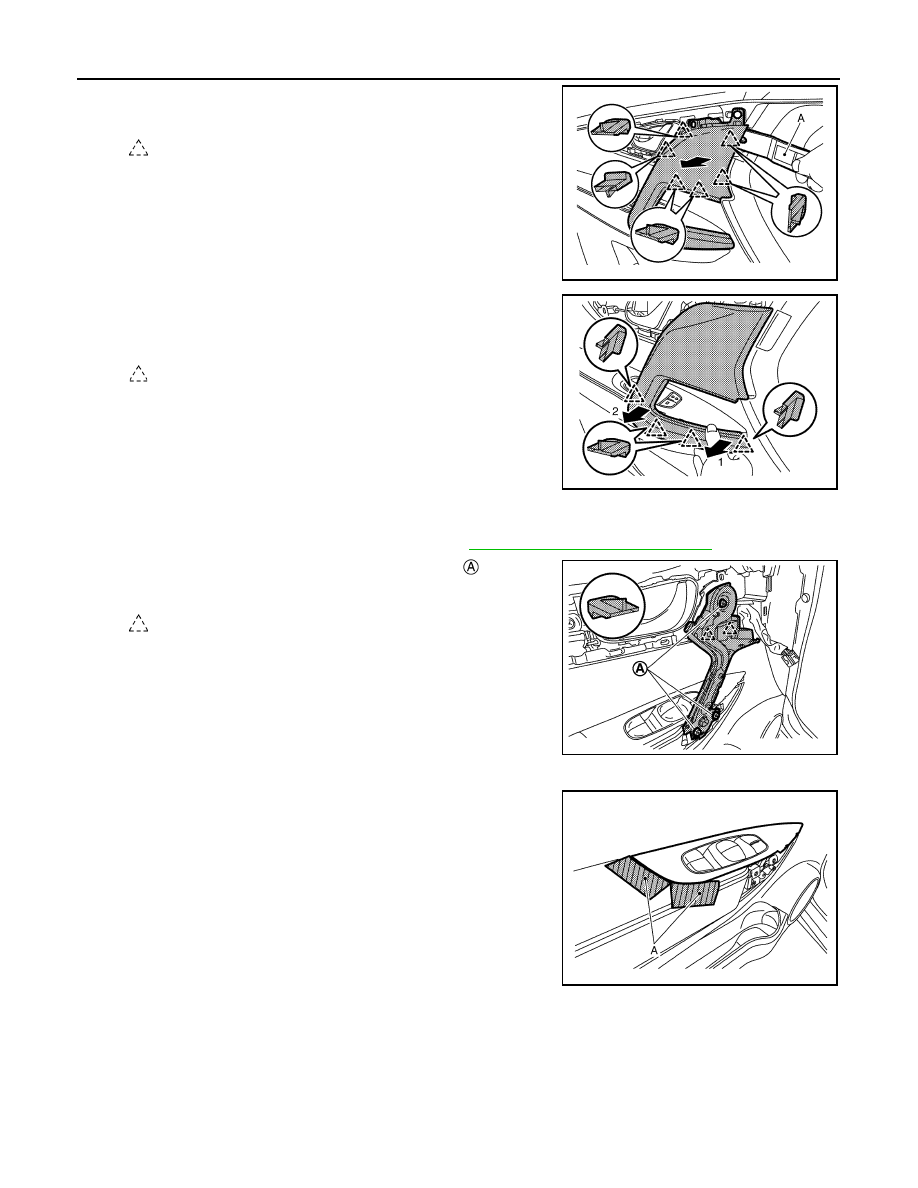

b.

Disengage front door grip cap fixing pawls of upper side portion
using a remover tool (A).

c.

Disengage front door grip cap fixing pawls of lower side portion
according to numerical order 1

→

2 indicated by arrows as shown

in the figure.

d.

Disconnect door mirror remote control switch harness connector, and then remove front door grip cap.
NOTE:
Remove door mirror remote control switch. Refer to

MIR-32, "Removal and Installation"

.

3.

Disengage front door grip assembly fixing screws

 and fixing

pawls, and then remove front door grip assembly.

4.

Remove power window switch finisher.

a.

Apply protective tapes (A) on front door finisher to protect it from
damage.

: Pawl

JMJIB0149ZZ

: Pawl

JMJIB0150ZZ

: Pawl

JMJIB0151ZZ

JMJIB0152ZZ
