BRC-42

< SYSTEM DESCRIPTION >

[WITH VDC (ESP)]

SYSTEM

*: 4WD models with gasoline engine

Condition (status)

VDC OFF indi-

cator lamp

hill start assist
indicator lamp

hill descent

control indica-

tor lamp

*

Ignition switch OFF

OFF

OFF

OFF

For approx. 1 second after the ignition switch is turned ON

ON

ON

ON

Approx. 1 second after ignition switch is turned ON (when system is in normal
operation)

OFF

OFF

OFF

After engine starts (when system is in normal operation)

OFF

OFF

OFF

When VDC OFF switch is ON (VDC function and TCS function are OFF)

ON

OFF

OFF

VDC function is malfunctioning

OFF

OFF

OFF

TCS function is malfunctioning

OFF

OFF

OFF

hill start assist function is operating

OFF

Blinking

OFF

hill start assist function is operational (condition is satisfied)

OFF

ON

OFF

hill start assist function is operational (condition is not satisfied)

OFF

OFF

OFF

hill start assist function is malfunctioning

OFF

OFF

OFF

Advanced hill descent control function is operating

*

OFF

OFF

ON

Advanced hill descent control function is operational (condition is satisfied)

*

OFF

OFF

ON

Advanced hill descent control function is operational (condition is not satisfied)

*

OFF

OFF

Blinking

Advanced hill descent control function is malfunctioning

*

OFF

OFF

OFF

SYSTEM

BRC-43

< SYSTEM DESCRIPTION >

[WITH VDC (ESP)]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

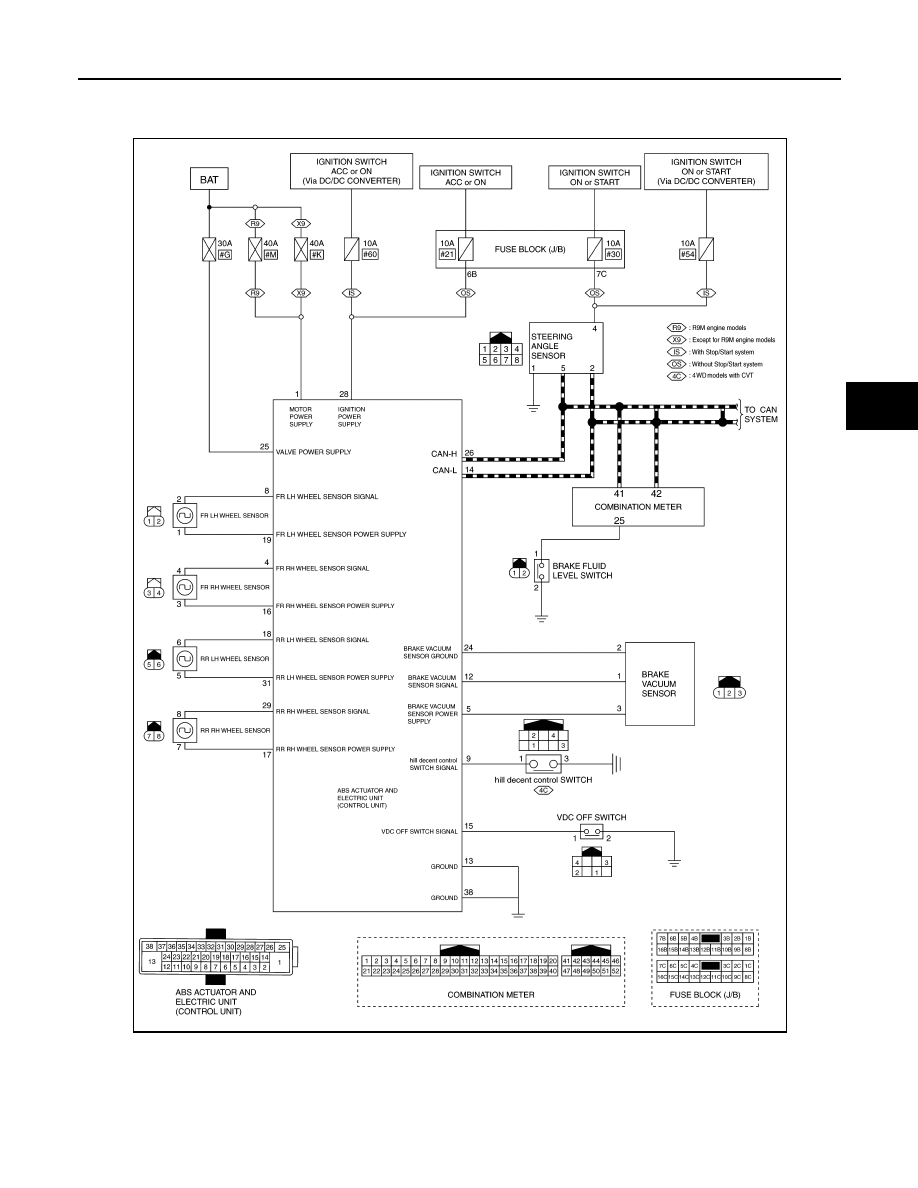

Circuit Diagram

INFOID:0000000010723632

Fail-Safe

INFOID:0000000010735268

VDC FUNCTION, TCS FUNCTION, BRAKE LIMITED SLIP DIFFERENTIAL (BLSD) FUNCTION,
BRAKE ASSIST FUNCTION, BRAKE FORCE DISTRIBUTION FUNCTION, hill start assist FUNC-
TION AND ADVANCED hill descent control FUNCTION (4WD MODELS WITH GASOLINE ENGINE)

JSFIA2516GB

BRC-44

< SYSTEM DESCRIPTION >

[WITH VDC (ESP)]

SYSTEM

VDC warning lamp in combination meter turn ON when a malfunction occurs in system [ABS actuator and
electric unit (control unit)]. The control is suspended for VDC function, TCS function, brake limited slip differen-
tial (BLSD) function, brake assist function, brake force distribution function, hill start assist function, advanced
hill descent control function (4WD models with gasoline engine), active trace control function (control of chas-
sis control module) and active ride control function (control of chassis control module). The vehicle status
becomes the same as models without VDC function, TCS function, brake limited slip differential (BLSD) func-
tion, brake assist function, brake force distribution function, hill start assist function, advanced hill descent con-
trol function (4WD models with gasoline engine), active trace control function (control of chassis control
module) and active ride control function (control of chassis control module). However, ABS function and EBD
function are operated normally.

ABS FUNCTION

ABS warning lamp and VDC warning lamp in combination meter turn ON when a malfunction occurs in system
[ABS actuator and electric unit (control unit)]. The control is suspended for VDC function, TCS function, ABS
function, brake limited slip differential (BLSD) function, brake assist function, brake force distribution function,
hill start assist function, advanced hill descent control function (4WD models with gasoline engine), active
trace control function (control of chassis control module) and active ride control function (control of chassis
control module). The vehicle status becomes the same as models without VDC function, TCS function, ABS
function, brake limited slip differential (BLSD) function, brake assist function, brake force distribution function,
hill start assist function, advanced hill descent control function (4WD models with gasoline engine), active
trace control function (control of chassis control module) and active ride control function (control of chassis
control module). However, EBD function is operated normally.
NOTE:
ABS self-diagnosis sound may be heard the same as in the normal condition, because self-diagnosis is per-
formed when ignition switch turns ON and when vehicle initially starts.

EBD FUNCTION

ABS warning lamp, brake warning lamp and VDC warning lamp in combination meter turn ON when a mal-
function occurs in system [ABS actuator and electric unit (control unit)]. The control is suspended for VDC
function, TCS function, ABS function, EBD function, brake limited slip differential (BLSD) function, brake assist
function, brake force distribution function, hill start assist function, advanced hill descent control function (4WD
models with gasoline engine), active trace control function (control of chassis control module) and active ride
control function (control of chassis control module). The vehicle status becomes the same as models without
VDC function, TCS function, ABS function, EBD function, brake limited slip differential (BLSD) function, brake
assist function, brake force distribution function, hill start assist function, advanced hill descent control function
(4WD models with gasoline engine), active trace control function (control of chassis control module) and
active ride control function (control of chassis control module).

DTC

Fail-safe condition

C10D7

The following functions are suspended.
• Deceleration control (brake control by VDC function) performed by pulling the parking brake switch while driving the

vehicle [10 km/h (6.2 MPH) or more].

C1101

The following functions are suspended.
• VDC function
• TCS function
• ABS function
• EBD function (only when both 2 rear wheels are malfunctioning)
• Brake limited slip differential (BLSD) function
• Brake assist function
• Brake force distribution function
• hill start assist function

• Advanced hill descent control function

*1

• Active trace control function (control of chassis control module)
• Active ride control function (control of chassis control module)

C1102

C1103

C1104

C1105

C1106

C1107

C1108

SYSTEM

BRC-45

< SYSTEM DESCRIPTION >

[WITH VDC (ESP)]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1109

The following functions are suspended.
• VDC function
• TCS function
• ABS function
• EBD function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Brake force distribution function
• hill start assist function

• Advanced hill descent control function

*1

• Active trace control function (control of chassis control module)
• Active ride control function (control of chassis control module)

C1110

C1111

The following functions are suspended.
• VDC function
• TCS function
• ABS function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Brake force distribution function
• hill start assist function

• Advanced hill descent control function

*1

• Active trace control function (control of chassis control module)
• Active ride control function (control of chassis control module)

C1113

The following functions are suspended.
• VDC function
• TCS function

• ABS function

*1

• Brake limited slip differential (BLSD) function

• Brake assist function

*1

• Brake force distribution function
• hill start assist function

• Advanced hill descent control function

*1

• Active trace control function (control of chassis control module)
• Active ride control function (control of chassis control module)

C1115

The following functions are suspended.
• VDC function
• TCS function
• ABS function
• EBD function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Brake force distribution function
• hill start assist function

• Advanced hill descent control function

*1

• Active trace control function (control of chassis control module)
• Active ride control function (control of chassis control module)

C1116

The following functions are suspended.
• VDC function
• TCS function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Brake force distribution function
• hill start assist function

• Advanced hill descent control function

*1

• Active trace control function (control of chassis control module)
• Active ride control function (control of chassis control module)

C1118

The following functions are suspended.

• Advanced hill descent control function

*1

DTC

Fail-safe condition
