AMBIENT SENSOR

HAC-127

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

AMBIENT SENSOR

Removal and Installation

INFOID:0000000010939785

REMOVAL

1.

Remove front bumper fascia assembly. Refer to

EXT-15, "Removal and Installation"

.

2.

Disconnect harness connector

.

3.

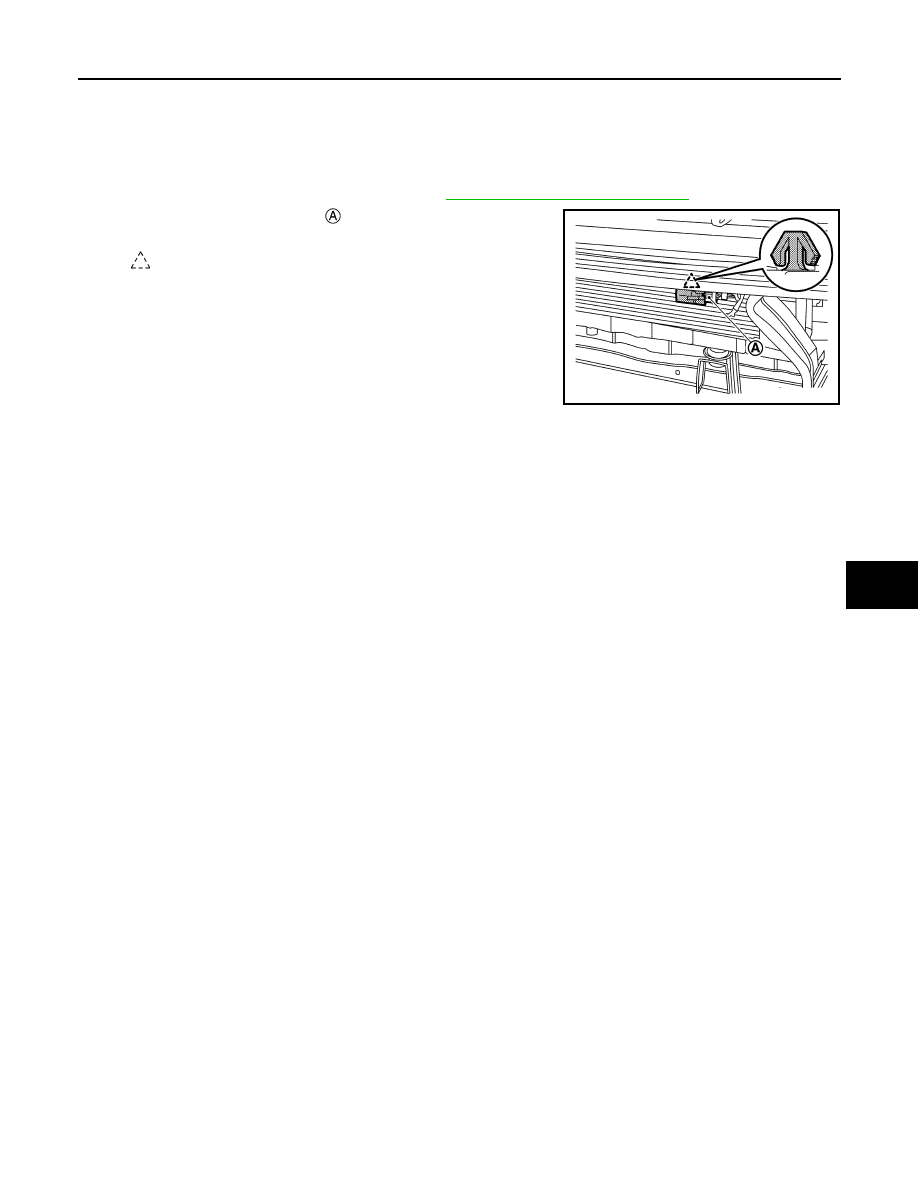

Disengage fixing pawl, and then remove ambient sensor.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMIIA3393ZZ

HAC-128

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

IN-VEHICLE SENSOR

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000010939786

REMOVAL

1.

Remove instrument lower panel center. Refer to

IP-14, "Removal and Installation"

 (LHD models) or

IP-41,

"Removal and Installation"

 (RHD models).

2.

Remove fixing screw, and then remove in-vehicle sensor.

INSTALLATION

Install in the reverse order of removal.

SUNLOAD SENSOR

HAC-129

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

SUNLOAD SENSOR

Removal and Installation

INFOID:0000000010939787

REMOVAL

1.

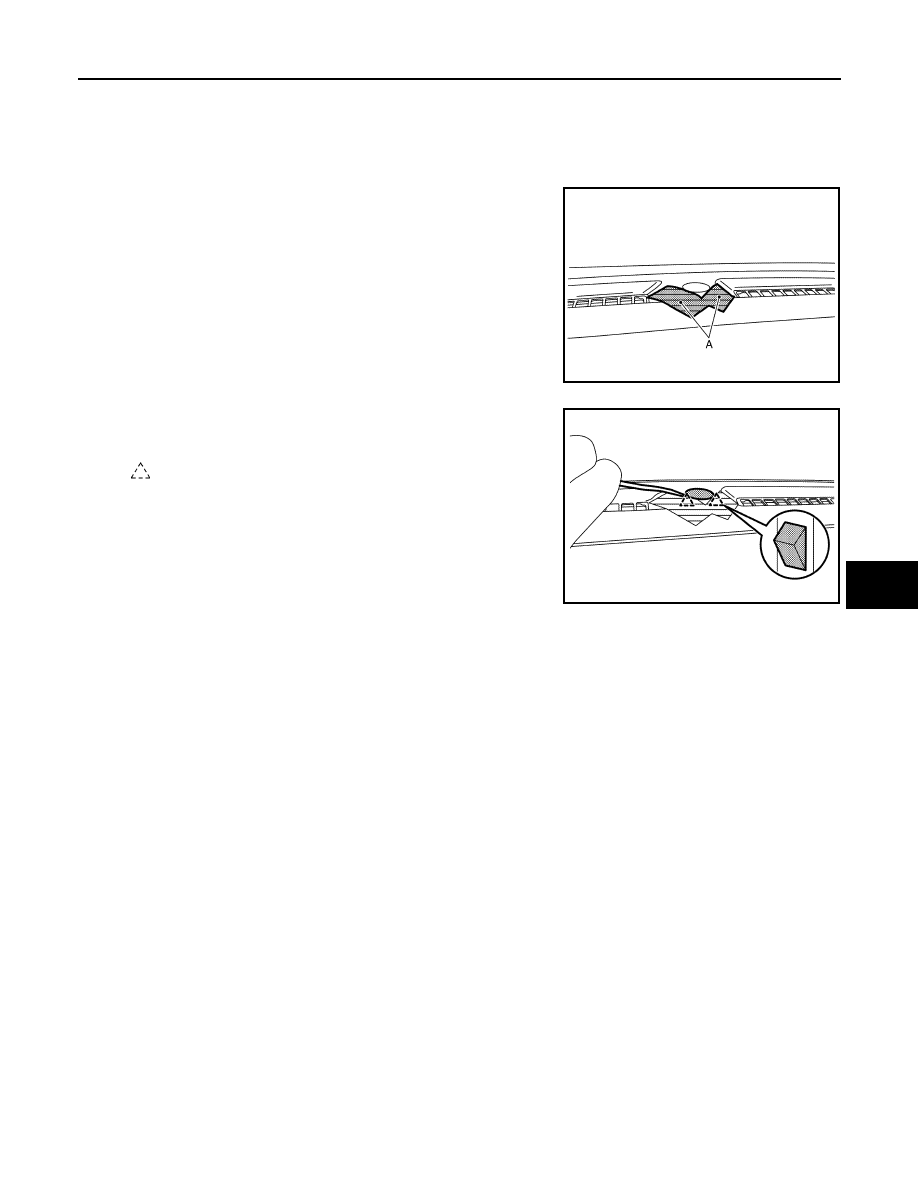

Apply protective tape (A) on instrument panel assembly to pro-
tect from damage.

2.

Disengage fixing pawls using a remover tool, and then pull up
sunload sensor.

CAUTION:

Using a remover tool wrapped in tape.

3.

Disconnect harness connector, and then remove sunload sensor.

INSTALLATION

Install in the reverse order of removal.

JMIIA3364ZZ

: Pawl

JMIIA3391ZZ

HAC-130

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

INTAKE SENSOR

INTAKE SENSOR

Exploded View

INFOID:0000000010939788

Refer to following items.
• R9M (EXCETP FOR RUSSIA) : Refer to

HA-40, "Exploded View"

.

• MR20DD : Refer to

HA-86, "Exploded View"

.

• QR25DE : Refer to

HA-131, "Exploded View"

.

• R9M (FOR RUSSIA) : Refer to

HA-177, "Exploded View"

.

Removal and Installation

INFOID:0000000010939789

REMOVAL

1.

Remove instrument lower cover LH. Refer to

IP-14, "Removal and Installation"

 (LHD models) or

IP-41,

"Removal and Installation"

 (RHD models).

2.

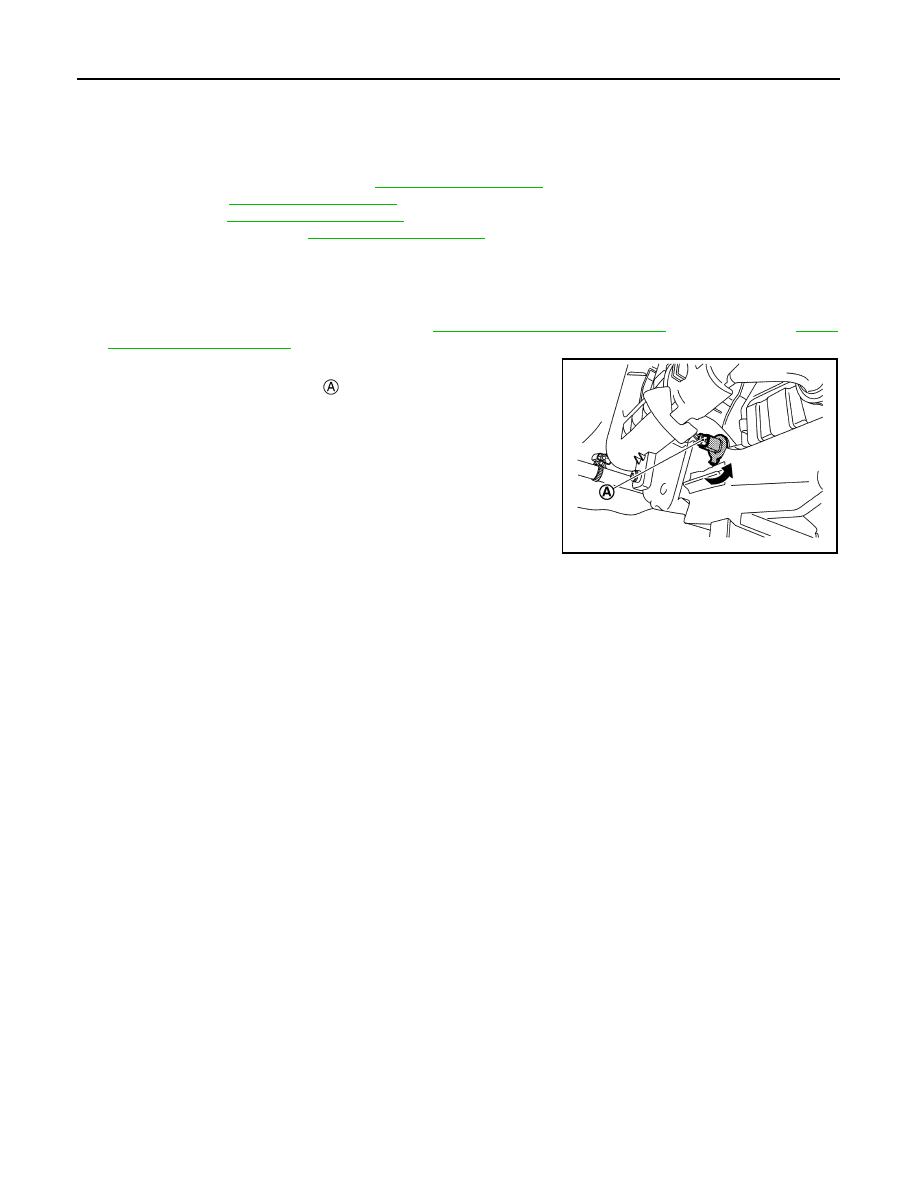

Remove intake sensor from A/C unit assembly.

3.

Disconnect harness connector

 from intake sensor.

CAUTION:

If disconnect harness connector from intake sensor,
replace intake sensor with new one.

INSTALLATION

Note the following item, and then install in the order of removal.

CAUTION:

If disconnect harness connector from intake sensor, replace intake sensor with new one.

JMIIA3398ZZ
