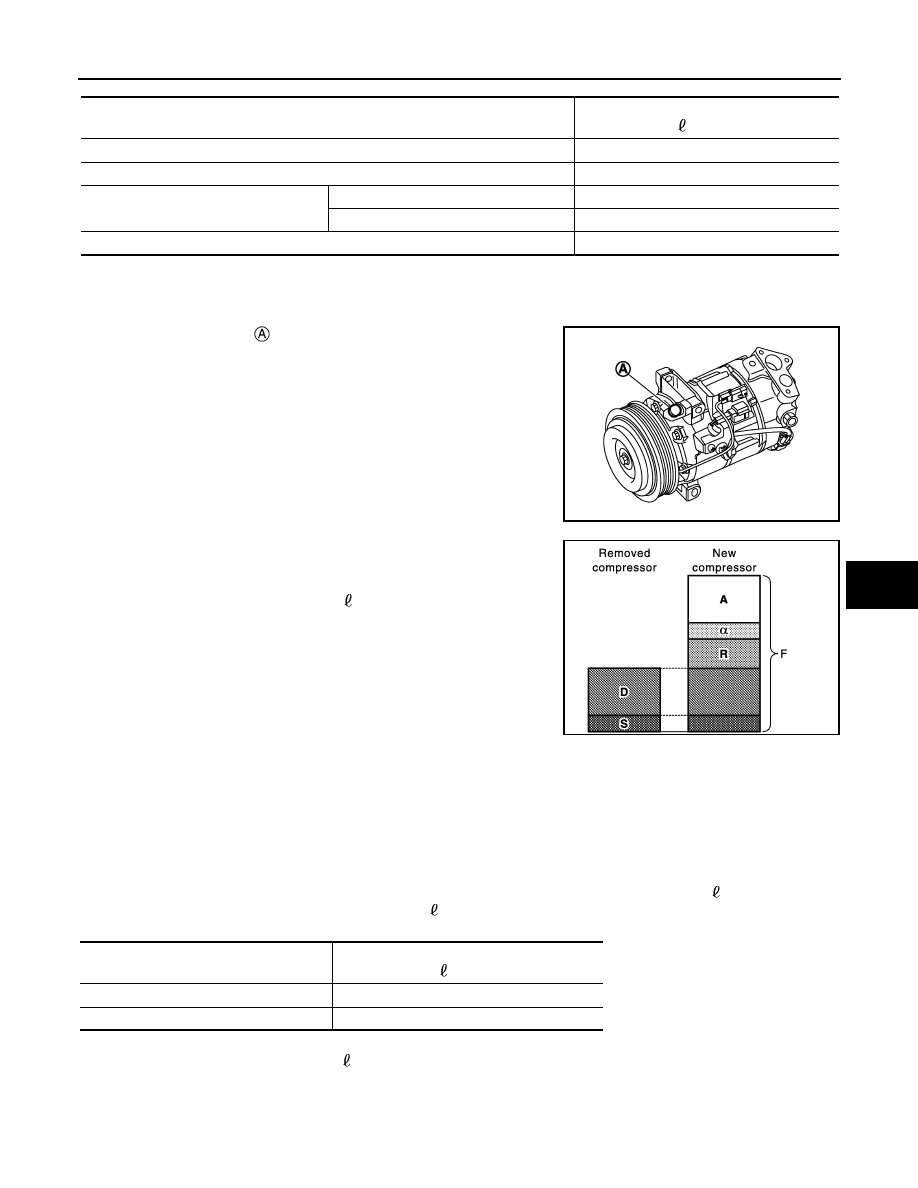

Lubricant Adjusting Procedure for Compressor Replacement
INFOID:0000000010999982
1.
Drain lubricant from removed compressor and measure lubricant amount.
• Remove drain bolt
, and then drain lubricant from drain port.
• Measure total amount of lubricant that is drained from
removed compressor.
2.
Drain lubricant from a new compressor that is calculated accord-
ing to the following conditions.
CAUTION:
If lubricant amount that is drained from removed compressor is less than 60 m (2.1 Imp fl oz.),
perform calculation by setting “D” as 40 m (1.4 Imp fl oz.).
Example: Lubricant amount to be drained from a new compressor when replacing compressor and con-
denser & liquid tank assembly [m (Imp fl oz.)] [D = 60 (2.1),
α
= 5 (0.2)]
110 (3.9)
−
[60 (1.6) + 20 (0.7) + 5 (0.2)] = 15 (0.5)
3.
Tighten drain bolt to the specified torque.
Conditions
Lubricant amount to be added to A/C system
m
(Imp fl oz.)
Replace evaporator
35 (1.2)
Replace condenser & liquid tank assembly
20 (0.7)
Refrigerant leakage is detected
Large amount leakage
30 (1.1)
Small amount leakage
—
Lubricant amount that is recycled together with refrigerant during recycle operation
α
JMIIA3527ZZ
Amount to be drained (A) [m (Imp fl oz.)] = F
−
(D
+ S + R +
α
)
F
: Lubricant amount that a new compressor
contains [110 (3.9)]
D
: Lubricant amount that is drained from re-
moved compressor
S
: Lubricant amount that remains inside of re-
moved compressor [20 (0.7)]
R
: Lubricant amount to be added according to
components that are removed except com-
pressor
α
: Lubricant amount that is recycled together
with refrigerant during recycle operation
Conditions
Lubricant amount to be added to A/C system
m
(Imp fl oz.)
Replace evaporator
35 (1.2)
Replace condenser & liquid tank assembly
20 (0.7)
JPIIA1455GB
