TOW TRUCK TOWING

GI-35

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

• Rear hook is not available.

JMAIA1181ZZ

GI-36

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000010727564

Commercial Service Tools

INFOID:0000000010727565

Repair Parts

INFOID:0000000010727566

Tool number
Tool name

Description

KV99112600
Crimping Pliers

Crimping terminals

JSAIA2959ZZ

Tool name

Description

Industrial dryer

Heating heat shrinkable tube

JSAIA3281ZZ

Part name

Description

Harness repair kit
A: Heat shrinkable tube
B: Crimp terminal
(For harness with the diameter of 1.00 or less)
C: Crimp terminal
(For harness with the diameter of 1.25 or more)

Connecting aluminum wires

JSAIA3388ZZ

IDENTIFICATION INFORMATION

GI-37

< VEHICLE INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

VEHICLE INFORMATION

IDENTIFICATION INFORMATION

Model Variation

INFOID:0000000010727567

Destination

Body

Engine

Axle

Handle

Transmission

Grade

Model

Europe and Israel

SUV

R9M

2WD

RHD

6M/T

L

TTRARPY-UEA

M

TTRARQY-UEA

H

TTRARRY-UEA

M-CVT

M

TTRARQW-UEA

H

TTRARRW-UEA

4WD

6M/T

M

TTRNRQY-UEA

H

TTRNRRY-UEA

Wagon

2WD

L

JTRARPY-UEA

M

JTRARQY-UEA

H

JTRARRY-UEA

M-CVT

M

JTRARQW-UEA

H

JTRARRW-UEA

4WD

6M/T

M

JTRNRQY-UEA

H

JTRNRRY-UEA

SUV

2WD

LHD

L

TTRALPY-UGA

M

TTRALQY-UGA

H

TTRALRY-UGA

M-CVT

M

TTRALQW-UGA

H

TTRALRW-UGA

4WD

6M/T

M

TTRNLQY-UGA

H

TTRNLRY-UGA

Wagon

2WD

L

JTRALPY-UGA

M

JTRALQY-UGA

H

JTRALRY-UGA

M-CVT

M

JTRALQW-UGA

H

JTRALRW-UGA

4WD

6M/T

M

JTRNLQY-UGA

H

JTRNLRY-UGA

Ukraine

SUV

MR20DD

2WD

L

TDRALPY-EQA

M-CVT

M

TDRALQW-EQA

4WD

L

TDRNLUW-EQA

M

TDRNLQW-EQA

H

TDRNLRW-EQA

QR25DE

M

TDBNLQW-EQA

H

TDBNLRW-EQA

R9M

6M/T

TTRNLRY-UQA

GI-38

< VEHICLE INFORMATION >

IDENTIFICATION INFORMATION

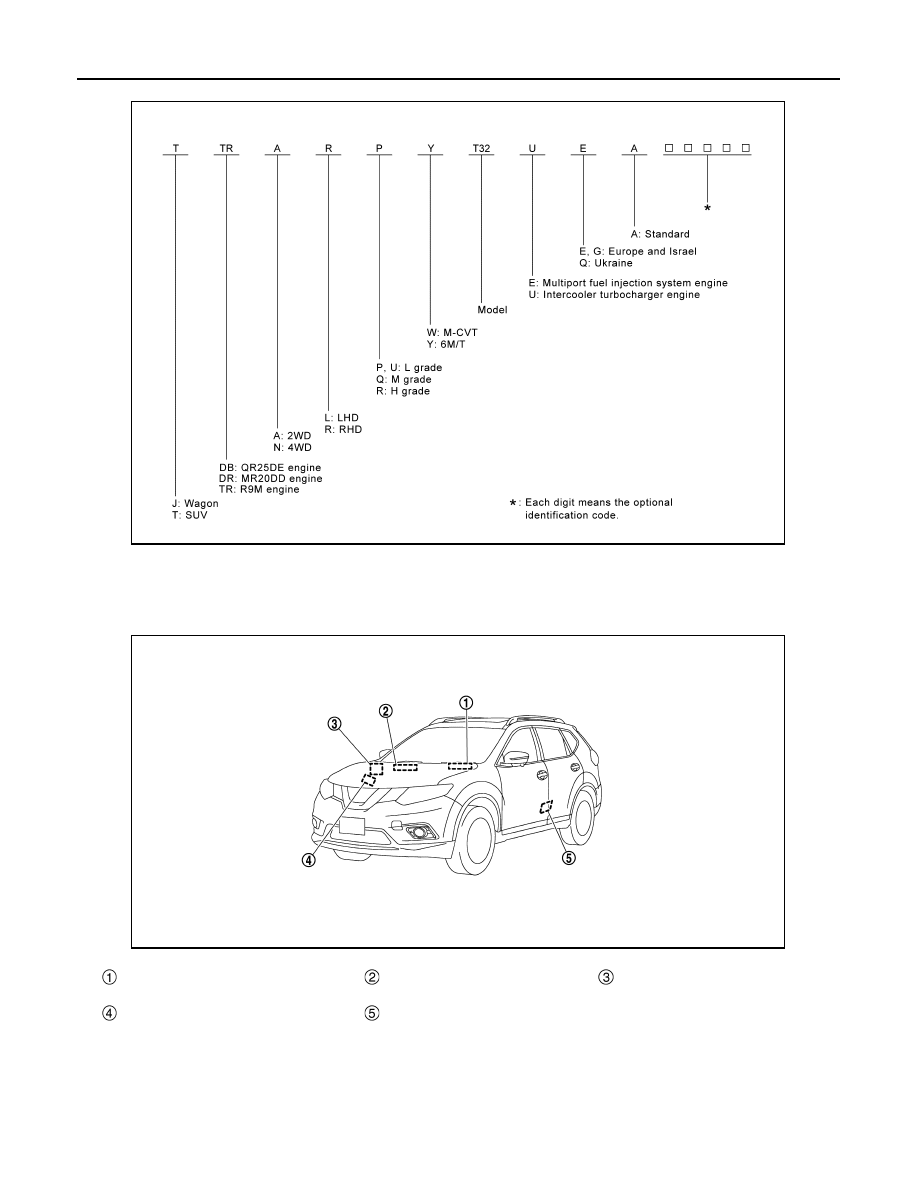

Model variation code (Prefix and suffix designations)

Information About Identification or Model Code

INFOID:0000000010727568

IDENTIFICATION NUMBER

JSAIA3591GB

Vehicle identification number plate

Vehicle identification number
(Chassis number)

Vehicle identification plate

Air conditioner specification label

Tire placard
(Drivers side)

JSAIA3592ZZ
