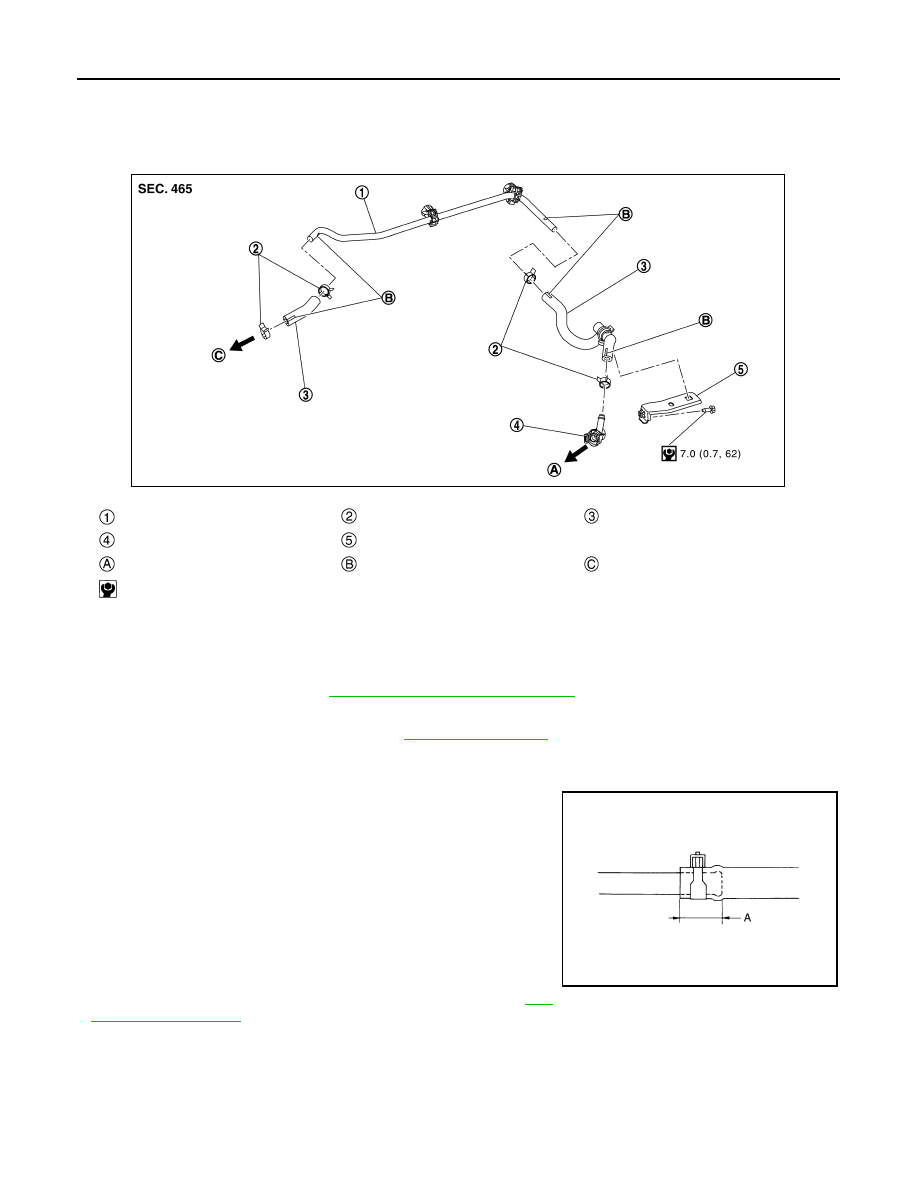

BR-102 < REMOVAL AND INSTALLATION > [RHD] VACUUM LINES VACUUM LINES Exploded View INFOID:0000000010838986 Removal and Installation INFOID:0000000010838987 REMOVAL 1. Remove engine cover. Refer to EM-306, "Removal and Installation" . 2. Remove the vacuum hose and vacuum piping. 3. Perform inspection after removal. Refer to . INSTALLATION Note the following, install the vacuum hose. back-end of length (A) or further as shown in the figure. CAUTION: Never use lubricating oil during assembly. - Face the paint mark of vacuum hose (built-in check valve) to upward to assemble. - Face the paint mark of vacuum piping (intake manifold side) to upward to assemble. - Face the other paint marks to vehicle front side to assemble. Inspection INFOID:0000000010838988 INSPECTION AFTER REMOVAL Appearance Check for correct assembly, damage and deterioration. Vacuum piping Clamp Vacuum hose Connector Vacuum hose bracket To vacuum pump Paint mark To brake booster : N·m (kg-m, in-lb) JSFIA2546GB A : 24 mm (0.95 in) or more JPFIA0023ZZ |
