FAX-32

< REMOVAL AND INSTALLATION >

[2WD]

FRONT DRIVE SHAFT BOOT

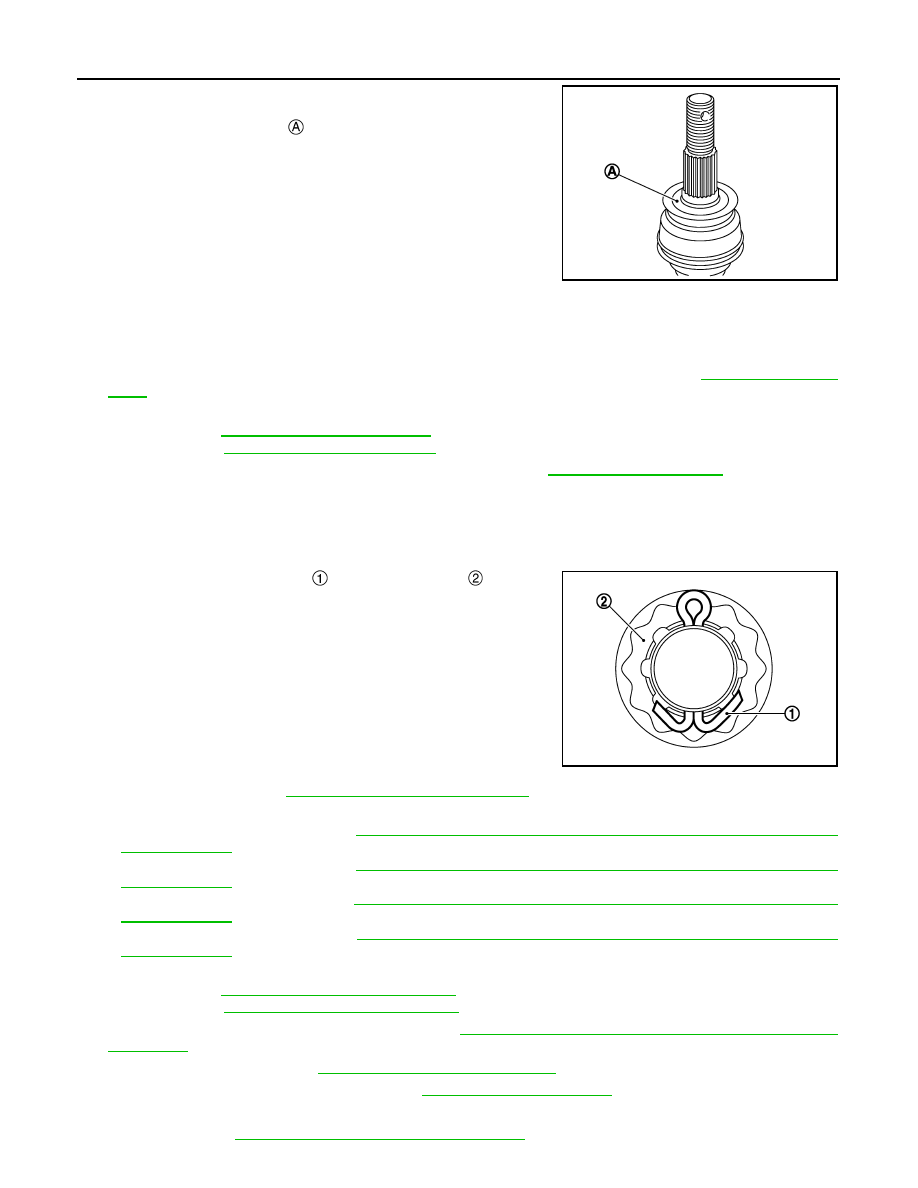

14. Clean the matching surface of drive shaft and wheel hub and

bearing assembly. And then apply paste [service parts
(440037S000)] to surface

 of joint sub-assembly of drive shaft.

CAUTION:

Apply paste to cover entire flat surface of joint sub-assem-
bly of drive shaft.

15. Insert drive shaft to wheel hub and bearing assembly, and then temporarily tighten wheel hub lock nut.

CAUTION:

• Be sure to use torque wrench to tighten the wheel hub lock nut. Never use a power tool.
• Never reuse wheel hub lock nut.

16. Install transverse link to steering knuckle and front suspention member. Refer to

FSU-17, "Exploded

View"

.

17. Install steering outer socket to steering knuckle.

• LHD: Refer to

ST-20, "LHD : Exploded View"

.

• RHD: Refer to

ST-21, "RHD : Exploded View"

.

18. Tighten the wheel hub lock nut to the specified torque. Refer to

FAX-11, "Exploded View"

.

CAUTION:

• Since the drive shaft is assembled by press-fitting, use the tightening torque range for the wheel

hub lock nut.

• Be sure to use torque wrench to tighten the wheel hub lock nut. Never use a power tool.
• Never reuse wheel hub lock nut.

19. When installing a cotter pin

 and adjusting cap

, securely

bend the basal portion to prevent rattles.

CAUTION:

Never reuse cotter pin.

20. Install disc rotor. Refer to

FAX-11, "Removal and Installation"

.

21. Install caliper assembly to steering knuckle.

• LHD (1 PISTON TYPE): Refer to

BR-51, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Removal

and Installation"

.

• LHD (2 PISTON TYPE): Refer to

BR-56, "BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Removal

and Installation"

.

• RHD (1 PISTON TYPE): Refer to

BR-111, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Removal

and Installation"

.

• RHD (2 PISTON TYPE): Refer to

BR-56, "BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Removal

and Installation"

.

22. Install lock plate to strut assembly.

• LHD: Refer to

BR-24, "FRONT : Exploded View"

.

• RHD: Refer to

BR-88, "FRONT : Exploded View"

.

23. Install wheel sensor to steering knuckle. Refer to

BRC-212, "FRONT WHEEL SENSOR : Removal and

Installation"

.

24. Install tires to vehicle.Refer to

WT-61, "Removal and Installation"

.

25. Perform inspection after installation. Refer to

FAX-33, "R9M : Inspection"

.

Transaxle Side

• Installation: Refer to

FAX-50, "R9M : Removal and Installation"

.

Amount paste

: 1.0 – 3.0 g (0.04 – 0.10 oz)

JPDIG0122ZZ

JPDIF0295ZZ

FRONT DRIVE SHAFT BOOT

FAX-33

< REMOVAL AND INSTALLATION >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

• Assembly: Refer to

FAX-56, "R9M : Disassembly and Assembly"

.

R9M : Inspection

INFOID:0000000010824386

INSPECTION AFTER REMOVAL

Check the following items, and replace the part if necessary.
• Check components for deformation, cracks, and other damage.
• Check boots of transverse link and steering outer socket ball joint for breakage, axial end play, and swing

torque.

- Transverse link: Refer to

FSU-18, "Inspection"

.

- Steering outer socket: Refer to

ST-26, "Inspection"

.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-212, "FRONT WHEEL SENSOR :

Exploded View"

.

2.

Check the wheel alignment. Refer to

FSU-8, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-99, "Work Procedure"

.

FAX-34

< REMOVAL AND INSTALLATION >

[2WD]

FRONT DRIVE SHAFT

FRONT DRIVE SHAFT

MR20DD

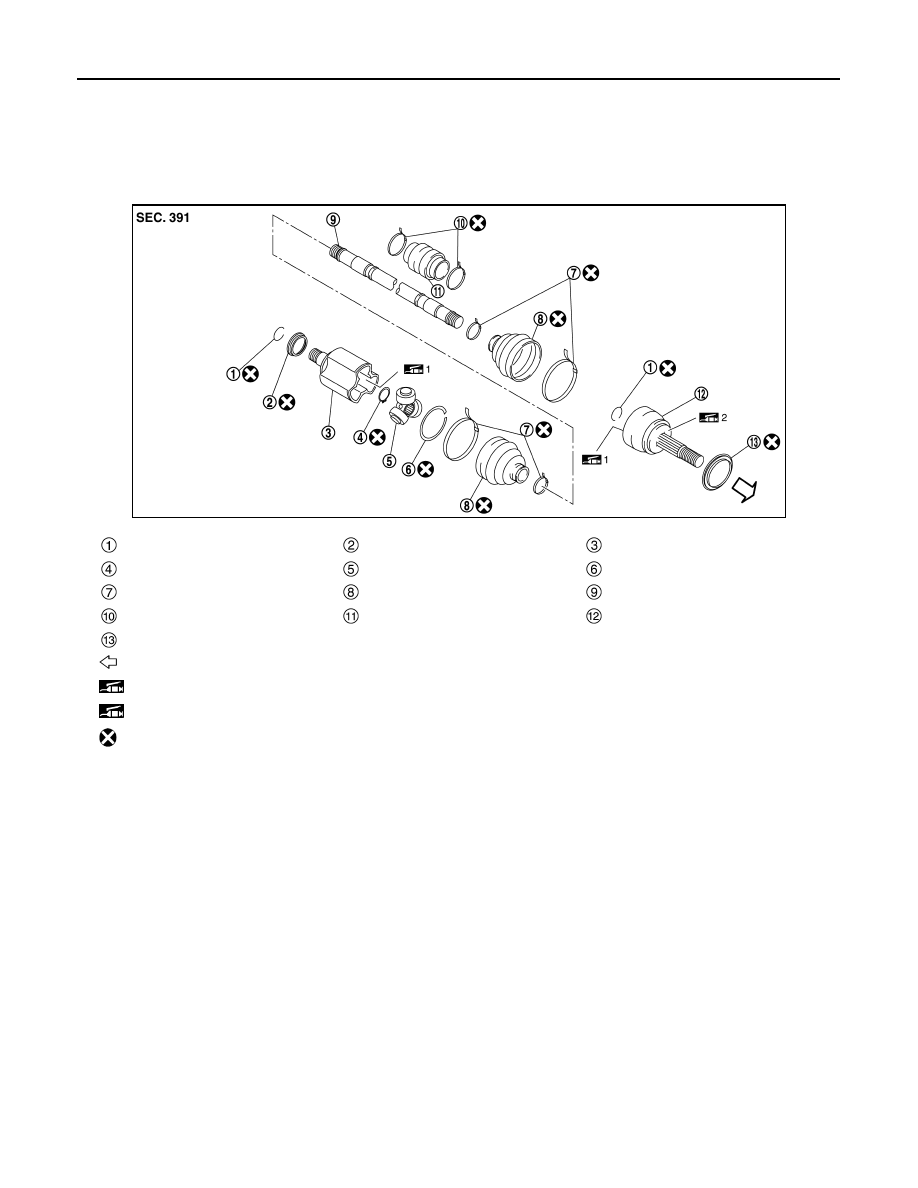

MR20DD : Exploded View

INFOID:0000000010824387

LEFT SIDE

JSDIA5389ZZ

Circular clip

Dust shield

Housing

Snap ring

Spider assembly

Stopper ring

Boot band

Boot

Shaft

Damper band

Dynamic damper

Joint sub-assembly

Dust shield

: Wheel side

1: Fill NISSAN Genuine grease or equivalent.

2: Apply paste [service parts (440037S000)]

: Always replace after every disassembly.

FRONT DRIVE SHAFT

FAX-35

< REMOVAL AND INSTALLATION >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

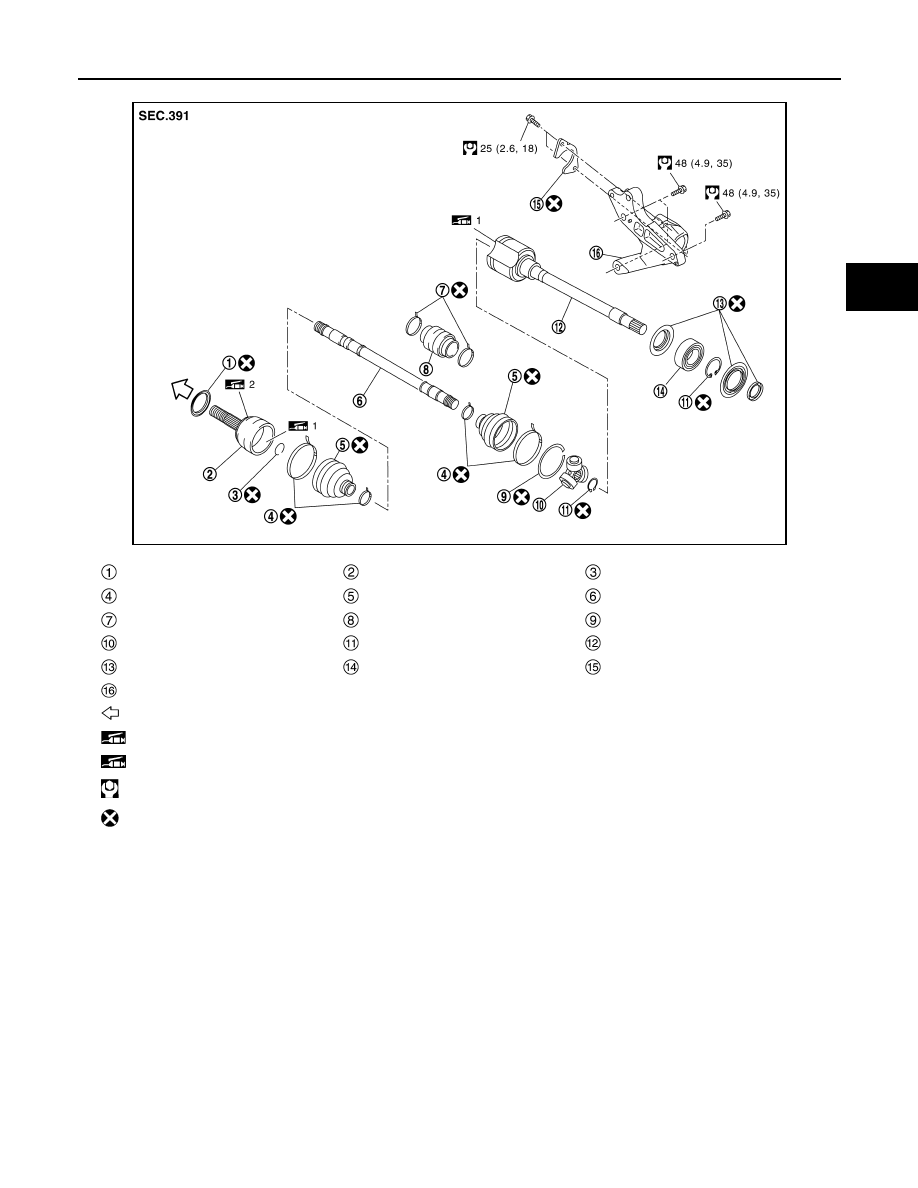

RIGHT SIDE (CVT)

JSDIA5460GB

Dust shield

Joint sub-assembly

Circular clip

Boot band

Boot

Shaft

Damper band

Dynamic damper

Stopper ring

Spider assembly

Snap ring

Housing

Dust shield

Support bearing

Retainer

Support bearing bracket

: Wheel side

1: Fill NISSAN Genuine grease or equivalent.

2: Apply paste [service parts (440037S000)].

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.
