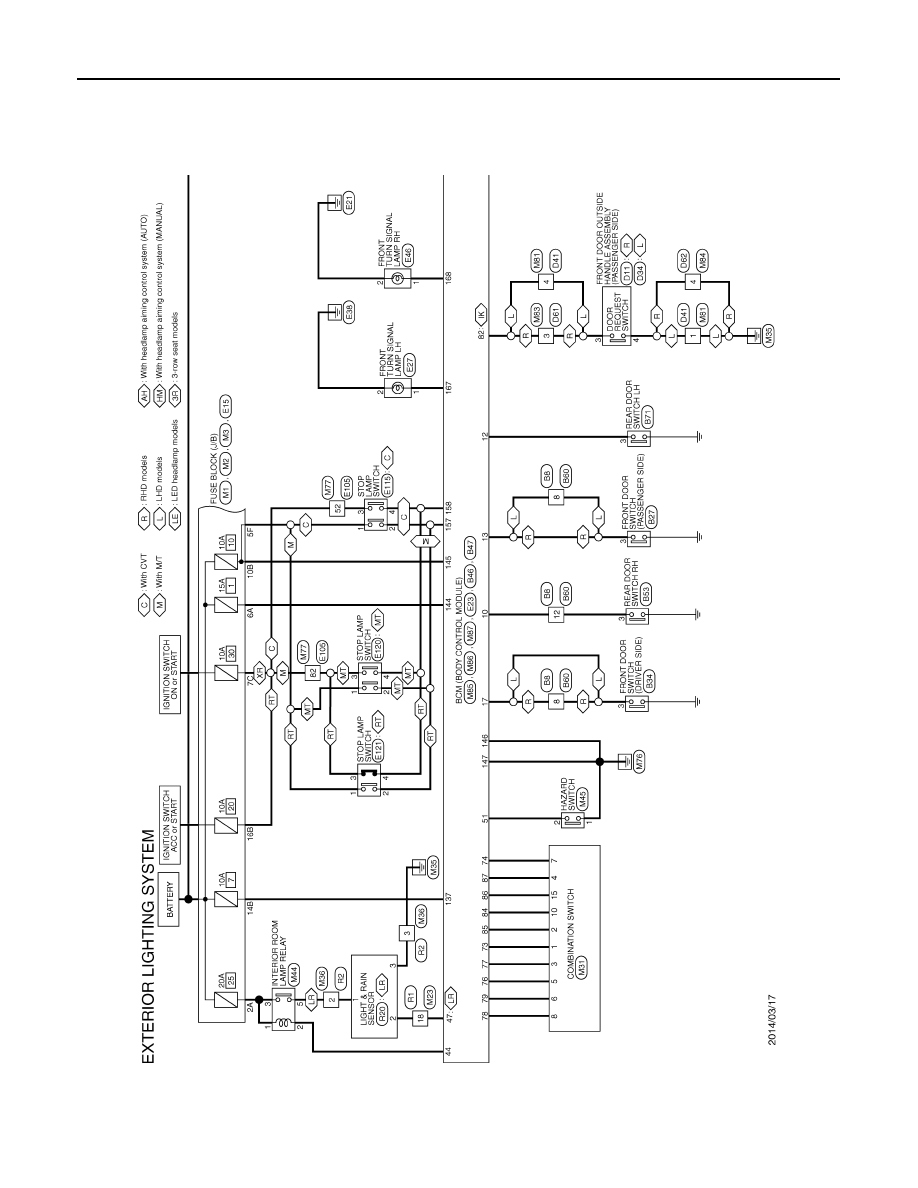

DIAGNOSIS SYSTEM (IPDM E/R)
EXL-269
< SYSTEM DESCRIPTION >
[HALOGEN HEADLAMP]
C
D
E
F
G
H
I
J
K
M
A
B
EXL
N
O
P
ACTIVE TEST
NMB HL (LO) RH CIRC RETRY
[0 – 20]
Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
headlamp (LO) (right) circuit.
NOTE:
When the number of short circuits in the headlamp (LO) (right) circuit count is 5 and
the ignition switch OFF to ON operation is detected, this item counts 1.
NMB HL (LO) RH CIRC SHORT
[0 – 5]
Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the headlamp (LO) (right) circuit.
T LAMP LH CIRC MALFUNCTN
[0 – 1]
Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the tail lamp (left) circuit.
NOTE:
When the number of tail lamp (left) circuit retries count is 20, this item counts 1.
NMB T LAMP LH CIRC RETRY
[0 – 20]
Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
tail lamp (left) circuit.
NOTE:
When the number of short circuits in the tail lamp (left) circuit count is 5 and the igni-
tion switch OFF to ON operation is detected, this item counts 1.
NMB T LAMP LH CIRC SHORT
[0 – 5]
Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the tail lamp (left) circuit.
T LAMP RH CIRC MALFUNCTN
[0 – 1]
Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the tail lamp (right) circuit.
NOTE:
When the number of tail lamp (right) circuit retries count is 20, this item counts 1.
NMB T LAMP RH CIRC RETRY
[0 – 20]
Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
tail lamp (right) circuit.
NOTE:
When the number of short circuits in the tail lamp (right) circuit count is 5 and the ig-
nition switch OFF to ON operation is detected, this item counts 1.
NMB T LAMP RH CIRC SHORT
[0 – 5]
Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the tail lamp (right) circuit.
BATTERY STATUS
[OK/NG]
Monitor the battery status from the battery output.
Monitor Item
[Unit]
Description
Test item
Operation
Description
HORN
Off
OFF
On
Operates horn relay for 20 ms.
HEADLAMP WASHER
Off
OFF
On
Operates headlamp washer relay for 10 ms.
FRONT WIPER
Off
OFF
Low
Operates the front wiper relay.
High
Operates the front wiper relay and front wiper HI/LO relay.
COMPRESSOR
Off
OFF
On
Operates the A/C relay.
COOLING FAN (MONO)
Off
OFF
Lo
Run the cooling fan at low speed.
Hi
Run the cooling fan at high speed.
HEADLAMP (HI)
Off
OFF
On
Operates the headlamp (HI)
HEADLAMP (LO)
Off
OFF
On
Operates the headlamp (LO).
