COMPONENT PARTS

EXL-217

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

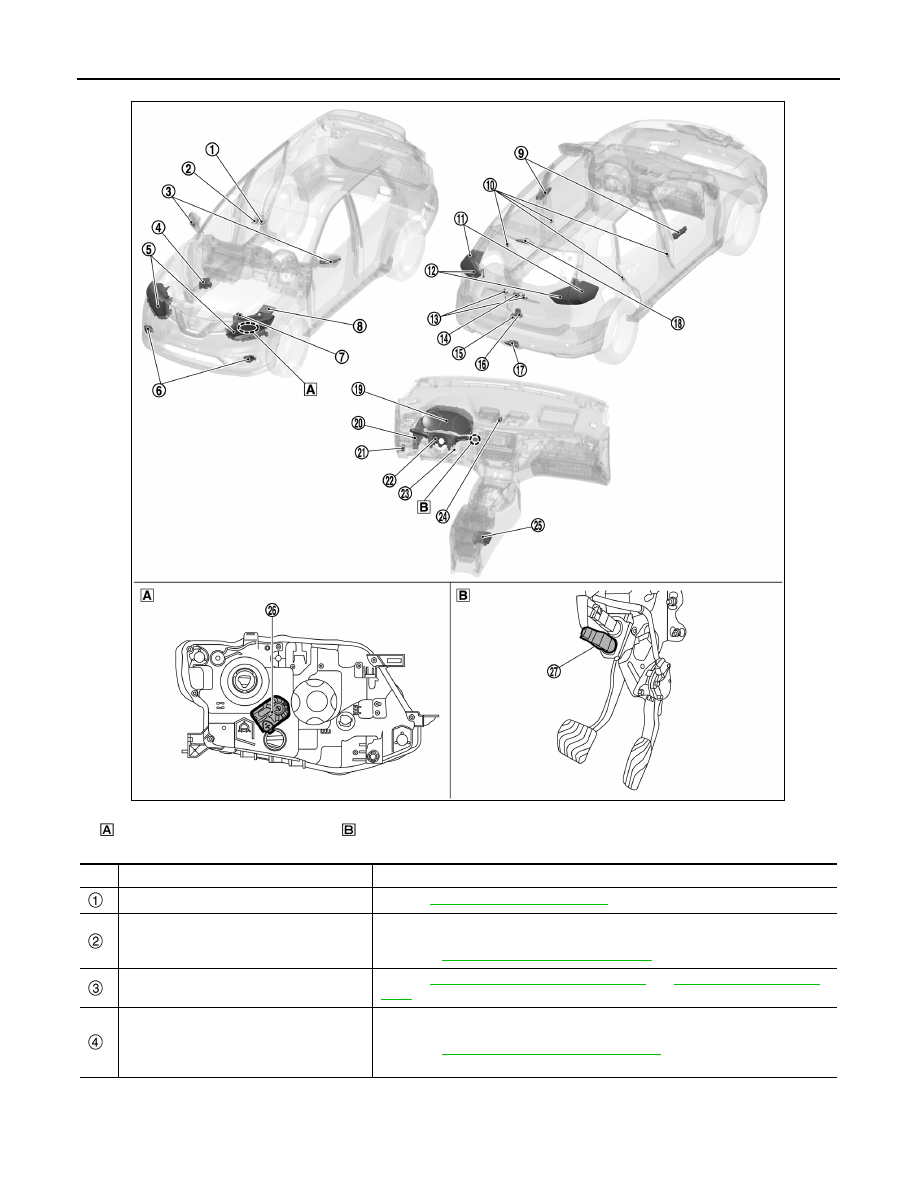

Component Parts Location

INFOID:0000000010789778

LHD MODELS

Item

Type

Wattage (W)

Front combination lamp

Headlamp (Hi)

H9

65

Headlamp (Lo)

H11

55

Parking lamp/
daytime running light

LED

—

Front turn signal lamp

WY21W (Amber)

21

Front fog lamp

H11

55

Side turn signal lamp

LED

—

Rear combination lamp

Stop lamp

W21W

21

Tail lamp

W5W

5

Rear turn signal lamp

WY21W

21

Back-up lamp

W16W

16

Rear fog lamp

W21W

21

License plate lamp

W5W

5

High-mounted stop lamp

LED

—

EXL-218

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

COMPONENT PARTS

Front combination lamp (back)

Brake pedal

No.

Component

Function

Light & rain sensor

Refer to

EXL-224, "Light & Rain Sensor"

.

Front camera unit*

1

• Judges the vehicle status from each signal in order to control the high beam as-

sist control.

• Refer  to

DAS-10, "Component Parts Location"

 for detailed installation location.

Side turn signal lamp

Refer to

EXL-216, "Exterior Lamp Appearance"

 and

EXL-216, "Bulb Specifica-

tions"

.

ABS actuator and electric unit (control

unit)*

2

• When the forward emergency braking operates, a request is transmitted to

BCM (CAN communication) to turn ON the stop lamp.

• Refer  to

BRC-228, "Component Parts Location"

 for detailed installation loca-

tion.

JMLIA5529ZZ

COMPONENT PARTS

EXL-219

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Front combination
lamp

Headlamp (HI)
(Halogen headlamp)

Refer to

EXL-216, "Exterior Lamp Appearance"

 and

EXL-216, "Bulb Specifica-

tions"

.

Headlamp (LO)
(Halogen headlamp)

Parking lamp / Day-
time running light

Front turn signal
lamp

Front fog lamp*

3

Refer to

EXL-216, "Exterior Lamp Appearance"

 and

EXL-216, "Bulb Specifica-

tions"

.

ECM

• ECM transmits engine status signal and Stop/Start status signal (with Stop/Start

system) to BCM via CAN communication.

• Refer to

EC-28, "ENGINE CONTROL SYSTEM : Component Parts Location"



(MR20DD),

EC-440, "Component Parts Location"

 (QR25DE) or

EC-812,

"Component Parts Location"

 (R9M) for detailed installation location.

IPDM E/R

• Controls the integrated smart FET, and supplies voltage to the load according

to the request from BCM via CAN communication.

• Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

Door request switch*

4

Refer to

DLK-341, "DOOR LOCK SYSTEM : Door Request Switch"

.

Door switch

Refer to

DLK-342, "DOOR LOCK SYSTEM : Door Switch"

 (with Intelligent Key) or

DLK-796, "Door Switch"

 (without Intelligent Key).

Rear combination
lamp (body side)

Tail lamp

Refer to

EXL-216, "Exterior Lamp Appearance"

 and

EXL-216, "Bulb Specifica-

tions"

.

Stop lamp

Rear turn signal
lamp

Rear combination
lamp (back door
side)

Tail lamp

Refer to

EXL-216, "Exterior Lamp Appearance"

 and

EXL-216, "Bulb Specifica-

tions"

.

License plate lamp

Refer to

EXL-216, "Exterior Lamp Appearance"

 and

EXL-216, "Bulb Specifica-

tions"

.

Hands free sensor*

5

Refer to

DLK-342, "DOOR LOCK SYSTEM : Hands Free Sensor"

.

Back door opener
switch assembly

Back door opener
switch

Refer to

DLK-340, "DOOR LOCK SYSTEM : Back Door Opener Switch Assem-

bly"

 (with Intelligent Key) or

DLK-795, "Back Door Opener Switch Assembly"



(without Intelligent Key).

Back door request

switch*

4

Back door lock as-
sembly

Back door switch

Refer to

DLK-340, "DOOR LOCK SYSTEM : Back Door Lock Assembly"

 (without

Intelligent Key) or

DLK-795, "Back Door Lock Assembly"

 (without Intelligent Key).

Rear fog lamp

Refer to

EXL-216, "Exterior Lamp Appearance"

 and

EXL-216, "Bulb Specifica-

tions"

.

High-mounted stop lamp

Refer to

EXL-216, "Exterior Lamp Appearance"

 and

EXL-216, "Bulb Specifica-

tions"

.

Combination meter

• Turns the indicator lamp and warning (information display/buzzer) ON/OFF ac-

cording to the request from BCM via CAN communication.

• Blinks the turn signal indicator lamp and outputs the turn signal operating sound

with integrated buzzer according to the request from BCM via CAN communi-
cation.

• Combination meter transmits vehicle speed signal to BCM via CAN communi-

cation.

No.

Component

Function

EXL-220

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

COMPONENT PARTS

*

1

: With high beam assist system

*

2

: With forward emergency braking

*

3

: With front fog lamp

*

4

: With Intelligent Key

*

5

: With hands free sensor

*

6

: Without Intelligent Key

RHD MODELS

BCM

• Detects each switch condition by the combination switch reading function.
• Exterior lamp ON/OFF is judged from each signal, and then a request is trans-

mitted to IPDM E/R (CAN communication) to turn each smart FET ON/OFF.

• It also transmits a request to the combination meter (CAN communication) to

turn indicator lamp and warning (information display/buzzer) ON/OFF.

• Blinks the turn signal lamp and hazard warning lamp according to the each

switch condition.

• Requests the turn signal indicator lamp blink to the combination meter via CAN

communication.

• Requests the turn signal operating sound ON to the combination meter via CAN

communication.

• Judges the vehicle status from each signal, and illuminates the stop lamp and

high-mounted stop lamp.

• Judges the vehicle status from each signal, and illuminates the rear fog lamp.
• Refer  to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for

detailed installation location.

Headlamp aiming switch

Refer to

EXL-224, "Headlamp Aiming Switch"

.

Combination switch

Refer to

BCS-13, "COMBINATION SWITCH READING SYSTEM : System De-

scription"

.

Ignition key cylin-

der*

6

Key switch

Refer to

DLK-796, "Ignition Key Cylinder"

.

Hazard switch

Refer to

EXL-224, "Hazard Switch"

.

Air bag diagnosis sensor unit

• When the air bag operates, a request is transmitted to BCM (CAN communica-

tion) to blinks the hazard warning lamp.

• Refer  to

SRC-6, "Component Parts Location"

 for detailed installation location.

Front combination
lamp

Headlamp aiming
motor

Refer to

EXL-223, "FRONT COMBINATION LAMP : Headlamp Aiming Motor"

.

Stop lamp switch

Refer to

EXL-224, "Stop Lamp Switch"

.

No.

Component

Function
