REAR FOG LAMP CIRCUIT

EXL-165

< DTC/CIRCUIT DIAGNOSIS >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REAR FOG LAMP CIRCUIT

Component Function Check

INFOID:0000000010788857

1.

CHECK REAR FOG LAMP OPERATION

With CONSULT

1.

Select “HEAD LAMP” of “BCM” using CONSULT.

2.

Select “RR FOG LAMP” in “Active Test” mode.

3.

With operating the test items, check that the rear fog lamp is turned ON.

Is the inspection result normal?

YES

>> Rear fog lamp circuit is normal.

NO

>> Refer to

EXL-165, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010788858

1.

CHECK REAR FOG LAMP OUTPUT VOLTAGE

With CONSULT

1.

Turn ignition switch OFF.

2.

Disconnect rear fog lamp connector.

3.

Turn ignition switch ON.

4.

Select “HEAD LAMP” of “BCM” using CONSULT.

5.

Select “RR FOG LAMP” in “Active Test” mode.

6.

With operating the test items, check voltage between rear fog lamp harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK REAR FOG LAMP POWER SUPPLY CIRCUIT (OPEN)

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check continuity between BCM harness connector and rear fog lamp harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK REAR FOG LAMP POWER SUPPLY CIRCUIT (SHORT)

Check continuity between BCM harness connector and ground.

On

: Rear fog lamp ON

Off

: Rear fog lamp OFF

+

-

Test item

Voltage

Rear fog lamp

Connector

Terminal

B152

2

Ground

RR FOG LAMP

On

9 – 16 V

Off

0 V

BCM

Rear fog lamp

Continuity

Connector

Terminal

Connector

Terminal

B46

122

B152

2

Existed

EXL-166

< DTC/CIRCUIT DIAGNOSIS >

[LED HEADLAMP]

REAR FOG LAMP CIRCUIT

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-121, "Removal and Installation"

.

NO

>> Repair or replace harness.

4.

CHECK REAR FOG LAMP GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between rear fog lamp harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness.

5.

CHECK REAR FOG LAMP BULB

Check rear fog lamp bulb.

Is the inspection result normal?

YES

>> Check rear fog lamp bulb socket. Repair or replace if necessary.

NO

>> Replace rear fog lamp bulb. Refer to

EXL-204, "REAR COMBINATION LAMP (BODY SIDE) :

Replacement"

.

BCM

Continuity

Connector

Terminal

B46

122

Ground

Not existed

Rear fog lamp

Continuity

Connector

Terminal

B152

1

Ground

Existed

TURN SIGNAL LAMP CIRCUIT

EXL-167

< DTC/CIRCUIT DIAGNOSIS >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

TURN SIGNAL LAMP CIRCUIT

Component Function Check

INFOID:0000000010788859

1.

CHECK TURN SIGNAL LAMP OPERATION

1.

Turn ignition switch ON.

2.

With operating the turn signal switch, check that the turn signal lamp is blinks.

Is the inspection result normal?

YES

>> Turn signal lamp circuit is normal.

NO

>> Refer to

EXL-167, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010788860

1.

CHECK SYMPTOM

Check symptom (A or B)

Which symptom is detected?

A

>> GO TO 2.

B

>> GO TO 4.

2.

CHECK FUSE

1.

Turn ignition switch OFF.

2.

Check that the following fuse is not fusing.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace the blown fuse after repairing the affected circuit if a fuse is blown.

3.

CHECK BCM POWER SUPPLY (TURN SIGNAL LAMP)

1.

Disconnect BCM connector.

2.

Check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-121, "Removal and Installation"

.

NO

>> Repair or replace harness.

4.

CHECK TURN SIGNAL LAMP OUTPUT VOLTAGE

1.

Turn ignition switch OFF.

2.

Disconnect the following connectors.

-

Front turn signal lamp

Right

: Turn signal lamps RH blink

Left

: Turn signal lamps LH blink

Center

: Turn signal lamps OFF

Symptom

A

All of turn signal lamp are not blinks

B

Applicable side performs high flasher activation

Unit

Location

Fuse No.

Capacity

BCM

Fuse block (J/B)

#1

15 A

+

-

Voltage

BCM

Connector

Terminal

M85

144

Ground

9 – 16 V

EXL-168

< DTC/CIRCUIT DIAGNOSIS >

[LED HEADLAMP]

TURN SIGNAL LAMP CIRCUIT

-

Door mirror

-

Rear combination lamp (body side)

3.

Turn ignition switch ON.

4.

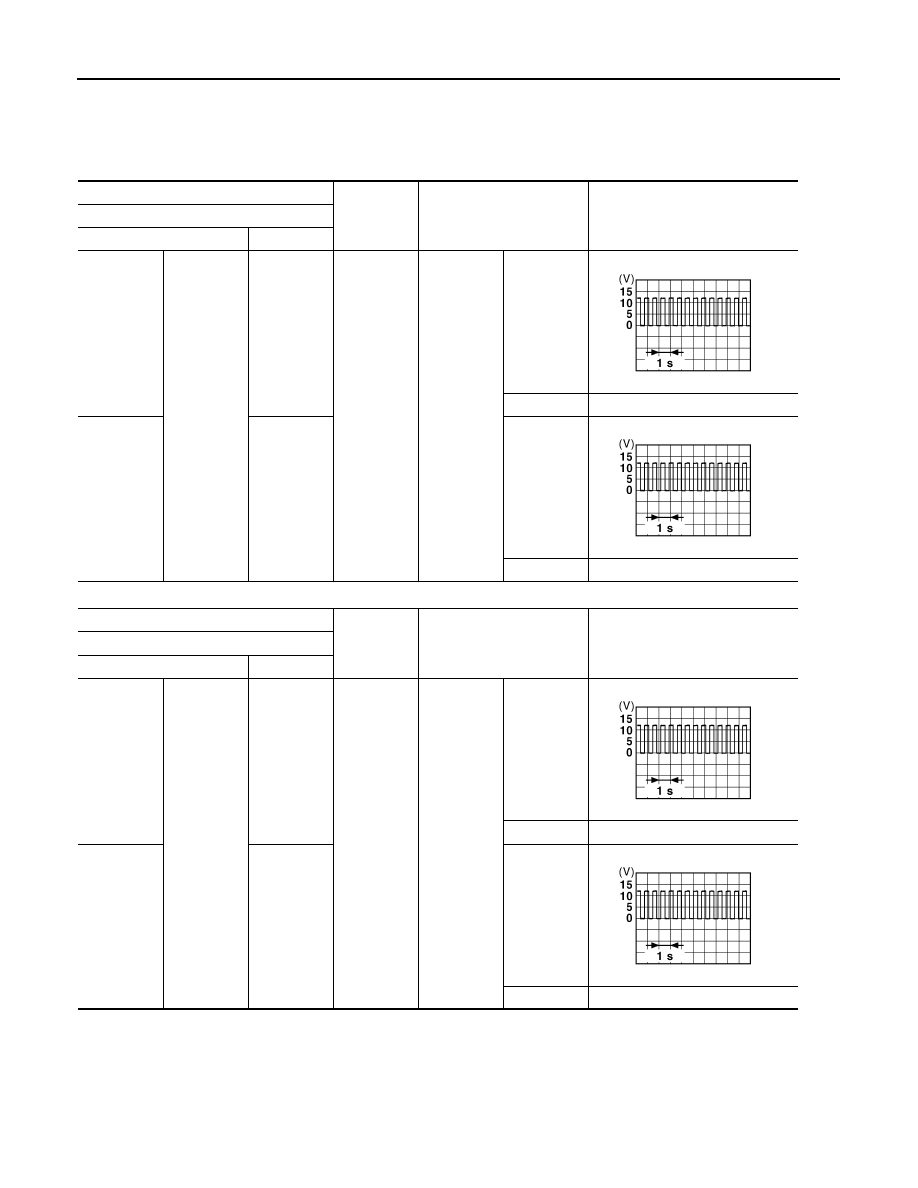

With operating the turn signal switch, check voltage between BCM harness connector and ground.

Front turn signal lamp

Side turn signal lamp

+

-

Test  item

Voltage

(Approx.)

BCM

Connector

Terminal

RH

E23

168

Ground

Turn signal
switch

Right

Center

0 V

LH

167

Left

Center

0 V

+

-

Test  item

Voltage

(Approx.)

BCM

Connector

Terminal

RH

M87

43

Ground

Turn signal
switch

Right

Center

0 V

LH

42

Left

Center

0 V

PKID0926E

PKID0926E

PKID0926E

PKID0926E
