ECU DIAGNOSIS INFORMATION

BCM, IPDM E/R, FRONT CAMERA UNIT

List of ECU Reference

INFOID:0000000010788783

ECU

Reference

BCM

BCS-53, "Reference Value"

BCS-76, "Fail-safe"

BCS-77, "DTC Inspection Priority Chart"

BCS-78, "DTC Index"

IPDM E/R

PCS-22, "Reference Value"

PCS-34, "Fail-safe"

PCS-37, "DTC Inspection Priority Chart"

PCS-38, "DTC Index"

Front camera unit

DAS-51, "Reference Value"

DAS-55, "Fail-safe (Front Camera Unit)"

DAS-56, "DTC Inspection Priority Chart"

DAS-56, "DTC Index"

EXL-70

< WIRING DIAGRAM >

[LED HEADLAMP]

EXTERIOR LIGHTING SYSTEM

WIRING DIAGRAM

EXTERIOR LIGHTING SYSTEM

Wiring Diagram

INFOID:0000000010788784

JRLWD5687GB

EXTERIOR LIGHTING SYSTEM

EXL-71

< WIRING DIAGRAM >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

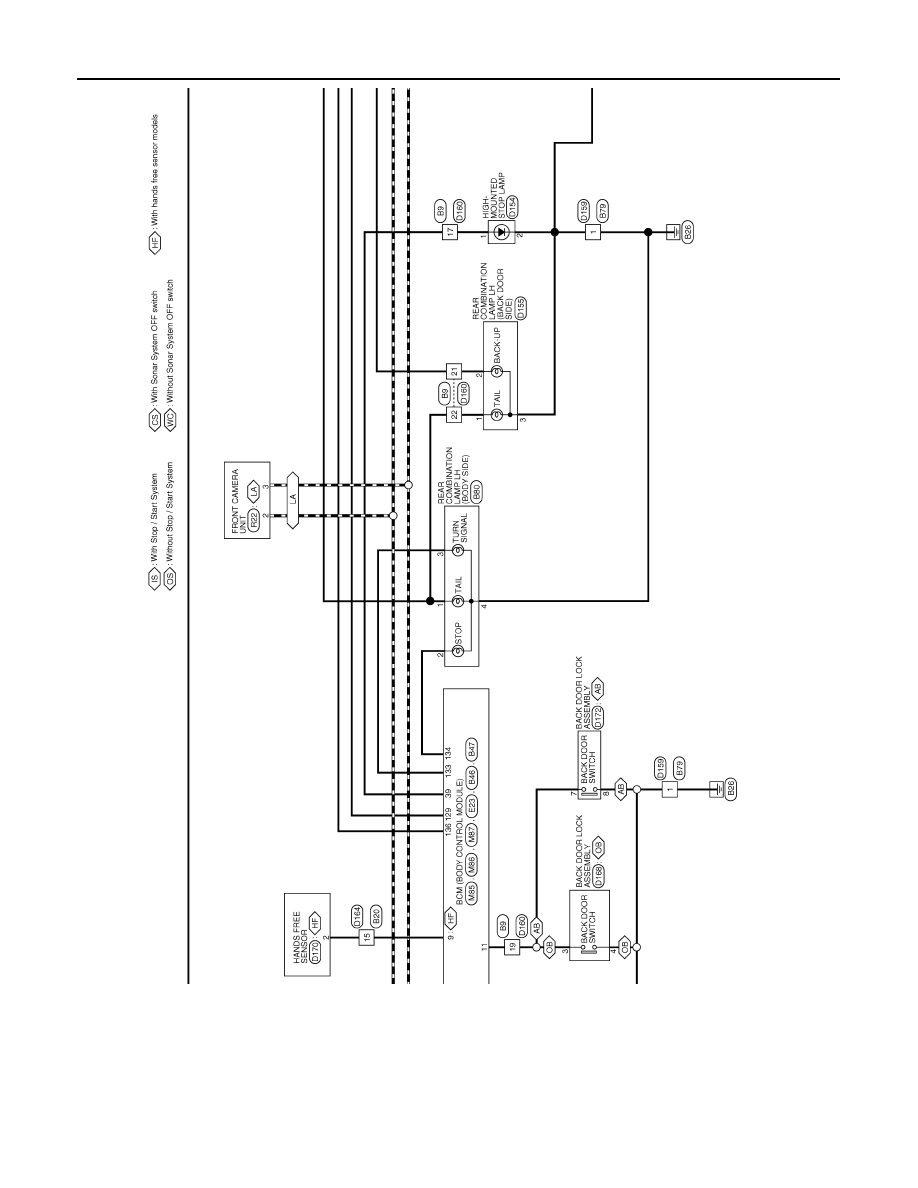

JRLWD5688GB

EXL-72

< WIRING DIAGRAM >

[LED HEADLAMP]

EXTERIOR LIGHTING SYSTEM

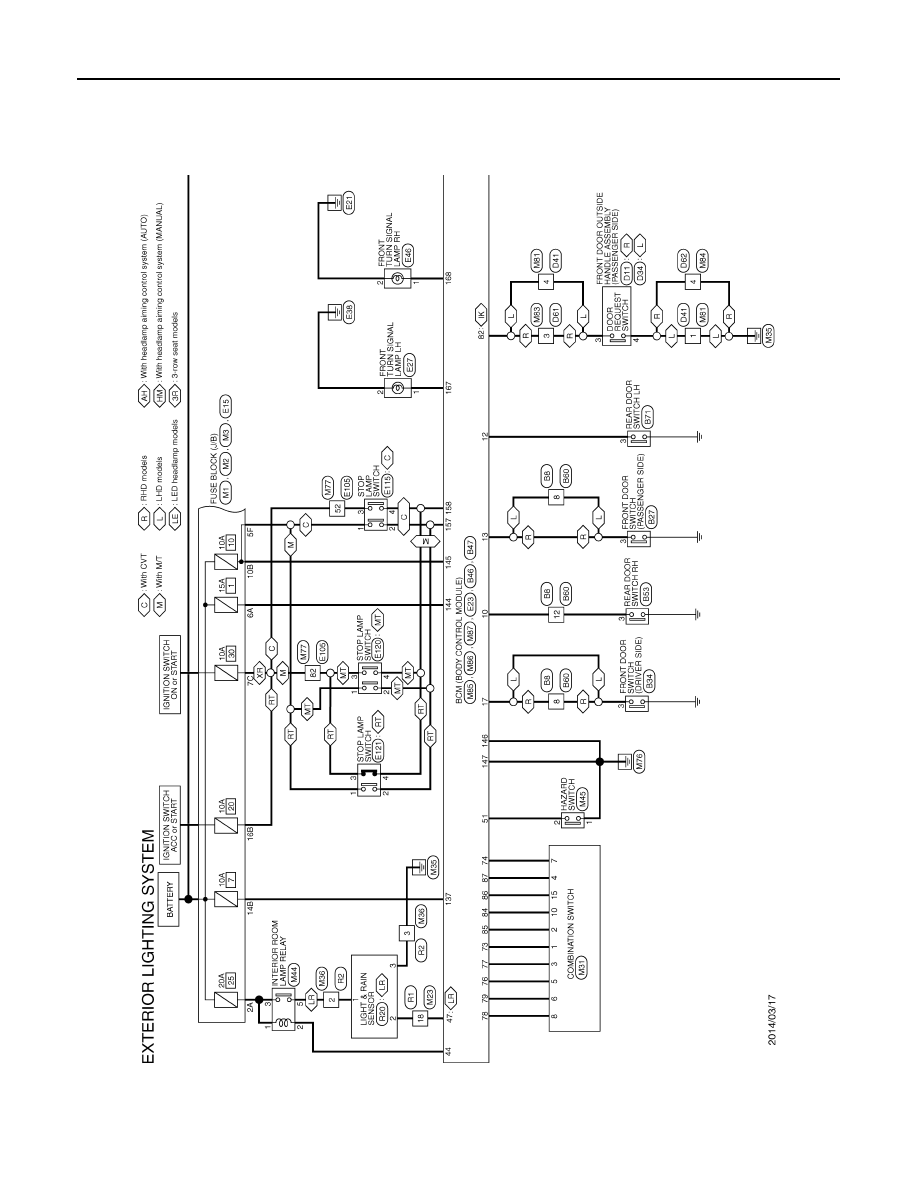

JRLWD5689GB
