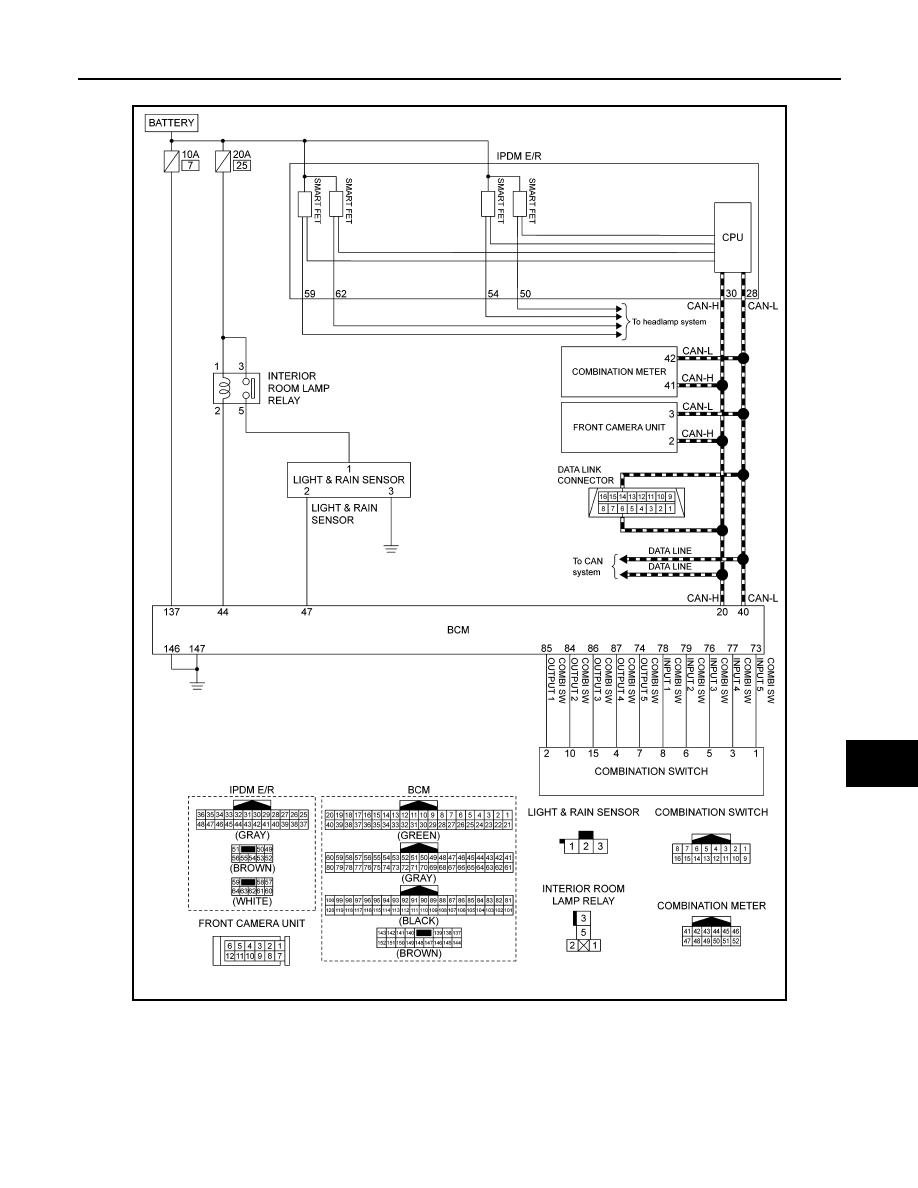

HIGH BEAM ASSIST SYSTEM : Circuit Diagram

INFOID:0000000011008905

HIGH BEAM ASSIST SYSTEM : Fail-safe

INFOID:0000000011008906

FRONT CAMERA UNIT TEMPORARY OPERATION CANCELLATION

• Temporary disabled status at high temperature
- If the vehicle is parked in direct sunlight under high temperature conditions, the system may be deactivated

automatically. And the system malfunction in information display.

JMLIA5513GB

EXL-30

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

SYSTEM

- When interior temperature is reduced, the system will resume operation automatically.
• When vehicle front identification is difficult
- When vehicle front identification is difficult due to soiling of windshield glass and strong light shining from the

front, operation may be canceled temporarily. At this time, a warning is displayed on the vehicle information
display in the combination meter.

- Normal operation recovers when conditions improve.

DAYTIME RUNNING LIGHT SYSTEM

DAYTIME RUNNING LIGHT SYSTEM : System Description

INFOID:0000000010788752

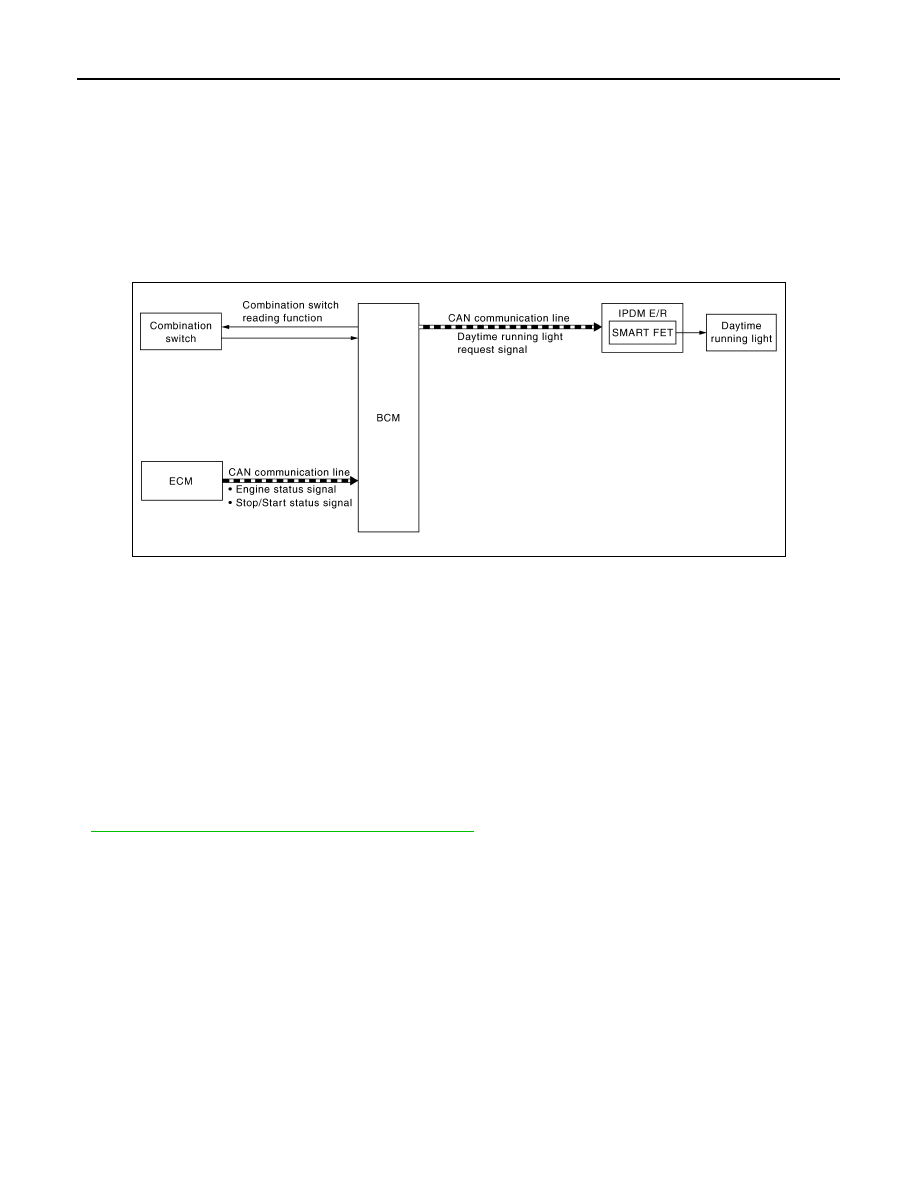

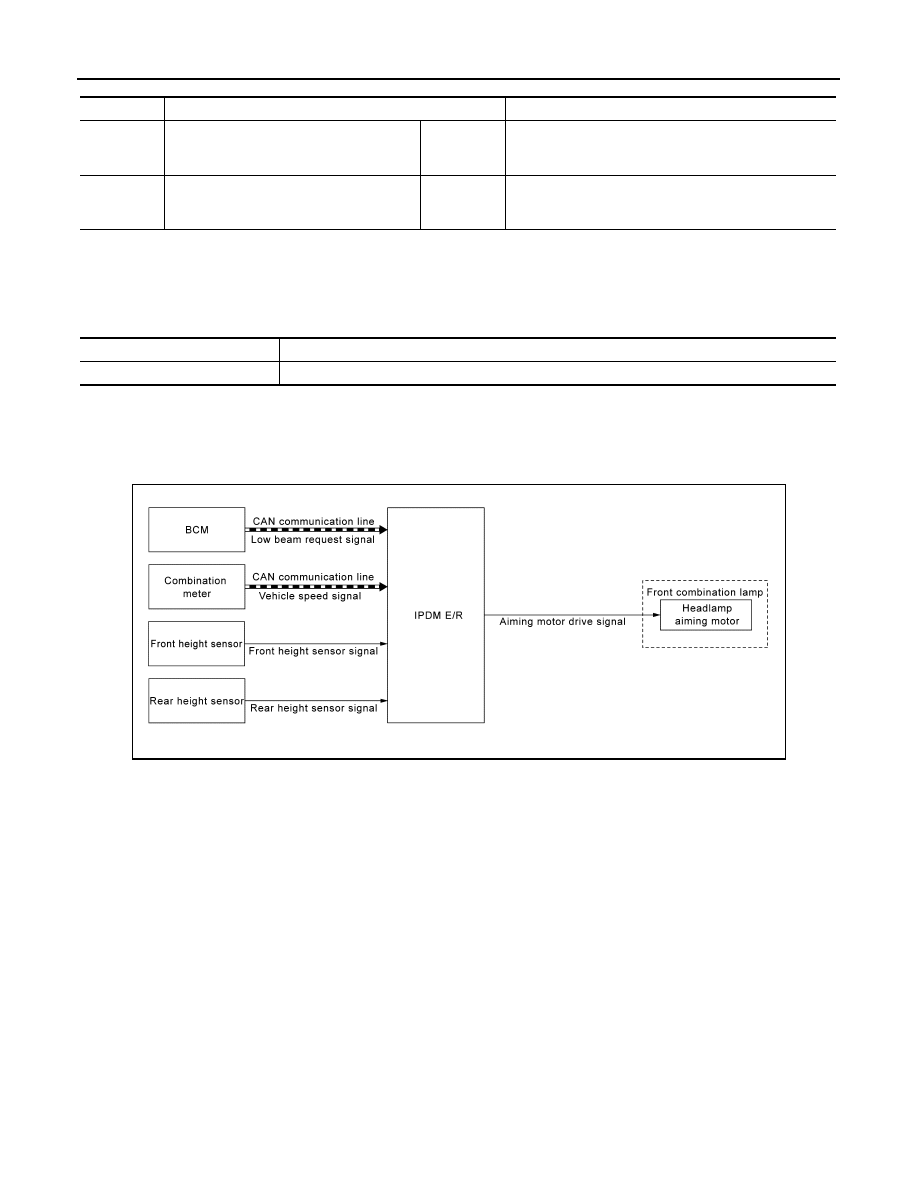

SYSTEM DIAGRAM

OUTLINE

Daytime running light is controlled by daytime running light control function and combination switch reading
function of BCM, and smart FET control function of IPDM E/R.

DAYTIME RUNNING LIGHT OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM detects vehicle condition depending on the engine status signal and Stop/Start status signal* (received

from ECM via CAN communication).

• BCM transmits the daytime running light request signal to IPDM E/R via CAN communication according to

the daytime running light ON condition.

Daytime running light ON condition

- Engine running and any following conditions are satisfied.
• Lighting switch OFF
• Lighting switch AUTO (Only when the illumination judgment by auto light system is OFF. For details, refer to

EXL-24, "AUTO LIGHT SYSTEM : System Description"

.)

• IPDM E/R turns the integrated smart FET ON, and turns the daytime running light ON according to the day-

time running light request signal.

NOTE:
When the engine is stopped by the Stop/Start system, the operation of daytime running light system is not can-
celed.*
*: With Stop/Start system

JMLIA5230GB

SYSTEM

EXL-31

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

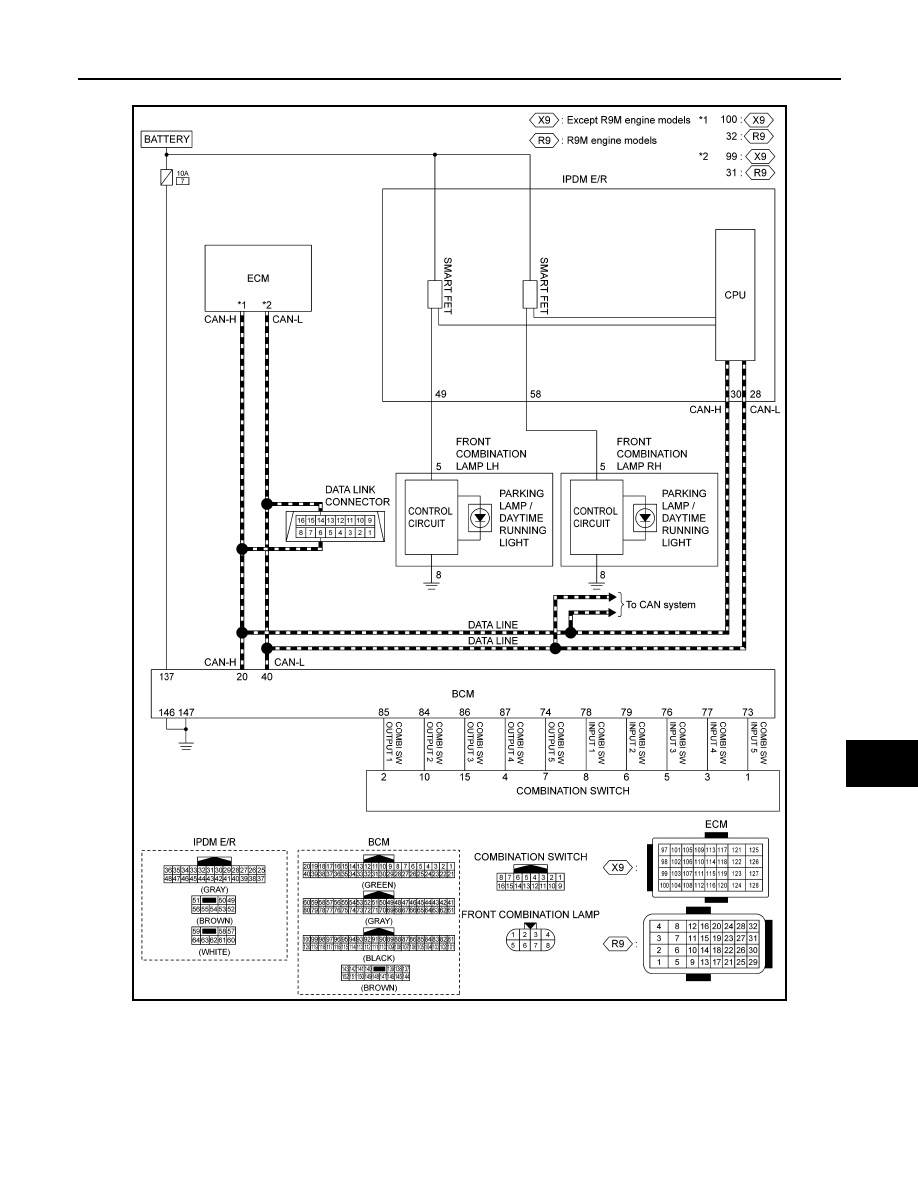

DAYTIME RUNNING LIGHT SYSTEM : Circuit Diagram

INFOID:0000000010788753

DAYTIME RUNNING LIGHT SYSTEM : Fail-safe

INFOID:0000000010788754

FAIL-SAFE CONTROL BY DTC

IPDM E/R performs fail-safe control when any DTC are detected.

JMLIA5514GB

EXL-32

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

SYSTEM

CAN COMMUNICATION CONTROL

When CAN communication with BCM is impossible, IPDM E/R performs fail-safe control. After CAN communi-
cation recovers normally, it also returns to normal control.

If No CAN Communication Is Available With BCM

HEADLAMP AIMING CONTROL SYSTEM (AUTO)

HEADLAMP AIMING CONTROL SYSTEM (AUTO) : System Description

INFOID:0000000010788755

SYSTEM DIAGRAM

OUTLINE

• Headlamp aiming control system is controlled by IPDM E/R.
• IPDM E/R controls the headlamp light axis height appropriately depending on the vehicle front height (3-row

seat models) and vehicle rear height.

• IPDM E/R detects the vehicle condition necessary for the headlamp aiming motor control with the following

signals.

- Front height sensor signal [inputted from front height sensor (3-row seat models)]
- Rear height sensor signal (inputted from rear height sensor)
- Low beam request signal (received from BCM via CAN communication)
- Vehicle speed signal (received from combination meter via CAN communication)

HEADLAMP AUTO AIMING OPERATION

• IPDM E/R calculates vehicle pitch angle from front height sensor (3-row seat models) and rear height sensor

signal and determines the necessary correction to compensate the deviation from standard light axis posi-
tion.

• IPDM E/R outputs aiming motor drive signal when operating conditions are satisfied.

Operating condition (when all of the following conditions are satisfied)

- Ignition switch ON
- Headlamp (LO) ON
• IPDM E/R changes the aiming motor drive signal when any of the correcting condition is detected. Output is

maintained if other condition is detected.

DTC

CONSULT display description

Fail-safe

B1231

DTRL RH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the daytime running light RH
power supply circuit until the daytime running light ON
conditions are no longer satisfied.

B20CB

DTRL LH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the daytime running light LH
power supply circuit until the daytime running light ON
conditions are no longer satisfied.

Control part

Fail-safe operation

Daytime running light

Daytime running light: OFF

JMLIA5515GB
