Nissan X-Trail 32. Manual - part 1139





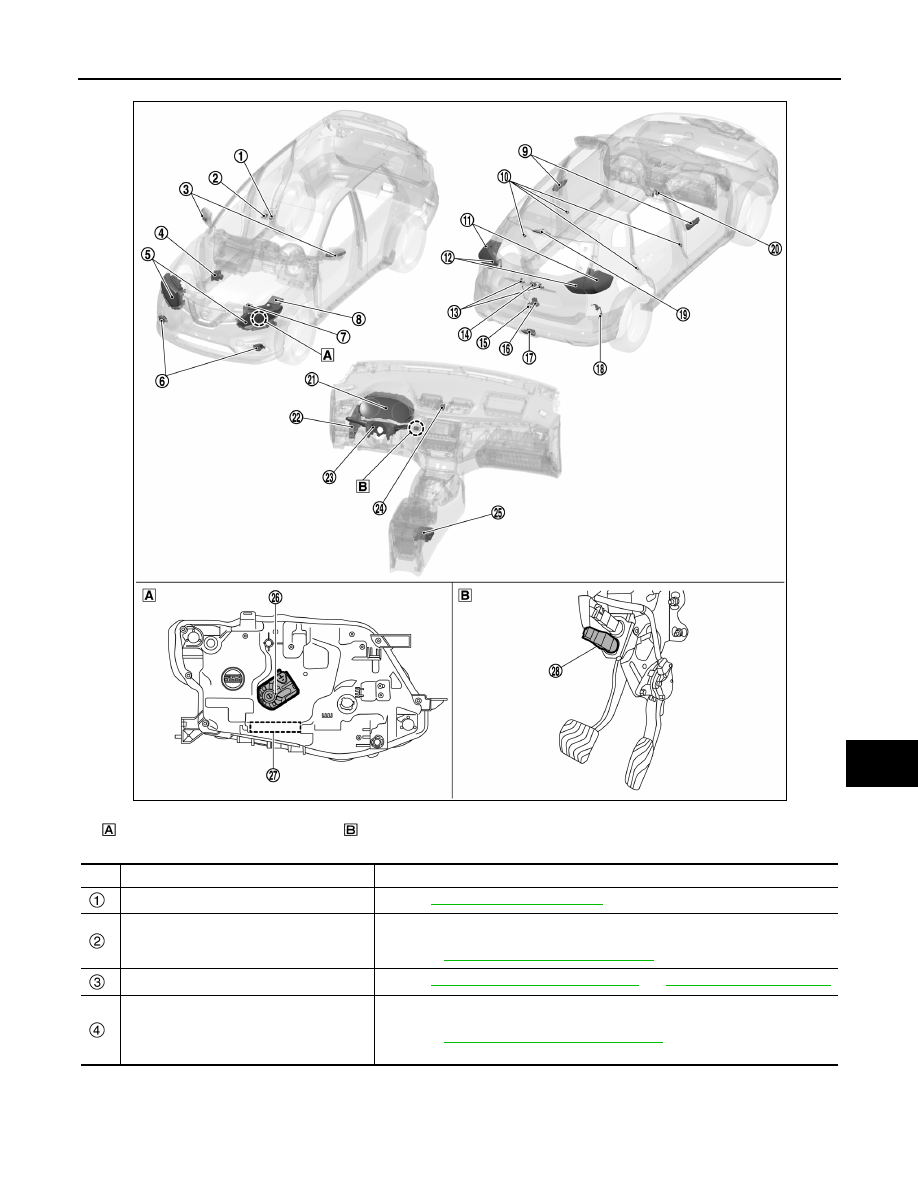

COMPONENT PARTS

EXL-13

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Front combination lamp (back)

Brake pedal

No.

Component

Function

Light & rain sensor

Refer to

EXL-20, "Light & Rain Sensor"

.

Front camera unit

• Judges the vehicle status from each signal in order to control the high beam as-

sist control.

• Refer  to

DAS-10, "Component Parts Location"

 for detailed installation location.

Side turn signal lamp

Refer to

EXL-11, "Exterior Lamp Appearance"

 an

EXL-12, "Bulb Specifications"

.

ABS actuator and electric unit (control

unit)*

1

• When the forward emergency braking operates, a request is transmitted to

BCM (CAN communication) to turn ON the stop lamp.

• Refer to

BRC-228, "Component Parts Location"

 for detailed installation loca-

tion.

JMLIA5527ZZ

EXL-14

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

COMPONENT PARTS

Front combination
lamp

Headlamp (HI)
(LED headlamp)

Refer to

EXL-11, "Exterior Lamp Appearance"

EXL-12, "Bulb Specifications"

 and

EXL-18, "FRONT COMBINATION LAMP : LED Headlamp"

.

Headlamp (LO)
(LED headlamp)

Parking lamp / Day-
time running light

Refer to

EXL-11, "Exterior Lamp Appearance"

 an

EXL-12, "Bulb Specifications"

.

Front turn signal
lamp

Front fog lamp

Refer to

EXL-11, "Exterior Lamp Appearance"

 an

EXL-12, "Bulb Specifications"

.

ECM

• ECM transmits engine status signal and Stop/Start status signal (with Stop/Start

system) to BCM via CAN communication.

• Refer  to

EC-28, "ENGINE CONTROL SYSTEM : Component Parts Location"



(MR20DD),

EC-440, "Component Parts Location"

 (QR25DE) or

EC-812,

"Component Parts Location"

 (R9M) for detailed installation location.

IPDM E/R

• Controls the integrated smart FET, and supplies voltage to the load according

to the request from BCM via CAN communication.

• The headlamp warning signal is input from the LED headlamp control module,

and the IPDM E/R requests the combination meter (CAN communication) to
display the headlamp warning.

• Judges the vehicle status from each signal in order to control the headlamp

aiming control.

• Refer  to

PCS-5, "Component Parts Location"

 for detailed installation location.

Door request switch

Refer to

DLK-341, "DOOR LOCK SYSTEM : Door Request Switch"

.

Door switch

Refer to

DLK-342, "DOOR LOCK SYSTEM : Door Switch"

.

Rear combination
lamp (body side)

Tail lamp

Refer to

EXL-11, "Exterior Lamp Appearance"

 an

EXL-12, "Bulb Specifications"

.

Stop lamp

Rear turn signal
lamp

Rear combination
lamp (back door
side)

Tail lamp

Refer to

EXL-11, "Exterior Lamp Appearance"

 an

EXL-12, "Bulb Specifications"

.

License plate lamp

Refer to

EXL-11, "Exterior Lamp Appearance"

 an

EXL-12, "Bulb Specifications"

.

Hands free sensor*

2

Refer to

DLK-342, "DOOR LOCK SYSTEM : Hands Free Sensor"

.

Back door opener
switch assembly

Back door opener
switch

Refer to

DLK-340, "DOOR LOCK SYSTEM : Back Door Opener Switch Assem-

bly"

.

Back door request
switch

Back door lock as-
sembly

Back door switch

Refer to

DLK-340, "DOOR LOCK SYSTEM : Back Door Lock Assembly"

.

Rear fog lamp

Refer to

EXL-11, "Exterior Lamp Appearance"

 an

EXL-12, "Bulb Specifications"

.

Rear height sensor

Refer to

EXL-20, "Rear Height Sensor"

.

High-mounted stop lamp

Refer to

EXL-11, "Exterior Lamp Appearance"

 an

EXL-12, "Bulb Specifications"

.

Front height sensor*

3

Refer to

EXL-19, "Front Height Sensor"

.

Combination meter

• Turns the indicator lamp and warning (information display/buzzer) ON/OFF ac-

cording to the request from BCM via CAN communication.

• Turns the headlamp warning ON according to the request from IPDM E/R via

CAN communication.

• Blinks the turn signal indicator lamp and outputs the turn signal operating sound

with integrated buzzer according to the request from BCM via CAN communi-
cation.

• Combination meter transmits vehicle speed signal to BCM and IPDM E/R via

CAN communication.

No.

Component

Function

COMPONENT PARTS

EXL-15

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

*

1

: With forward emergency braking

*

2

: With hands free sensor

*

3

: 3-row seat models

RHD MODELS

BCM

• Detects each switch condition by the combination switch reading function.
• Exterior lamp ON/OFF is judged from each signal, and then a request is trans-

mitted to IPDM E/R (CAN communication) to turn each smart FET ON/OFF.

• It also transmits a request to the combination meter (CAN communication) to

turn indicator lamp and warning (information display/buzzer) ON/OFF.

• Blinks the turn signal lamp and hazard warning lamp according to the each

switch condition.

• Requests the turn signal indicator lamp blink to the combination meter via CAN

communication.

• Requests the turn signal operating sound ON to the combination meter via CAN

communication.

• Judges the vehicle status from each signal, and illuminates the stop lamp and

high-mounted stop lamp.

• Judges the vehicle status from each signal, and illuminates the rear fog lamp.
• Refer  to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for

detailed installation location.

Combination switch

Refer to

BCS-13, "COMBINATION SWITCH READING SYSTEM : System De-

scription"

.

Hazard switch

Refer to

EXL-20, "Hazard Switch"

.

Air bag diagnosis sensor unit

• When the air bag operates, a request is transmitted to BCM (CAN communica-

tion) to blinks the hazard warning lamp.

• Refer to

SRC-6, "Component Parts Location"

 for detailed installation location.

Front combination
lamp

Headlamp aiming
motor

Refer to

EXL-19, "FRONT COMBINATION LAMP : Headlamp Aiming Motor"

.

LED headlamp con-
trol module

Refer to

EXL-19, "FRONT COMBINATION LAMP : LED Headlamp Control Mod-

ule"

.

Stop lamp switch

Refer to

EXL-20, "Stop Lamp Switch"

.

No.

Component

Function

EXL-16

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

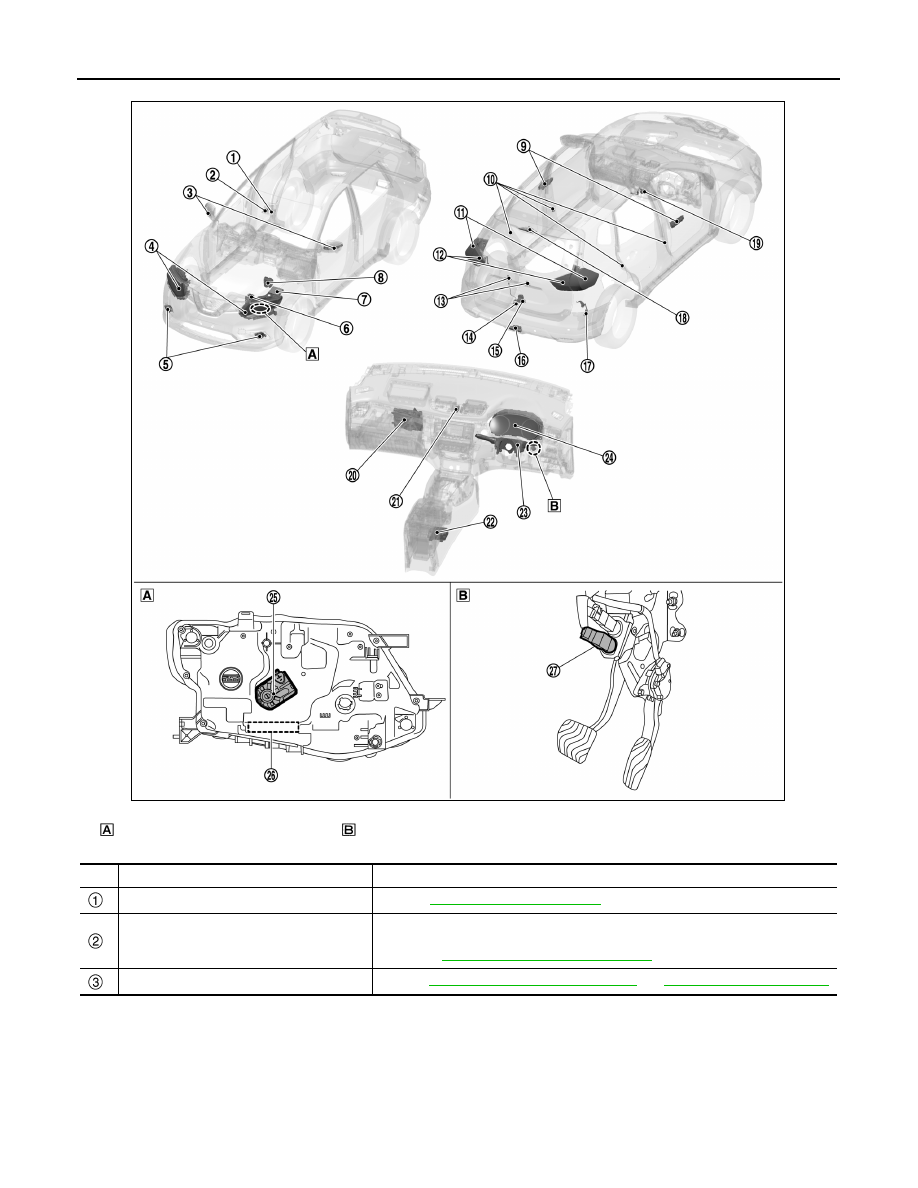

COMPONENT PARTS

Front combination lamp (back)

Brake pedal

No.

Component

Function

Light & rain sensor

Refer to

EXL-20, "Light & Rain Sensor"

.

Front camera unit

• Judges the vehicle status from each signal in order to control the high beam as-

sist control.

• Refer  to

DAS-10, "Component Parts Location"

 for detailed installation location.

Side turn signal lamp

Refer to

EXL-11, "Exterior Lamp Appearance"

 an

EXL-12, "Bulb Specifications"

.

JMLIA5528ZZ
