EX-16

< PERIODIC MAINTENANCE >

[R9M]

EXHAUST SYSTEM

PERIODIC MAINTENANCE

EXHAUST SYSTEM

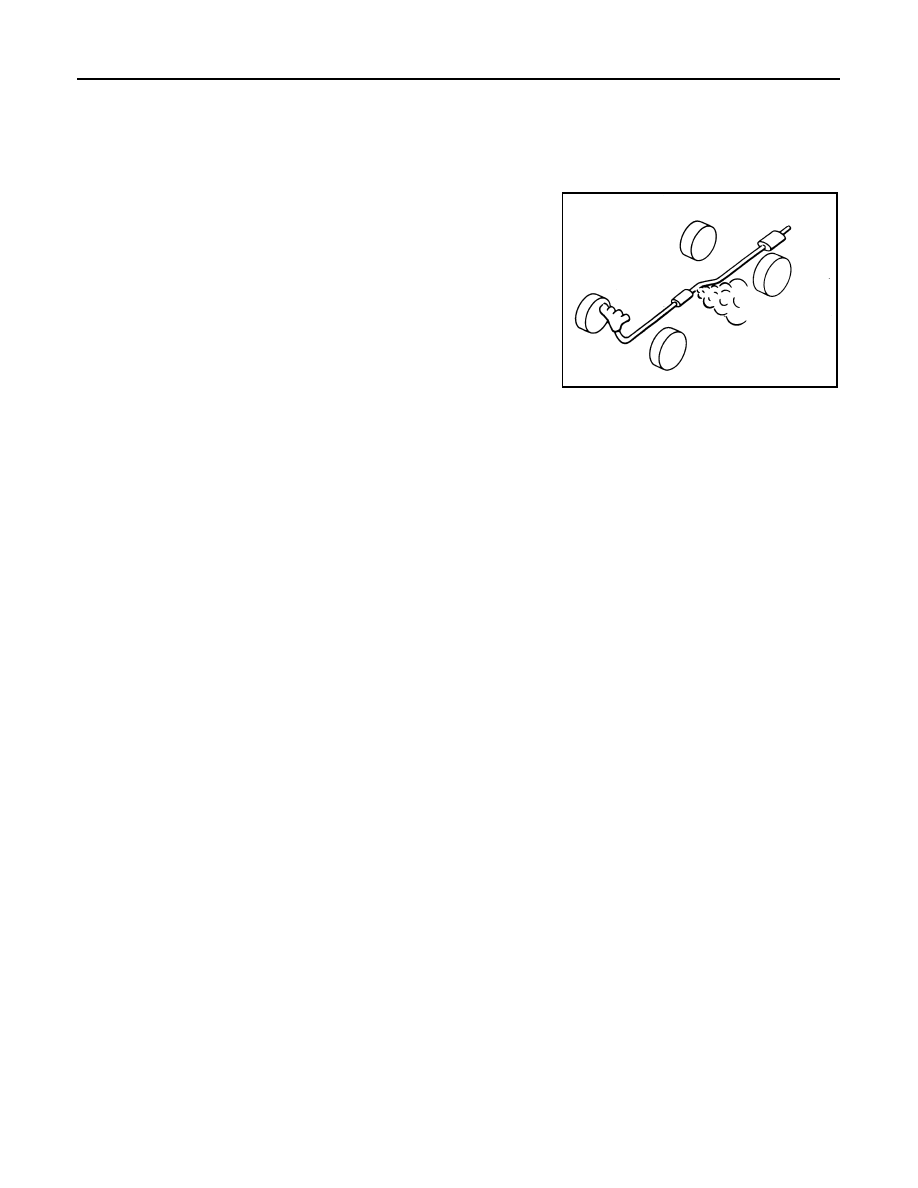

Inspection

INFOID:0000000010782900

Check exhaust pipes, muffler, and mounting for improper attach-
ment, leakage, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

SMA211A

EXHAUST SYSTEM

EX-17

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

REMOVAL AND INSTALLATION

EXHAUST SYSTEM

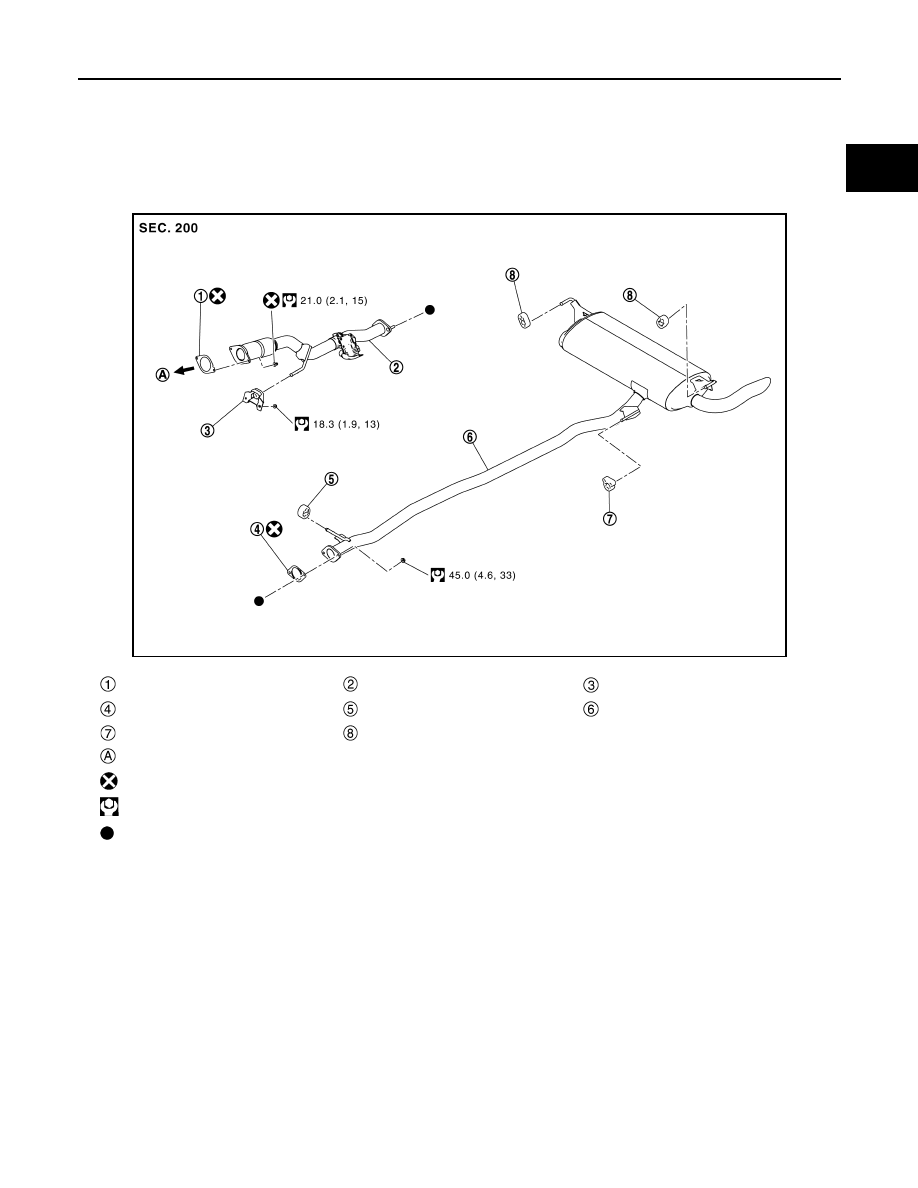

Exploded View

INFOID:0000000010782901

2WD models

JSBIA5143GB

Gasket

Exhaust front tube

Mounting rubber

Gasket

Mounting rubber

Main muffler

Mounting rubber

Mounting rubber

To DPF (diesel particulate filter)

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Indicates that the part is connected at points with same symbol in actual vehicle.

EX-18

< REMOVAL AND INSTALLATION >

[R9M]

EXHAUST SYSTEM

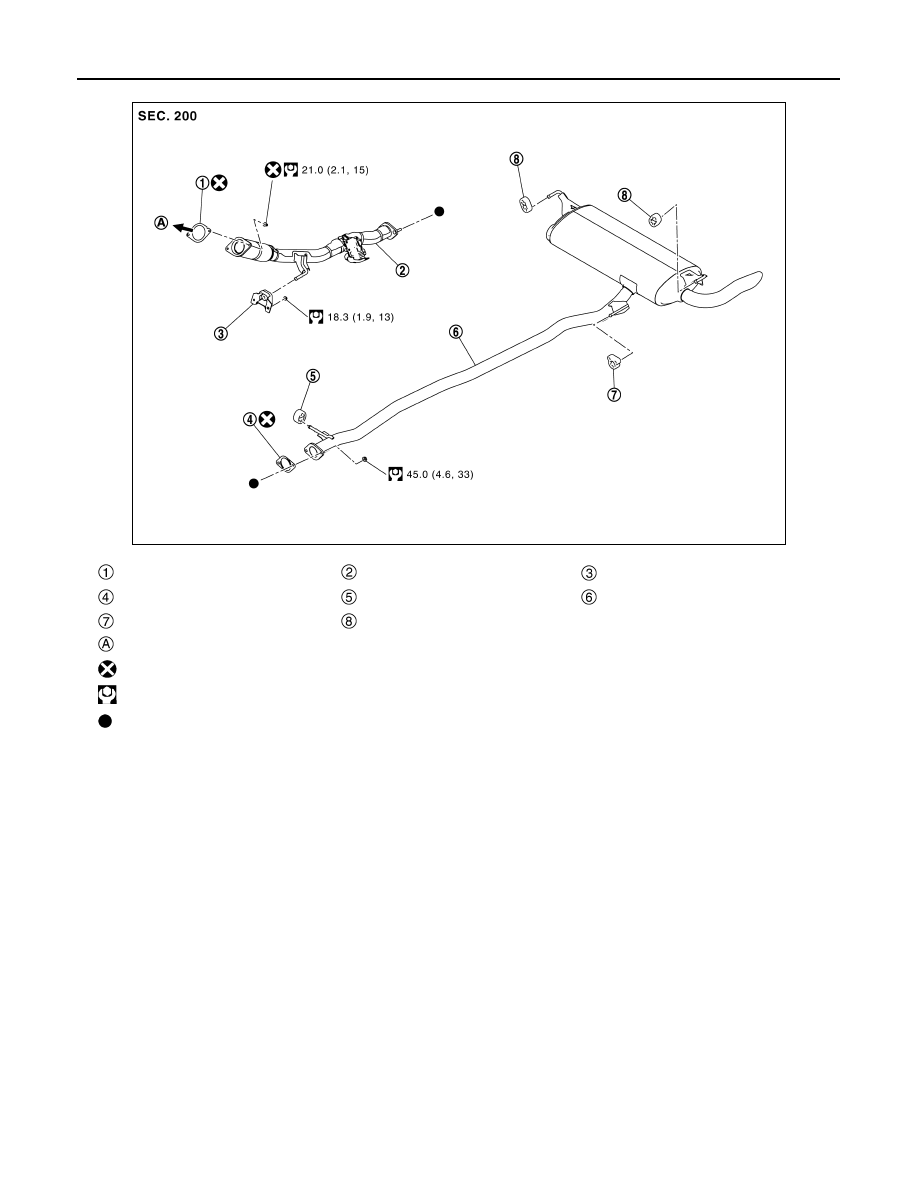

4WD models

Removal and Installation

INFOID:0000000010782902

REMOVAL

• Disconnect each joint and mounting.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Always replace gaskets with new ones when reassembling.
• If heat insulator is badly deformed, repair or replace it. If deposits such as mud pile up on the heat

insulator, remove them.

• When installing heat insulator avoid large gaps or interference between heat insulator and each

exhaust pipe.

• Remove deposits from the sealing surface of each connection. Connect them securely to avoid gas

leakage.

• Temporarily tighten mounting nuts and bolts. Check each part for unusual interference and mount-

ing rubber interference, and then tighten them to the specified torque.

• When installing each mounting rubber, avoid twisting or unusual extension in up/down, front/rear

and right/left directions.

• Install mounting rubber, refer to the following instructions,

JSBIA5144GB

Gasket

Exhaust front tube

Mounting rubber

Gasket

Mounting rubber

Main muffler

Mounting rubber

Mounting rubber

To DPF (diesel particulate filter)

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Indicates that the part is connected at points with same symbol in actual vehicle.

EXHAUST SYSTEM

EX-19

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

- Install slit of the mounting rubber

 is in a horizontal direction.

Inspection

INFOID:0000000010782903

INSPECTION AFTER INSTALLATION

• Check clearance between tail tube and rear bumper is even.
• With engine running, check exhaust tube joints for gas leakage and unusual noises.
• Check to ensure that mounting brackets and mounting rubbers are installed properly and free from undue

stress. Improper installation could result in excessive noise and vibration.

: RH

: LH

: Vehicle upper

JPBIA6874ZZ
