FUEL PUMP SPROCKET

EM-345

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

6.

Remove the fuel pump gear.

INSTALLATION

1.

Refit the fuel pump gear to the new fuel pump.

2.

Screw in the new fuel pump gear on the work-bench, without tightening it.

3.

Lock the fuel pump on the workbench in a vice with protective jaws.

4.

Torque tighten the nut.

EM-346

< REMOVAL AND INSTALLATION >

[R9M]

TIMING CHAIN

TIMING CHAIN

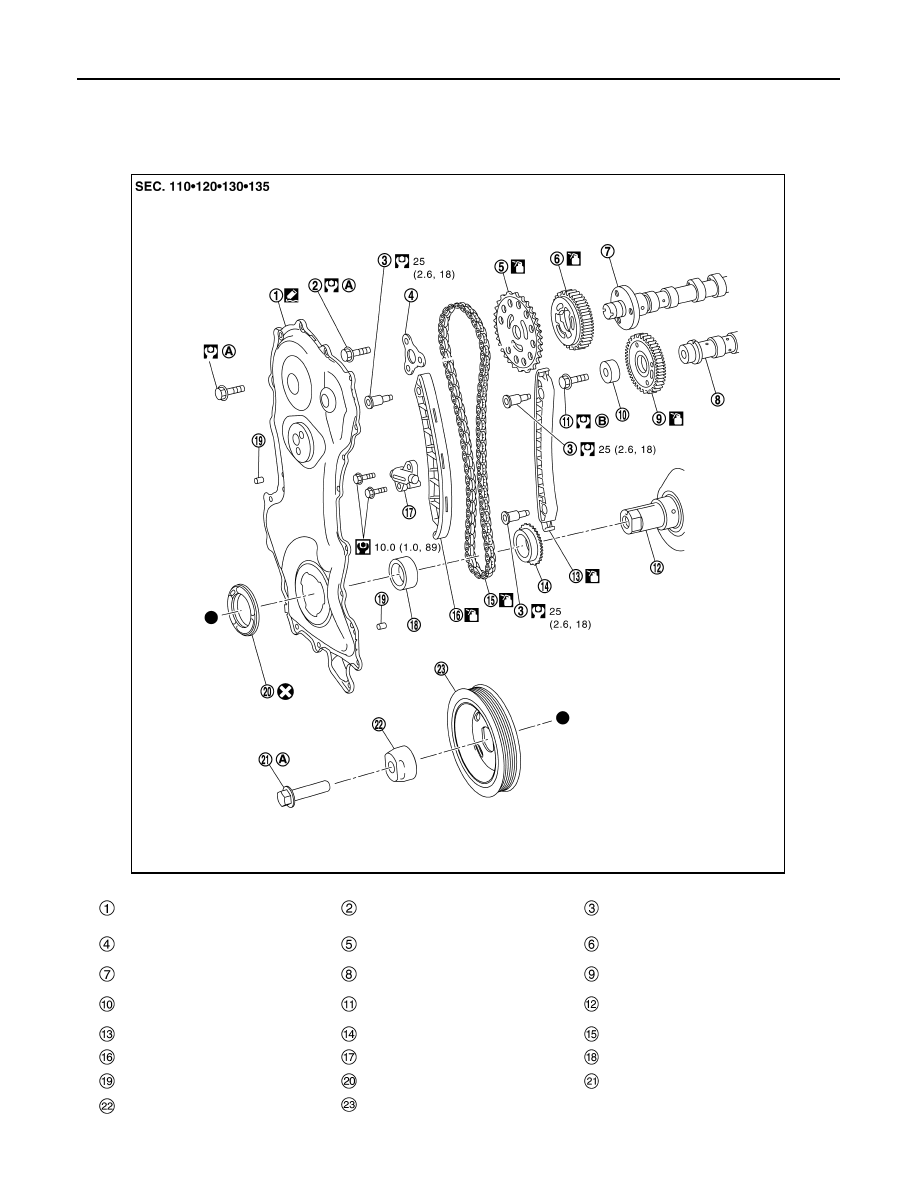

Exploded View

INFOID:0000000010784344

Front cover

Exhaust camshaft timing sprocket
bolt

Guide bolt

Timing sprocket spacer

Exhaust camshaft timing sprocket
(front)

Exhaust camshaft timing sprocket
(rear)

Exhaust camshaft

Intake camshaft

Intake camshaft timing sprocket

Intake camshaft timing sprocket
spacer

Intake camshaft timing sprocket bolt

Crankshaft

Tension guide

Crankshaft sprocket

Timing chain

Slack guide

Timing chain tensioner

Crankshaft spacer

Timing chain cover pin

Front oil seal

Crankshaft pulley bolt

Crankshaft spacer

Crankshaft pulley

JPBIA6954GB

TIMING CHAIN

EM-347

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Removal and Installation

INFOID:0000000010784345

REMOVAL

1.

Drain engine oil. Refer to

LU-39, "Draining"

.

CAUTION:

Perform this step when the engine is cold.

2.

Disconnect the battery cable from the negative terminal.

3.

Remove the following parts:
• Engine under cover: Refer to

EXT-39, "ENGINE UNDER COVER : Exploded View"

.

• Load wheel tire (RH): Refer to

WT-61, "Exploded View"

.

• Fender protector (RH): Refer to

EXT-35, "FENDER PROTECTOR : Exploded View"

.

• Drive belt: Refer to

EM-300, "Removal and Installation"

.

• Drive belt auto-tensioner: Refer to

EM-300, "Exploded View"

.

• Engine coolant bypass control solenoid valve: Refer to

EM-313, "Exploded View"

.

• Fuel filter: Refer to

FL-37, "Removal and Installation"

.

4.

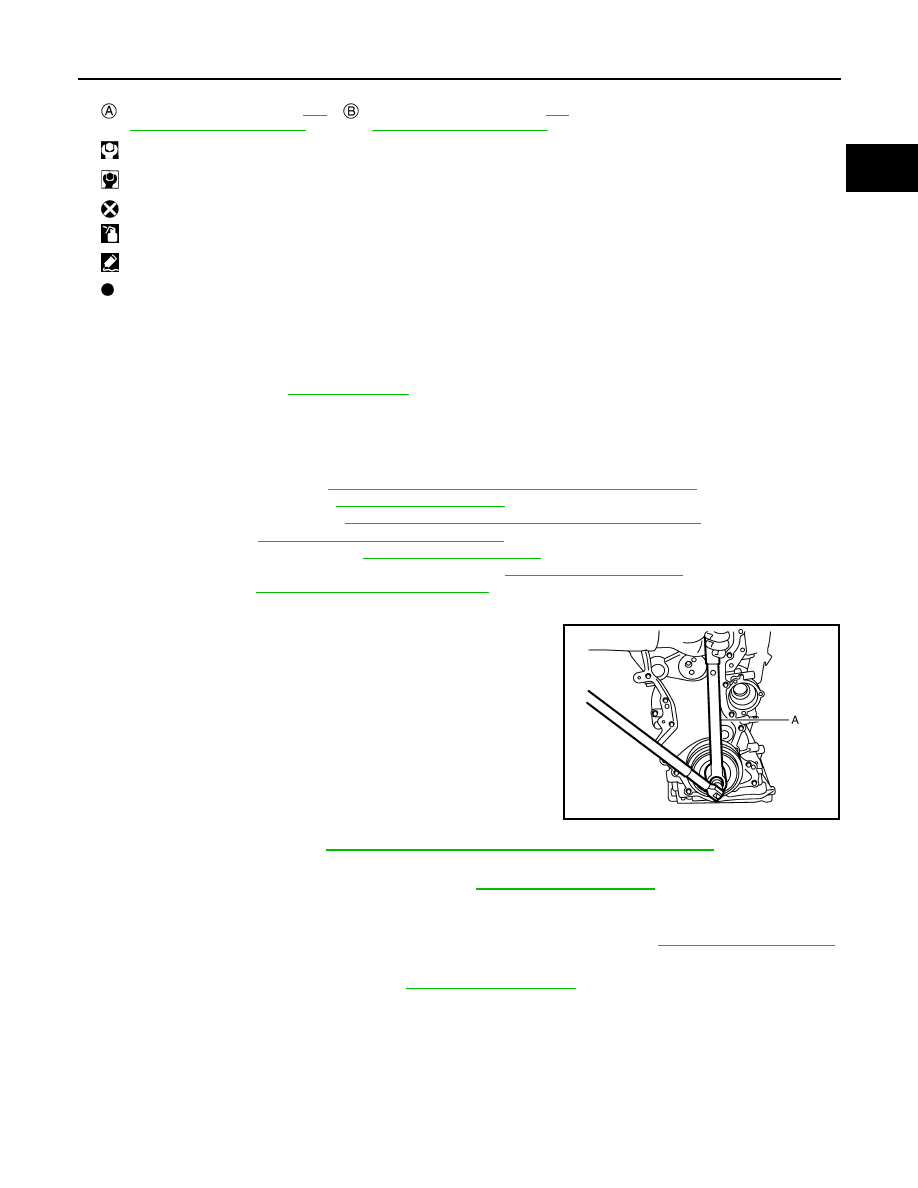

Remove crankshaft pulley with the following procedure:

a.

Set the crankshaft pulley locking tool [SST: — (Mot. 1770)] (A)
and loosen crankshaft pulley bolt.

b.

Remove crankshaft pulley and spacer.
• Pull crankshaft pulley with both hands to remove it.

CAUTION:

Be careful not to damage front oil seal lip.

5.

Remove front oil seal. Refer to

EM-363, "FRONT OIL SEAL : Removal and Installation"

.

6.

Remove the through bolt between rear torque rod and rear torque rod bracket, and hold the rear
torque rod bracket with a transmission jack. Refer to

EM-365, "Exploded View"

.

CAUTION:

Never hold the oil pan (lower).

7.

Remove the upper torque rod and the engine mounting insulator (RH). Refer to

EM-365, "Exploded View"

.

8.

Remove engine mounting bracket (RH).

9.

Remove water pump pulley bolts. Refer to

CO-83, "Exploded View"

.

10. Remove front cover with the following procedure:
a.

Loosen front cover mounting bolts.

b.

Use the seal cutter [SST: KV10111100 ( — )] to cut liquid gasket for removal.

CAUTION:

Never use a screwdriver or something similar.
NOTE:
Unstick the front cover by hand, using a jerking motion to ensure it is not damaged.

Comply with the installation proce-
dure when tightening. Refer to

EM-

347, "Removal and Installation"

.

Comply with the installation proce-
dure when tightening. Refer to

EM-

354, "Removal and installation"

.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

: Should be lubricated with oil.

: Sealing point

: Indicates that the part is connected at points with same symbol in actual vehicle.

JPBIA0730ZZ

EM-348

< REMOVAL AND INSTALLATION >

[R9M]

TIMING CHAIN

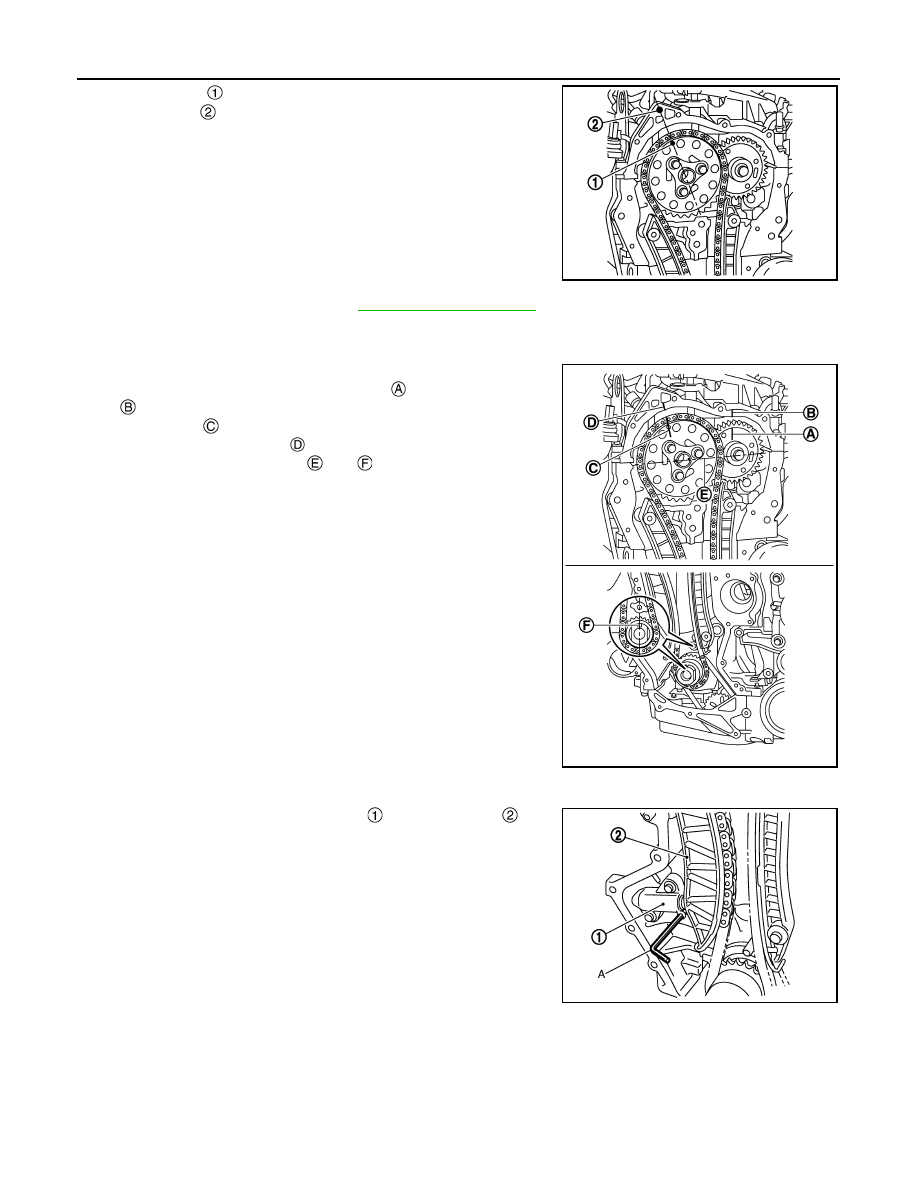

11. Align the hole

 on the exhaust camshaft timing sprocket (front)

with the hole

 on the cylinder head housing.

• NOTE:

Turn the crankshaft clockwise using the tool [SST: —
(Mot.1770)].

12. Remove the TDC pin plug. Refer to

EM-389, "Exploded View"

.

13. In place of plug, manually tighten the tool [SST: — (Mot.1970)].

14. Turn the crankshaft clockwise until it makes contact with the pin.

15. Make a mark:

• on the intake camshaft timing sprocket

 and the rocker cover

 (vertically).

• on the hole

 on the exhaust camshaft timing sprocket (front)

and on the rocker cover

.

• Check the mark alignment

 and

.

16. Loosen the exhaust camshaft timing sprocket bolts (front).

17. Compress the timing chain tensioner

 with slack guide

, and

then insert a stopper pin (A) into hole on timing chain tensioner.
NOTE:
Use approximately 3.0 mm (0.118 in) dia. hard metal pin as a
stopper pin

18. Remove the timing chain with the following procedure:

a.

the timing chain tensioner,

b.

the slack guide,

c.

the exhaust camshaft timing sprocket bolts,

d.

the timing sprocket spacer,

E1BIA0586ZZ

JPBIA6985ZZ

JPBIA0727ZZ
