SERVICE DATA AND SPECIFICATIONS (SDS)

EM-277

< SERVICE DATA AND SPECIFICATIONS (SDS)

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

*: Always check with the Parts Department for the latest parts information.

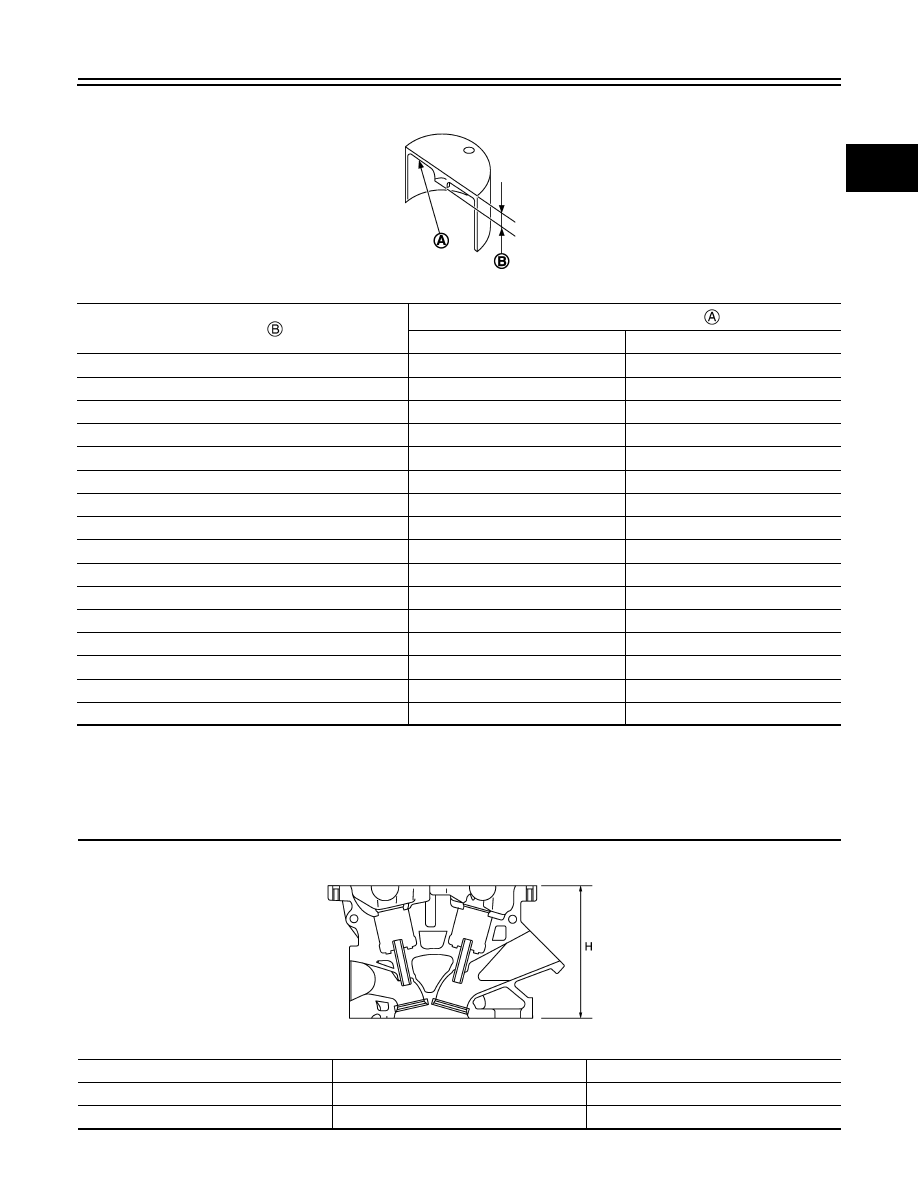

Cylinder Head

INFOID:0000000010783834

CYLINDER HEAD

Unit: mm (in)

3.20 (0.1260)

320

320N or 320n

3.22 (0.1268)

322

322N or 322n

3.24 (0.1276)

324

324N or 324n

3.26 (0.1283)

326

326N or 326n

3.28 (0.1291)

328

328N or 328n

3.30 (0.1299)

330

330N or 330n

3.32 (0.1307)

332

332N or 332n

3.34 (0.1315)

334

334N or 334n

3.36 (0.1323)

336

336N or 336n

3.38 (0.1331)

338

338N or 338n

3.40 (0.1339)

340

340N or 340n

3.42 (0.1346)

342

342N or 342n

3.44 (0.1354)

344

344N or 344n

3.46 (0.1362)

346

346N or 346n

3.48 (0.1370)

348

348N or 348n

3.50 (0.1378)

350

350N or 350n

Thickness

Identification (stamped)

*

 mark

CHINA production model

THAILAND production model

JPBIA0170ZZ

Items

Standard

Limit

Head surface distortion

Less than 0.03 (0.0012)

0.1 (0.004)

Normal cylinder head height “H”

129.4 (5.09)

—

PBIC0924E

EM-278

< SERVICE DATA AND SPECIFICATIONS (SDS)

[QR25DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

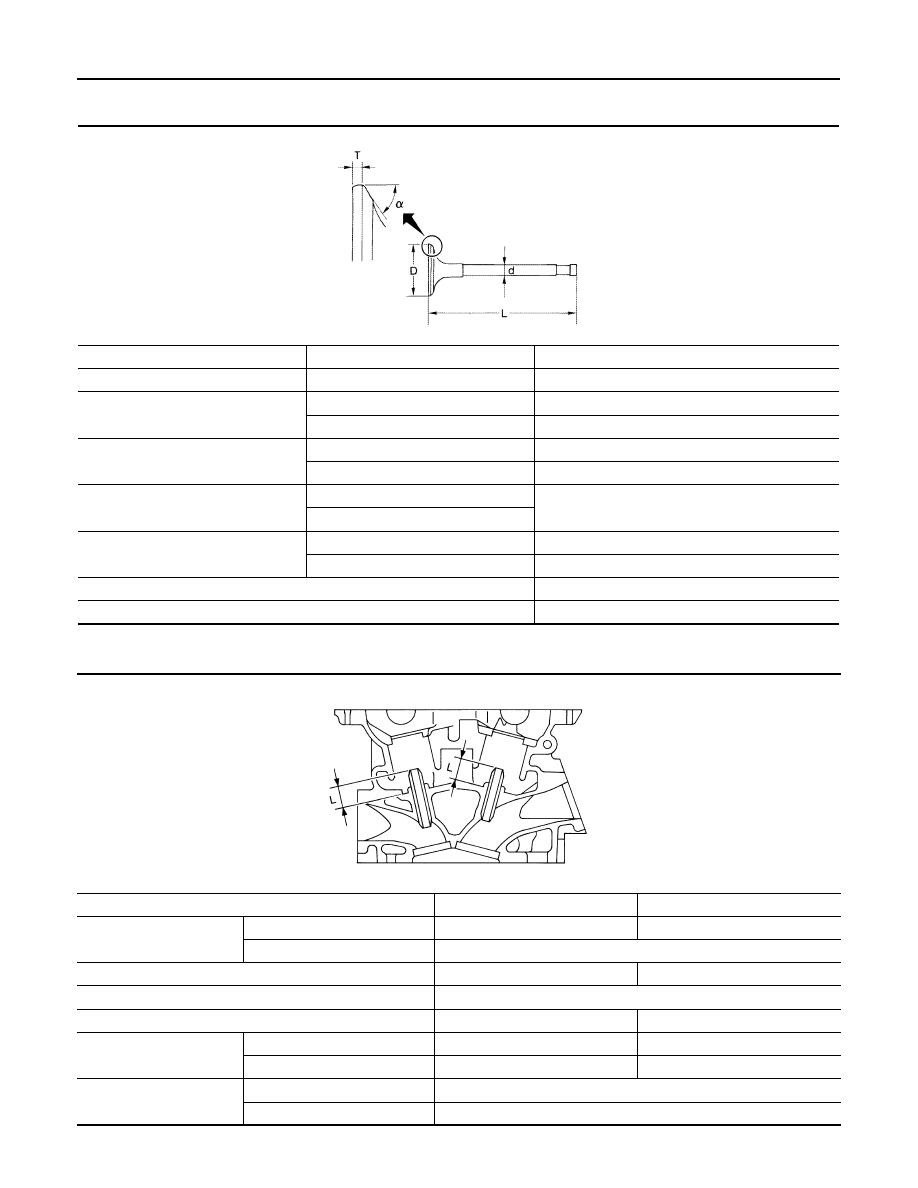

VALVE DIMENSIONS

Unit: mm (in)

VALVE GUIDE

Unit: mm (in)

Valve head diameter “D”

Intake

35.5 - 35.8 (1.398 - 1.409)

Exhaust

30.3 - 30.6 (1.193 - 1.205)

Valve length “L”

Intake

101.72 (4.0074)

Exhaust

102.78 (4.0464)

Valve stem diameter “d”

Intake

5.965 - 5.980 (0.2348 - 0.2354)

Exhaust

5.955 - 5.970 (0.2344 - 0.2350)

Valve seat angle “

α

”

Intake

45

°

15

′

 - 45

°

45

′

Exhaust

Valve margin “T”

Intake

1.08 (0.0425)

Exhaust

1.38 (0.0543)

Valve margin “T” limit

0.5 (0.020)

Valve stem end surface grinding limit

0.2 (0.008)

JSBIA1166ZZ

Items

Standard

Oversize (Service) [0.2 (0.008)]

Valve guide

Outer diameter

10.023 - 10.034 (0.3946 - 0.3950)

10.223 - 10.234 (0.4025 - 0.4029)

Inner diameter (Finished size)

6.000 - 6.018 (0.2362 - 0.2369)

Cylinder head valve guide hole diameter

9.975 - 9.996 (0.3927 - 0.3935)

10.175 - 10.196 (0.4006 - 0.4014)

Interference fit of valve guide

0.027 - 0.059 (0.0011 - 0.0023)

Items

Standard

Limit

Valve guide clearance

Intake

0.020 - 0.053 (0.0008 - 0.0021)

0.08 (0.003)

Exhaust

0.030 - 0.063 (0.0012 - 0.0025)

0.09 (0.0035)

Projection length “L”

Intake

10.1– -10.3 (0.398 - 0.405)

Exhaust

10.0 - 10.4 (0.394 - 0.409)

SEM950E

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-279

< SERVICE DATA AND SPECIFICATIONS (SDS)

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

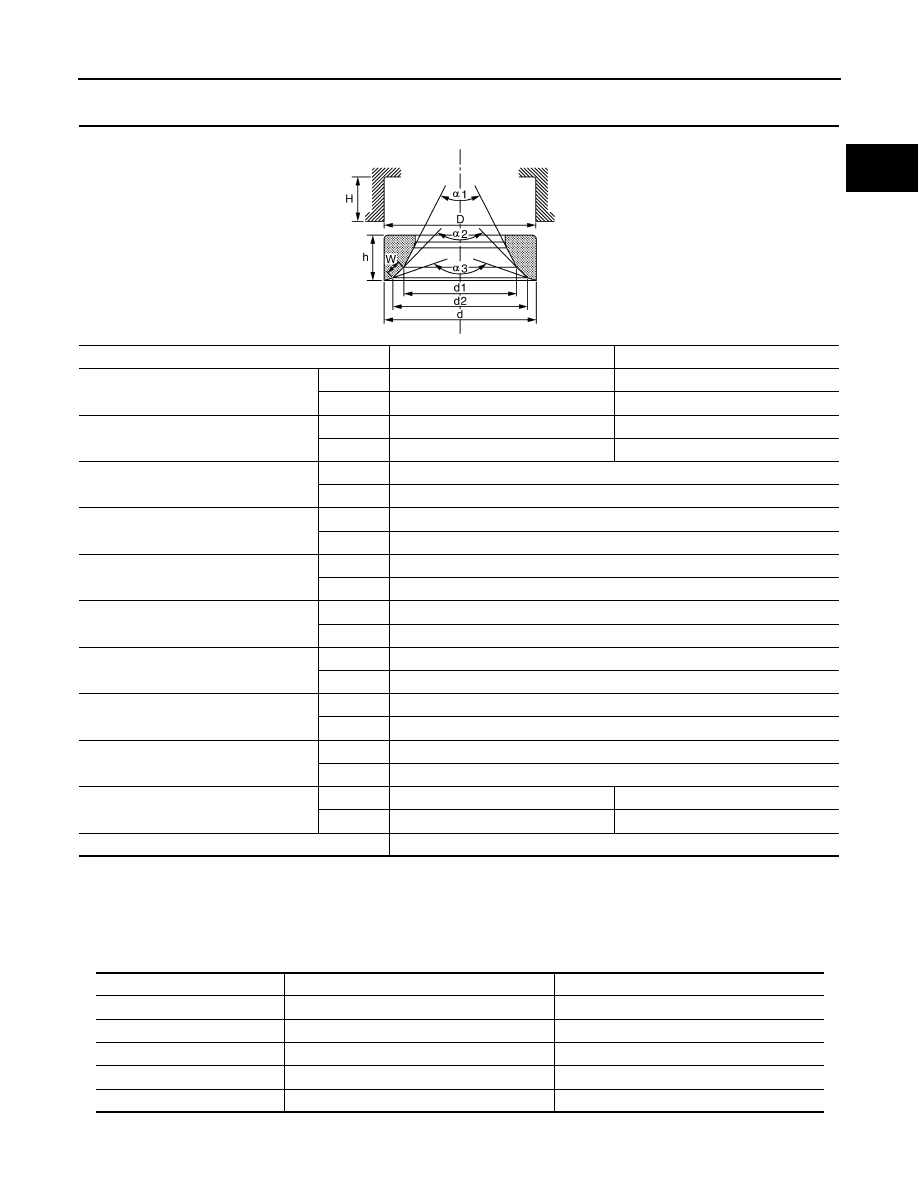

VALVE SEAT

Unit: mm (in)

*

1

: Diameter made by intersection point of conic angles “

α

1” and “

α

2”

*

2

: Diameter made by intersection point of conic angles “

α

2” and “

α

3”

*

3

: Machining data

VALVE SPRING

Items

Standard

Oversize (Service) [0.5 (0.02)]

Cylinder head seat recess diameter “D”

Intake

36.500 - 36.516 (1.4370 - 1.4376)

37.000 - 37.016 (1.4567 - 1.4573)

Exhaust

31.500 - 31.516 (1.2402 - 1.2408)

32.000 - 32.016 (1.2598 - 1.2408)

Valve seat outer diameter “d”

Intake

36.597 - 36.613 (1.4408 - 1.4415)

37.097 - 37.113 (1.4605 - 1.4611)

Exhaust

31.600 - 31.616 (1.2441 - 1.2447)

32.100 - 32.116 (1.2638 - 1.2644)

Valve seat interference fit

Intake

0.081 - 0.113 (0.0032 - 0.0044)

Exhaust

0.084 - 0.116 (0.0034 - 0.0046)

Diameter “d1”*

1

Intake

33.5 (1.319)

Exhaust

28.0 (1.102)

Diameter “d2”*

2

Intake

34.8 - 35.3 (1.370 - 1.390)

Exhaust

29.6 - 30.1 (1.165 - 1.185)

Angle “

α

1”

Intake

60

°

Exhaust

60

°

Angle “

α

2”

Intake

88

°

45

′

 - 90

°

15

′

Exhaust

88

°

45

′

 - 90

°

15

′

Angle “

α

3”

Intake

120

°

Exhaust

120

°

Contacting width “W”*

3

Intake

0.99 - 1.35 (0.0390 - 0.0531)

Exhaust

1.19 - 1.55 (0.0469 - 0.0610)

Height “h”

Intake

5.9 - 6.0 (0.232 - 0.236)

5.0 - 5.1 (0.197 - 0.201)

Exhaust

5.9 - 6.0 (0.232 - 0.236)

4.91 - 5.01 (0.1933 - 0.1972)

Depth “H”

6.0 (0.236)

PBIC2745E

Items

Intake

Exhaust

Free height

47.92 – 48.12 (1.8866 – 1.8945)

48.65 - 48.85 (1.9154 – 1.9232)

Installation height

36.96 mm (1.4551 in)

36.96 mm (1.455 in)

Installation load

151 – 175 N (15.4 – 17.8 kg, 34 – 39 lb)

151 – 175 N (15.4 – 17.8 kg, 34 – 39 lb)

Height during valve open

26.76 mm (1.0535 in)

28.46 mm (1.1205 in)

Load with valve open

335 – 383 N (34.2 – 39.1 kg, 75.3 – 86.1 lb)

300 – 342 N (30.6 – 34.9 kg, 67.4 – 76.9 lb)

EM-280

< SERVICE DATA AND SPECIFICATIONS (SDS)

[QR25DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

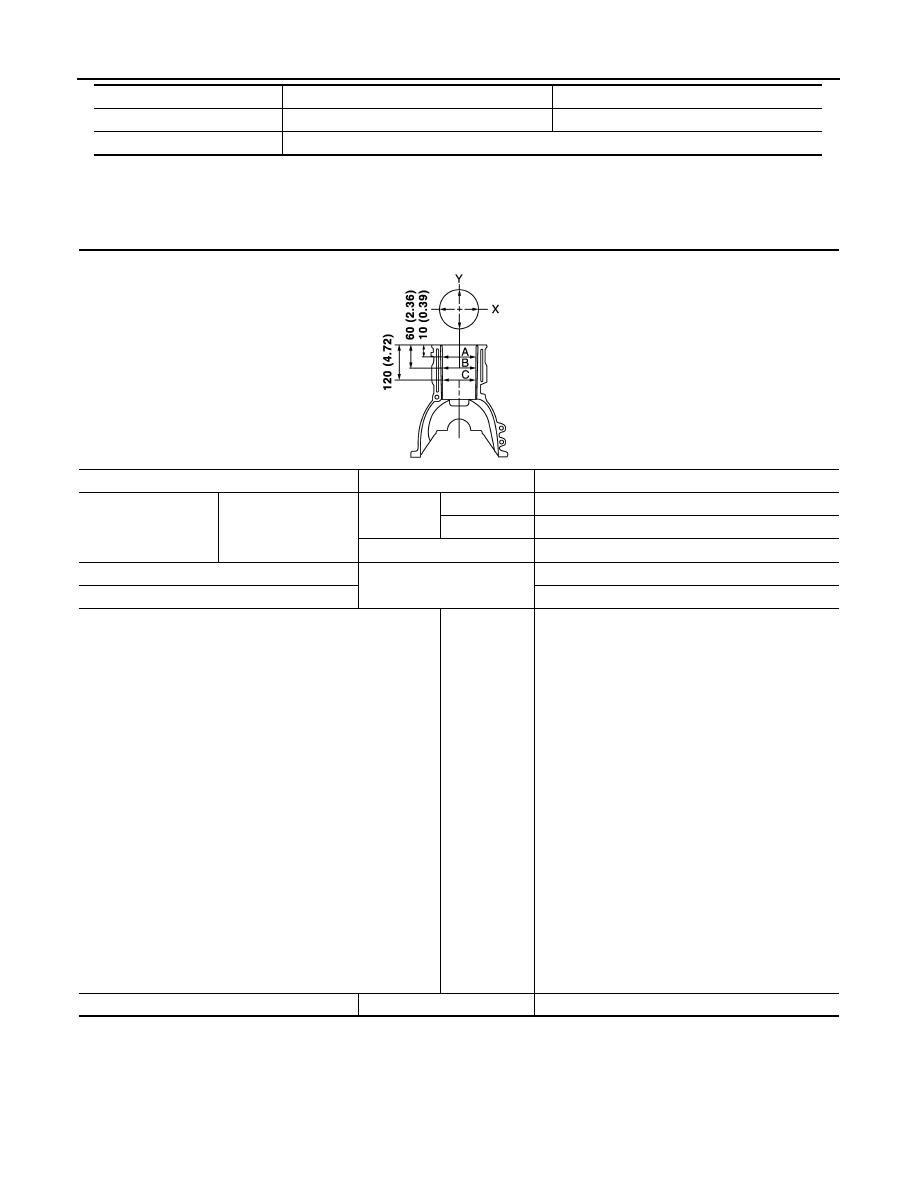

Cylinder Block

INFOID:0000000010783835

CYLINDER BLOCK

Unit: mm (in)

AVAILABLE PISTON

Identification color

White

Ligte blue

Out- of- Square

1.0 mm (0.0394 in)

Items

Intake

Exhaust

Surface distortion

Limit

0.1 (0.004)

Cylinder bore

Inner diameter

Standard

Grade No. 2

89.010 - 89.020 (3.5043 - 3.5047)

Grade No. 3

89.020 - 89.030 (3.5047 - 3.5051)

Wear limit

0.2 (0.008)

Out-of-round (Difference between “X” and “Y”)

Limit

0.015 (0.0006)

Taper (Difference between “A” and “C”)

0.01 (0.0004)

Main bearing housing inner diameter grade

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W
Grade No. X
Grade No. Y
Grade No. 4
Grade No. 7

58.944 - 58.945 (2.3206 - 2.3207)
58.945 - 58.946 (2.3207 - 2.3207)
58.946 - 58.947 (2.3207 - 2.3207)
58.947 - 58.948 (2.3207 - 2.3208)
58.948 - 58.949 (2.3208 - 2.3208)
58.949 - 58.950 (2.3208 - 2.3209)
58.950 - 58.951 (2.3209 - 2.3209)
58.951 - 58.952 (2.3209 - 2.3209)
58.952 - 58.953 (2.3209 - 2.3210)
58.953 - 58.954 (2.3210 - 2.3210)

58.954 - 58.955 (2.3210 - 2.3211)

58.955 - 58.956 (2.3211 - 2.3211)
58.956 - 58.957 (2.3211 - 2.3211)

58.957 - 58.958 (2.3211 - 2.3212)

58.958 - 58.959 (2.3212 - 2.3212)
58.959 - 58.960 (2.3212 - 2.3213)
58.960 - 58.961 (2.3213 - 2.3213)
58.961 - 58.962 (2.3213 - 2.3213)
58.962 - 58.963 (2.3213 - 2.3214)
58.963 - 58.964 (2.3214 - 2.3214)
58.964 - 58.965 (2.3214 - 2.3215)
58.965 - 58.966 (2.3215 - 2.3215)
58.966 - 58.967 (2.3215 - 2.3215)
58.967 - 58.968 (2.3215 - 2.3216)

Difference in inner diameter between cylinders

Standard

Less than 0.03 (0.0012)

PBIC0281E
