HOW TO SELECT PISTON AND BEARING

EM-129

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

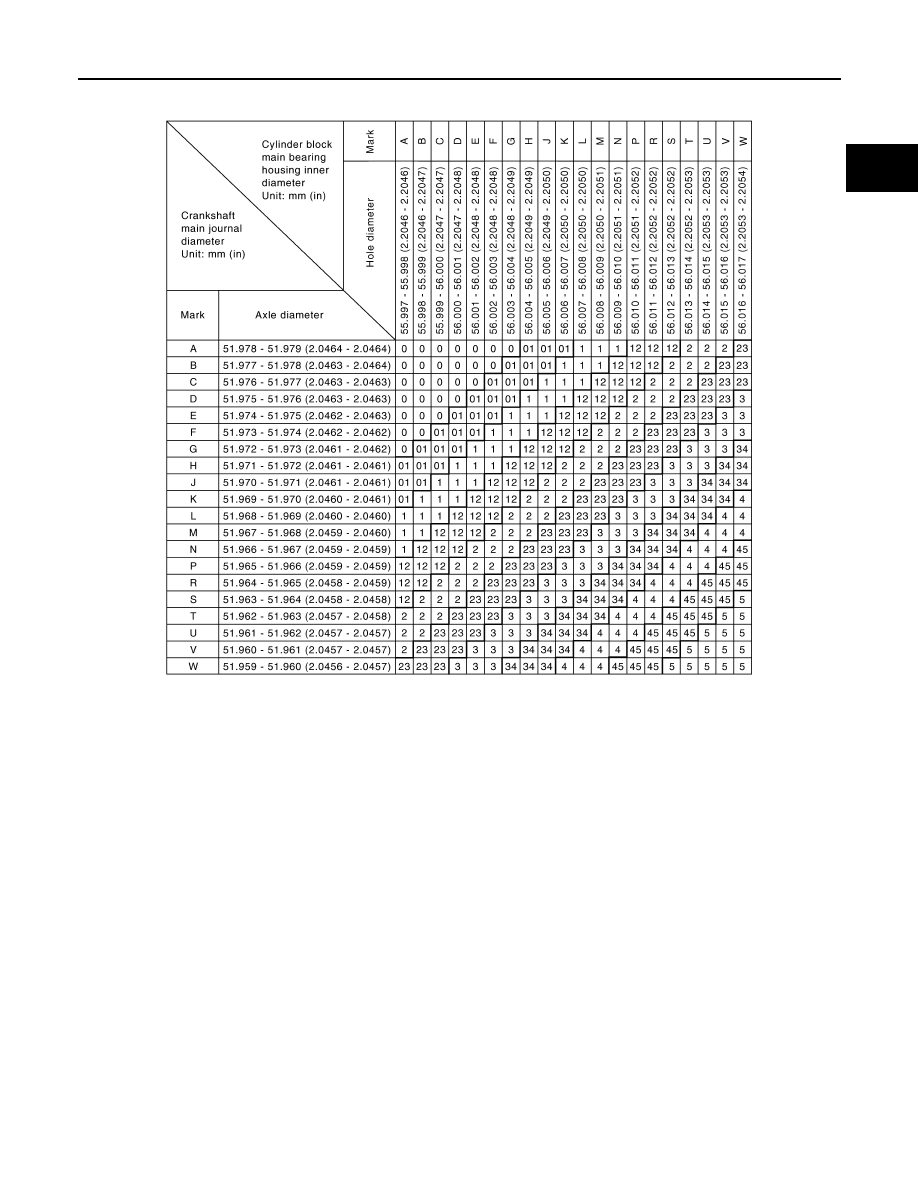

MAIN BEARING SELECTION TABLE (No. 1 AND 4 JOURNAL)

PBIC4078E

EM-130

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

HOW TO SELECT PISTON AND BEARING

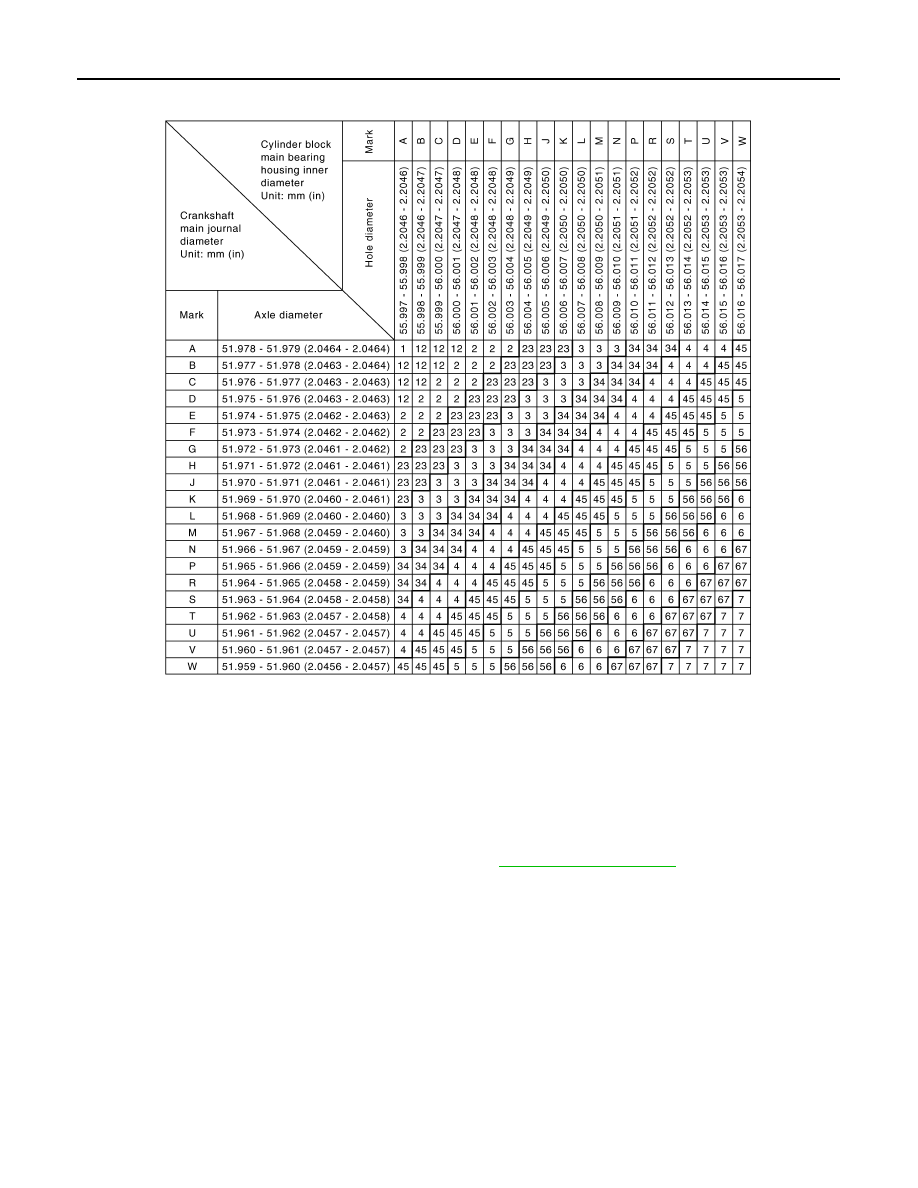

MAIN BEARING SELECTION TABLE (No. 2, 3 AND 5 JOURNAL)
