P2100 THROTTLE CONTROL MOTOR RELAY

EC-1177

< DTC/CIRCUIT DIAGNOSIS >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NO-1

>> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

NO-1

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010935882

1.

CHECK ECM HARNESS CONNECTOR CONNECTION

1.

Turn ignition switch OFF.

2.

Check the ECM harness connector connection.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace error-detected parts.

2.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR HARNESS CONNECTOR CONNECTION

1.

Turn ignition switch OFF.

2.

Check the electric throttle control actuator harness connector connection.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace error-detected parts.

3.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR CIRCUIT

Check the electric throttle control actuator circuit for open and short.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK THROTTLE CONTROL MOTOR

Perform

EC-1177, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace electric throttle control actuator.

Component Inspection

INFOID:0000000010935883

1.

CHECK THROTTLE CONTROL MOTOR

1.

Reconnect all harness connectors disconnected.

2.

Check the voltage between ECM harness connectors terminals as per the following conditions.

+

–

Continuity

ECM

Electric throttle control actuator

Connector

Terminal

Connector

Terminal

F118

103

F153

2

Existed

107

3

108

1

140

5

152

4

EC-1178

< DTC/CIRCUIT DIAGNOSIS >

[R9M]

P2100 THROTTLE CONTROL MOTOR RELAY

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace electric throttle control actuator.

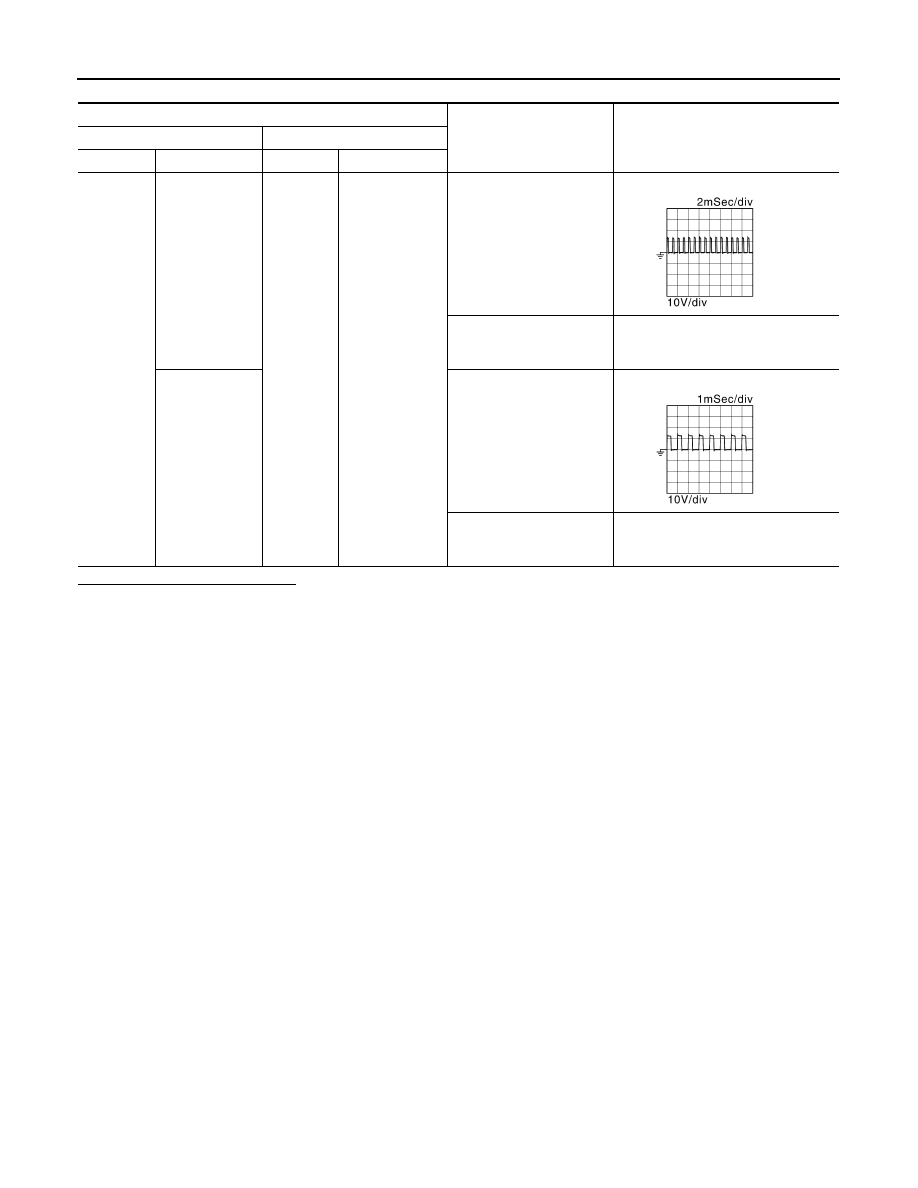

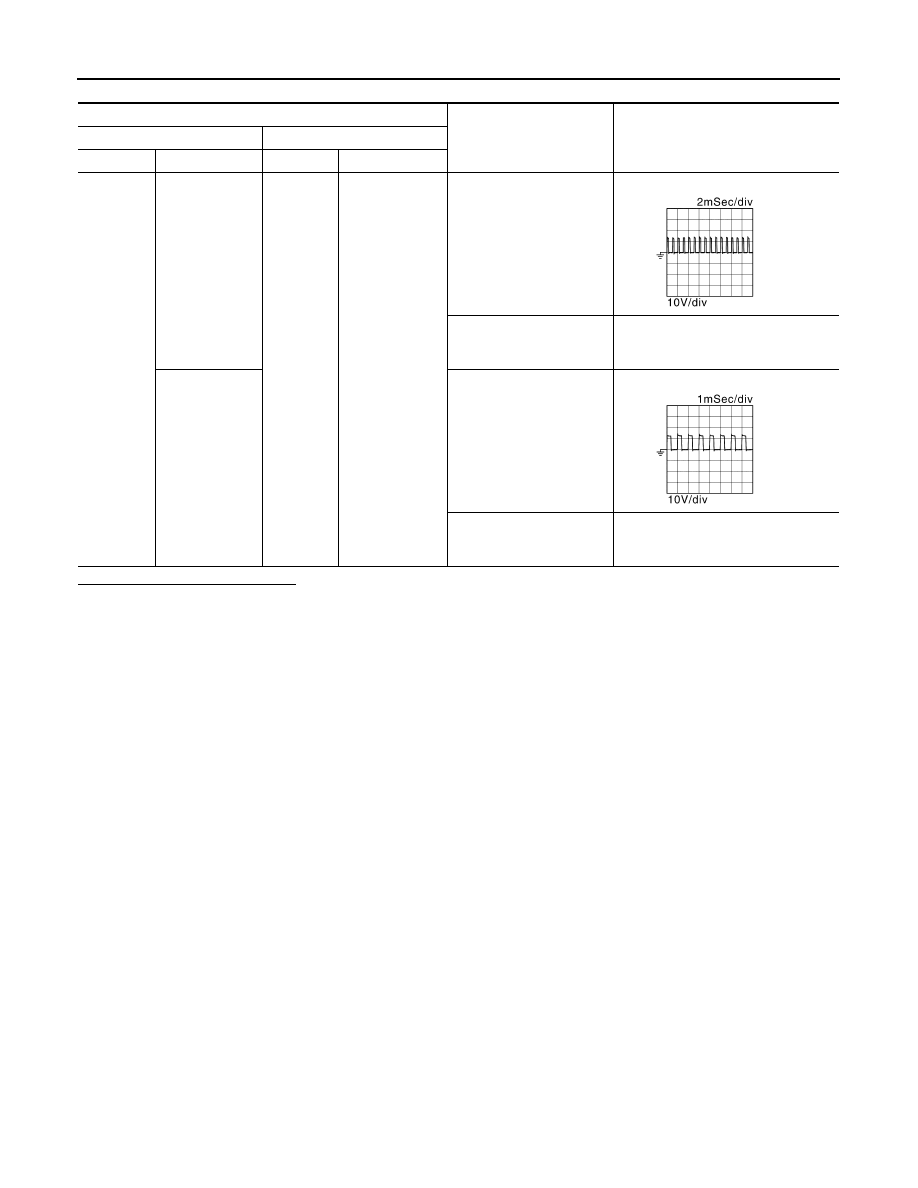

ECM

Condition

Voltage

+

–

Connector

Terminal

Connector

Terminal

F118

140

E79

8

[Ignition switch: OFF]
For 20 seconds after turn-
ing ignition switch OFF
NOTE:
Repeat several times
opening and shutting after
turning ignition switch OFF.

[Ignition switch: OFF]
More than 20 seconds after
turning ignition switch OFF

0.08 V

152

[Ignition switch: OFF]
For 20 seconds after turn-
ing ignition switch OFF
NOTE:
Repeat several times
opening and shutting after
turning ignition switch OFF.

[Ignition switch: OFF]
More than 20 seconds after
turning ignition switch OFF

1.23 V

JSBIA4823ZZ

JSBIA4828ZZ

P2119 ELECTRIC THROTTLE CONTROL FUNCTION

EC-1179

< DTC/CIRCUIT DIAGNOSIS >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P2119 ELECTRIC THROTTLE CONTROL FUNCTION

DTC Description

INFOID:0000000010935884

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Harness or connectors (Throttle control motor circuit is open or shorted.)
• Electric throttle control actuator

FAIL-SAFE

• EGR valve is closed position
• Throttle control motor is opened
• CSF regeneration forbidden
• Compression test routine inhibited
• Airflow regulation cut off
• CCSL deactivation with dashboard message
• Freeshift inhibited

Diagnosis Procedure

INFOID:0000000010935885

1.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace electric throttle control actuator.

2.

Perform

EC-949, "Work Procedure"

.

>> INSPECTION END

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P2119

AIR INLET FLAP
(Throttle actuator control throttle body
range/performance)
• 1.DEF: OFFSET IMPLAUSIBLE

ECM detects abnormally closed position of throttle control valve.

EC-1180

< DTC/CIRCUIT DIAGNOSIS >

[R9M]

P2120 APP SENSOR

P2120 APP SENSOR

DTC Description

INFOID:0000000010935886

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Harness or connectors (APP sensor 2 circuit is open or shorted.)
• APP sensor 2

FAIL-SAFE

• Torque limitation
• Freeshift inhibited
• CCSL deactivation (considered as abnormal with dashboard message)
• Aftersales and factory routines inhibited

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 1 minute before conducting the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON and wait at least 1 second.

2.

Check DTC.

Is DTC detected?

YES

>> Proceed to

EC-1180, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

NO-1

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010935887

1.

CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR POWER SUPPLY

Check the power supply of the APP sensor.

*1: CVT models
*2: M/T models

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P2120

PEDAL POTENTIOMETER CIRCUIT
TRACK 2
(Throttle/pedal position sensor/switch “D”
circuit)
• 1.DEF: VOLTAGE TOO LOW
• 2.DEF: VOLTAGE TOO HIGH

• An excessively low voltage from the accelerator pedal position (APP)

sensor 2 is sent to ECM.

• An excessively high voltage from the accelerator pedal position (APP)

sensor 2 is sent to ECM.

+

-

Voltage

(Approx.)

APP sensor

Connector

Terminal

E110

*1

E167

*2

4

Ground

5.0 V

5
