BCS-80

< ECU DIAGNOSIS INFORMATION >

BCM

*1: With Intelligent Key system
*2: Without Intelligent Key system
*3: With super lock
*4: Without super lock

B27DA–00: IPDM CAN COMM CIR-
CUIT

×

×

×

—

•

SEC-165

*

1

•

SEC-292

*

2

B27DB–00: S/L IGN OFF

—

×

×

—

SEC-167

B27DC–00: S/L POWER SUPPLY

×

×

×

—

SEC-169

B27DD–00: BCM - S/L ID DISCORD

×

×

×

—

SEC-171

B27DE–00: S/L MECHANICAL MAL-
FUNCTION

×

×

×

—

SEC-173

B27DF–00: S/L HIGH LEVEL MAL-
FUNCTION

×

×

×

—

SEC-174

B27E0–00: S/L LOW LEVEL MAL-
FUNCTION

×

×

×

—

SEC-175

B27E1–00: S/L SAFETY CIRCUIT

×

×

×

—

SEC-176

B27E3–00: S/L KEY NOT REGIS-
TRATION

—

×

×

—

SEC-178

B27E4–00: S/L REGISTRATION
STATUS

—

×

×

—

SEC-179

B27E5–00: S/L IGN OFF POSITION

×

×

×

—

SEC-180

B27E6–00: S/L ANTI-SCAN MODE

×

×

×

—

SEC-182

B27E7–00: S/L UNDETERMINED
UNLOCK POS

—

×

×

—

SEC-184

B27E8–00: S/L UNDETERMINED
LOCK POS

×

×

×

—

SEC-186

CONSULT display

Fail-safe

Freeze Frame Data

Key system
malfunction

Security indica-

tor lamp ON

Reference

BCS

BCM

BCS-81

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

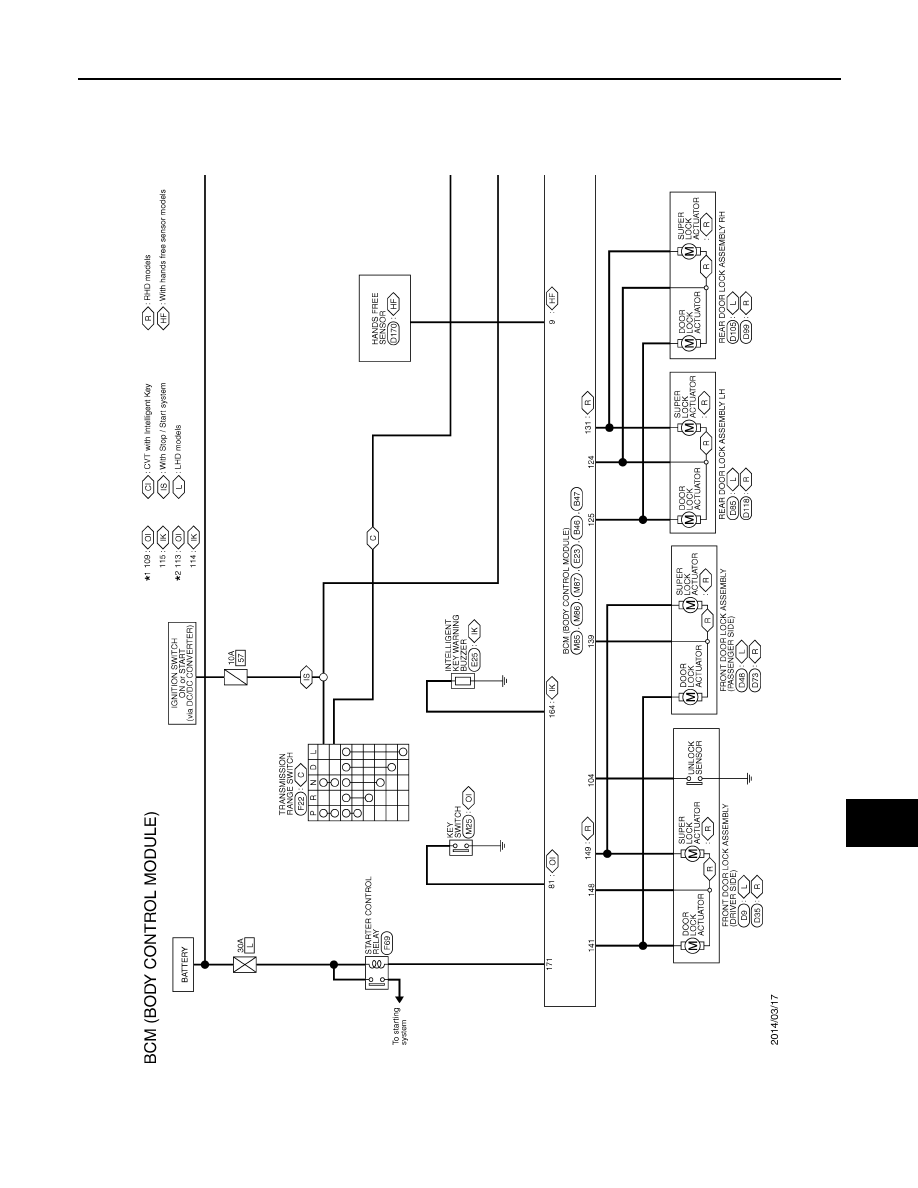

WIRING DIAGRAM

BCM

Wiring Diagram

INFOID:0000000010688610

JRMWF4030GB

BCS-82

< WIRING DIAGRAM >

BCM

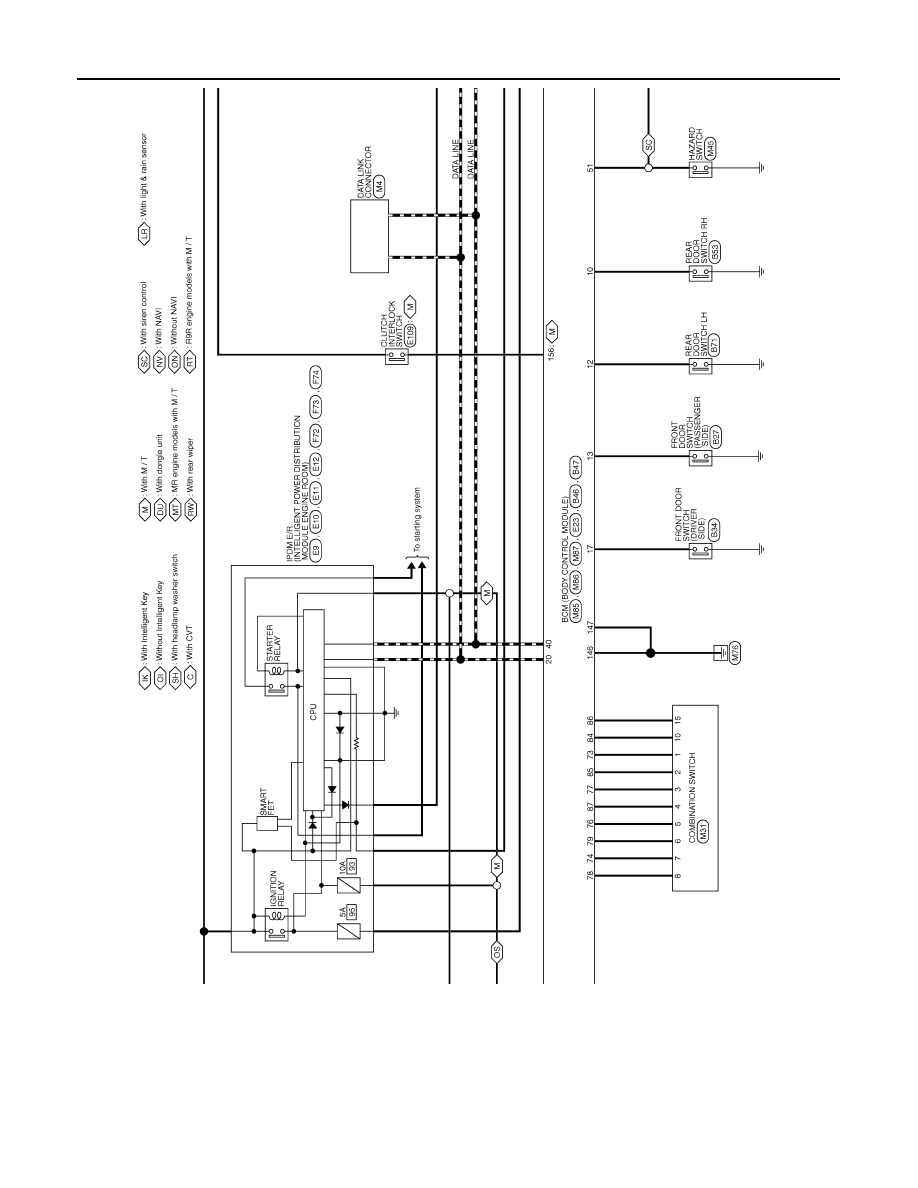

JRMWF4031GB

BCS

BCM

BCS-83

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

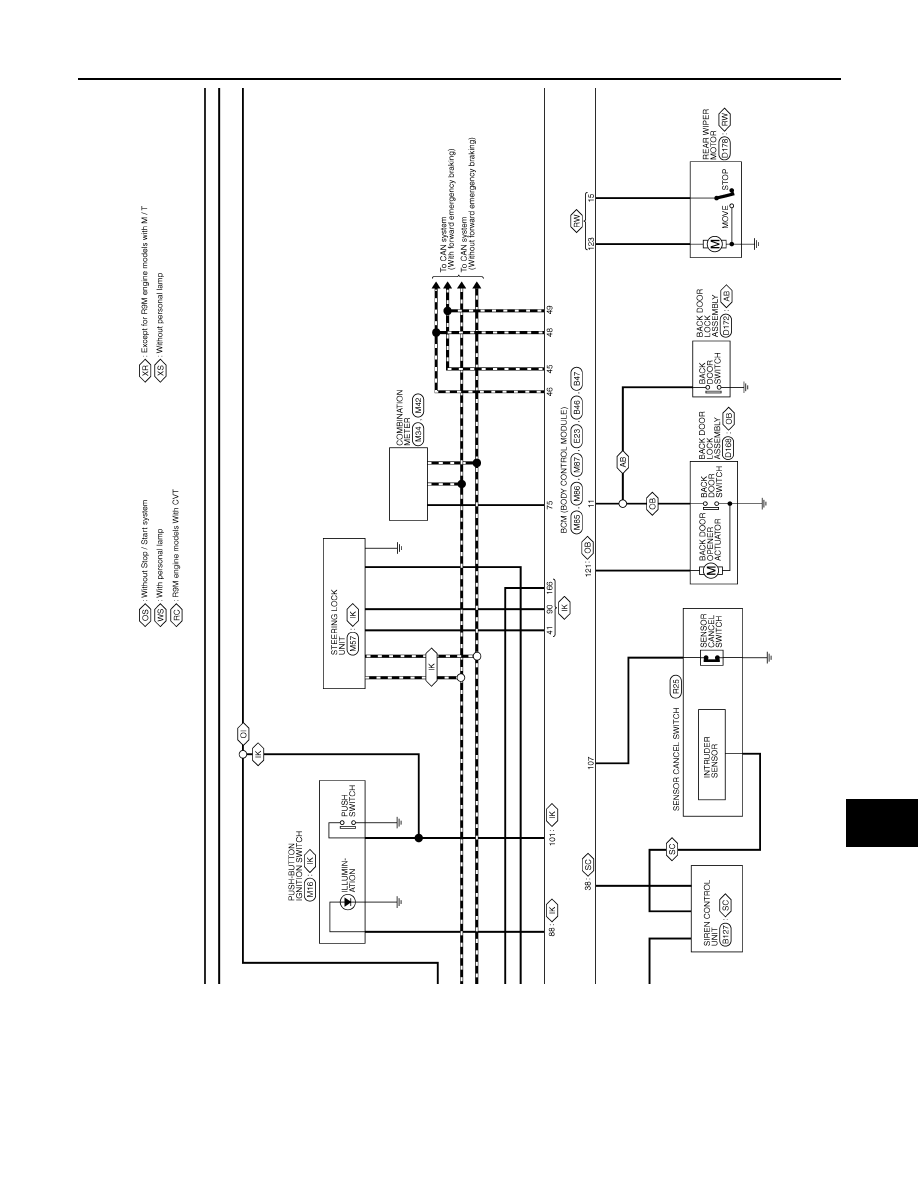

JRMWF4032GB
