Nissan X-Trail 32. Manual - part 73





BCS-8

< SYSTEM DESCRIPTION >

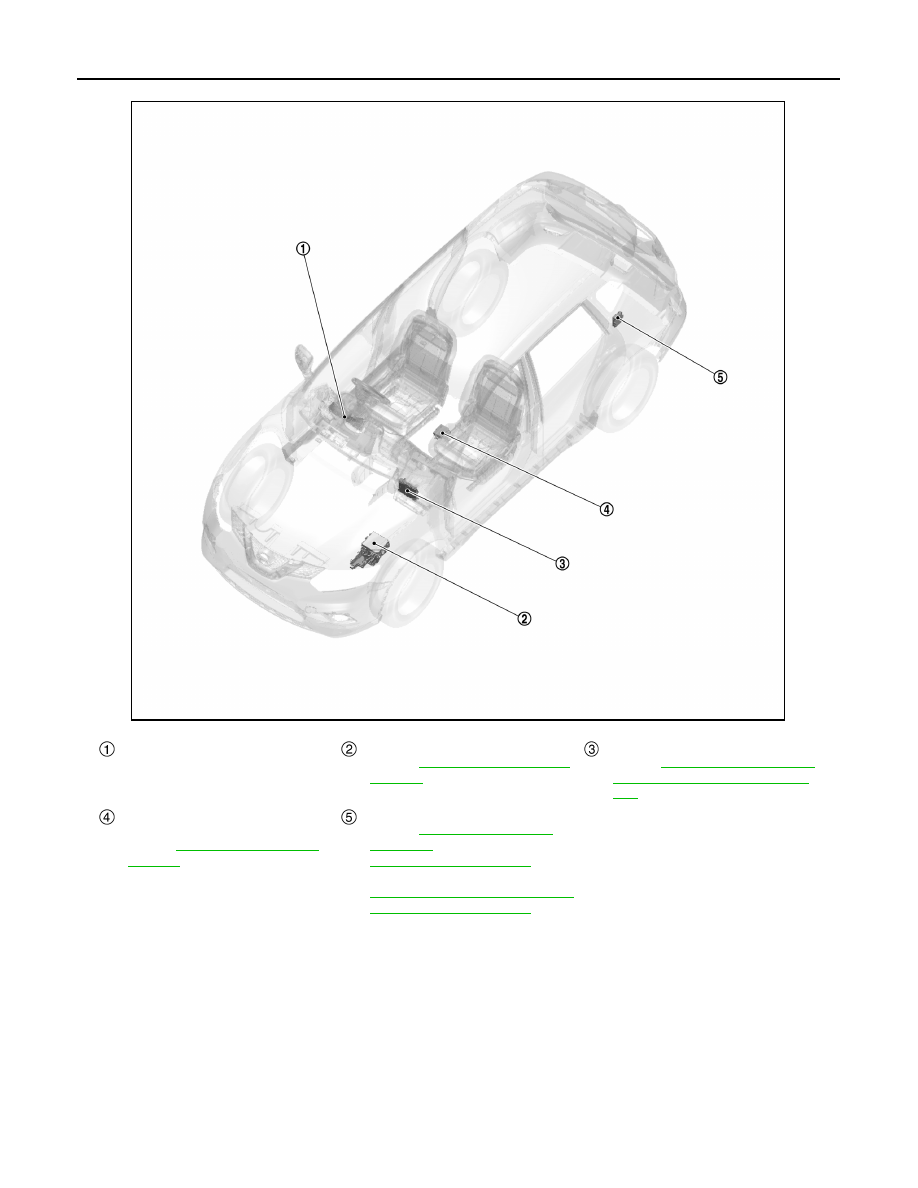

COMPONENT PARTS

LHD models

Combination meter

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

.

BCM
Refer to

BCS-6, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

.

Electric parking brake control mod-
ule
Refer to

PB-8, "Component Parts

Location"

.

Automatic back door control module
Refer to

DLK-25, "DOOR LOCK

SYSTEM :
Component Parts Location"

 (With

Intelligent Key and super lock) or

DLK-335, "DOOR LOCK SYSTEM :
Component Parts Location"

 (With

Intelligent Key, without super lock)

JMMIA1813ZZ

BCS

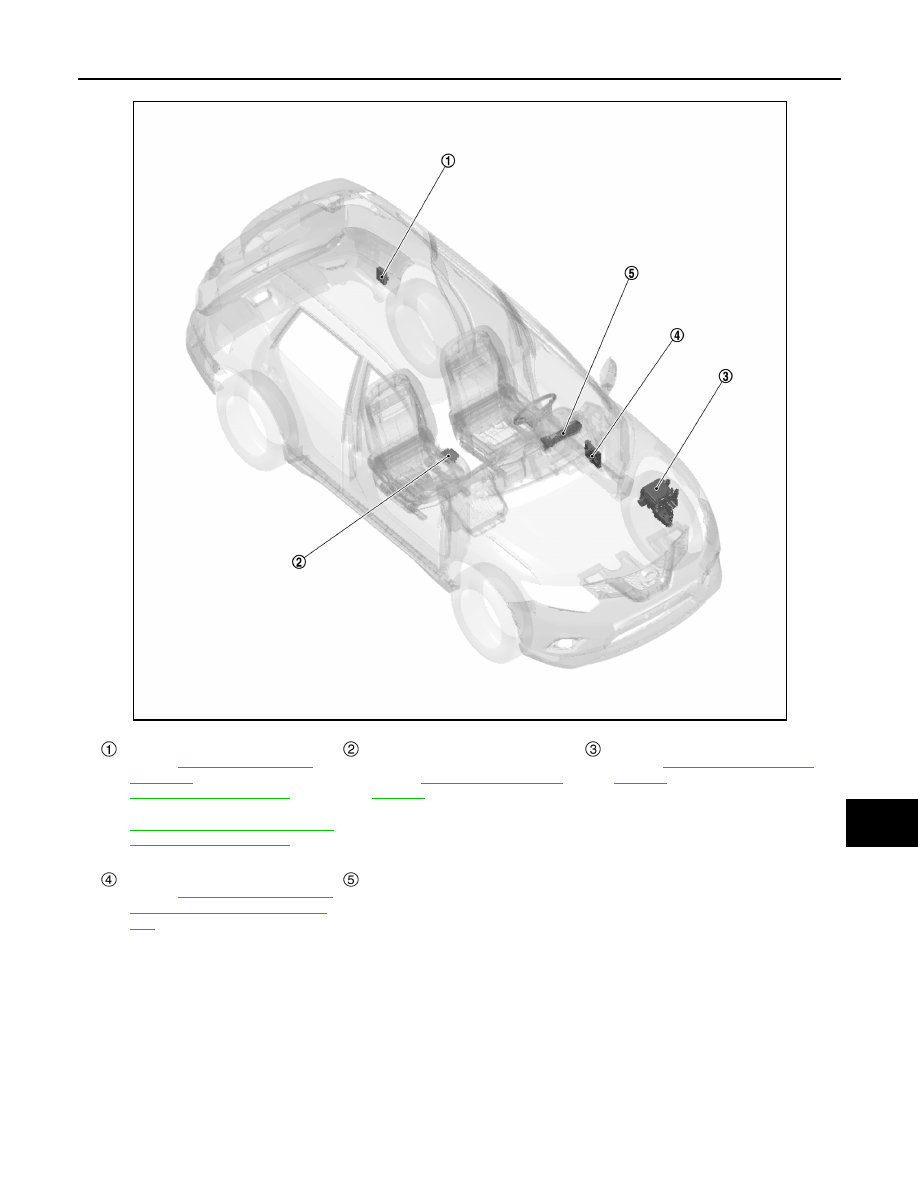

COMPONENT PARTS

BCS-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Automatic back door control module
Refer to

DLK-25, "DOOR LOCK

SYSTEM :
Component Parts Location"

 (With

Intelligent Key and super lock) or

DLK-335, "DOOR LOCK SYSTEM :
Component Parts Location"

 (With

Intelligent Key, without super lock)

Electric parking brake control mod-
ule
Refer to

PB-8, "Component Parts

Location"

.

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

.

BCM
Refer to

BCS-6, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

.

Combination meter

JMMIA1812ZZ

BCS-10

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

BODY CONTROL SYSTEM

BODY CONTROL SYSTEM : System Description

INFOID:0000000010688576

OUTLINE

• BCM (Body Control Module) controls the various electrical components. It inputs the information required to

the control from CAN communication and the signal received from each switch and sensor.

• BCM has combination switch reading function for reading the operation status of combination switches (light,

turn signal, wiper and washer) in addition to a function for controlling the operation of various electrical com-
ponents. It also has the signal transmission function as the passed point of signal and the power saving con-
trol function that reduces the power consumption with the ignition switch OFF.

• BCM is equipped with the diagnosis function that performs the diagnosis with CONSULT and various set-

tings.

BCM CONTROL FUNCTION LIST

System

Reference

Combination switch reading system

BCS-13, "COMBINATION SWITCH READING SYSTEM : Sys-
tem Description"

Signal buffer system

BCS-17, "SIGNAL BUFFER SYSTEM : System Description"

Power consumption control system

BCS-18, "POWER CONSUMPTION CONTROL SYSTEM : Sys-
tem Description"

Shipping mode control system

BCS-20, "SHIPPING MODE CONTROL SYSTEM : System De-
scription"

Headlamp system

EXL-21, "HEADLAMP SYSTEM : System Description"

 (LE

headlamp)

EXL-225, "HEADLAMP SYSTEM : System Description"

 (Halo-

gen headlamp)

Auto light system

EXL-24, "AUTO LIGHT SYSTEM : System Description"

 (LE

headlamp)

EXL-228, "AUTO LIGHT SYSTEM : System Description"



(Halogen headlamp)

Daytime running light system

EXL-30, "DAYTIME RUNNING LIGHT SYSTEM : System De-
scription"

 (LED headlamp)

EXL-234, "DAYTIME RUNNING LIGHT SYSTEM : System De-
scription"

 (Halogen headlamp)

Turn signal and hazard warning lamp system

EXL-36, "TURN SIGNAL AND HAZARD WARNING LAMP
SYSTEM : System Description"

 (LED headlamp)

EXL-236, "TURN SIGNAL AND HAZARD WARNING LAMP
SYSTEM : System Description"

 (Halogen headlamp)

Parking, license plate and tail lamps system

EXL-38, "PARKING, LICENSE PLATE AND TAIL LAMP SYS-
TEM : System Description"

 (LED headlamp)

EXL-239, "PARKING, LICENSE PLATE AND TAIL LAMP SYS-
TEM : System Description"

 (Halogen headlamp)

Stop lamp system

EXL-42, "STOP LAMP SYSTEM : System Description"

 (LED

headlamp)

EXL-243, "STOP LAMP SYSTEM : System Description"

 (Halo-

gen headlamp)

Front fog lamp system

EXL-44, "FRONT FOG LAMP SYSTEM : System Description"



(LED headlamp)

EXL-245, "FRONT FOG LAMP SYSTEM : System Descrip-
tion"

 (Halogen headlamp)

Rear fog lamp system

EXL-46, "REAR FOG LAMP SYSTEM : System Description"



(LED headlamp)

EXL-247, "REAR FOG LAMP SYSTEM : System Description"



(Halogen headlamp)

BCS

SYSTEM

BCS-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Exterior lamp battery saver system

EXL-48, "EXTERIOR LAMP BATTERY SAVER SYSTEM :
System Description"

 (LED headlamp)

EXL-249, "EXTERIOR LAMP BATTERY SAVER SYSTEM :
System Description"

 (Halogen headlamp)

Interior room lamp control system

INL-11, "INTERIOR ROOM LAMP CONTROL SYSTEM : System
Description"

Interior room lamp battery saver system

INL-14, "INTERIOR ROOM LAMP BATTERY SAVER SYSTEM :
System Description"

Illumination control system

INL-18, "ILLUMINATION CONTROL SYSTEM : System Descrip-
tion"

Front wiper and washer system

WW-13, "FRONT WIPER AND WASHER SYSTEM (WITH
LIGHT & RAIN SENSOR) : System Description"

 (With rain sen-

sor)

WW-17, "FRONT WIPER AND WASHER SYSTEM (WITH-
OUT LIGHT & RAIN SENSOR) : System Description"

 (Without

rain sensor)

Rear wiper and washer system

WW-21, "REAR WIPER AND WASHER SYSTEM : System De-
scription"

Rear window defogger system

DEF-7, "System Description"

Warning chime system

WCS-8, "WARNING CHIME SYSTEM : System Description"

Power door lock system

DLK-35, "System Description"

 (Type 1)

DLK-345, "System Description"

 (Type 2)

DLK-646, "System Description"

 (Type 3)

DLK-797, "POWER DOOR LOCK SYSTEM : System Descrip-
tion"

 (Type 4)

NOTE:
Refer to

DLK-22, "Information"

 for details of type.

Intelligent Key system

DLK-38, "INTELLIGENT KEY SYSTEM : System Description"



(Type 1)

DLK-348, "INTELLIGENT KEY SYSTEM : System Description"



(Type 2)

NOTE:
Refer to

DLK-22, "Information"

 for details of type.

Remote keyless entry system

DLK-649, "REMOTE KEYLESS ENTRY FUNCTION : System
Description"

 (Type 3)

DLK-800, "REMOTE KEYLESS ENTRY SYSTEM : System
Description"

 (Type 4)

NOTE:
Refer to

DLK-22, "Information"

 for details of type.

Back door opener system

DLK-62, "System Description"

 (Type 1)

DLK-371, "System Description"

 (Type 2)

DLK-655, "System Description"

 (Type 3)

DLK-803, "BACK DOOR OPENER SYSTEM : System De-
scription"

 (Type 4)

NOTE:
Refer to

DLK-22, "Information"

 for details of type.

Intelligent Key system/engine start system

SEC-15, "INTELLIGENT KEY SYSTEM/ENGINE START FUNC-
TION : System Description"

Nissan Vehicle Immobilizer System-NATS

SEC-25, "NISSAN ANTI-THEFT SYSTEM : System Descrip-
tion"

 (With Intelligent Key system)

SEC-214, "NISSAN ANTI-THEFT SYSTEM : System Descrip-
tion"

 (Without Intelligent Key system)

Vehicle security system

SEC-34, "VEHICLE SECURITY SYSTEM : System Descrip-
tion"

 (With Intelligent Key system)

SEC-217, "VEHICLE SECURITY SYSTEM : System Descrip-
tion"

 (Without Intelligent Key system)

Power window system

PWC-12, "System Description"

CAN gateway

LAN-110, "System Description"

System

Reference
