Nissan X-Trail 32. Manual - part 40





AV-152

< WIRING DIAGRAM >

[WITH NAVIGATION]

NAVIGATION SYSTEM

JRNWD4142GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-153

< BASIC INSPECTION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

MULTI AV SYSTEM

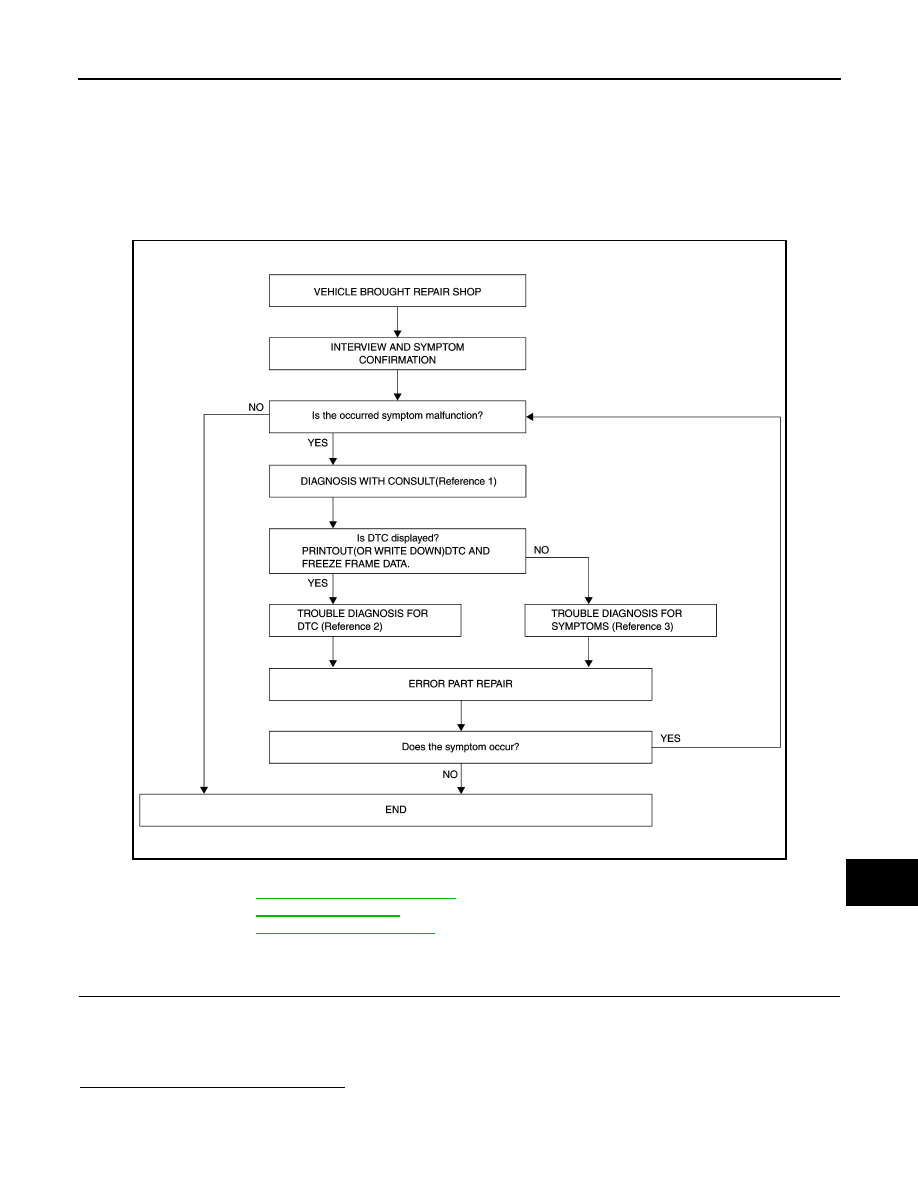

MULTI AV SYSTEM : Work Flow

INFOID:0000000010714817

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-97, "CONSULT Function"

.

• Reference 2··· Refer to

AV-110, "DTC Index"

.

• Reference 3··· Refer to

AV-252, "Symptom Table"

.

DETAILED FLOW

1.

INTERVIEW AND SYMPTOM CONFIRMATION

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.
Is the occurred symptom malfunction?

YES

>> GO TO 2.

NO

>> INSPECTION END

JSNIA4482GB

AV-154

< BASIC INSPECTION >

[WITH NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

2.

DIAGNOSIS WITH CONSULT

1.

Connect CONSULT and perform a self-diagnosis for “MULTI AV”. Refer to

AV-97, "CONSULT Function"

.

NOTE:
Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.

2.

When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

Is DTC displayed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

TROUBLE DIAGNOSIS FOR DTC

1.

Check the DTC indicated in the self-diagnosis results.

2.

Perform the relevant diagnosis referring to the DTC Index. Refer to

AV-110, "DTC Index"

.

>> GO TO 5.

4.

TROUBLE DIAGNOSIS FOR SYMPTOMS

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

AV-252, "Symptom

Table"

.

>> GO TO 5.

5.

ERROR PART REPAIR

1.

Repair or replace the identified malfunctioning parts.

2.

Perform a self-diagnosis for “MULTI AV” with CONSULT.
NOTE:
Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC
has been indicated in the self-diagnosis results.

3.

Check that the symptom does not occur.

Does the symptom occur?

YES

>> GO TO 1.

NO

>> INSPECTION END

AROUND VIEW MONITOR SYSTEM

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-155

< BASIC INSPECTION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

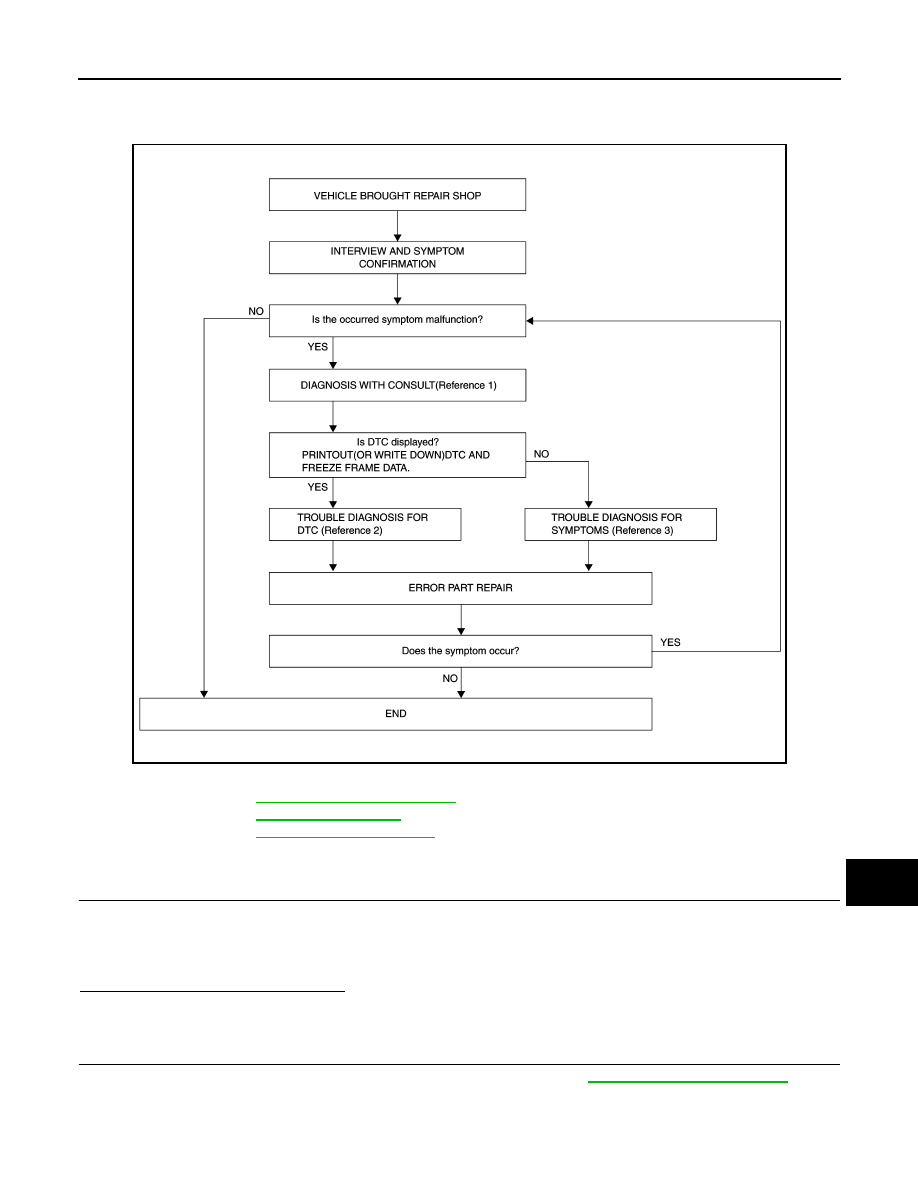

AROUND VIEW MONITOR SYSTEM : Work Flow

INFOID:0000000010714818

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-99, "CONSULT Function"

.

• Reference 2··· Refer to

AV-120, "DTC Index"

.

• Reference 3··· Refer to

AV-252, "Symptom Table"

.

DETAILED FLOW

1.

INTERVIEW AND SYMPTOM CONFIRMATION

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

Is the occurred symptom malfunction?

YES

>> GO TO 2.

NO

>> INSPECTION END

2.

DIAGNOSIS WITH CONSULT

1.

Connect CONSULT and perform a self-diagnosis for “AVM”. Refer to

AV-99, "CONSULT Function"

.

NOTE:
Skip to step 4 of the diagnosis procedure if “AVM” is not displayed.

2.

When DTC is detected, follow the instructions below:

JSNIA4482GB
