Nissan X-Trail 32. Manual - part 12





AV-40

< DTC/CIRCUIT DIAGNOSIS >

[BASE AUDIO]

STEERING SWITCH SIGNAL A CIRCUIT

STEERING SWITCH SIGNAL A CIRCUIT

Diagnosis Procedure

INFOID:0000000010714763

1.

CHECK STEERING SWITCH SIGNAL A CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter harness connector and spiral cable harness connector.

3.

Check continuity between combination meter harness connector and spiral cable harness connector.

4.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

1.

Disconnect steering switch connector.

2.

Check continuity between spiral cable harness connectors.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable. Refer to

SR-23, "Removal and Installation"

.

3.

CHECK COMBINATION METER VOLTAGE

1.

Connect combination meter harness connector, steering switch connector and spiral cable connector.

2.

Turn ignition switch ON.

3.

Check the voltage between combination meter harness connector.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace combination meter. Refer to

MWI-151, "Removal and Installation"

.

4.

CHECK STEERING SWITCH

1.

Turn ignition switch OFF.

Combination meter

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M34

22

M33

29

Existed

Combination meter

Ground

Continuity

Connector

Terminal

M34

22

Not existed

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M33

29

M303

10

Existed

Combination meter

Condition

Voltage

(Approx.)

Connector

+

-

Terminal

M34

22

21

Keep pressing BACK switch

0 V

Keep pressing MENU UP switch

0.5 V

Keep pressing MENU DOWN switch

1.2 V

Keep pressing TEL switch

2.1 V

Keep pressing ENTER switch

3.3 V

AV

STEERING SWITCH SIGNAL A CIRCUIT

AV-41

< DTC/CIRCUIT DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

2.

Check steering switch. Refer to

AV-41, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering switch. Refer to

AV-57, "Removal and Installation"

.

Component Inspection

INFOID:0000000010714764

Measure the resistance between the steering switch connector.

Steering switch

Condition

Resistance

(Approx.)

Terminal

Terminal

10

4

ENTER switch is pressed

1982 – 2064

TEL switch is pressed

708 – 738

MENU DOWN switch is
pressed

314 – 328

MENU UP switch is pressed

118 – 124

BACK switch is pressed

0

5

SEEK UP switch is pressed

1982 – 2064

SEEK DOWN switch is
pressed

708 – 738

TEL END switch is pressed

314 – 328

VOL UP switch is pressed

118 – 124

VOL DOWN switch is
pressed

0

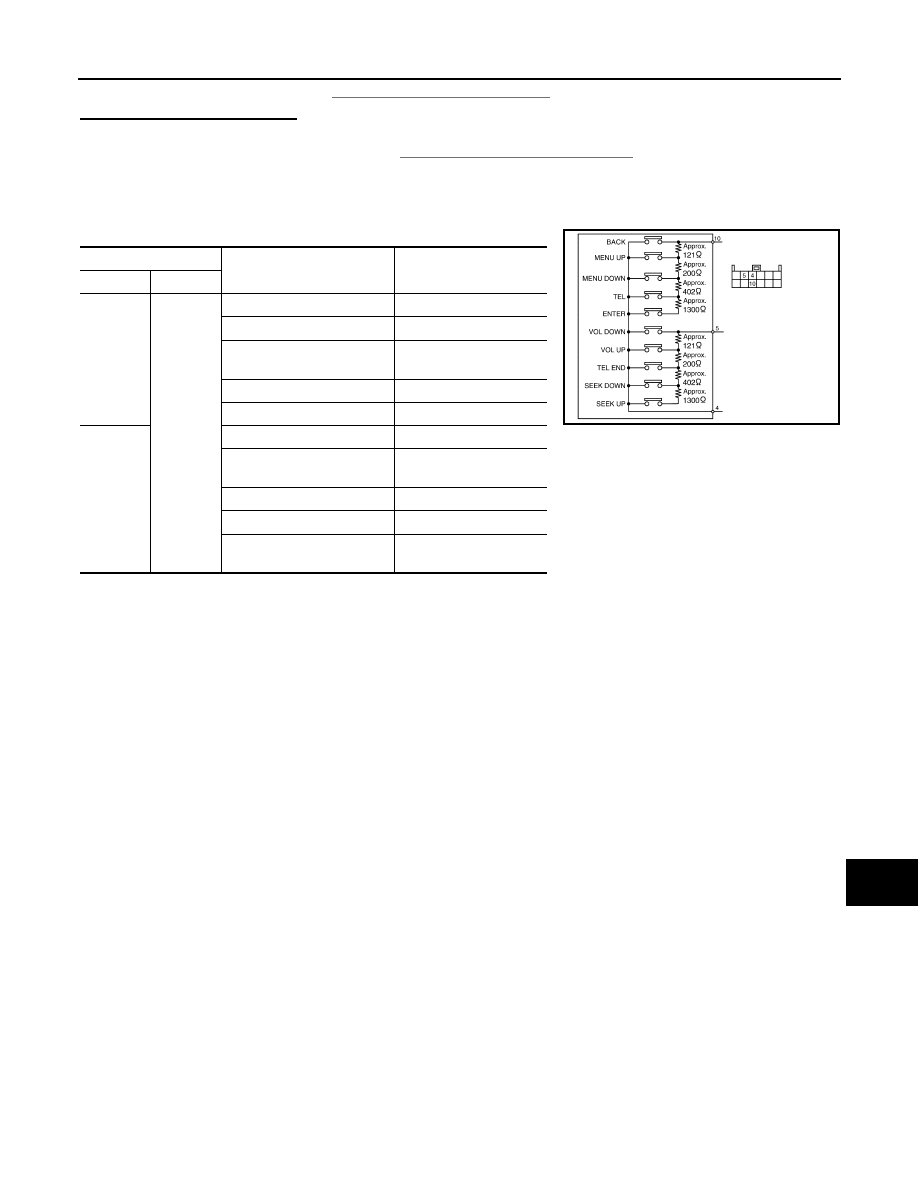

JSNIA7127GB

A

V

- 4

2

< DTC/CIRCUIT DIAGNOSIS >

[BASE AUDIO]

STEERING SWITCH SIGNAL B CIRCUIT

STEERING SWITCH SIGNAL B CIRCUIT

Diagnosis Procedure

INFOID:0000000010714765

1.

CHECK STEERING SWITCH SIGNAL B CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter harness connector and spiral cable harness connector.

3.

Check continuity between combination meter harness connector and spiral cable harness connector.

4.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

1.

Disconnect steering switch connector.

2.

Check continuity between spiral cable harness connectors.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable. Refer to

SR-23, "Removal and Installation"

.

3.

CHECK COMBINATION METER VOLTAGE

1.

Connect combination meter harness connector, steering switch connector and spiral cable connector.

2.

Turn ignition switch ON.

3.

Check the voltage between combination meter harness connector.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace combination meter. Refer to

MWI-151, "Removal and Installation"

.

4.

CHECK STEERING SWITCH

1.

Turn ignition switch OFF.

Combination meter

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M34

23

M33

24

Existed

Combination meter

Ground

Continuity

Connector

Terminal

M34

23

Not existed

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M33

24

M303

5

Existed

Combination meter

Condition

Voltage

(Approx.)

Connector

+

-

Terminal

M34

23

21

Keep pressing VOLUME DOWN switch

0 V

Keep pressing VOLUME UP switch

0.5 V

Keep pressing TEL END switch

1.2 V

Keep pressing SEEK DOWN switch

2.1 V

Keep pressing SEEK UP switch

3.3 V

AV

STEERING SWITCH SIGNAL B CIRCUIT

AV-43

< DTC/CIRCUIT DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

2.

Check steering switch. Refer to

AV-43, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering switch. Refer to

AV-57, "Removal and Installation"

.

Component Inspection

INFOID:0000000010714766

Measure the resistance between the steering switch connector.

Steering switch

Condition

Resistance

(Approx.)

Terminal

Terminal

10

4

ENTER switch is pressed

1982 – 2064

TEL switch is pressed

708 – 738

MENU DOWN switch is
pressed

314 – 328

MENU UP switch is pressed

118 – 124

BACK switch is pressed

0

5

SEEK UP switch is pressed

1982 – 2064

SEEK DOWN switch is
pressed

708 – 738

TEL END switch is pressed

314 – 328

VOL UP switch is pressed

118 – 124

VOL DOWN switch is
pressed

0

JSNIA7127GB
