Nissan Primera P12. Manual - part 709





WW-20

FRONT WIPER AND WASHER SYSTEM (WITH RAIN SENSOR)

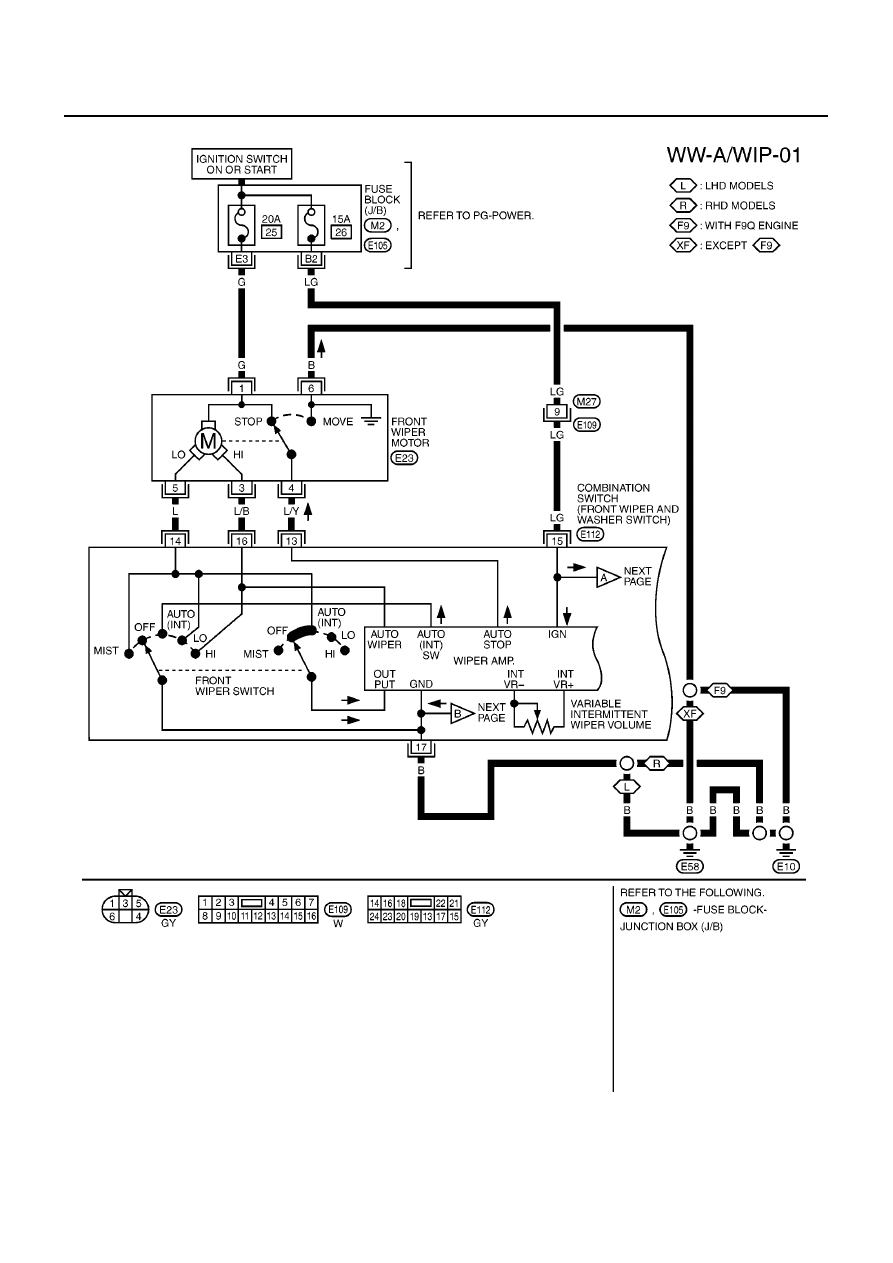

Wiring Diagram — WIPER —

EKS009P5

MKWA1012E

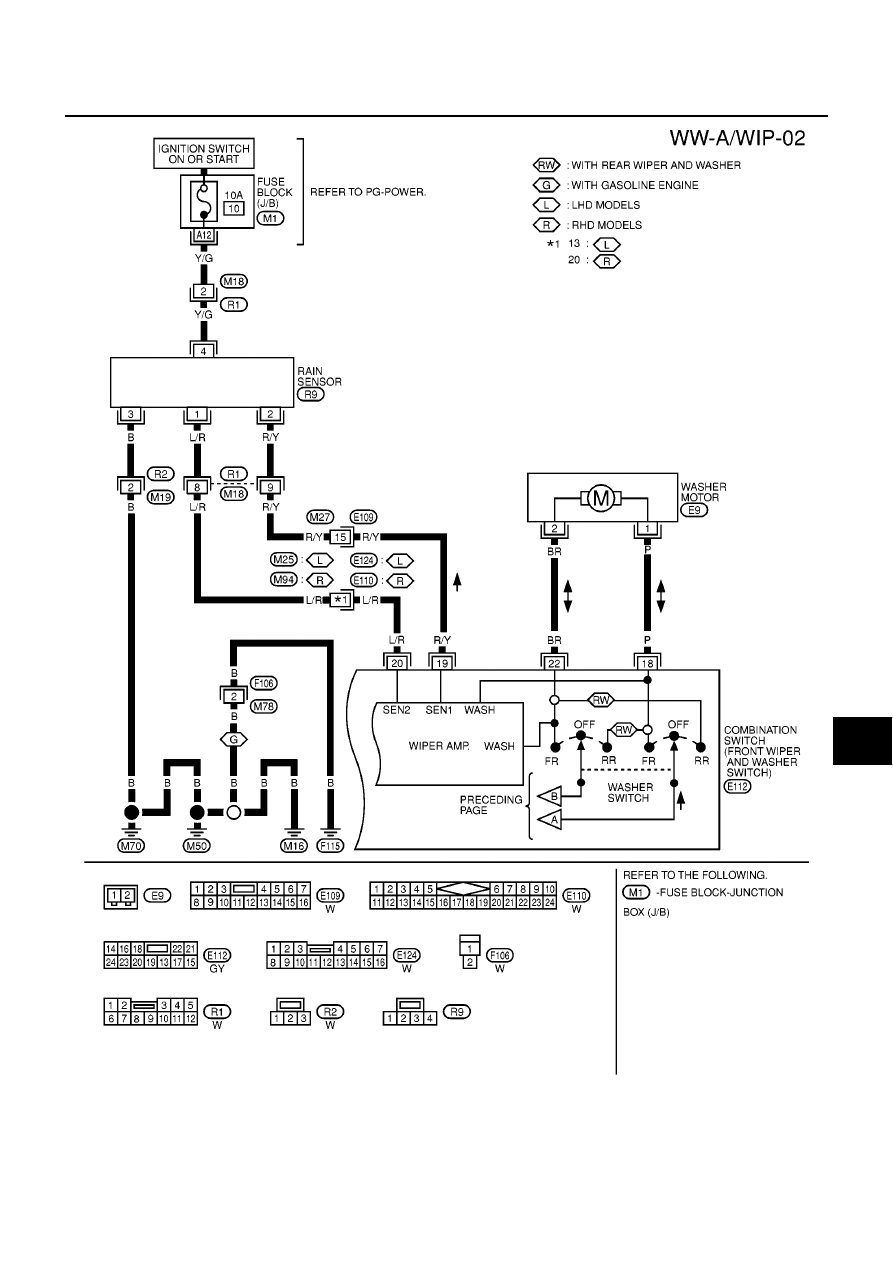

FRONT WIPER AND WASHER SYSTEM (WITH RAIN SENSOR)

WW-21

C

D

E

F

G

H

I

J

L

M

A

B

WW

MKWA0515E

WW-22

FRONT WIPER AND WASHER SYSTEM (WITH RAIN SENSOR)

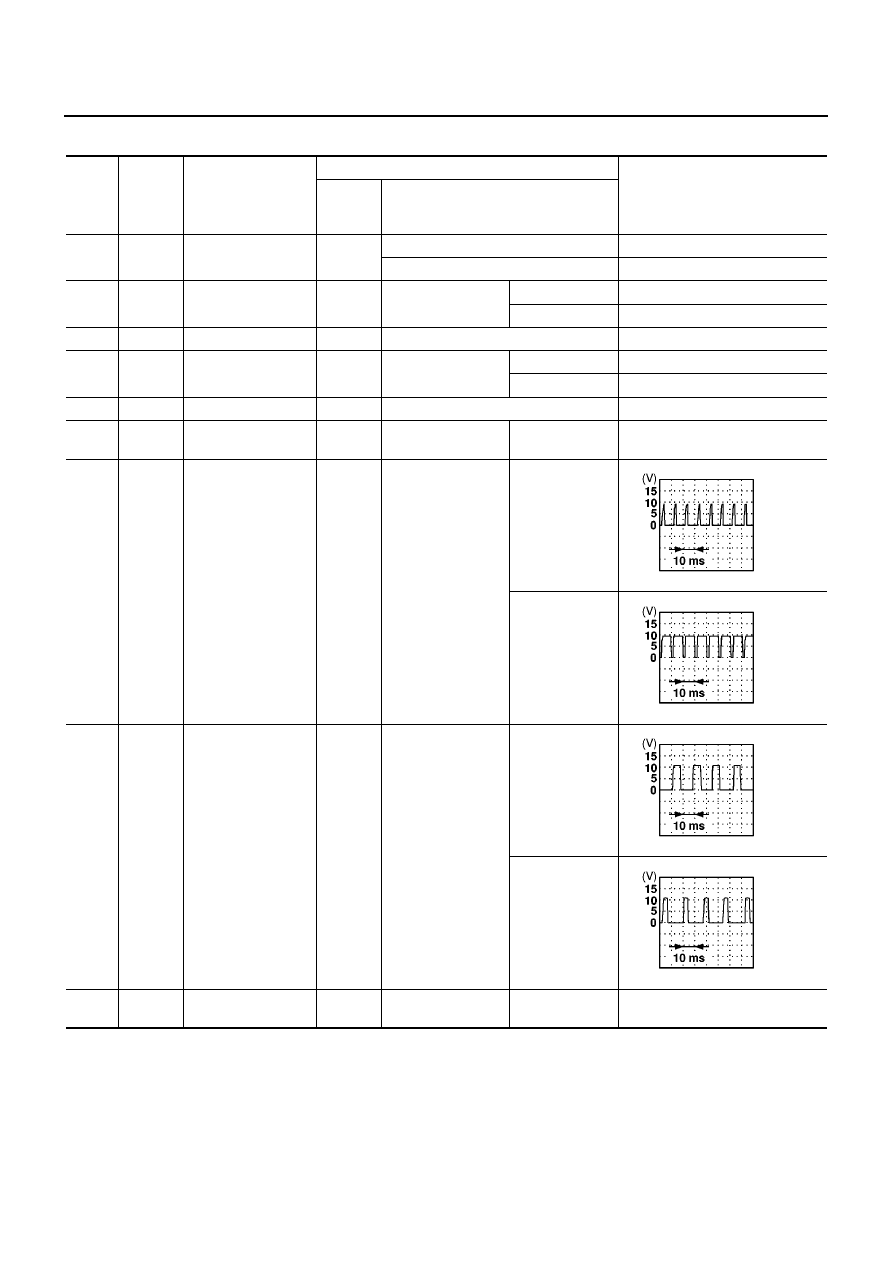

Terminal and Reference Values for Combination Switch

EKS009P6

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

IGNI-
TION

SWITCH

CONDITION OR OPERATION

13

L/Y

Wiper auto
stop signal

ON

Wiper is moving

Approx. 0

Wiper while the vehicle is stopped

Approx. 12

14

L

Wiper motor

operation signal (LO)

ON

Wiper switch

OFF

Approx. 12

LO

Approx. 0

15

LG

Ignition ON signal

ON

Approx. 12

16

L/B

Wiper motor

operation signal (HI)

ON

Wiper switch

OFF

Approx. 12

HI

Approx. 0

17

B

Ground

OFF

18

P

Washer motor

operation signal

ON

Washer switch

WASH (FR)

Approx. 12

19

R/Y

Rain sensor signal

(INPUT)

ON

Wiper switch
AUTO (INT) position

Wiper is stopped

Wiper is moving
(Apply a few
drops of water to
detection attach-
ment)

20

L/R

Rain sensor signal

(OUTPUT)

ON

Wiper switch
AUTO (INT) position

Wiper is stopped

Wiper is moving
(Apply a few
drops of water to
detection attach-
ment)

22

BR

Washer motor

operation signal

ON

Washer switch

WASH (FR)

Approx. 0

MKIB0171E

MKIB0172E

MKIB0173E

MKIB0174E

FRONT WIPER AND WASHER SYSTEM (WITH RAIN SENSOR)

WW-23

C

D

E

F

G

H

I

J

L

M

A

B

WW

Trouble Diagnosis

EKS009P7

SYMPTOM CHART

Symptom

Possible cause

Repair order

Front wiper does not operate.

Power supply and ground circuit

Check power supply and ground cir-
cuit(

WW-24

).

Wiper motor

Replace wiper motor.

Front wiper and washer switch

Check front wiper and washer switch
(

WW-52

).

Low speed wiper operation does not oper-
ate.

Open or short circuit

Check harness for open or short (

WW-25

).

Front wiper and washer switch

Check front wiper and washer switch
(

WW-52

).

High speed wiper operation does not oper-
ate.

Open or short circuit

Check harness for open or short (

WW-26

).

Front wiper and washer switch

Check front wiper and washer switch
(

WW-52

).

Auto stop wiper operation does not oper-
ate.

Open or short circuit

Check harness for open or short (

WW-26

).

Rain sensor

Check rain sensor 1 (

WW-29

).

Front wiper and washer switch

Check front wiper and washer switch
(

WW-52

).

Front washer does not operate.

Open or short circuit

Check harness for open or short (

WW-29

).

Front wiper and washer switch

Check front wiper and washer switch
(

WW-52

).

Washer motor

Replace washer motor.

Auto wiper does not operate in wet
weather.

Rain sensor

Check rain sensor 1 (

WW-29

).

Power supply and ground circuit

Check power supply and ground circuit for
rain sensor (

WW-24

).

Open or short circuit

Check harness for open or short (

WW-27

).

Front wiper and washer switch

Check front wiper and washer switch
(

WW-52

).

Auto wiper operate in the fair weather

Rain sensor

Check rain sensor 2 (

WW-31

).

Front wiper and washer switch

Check front wiper and washer switch
(

WW-52

).
