PRECAUTIONS

PFP:00011

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EKS009KU

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.

WARNING:

●

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

●

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

●

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Wiring Diagrams and Trouble Diagnosis

EKS009KV

When you read wiring diagrams, refer to the followings:

●

GI-14, "How to Read Wiring Diagrams"

in GI section

●

PG-3, "POWER SUPPLY ROUTING"

for power distribution circuit in PG section

When you perform trouble diagnosis, refer to the followings:

●

GI-10, "How to Follow Trouble Diagnoses"

and

GI-24, "How to Perform Efficient Diagnosis for an Electri-

cal Incident"

in GI section

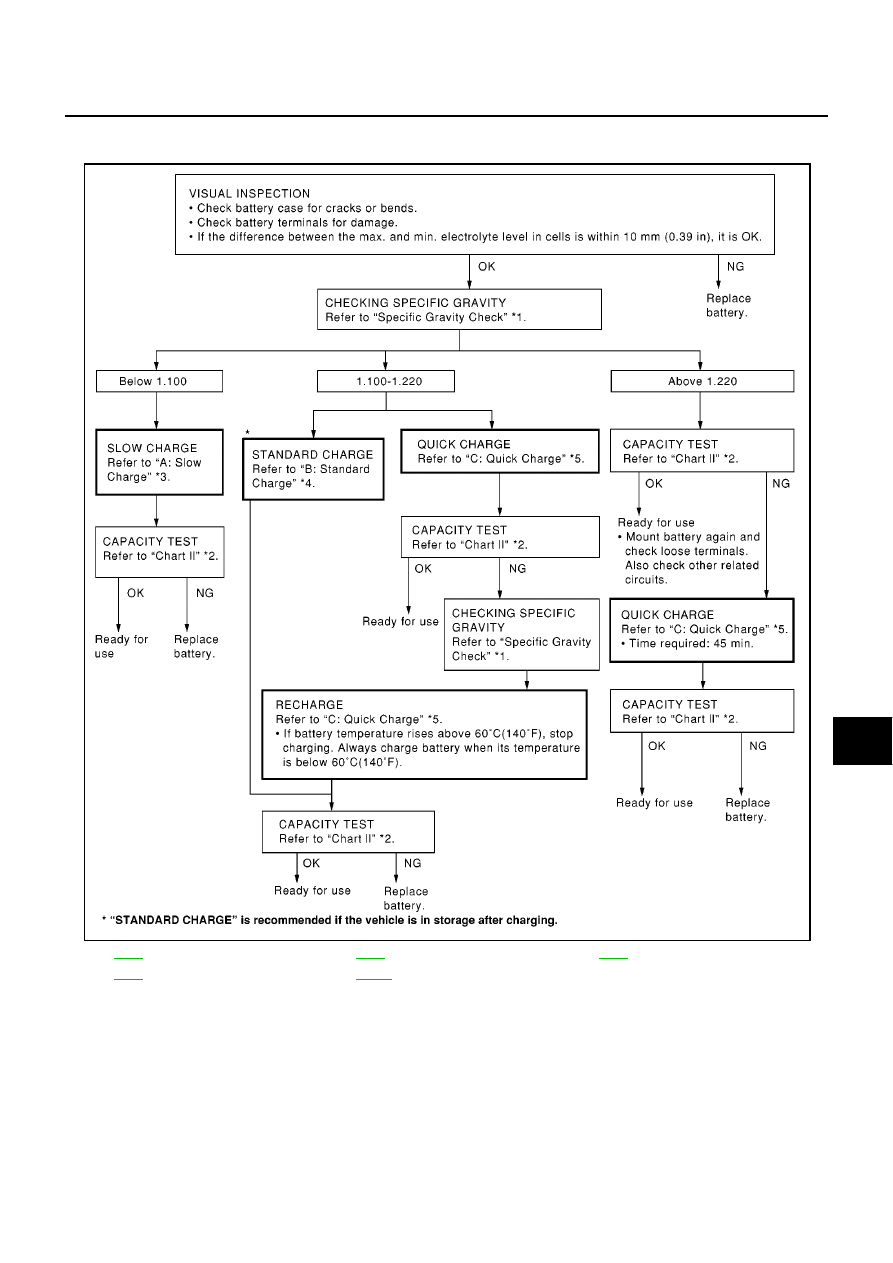

BATTERY

SC-3

BATTERY

PFP:00011

How to Handle Battery

EKS009KW

CAUTION:

●

If it becomes necessary to start the engine with a booster battery and jumper cables, use a 12-volt
booster battery.

●

After connecting battery cables, ensure that they are tightly clamped to battery terminals for good
contact.

●

Never add distilled water through the hole used to check specific gravity.

METHODS OF PREVENTING OVER-DISCHARGE

The following precautions must be taken to prevent over-discharging a battery.

●

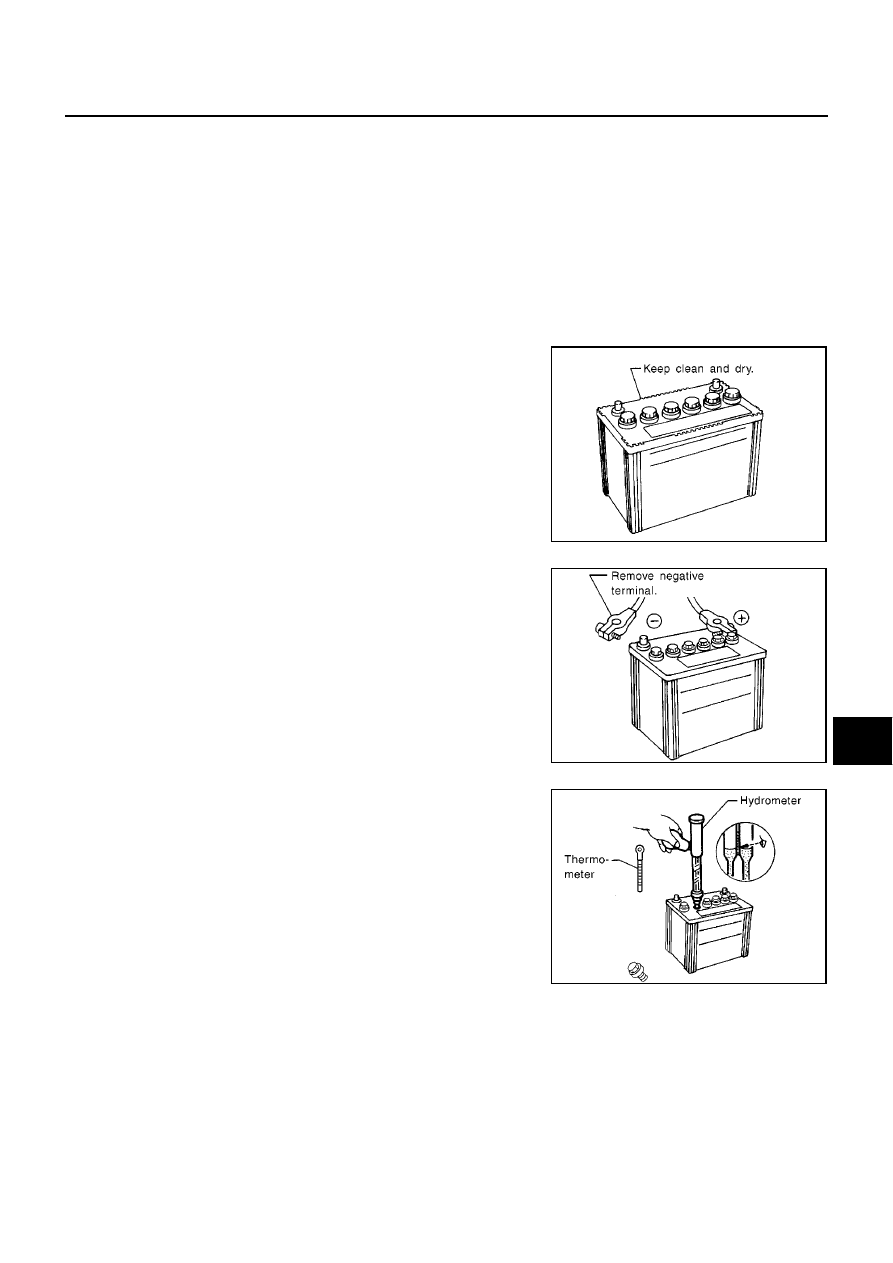

The battery surface (particularly its top) should always be kept
clean and dry.

●

The terminal connections should be clean and tight.

●

At every routine maintenance, check the electrolyte level.
This also applies to batteries designated as “low maintenance”
and “maintenance-free”.

●

When the vehicle is not going to be used over a long period of
time, disconnect the negative battery terminal. (If the vehicle has
an extended storage switch, turn it off.)

●

Check the charge condition of the battery.
Periodically check the specific gravity of the electrolyte. Keep a
close check on charge condition to prevent over-discharge.

CHECKING ELECTROLYTE LEVEL

WARNING:

Do not allow battery fluid to come in contact with skin, eyes, fabrics, or painted surfaces. After touch-
ing a battery, do not touch or rub your eyes until you have thoroughly washed your hands. If acid con-
tacts eyes, skin or clothing, immediately flush with water for 15 minutes and seek medical attention.

MEL040F

MEL041F

MEL042F

SC-4

BATTERY

●

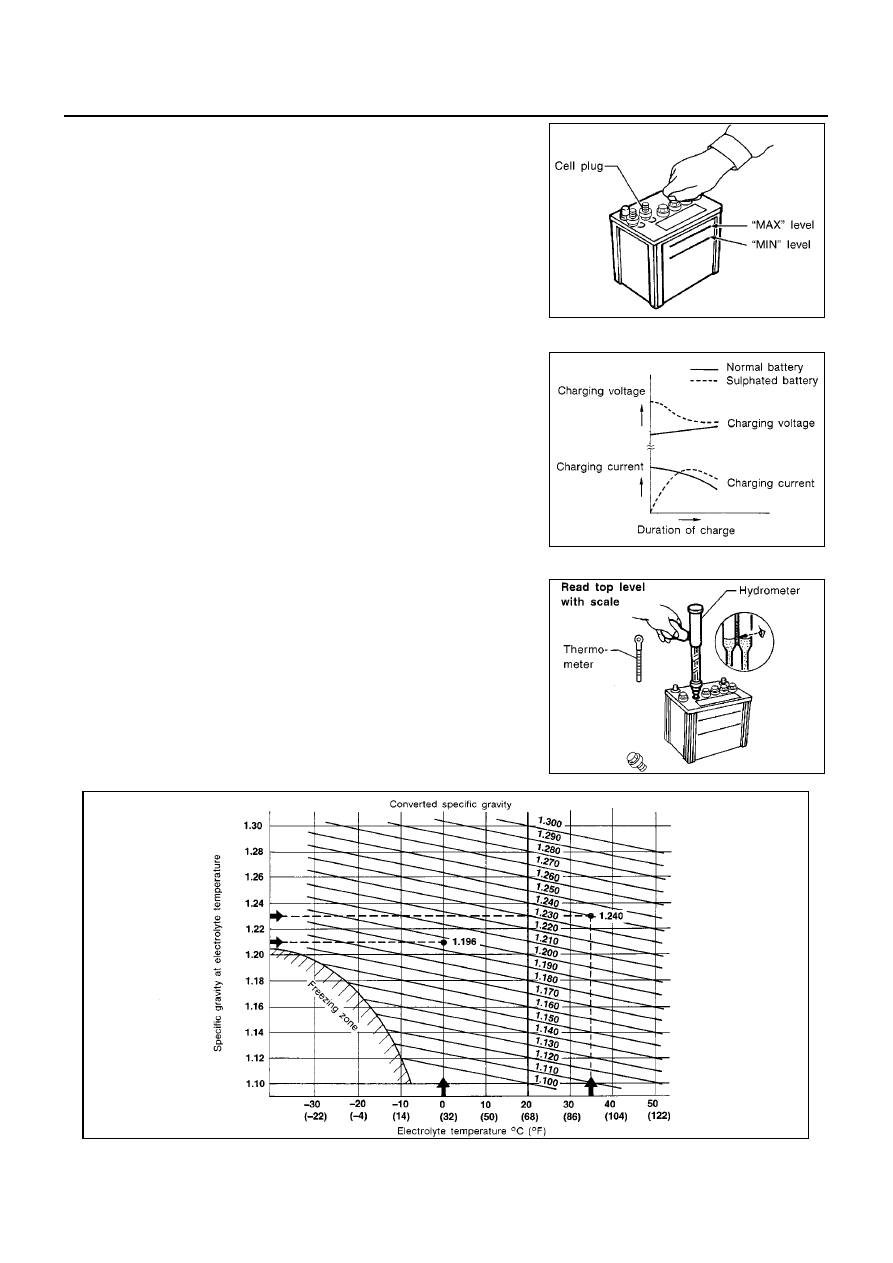

Remove the cell plug using a suitable tool.

●

Add distilled water up to the MAX level.

Sulphation

A battery will be completely discharged if it is left unattended
for a long time and the specific gravity will become less than
1.100. This may result in sulphation on the cell plates.
To determine if a battery has been “sulphated”, note its voltage
and current when charging it. As shown in the figure, less cur-
rent and higher voltage are observed in the initial stage of
charging sulphated batteries.
A sulphated battery may sometimes be brought back into ser-
vice by means of a long, slow charge, 12 hours or more, fol-
lowed by a battery capacity test.

SPECIFIC GRAVITY CHECK

Read hydrometer and thermometer indications at eye level.

Convert into specific gravity at 20

C (68

F).

Example:

●

When electrolyte temperature is 35

C (95

F) and specific gravity

of electrolyte is 1.230, converted specific gravity at 20

C (68
