ELECTRICAL UNITS

ELECTRICAL UNITS

PFP:00011

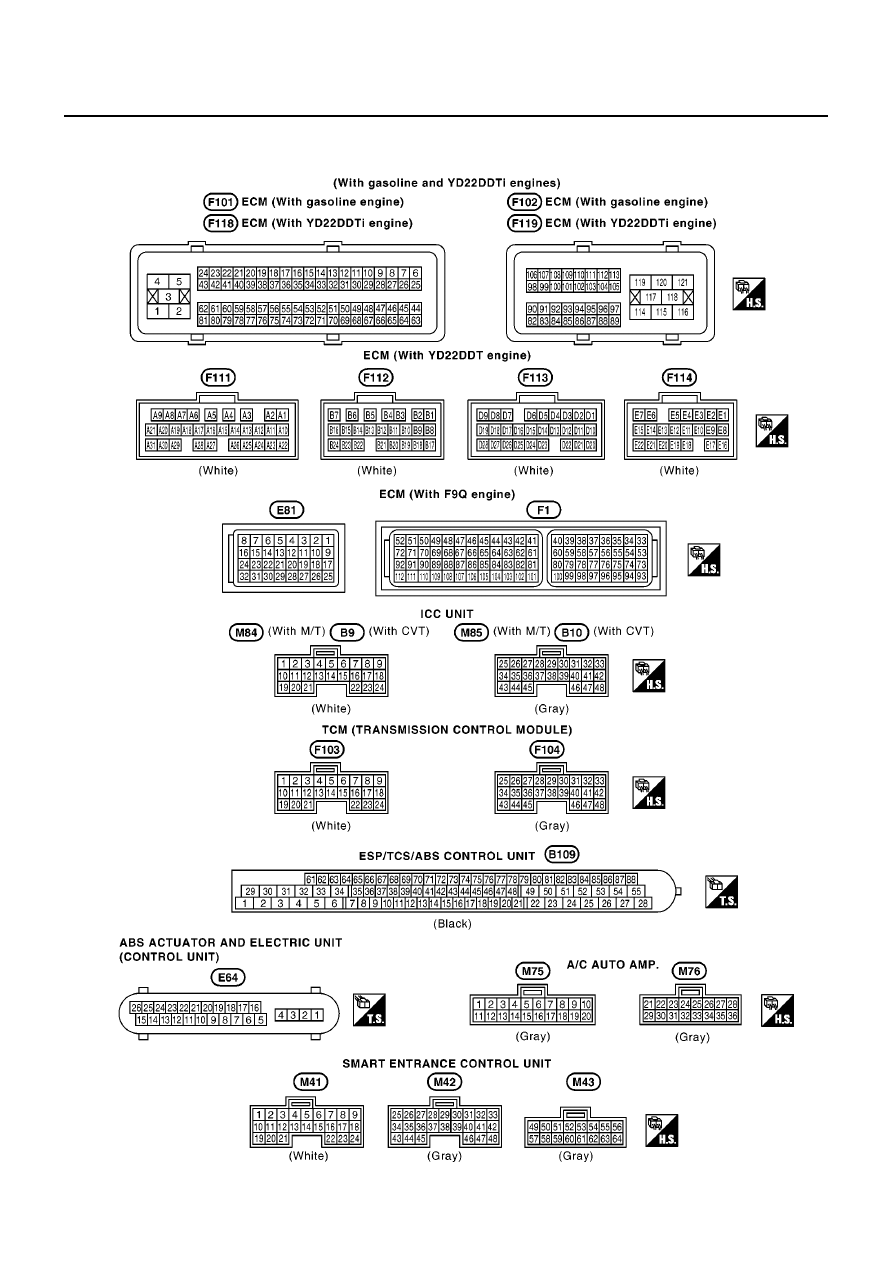

Terminal Arrangement

EKS00A0H

MAWA1170E

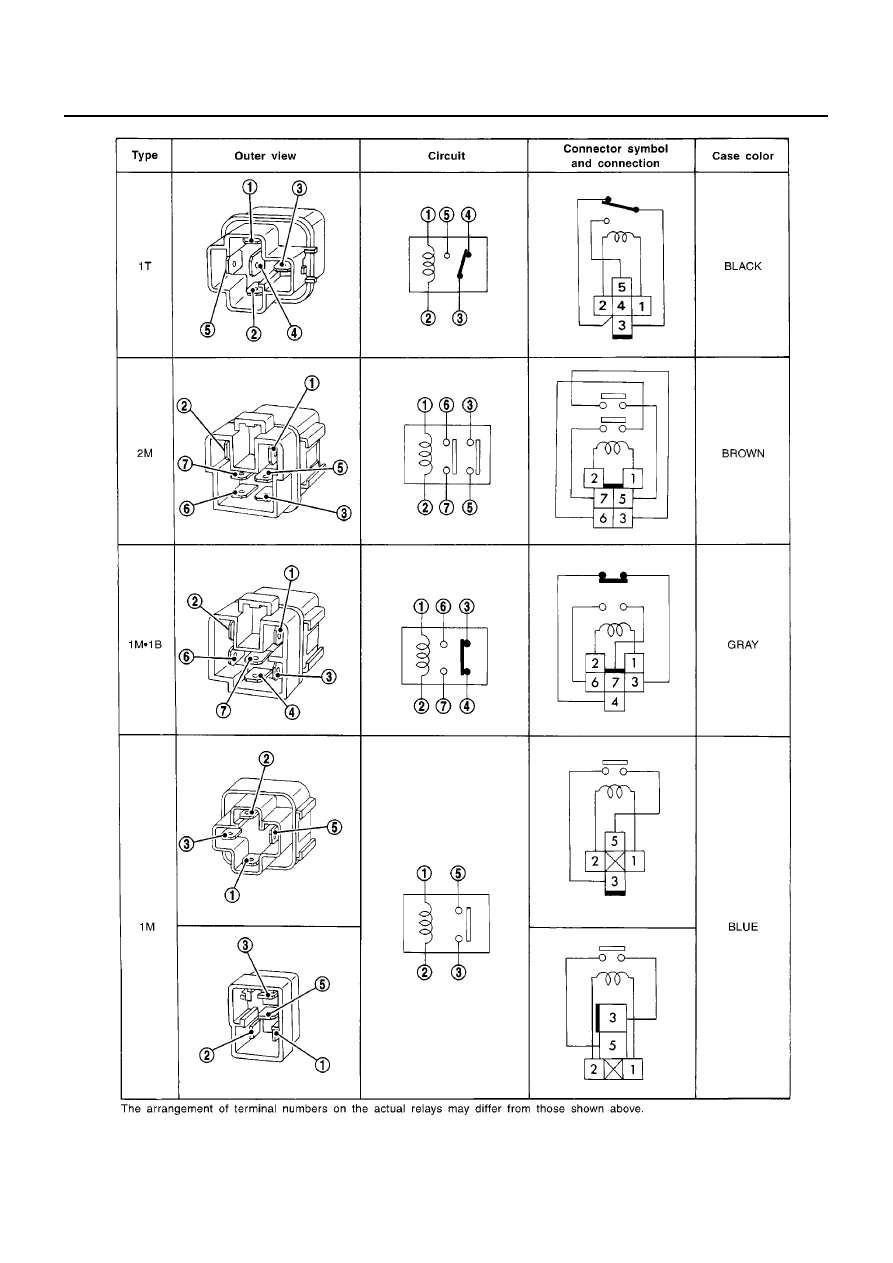

STANDARDIZED RELAY

PG-111

C

D

E

F

G

H

I

J

L

M

A

B

PG

STANDARDIZED RELAY

PFP:00011

Description

EKS00A0I

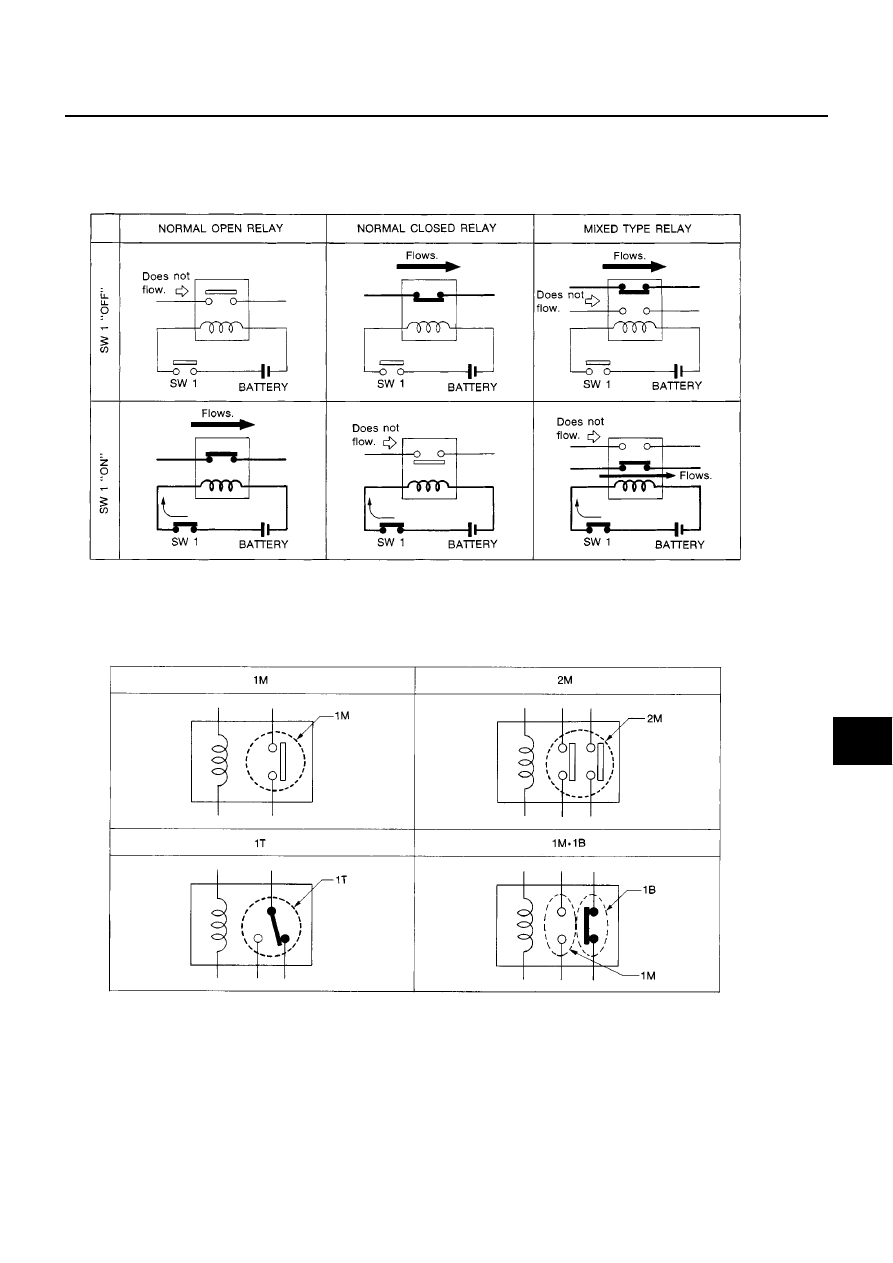

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

TYPE OF STANDARDIZED RELAYS

SEL881H

1M ···················· 1 Make

2M

···················· 2 Make

1T ···················· 1 Transfer

1M·1B ···················· 1 Make 1 Break

SEL882H

PG-112

STANDARDIZED RELAY

SEL188W

FUSE BLOCK - JUNCTION BOX (J/B)

PG-113

C

D

E

F

G

H

I

J

L

M

A

B

PG

FUSE BLOCK - JUNCTION BOX (J/B)

PFP:24350

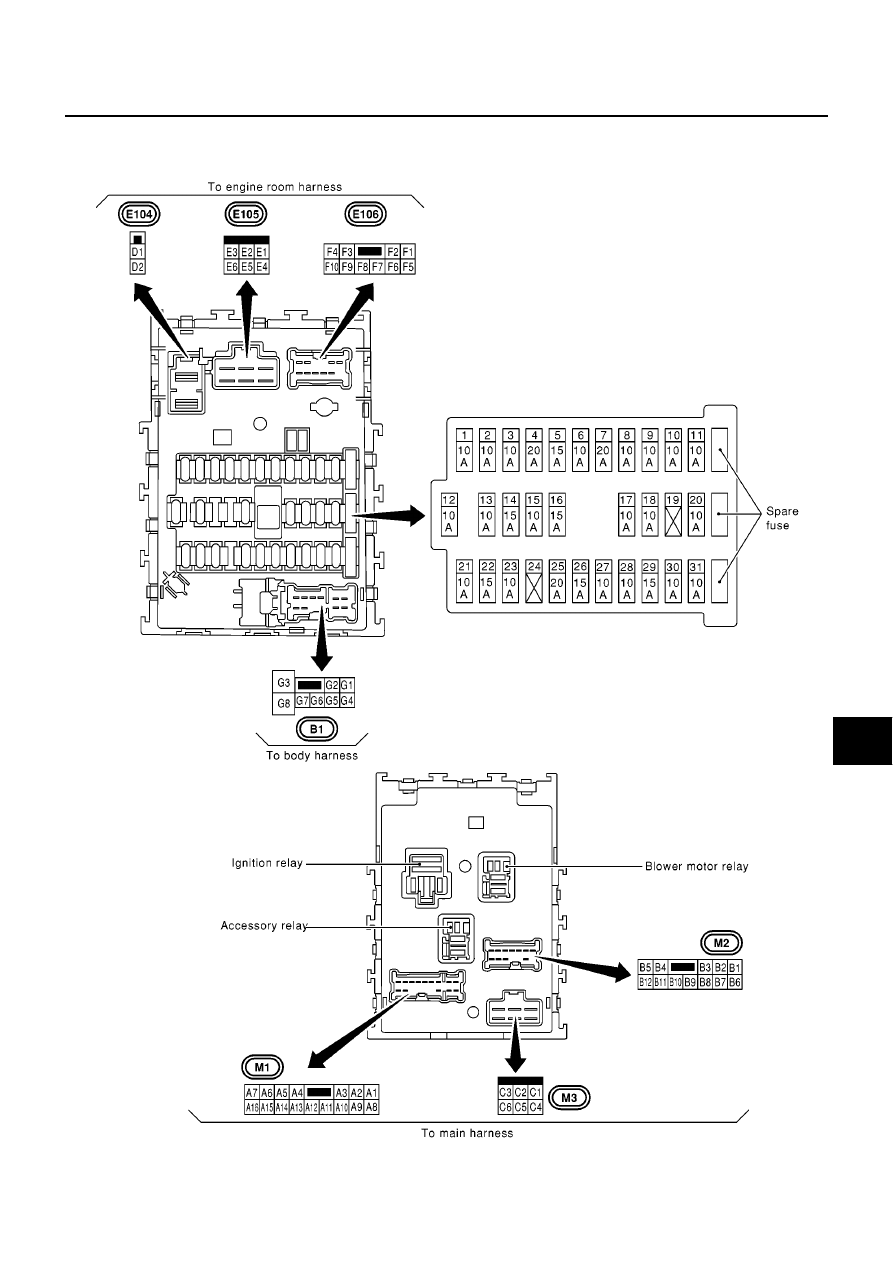

Terminal Arrangement

EKS00A0J

MKWA0347E
