PG-94

HARNESS

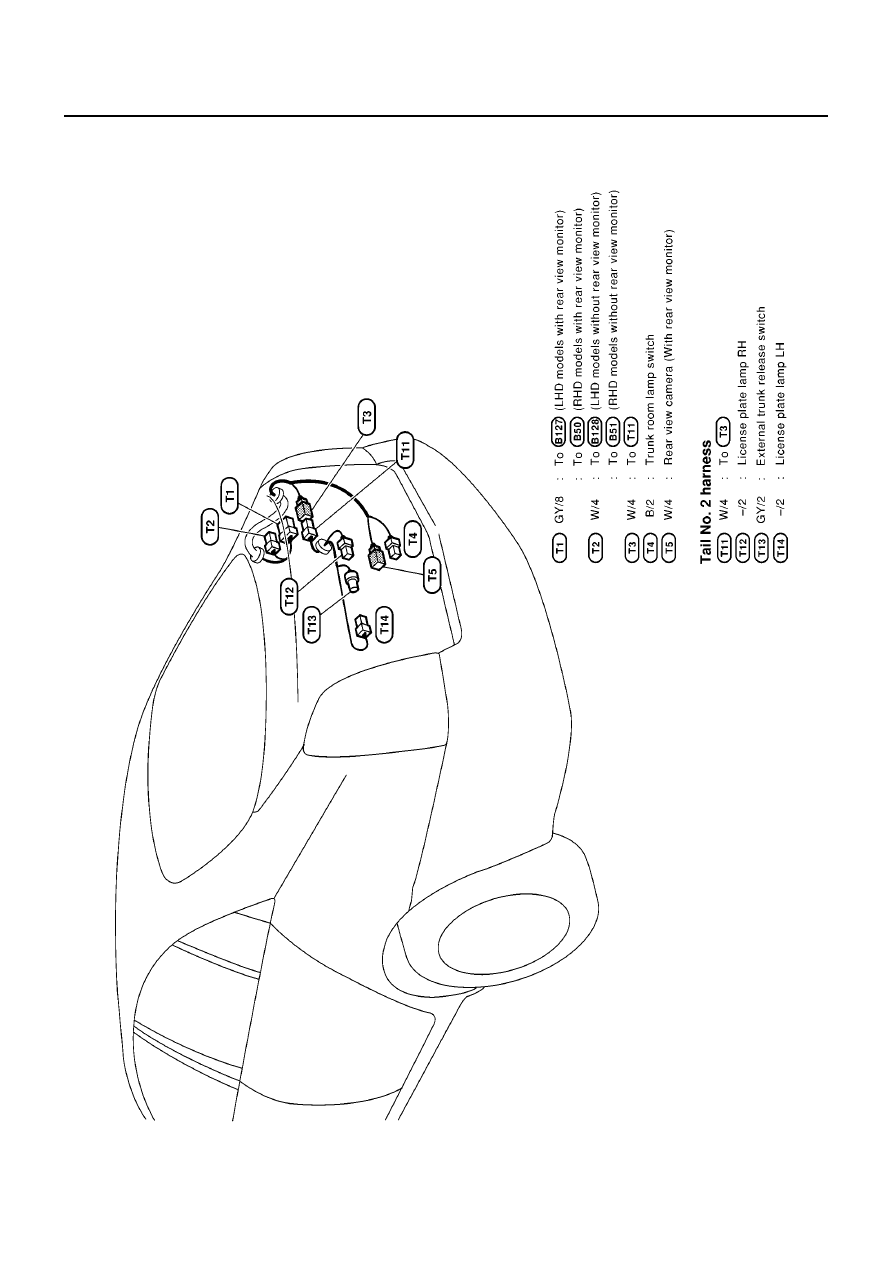

TAIL HARNESS
SEDAN MODELS

MKWA0345E

HARNESS

PG-95

C

D

E

F

G

H

I

J

L

M

A

B

PG

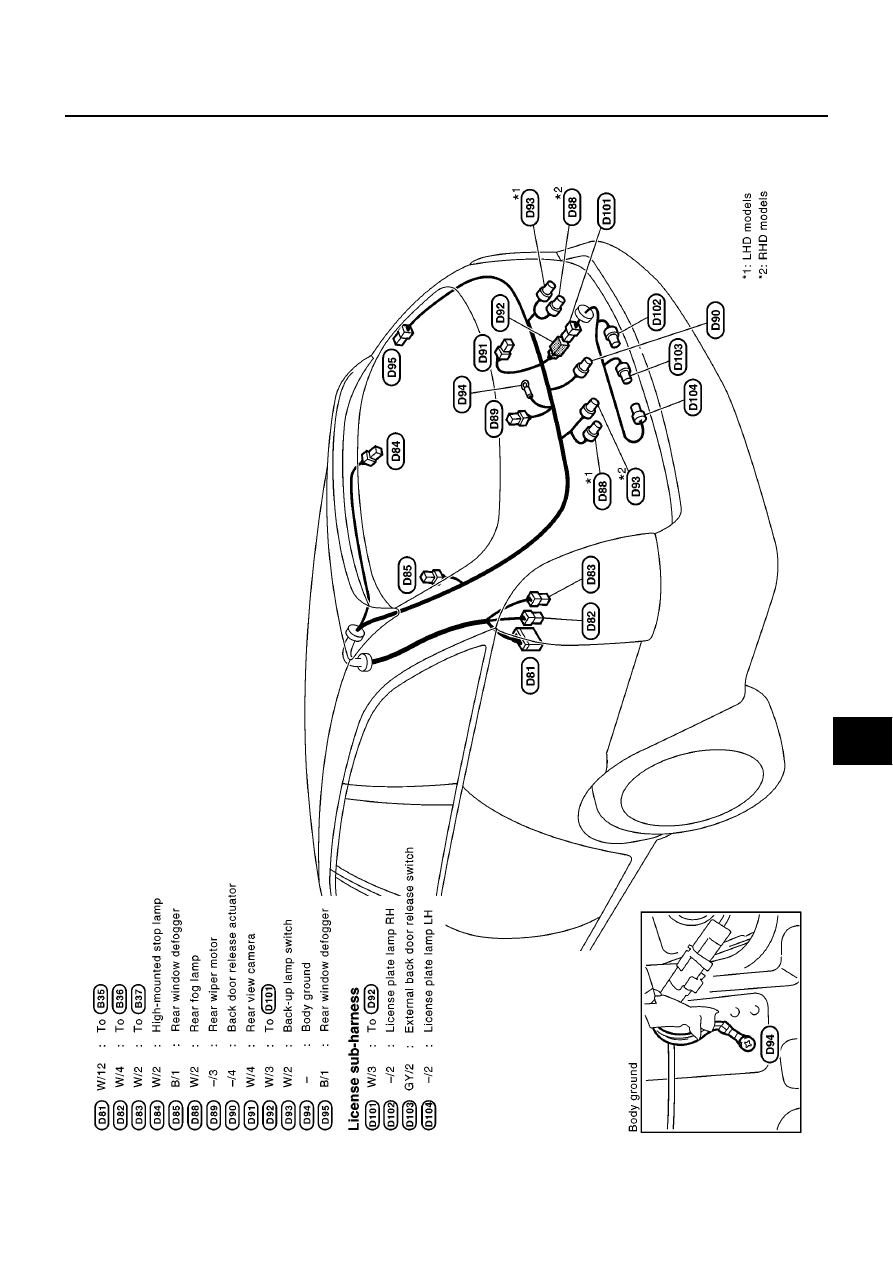

BACK DOOR HARNESS
WAGON AND HATCHBACK MODELS

MAWA1262E

PG-96

HARNESS

Wiring Diagram Codes (Cell Codes)

EKS00A0E

Use the chart below to find out what each wiring diagram code stands for.
Refer to the wiring diagram code in the alphabetical index to find the location (page number) of each wiring
diagram.

Code

Section

Wiring Diagram Name

1STSIG

AT

A/T 1ST Signal

2NDSIG

AT

A/T 2ND Signal

3RDSIG

AT

A/T 3RD Signal

4THSIG

AT

A/T 4TH Signal

A/C

ATC

Air Conditioner

A/CCUT

EC

Air Conditioner Cut Control

A/WIP

WW

Wiper and Washer - Auto

ABS

BRC

Anti-lock Brake System

APP1PW

EC

Accelerator Dedal Position Sensor 1 Power

APP2PW

EC

Accelerator Dedal Position Sensor 1 Power

APPS

EC

Accelerator pedal position Sensor

APPS1

EC

Accelerator pedal position Sensor 1

APPS2

EC

Accelerator pedal position Sensor 2

APPS3

EC

Accelerator pedal position Sensor

APRSW

EC

Accelerator Pedal Released Position Switch

ASCBOF

EC

ASCD Brake Switch

ASC/BS

EC

ASCD Brake Switch

ASCIND

EC

ASCD Indicator

ASC/SW

EC

ASCD Steering Switch

AT/IND

DI

A/T Indicator

AUDIO

AV

Audio

BA/FTS

AT

A/T Fluid Temperature Sensor and TCM Power Supply

BACK/L

LT

Back-up Lamp

BOOST

EC

Charge Air Pressure Sensor/Turbo charger Boost Sensor

BRK/SW

EC

Brake Switch

CAN

AT

CAN Communication Line

CAN

CVT

CAN Communication Line

CAN

EC

CAN Communication Line

CAN

LAN

CAN System

CAS

EC

Crank Angle Sensor

CHARGE

SC

Charging System

CHIME

DI

Warning Chime

CIGAR

WW

Cigarette Lighter

CKPS

EC

Crankshaft Position Sensor (TDC)

CLOCK

DI

Clock

CLT/SW

EC

ASCD Clutch Switch

CMPS

EC

Camshaft Position Sensor

COMM

AV

Audio Visual Communication Line

COMM

DI

VFD, LCD Display

COOL/F

EC

Cooling Fan Control

CRFPS

EC

Common Rail Fuel Pressure Sensor

HARNESS

PG-97

C

D

E

F

G

H

I

J

L

M

A

B

PG

CSS

EC

Camshaft Position Sensor

D/LOCK

BL

Power Door Lock

DEF

GW

Rear Window Defogger

DTRL

LT

Headlamp - With Daytime Light System

ECM/PW

EC

ECM Power Supply

ECMRLY

EC

ECM Relay

ECTS

EC

Engine Coolant Temperature Sensor

EDU

EC

EDU

EGRC/V

EC

EGR Volume Control System

ENGSS

AT

Engine Speed Signal

ENGSS

CVT

Engine Speed Signal

ESP

BRC

Vehicle Dynamics Control System

ETC1

EC

Electrical Throttle Control Function

ETC2

EC

Electrical Throttle Control Motor Relay

ETC3

EC

Electrical Throttle Control Motor

F/FOG

LT

Front Fog Lamp

F/PUMP

EC

Fuel Pump

FIAR

EC

Fuel Injector Adjustment Resistor

FLG

EC

Flow Governor

FRO2

EC

Heated Oxygen Sensor 1

FRO2B1

EC

Heated Oxygen Sensor 1 Bank 1

FRO2B2

EC

Heated Oxygen Sensor 1 Bank 2

FRPS

EC

Fuel Rail Pressure Sensor

FTS

AT

A/T Fluid Temperature Sensor

FTS

CVT

CVT Fluid Temperature Sensor

FTS

EC

Fuel Temperature Sensor/Fuel Pump (Fuel Pump Temperature Sensor)

FUEL

EC

Fuel Injection System Function

FUELB1

EC

Fuel Injection System Function (Bank 1)

FUELB2

EC

Fuel Injection System Function (Bank 2)

GLOW

EC

Glow Control System

H/AIM

LT

Headlamp Aiming Control System

H/LAMP

LT

Headlamp

H/SEAT

SE

Heated Seat

HLC

WW

Headlamp Washer

HO2S1

EC

Heated Oxygen Sensor 1

HO2S1H

EC

Heated Oxygen Sensor 1 Heater

HO2S2

EC

Heated Oxygen Sensor 2

HO2S2H

EC

Heated Oxygen Sensor 2 Heater

HORN

WW

Horn

I/MIRR

GW

Inside Mirror (Auto Anti-dazzling mirror)

IATS

EC

Intake Air Temperature sensor

IATSEN

EC

Intake Air Temperature sensor

ICC/BS

EC

Intelligent Cruise Control System - ICC Brake Switch

ICC/SW

EC

Intelligent Cruise Control System - ICC Steering Switch

Code

Section

Wiring Diagram Name
