PG

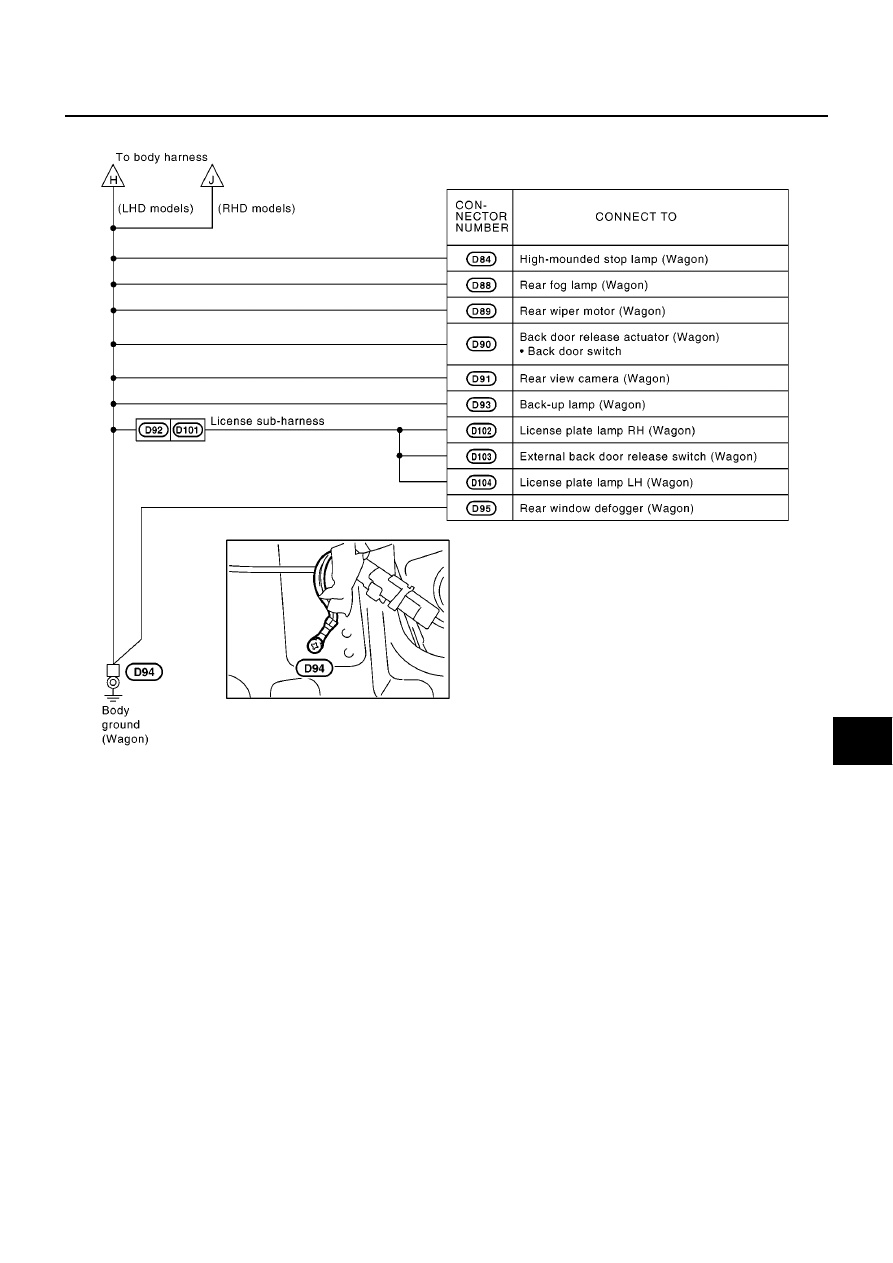

BACK DOOR HARNESS

MAWA1188E

PG-44

HARNESS

HARNESS

PFP:00011

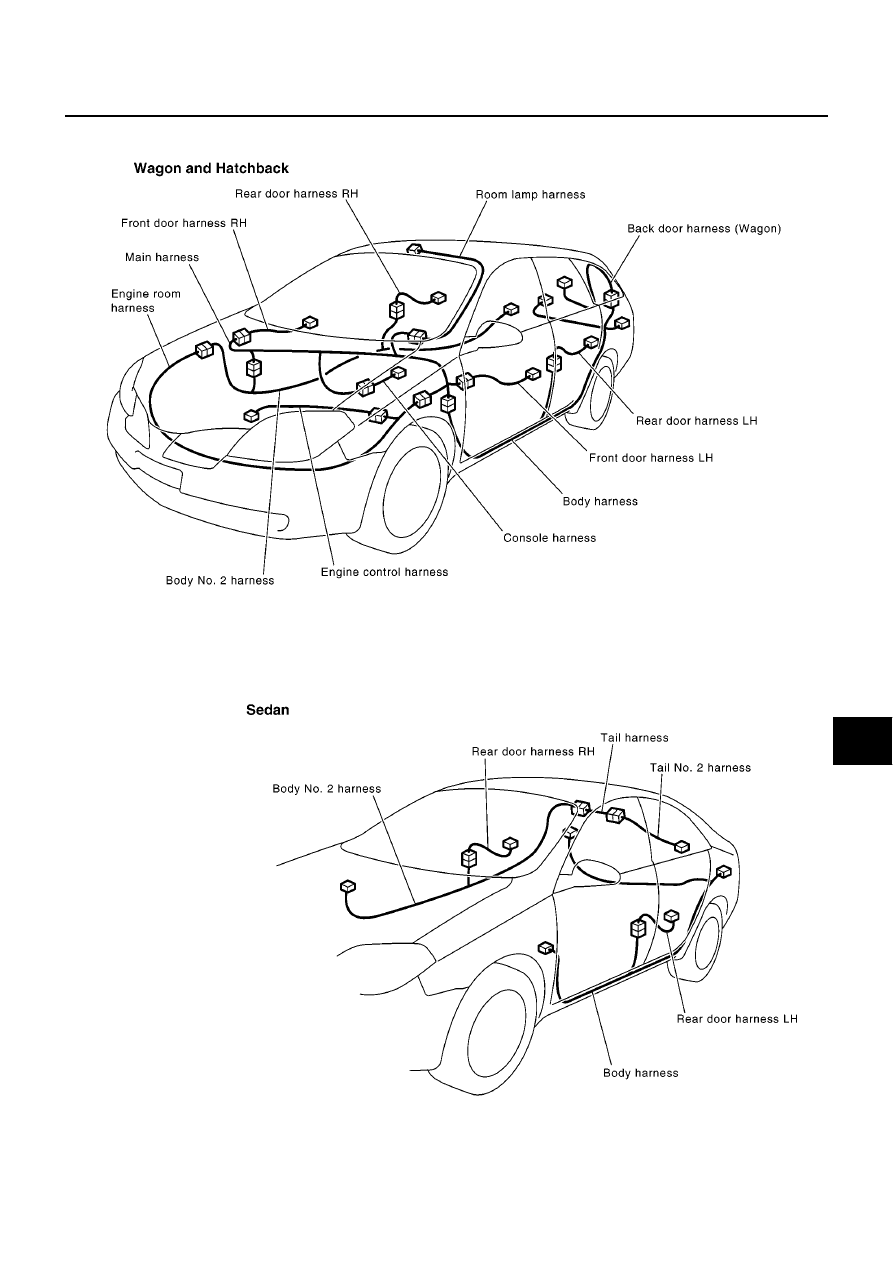

Harness Layout

EKS00A0D

HOW TO READ HARNESS LAYOUTS

The following Harness Layouts use a map style grid to help locate
connectors on the drawings:

●

Main Harness

●

Engine Room Harness (Engine Compartment)

●

Body Harness

●

Body No.2 Harness

To use the grid reference

1.

Find the desired connector number on the connector list.

2.

Find the grid reference.

3.

On the drawing, find the crossing of the grid reference letter col-
umn and number row.

4.

Find the connector number in the crossing zone.

5.

Follow the line (if used) to the connector.

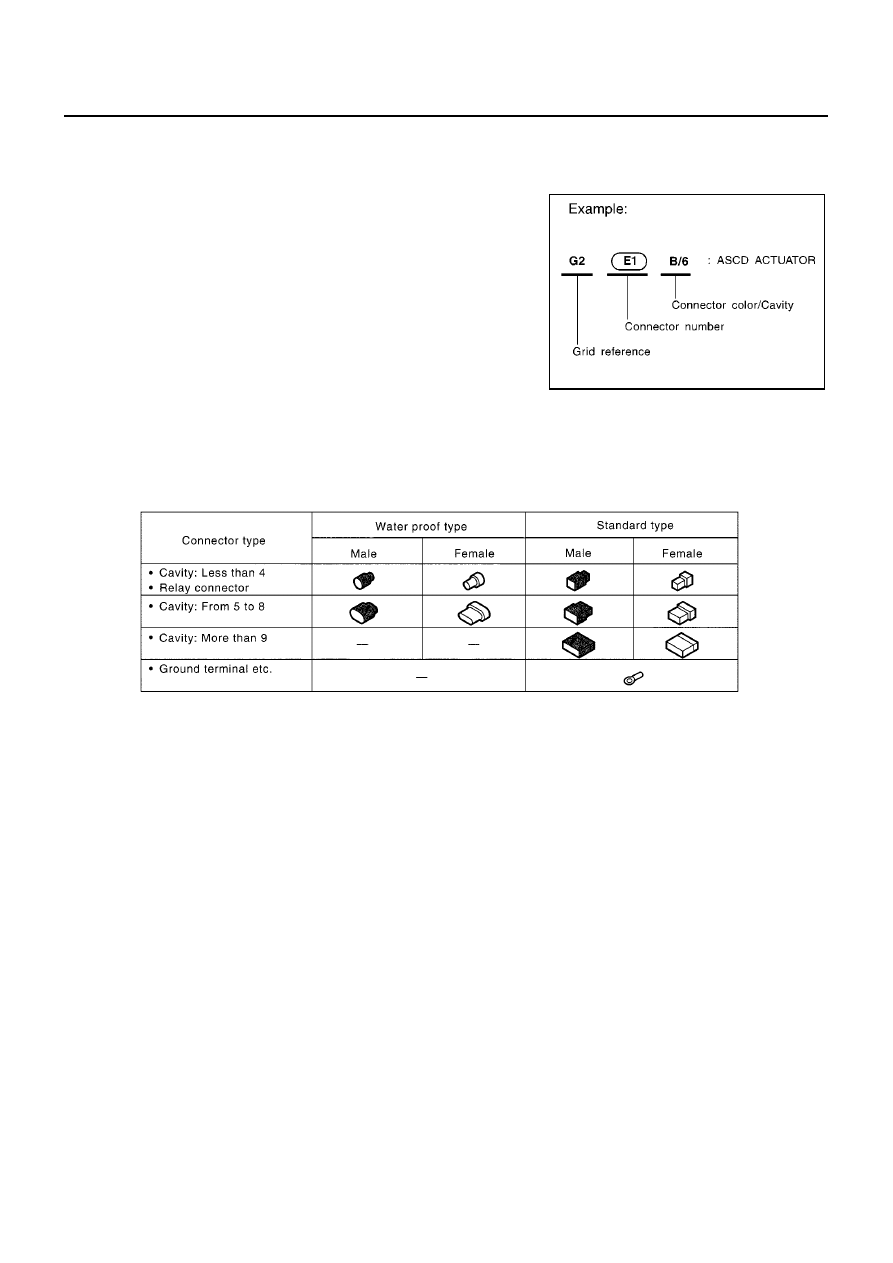

CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.

SEL252V

SKIA0404E

HARNESS

PG-45

C

D

E

F

G

H

I

J

L

M

A

B

PG

OUTLINE/LHD MODELS

MAWA1195E
