TIGHTENING TORQUE OF STANDARD BOLTS

TIGHTENING TORQUE OF STANDARD BOLTS

PFP:00000

Tightening Torque Table

EAS000VD

*: Nominal diameter

1. Special parts are excluded.

2. This standard is applicable to bolts having the following marks embossed on the bolt head.

Grade

Bolt size

Bolt diam-

eter *

mm

Pitch

mm

Tightening torque (Without lubricant)

Hexagon head bolt

Hexagon flange bolt

N·m

kg-m

ft-lb

in-lb

N·m

kg-m

ft-lb

in-lb

4T

M6

6.0

1.0

5.5

0.56

4

49

7

0.71

5

62

M8

8.0

1.25

13.5

1.4

10

—

17

1.7

13

—

1.0

13.5

1.4

10

—

17

1.7

13

—

M10

10.0

1.5

28

2.9

21

—

35

3.6

26

—

1.25

28

2.9

21

—

35

3.6

26

—

M12

12.0

1.75

45

4.6

33

—

55

5.6

41

—

1.25

45

4.6

33

—

65

6.6

48

—

M14

14.0

1.5

80

8.2

59

—

100

10

74

—

7T

M6

6.0

1.0

9

0.92

7

80

11

1.1

8

97

M8

8.0

1.25

22

2.2

16

—

28

2.9

21

—

1.0

22

2.2

16

—

28

2.9

21

—

M10

10.0

1.5

45

4.6

33

—

55

5.6

41

—

1.25

45

4.6

33

—

55

5.6

41

—

M12

12.0

1.75

80

8.2

59

—

100

10

74

—

1.25

80

8.2

59

—

100

10

74

—

M14

14.0

1.5

130

13

96

—

170

17

125

—

9T

M6

6.0

1.0

11

1.1

8

—

13.5

1.4

10

—

M8

8.0

1.25

28

2.9

21

—

35

3.6

26

—

1.0

28

2.9

21

—

35

3.6

26

—

M10

10.0

1.5

55

5.6

41

—

80

8.2

59

—

1.25

55

5.6

41

—

80

8.2

59

—

M12

12.0

1.75

100

10

74

—

130

13

96

—

1.25

100

10

74

—

130

13

96

—

M14

14.0

1.5

170

17

125

—

210

21

155

—

MGI044A

IDENTIFICATION INFORMATION

GI-45

C

D

E

F

G

H

I

J

K

L

M

B

GI

IDENTIFICATION INFORMATION

PFP:00010

Model Variation

EAS000VE

Body

RHD

LHD

Engine

Transaxle

Grade

SEDAN

BVHARBY-TEB

—

YD22DDTi

RS6F51R

Comfort

BVHARSY-TEB

BVHALSY-TGB

Elegance

BVHARCY-TEB

BVHALCY-TGB

Sport

—

BTFALBY-TGB

F9Q

RS6F93R

Comfort

—

BTFALSY-TGB

Elegance

—

BTFALCY-TGB

Sport

WAGON

TVHARBY-TEB

—

YD22DDTi

RS6F51R

Comfort

TVHARSY-TEB

TVHALSY-TGB

Elegance

TVHARCY-TEB

TVHALCY-TGB

Sport

—

TTFALBY-TGB

F9Q

RS6F93R

Comfort

—

TTFALSY-TGB

Elegance

—

TTFALCY-TGB

Sport

5H/B

FVHARBY-TEB

—

YD22DDTi

RS6F51R

Comfort

FVHARSY-TEB

FVHALSY-TGB

Elegance

FVHARCY-TEB

FVHALCY-TGB

Sport

—

FTFALBY-TGB

F9Q

RS6F93R

Comfort

—

FTFALSY-TGB

Elegance

—

FTFALCY-TGB

Sport

GI-46

IDENTIFICATION INFORMATION

Prefix and suffix designations:

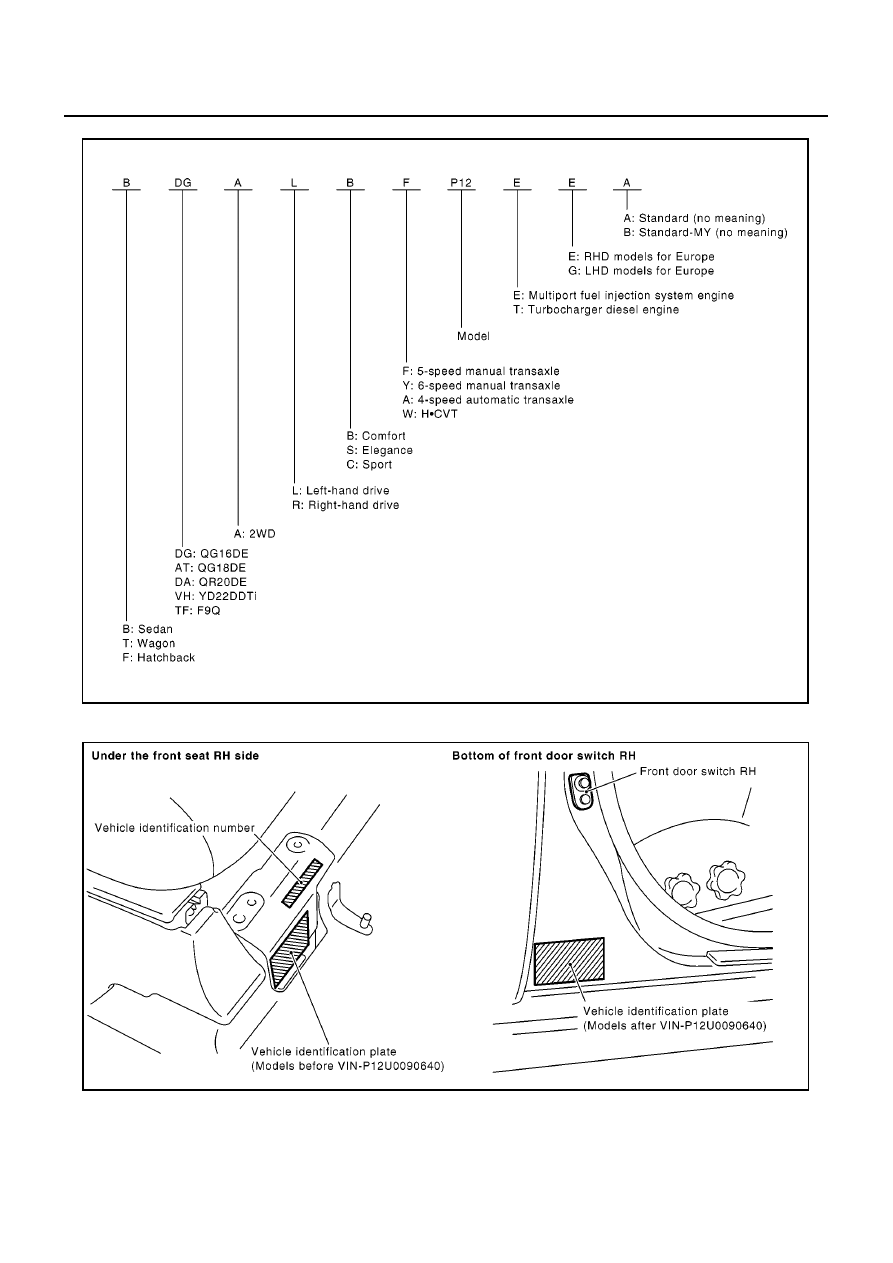

IDENTIFICATION NUMBER

MAIA0036E

MAIA0035E

IDENTIFICATION INFORMATION

GI-47

C

D

E

F

G

H

I

J

K

L

M

B

GI

VEHICLE IDENTIFICATION NUMBER ARRANGEMENT

IDENTIFICATION PLATE

Dimensions

EAS000VF

Unit: mm (in)

MAIA0037E

PAIA0006E

SEDAN & HATCHBACK

WAGON

Overall length

4,567 (179.80)

4,675 (184.05)

Overall width

1,760 (69.29)

Overall height

1,482 (58.35)

1,488 (58.58)
