Nissan Primera P12. Manual - part 290





ASCD INDICATOR

EC-345

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

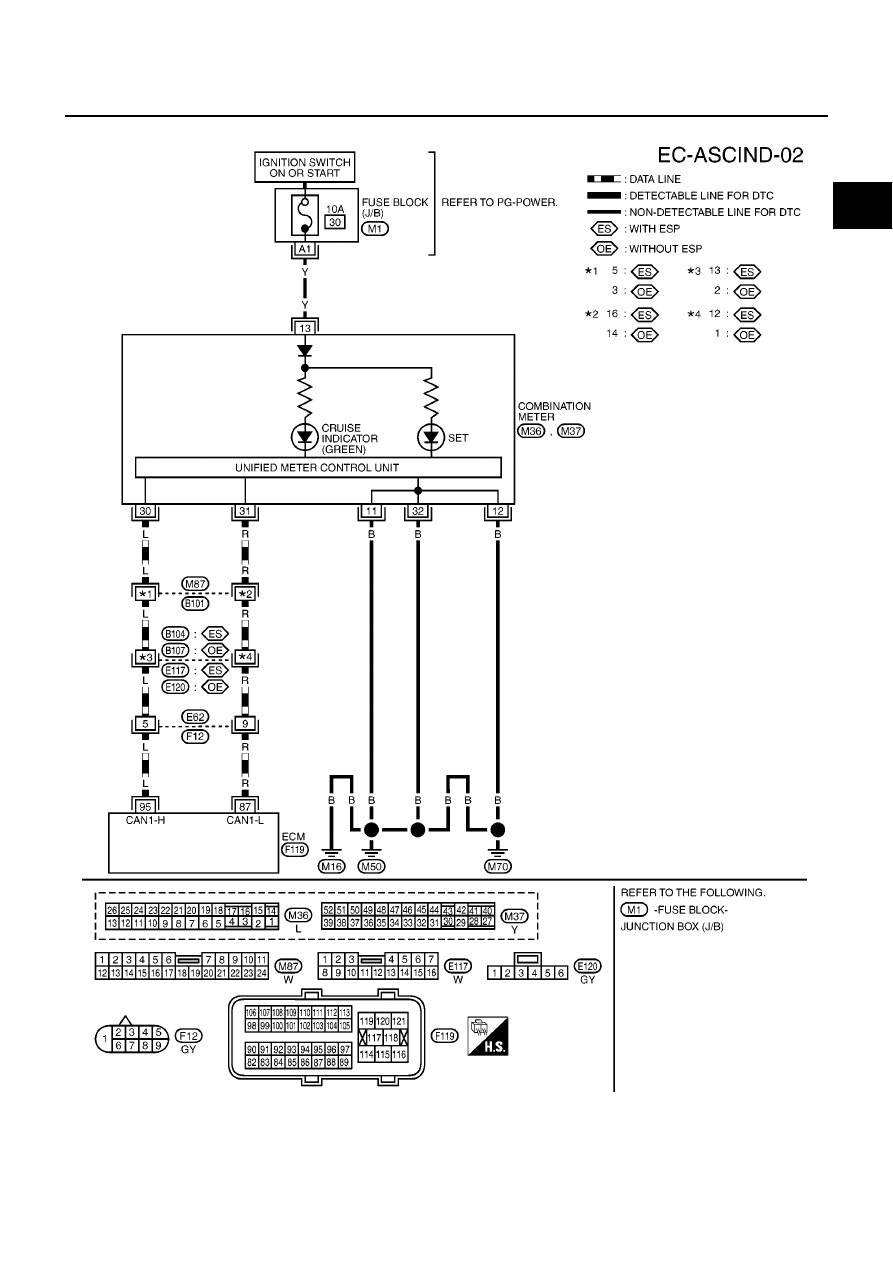

Wiring Diagram—RHD Models

EBS011VY

MBWA0612E

EC-346

[YD (WITH EURO-OBD)]

ASCD INDICATOR

Diagnostic Procedure

EBS011VZ

1.

CHECK OVERALL FUNCTION

Check ASCD indicator under the following conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

2.

CHECK DTC

Check that DTC U1000 is not displayed.
OK or NG

OK

>> Perform trouble diagnoses for DTC U1000. Refer to

EC-83, "DTC U1000 CAN COMMUNICA-

TION LINE"

.

NG

>> GO TO 3.

3.

CHECK COMBINATION METER OPERATION

Does combination meter operate normally?
Yes or No

Yes

>> GO TO 4.

No

>> Check combination meter circuit. Refer to

DI-4, "COMBINATION METERS (LHD MODELS)"

or

DI-4, "COMBINATION METERS (LHD MODELS)"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to

EC-75, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

ASCD INDICATOR

CONDITION

SPECIFICATION

CRUISE LAMP

Ignition switch: ON

ON/OFF switch: Pressed at
the first time

at the 2nd time

ON

OFF

SET LAMP

ON/OFF switch: ON

When vehicle speed is
between 40 km/h (25 MPH)
and 185 km/h (115 MPH)

COAST/SET switch pressed

ON

COAST/SET switch released

OFF

MI & DATA LINK CONNECTORS

EC-347

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

MI & DATA LINK CONNECTORS

PFP:24814

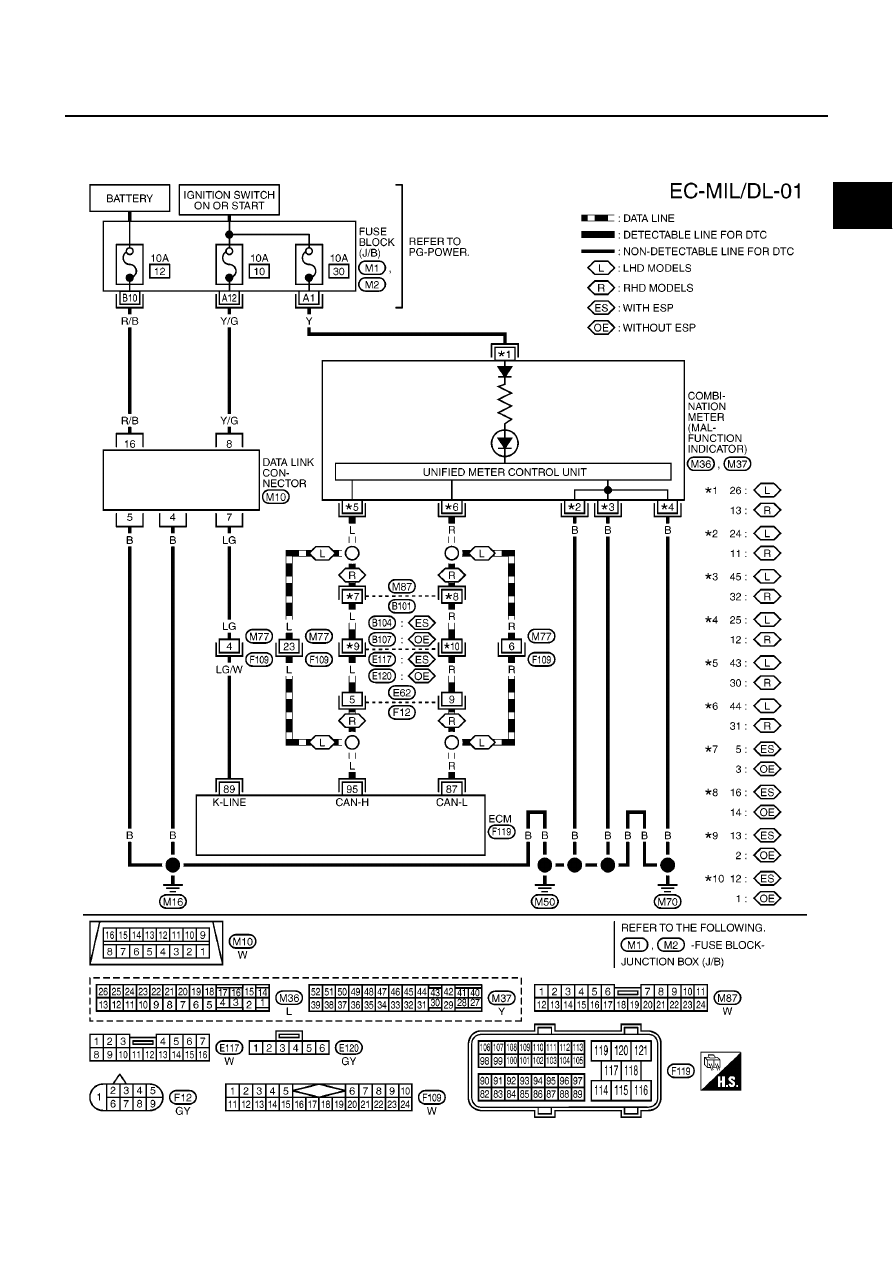

Wiring Diagram

EBS013TQ

MBWA0392E

EC-348

[YD (WITH EURO-OBD)]

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

PFP:18930

System Description

EBS011W0

INPUT/OUTPUT SIGNAL CHART

BASIC ASCD SYSTEM

Refer to Owner's Manual for ASCD operating instructions.
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can set vehicle speed in advance between approximately 40 km/
h (25 MPH) and 185 km/h (115 MPH).
ECM controls fuel injection value to regulate engine speed.
Operation status of ASCD is indicated by CRUISE indicator and SET indicator in combination meter. If any
malfunction occurs in ASCD system, it automatically deactivates control.

SET OPERATION

Press ASCD ON/OFF switch (Main switch). (The CRUISE indicator in combination meter illuminates.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 185 km/h (115
MPH), press SET switch. (Then SET indicator in combination meter illuminates.)

ACCEL OPERATION

If the RESUME/ACCEL switch is depressed during cruise control driving, increase the vehicle speed until the
switch is released or vehicle speed reaches maximum speed controlled by the system.
And then ASCD will keep the new set speed.

CANCEL OPERATION

When any of following conditions exist, cruise operation will be canceled.

CANCEL switch is depressed

More than 2 switches at ASCD steering switch are depressed at the same time (Set speed will be
cleared.).

Brake pedal is depressed

Clutch pedal is depressed or gear position is changed to the neutral position

Vehicle speed increased to 13 km/h higher than the set speed

Vehicle speed decreased to 13 km/h lower than the set speed

ESP/TCS system is operated

When the ECM detects any of the following conditions, the ECM will cancel the cruise operation and inform
the driver by blinking indicator lamp.

Malfunction for some self-diagnoses regarding ASCD control: SET lamp will blink quickly.

If MAIN switch is turned to OFF during ASCD is activated, all of ASCD operations will be canceled and vehicle
speed memory will be erased.

COAST OPERATION

When the SET/COAST switch is depressed during cruise control driving, decrease vehicle set speed until the
switch is released. And then ASCD will keep the new set speed.

RESUME OPERATION

When the RESUME/ACCEL switch is depressed after cancel operation other than depressing ON/OFF switch
is performed, vehicle speed will return to last set speed. To resume vehicle set speed, vehicle condition must
meet following conditions.

Brake pedal is released

Clutch pedal is released

Vehicle speed is greater than 40 km/h (25 MPH) and less than 185 km/h (115 MPH)

Sensor

Input signal to ECM

ECM function

Actuator

ASCD brake switch

Brake pedal operation

ASCD vehicle speed control

Fuel injector and Fuel pump

Stop lamp switch

Brake pedal operation

ASCD clutch switch

Clutch pedal operation

ASCD steering switch

ASCD steering switch operation

Combination meter

Vehicle speed
