Nissan Primera P12. Manual - part 255





DTC P0380 GLOW RELAY

EC-205

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0380 GLOW RELAY

PFP:25230

On Board Diagnosis Logic

EBS013OO

DTC Confirmation Procedure

EBS013OP

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 5 seconds.

4.

If 1st trip DTC is detected, go to

EC-207, "Diagnostic Procedure"

.

WITH GST

Follow the procedure “WITH CONSULT-II” above.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0380

Glow relay circuit

An excessively low voltage is sent to ECM
through glow relay.

Harness or connectors
(The glow relay circuit is open
or shorted.)

Glow relay

An excessively low voltage is sent to ECM
through glow relay.

Harness or connectors
(The glow relay circuit is
shorted.)

Glow relay

SEF817Y

EC-206

[YD (WITH EURO-OBD)]

DTC P0380 GLOW RELAY

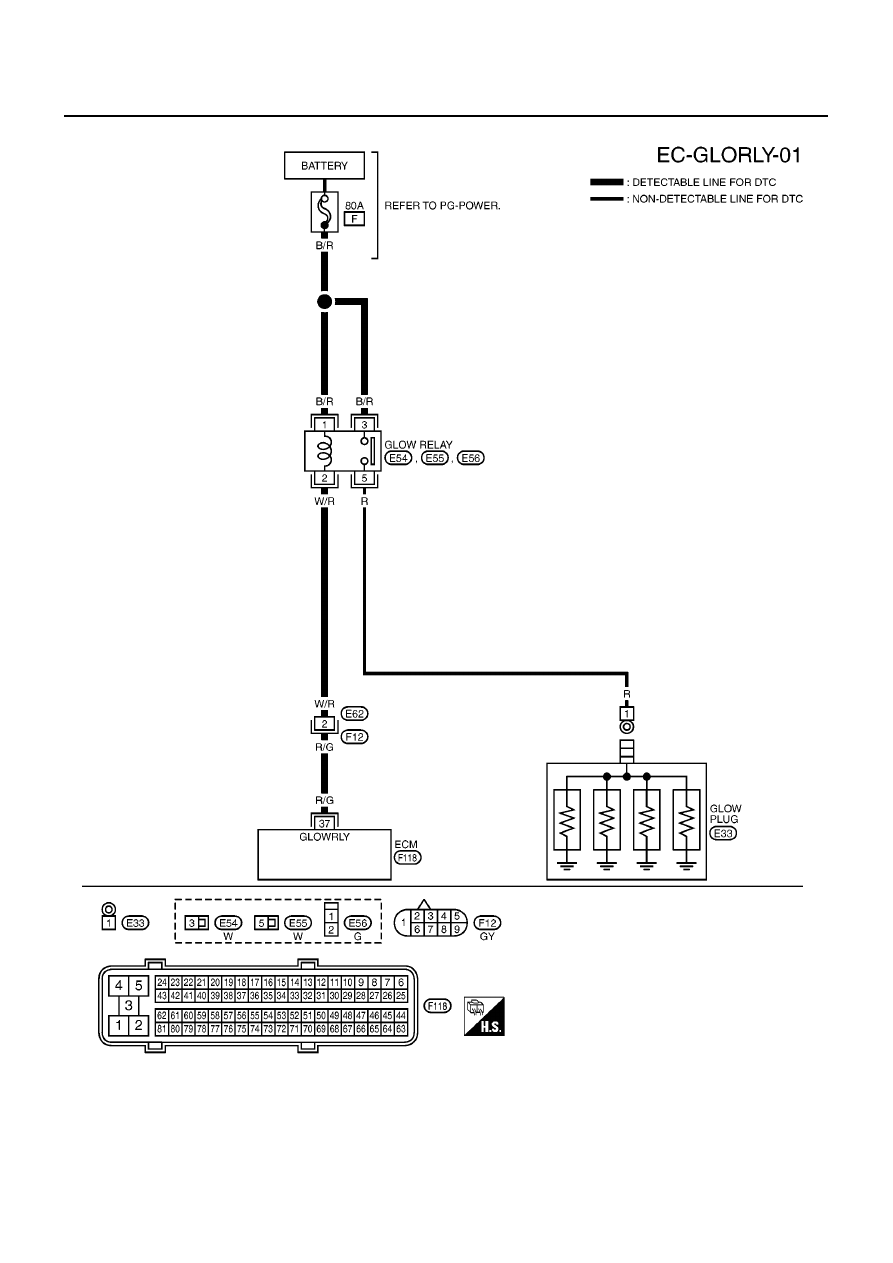

Wiring Diagram

EBS013OQ

MBWA0615E

DTC P0380 GLOW RELAY

EC-207

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

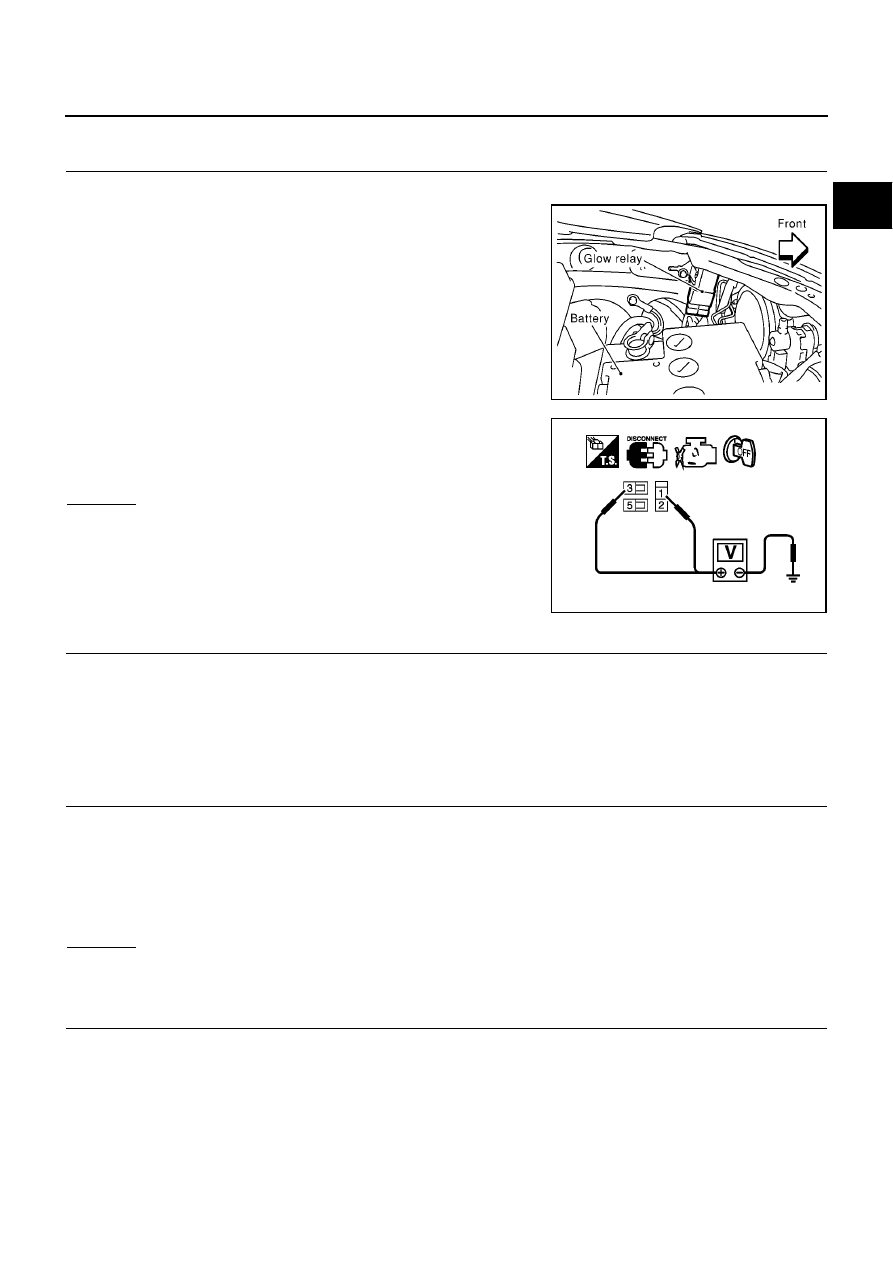

Diagnostic Procedure

EBS013OR

1.

CHECK GLOW RELAY POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect glow relay.

3.

Check voltage between ECM relay terminals 1, 3 and ground
with CONSULT-II or tester.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.

80A fusible link

Harness for open and short between glow relay and battery

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK GLOW RELAY OUTPUT SIGNAL CIRCUIT FOR SHORT TO GROUND

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminal 37 and glow relay terminal 2.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors E62, F12

Harness for open and short between glow relay and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

MBIB0078E

Voltage: Battery voltage

PBIB1413E

Continuity should exist.

EC-208

[YD (WITH EURO-OBD)]

DTC P0380 GLOW RELAY

5.

CHECK GLOW RELAY

Refer to

EC-208, "Component Inspection"

.

OK or NG

OK

>> GO TO 6.

NG

>> Replace glow relay.

6.

CHECK INTERMITTENT INCIDENT

Refer to

EC-75, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Component Inspection

EBS013OS

GLOW RELAY

Check continuity between glow relay terminals 3 and 5 under the fol-
lowing conditions.

Operation takes less than 1 second.

Conditions

Continuity

12V direct current supply between ter-
minals 1 and 2

Yes

No current supply

No

PBIB0428E
