Nissan Primera P12. Manual - part 207





INDEX FOR DTC

EC-13

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

*1: 1st trip DTC No. and 2nd trip DTC No. are the same as DTC No.
*2: This number is prescribed by ISO 15031-6.

DTC No. Index

EBS013IV

Check if the vehicle is a model with Euro-OBD (E-OBD) system or not by the “Type approval number” on the
identification plate. Refer to

GI-47, "IDENTIFICATION PLATE"

.

NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to

EC-83, "DTC U1000 CAN COMMUNICATION LINE"

.

X: Applicable —: Not applicable

VEHICLE SPEED

P0502

1

EC-220

VEHICLE SPEED

P0503

1

EC-222

Items

(CONSULT-II screen terms)

DTC*

1

*

2

(CONSULT-II, GST )

Trip

MI lighting

up

Reference page

DTC*

1

*

2

(CONSULT-II, GST)

Items

(CONSULT-II screen item)

Trip

MI lighting

up

Reference page

U1000

CAN COMM CIRCUIT

1

EC-83

P0000

NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.

P0016

CMP/CKP RELATION

3

×

EC-86

P0045

TC BOOST SOL/CIRC

3

×

EC-88

P0088

HIGH FUEL PRESS

3

×

EC-93

P0089

FUEL PUMP

3

×

EC-95

P0093

FUEL LEAK

3

×

EC-98

P0101

MAF SENSOR

3

×

EC-102

P0102

MAF SEN/CIRCUIT

3

×

EC-110

P0103

MAF SEN/CIRCUIT

3

×

EC-110

P0112

IAT SEN/CIRCUIT

3

×

EC-115

P0113

IAT SEN/CIRCUIT

3

×

EC-115

P0117

ECT SEN/CIRCUIT

3

×

EC-119

P0118

ECT SEN/CIRCUIT

3

×

EC-119

P0122

APP SEN 1/CIRCUIT

1

EC-124

P0123

APP SEN 1/CIRCUIT

1

EC-124

P0182

FUEL TEMP SEN/CIRC

3

×

EC-130

P0183

FUEL TEMP SEN/CIRC

3

×

EC-130

P0192

FRP SEN/CIRC

3

×

EC-134

P0193

FRP SEN/CIRC

3

×

EC-134

P0200

INJECTOR

3

×

EC-139

P0201

CYL1 INJECTOR

3

×

EC-141

P0202

CYL2 INJECTOR

3

×

EC-141

P0203

CYL3 INJECTOR

3

×

EC-141

P0204

CYL4 INJECTOR

3

×

EC-141

P0217

ENG OVER TEMP

1

×

EC-147

P0222

APP SEN 2/CIRCUIT

1

EC-164

P0223

APP SEN 2/CIRCUIT

1

EC-164

P0234

TC SYSTEM

1

EC-170

P0237

TC BOOST SEN/CIRC

3

×

EC-177

EC-14

[YD (WITH EURO-OBD)]

INDEX FOR DTC

P0238

TC BOOST SEN/CIRC

3

×

EC-177

P0335

CKP SEN/CIRCUIT

3

×

EC-182

P0336

CKP SENSOR

3

×

EC-187

P0340

CMP SEN/CIRCUIT

3

×

EC-193

P0341

CMP SENSOR

3

×

EC-199

P0380

GLOW RELAY

3

×

EC-205

P0404

EGR VALVE

3

×

EC-209

P0501

VEHICLE SPEED

1

EC-218

P0502

VEHICLE SPEED

1

EC-220

P0503

VEHICLE SPEED

1

EC-222

P0504

BRAKE SW/CIRCUIT

1

EC-224

P0563

BATTERY VOLTAGE

1

EC-233

P0580

STRG SW/CIRC

1

EC-235

P0581

STRG SW/CIRC

1

EC-235

P0605

ECM

3

×

EC-241

P0606

ECM

3

×

EC-243

P0628

FUEL PUMP/CIRC

3

×

EC-245

P0629

FUEL PUMP/CIRC

3

×

EC-245

P0642

SENSOR PWR/CIRC1

3

×

EC-250

P0643

SENSOR PWR/CIRC1

3

×

EC-250

P0652

SENSOR PWR/CIRC2

3

×

EC-255

P0653

SENSOR PWR/CIRC2

3

×

EC-255

P0686

ECM RELAY

1

EC-260

P1211

TCS C/U FUNCTN

1

EC-264

P1212

TCS/CIRC

1

EC-265

P1260

INJ ADJ RES/CIRC1

3

×

EC-266

P1261

INJ ADJ RES/CIRC1

3

×

EC-266

P1262

INJ ADJ RES/CIRC2

3

×

EC-266

P1263

INJ ADJ RES/CIRC2

3

×

EC-266

P1264

INJ ADJ RES/CIRC3

3

×

EC-266

P1265

INJ ADJ RES/CIRC3

3

×

EC-266

P1266

INJ ADJ RES/CIRC4

3

×

EC-266

P1267

INJ ADJ RES/CIRC4

3

×

EC-266

P1268

INJECTOR 1

1

EC-271

P1269

INJECTOR 2

1

EC-271

P1270

INJECTOR 3

1

EC-271

P1271

INJECTOR 4

1

EC-271

P1272

FRP RELIEF VALVE

3

×

EC-277

P1273

FUEL PUMP

3

×

EC-283

P1274

FUEL PUMP

1

×

EC-288

P1275

FUEL PUMP

1

×

EC-293

P1610 - P1617

NATS MALFUNTION

1

EC-35

P2135

APP SENSOR

1

EC-298

DTC*

1

*

2

(CONSULT-II, GST)

Items

(CONSULT-II screen item)

Trip

MI lighting

up

Reference page

INDEX FOR DTC

EC-15

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

*1: 1st trip DTC No. and 2nd trip DTC No. are the same as DTC No.
*2: This number is prescribed by ISO 15031-6.

P2146

INJ PWR/CIRC

3

×

EC-304

P2147

INJECTOR/CIRC

3

×

EC-309

P2148

INJECTOR/CIRC

3

×

EC-309

P2149

INJ PWR/CIRC

3

×

EC-304

P2228

BARO SEN/CIRC

3

×

EC-315

P2229

BARO SEN/CIRC

3

×

EC-315

DTC*

1

*

2

(CONSULT-II, GST)

Items

(CONSULT-II screen item)

Trip

MI lighting

up

Reference page

EC-16

[YD (WITH EURO-OBD)]

PRECAUTIONS

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EBS013IW

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

On Board Diagnostic (OBD) System of Engine

EBS013IX

The ECM has an on board diagnostic system. It will light up the malfunction indicator (MI) to warn the driver of
a malfunction causing emission deterioration.

CAUTION:

Be sure to turn the ignition switch OFF and disconnect the battery ground cable before any repair
or inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc. will
cause the MI to light up.

Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MI to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)

Certain systems and components, especially those related to OBD, may use a new style slide-
locking type harness connector. For description and how to disconnect, refer to

PG-108, "HAR-

NESS CONNECTOR"

.

Be sure to route and secure the harnesses properly after work. The interference of the harness
with a bracket, etc. may cause the MI to light up due to the short circuit.

Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MI to light up due to the malfunction of the fuel system, etc.

Be sure to erase the unnecessary malfunction information (repairs completed) from the ECM
before returning the vehicle to the customer.

Precautions

EBS013IY

Always use a 12 volt battery as power source.

Do not attempt to disconnect battery cables while engine is
running.

Before connecting or disconnecting the ECM harness con-
nector, turn ignition switch OFF and disconnect battery
ground cable. Failure to do so may damage the ECM
because battery voltage is applied to ECM even if ignition
switch is turned off.

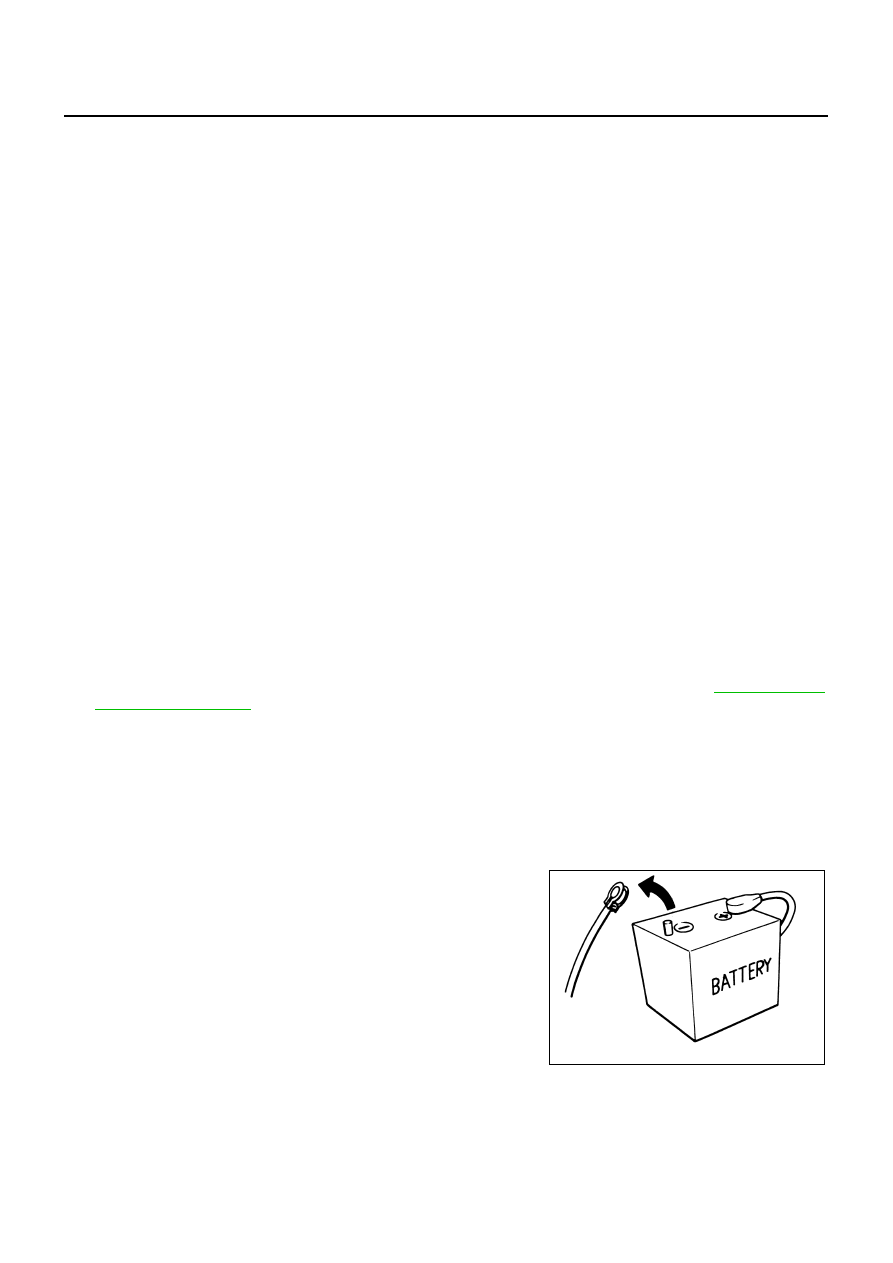

Before removing parts, turn ignition switch OFF and then
disconnect battery ground cable.

SEF289H
