AV-64

NAVIGATION SYSTEM

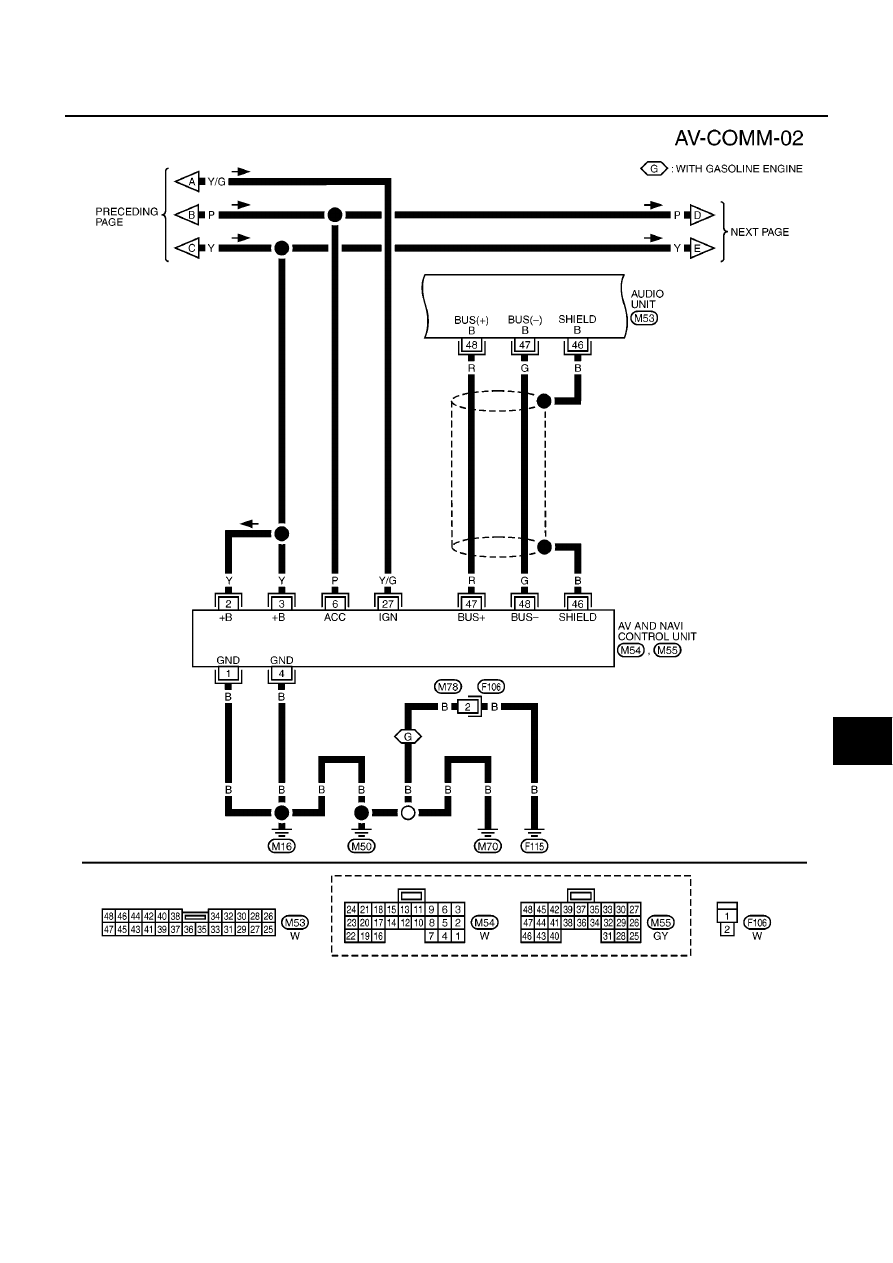

MKWA0936E

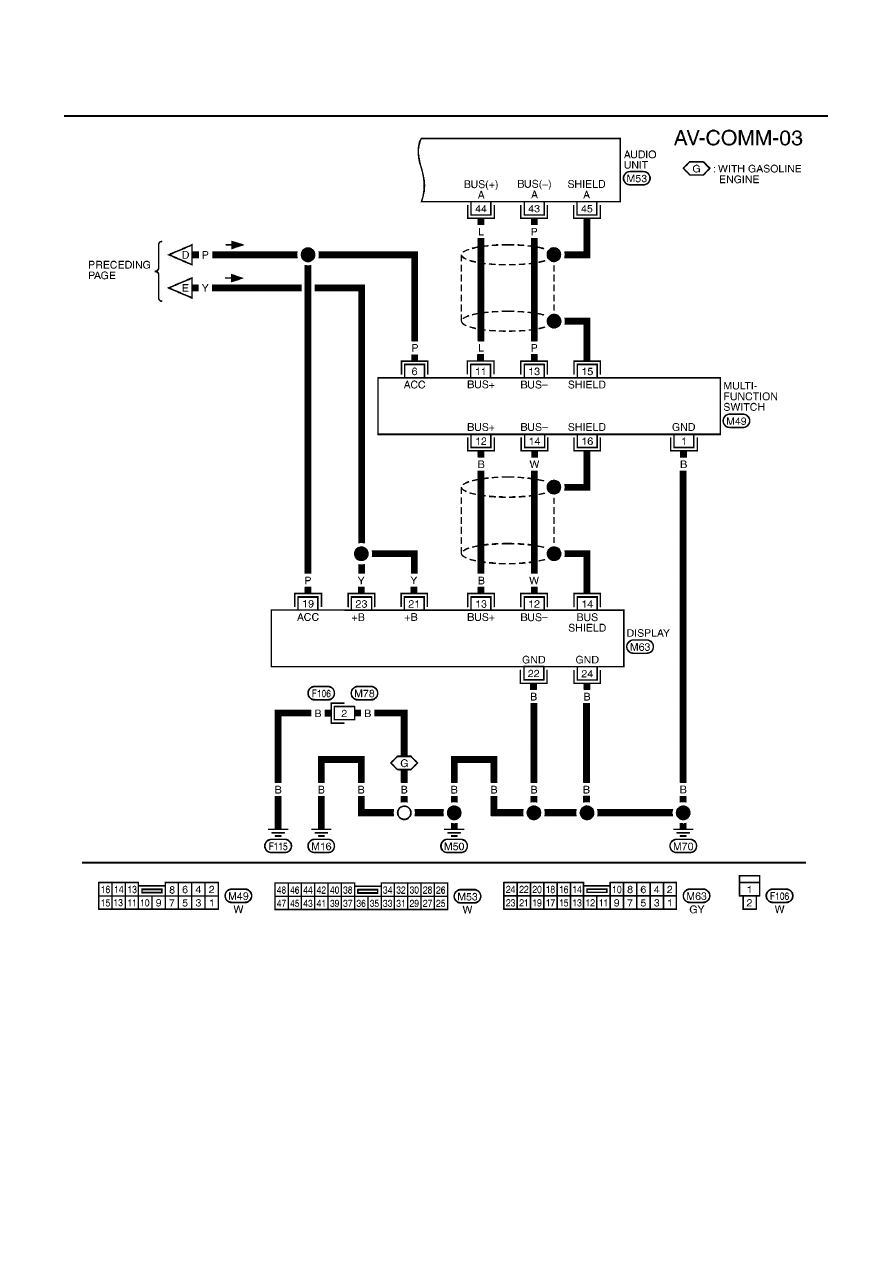

NAVIGATION SYSTEM

AV-65

C

D

E

F

G

H

I

J

L

M

A

B

AV

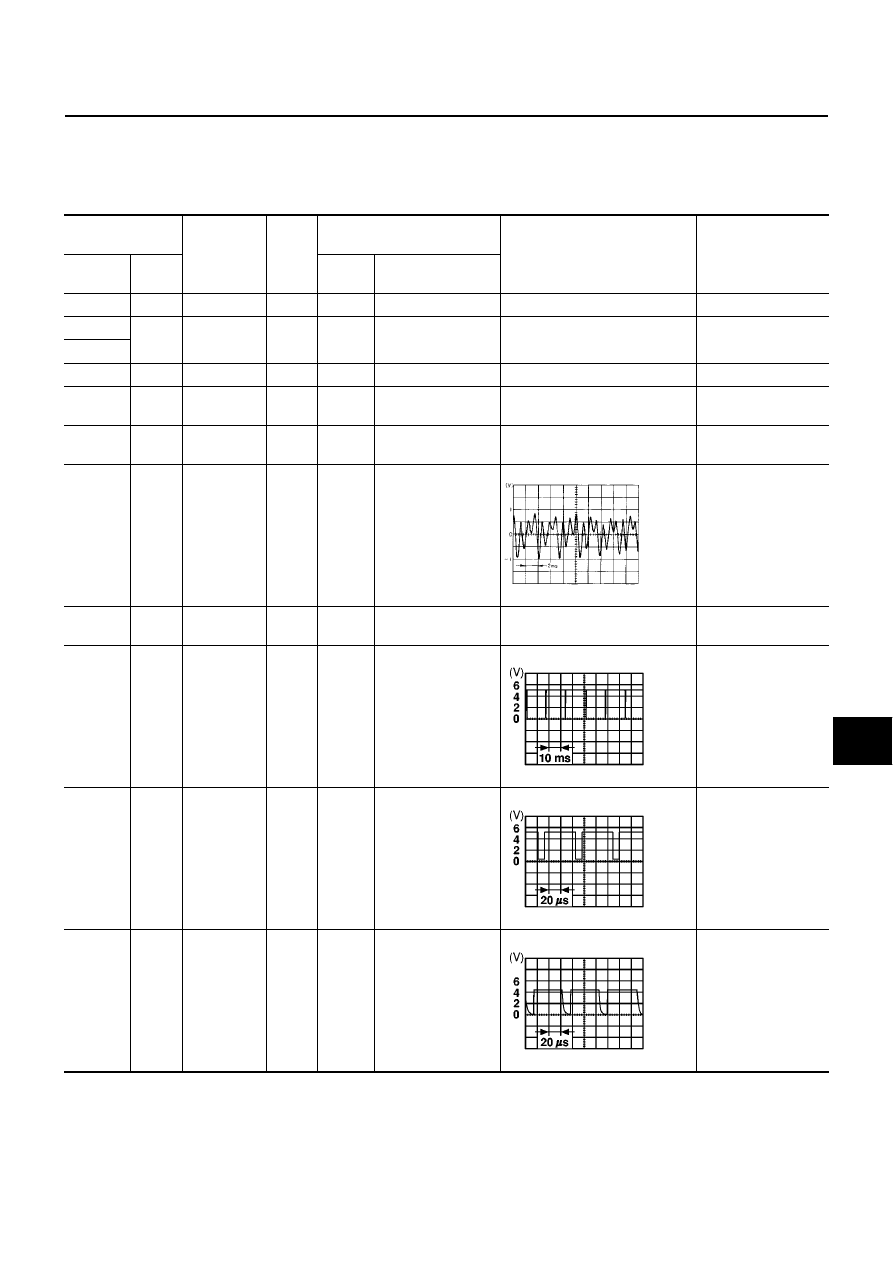

Terminals and Reference Value for AV and NAVI Control Unit

EKS009JQ

●

For measurements made with IGN switch ON, if possible, measure with engine running to prevent battery
discharge.

●

Use a circuit tester and oscilloscope or CONSULT-II for measurement.

Terminal No.

(wire color)

Item

Signal

input/

output

Condition

Voltage

Example of symptom

( + )

( - )

Ignition

switch

Operation

1 (B)

ground

Ground

-

ON

-

Approx. 0V

-

2 (Y)

ground

Battery

power

Input

OFF

-

Battery voltage

System does not

work properly.

3 (Y)

4 (B)

ground

Ground

-

ON

-

Approx. 0V

-

5 (*)

ground

Illumination

ground

-

ON

-

Approx. 0V

-

6 (P)

ground

ACC signal

Input

ACC

-

Battery voltage

System does not

work properly.

7 (BR)

8 (Y)

voice guide

signal

Output

ON

Press the “voice”

switch.

Only route guide and

operation guide are

not heard.

9(B)

-

Shield

ground

-

-

-

-

-

11 (B)

17

Vertical syn-

chronizing

signal

Input

ON

-

Superimposed

screen is rolling.

12 (R)

17

RGB area

signal

Output

ON

Press the

“info”switch.

RGB screen is not

shown.

13 (BR)

17

Horizontal

synchroniz-

ing signal

Input

ON

Select“ Display” in

“Setting” mode and

display the rear-

view picture on the

screen.

Superimposed

screen is not shown.

SKIA0171J

SKIA0161E

SKIA0162E

SKIA0163E

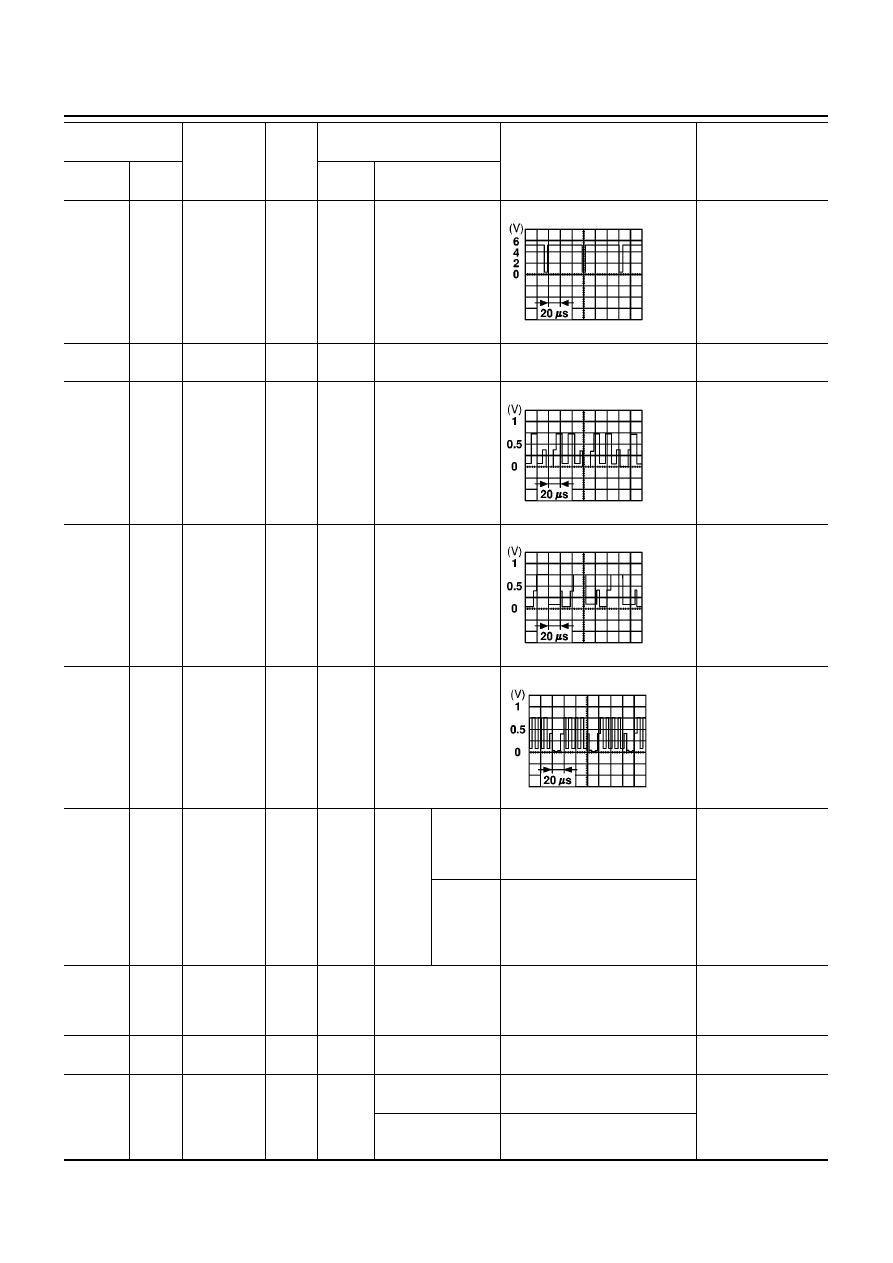

AV-66

NAVIGATION SYSTEM

15 (G)

17

RGB syn-

chronizing

signal

Output

ON

Press the “MAP”

switch.

RGB screen is roll-

ing.

17

ground

RGB

Ground

-

ON

-

Approx. 0V

-

18 (Y)

17

RGB signal

(R: red)

Output

ON

Select “SCREEN

ADJUSTMENT” of

CONFIRMATION/

ADJUSTMENT

function.

RGB screen looks

bluish.

21 (W)

17

RGB signal

(G: green)

Output

ON

Select “SCREEN

ADJUSTMENT” of

CONFIRMATION/

ADJUSTMENT

function.

RGB screen looks

reddish.

24 (L)

17

RGB signal

(B: blue)

Output

ON

Select “SCREEN

ADJUSTMENT” of

CONFIRMATION/

ADJUSTMENT

function.

RGB screen looks

yellowish.

25

(W/R)

:LHD

models

(Y/R)

:RHD

models

ground

Illumination

control sig-

nal

Input

ON

Light-

ing

switch

ON

(posi-

tion 1)

Optical

sensor is

exposed

to light.

Approx. 3.5V or more

Screen does not

switch between day-

time mode and night-

time mode.

Optical

sensor is

not

exposed

to light.

Approx. 1.5V or less

27 (Y/G)

ground

Ignition sig-

nal

Input

ON

-

Battery voltage

A/C operation is not

possible. Vehicle

information setting is

not possible.

31

-

Shield

ground

-

-

-

-

-

32 (G/W)

ground

Reverse

signal

Input

ON

Shift lever in R-posi-

tion

Battery voltage

The navigation cur-

rent-location mark

moves strangely

when the vehicle is

moving backwards.

Shift lever not in R-

position

Approx. 3.0V or less

Terminal No.

(wire color)

Item

Signal

input/

output

Condition

Voltage

Example of symptom

( + )

( - )

Ignition

switch

Operation

SKIA0164E

SKIA0165E

SKIA0166E

SKIA0167E
