HOOD ASSEMBLY : Removal and Installation

INFOID:0000000010479340

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• Use protective tape or shop cloth to protect from damage during removal and installation.

REMOVAL

1.

Support hood assembly with the proper material to prevent it from falling.

WARNING:

Injury may occur if hood assembly is not supported with appropriate material when removing
hood assembly.

2.

Remove hood hinge mounting nuts, and then remove hood assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply touch-up paint to the body color if the paint around the hinge is peeled off during removal.
• After installing, perform hood fitting adjustment. Refer to

DLK-465, "HOOD ASSEMBLY : Adjust-

ment"

.

• Before installation of hood, apply anticorrosive agent onto the mounting surface of the hood hinge.
• Check hood hinge rotating part for poor lubrication. Refer to

DLK-468, "HOOD HINGE : Inspection"

.

HOOD ASSEMBLY : Adjustment

INFOID:0000000010479341

FITTING ADJUSTMENT

DLK-466

< REMOVAL AND INSTALLATION >

[TYPE 3]

HOOD

Fitting Adjustment Standard

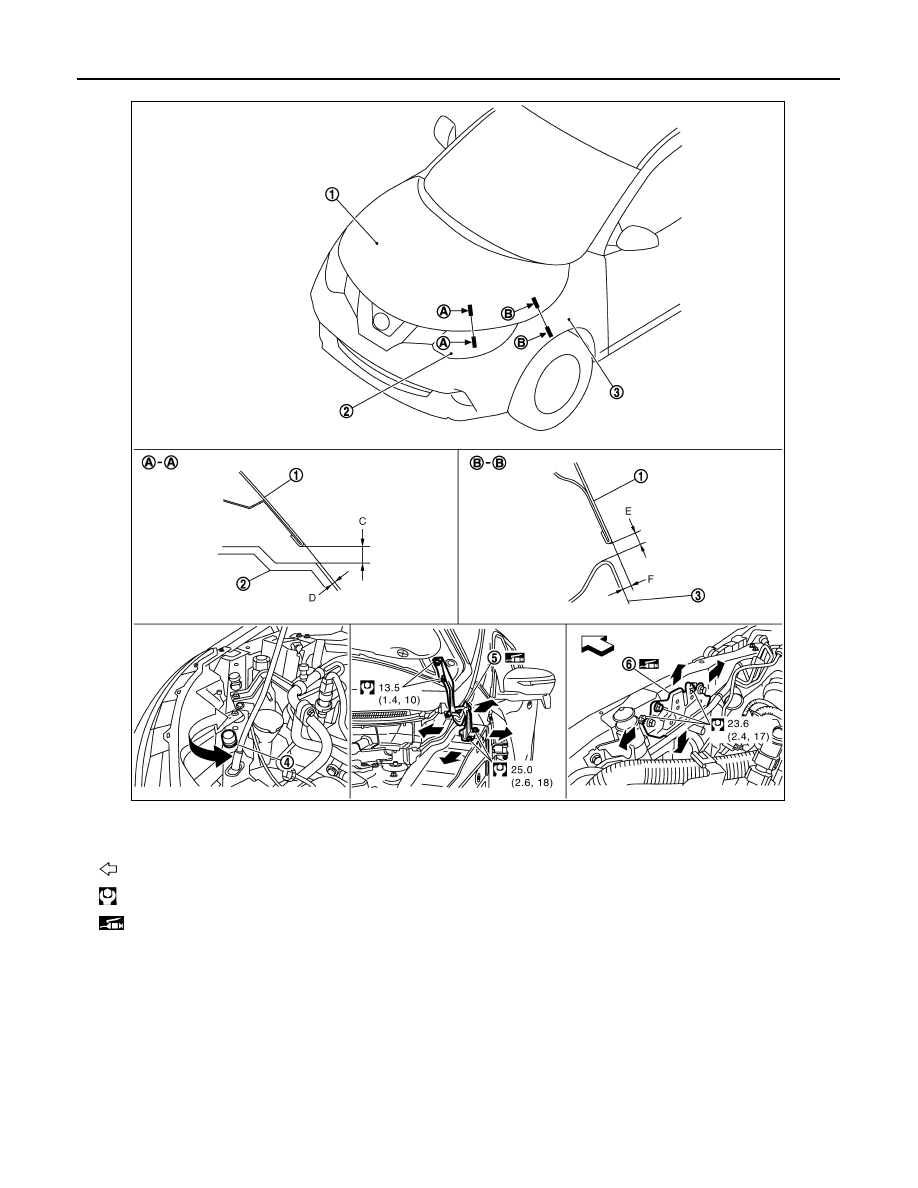

Check the clearance and the surface height between hood and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

1.

Hood assembly

2.

Front combination lamp

3.

Front fender assembly

4.

Hood bumper rubber

5.

Hood hinge

6.

Hood lock assembly

: Vehicle front

:N·m (kg-m, ft-lb)

:Body grease

JMKIB4355GB

HOOD

DLK-467

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Unit: mm [in]

*: No more than 2 times left to right or right to left.

Fitting Adjustment Procedure

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove hood lock assembly.

3.

Adjust the surface height of hood assembly, front fender assembly, and front combination lamp according
to the specified value, by rotating hood bumper rubber (body side).

4.

Loosen hood hinge mounting bolts.

5.

Adjust clearance of hood according to the specified value, by moving the hood assembly.

6.

Tighten hood hinge mounting bolts to the specified torque.

7.

Move hood lock assembly laterally until the center of primary striker and hood lock assembly are vertical
when viewed from the front.

8.

Position hood lock assembly and engage primary striker. Check hood lock assembly and primary striker
for looseness.

9.

Tighten hood lock assembly mounting bolts and nut to the specified torque.

10. Rotate bumper rubber 1/2 of a rotation counterclockwise in upward direction.

11. After adjusting, check that hood opens and closes normally. Refer to

DLK-494, "Inspection"

.

12. Install front grille. Refer to

EXT-26, "Removal and Installation"

.

HOOD HINGE

HOOD HINGE : Removal and Installation

INFOID:0000000010479342

REMOVAL

1.

Remove hood assembly. Refer to

DLK-465, "HOOD ASSEMBLY : Removal and Installation"

.

2.

Remove upper mounting bolt of front fender assembly. Refer to

DLK-474, "Removal and Installation"

.

3.

Remove hood hinge mounting bolts, and then remove hood hinge.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply touch-up paint to the body color if the paint around the hinge is peeled off during removal.
• After installation, perform hood fitting adjustment. Refer to

DLK-465, "HOOD ASSEMBLY : Adjust-

ment"

.

• Before installation of hood, apply anticorrosive agent onto the mounting surface of the hood hinge.
• Check hood hinge rotating part for poor lubrication. Refer to

DLK-468, "HOOD HINGE : Inspection"

.

Portion

Standard

Difference

(RH/LH,

MAX)

Hood – Front combination
lamp

A – A

C

Clearance

4.0 – 9.0

[0.157 – 0.354]

 3.0

 [0.118]

D Surface height

0.0

[0.000]

Hood – Front fender

B – B

E

Clearance

*

F Surface height

 3.0

 [0.118]

DLK-468

< REMOVAL AND INSTALLATION >

[TYPE 3]

HOOD

HOOD HINGE : Inspection

INFOID:0000000010479343

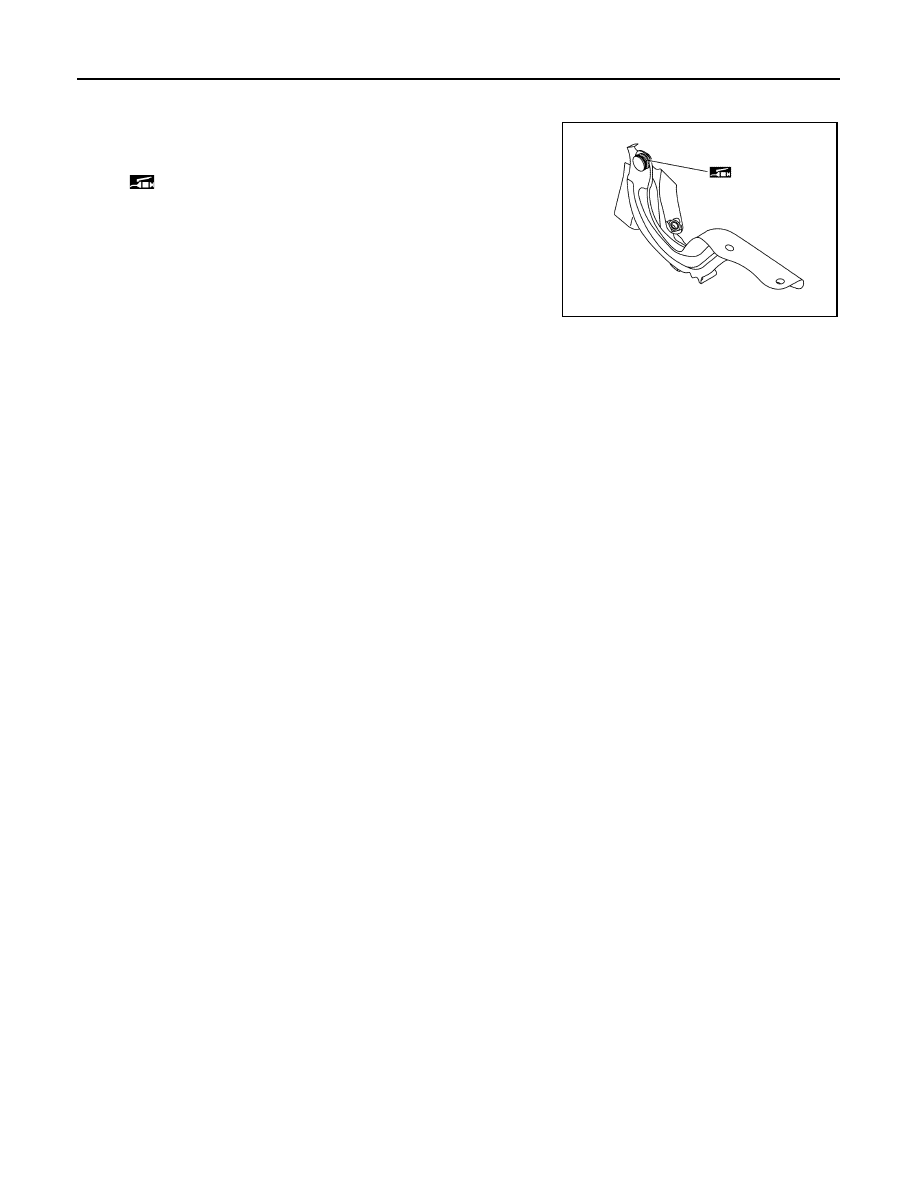

Check hood hinge rotating part for poor lubrication. Apply body
grease if necessary.

HOOD SUPPORT ROD

HOOD SUPPORT ROD : Removal and Installation

INFOID:0000000010479344

REMOVAL

CAUTION:

Two workers are required to support the hood.

1.

Support hood assembly with a suitable material to prevent it from falling.

WARNING:

Injury may occur if hood assembly is not supported with appropriate material when removing
hood assembly.

2.

Remove hood support rod from hood rod grommet.

3.

Remove hood rod grommet from hood assembly.

INSTALLATION

Install in the reverse order of removal.

HOOD INSULATOR

HOOD INSULATOR : Removal and Installation

INFOID:0000000010479345

REMOVAL

1.

Fully open hood assembly.

2.

Remove hood rod clamp from hood assembly.

3.

Remove hood insulator clips, and then remove hood insulator.

INSTALLATION

Install in the reverse order of removal.

: Body grease

JMKIB2933ZZ

RADIATOR CORE SUPPORT

DLK-469

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

RADIATOR CORE SUPPORT

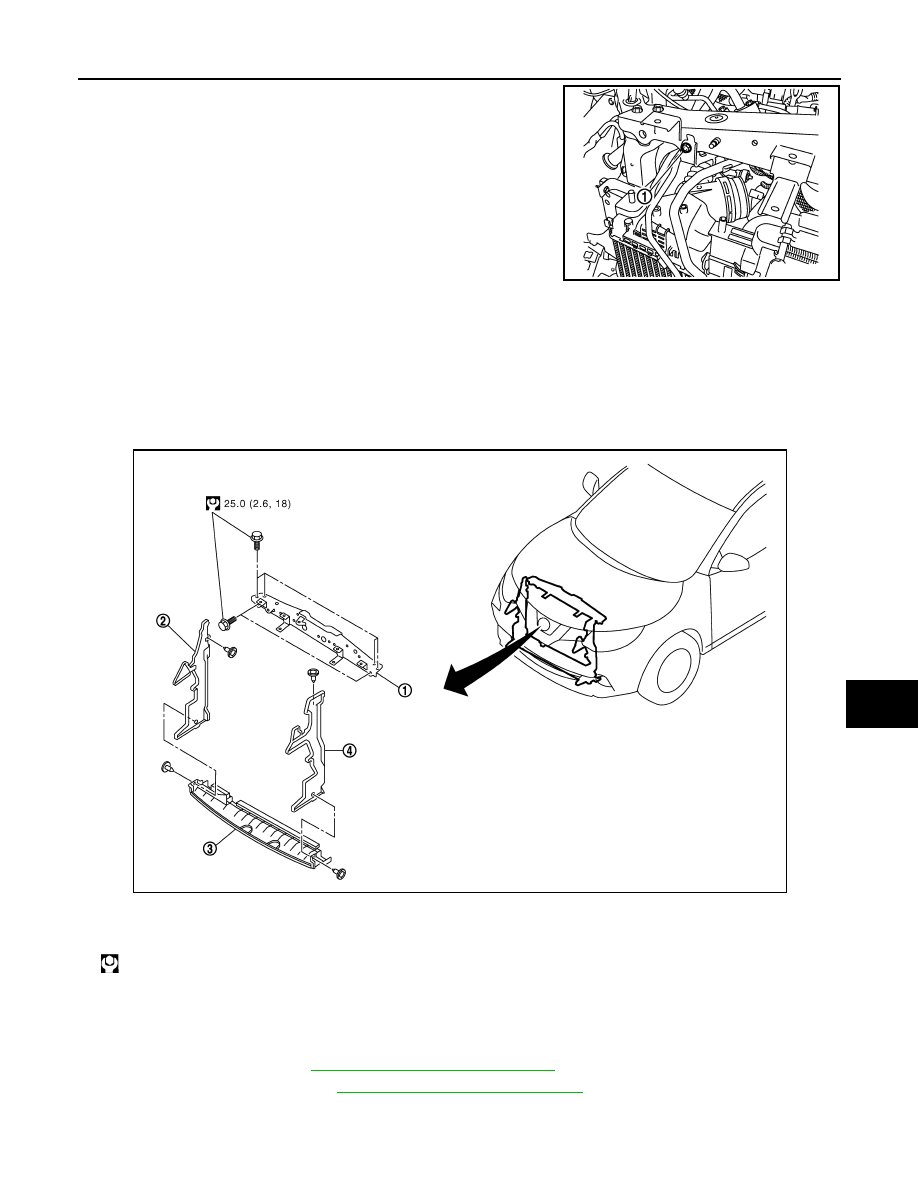

HRA2DDT

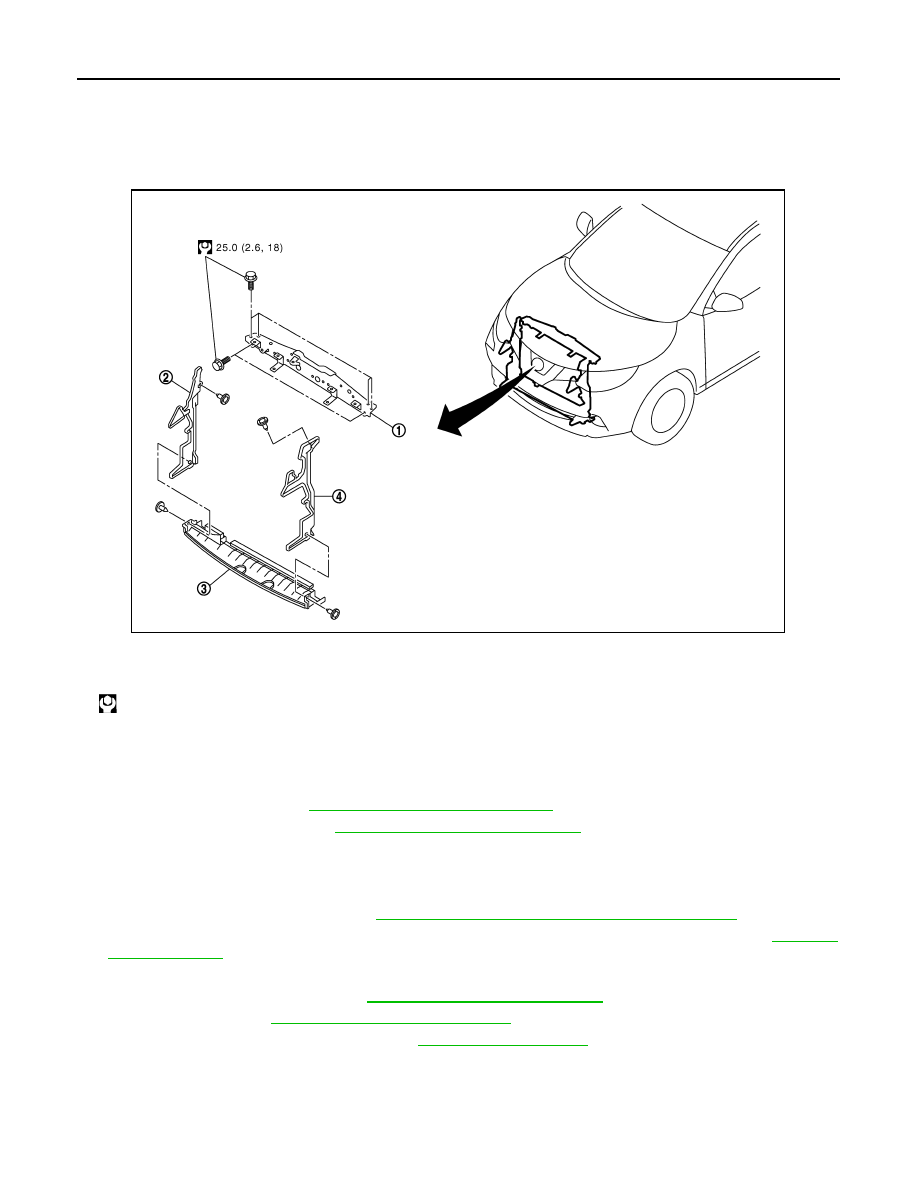

HRA2DDT : Exploded View

INFOID:0000000010479346

HRA2DDT : Removal and Installation

INFOID:0000000010479347

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-24, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-492, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-492,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-18, "Exploded View"

.

10. Remove A/C pipe bracket mounting bolt. Refer to

HA-33, "Exploded View"

.

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

JMKIB3298GB

DLK-470

< REMOVAL AND INSTALLATION >

[TYPE 3]

RADIATOR CORE SUPPORT

Install in the reverse order of removal.

MR16DDT

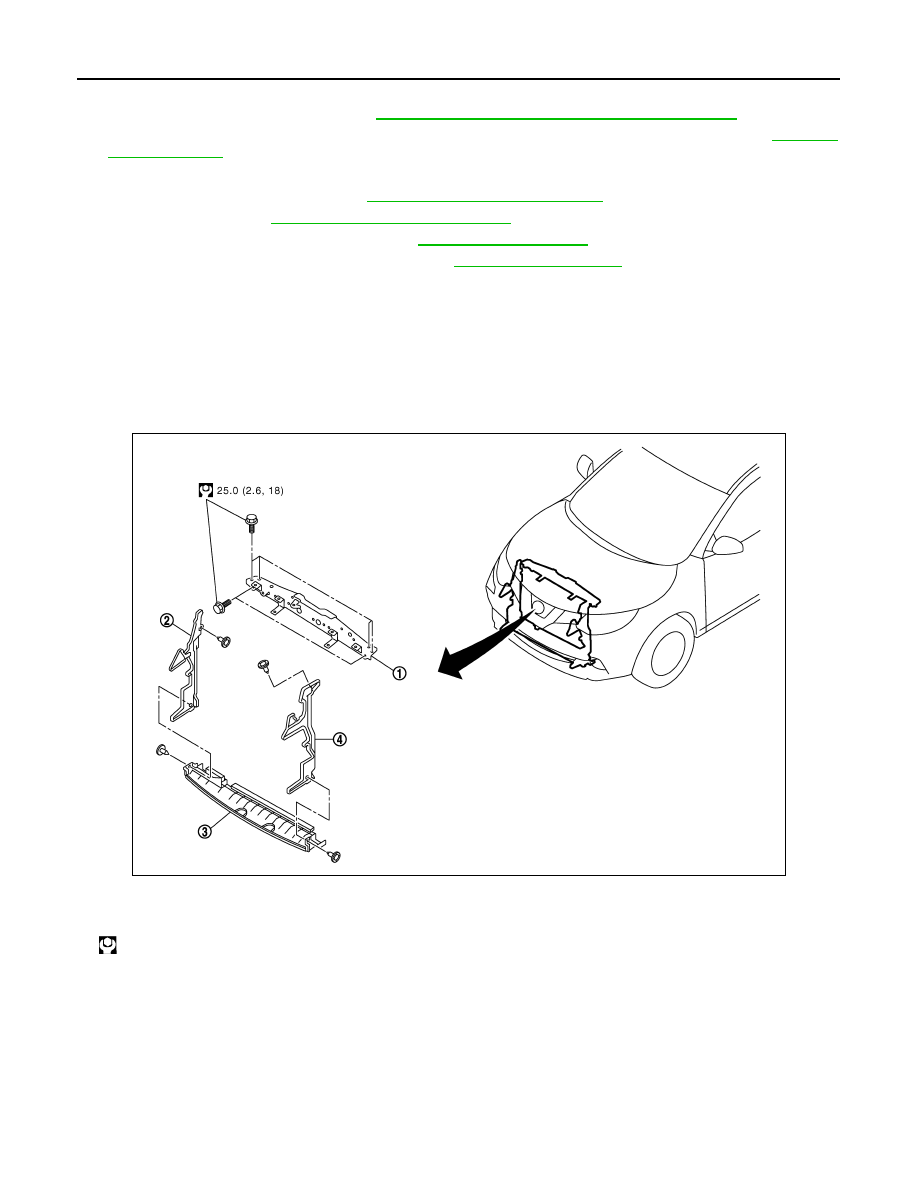

MR16DDT : Exploded View

INFOID:0000000011733752

MR16DDT : Removal and Installation

INFOID:0000000011733753

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-149, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-179, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-179,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-48, "Exploded View"

.

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

JMKIB3299GB

RADIATOR CORE SUPPORT

DLK-471

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

10. Remove A/C pipe bracket mounting bolt (1).

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

Install in the reverse order of removal.

K9K

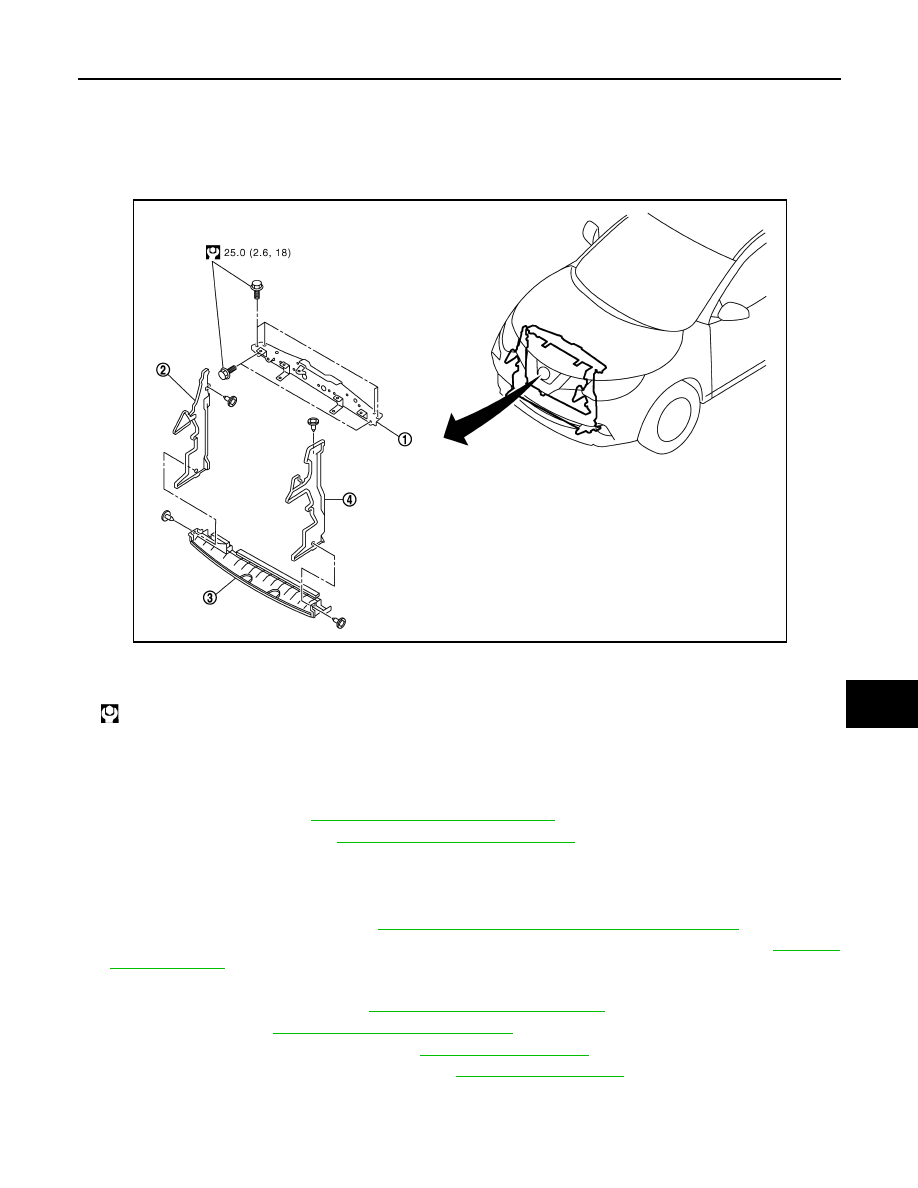

K9K : Exploded View

INFOID:0000000010479348

K9K : Removal and Installation

INFOID:0000000010479349

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-426, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

E1BIA1725ZZ

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

JMKIB3298GB

DLK-472

< REMOVAL AND INSTALLATION >

[TYPE 3]

RADIATOR CORE SUPPORT

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-492, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-492,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-99, "Exploded View"

.

10. Remove A/C pipe bracket mounting bolt. Refer to

HA-77, "Exploded View"

.

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

Install in the reverse order of removal.

R9M

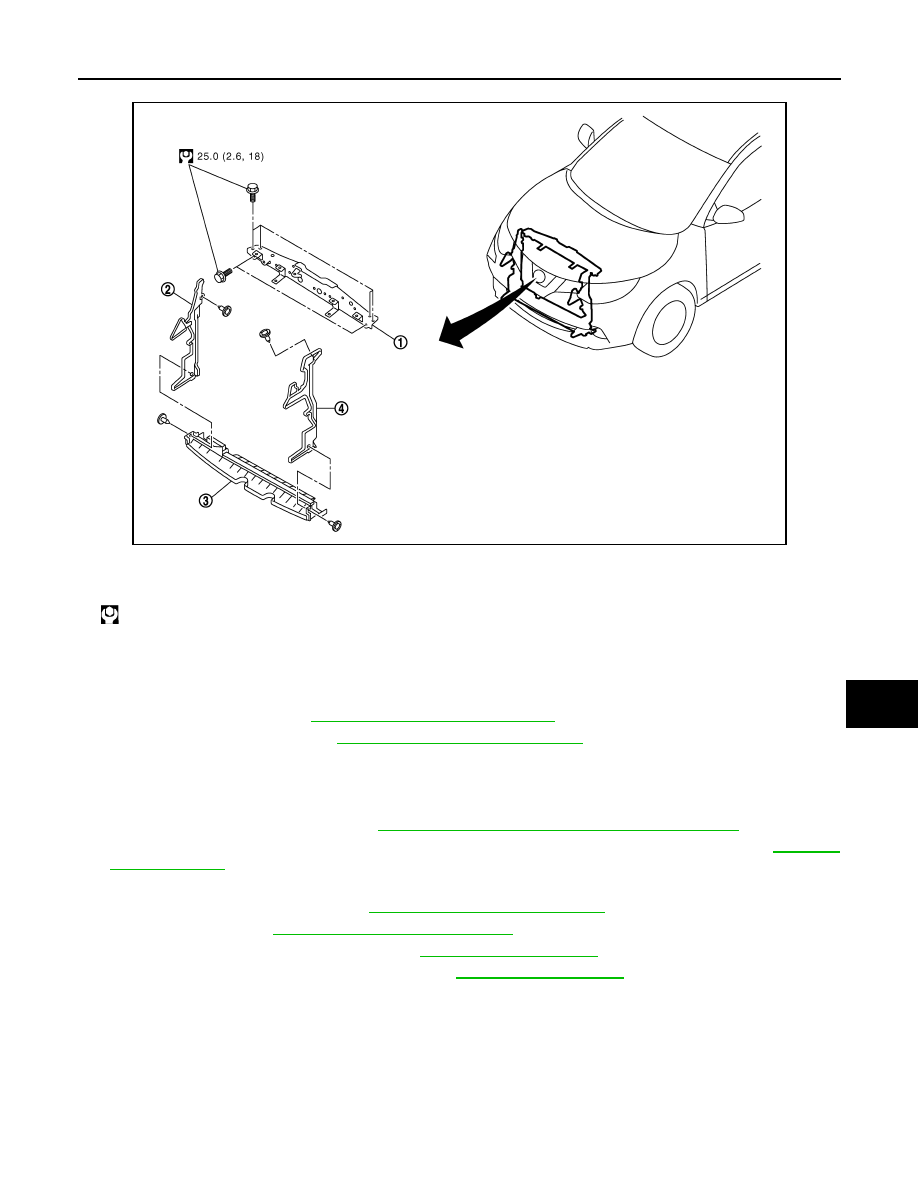

R9M : Exploded View

INFOID:0000000010479350

T/M models

JMKIB3299GB

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

RADIATOR CORE SUPPORT

DLK-473

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CVT models

R9M : Removal and Installation

INFOID:0000000010479351

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-528, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-492, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-492,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-125, "Exploded View"

.

10. Remove A/C pipe bracket mounting bolt. Refer to

HA-77, "Exploded View"

.

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

Install in the reverse order of removal.

JMKIB3300GB

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

DLK-474

< REMOVAL AND INSTALLATION >

[TYPE 3]

FRONT FENDER

FRONT FENDER

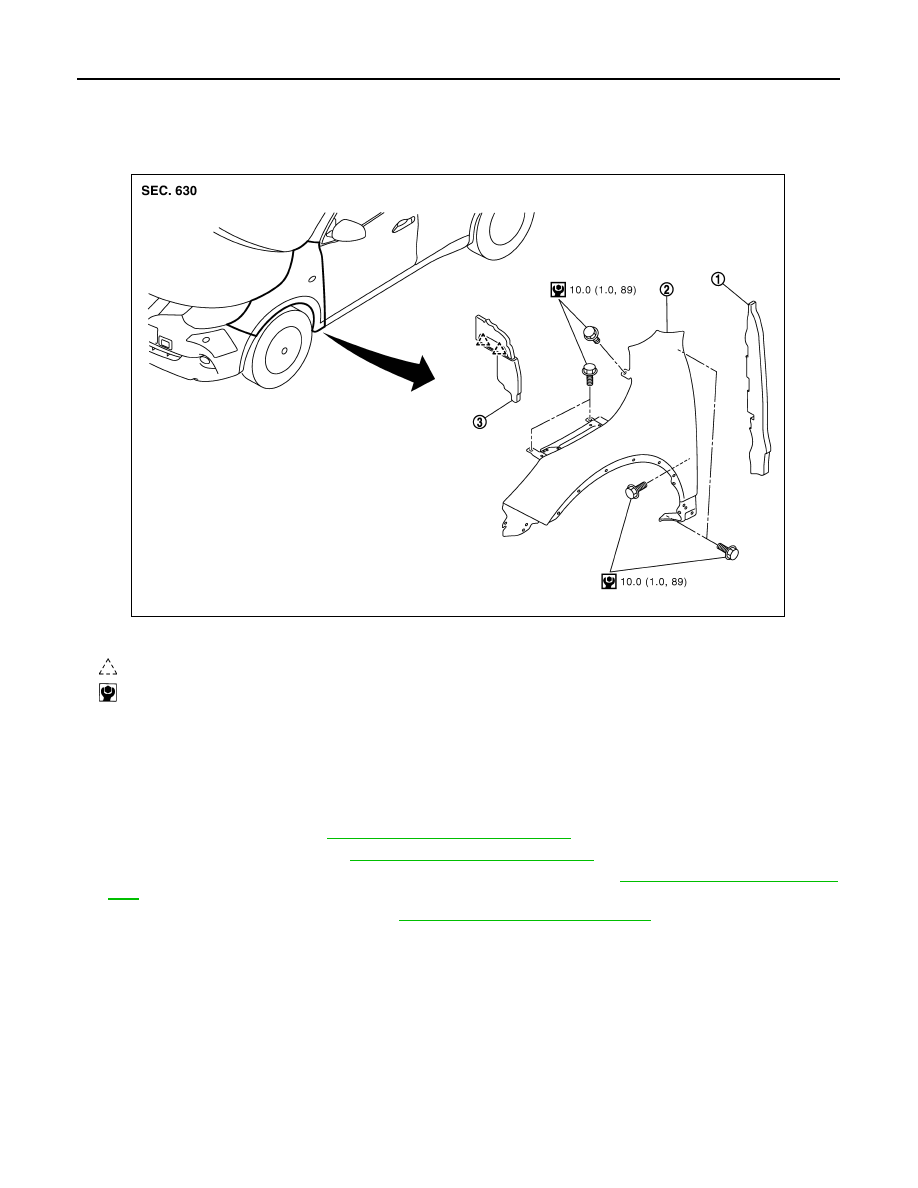

Exploded View

INFOID:0000000010479352

Removal and Installation

INFOID:0000000010479353

CAUTION:

Use protective tape or shop cloth to protect from damage during removal and installation.

REMOVAL

1.

Remove fillet molding. Refer to

EXT-38, "Removal and Installation"

.

2.

Remove fender protector. Refer to

EXT-33, "Removal and Installation"

.

3.

Remove front bumper fascia assembly and bumper side bracket. Refer to

EXT-20, "Removal and Installa-

tion"

.

4.

Remove front combination lamp. Refer to

EXL-319, "Removal and Installation"

.

5.

Remove front fender seal.

6.

Remove front fender assembly mounting bolts.

1.

Front fender seal

2.

Front fender assembly

3.

Hoodledge cover

: Pawl

: N·m (kg-m, in-lb)

JMKIB3315GB

FRONT FENDER

DLK-475

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

7.

Remove front fender stiffener (2) from the vehicle body while
carefully pulling upper portion of front fender (1) toward vehicle
outside.

8.

Remove front fender assembly.

CAUTION:

An viscous urethane foam is installed on the back surface of front fender. When removing the
front fender, be careful to not deform the front fender while performing the procedure and remov-
ing the viscous urethane foam a little at a time.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, apply the touch-up paint (the body color) onto the head of front fender mounting

bolts.

• After installation, adjust the following part.
- Hood assembly: Refer to

DLK-465, "HOOD ASSEMBLY : Adjustment"

.

- Front door: Refer to

DLK-477, "DOOR ASSEMBLY : Adjustment"

.

: Vehicle front

JMKIA5633ZZ

DLK-476

< REMOVAL AND INSTALLATION >

[TYPE 3]

FRONT DOOR

FRONT DOOR

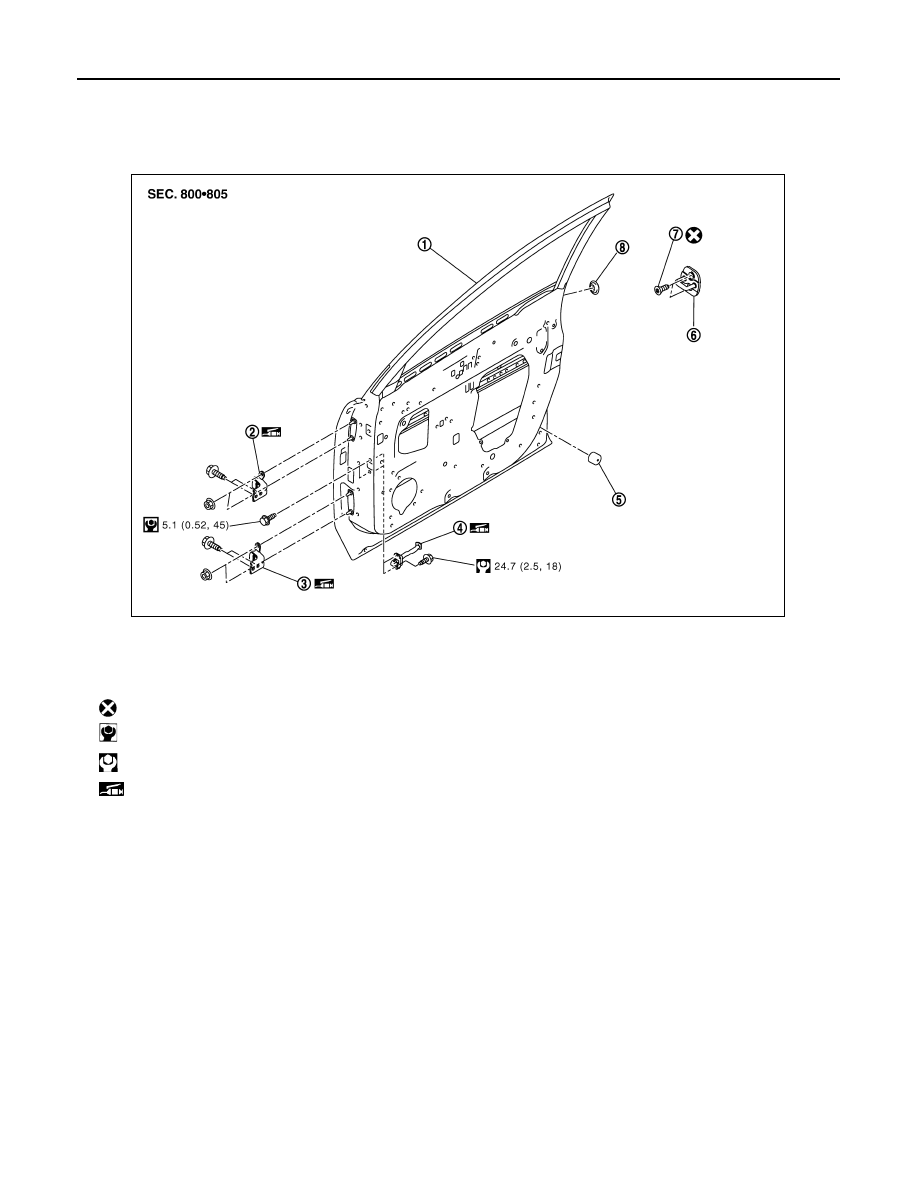

Exploded View

INFOID:0000000010479354

DOOR ASSEMBLY

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010479355

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing front door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove front door harness grommet from vehicle body side, and then pull out front door harness.

2.

Disconnect front door harness connector.

3.

Remove mounting bolt of door check link on the vehicle body.

4.

Remove door hinge mounting nuts of door side, and then remove door assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

1.

Front door panel

2.

Door hinge (upper)

3.

Door hinge (lower)

4.

Door check link

5.

Bumper rubber

6.

Door striker

7.

TORX bolt

8.

Grommet

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3247GB

FRONT DOOR

DLK-477

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• Apply anticorrosive agent onto the mounting surface.
• After installation, perform the fitting adjustment. Refer to

DLK-477, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• Check door hinge and door check link rotating part for poor lubrication.
- Door hinge: Refer to

DLK-479, "DOOR HINGE : Inspection"

.

- Door check link: Refer to

DLK-479, "DOOR CHECK LINK : Removal and Installation"

.

DOOR ASSEMBLY : Adjustment

INFOID:0000000010479356

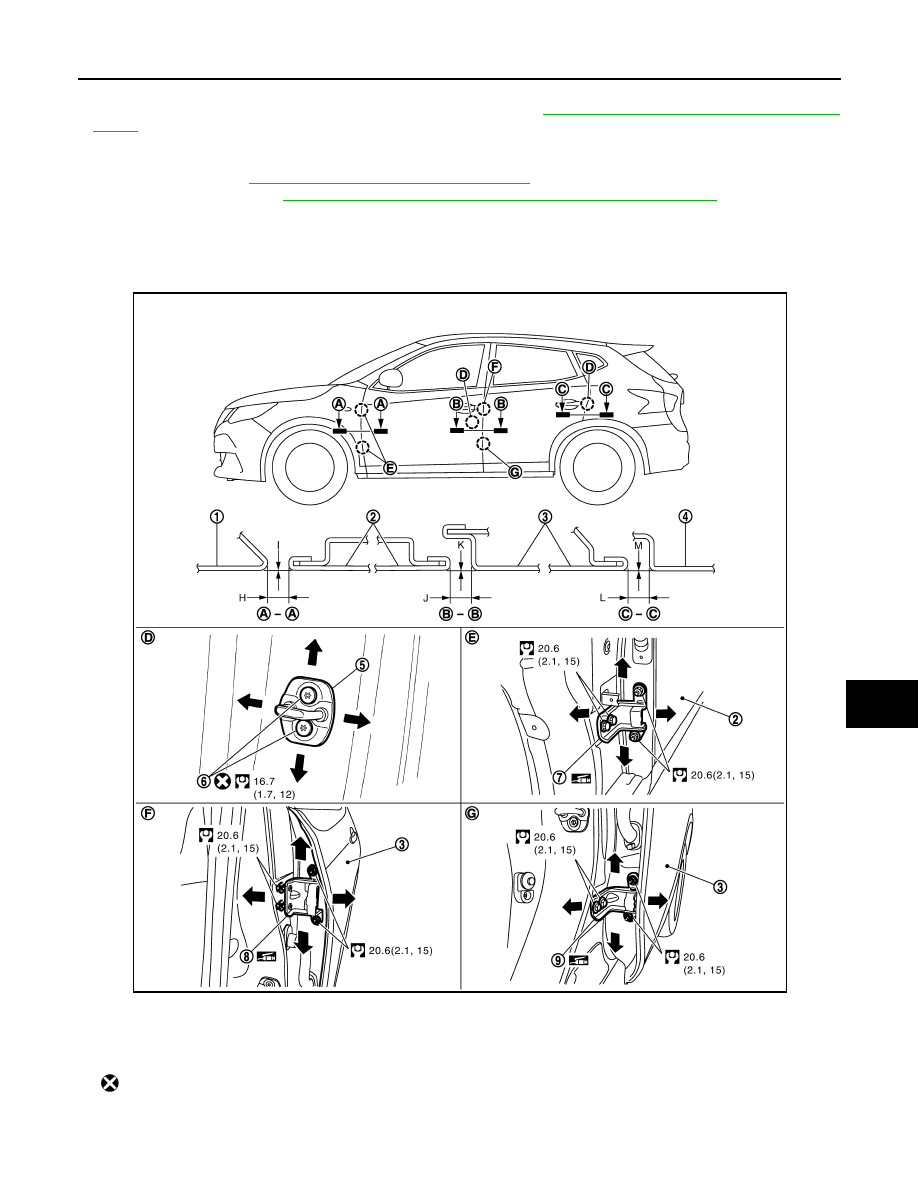

FITTING ADJUSTMENT

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

TORX bolt

7.

Front door hinge

8.

Rear door hinge (upper)

9.

Rear door hinge (lower)

: Always replace after every disassembly.

JMKIB3256GB

DLK-478

< REMOVAL AND INSTALLATION >

[TYPE 3]

FRONT DOOR

Fitting Adjustment Standard

Check the clearance and surface height between front door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Unit: mm [in]

Fitting Adjustment Procedure

1.

Remove front fender. Refer to

DLK-474, "Removal and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of front door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting bolts on vehicle body side.

6.

Raise front door at rear end to adjust clearance of the front door according to the fitting standard dimen-
sion.

7.

After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• After installation, apply touch-up paint (the body color) onto the head of hinge mounting bolts

and nuts.

• Check door hinge rotating part for poor lubrication. Apply body grease if necessary. Refer to

DLK-479, "DOOR HINGE : Inspection"

.

8.

Install front fender. Refer to refer to

DLK-474, "Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

DOOR STRIKER : Removal and Installation

INFOID:0000000010479357

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse mounting TORX bolt. Always replace it with a new one when it is removed.
• Check front door open/close, lock/unlock operation after installation.
• After installation, perform the fitting adjustment. Refer to

DLK-477, "DOOR ASSEMBLY : Adjust-

ment"

.

DOOR HINGE

DOOR HINGE : Removal and Installation

INFOID:0000000010479358

REMOVAL

: N·m (kg-m, ft-lb)

: Body grease

Portion

Standard

Front fender – Front door

A – A

H

Clearance

3.3 – 5.3

[0.130 – 0.209]

I

Surface

height

(

1.0) – (+1.0)

[(

0.039) – (+0.039)]

Front door – Rear door

B – B

J

Clearance

3.3 – 5.3

[0.130 – 0.209]

K

Surface

height

(

1.0) – (+1.0)

[(

0.039) – (+0.039)]

FRONT DOOR

DLK-479

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing front door assembly, support door with a jack and shop cloth to pro-

tect door and body.

1.

Remove front fender. Refer to

DLK-474, "Removal and Installation"

.

2.

Remove front door assembly. Refer to

DLK-476, "DOOR ASSEMBLY : Removal and Installation"

.

3.

Remove front door hinge mounting bolts (body side), and then remove front door hinge.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check front door open/close, lock/unlock operation after installation.
• After installation, perform the fitting adjustment. Refer to

DLK-477, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• After installation, check door hinge rotating part for poor lubrication. Refer to

DLK-479, "DOOR

HINGE : Inspection"

.

DOOR HINGE : Inspection

INFOID:0000000010479359

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

DOOR CHECK LINK

DOOR CHECK LINK : Removal and Installation

INFOID:0000000010479360

REMOVAL

1.

Fully close the front door glass.

2.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

.

3.

Remove front door speaker.

a.

Disconnect front door speaker harness connector.

b.

Remove front door speaker mounting bolts, and then remove front door speaker.

4.

Remove check link mounting bolts of vehicle body side.

5.

Remove check link mounting bolts of door side.

6.

Take door check link out from the hole of door panel.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check front door open/close operation after installation.
• After installation, check door check link rotating part for poor lubrication. Refer to

DLK-480, "DOOR

CHECK LINK : Inspection"

.

: Body grease

JMKIB0321ZZ

DLK-480

< REMOVAL AND INSTALLATION >

[TYPE 3]

FRONT DOOR

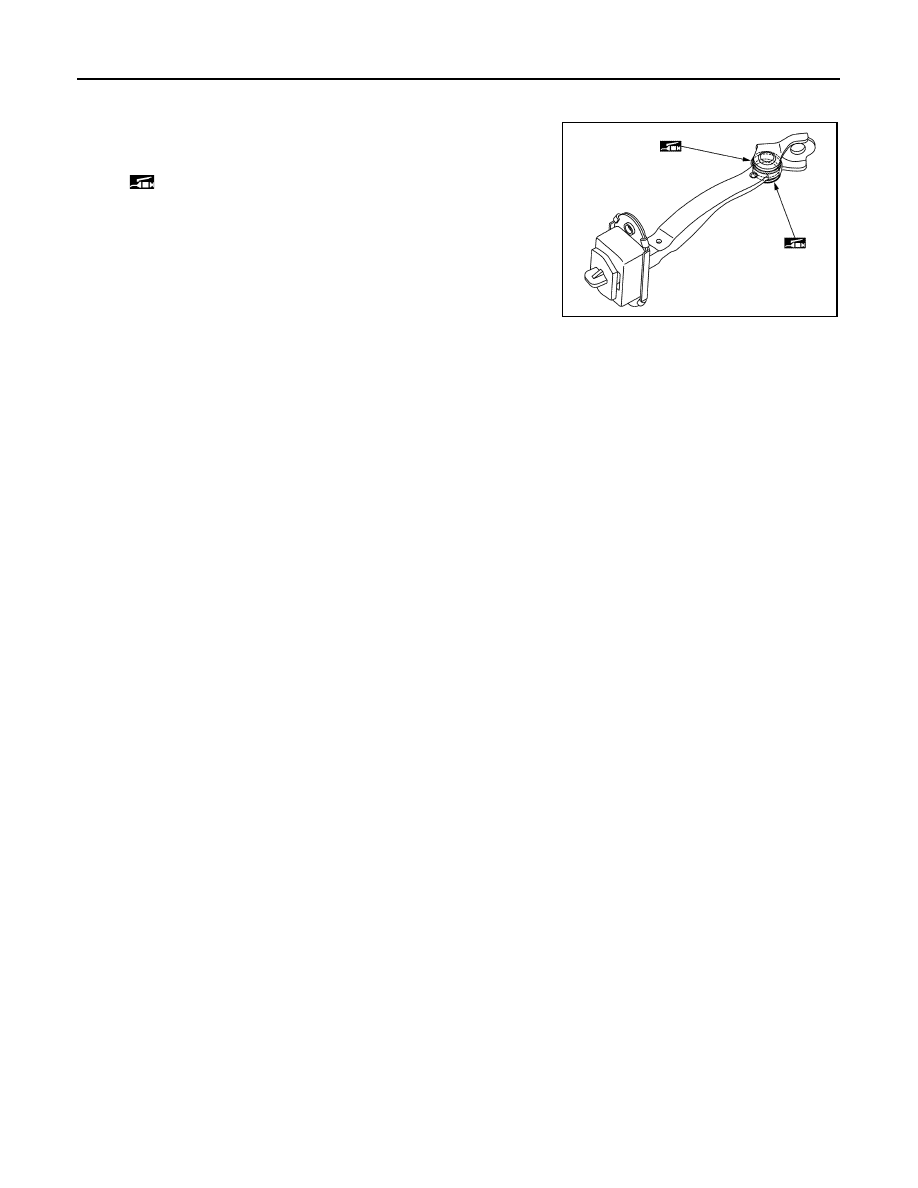

DOOR CHECK LINK : Inspection

INFOID:0000000010479361

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

: Body grease

JMKIB0322ZZ















Content      ..     27      28      29      30     ..
