Qashqai J11. Door & Lock - part 23

REAR DOOR LOCK

DLK-369

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3.

Remove rear door lower sash mounting bolt, and then remove rear door lower sash.

4.

Disconnect door lock assembly harness connector.

5.

Remove door lock assembly screws, and then remove door lock assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse door lock assembly screw. Always replace it with a new one when it is removed.
• Check door lock cable is properly engaged with outside handle bracket.
• Check door lock assembly for poor lubrication. Refer to

DLK-369, "DOOR LOCK : Inspection"

• Check door open/close, lock/unlock operation after installation.

DOOR LOCK : Inspection

INFOID:0000000010478282

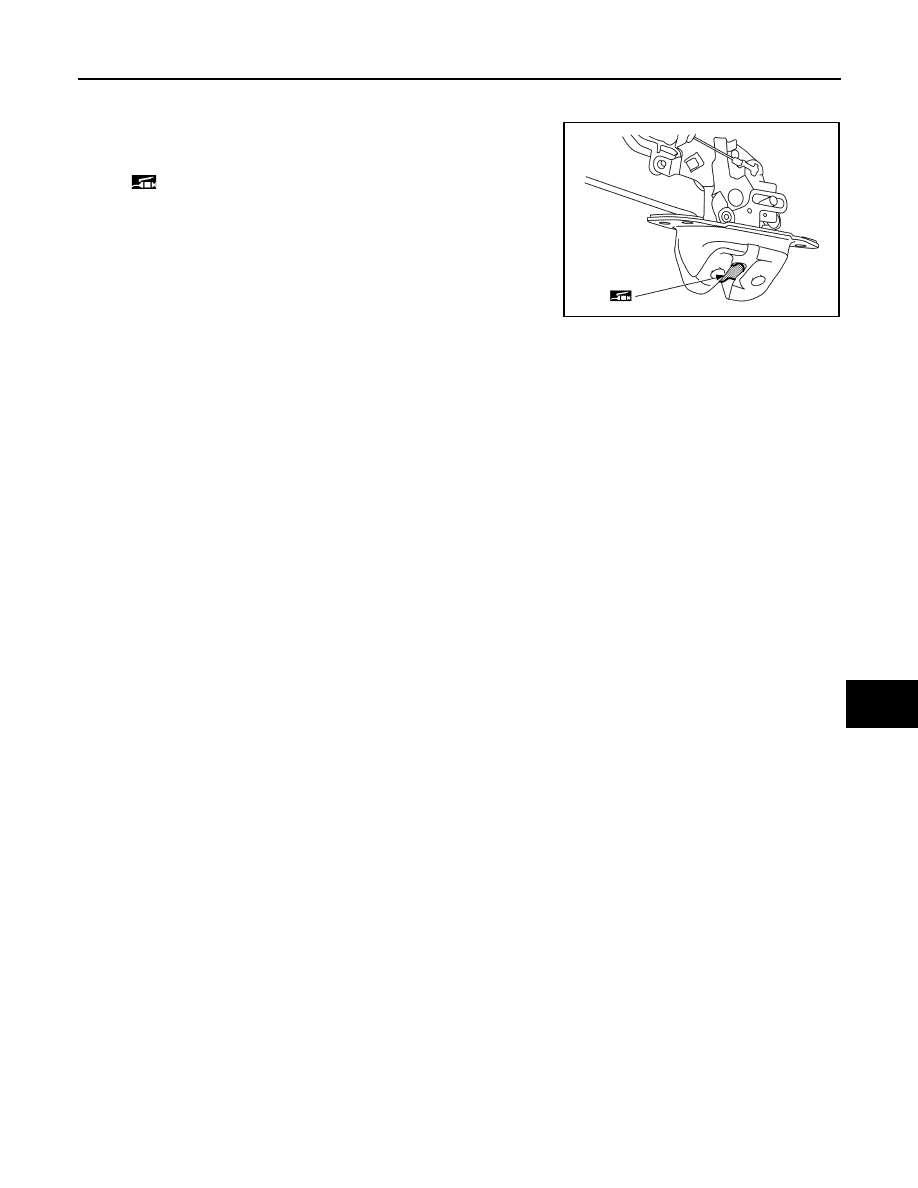

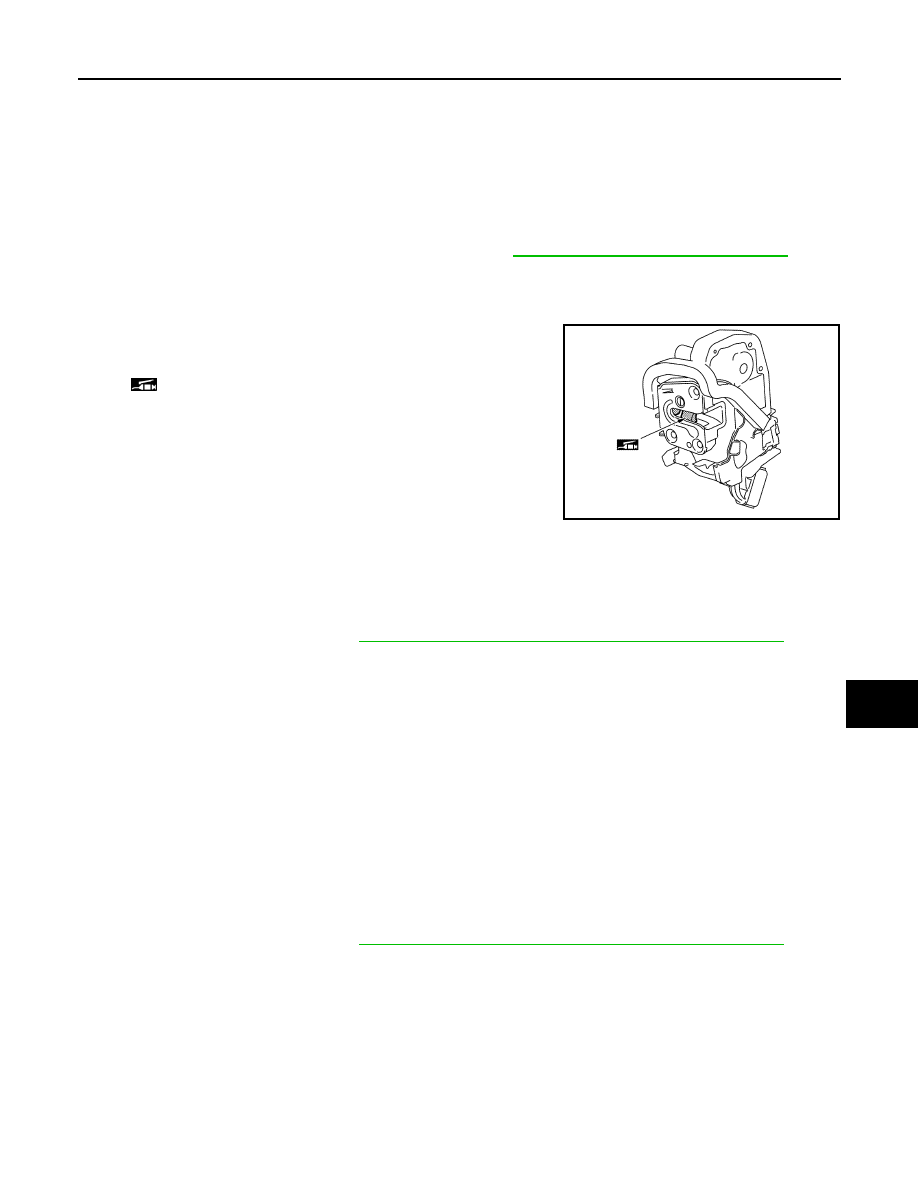

Check door lock assembly for poor lubrication. Apply body grease if
necessary.

INSIDE HANDLE

INSIDE HANDLE : Removal and Installation

INFOID:0000000010478283

REMOVAL

1.

Remove rear door finisher. Refer to

INT-15, "REAR DOOR FINISHER : Removal and Installation"

.

2.

Remove inside handle mounting bolt.

3.

Disengage inside handle from door panel while sliding inside handle toward vehicle rear, and then sepa-
rate inside handle.

4.

Disconnect inside handle cable, and then remove inside handle.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

OUTSIDE HANDLE

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000010478284

REMOVAL

1.

Fully close the rear door glass.

2.

Remove rear door finisher. Refer to

INT-15, "REAR DOOR FINISHER : Removal and Installation"

.

3.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

: Body grease

JMKIA8534ZZ

DLK-370

< REMOVAL AND INSTALLATION >

[TYPE 2]

REAR DOOR LOCK

4.

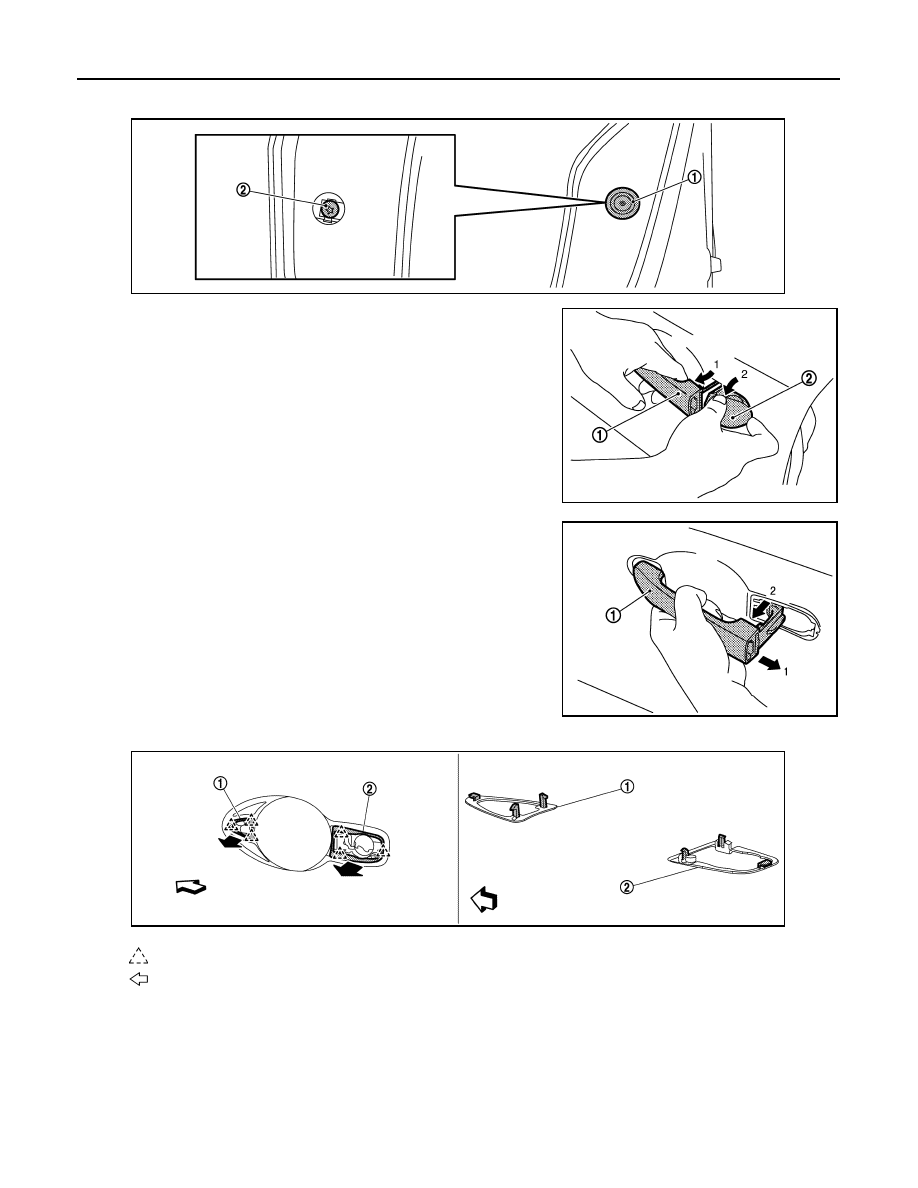

Remove grommet (1) of door side. Loosen, through grommet hole, TORX bolt (2) that fixes outside handle
escutcheon.

5.

While pulling outside handle (1) according to the numerical order
1

→

2 indicated by arrows as shown in the figure, remove outside

handle escutcheon (2).

6.

While pulling outside handle (1) according to the numerical order
1

→

2 indicated by arrows as shown in the figure, slide toward

rear of vehicle to remove outside handle.

7.

Remove front gasket (1) and rear gasket (2).

JMKIB2478ZZ

JMKIB2479ZZ

JMKIA0524ZZ

: Pawl

: Vehicle front

JMKIB1627ZZ

REAR DOOR LOCK

DLK-371

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

8.

Slide outside handle bracket toward rear of vehicle to remove.

9.

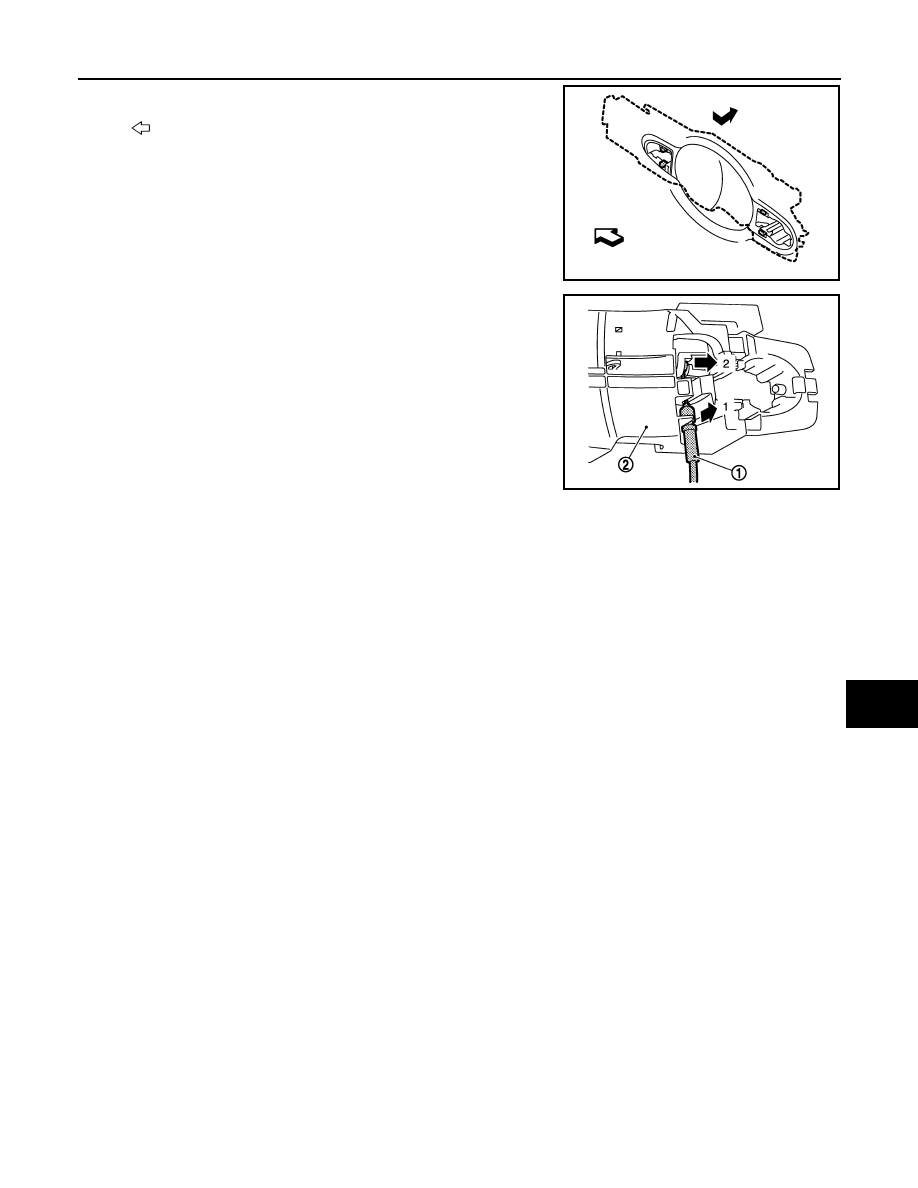

Disconnect outside handle cable (1) from outside handle bracket
(2) according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

CAUTION:

Never bend the outside handle cable end.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check that door lock cables are normally engaged with inside handle and outside handle.
• After installation, check door open/close, and lock/unlock operation.

: Vehicle front

JMKIA5890ZZ

JMKIA5891ZZ

DLK-372

< REMOVAL AND INSTALLATION >

[TYPE 2]

BACK DOOR LOCK

BACK DOOR LOCK

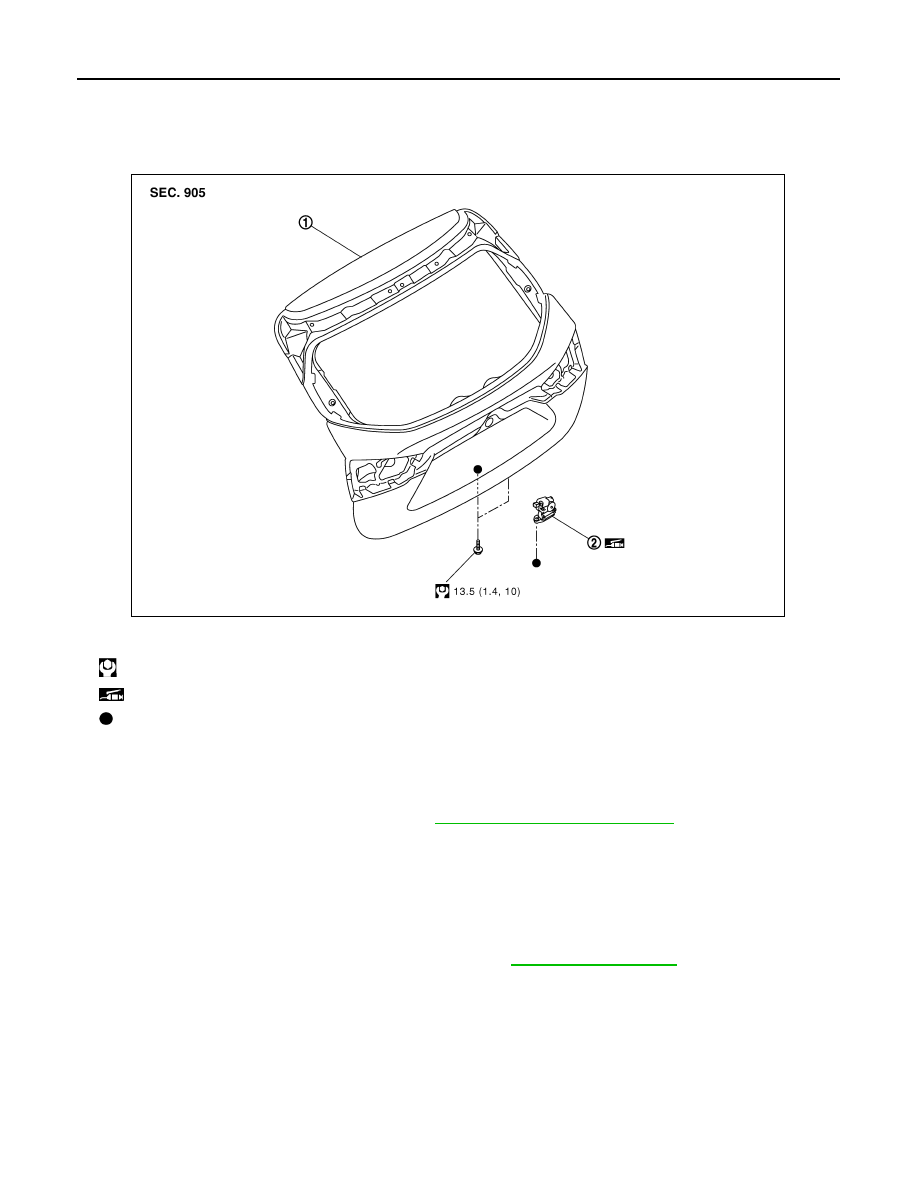

Exploded View

INFOID:0000000010478285

Removal and Installation

INFOID:0000000010478286

REMOVAL

1.

Remove back door trim finisher lower. Refer to

INT-31, "Removal and Installation"

.

2.

Disconnect back door lock harness connector.

3.

Remove back door assembly mounting bolts, and then remove back door lock assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, check back door open/close, and lock/unlock operation.
• Check door lock assembly for poor lubrication. Refer to

DLK-373, "Inspection"

.

1.

Back door panel

2.

Back door lock assembly

: N·m (kg-m, ft-lb)

: Body grease

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3271GB

BACK DOOR LOCK

DLK-373

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Inspection

INFOID:0000000010478287

Check door lock assembly for poor lubrication. Apply body grease if
necessary.

: Body grease

JMKIB0629ZZ

DLK-374

< REMOVAL AND INSTALLATION >

[TYPE 2]

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

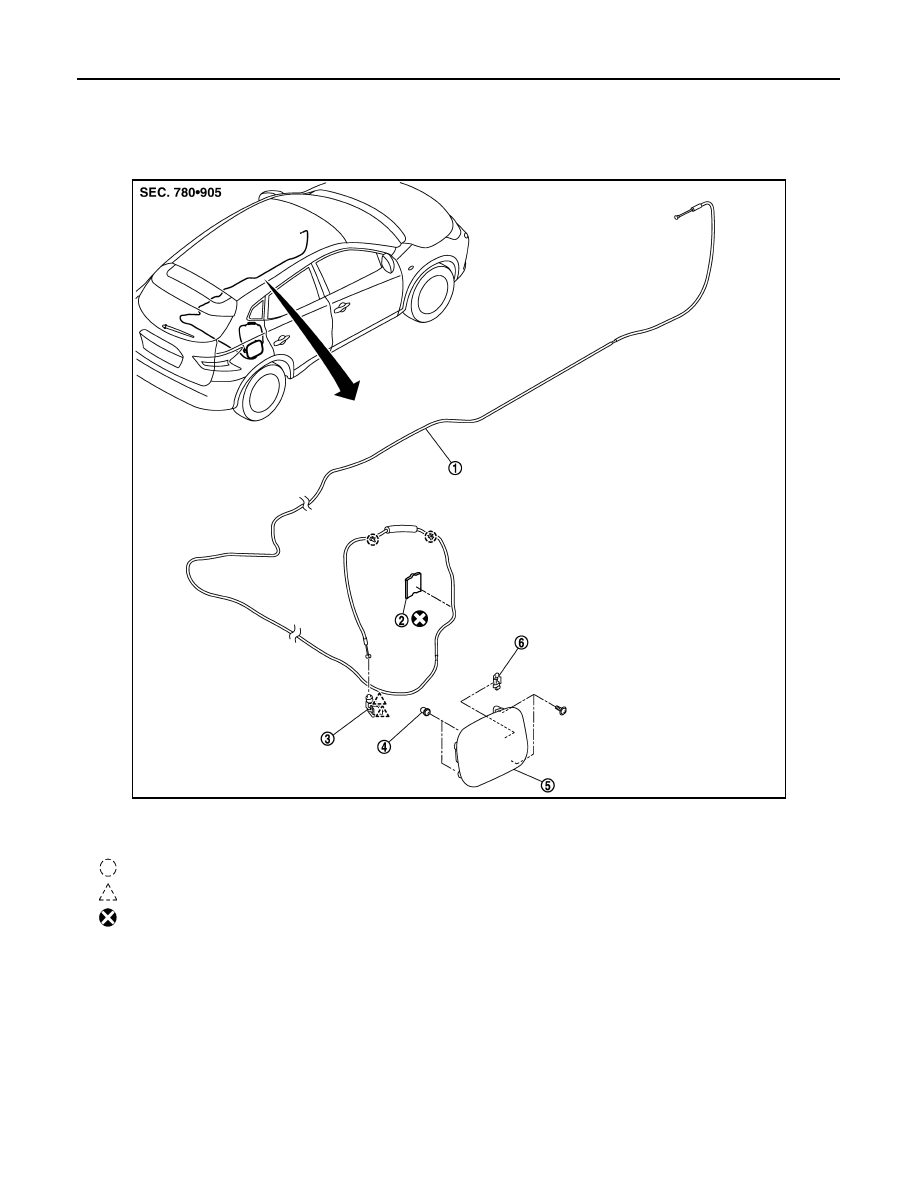

Exploded View

INFOID:0000000010478288

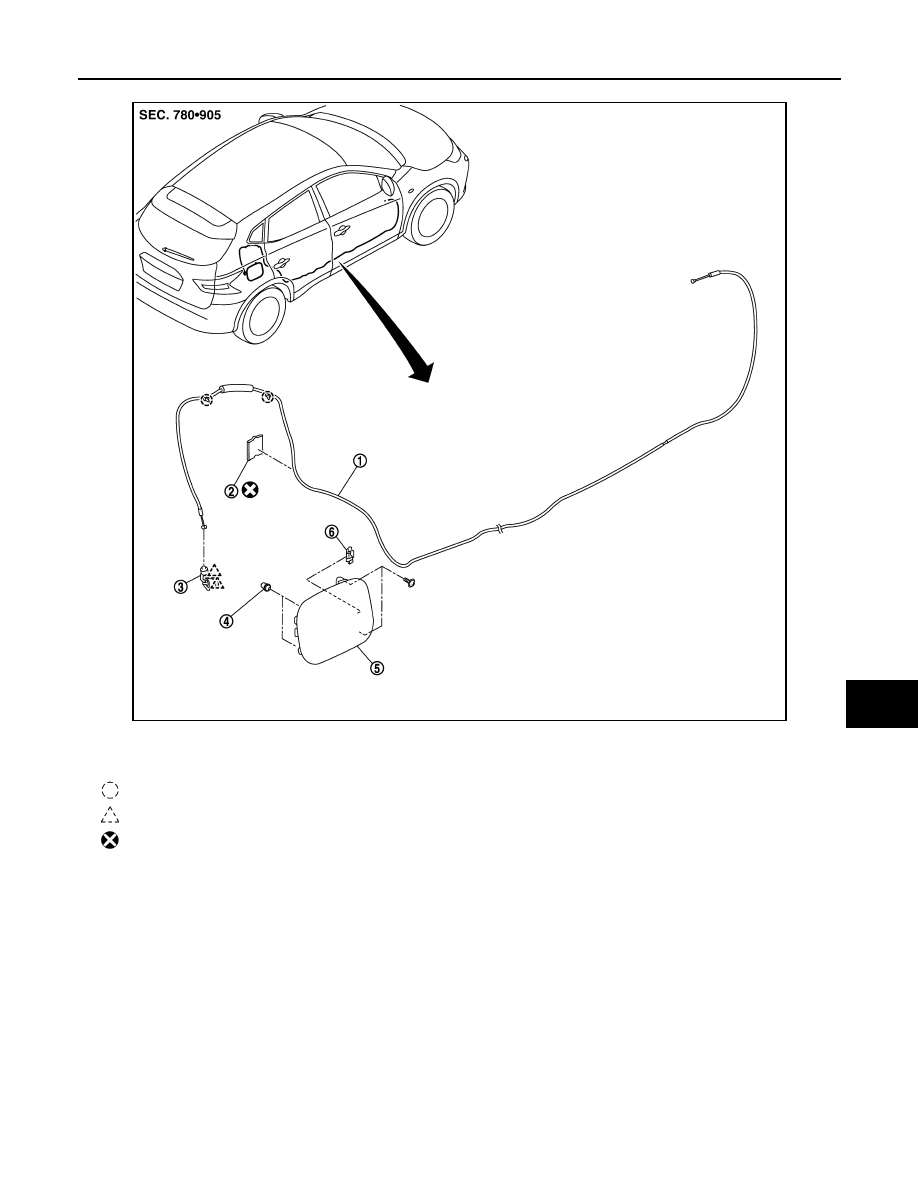

LHD models

JMKIB3264ZZ

1.

Fuel opener cable

2.

Cable protector

3.

Fuel filler lid lock assembly

4.

Bumper rubber

5.

Fuel filler lid assembly

6.

Fuel filler spring

: Clip

: Pawl

: Always replace after every disassembly.

FUEL FILLER LID OPENER

DLK-375

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

RHD models

FUEL FILLER LID

FUEL FILLER LID : Removal and Installation

INFOID:0000000010478289

REMOVAL

1.

Fully open fuel filler lid assembly.

JMKIB3263ZZ

1.

Fuel opener cable

2.

Cable protector

3.

Fuel filler lid lock assembly

4.

Bumper rubber

5.

Fuel filler lid assembly

6.

Fuel filler spring

: Clip

: Pawl

: Always replace after every disassembly.

DLK-376

< REMOVAL AND INSTALLATION >

[TYPE 2]

FUEL FILLER LID OPENER

2.

Remove fuel mounting pin (1).

3.

Remove fixing screws, and then remove fuel filler lid assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, check fuel filler lid assembly open/close, lock/unlock operation.
• After installation, apply the touch-up paint (the body color) onto the head of the fixing screws.
• Apply anti-corrosion wax to mounting surface of fixing screw and fuel filler lid to prevent rust.
NOTE:
The following table shows the specified values for checking normal installation status.

Unit: mm [in]

FUEL FILLER LID LOCK

FUEL FILLER LID LOCK : Removal and Installation

INFOID:0000000010478290

REMOVAL

1.

Fully open fuel filler lid.

2.

Remove luggage lower finisher RH. Refer to

INT-29, "Luggage side trim"

.

3.

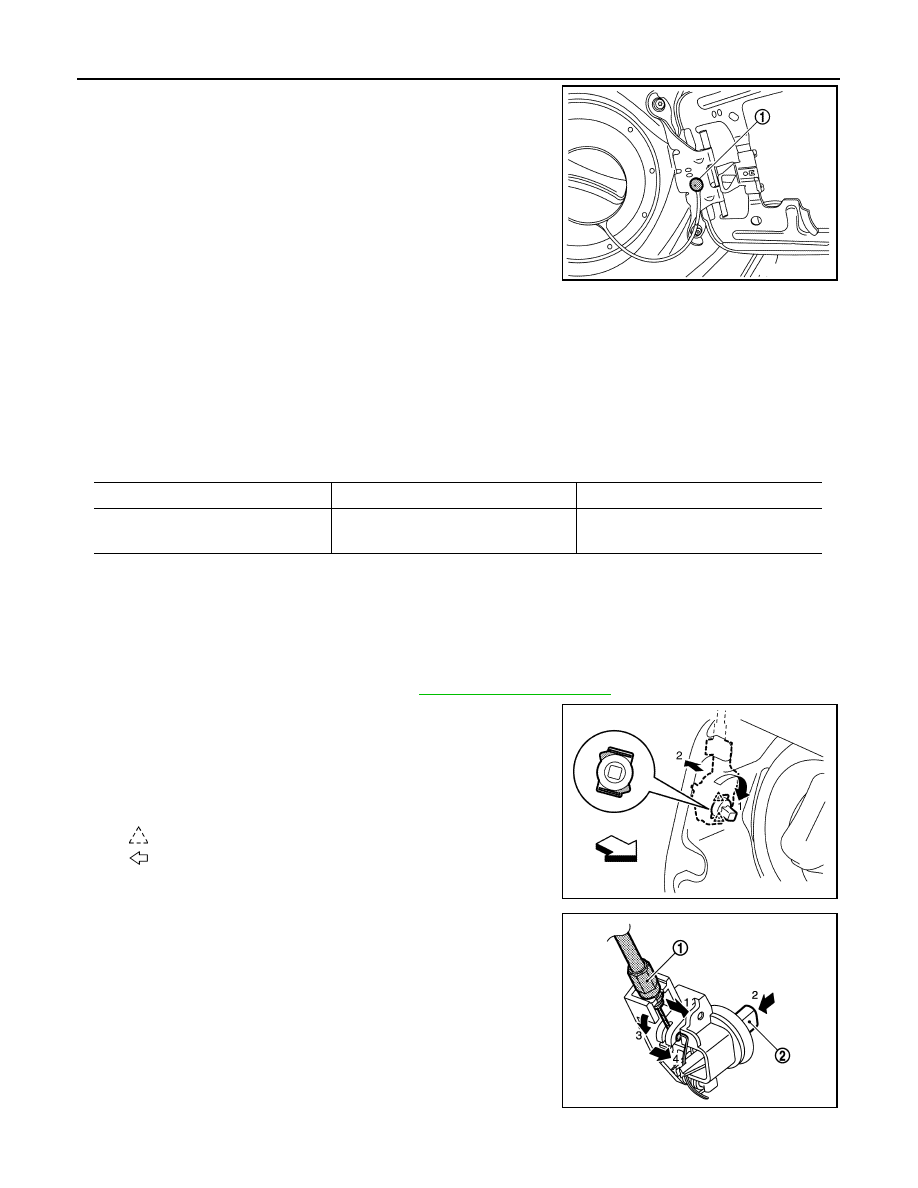

In the order of 1

→

2 as shown in the figure, rotate and disengage

fuel filler lid lock assembly, and then remove fuel filler lid lock
assembly.
NOTE:
Operation is performed easily when rotating fuel filler lid lock
from passenger room side.

4.

In the order of 1

→

4 as shown in the figure. Disengage fuel filler

lid opener cable (1). Remove fuel filler lid opener cable while
pressing stopper pin (2).

JMKIB3183ZZ

Clearance

Evenness

Fuel filler lid – Body side outer

3.7 – 5.3

(0.146 – 0.209)

(-1.0) – (+1.0)

[(-0.039) – (+0.039)]

: Pawl

: Vehicle front

JMKIB1094ZZ

JMKIA5719ZZ

FUEL FILLER LID OPENER

DLK-377

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

FUEL FILLER OPENER CABLE

FUEL FILLER OPENER CABLE : Removal and Installation

INFOID:0000000010478291

REMOVAL

LHD models

1.

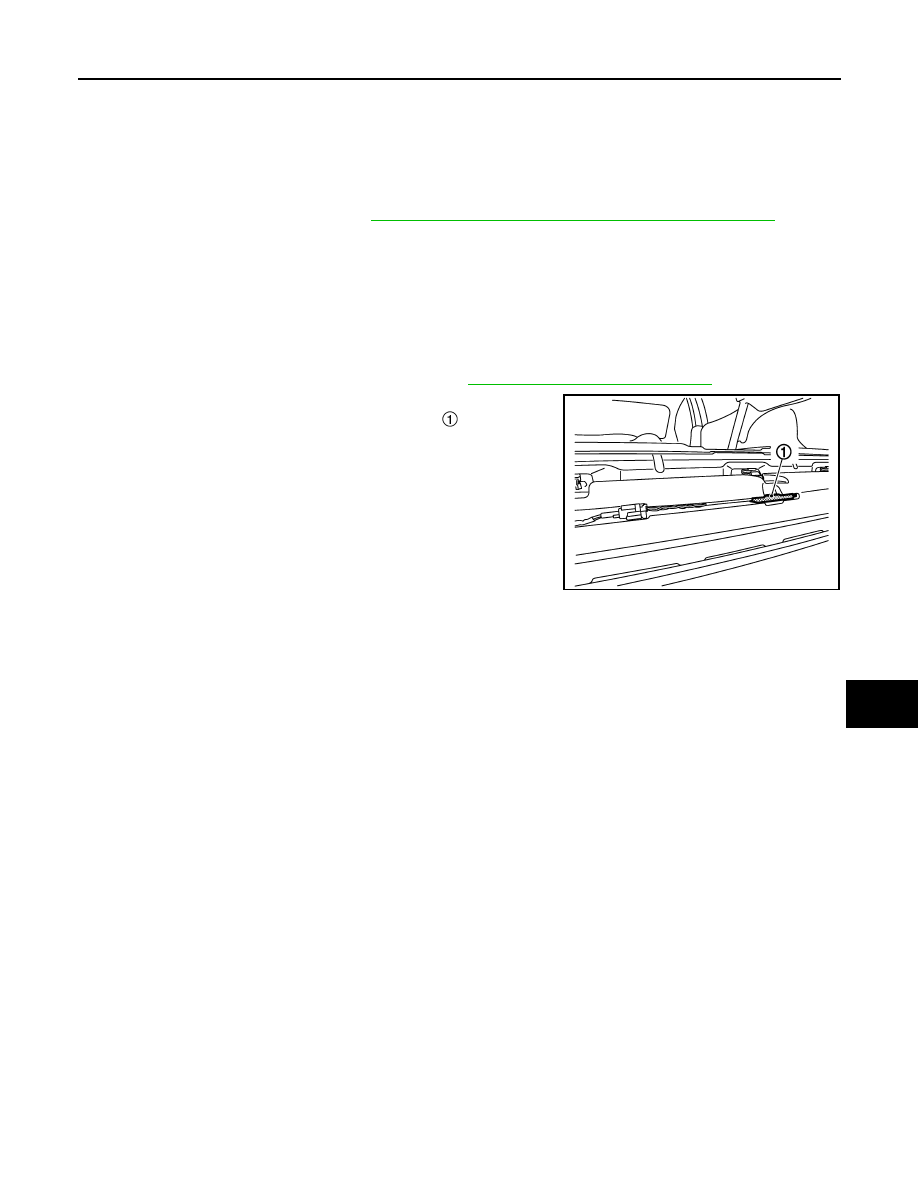

Remove hood lock control handle mounting bolts, and then remove hood lock control handle.

2.

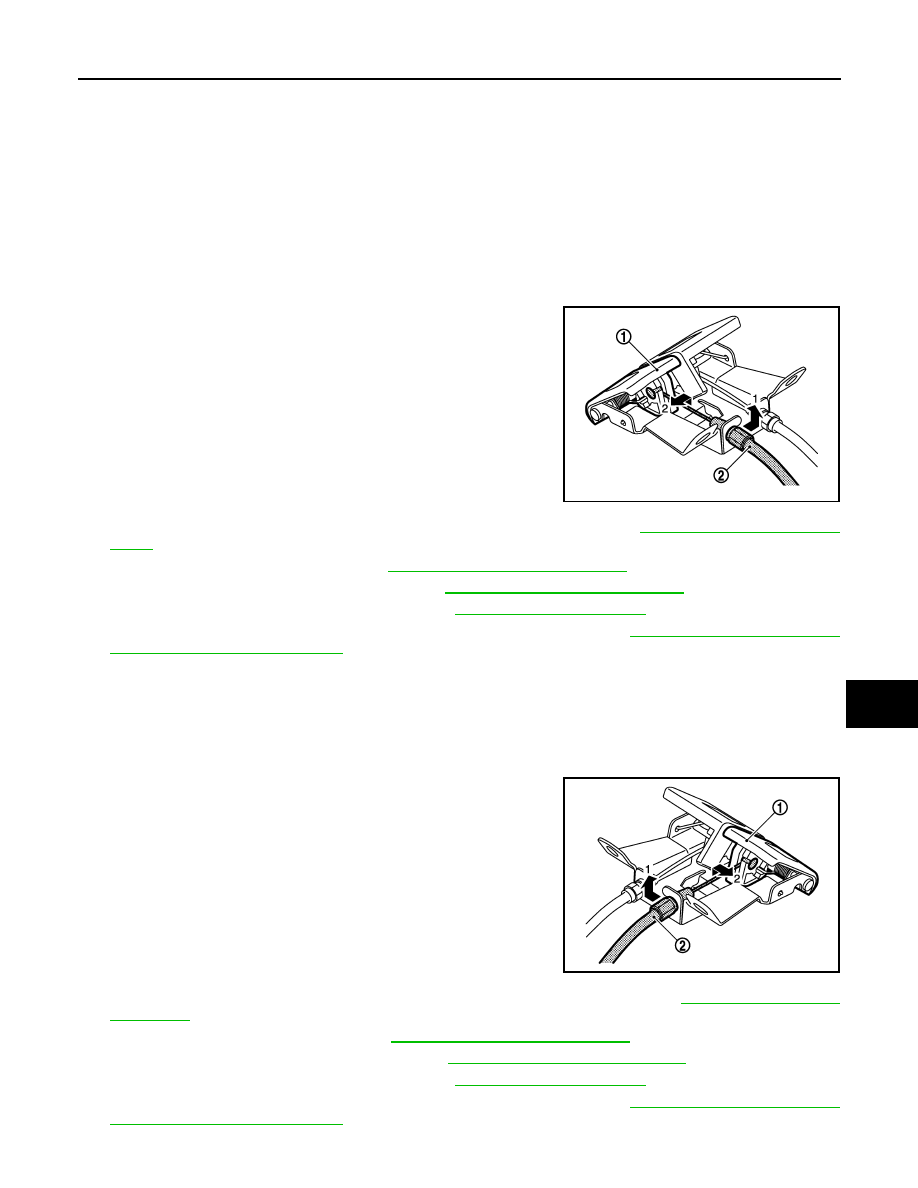

Disconnect fuel opener cable (2) from fuel filler lid opener lever
(1) according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

3.

Remove front kicking plate inner LH and rear kicking plate inner LH. Refer to

INT-18, "Removal and Instal-

lation"

.

4.

Remove dash side finisher LH. Refer to

INT-18, "Removal and Installation"

.

5.

Remove center pillar lower garnish LH. Refer to

INT-18, "Removal and Installation"

.

6.

Remove luggage side lower finisher RH. Refer to

INT-29, "Luggage side trim"

.

7.

Disconnect fuel opener cable from fuel filler lid lock assembly. Refer to

DLK-376, "FUEL FILLER LID

LOCK : Removal and Installation"

.

8.

Remove fuel opener cable from each harness protector.

9.

Remove cable protector.

10. Remove fuel opener cable fixing clips, and then remove fuel opener cable.

RHD models

1.

Remove hood lock control handle mounting bolts, and then remove hood lock control handle.

2.

Disconnect fuel opener cable (2) from fuel filler lid opener lever
(1) according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

3.

Remove front kicking plate inner RH and rear kicking plate inner RH. Refer to

INT-18, "Removal and

Installation"

.

4.

Remove dash side finisher RH. Refer to

INT-18, "Removal and Installation"

.

5.

Remove center pillar lower garnish RH. Refer to

INT-18, "Removal and Installation"

.

6.

Remove luggage side lower finisher RH. Refer to

INT-29, "Luggage side trim"

.

7.

Disconnect fuel opener cable from fuel filler lid lock assembly. Refer to

DLK-376, "FUEL FILLER LID

LOCK : Removal and Installation"

.

JMKIA5901ZZ

JMKIA5672ZZ

DLK-378

< REMOVAL AND INSTALLATION >

[TYPE 2]

FUEL FILLER LID OPENER

8.

Remove fuel opener cable from each harness protector.

9.

Remove cable protector.

10. Remove fuel opener cable fixing clips, and then remove fuel opener cable.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse cable protector. Always replace it with a new one when it is removed.
• After installation, check fuel filler lid assembly open/close, lock/unlock operation.
• Never bend cable too much, keeping the radius 100 mm (3.937 in) or more.

DOOR SWITCH

DLK-379

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR SWITCH

Removal and Installation

INFOID:0000000010504911

REMOVAL

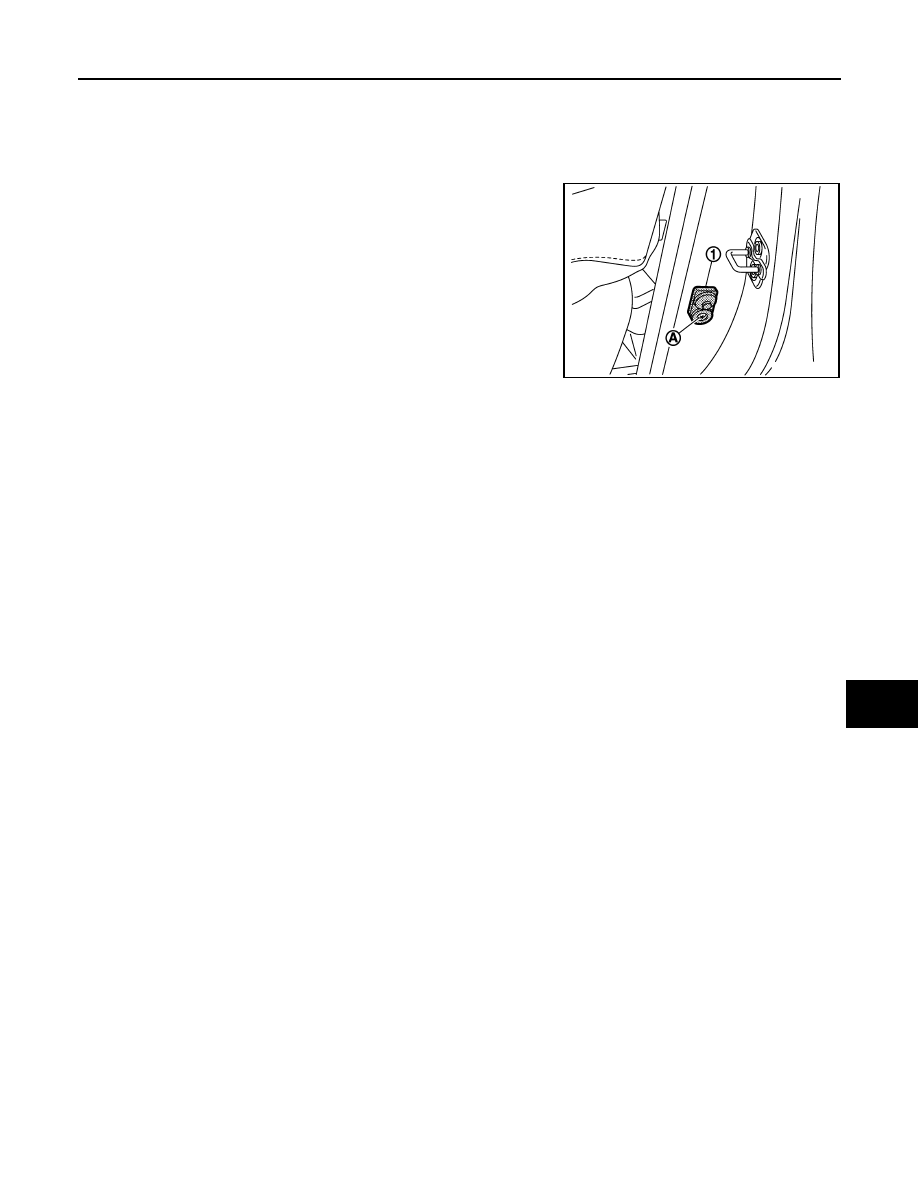

Remove the TORX bolt (A), and then remove door switch (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA2173ZZ

DLK-380

< REMOVAL AND INSTALLATION >

[TYPE 2]

INSIDE KEY ANTENNA

INSIDE KEY ANTENNA

CONSOLE

CONSOLE : Removal and Installation

INFOID:0000000010504913

REMOVAL

1.

Remove the console rear finisher. Refer to

IP-19, "Removal and Installation"

.

2.

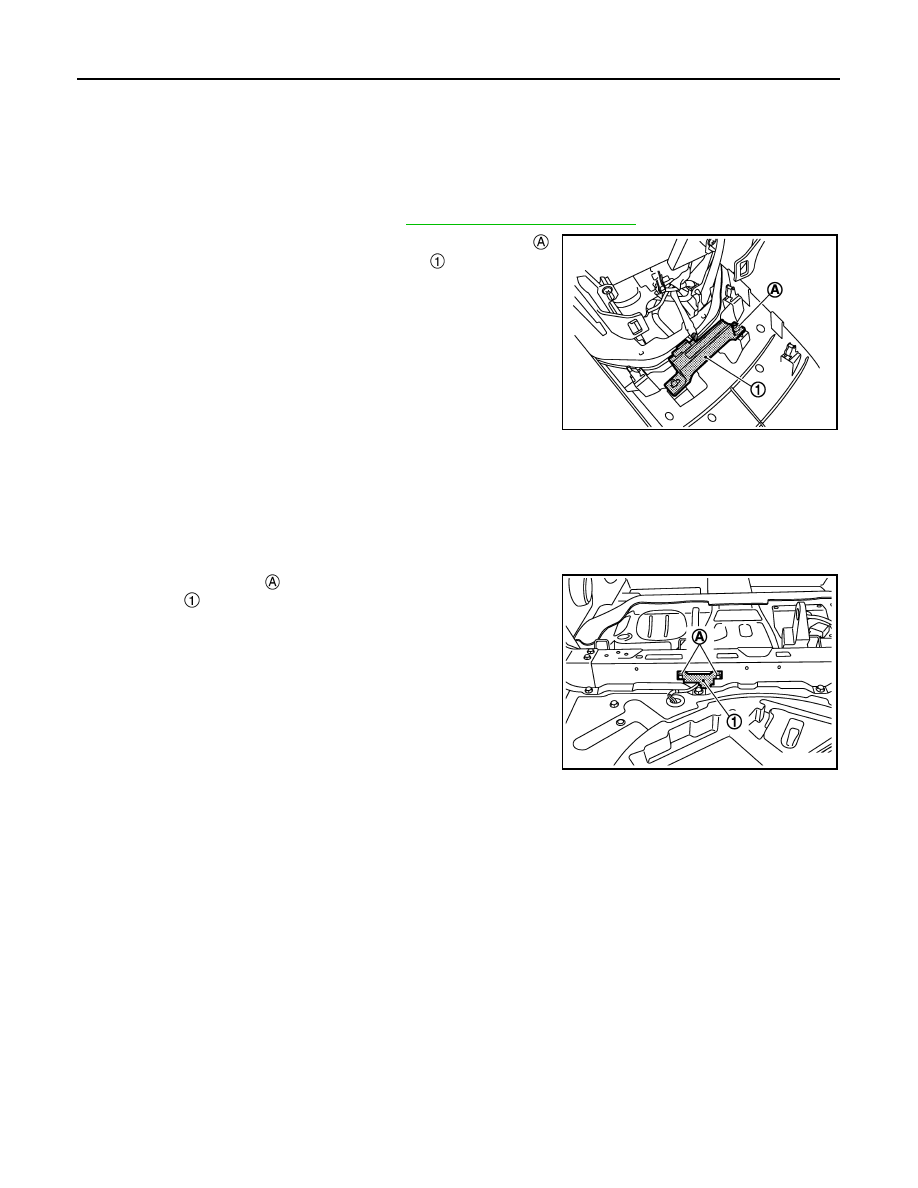

Remove the inside key antenna (console) mounting screw

,

and then remove inside key antenna (console)

.

INSTALLATION

Install in the reverse order of removal.

LUGGAGE ROOM

LUGGAGE ROOM : Removal and Installation

INFOID:0000000010504914

REMOVAL

Remove the mounting clip

, and then remove inside key antenna

(luggage room)

.

INSTALLATION

Install in the reverse order of removal.

JMKIB3257ZZ

JMKIB3258ZZ

OUTSIDE KEY ANTENNA

DLK-381

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

OUTSIDE KEY ANTENNA

OUTSIDE HANDLE

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000010504915

REMOVAL

Remove the outside handle grip. Refer to

DLK-183, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

REAR BUMPER

REAR BUMPER : Removal and Installation

INFOID:0000000010504917

REMOVAL

1.

Remove the rear bumper fascia assembly. Refer to

EXT-24, "Removal and Installation"

.

2.

Disconnect outside key antenna (rear bumper) connector, and
then remove outside key antenna (rear bumper)

.

INSTALLATION

Install in the reverse order of removal.

JMKIB3259ZZ

DLK-382

< REMOVAL AND INSTALLATION >

[TYPE 2]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Removal and Installation

INFOID:0000000010504918

REMOVAL

1.

Remove the front bumper fascia assembly. Refer to

EXT-20, "Removal and Installation"

.

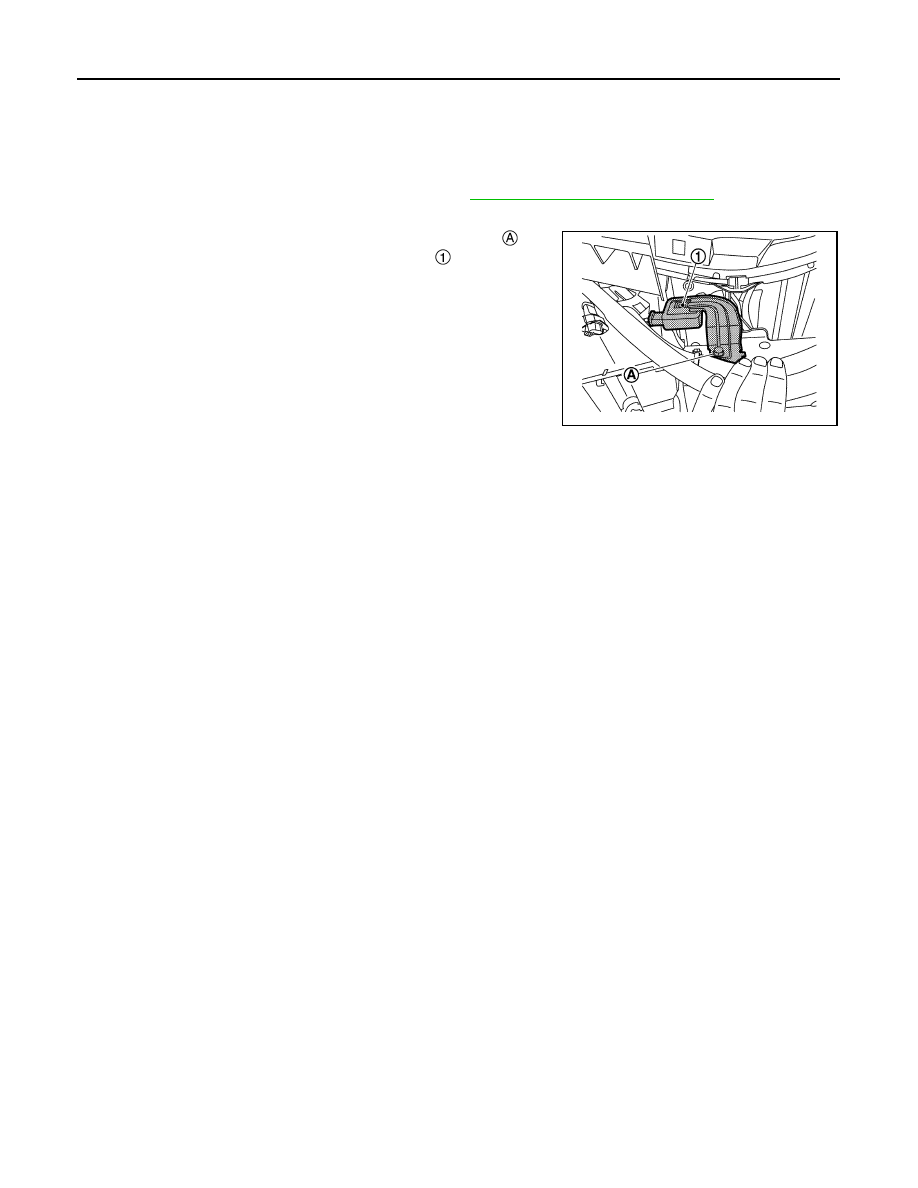

2.

Disconnect Intelligent Key warning buzzer connector.

3.

Remove the Intelligent Key warning buzzer mounting bolt

, and

then remove the Intelligent Key warning buzzer

.

INSTALLATION

Install in the reverse order of removal.

JMKIB2758ZZ

INTELLIGENT KEY BATTERY

DLK-383

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY BATTERY

Removal and Installation

INFOID:0000000010504919

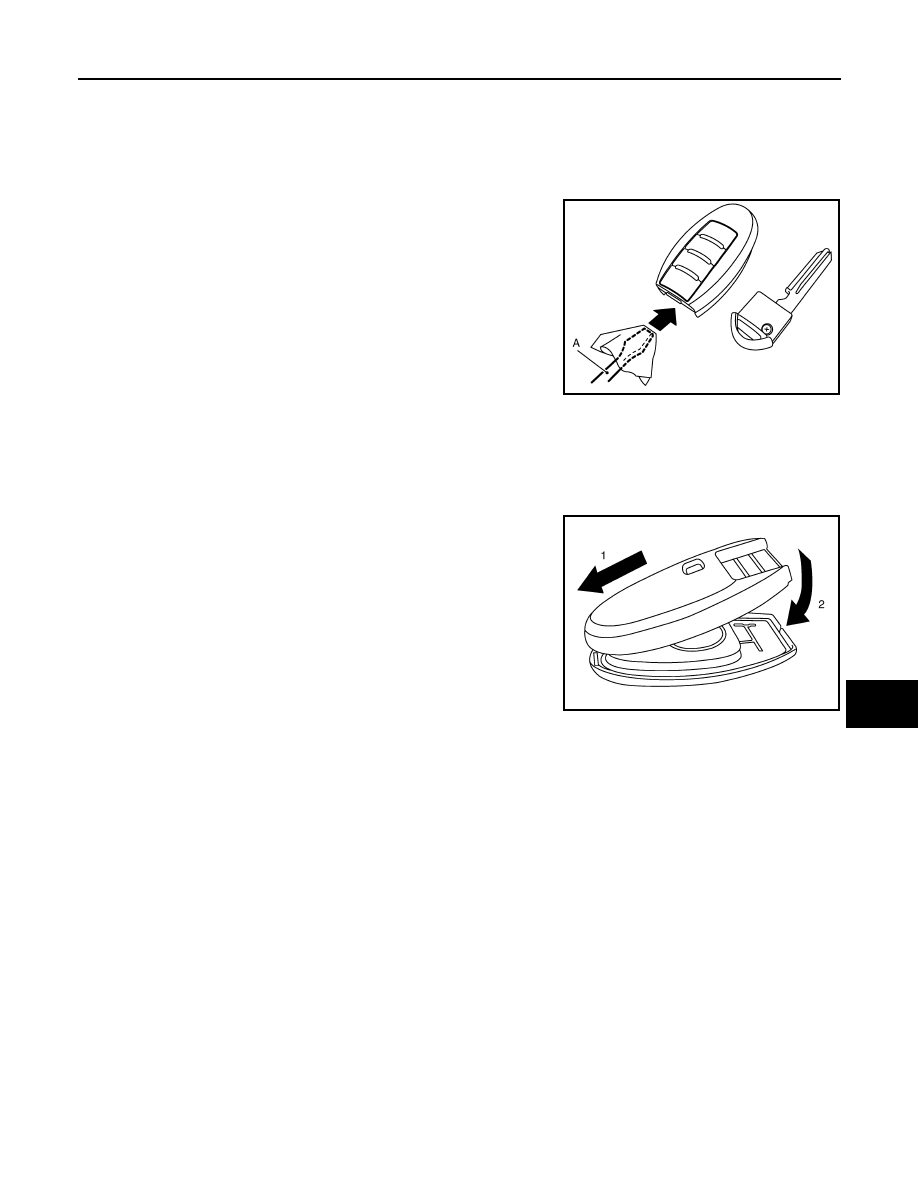

1.

Release the lock knob at the back of the Intelligent Key and remove the mechanical key.

2.

Insert a flat-blade screwdriver (A) wrapped with a cloth into the
slit of the corner and twist it to separate the upper part from the
lower part.

CAUTION:

• Do not touch the circuit board or battery terminal.
• The key fob is water-resistant. However, if it does get wet,

immediately wipe it dry.

3.

Replace the battery with new one.

4.

Align the tips of the upper and lower parts, and then push them
together until it is securely closed.

CAUTION:

• When replacing battery, keep dirt, grease, and other for-

eign materials off the electrode contact area.

• After replacing the battery, check that all Intelligent Key

functions work normally.

PIIB6221E

Battery replacement

:Coin-type lithium battery
(CR2032)

PIIB6222E

DLK-384

< HOW TO USE THIS MANUAL >

[TYPE 3]

APPLICATION NOTICE

HOW TO USE THIS MANUAL

APPLICATION NOTICE

Information

INFOID:0000000010434949

Check the vehicle type to use the service information in this section.

Service information

Destination

Type 1

For Europe

With Intelligent Key and super lock

Type 2

• For Europe
• For South Africa
• For Russia, Ukraine and Kazakhstan

With Intelligent Key, without super lock

Type 3

For Europe

Without Intelligent Key, with super lock

Type 4

• For Europe
• For South Africa
• For Russia, Ukraine and Kazakhstan

Without Intelligent Key and super lock

Type 5

• For  Australia
• For General export

With Intelligent Key, without super lock

Type 6

• For  Australia
• For General export

Without Intelligent Key and super lock
