Qashqai J11. Door & Lock

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-33

< SYSTEM DESCRIPTION >

[TYPE 1]

DLK

SYSTEM (INTELLIGENT KEY SYSTEM)

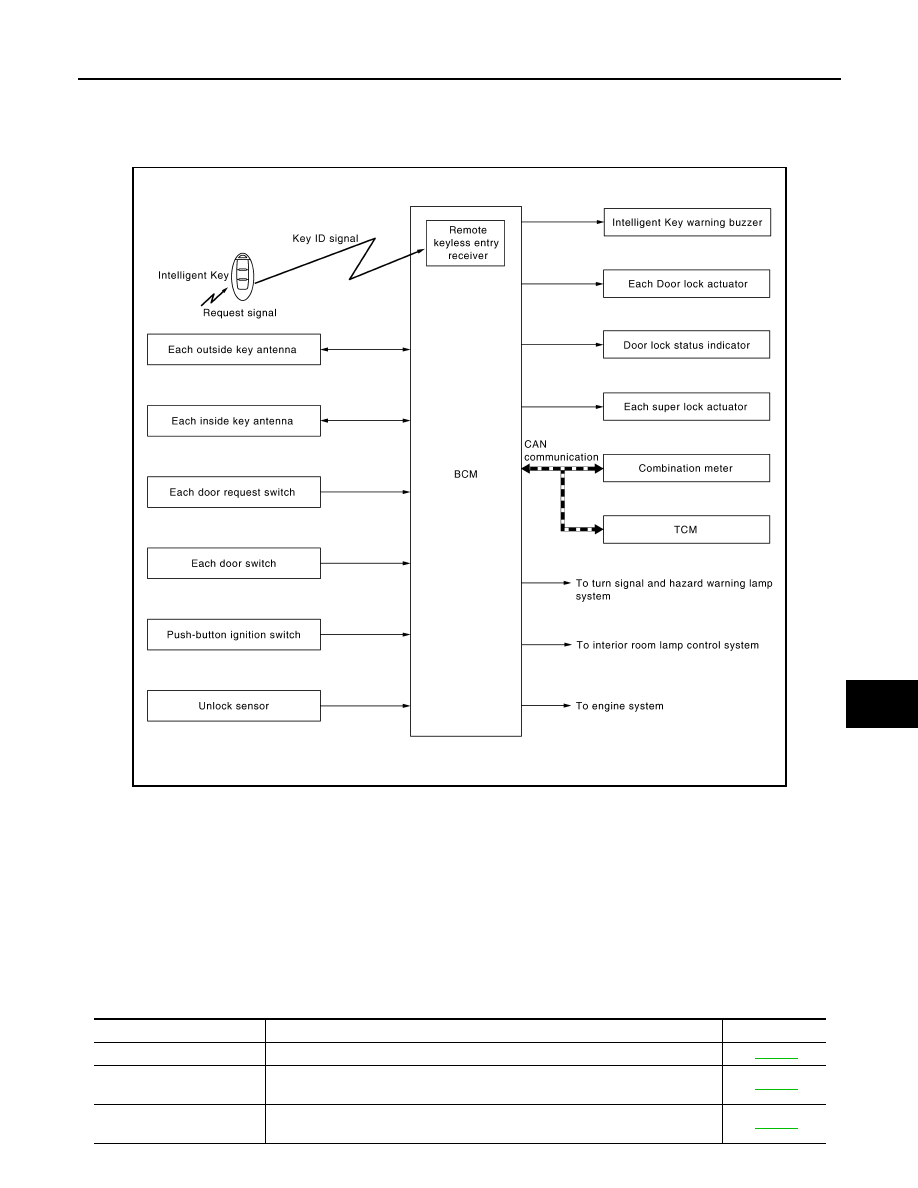

INTELLIGENT KEY SYSTEM

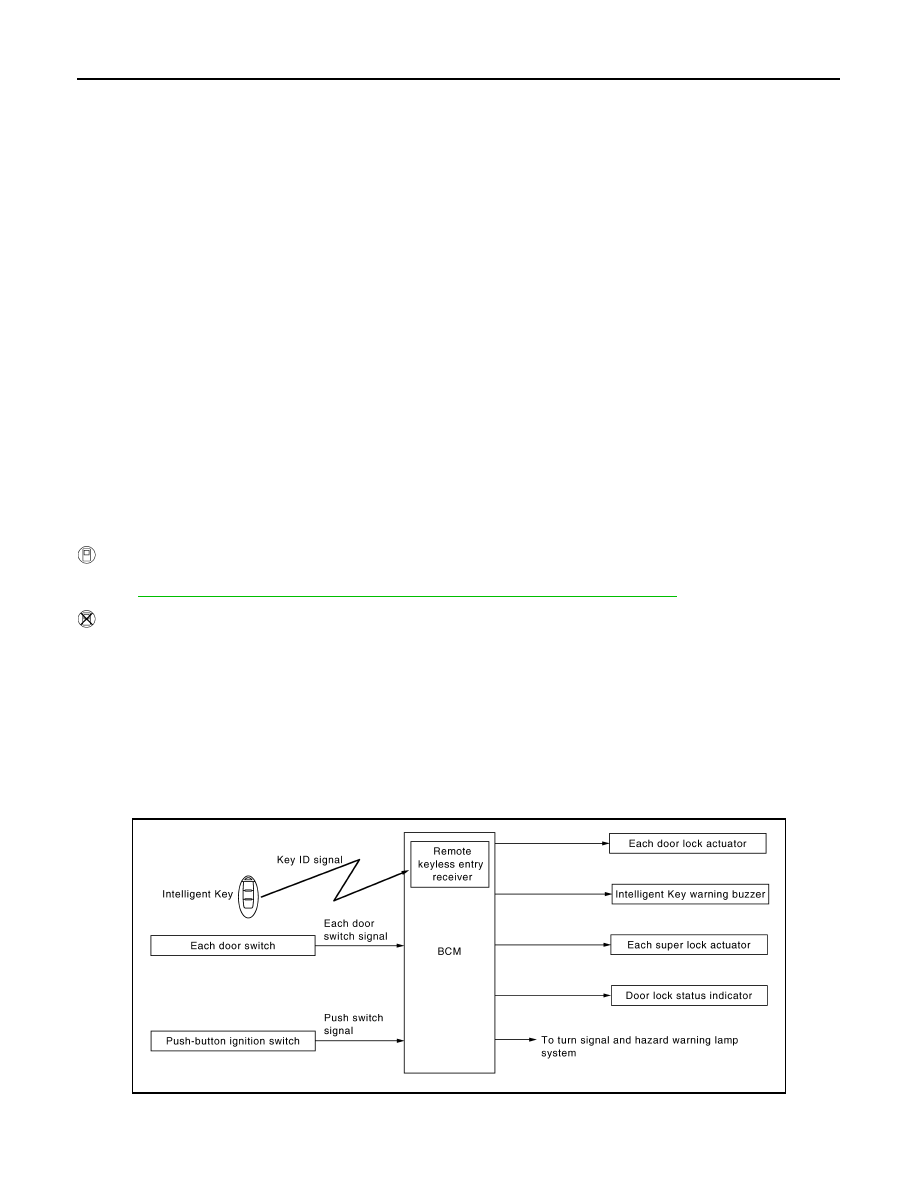

INTELLIGENT KEY SYSTEM : System Diagram

INFOID:0000000010434547

INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000010434548

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-
tion using two-way communication between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key

• The settings for each function can be changed with CONSULT.
• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

JMKIB3310GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the request switch

DLK-34

Back door open

The back door can be opened by carrying the Intelligent Key and pressing the
back door opener switch.

DLK-36

Super lock

When all doors are closed super lock system can be set/release by Intelligent
Key or door request switch

DLK-37

DLK-34

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

DOOR LOCK FUNCTION

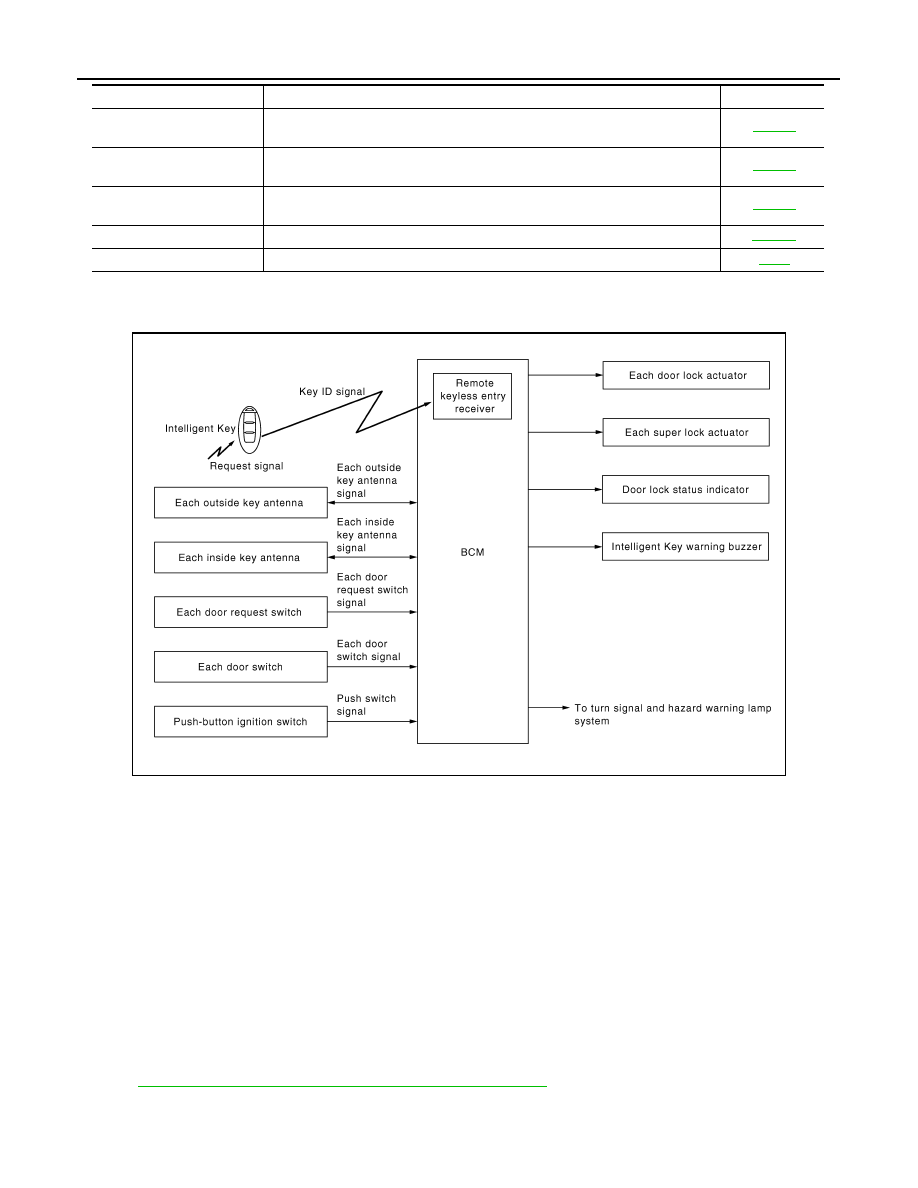

DOOR LOCK FUNCTION : System Diagram

INFOID:0000000010434549

DOOR LOCK FUNCTION : System Description

INFOID:0000000010434550

When pressing the door request switch, it is possible to lock and unlock the door by carrying the Intelligent
Key.

OPERATION DESCRIPTION

• When the BCM detects that each door request switch is pressed, it activates the outside key antenna and

inside key antenna corresponding to the pressed door request switch and transmits the request signal to the
Intelligent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• BCM lock/unlock each door, sets/releases super lock, and blinks hazard warning lamps (lock: 1 time, unlock:

2 times) at the same time as a reminder.

NOTE:
Information of super lock function.
Refer to

DLK-37, "SUPER LOCK FUNCTION : System Description"

OPERATION CONDITION

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the In-
telligent Key

DLK-39

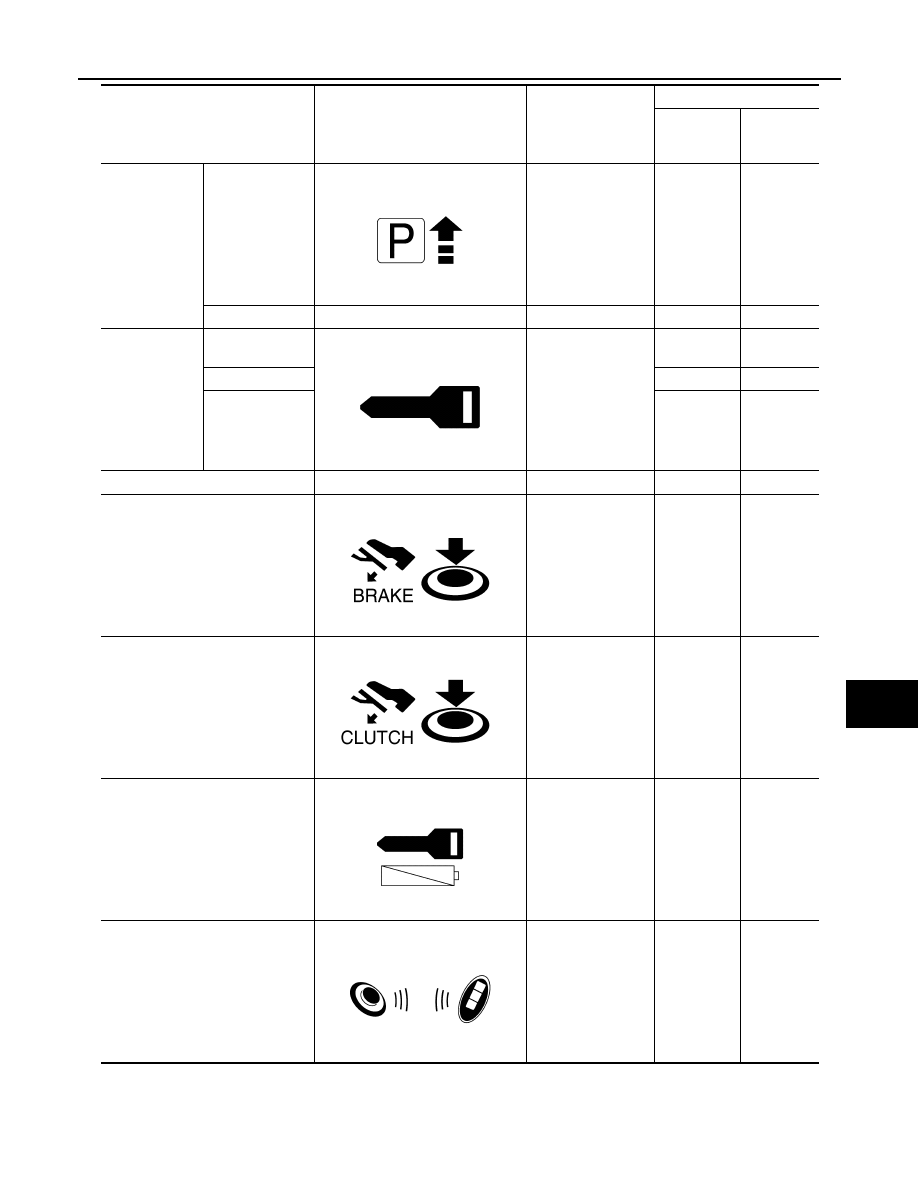

Key reminder

The key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle

DLK-40

Warning

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver

DLK-41

Engine start

The engine can be turned on while carrying the Intelligent Key

SEC-15

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state

INL-8

Function

Description

Refer

JMKIB3311GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-35

< SYSTEM DESCRIPTION >

[TYPE 1]

DLK

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is
operated.

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

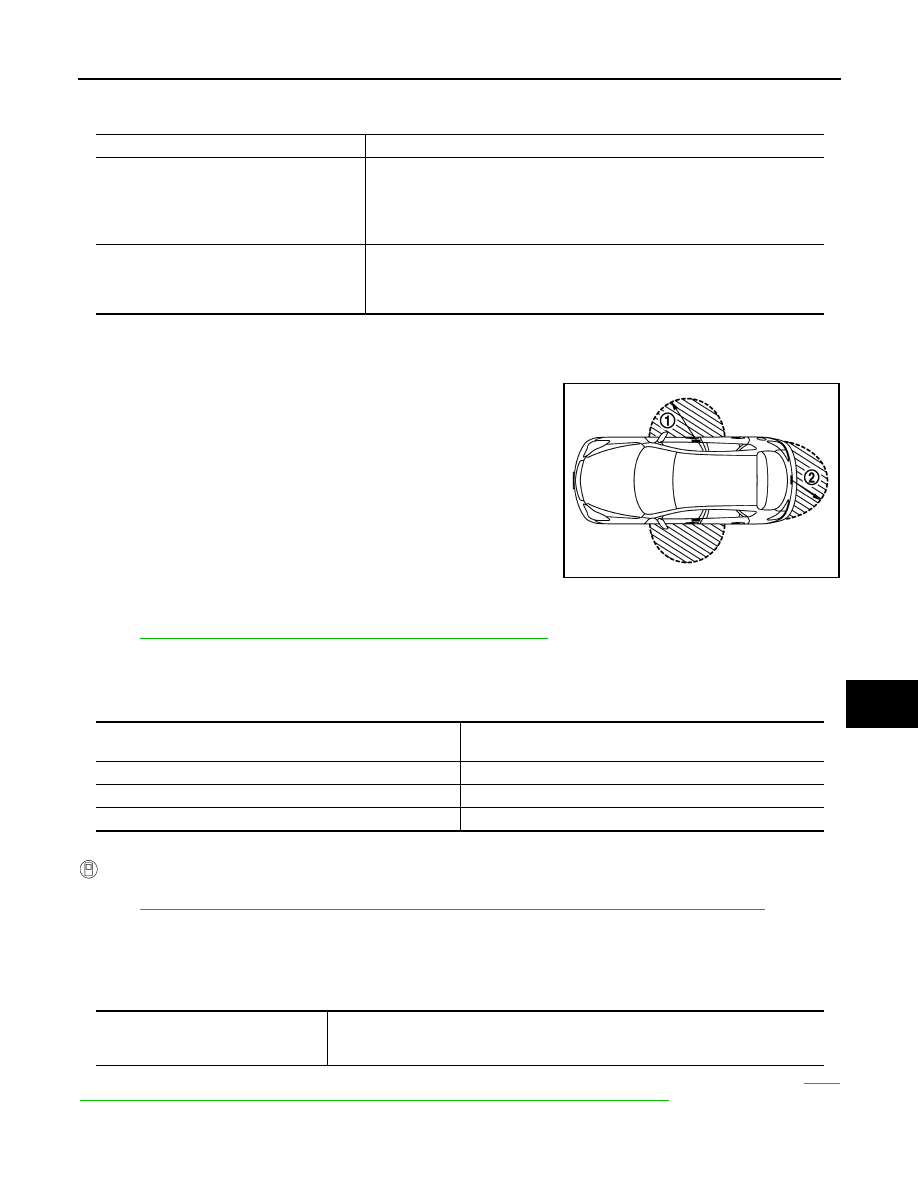

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function
is in the range of approximately 80 cm (31.50 in) surrounding the
driver, passenger door handles (1) and back door handle (2). How-
ever, this operating range depends on the ambient conditions.

ANTI-HIJACK FUNCTION

Information of super lock system with anti-hijack function.
Refer to

DLK-37, "SUPER LOCK FUNCTION : System Description"

HAZARD REMINDER FUNCTION

When doors are locked or unlocked by door request switch, BCM blinks hazard warning lamps as a reminder.
Reminder function does not operate if ignition switch in ON position.

How to Change Reminder Function Operation Mode

With CONSULT

Reminder function operation mode can be changed using CONSULT.
Refer to

DLK-48, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 1)"

AUTO DOOR LOCK FUNCTION

After door is unlocked by door request switch operation and if 30 seconds or more passes without performing
the following operation, all doors are automatically locked. However, operation check function does not acti-
vate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

48, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 1)"

DOOR LOCK STATUS INDICATOR OPERATION

Each door request switch operation

Operation condition

Lock

• All doors are closed
• Ignition switch is in the OFF position
• P position warning is not activated
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area

Unlock

• All doors are closed
• Ignition switch is in the OFF position
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

JMKIA4534ZZ

Door lock operation

(With door request switch)

Hazard warning lamp blink

Lock

Once

Unlock (all door unlock)

Twice

Unlock (anti-hijack operation)

Twice (quick)

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed

DLK-36

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

• Door lock status indicator turns indicator lamp ON or OFF and indicates door lock or unlock state.
• For door lock status indicator operation, refer to

DLK-31, "System Description"

LIST OF OPERATION RELATED PARTS

Parts marked with

are the parts related to operation.

BACK DOOR OPEN FUNCTION

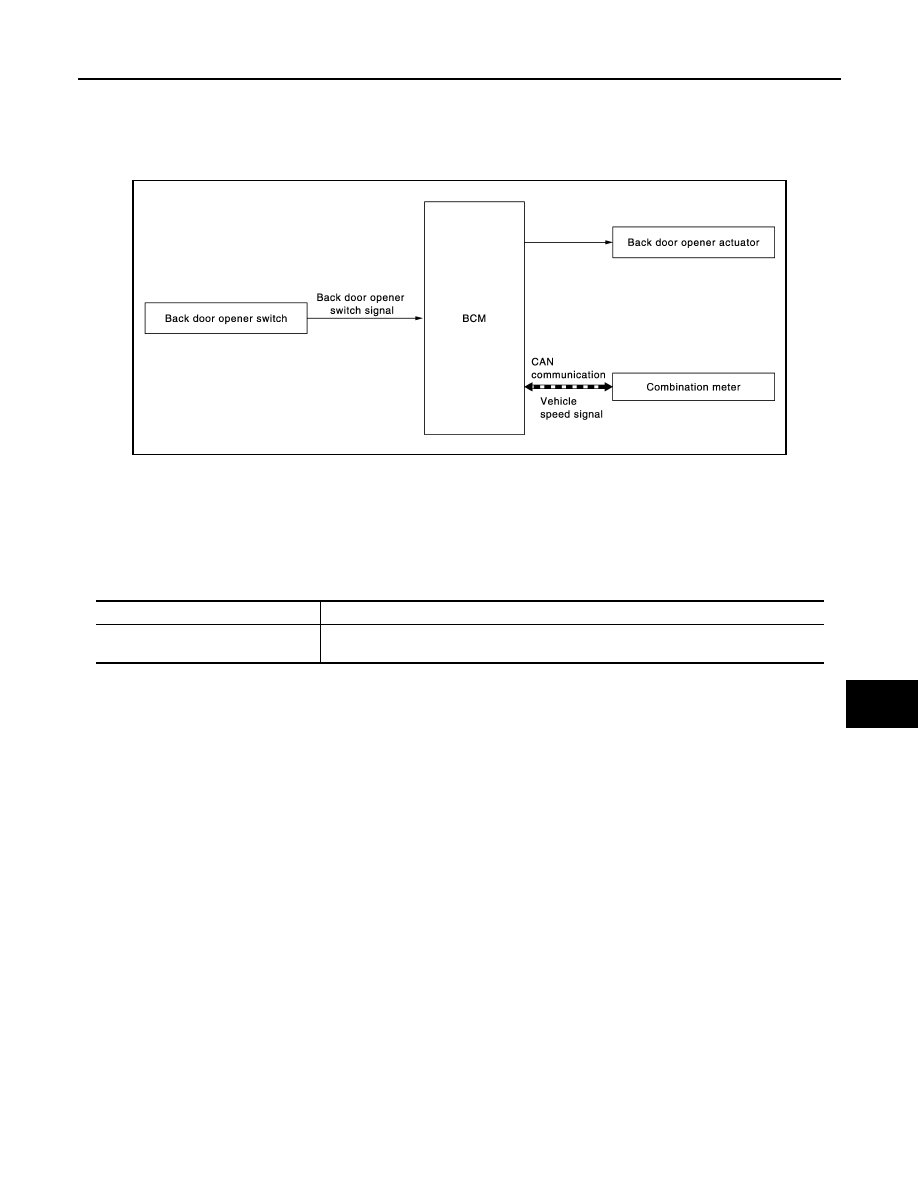

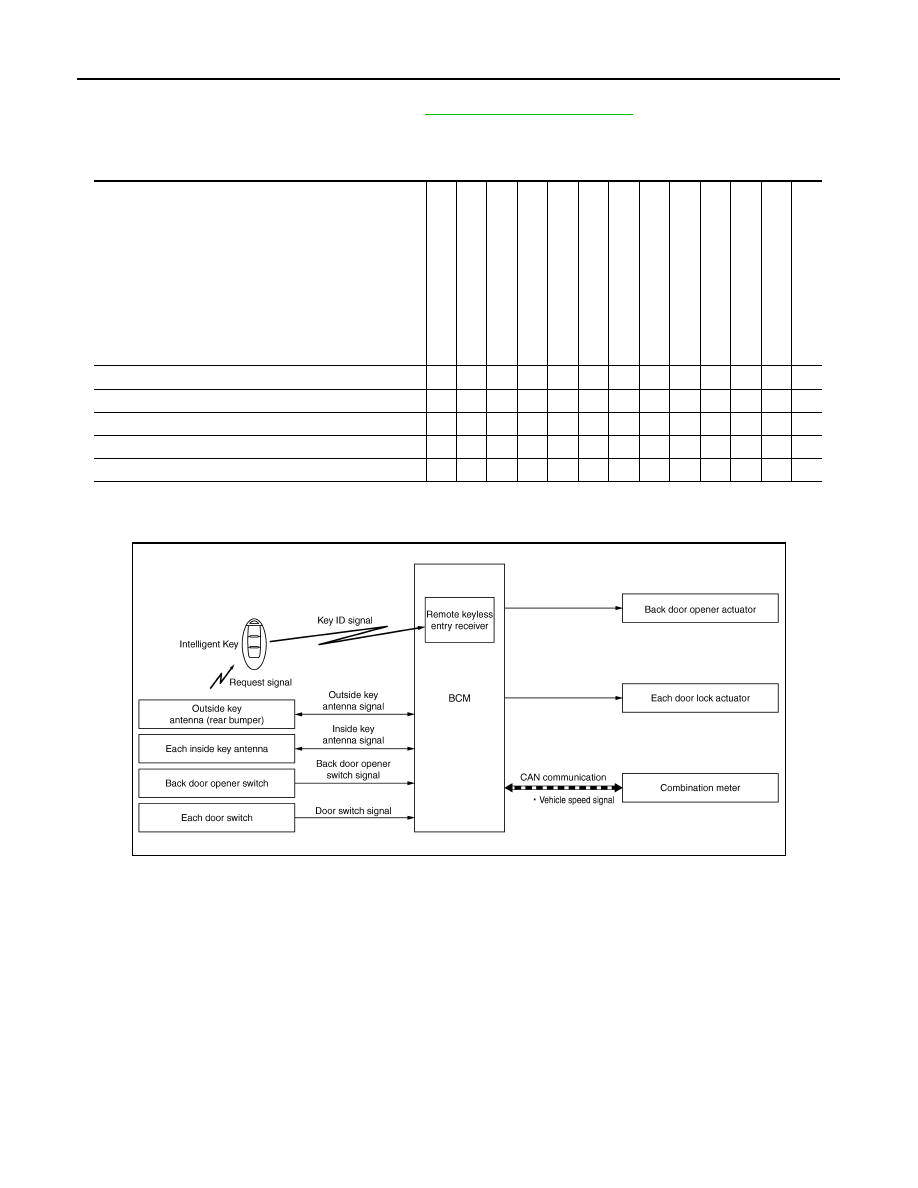

BACK DOOR OPEN FUNCTION : System Diagram

INFOID:0000000010683500

BACK DOOR OPEN FUNCTION : System Description

INFOID:0000000010683393

BACK DOOR OPEN FUNCTION

• When the BCM detects that back door opener switch is pressed, it activates the outside key antenna (rear

bumper) and inside key antenna and transmits the request signal to the Intelligent Key. And then, check that
the Intelligent Key is near the back door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• If the verification result is OK, BCM opens back door.

OPERATION CONDITION

If the following conditions are satisfied, the back door can be opened.

Door lock function

lli

Key

s en

try rec

Door switch

or re

t s

or l

tua

y an

ten

Out

e ke

y a

ten

CAN co

ati

tem

atu

ind

Hazard w

rning

lamp

-b

utt

on ig

nit

ion

itc

ati

Door lock/unlock function

Hazard reminder function

Door lock status indicator operation

Anti-hijack function

Auto door lock function

JMKIB3635GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-37

< SYSTEM DESCRIPTION >

[TYPE 1]

DLK

: Even with a registered Intelligent Key remaining inside the vehicle, back door can be opened from outside of

the vehicle with a spare Intelligent Key as long as key IDs are different.

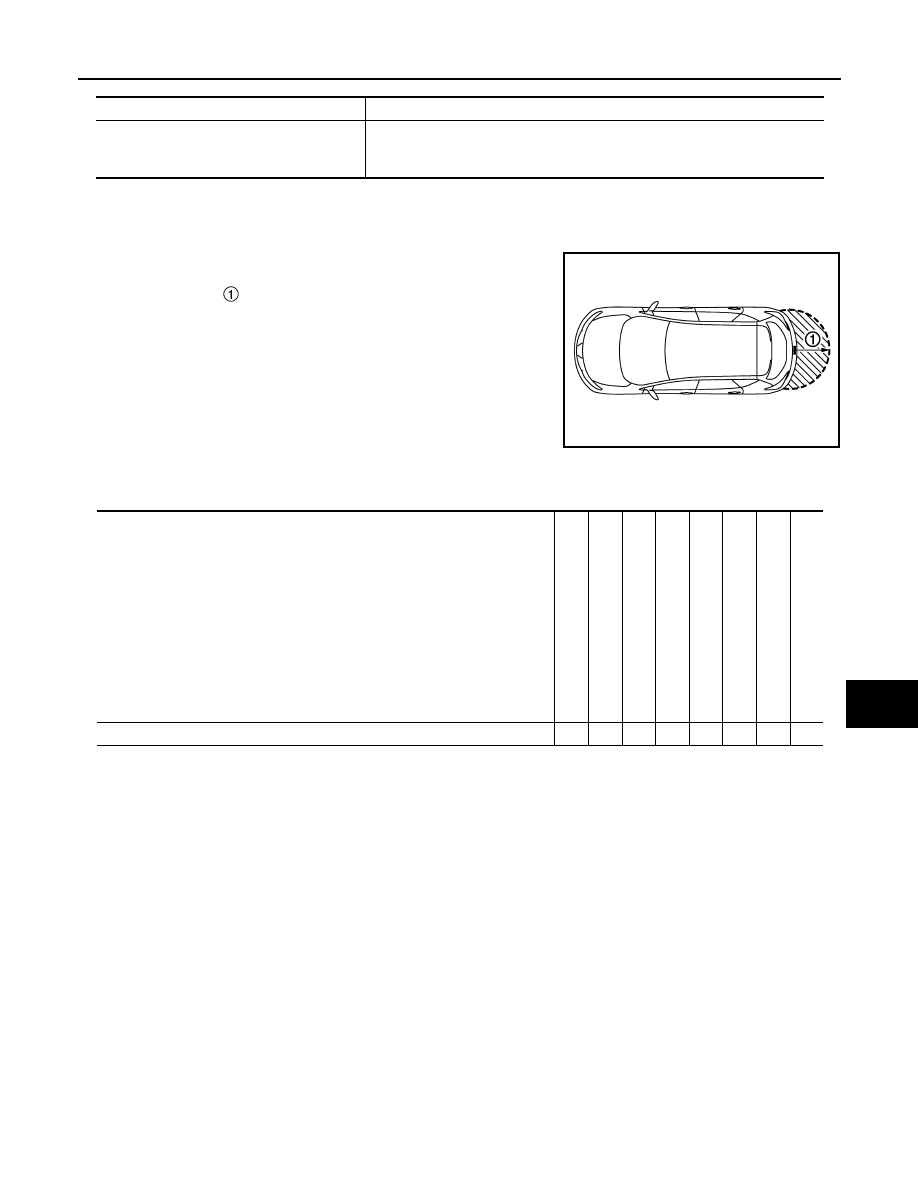

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of back door open function
is in the range of approximately 80 cm (31.50 in) surrounding back
door opener switch

. However, this operating range depends on

the ambient conditions.

LIST OF OPERATION RELATED PARTS

Parts marked with

are the parts related to operation.

SUPER LOCK FUNCTION

SUPER LOCK FUNCTION : System Description

INFOID:0000000010434552

• Super lock provides a higher anti-theft performance than a conventional door lock function.
• BCM controls the super lock function.
• When all doors are closed super lock system can be set/release by Intelligent Key or door request switch.
• When super lock is set, inside handle of doors do not work.

SUPER LOCK SET OPERATION (LOCK OPERATION)

Super Lock Set by Intelligent Key

When Intelligent Key lock button is operated while all doors are in unlock state, super lock of all doors is set,
and simultaneously, all doors are locked.

Super Lock Set by Door Request Switch

When door request switch (driver side, passenger side, or back door) is operated while all doors are in unlock
state, super lock of all doors is set, and simultaneously, all doors are locked.

SUPER LOCK RELEASE OPERATION (UNLOCK OERATION) WITH ANTI-HIJACK MODE

Super Lock Release by Intelligent Key

Back door opener switch operation

Operation condition

Open

• All door: locked and closed
• Ignition switch: OFF

• Intelligent Key is within outside key antenna (rear bumper) detection area

JMKIA1955ZZ

Function

Int

llig

t Ke

te ke

s e

try rec

ck d

r op

er ac

ck d

r swi

Out

e k

tenn

(rea

r bu

er)

BCM

ck d

r op

er swi

tch

Back open function (back door opener switch)

DLK-38

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

When Intelligent Key unlock button is operated while super lock of all doors is set, super lock of all doors is
released, and simultaneously, driver door are unlocked. When Intelligent Key unlock button is operated again
within 5 seconds of the 1st unlock button operation, all doors are unlocked.

Super Lock Release by Door Request Switch (Driver Side)

When driver side door request switch is operated while super lock of all doors is set, super lock of all doors is
released, and simultaneously, driver door are unlocked. When driver side door request switch is operated
again within 5 seconds of the 1st driver side door request switch operation, all doors are unlocked.

Super Lock Release by Door Request Switch (Passenger Side)

When passenger side door request switch is operated while super lock of all doors is set, super lock of all
doors is released, and simultaneously, all doors are unlocked.

Super Lock Release by Door Request Switch (Back Door)

When back door request switch is operated while super lock of all doors is set, super lock of all doors is
released, and simultaneously, back door are unlocked. When back door request switch is operated again
within 5 seconds of the 1st back door request switch operation, all doors are unlocked.

SUPER LOCK RELEASE OPERATION (UNLOCK OERATION) WITHOUT ANTI-HIJACK MODE

Super Lock Release by Intelligent Key

When Intelligent Key unlock button is operated while super lock of all doors is set, super lock of all doors is
released, and simultaneously, all doors are unlocked.

Super Lock Release by Door Request Switch

When door request switch (driver side, passenger side or back door) is operated while super lock of all doors
is set, super lock of all doors is released, and simultaneously, all doors are unlocked.

ANTI-HIJACK FUNCTION SETTING

With CONSULT

Anti-hijack function can be set to ON/OFF using CONSULT.
Refer to

DLK-47, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 1)"

Without CONSULT

Anti-hijack function can be set to ON/OFF by user with a registered Intelligent Keyfob.
• ON/OFF can be switched when Intelligent Key lock button and unlock button are pressed simultaneously for

5 seconds or more while steering lock is locked.

• When mode is switched, hazard warning lamp blinks.

REMOTE KEYLESS ENTRY FUNCTION

REMOTE KEYLESS ENTRY FUNCTION : System Diagram

INFOID:0000000010434553

OFF

→

: 1 blink

→

OFF

: 3 blinks

JMKIB3313GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-39

< SYSTEM DESCRIPTION >

[TYPE 1]

DLK

REMOTE KEYLESS ENTRY FUNCTION : System Description

INFOID:0000000010434554

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the
same manner as the remote controller by operating the door lock/unlock button.

OPERATION

Remote keyless entry system controls operation of the following items.
• Door lock/unlock
• Super lock set/release
• Anti-hijack function
• Hazard reminder function
• Auto door lock
• Door lock status indicator operation

OPERATION AREA

To check that the Intelligent Key works normally, use within 1 m (3 ft) range of each doors, however the opera-
ble range may differ according to surroundings.

DOOR LOCK/UNLOCK FUNCTION

• When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal transmitted from

Intelligent Key to BCM via remote keyless entry receiver.

• BCM receives the signal and compares it with the registered key ID to the vehicle.
• BCM transmits door lock/unlock signal to each door lock actuator, super lock actuator and operates each

door lock actuator, when key ID matches. At the same time, BCM blinks hazard warning lamps (lock: 1 time,
unlock: 2 times).

OPERATION CONDITION

If the following condition are satisfied, remote keyless entry operation is performed when the Intelligent Key is
operated.

ANTI-HIJACK FUNCTION

Information of super lock system with anti-hijack function.
Refer to

DLK-48, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 1)"

AUTO DOOR LOCK FUNCTION

After door is unlocked by Intelligent Key button operation and if 30 seconds or more passes without performing
the following operation, all doors are locked. However, operation check function does not activate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

48, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 1)"

DOOR LOCK STATUS INDICATOR OPERATION

• Door lock status indicator turns indicator lamp ON or OFF and indicates door lock or unlock state.
• For door lock status indicator operation, refer to

DLK-31, "System Description"

HAZARD REMINDER FUNCTION

Operation Description

When doors are locked or unlocked by Intelligent Key button operation, BCM blinks hazard warning lamps as
a reminder.

Remote controller operation

Operation condition

Lock/set

• All doors closed
• Ignition switch in the OFF position
• P position warning is not activated

Unlock/release

• Ignition switch is in the OFF position
• Intelligent Key is outside the vehicle
• P position warning is not activated

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed

DLK-40

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

How to Change Reminder Function Operation Mode

With CONSULT

Reminder function operation mode can be changed using CONSULT.
Refer to

DLK-48, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 1)"

LIST OF OPERATION RELATED PARTS

Parts marked with

are the parts related to operation.

KEY REMINDER FUNCTION

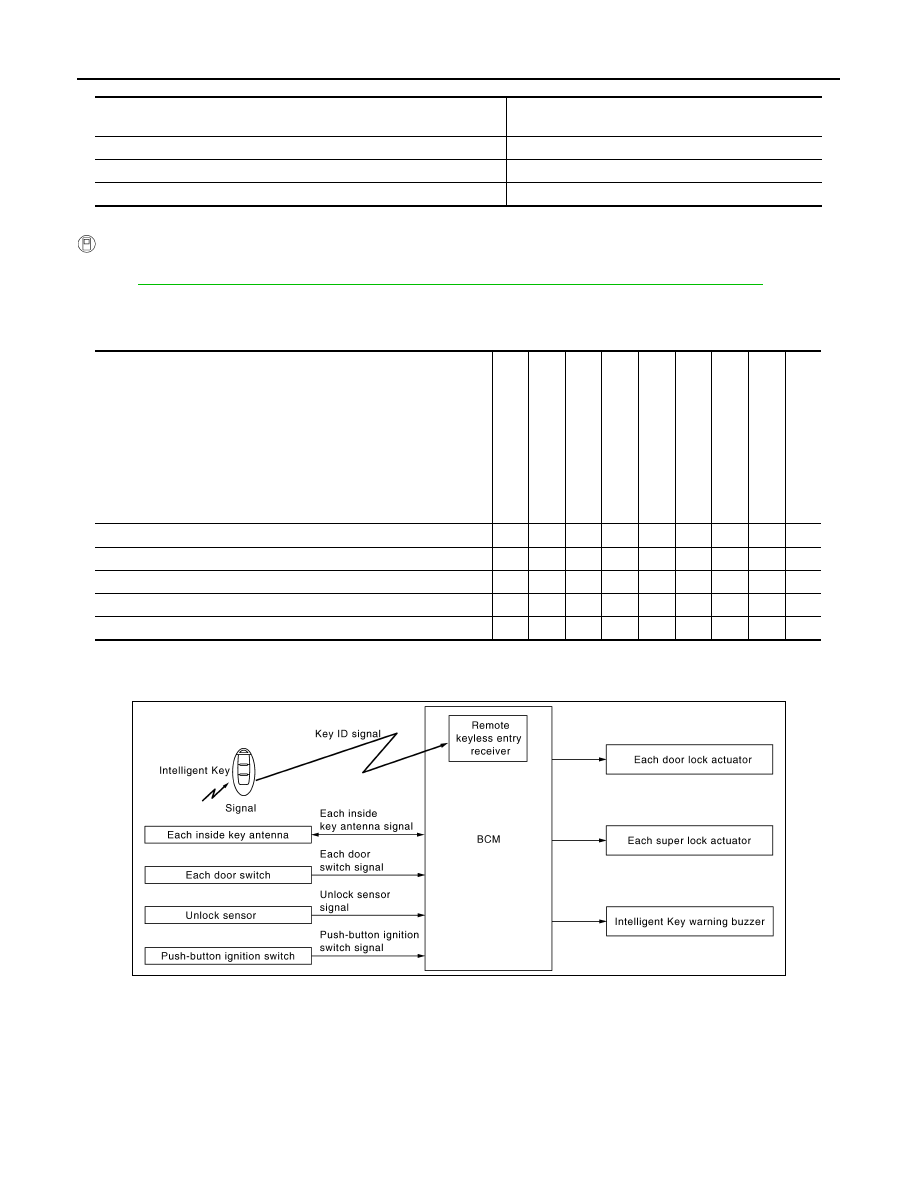

KEY REMINDER FUNCTION : System Diagram

INFOID:0000000010434555

KEY REMINDER FUNCTION : System Description

INFOID:0000000010434556

Key reminder is the function that prevents the key from being left in the vehicle.
Key reminder has the following 3 functions.

Door lock operation

(With Intelligent Key button)

Hazard warning lamp blink

Lock

Once

Unlock (all door unlock)

Twice

Unlock (anti-hijack operation)

Twice (quick)

Remote keyless entry functions

lli

nt Key

Doo

r swi

tch

or l

tua

-bu

tto

n ign

iti

swi

tch

CAN c

ati

tem

BCM

ati

Hazard warning lamp

Doo

r lo

tat

Door lock/unlock function by remote control button

Hazard reminder function

Anti-hijack function

Auto door lock function

Door lock status indicator operation

JMKIB3314GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-41

< SYSTEM DESCRIPTION >

[TYPE 1]

DLK

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob might activate the door locks
accidentally but unlock operation is perform in these cases.

CAUTION:

• The above function operates when the Intelligent Key is inside the vehicle. However, there may be

times when the Intelligent Key cannot be detected, and this function does not operate when the Intel-
ligent Key is on the instrument panel, rear parcel shelf, or in the glove box. Also, this system some-
times does not operate if the Intelligent Key is in the door pocket for the open door.

WARNING FUNCTION

WARNING FUNCTION : System Description

INFOID:0000000010434557

OPERATION DESCRIPTION

The warning function are as per the following items and are given to the user as warning information and
warnings using combinations of Intelligent Key warning buzzer, combination meter buzzer and information dis-
play in combination meter.
• Intelligent Key system malfunction
• OFF position warning
• P position warning
• Take away warning
• Door lock operation warning
• Engine start information
• Intelligent Key low battery warning
• Key ID verification information
• Steering lock information
• Key ID warning

OPERATION CONDITION

Operation condition of warning and information is as per the following table.

Key remainder func-

tion

Operation condition

Operation

Driver side door
opened

Right after door is locked by door lock/unlock switch or driver door lock
knob operation under the following conditions
• Ignition switch is in the OFF position
• Intelligent Key is inside the vehicle
• Driver side door is opened

All doors unlock

Driver side door
closed*

Right after driver side door is closed under the following conditions
• Intelligent Key is inside the vehicle
• Driver side door is opened
• Driver side door is in unlock state

All doors unlock

Door is open or closed

Right after all doors are closed under the following conditions
• Intelligent Key is inside the vehicle
• Any door is opened
• All doors are locked.

• All doors unlock
• Honk Intelligent Key warn-

ing buzzer

Warning/Information functions

Operation procedure

Intelligent Key system malfunction

A malfunction is detected on BCM and key warning lamp turns ON

OFF position warning

When condition A or B is satisfied
• Condition A
- Turn ignition switch from ON to OFF while door is open
• Condition B
- Intelligent Key backside is contacted to push-button ignition switch while

brake pedal is depressed and ignition switch is LOCK or OFF (When the In-
telligent Key battery is discharged)

- Door switch (driver side): ON (Door is open)

P position warning*

For internal

• Shift position: Except P position
• Engine is running to stopped (Ignition switch is ON to OFF)

For external

• P position warning (For internal) operates
• Door switch: ON to OFF (Door is open to close)
• Intelligent Key cannot be detected inside the vehicle

DLK-42

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

*: M/T models do not apply.

WARNING METHOD

The following table shows the alarm or warning methods with chime.

Take away warning

Door status changes
from open to close

• Ignition switch: Except LOCK or OFF position
• Door switch: ON to OFF (Door is open to close)
• Registered Intelligent Key is not detected inside the vehicle

Door status is open

• Ignition switch: Except OFF position
• Door switch: ON (Door is open)
• Registered Intelligent Key is not detected inside the vehicle during Key ID ver-

ification for 5 seconds

Push button-ignition
switch operation

• Ignition switch: OFF position
• Press push-button ignition switch
• Registered Intelligent Key is not detected inside the vehicle

Door lock operation warning

When door lock operation is requested while door lock operating condition of
door request switch not satisfied

Engine start information

Ignition switch is ON po-
sition

• Ignition switch: ON position
• Shift position: P position*
• Engine is stopped

Ignition switch is except
ON position

• Ignition switch: Except ON position
• Shift position: P position*
• Intelligent Key can be detected inside the vehicle

Ignition switch is ON po-
sition to OFF position

• Ignition switch: ON position to OFF position
• Shift position: P position
NOTE:
Engine start information turns ON for several seconds and then turns OFF, when
ignition switch is turned to the ON position from the OFF position. Engine start
information does not turn ON until opening and closing of driver door is detected
again.

Intelligent Key low battery warning

BCM detects that Intelligent Key is low battery, after ignition switch is turned ON

Key ID verification information

• Ignition switch: LOCK position
• Push-button ignition switch: Pressed
• Registered Intelligent Key is not detected inside the vehicle

Steering lock information

When the steering lock can not be unlocked

Key ID warning

• Push-button ignition switch is pressed
• Registered Intelligent Key is not detected inside the vehicle

Warning/Information functions

Operation procedure

Warning/Information functions

Information display

(Symbol)

Information display

(Message)

Warning chime

Combina-

tion meter

buzzer

Intelligent

Key warn-

ing buzzer

Intelligent Key system malfunction

Key System Error
See Owner

′

s Manu-

—

OFF position warning

—

Activate

—

JMKIB1526ZZ

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-43

< SYSTEM DESCRIPTION >

[TYPE 1]

DLK

P position warn-
ing

For internal

Shift to Park

Activate

—

For external

—

Active

Take away
warning

Door is open to
close

No Key Detected

Activate

Door is open

—

Push-ignition
switch operation

Activate

—

Door lock operation warning

—

Activate

Engine start information (A/T mod-
els)

—

Engine start information (M/T mod-
els)

—

Intelligent Key low battery warning

Key Battery Low

—

Key ID verification information

—

Warning/Information functions

Information display

(Symbol)

Information display

(Message)

Warning chime

Combina-

tion meter

buzzer

Intelligent

Key warn-

ing buzzer

JMKIB1527ZZ

JMKIB1526ZZ

JMKIB1396ZZ

JMKIB3307ZZ

JMKIB1529ZZ

JMKIB1399ZZ

DLK-44

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

LIST OF OPERATION RELATED PARTS

Parts marked with

are the parts related to operation.

Steering lock information

—

Key ID warning

Key ID Incorrect

—

Warning/Information functions

Information display

(Symbol)

Information display

(Message)

Warning chime

Combina-

tion meter

buzzer

Intelligent

Key warn-

ing buzzer

JMKIB1401ZZ

JMKIB1526ZZ

Function

lli

nt K

-bu

tto

n i

iti

swi

tch

or swi

tch

Doo

r re

t s

itc

key an

ten

tsi

ten

tee

ring

lli

nt K

warn

g b

mbi

r (wa

rni

er)

Com

ina

tio

n me

ter (inf

orm

CAN c

uni

tio

BCM

Intelligent Key system malfunction

OFF position warning

P position warning

Take away warning

Door is open or close

Door is open

Push-button ignition switch
operation

Door lock operation warning

Engine start information

Intelligent Key low battery warning

Key ID verification information

Steering lock information

Key ID warning

SYSTEM (BACK DOOR OPENER SYSTEM)

DLK-45

< SYSTEM DESCRIPTION >

[TYPE 1]

DLK

SYSTEM (BACK DOOR OPENER SYSTEM)

System Description

INFOID:0000000010479484

SYSTEM DIAGRAM

BACK DOOR OPENER OPERATION

When back door opener switch is pressed, BCM operates back door opener actuator.
NOTE:
Back door opener actuator is not for locking the back door. The function is only to open the back door.

OPERATION CONDITION

If the following conditions are satisfied, back door opener operation is performed.

NOTE:
• When battery terminal is disconnected and reconnected during all doors unlock state, back door may not

open.

• Regardless of door lock actuator state, BCM resets recognition of all doors unlock state approximately 30

seconds after battery terminal is disconnected and BCM recognizes that all doors are in lock state.

• When battery terminal is reconnected and back door does not open, have BCM recognize that all doors are

in unlock state.

JMKIA6011GB

Back door opener switch operation

Operation condition

Back door open

• All doors are unlocked.
• Vehicle speed is less than 5 km/h (3 MPH)

DLK-46

< SYSTEM DESCRIPTION >

[TYPE 1]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010471212

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

: Applicable item

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

Rear window defogger

REAR DEFOGGER

Warning chime

BUZZER

Exterior lamp

HEAD LAMP

Interior room lamp control

INT LAMP

Wiper and washer

WIPER

Turn signal and hazard warning lamps

FLASHER

PTC heater control

AIR CONDITONER

Intelligent Key system

INTELLIGENT KEY

Combination switch

COMB SW

Body control system

BCM

NVIS - NATS

IMMU

Interior room lamp battery saver

BATTERY SAVER

Back door open

TRUNK

Vehicle security

THEFT ALM

RAP

RETAINED PWR

Remote keyless entry system

MULTI REMOTE ENT

Signal buffer system

SIGNAL BUFFER

DIAGNOSIS SYSTEM (BCM)

DLK-47

< SYSTEM DESCRIPTION >

[TYPE 1]

DLK

DOOR LOCK

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 1)

INFOID:0000000010434559

BCM CONSULT FUNCTION

CONSULT performs the following functions via CAN communication with BCM.

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT screen item

Indication/Unit

Description

BATTERY VOLTAGE

Battery voltage of the moment a particular DTC is detected.

VEHICLE SPEED

km/h

Vehicle speed of the moment a particular DTC is detected.

EXTERNAL TEMP

External temperature of the moment a particular DTC is detected

VEHICLE COND

—

NOTE:
This item is displayed, but cannot be use this item.

DOOR LOCK STATUS

—

NOTE:
This item is displayed, but cannot be use this item.

POWER SUPPLY
COUNTER

min

Displays the cumulative time from the time that the battery terminal is connected.

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

SIGNATURE LIGHT SETTING

Signature light function can be changed to operation with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

REQ SW-DR

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS

Indicated [On/Off] condition of door request switch (passenger side)

REQ SW-BD/TR

Indicated [On/Off] condition of back door request switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK

Indicated [On/Off] condition of back door switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

DLK-48

< SYSTEM DESCRIPTION >

[TYPE 1]

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

INTELLIGENT KEY

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 1)

INFOID:0000000010434560

WORK SUPPORT

SHOCK SENSOR

Indicates [NOMAL/On/Off] condition of circuit between BCM and air bag diagnosis sensor unit
• NORMAL: Ignition switch ON. (BCM is receiving normal condition signal from air bag diagnosis sensor

unit.)

• ON: During the receiving of air bag signal from air bag diagnosis sensor unit
• OFF: After the receiving of air bag signal from air bag diagnosis sensor unit

KEY SW

NOTE:
This item is displayed, but cannot be monitored

Monitor Item

Contents

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LOCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLOCK” on CONSULT screen is touched

SUPER LOCK

This test is able to check super lock actuator operation
• The all door lock actuators are set when “LOCK” on CONSULT screen is touched
• The all door lock actuators are released when “UNLOCK” on CONSULT screen is touched

DOOR LOCK IND

This test is able to check door lock status indicator operation
• On: Operate
• Off: Non-operation

Monitor item

Description

INSIDE ANT DIAGNOSIS

This function allows inside key antenna self-diagnosis

LOCK/UNLOCK BY I-KEY

Door lock/unlock function by door request switch mode can be changed to operation in this
mode
• On: Operate
• Off: Non-operation

ENGINE START BY I-KEY

Engine start function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

TRUNK/GLASS HATCH OPEN

NOTE:
This item is displayed, but cannot be monitored

AUTO LOCK SET

Auto door lock operation time can be changed in this mode
• MODE 1: OFF
• MODE 2: 30 sec
• MODE 3: 1 minute
• MODE 4: 2 minutes
• MODE 5: 3 minutes
• MODE 6: 4 minutes
• MODE 7: 5 minutes

SHORT CRANKING OUTPUT

NOTE:
This item is displayed, but cannot be monitored

IGN/ACC BATTERY SAVER

Ignition battery saver system mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

ANSWER BACK

NOTE:
This item is displayed, but cannot be used

ANSWER BACK I-KEY LOCK UN-
LOCK

Reminder function (door request switch) mode can be selected from the following with this
mode
• On: hazard warning lamp operate
• Off: hazard warning lamp operate

Qashqai J11. Door & Lock - part 2
