Qashqai J11. SRS airbag - part 3





DISPOSAL OF AIR BAG MODULE

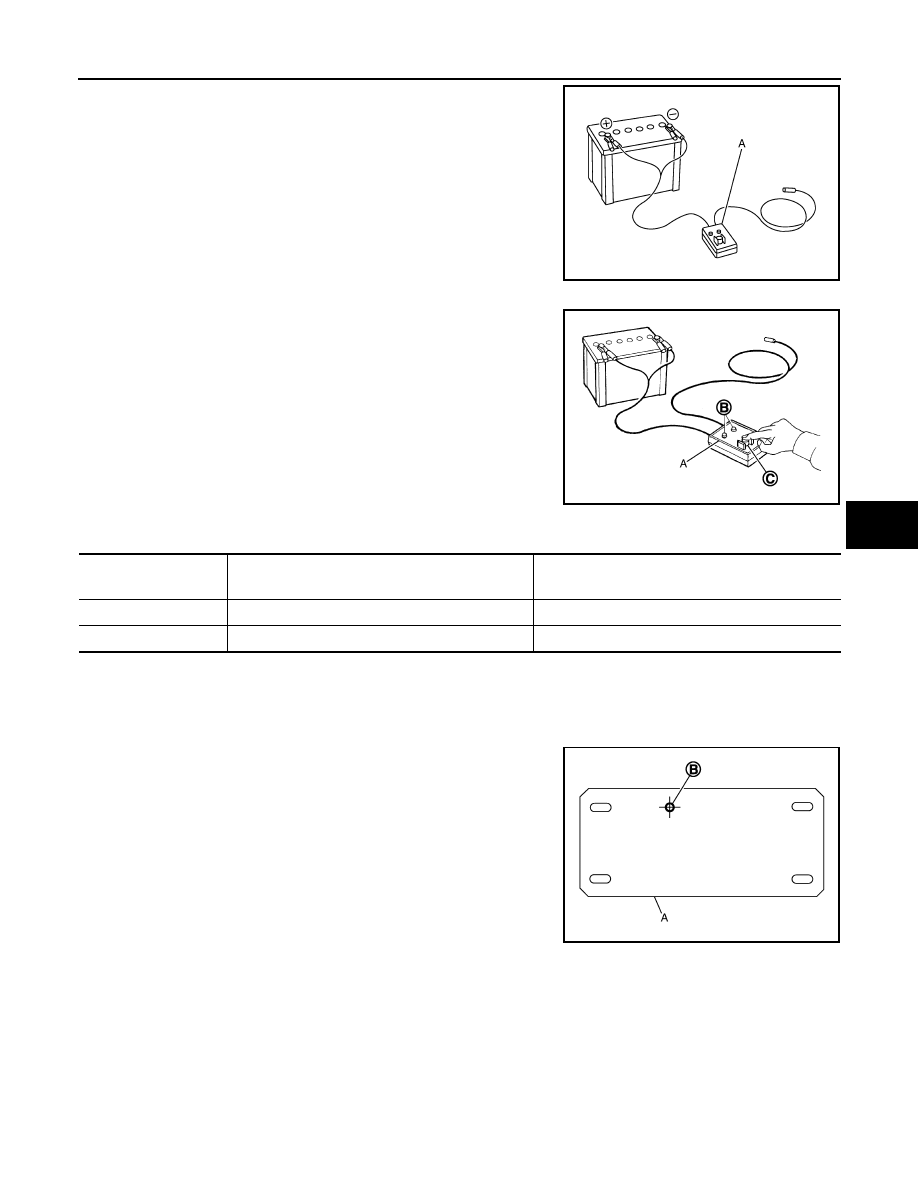

SR-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

The battery must show voltage of 9.6 V or more.
Remove the battery from the vehicle and place it on dry wood blocks
approximately 5.0 m (16.4 ft) away from the vehicle.
• Wait 3 minutes after the vehicle battery is disconnected before pro-

ceeding.

• Connect red clip of deployment tool (A) to battery positive terminal

and black clip to negative terminal.

Check that the polarity is correct. The right side lamp in the
tool, marked “deployment tool power”, should illuminate with a
green light. If the right side lamp illuminates red, reverse the
connections to the battery.

Deployment Tool Check

Press the deployment tool switch (C) to the ON position. The left
side lamp in the tool, marked “air bag connector voltage” should illu-
minate (B). If it does not illuminate, replace the deployment tool (A).

Air Bag Deployment Tool Lamp Illumination Chart (Battery Connected)

*: If this lamp illuminates red, the tool is connected to the battery incorrectly. Reverse the connections and check that the lamp illumi-
nates green.

DEPLOYMENT OF PASSENGER AIR BAG MODULE (OUTSIDE OF VEHICLE)

1.

Remove the passenger air bag module from lid with remover tool.

2.

Make 8.5 mm (0.335 in) diameter hole (B) in air bag module
bracket (SST: KV99105300) (A) at the position shown in figure.

JMHIA0204ZZ

JMHIA0205ZZ

Switch operation

Left side lamp, green*

“AIR BAG CONNECTOR VOLTAGE”

Right side lamp, green*

“DEPLOYMENT TOOL POWER”

OFF

OFF

ON

ON

ON

ON

JMHIA0225ZZ

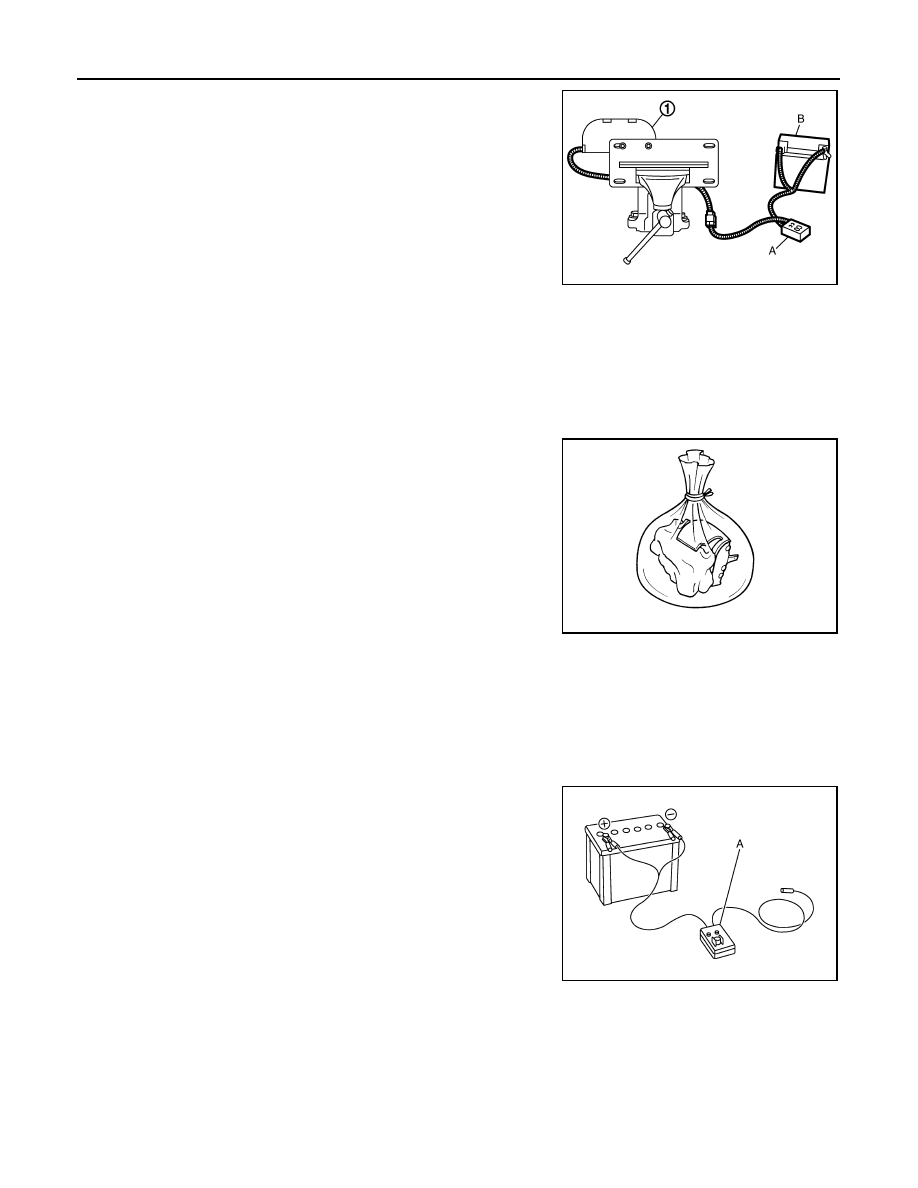

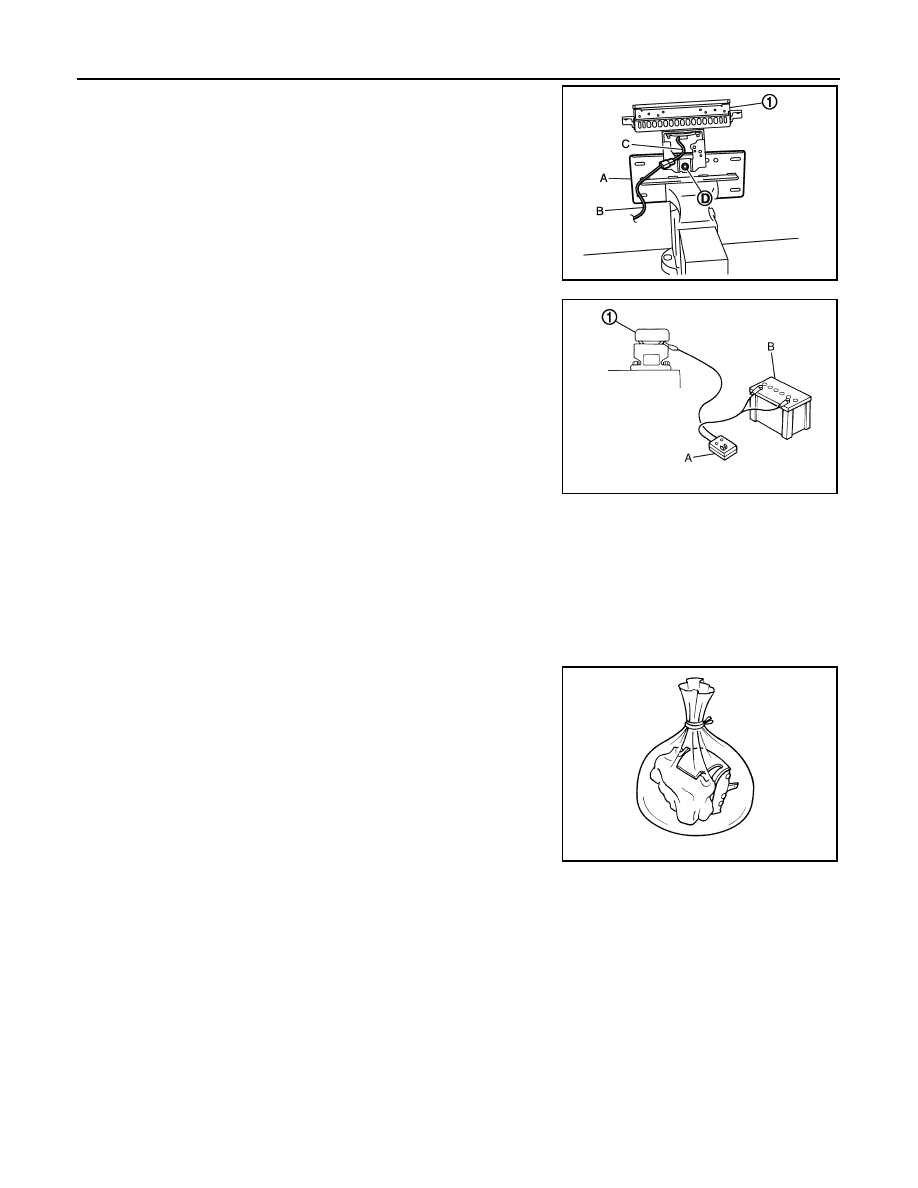

SR-34

< REMOVAL AND INSTALLATION >

DISPOSAL OF AIR BAG MODULE

3.

Firmly secure air bag module bracket (SST: KV99105300) (A) in
a vise.

4.

Insert bolt (D) through air bag module bracket and passenger air
bag module (1) lower side holes, and fix then with two nuts.

5.

Connect deployment tool (SST: KV99106400) (B) and deploy-
ment tool adapter (SST: KV99110500) orange connector (C) to
passenger air bag module.

6.

Connect red clip of deployment tool (A) to battery positive termi-
nal and black clip to negative terminal (B).

7.

The lamp on the right side of the tool, marked “deployment tool
power”, should illuminate green, not red.

8.

Press the button on the deployment tool (A). The left side lamp
on the tool, marked “air bag connector voltage”, illuminates and
the passenger air bag module (1) deploys.

CAUTION:

• When deploying the passenger air bag module, never

stand on the deploying side.

• Stand at least 5.0 m (16.4 ft) away from the passenger air

bag module.

PASSENGER AIR BAG MODULE : Disposal

INFOID:0000000010499324

DISPOSING OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

Deployed air bag module, seat belt pre-tensioner, and lap pre-tensioner are very hot. Before disposing of air
bag module and seat belt pre-tensioner, wait at least 30 minutes, and 10 minutes, respectively. Seal them in a
plastic bag before disposal.

CAUTION:

• Never apply water to a deployed air bag module or seat belt

pre-tensioner or lap pre-tensioner.

• Wear gloves when handling a deployed air bag module or seat

belt pre-tensioner or lap pre-tensioner.

• No poisonous gas is produced upon air bag module deploy-

ment. However, be careful not to inhale gas since it irritates
the throat and can cause choking.

• Never disassemble air bag module, seat belt pre-tensioner

and lap pre-tensioner.

• Air bag module, seat belt pre-tensioner and lap pre-tensioner

cannot be reused.

• Wash your hands clean after the work is complete.

SIDE AIR BAG MODULE

SIDE AIR BAG MODULE : Deployment

INFOID:0000000010499325

CHECKING DEPLOYMENT TOOL

Connecting to Battery

CAUTION:

JMHIA0799ZZ

JMHIA0209ZZ

SBF276H

DISPOSAL OF AIR BAG MODULE

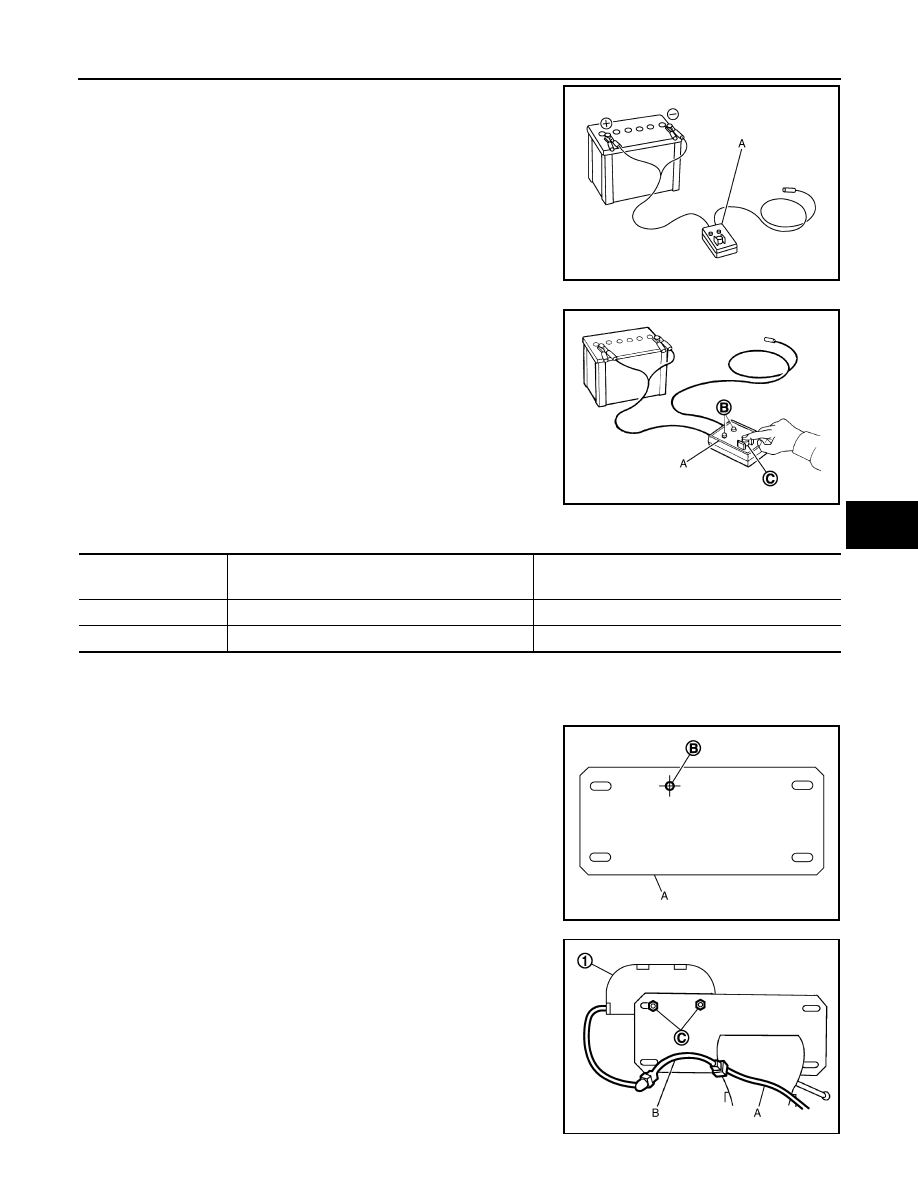

SR-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

The battery must show voltage of 9.6 V or more.
Remove the battery from the vehicle and place it on dry wood blocks
approximately 5.0 m (16.4 ft) away from the vehicle.
• Wait 3 minutes after the vehicle battery is disconnected before pro-

ceeding.

• Connect red clip of deployment tool (A) to battery positive terminal

and black clip to negative terminal.

Check that the polarity is correct. The right side lamp in the
tool, marked “deployment tool power”, should illuminate with a
green light. If the right side lamp illuminates red, reverse the
connections to the battery.

Deployment Tool Check

Press the deployment tool switch (C) to the ON position. The left
side lamp in the tool, marked “air bag connector voltage” should illu-
minate (B). If it does not illuminate, replace the deployment tool (A).

Air Bag Deployment Tool Lamp Illumination Chart (Battery Connected)

*: If this lamp illuminates red, the tool is connected to the battery incorrectly. Reverse the connections and check that the lamp illumi-
nates green.

DEPLOYMENT OF SIDE AIR BAG MODULE (OUTSIDE OF VEHICLE)

1.

Make 6.5 mm (0.256 in) diameter hole (B) in air bag module
bracket (SST: KV99105300) (A) at the position shown in figure.

2.

Firmly secure air bag module bracket (SST: KV99105300) in a
vise.

3.

Insert two bolts through air bag module bracket and side air bag
module (1) upper side holes, and fix them with two nuts (C).

4.

Connect deployment tool (SST: KV99106400) (A) and deploy-
ment tool adapter (SST: KV99109000) (B) to side air bag mod-
ule connector.

JMHIA0204ZZ

JMHIA0205ZZ

Switch operation

Left side lamp, green*

“AIR BAG CONNECTOR VOLTAGE”

Right side lamp, green*

“DEPLOYMENT TOOL POWER”

OFF

OFF

ON

ON

ON

ON

JMHIA0225ZZ

JMHIA0284ZZ

SR-36

< REMOVAL AND INSTALLATION >

DISPOSAL OF AIR BAG MODULE

5.

Connect red clip of deployment tool (SST: KV99106400) (A) to
battery positive terminal and black clip to negative terminal (B).

6.

The lamp on the right side of the tool, marked “deployment tool
power”, should illuminate green, not red.

7.

Press the button on the deployment tool. The left side lamp on
the tool, marked “air bag connector voltage”, illuminates and the
air bag module (1) deploys.

CAUTION:

When deploying the side air bag module, stand at least 5.0
m (16.4 ft) away from the side air bag module.

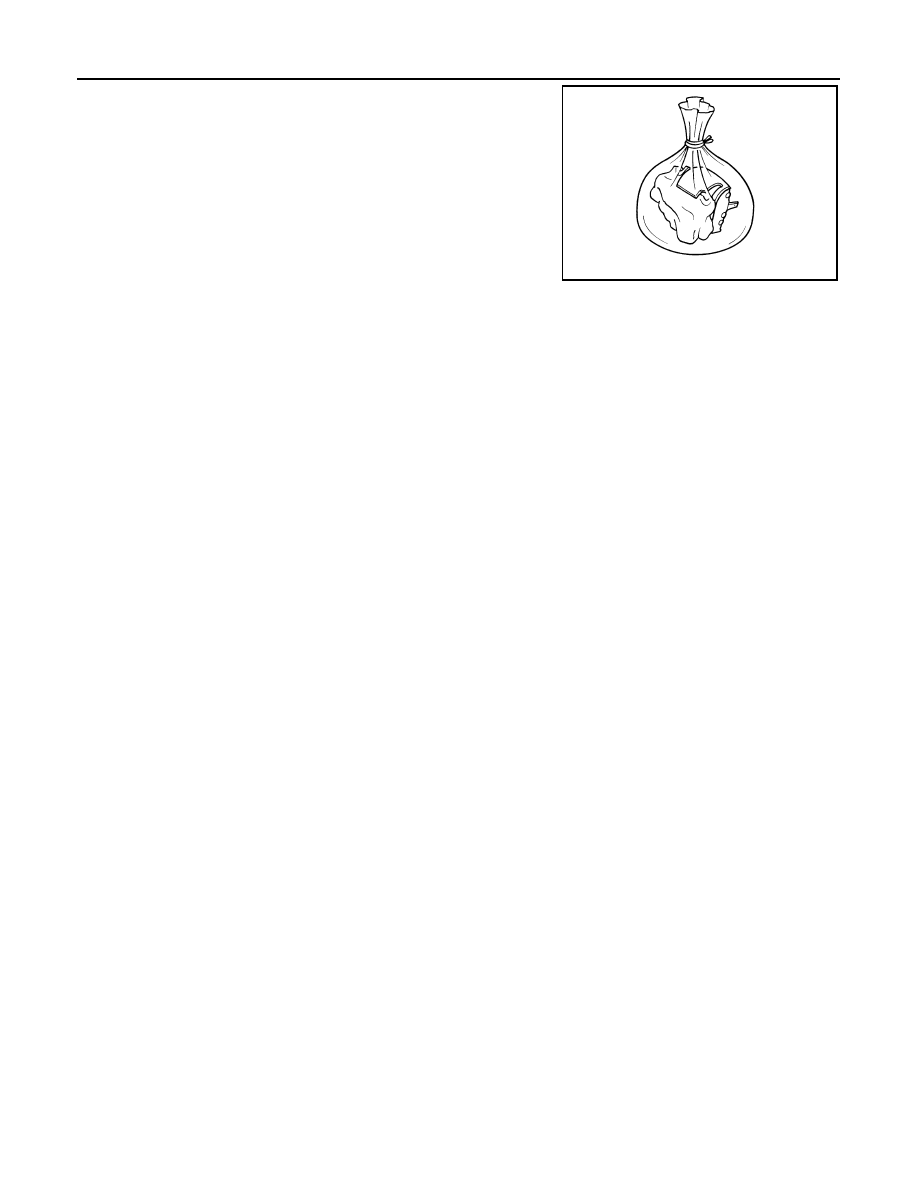

SIDE AIR BAG MODULE : Disposal

INFOID:0000000010499326

DISPOSING OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

Deployed air bag module, seat belt pre-tensioner, and lap pre-tensioner are very hot. Before disposing of air
bag module and seat belt pre-tensioner, wait at least 30 minutes, and 10 minutes, respectively. Seal them in a
plastic bag before disposal.

CAUTION:

• Never apply water to a deployed air bag module or seat belt

pre-tensioner or lap pre-tensioner.

• Wear gloves when handling a deployed air bag module or seat

belt pre-tensioner or lap pre-tensioner.

• No poisonous gas is produced upon air bag module deploy-

ment. However, be careful not to inhale gas since it irritates
the throat and can cause choking.

• Never disassemble air bag module, seat belt pre-tensioner

and lap pre-tensioner.

• Air bag module, seat belt pre-tensioner and lap pre-tensioner

cannot be reused.

• Wash your hands clean after the work is complete.

CURTAIN AIR BAG MODULE

CURTAIN AIR BAG MODULE : Deployment

INFOID:0000000010499327

CHECKING DEPLOYMENT TOOL

Connecting to Battery

CAUTION:

The battery must show voltage of 9.6 V or more.
Remove the battery from the vehicle and place it on dry wood blocks
approximately 5.0 m (16.4 ft) away from the vehicle.
• Wait 3 minutes after the vehicle battery is disconnected before pro-

ceeding.

• Connect red clip of deployment tool (A) to battery positive terminal

and black clip to negative terminal.

Check that the polarity is correct. The right side lamp in the
tool, marked “deployment tool power”, should illuminate with a
green light. If the right side lamp illuminates red, reverse the
connections to the battery.

Deployment Tool Check

JMHIA0285ZZ

SBF276H

JMHIA0204ZZ

DISPOSAL OF AIR BAG MODULE

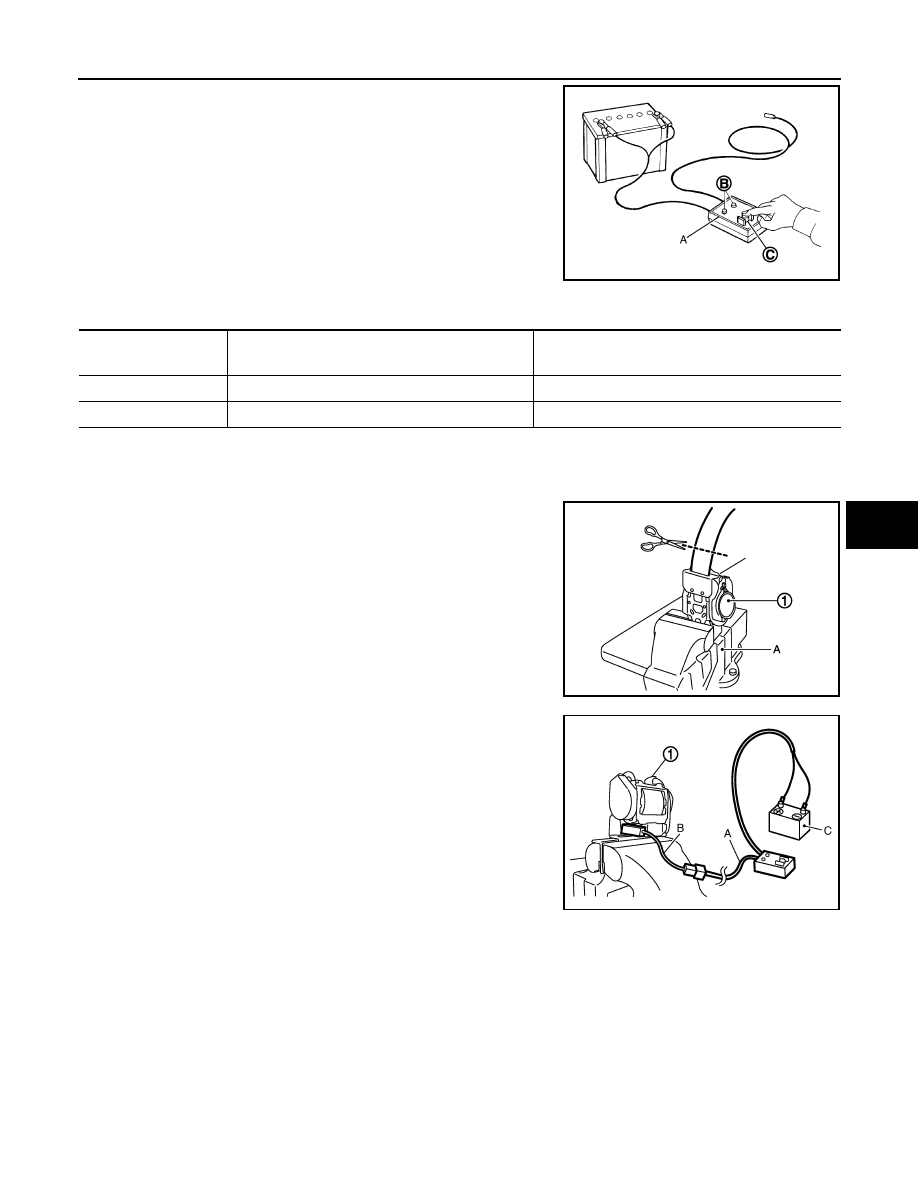

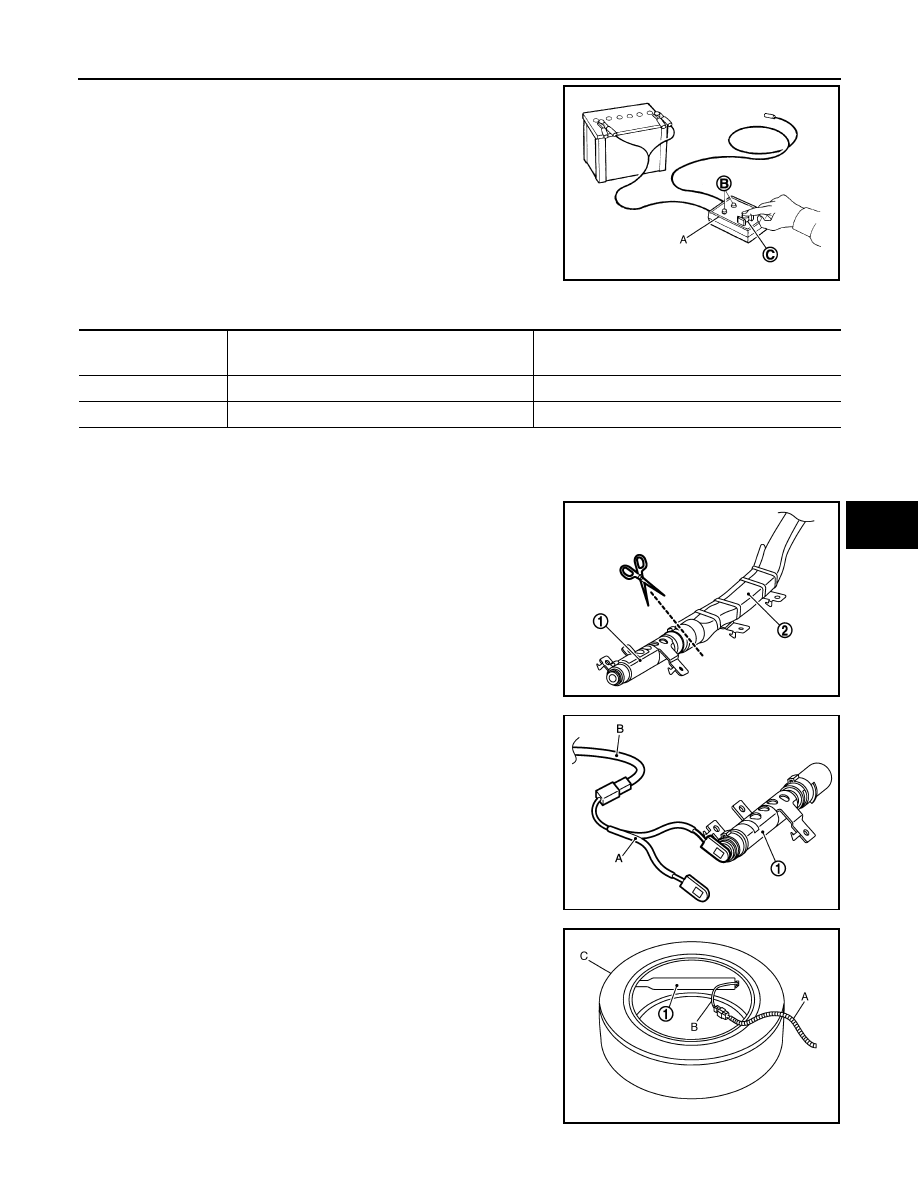

SR-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

Press the deployment tool switch (C) to the ON position. The left
side lamp in the tool, marked “air bag connector voltage” should illu-
minate (B). If it does not illuminate, replace the deployment tool (A).

Air Bag Deployment Tool Lamp Illumination Chart (Battery Connected)

*: If this lamp illuminates red, the tool is connected to the battery incorrectly. Reverse the connections and check that the lamp illumi-
nates green.

DEPLOYMENT OF CURTAIN AIR BAG MODULE (OUTSIDE OF VEHICLE)

1.

Cut the inflator (1) from curtain air bag module (2).

2.

Connect deployment tool (SST: KV99110500) (A) and deploy-
ment tool adapter (SST: KV99110500) yellow connector (B) to
the inflator (1).

3.

Put the inflator (1) connected with the deployment tool (A) (SST:
KV99106400) and deployment tool adapter yellow connector (B)
(SST: KV99110500) into a tire without a wheel (C).

JMHIA0205ZZ

Switch operation

Left side lamp, green*

“AIR BAG CONNECTOR VOLTAGE”

Right side lamp, green*

“DEPLOYMENT TOOL POWER”

OFF

OFF

ON

ON

ON

ON

JMHIA1456ZZ

JMJIA1460ZZ

JMHIA0066ZZ

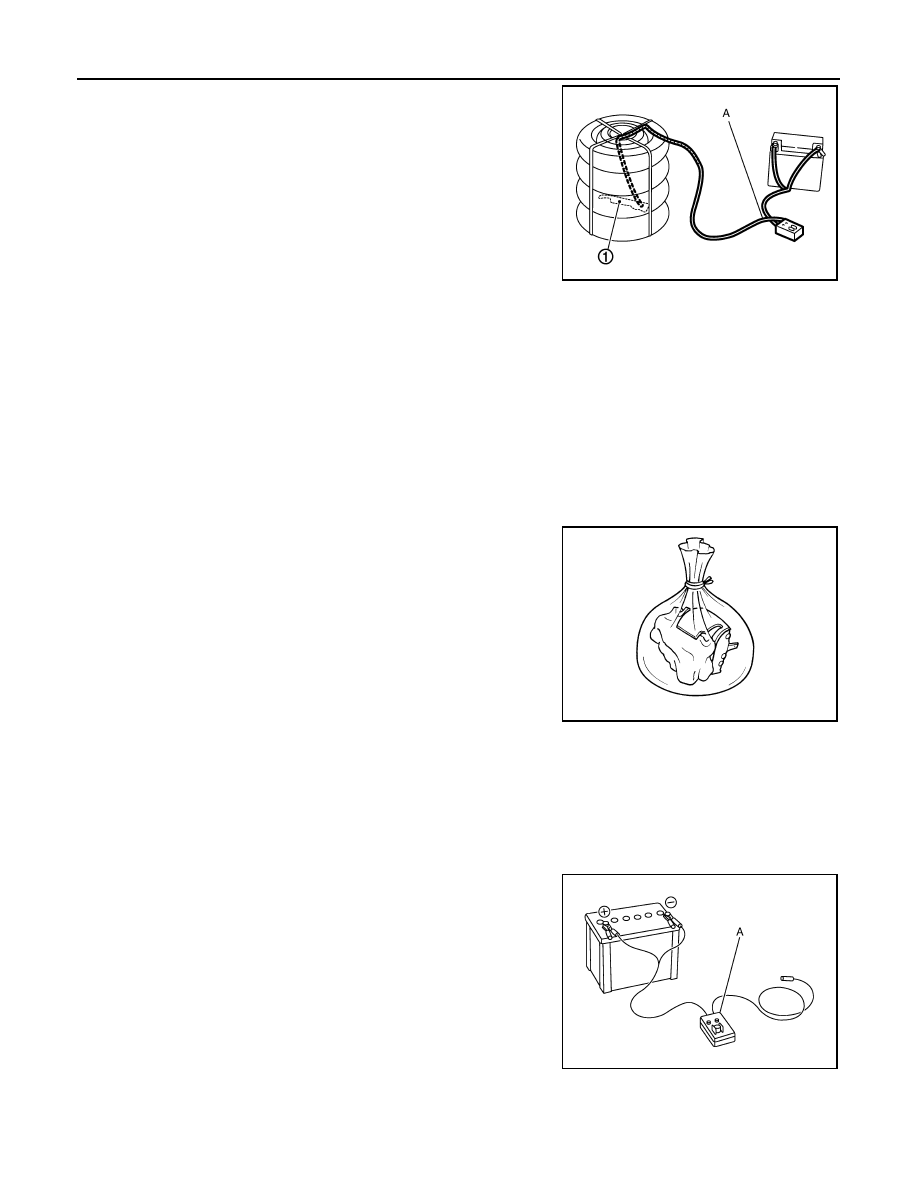

SR-38

< REMOVAL AND INSTALLATION >

DISPOSAL OF AIR BAG MODULE

4.

Put the tire with the inflator (1) onto another tire without a wheel.
Add an additional tire without a wheel and then a tire mounted
on a wheel on top.

CAUTION:

Tie all tires together with a strap in order keep them stand-
ing.

5.

Connect red clip of deployment tool (A) to battery positive termi-
nal and black clip to negative terminal.

6.

The lamp on the right side of the tool, marked “deployment tool
power”, should illuminate green, not red.

7.

Press the button on the deployment tool. The left side lamp on
the tool, marked “air bag connector voltage”, illuminates and the
air bag module inflator deploys.

CAUTION:

When deploying the curtain air bag module, stand at least 5.0 m (16.4 ft) away from the curtain air
bag module.

CURTAIN AIR BAG MODULE : Disposal

INFOID:0000000010499328

DISPOSING OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

Deployed air bag module, seat belt pre-tensioner, and lap pre-tensioner are very hot. Before disposing of air
bag module and seat belt pre-tensioner, wait at least 30 minutes, and 10 minutes, respectively. Seal them in a
plastic bag before disposal.

CAUTION:

• Never apply water to a deployed air bag module or seat belt

pre-tensioner or lap pre-tensioner.

• Wear gloves when handling a deployed air bag module or seat

belt pre-tensioner or lap pre-tensioner.

• No poisonous gas is produced upon air bag module deploy-

ment. However, be careful not to inhale gas since it irritates
the throat and can cause choking.

• Never disassemble air bag module, seat belt pre-tensioner

and lap pre-tensioner.

• Air bag module, seat belt pre-tensioner and lap pre-tensioner

cannot be reused.

• Wash your hands clean after the work is complete.

SEAT BELT PRE-TENSIONER

SEAT BELT PRE-TENSIONER : Deployment

INFOID:0000000010499329

CHECKING DEPLOYMENT TOOL

Connecting to Battery

CAUTION:

The battery must show voltage of 9.6 V or more.
Remove the battery from the vehicle and place it on dry wood blocks
approximately 5.0 m (16.4 ft) away from the vehicle.
• Wait 3 minutes after the vehicle battery is disconnected before pro-

ceeding.

• Connect red clip of deployment tool (A) to battery positive terminal

and black clip to negative terminal.

Check that the polarity is correct. The right side lamp in the
tool, marked “deployment tool power”, should illuminate with a
green light. If the right side lamp illuminates red, reverse the
connections to the battery.

Deployment Tool Check

PHIA1173E

SBF276H

JMHIA0204ZZ

DISPOSAL OF AIR BAG MODULE

SR-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

Press the deployment tool switch (C) to the ON position. The left
side lamp in the tool, marked “air bag connector voltage” should illu-
minate (B). If it does not illuminate, replace the deployment tool (A).

Air Bag Deployment Tool Lamp Illumination Chart (Battery Connected)

*: If this lamp illuminates red, the tool is connected to the battery incorrectly. Reverse the connections and check that the lamp illumi-
nates green.

DEPLOYMENT OF SEAT BELT PRE-TENSIONER (OUTSIDE OF VEHICLE)

1.

Firmly grip pre-tensioner (1) in a vise (A) and cut off the web-
bing.

2.

Connect deployment tool (SST: KV99106400) (A) and deploy-
ment tool adapter (SST: KV99110500) (B) yellow connector to
seat belt pre-tensioner (1).

3.

Connect red clip of deployment tool to battery positive terminal
and black clip to negative terminal (C).

4.

The lamp on the right side of the tool, marked “deployment tool
power”, should illuminate green, not red.

5.

Press the button on the deployment tool. The left side lamp on
the tool, marked “seat belt pre-tensioner connector voltage”, illu-
minates and the seat belt pre-tensioner deploys.

CAUTION:

When deploying the seat belt pre-tensioner, stand at least
5.0 m(16.4 ft) away from the seat belt pre-tensioner.

SEAT BELT PRE-TENSIONER : Disposal

INFOID:0000000010499330

DISPOSING OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

Deployed air bag module, seat belt pre-tensioner, and lap pre-tensioner are very hot. Before disposing of air
bag module and seat belt pre-tensioner, wait at least 30 minutes, and 10 minutes, respectively. Seal them in a
plastic bag before disposal.

CAUTION:

JMHIA0205ZZ

Switch operation

Left side lamp, green*

“AIR BAG CONNECTOR VOLTAGE”

Right side lamp, green*

“DEPLOYMENT TOOL POWER”

OFF

OFF

ON

ON

ON

ON

JMHIA1688ZZ

JMHIA0214ZZ

SR-40

< REMOVAL AND INSTALLATION >

DISPOSAL OF AIR BAG MODULE

• Never apply water to a deployed air bag module or seat belt

pre-tensioner or lap pre-tensioner.

• Wear gloves when handling a deployed air bag module or seat

belt pre-tensioner or lap pre-tensioner.

• No poisonous gas is produced upon air bag module deploy-

ment. However, be careful not to inhale gas since it irritates
the throat and can cause choking.

• Never disassemble air bag module, seat belt pre-tensioner

and lap pre-tensioner.

• Air bag module, seat belt pre-tensioner and lap pre-tensioner

cannot be reused.

• Wash your hands clean after the work is complete.

SBF276H















Content      ..     1      2      3
