Qashqai J11. Mirrors

PRECAUTIONS

MIR-3

< PRECAUTION >

MIR

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010339486

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000011733345

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition power source and accessory

power source to the OFF, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

Open driver door.

Turn the ignition switch to the ON position.
(At this time, the steering lock will be released.)

Turn the ignition switch to OFF position with driver door open.

Wait for 3 minutes or longer with driver door open.
NOTE:
• Do not close driver door because the steering wheel locks when driver door is closed.

MIR-4

< PRECAUTION >

PRECAUTIONS

• The auto acc function is adapted to this vehicle. For this reason, even when the ignition switch is turned

to OFF position, the accessory power source does not turned OFF and continues to be supplied for a
certain amount of time.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

Perform the necessary repair operation.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from OFF position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

Perform self-diagnosis check of all control units using CONSULT.

Precautions for Removing Battery Terminal

INFOID:0000000010503754

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

• For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

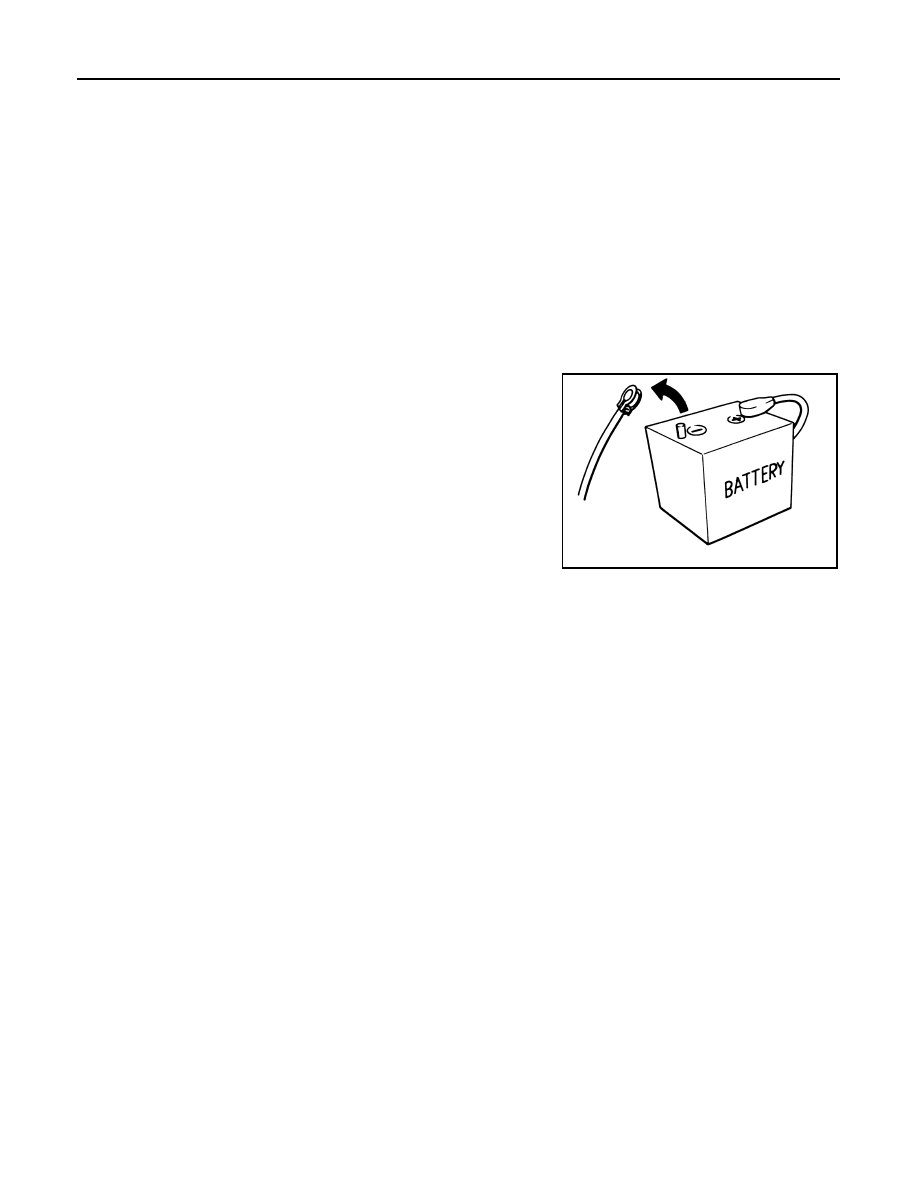

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to instruction described below.
1.

Open the hood.

Turn ignition switch to the ON position.

Turn ignition switch to the OFF position with the driver side door opened.

Get out of the vehicle and close the driver side door.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

COMPONENT PARTS

MIR-7

< SYSTEM DESCRIPTION >

MIR

Door mirror open relay

• Power supply is supplied to motor when door mirror is opening.
• This is the ground circuit when auto retractable door mirror is operating.

Door mirror close relay

• Power supply is supplied to motor when door mirror is closed.
• Power supply is supplied to motor when auto retractable door mirror is operating.

Door mirror remote control switch (mir-
ror switch)

It supplies power to mirror motor through mirror switch and changeover switch.

Door mirror remote control switch
(changeover switch)

It transmits the LH/RH control of door mirror that supplies power supply.

Door mirror motor

It makes mirror face operate from side to side and up and down via integrated motor.

Steering switch

Transmits steering switch signal to combination meter.

Combination meter

Displays the system status according to signal received.
Transmits auto retractable door mirror setting signal to the BCM via CAN communication.

Item

Function

OPERATION

MIR-9

< SYSTEM DESCRIPTION >

MIR

OPERATION

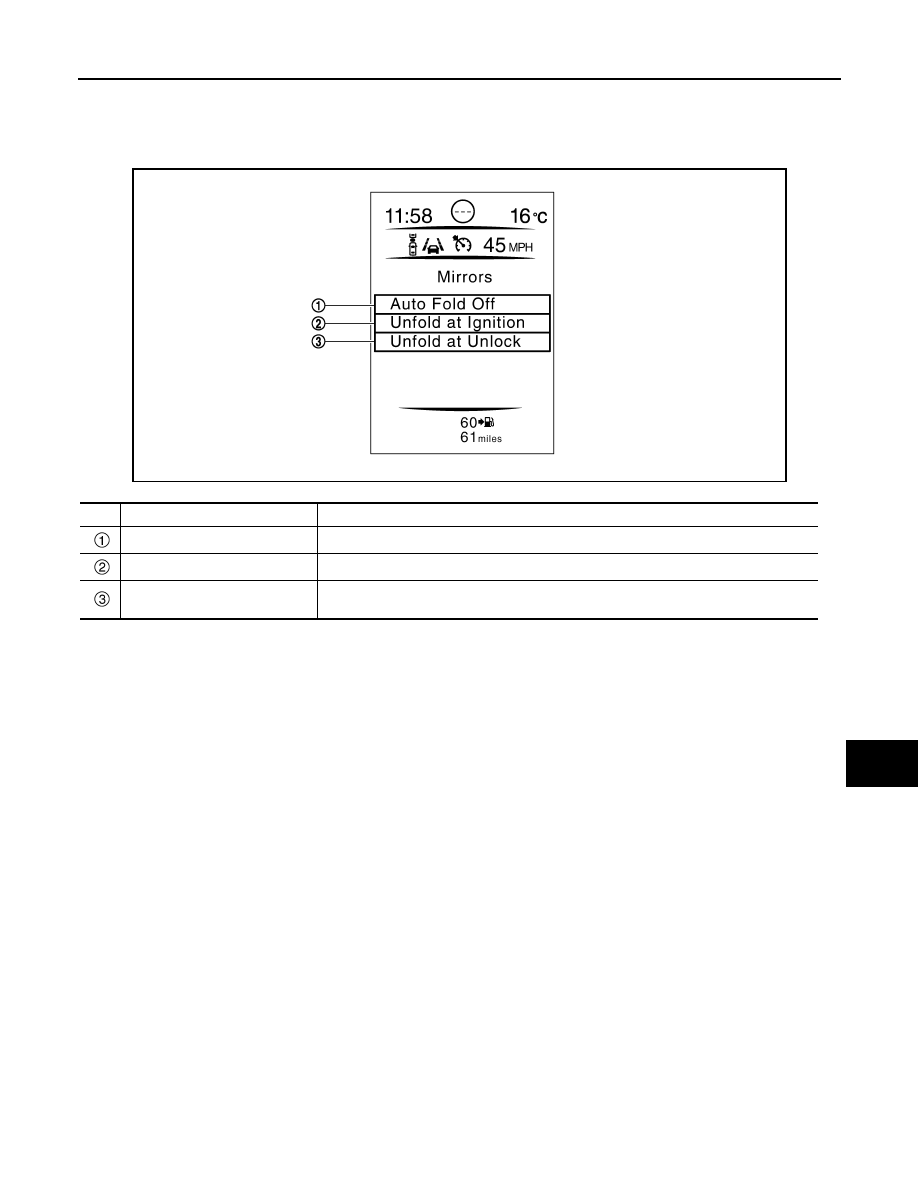

Menu Displayed by Pressing Each Switch

INFOID:0000000011733526

JMLIA6154ZZ

No.

Function name

Description

Auto fold Off

Non

−

operating auto retractable door mirror.

Unfold at Ignition

Door mirror open when ignition switch ON.

Unfold at Unlock

Door mirror open when door lock signal is received from intelligent Key or door request
switch.

MIR-10

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000011405203

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

: Applicable item

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

Rear window defogger

REAR DEFOGGER

Warning chime

BUZZER

Exterior lamp

HEAD LAMP

Interior room lamp control

INT LAMP

Wiper and washer

WIPER

Turn signal and hazard warning lamps

FLASHER

PTC heater control

AIR CONDITONER

Intelligent Key system

INTELLIGENT KEY

Combination switch

COMB SW

Body control system

BCM

NVIS - NATS

IMMU

Interior room lamp battery saver

BATTERY SAVER

Back door open

TRUNK

Vehicle security

THEFT ALM

RAP

RETAINED PWR

Remote keyless entry system

MULTI REMOTE ENT

Signal buffer system

SIGNAL BUFFER

DIAGNOSIS SYSTEM (BCM)

MIR-11

< SYSTEM DESCRIPTION >

MIR

INTELLIGENT KEY

INTELLIGENT KEY : Information

INFOID:0000000011405204

Check the vehicle type to use the service information in this section.

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 1)

INFOID:0000000011405205

WORK SUPPORT

CONSULT screen item

Indication/Unit

Description

BATTERY VOLTAGE

Battery voltage of the moment a particular DTC is detected.

VEHICLE SPEED

km/h

Vehicle speed of the moment a particular DTC is detected.

EXTERNAL TEMP

External temperature of the moment a particular DTC is detected

VEHICLE COND

—

NOTE:
This item is displayed, but cannot be use this item.

DOOR LOCK STATUS

—

NOTE:
This item is displayed, but cannot be use this item.

POWER SUPPLY
COUNTER

min

Displays the cumulative time from the time that the battery terminal is connected.

Service information

Destination

Type 1

For Europe

With Intelligent Key and super lock

Type 2

• For Europe
• For South Africa
• For Russia, Ukraine and Kazakhstan

With Intelligent Key, without super lock

Type 3

For Europe

Without Intelligent Key, with super lock

Type 4

• For Europe
• For South Africa
• For Russia, Ukraine and Kazakhstan

Without Intelligent Key and super lock

Type 5

• For Australia
• For General export

With Intelligent Key, without super lock

Type 6

• For Australia
• For General export

Without Intelligent Key and super lock

Monitor item

Description

INSIDE ANT DIAGNOSIS

This function allows inside key antenna self-diagnosis

LOCK/UNLOCK BY I-KEY

Door lock/unlock function by door request switch mode can be changed to operation in this
mode
• On: Operate
• Off: Non-operation

ENGINE START BY I-KEY

Engine start function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

TRUNK/GLASS HATCH OPEN

NOTE:
This item is displayed, but cannot be monitored

AUTO LOCK SET

Auto door lock operation time can be changed in this mode
• MODE 1: OFF
• MODE 2: 30 sec
• MODE 3: 1 minute
• MODE 4: 2 minutes
• MODE 5: 3 minutes
• MODE 6: 4 minutes
• MODE 7: 5 minutes

MIR-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

SELF-DIAG RESULT

Refer to

BCS-89, "DTC Index"

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

SHORT CRANKING OUTPUT

NOTE:
This item is displayed, but cannot be monitored

IGN/ACC BATTERY SAVER

Ignition battery saver system mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

ANSWER BACK

NOTE:
This item is displayed, but cannot be used

ANSWER BACK I-KEY LOCK UN-
LOCK

Reminder function (door request switch) mode can be selected from the following with this
mode
• On: hazard warning lamp operate
• Off: hazard warning lamp operate

ANSWER BACK KEYLESS LOCK
UNLOCK

Reminder function (Intelligent Key) mode can be selected from the following with this mode
• On: hazard warning lamp operate
• Off: hazard warning lamp operate

WELCOME LIGHT OP SET

NOTE:
This item is indicated, but not used

Monitor item

Description

Monitor Item

Condition

REQ SW -DR

Indicates [On/Off] condition of door request switch (driver side)

REQ SW -AS

Indicates [On/Off] condition of door request switch (passenger side)

REQ SW -BD/TR

Indicates [On/Off] condition of back door request switch

PUSH SW

Indicates [On/Off] condition of push-button ignition switch

CLUTCH SW*

Indicates [On/Off] condition of clutch interlock switch

BRAKE SW 1

Indicates [On/Off]*

condition of stop lamp switch power supply

BRAKE SW 2

Indicates [On/Off] condition of stop lamp switch

DETE/CANCL SW

Indicates [On/Off] condition of P position

START CLUTCH SW

Indicates [On/Off] condition of clutch pedal position switch

PUSH SW -IPDM

Indicates [On/Off] condition of push-button ignition switch

IGN RLY1 -F/B

Indicates [On/Off] condition of ignition relay 1

NEUTRAL SW - IPDM

Indicates [On/Off] condition of park/neutral position switch

SFT PN -IPDM

Indicates [On/Off] condition of P or N position

STARTER RELAY - IPDM

Indicates [On/Off] condition of starter relay

ENGINE STATE

Indicates [Stop/Stall/Crank/Run] condition of engine states

ST/INHIRELAY-IPDM

Display the starter relay/starter control relay status signal from IPDM E/R via CAN communica-
tion

REVERSE SIGNAL - IPDM

Indicates [On/Off] condition of R position

CRANKING PERMIT - ECM

Display the engine cranking permit signal from ECM via CAN communication

IS STATUS - ECM

Indicates [On/Off] condition of stop/start system

STARTER CUT RELAY - ECM

Indicates [On/Off] condition of starter control relay signal from ECM via CAN communication

VEH SPEED 1

Display the vehicle speed signal received from combination meter by numerical value [Km/h]

VEH SPEED 2

Display the vehicle speed signal received from ABS or VDC or TCM by numerical value [Km/h]

IGN REQ - IPDM

Display the ignition request signal from IPDM E/R via CAN communication

DIAGNOSIS SYSTEM (BCM)

MIR-13

< SYSTEM DESCRIPTION >

MIR

STARTER REQ - IPDM

Display the starter request signal from IPDM E/R via CAN communication

DOOR STAT-DR

Indicates [LOCK/READY/UNLK] condition of driver door status

DOOR STAT-AS

Indicates [LOCK/READY/UNLK] condition of passenger door status

DOOR STAT-RR

Indicates [LOCK/READY/UNLK] condition of rear door RH status

DOOR STAT-RL

Indicates [LOCK/READY/UNLK] condition of rear door LH status

BK DOOR STATE

NOTE:
This item is displayed, but cannot be monitored

ID OK FLAG

Indicates [Set/Reset] condition of Intelligent Key ID

PRMT ENG STRT

Indicates [Set/Reset] condition of engine start possible

PRMT RKE STRT

NOTE:
This item is displayed, but cannot be monitored

I-KEY OK FLAG

Indicates [KEY On/NOT On] condition of Intelligent Key ID and Intelligent Key is detected inside
vehicle

PRBT ENG STRT

Indicates whether or not the engine is in start prohibited status

ID AUTHENT CANCEL TIMER

Indicates whether or not it is in engine start possible status when Intelligent Key verification is
unnecessary

ACC BATTERY SAVER

Indicates [On/Off] whether or not ignition battery saver is in operation

CRNK PRBT TMR

Indicates [On/Off] whether or not in cranking prohibited status due to starter motor protection
function operation

AUT CRANK TMR

Indicates [On/Off] whether or not in AUTO CRANKING MODE status

CRNK PRBT TME

Indicates the time for changing from cranking prohibited status to cranking possible status

AUT CRANK TMR

Indicates the time that AUTO CRANKING MODE operates

CRANKING TME

Indicates the cranking operation time

SHORT CRANK

NOTE:
This item is displayed, but not used

RKE OPE COUN1

When remote keyless entry receiver receives the signal transmitted while operating on Intelli-
gent Key, the numerical value start changing

RKE OPE COUN2

NOTE:
This item is displayed, but cannot be monitored

S/L IGN OFF POSITION

Indicates [On/Off] condition of Ignition OFF signal

S/L SENSOR CIRCUIT 1

Indicates [Gnd/Off] condition of steering lock unit sensor circuit

S/L SENSOR CIRCUIT 2

Indicates [On/Off] condition of steering lock unit sensor circuit

S/L POWER OUTPUT

Indicates [On/Off] condition of steering lock unit power supply

S/L POWER CHECK

Indicates [On/Off] condition of steering lock unit power supply

ANTICIPATED POWER

Indicates [On/Off] condition of anticipated power supply

S/L LOCK REQ

Indicates [On/Off] condition of steering lock unit lock request signal

S/L - BCM (CAN)

Indicates [On/Off] condition of CAN communication

S/L POWER ERROR

Indicates [On/Off] condition of steering lock unit power supply error

VEH SPEED ERROR (S/L)

Indicates [On/Off] condition of vehicle speed signal

VEH SPEED NORMAL (S/L)

Indicates [On/Off] condition of vehicle speed signal

ENGINE RUNNING (S/L)

Indicates [On/Off] condition of engine running

S/L ID DISCORD

Indicates [Correct/Incorrect] condition of ID verification

S/L ANTI-SCAN MODE

Indicates [On/Off] condition of antiscan mode

S/L LOCK NOT PERMIT

Indicates [Inhibition/No inhbt] condition of inhibit steering lock

S/L UNLOCK (CAN)

Indicates [Finished/Unfinished] condition of steering lock unit unlock

S/L ID STATUS (CAN)

Indicates [Coded/Blank] condition of registration ID

S/L RESET STATUS (CAN)

Indicates [Exit/No exit] condition of steering lock unit reset signal

Monitor Item

Condition

MIR-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

: It is displayed but does not operate on CVT models.

: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

ACTIVE TEST

S/L LO-LEVEL MALFUNC (CAN)

Indicates [Malf/No malf] condition of lo-level malfunction

S/L LOCK POSITION (CAN)

Indicates [Armed/Malf/Unlocked/Undefined] condition of lock/unlock position signal

S/L ACT MALFUNCTION (CAN)

Indicates [Malf/No malf] condition of steering lock unit malfunction

S/L HI-LEVEL MALFUNC (CAN)

Indicates [Malf/No malf] condition of hi-level malfunction

S/L OPERATION PRHBT (SPD)

Indicates [On/Off] condition of vehicle speed signal

S/L OPERATION PRHBT (PWR)

Indicates [Allowed/Forbid] condition of safety line inhibition

S/L SENSOR POWER (CAN)

Indicates [On/Off] condition of sensor test power supply

S/L SEN TEST PERMIT (CAN)

Indicates [Forbid/Authorize] condition of sensor test

S/L STAT NOT DETECT (CAN)

Indicates [Ok/Undefind] condition of steering lock undefined position signal

S/L LOCKING FINISHED (CAN)

Indicates [Unfinshd/Finished] condition of steering lock unit lock status signal

STOP/START SW

Indicates [On/Off] condition of stop/start off switch

RKE-LOCK

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored

RKE-PANIC

NOTE:
This item is displayed, but cannot be monitored

RKE-MODE CHG

Indicates [On/Off] condition of MODE CHANGE signal from Intelligent Key

RKE PBD

NOTE:
This item is displayed, but cannot be monitored

KEY SW

NOTE:
This item is displayed, but cannot be monitored

IGN SW

NOTE:
This item is displayed, but cannot be monitored

START SW

NOTE:
This item is displayed, but cannot be monitored

Monitor Item

Condition

Test item

Description

OUTSIDE BUZZER

This test is able to check Intelligent Key warning buzzer operation
• On: Operate
• Off: Non-operation

INSIDE BUZZER

This test is able to check warning chime in combination meter operation
• Buzzer 1: Combination meter buzzer sounds (pipipi...) when CONSULT screen is touched
• Buzzer 2: Combination meter buzzer sounds (pipi-pipi-...) when CONSULT screen is

touched

• Buzzer 3: Combination meter buzzer sounds (pipipipi-pipipipi-...) when CONSULT screen is

touched

• Off: Non-operation

INDICATOR

This test is able to check warning lamp operation
• KEY ON:[ Intelligent key system malfunction] displays when CONSULT screen is touched
• KEY IND: “KEY” Warning lamp blinks when CONSULT screen is touched
• Off: Non-operation

FLASHER

This test is able to check security hazard lamp operation
The hazard lamps are activated after “LH/RH/Off” on CONSULT screen is touched

HORN

NOTE:
This item is displayed, but cannot be used

DIAGNOSIS SYSTEM (BCM)

MIR-15

< SYSTEM DESCRIPTION >

MIR

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 2)

INFOID:0000000011405206

WORK SUPPORT

IGN CONT2

This test is able to operate the blower relay in fuse block (J/B)
• On: Operates
• Off: Non-operation

MIRROR +5

NOTE:
This item is displayed, but cannot be used

ENGINE SW ILLUMI

This test is able to check push-ignition switch illumination operation
Push-ignition switch illumination illuminates when “ON” on CONSULT screen is touched

PUSH SWITCH INDICATOR

This test is able to check LOCK indicator in push-ignition switch operation
LOCK indicator in push-ignition switch illuminates when “ON” on CONSULT screen is touched

ENGINE START REQUEST

This test is able to check BCM sends starter request signal to IPDM E/R via CAN communi-
cation
• MODE 1: IGN ON, START request OFF
• MODE 2: IGN OFF, START request ON
• MODE 3: IGN ON, START request ON
• Off: Non-operation

IGNITION RELAY

NOTE:
This item is displayed, but cannot be used

STARTER CUT RELAY

This test is able to operate the starter control relay
• On: Operates
• Off: Non-operation

ENGINE START

NOTE:
This item is displayed, but cannot be used

TRUNK/BACK DOOR

This test is able to check back door opener actuator open operation
Back door opener actuator opens when “Open” on CONSULT screen is touched

RETRACTABLE MIRROR

NOTE:
This item is displayed, but cannot be used

REVERSE LAMP TEST

NOTE:
This item is displayed, but cannot be used

KEYFOB P/W TEST

NOTE:
This item is displayed, but cannot be used

AUTO ACC 2

This test is able to check BCM sends power supply to audio unit or NAVI control unit
• On: Operate
• Off: Non-operation

AUTOMATIC BACK DOOR

NOTE:
This item is displayed, but cannot be used

AUTO ACC 1

This test is able to check BCM sends power supply to ignition relay
• On: Operate
• Off: Non-operation

TRUNK/LUGGAGE LAMP
TEST

This test is able to check trunk room lamp operation
• On: Operates
• Off: Non-operation

Test item

Description

Monitor item

Description

INSIDE ANT DIAGNOSIS

This function allows inside key antenna self-diagnosis

LOCK/UNLOCK BY I-KEY

Door lock/unlock function by door request switch mode can be changed to operation in this
mode
• On: Operate
• Off: Non-operation

MIR-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

SELF-DIAG RESULT

Refer to

BCS-89, "DTC Index"

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ENGINE START BY I-KEY

Engine start function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

TRUNK/GLASS HATCH OPEN

NOTE:
This item is displayed, but cannot be monitored

AUTO LOCK SET

SHORT CRANKING OUTPUT

NOTE:
This item is displayed, but cannot be monitored

IGN/ACC BATTERY SAVER

Ignition battery saver system mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

ANSWER BACK

NOTE:
This item is displayed, but cannot be used

ANSWER BACK I-KEY LOCK UN-
LOCK

Reminder function (door request switch) mode can be selected from the following with this
mode
• On: hazard warning lamp operate
• Off: hazard warning lamp operate

ANSWER BACK KEYLESS LOCK
UNLOCK

Reminder function (Intelligent Key) mode can be selected from the following with this mode
• On: hazard warning lamp operate
• Off: hazard warning lamp operate

WELCOME LIGHT OP SET

NOTE:
This item is indicated, but not used

Monitor item

Description

Monitor Item

Condition

REQ SW -DR

Indicates [On/Off] condition of door request switch (driver side)

REQ SW -AS

Indicates [On/Off] condition of door request switch (passenger side)

REQ SW -BD/TR

Indicates [On/Off] condition of back door request switch

PUSH SW

Indicates [On/Off] condition of push-button ignition switch

CLUTCH SW*

Indicates [On/Off] condition of clutch interlock switch

BRAKE SW 1

Indicates [On/Off]*

condition of stop lamp switch power supply

BRAKE SW 2

Indicates [On/Off] condition of stop lamp switch

DETE/CANCL SW

Indicates [On/Off] condition of P position

START CLUTCH SW

Indicates [On/Off] condition of clutch pedal position switch

PUSH SW -IPDM

Indicates [On/Off] condition of push-button ignition switch

IGN RLY1 -F/B

Indicates [On/Off] condition of ignition relay 1

NEUTRAL SW - IPDM

Indicates [On/Off] condition of park/neutral position switch

SFT PN -IPDM

Indicates [On/Off] condition of P or N position

STARTER RELAY - IPDM

Indicates [On/Off] condition of starter relay

DIAGNOSIS SYSTEM (BCM)

MIR-17

< SYSTEM DESCRIPTION >

MIR

ENGINE STATE

Indicates [Stop/Stall/Crank/Run] condition of engine states

ST/INHIRELAY-IPDM

Display the starter relay/starter control relay status signal from IPDM E/R via CAN communica-
tion

REVERSE SIGNAL - IPDM

Indicates [On/Off] condition of R position

CRANKING PERMIT - ECM

Display the engine cranking permit signal from ECM via CAN communication

IS STATUS - ECM

Indicates [On/Off] condition of stop/start system

STARTER CUT RELAY - ECM

Indicates [On/Off] condition of starter control relay signal from ECM via CAN communication

VEH SPEED 1

Display the vehicle speed signal received from combination meter by numerical value [Km/h]

VEH SPEED 2

Display the vehicle speed signal received from ABS or VDC or TCM by numerical value [Km/h]

IGN REQ - IPDM

Display the ignition request signal from IPDM E/R via CAN communication

STARTER REQ - IPDM

Display the starter request signal from IPDM E/R via CAN communication

DOOR STAT-DR

Indicates [LOCK/READY/UNLK] condition of driver door status

DOOR STAT-AS

Indicates [LOCK/READY/UNLK] condition of passenger door status

DOOR STAT-RR

Indicates [LOCK/READY/UNLK] condition of rear door RH status

DOOR STAT-RL

Indicates [LOCK/READY/UNLK] condition of rear door LH status

BK DOOR STATE

NOTE:
This item is displayed, but cannot be monitored

ID OK FLAG

Indicates [Set/Reset] condition of Intelligent Key ID

PRMT ENG STRT

Indicates [Set/Reset] condition of engine start possible

PRMT RKE STRT

NOTE:
This item is displayed, but cannot be monitored

I-KEY OK FLAG

Indicates [KEY On/NOT On] condition of Intelligent Key ID and Intelligent Key is detected inside
vehicle

PRBT ENG STRT

Indicates whether or not the engine is in start prohibited status

ID AUTHENT CANCEL TIMER

Indicates whether or not it is in engine start possible status when Intelligent Key verification is
unnecessary

ACC BATTERY SAVER

Indicates [On/Off] whether or not ignition battery saver is in operation

CRNK PRBT TMR

Indicates [On/Off] whether or not in cranking prohibited status due to starter motor protection
function operation

AUT CRANK TMR

Indicates [On/Off] whether or not in AUTO CRANKING MODE status

CRNK PRBT TME

Indicates the time for changing from cranking prohibited status to cranking possible status

AUT CRANK TMR

Indicates the time that AUTO CRANKING MODE operates

CRANKING TME

Indicates the cranking operation time

SHORT CRANK

NOTE:
This item is displayed, but not used

RKE OPE COUN1

When remote keyless entry receiver receives the signal transmitted while operating on Intelli-
gent Key, the numerical value start changing

RKE OPE COUN2

NOTE:
This item is displayed, but cannot be monitored

S/L IGN OFF POSITION

Indicates [On/Off] condition of Ignition OFF signal

S/L SENSOR CIRCUIT 1

Indicates [Gnd/Off] condition of steering lock unit sensor circuit

S/L SENSOR CIRCUIT 2

Indicates [On/Off] condition of steering lock unit sensor circuit

S/L POWER OUTPUT

Indicates [On/Off] condition of steering lock unit power supply

S/L POWER CHECK

Indicates [On/Off] condition of steering lock unit power supply

ANTICIPATED POWER

Indicates [On/Off] condition of anticipated power supply

S/L LOCK REQ

Indicates [On/Off] condition of steering lock unit lock request signal

S/L - BCM (CAN)

Indicates [On/Off] condition of CAN communication

Monitor Item

Condition

Qashqai J11. Mirrors - part 1
