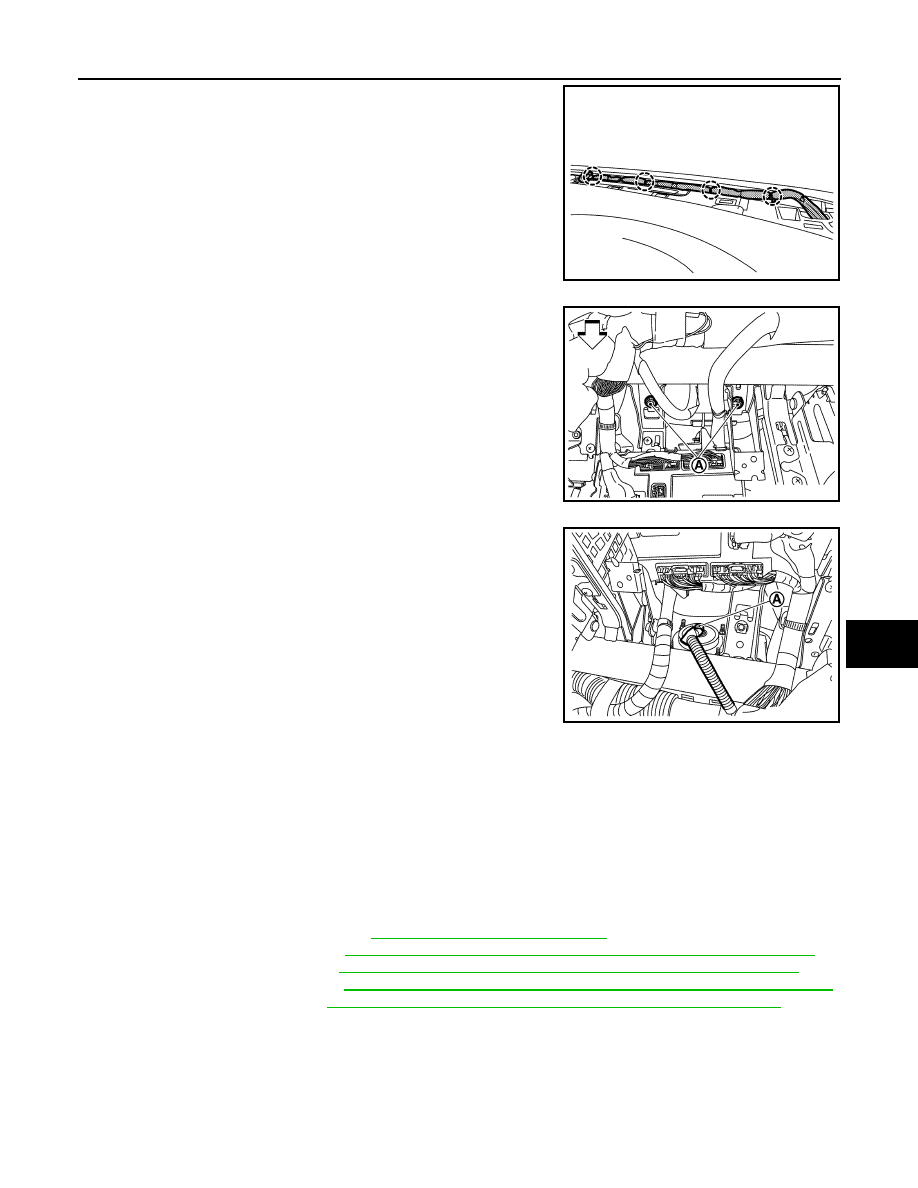

49. Remove harness fixing clips from instrument panel assembly.

50. Remove passenger airbag module mounting bolts (A).

51. Disconnect passenger airbag module harness connector (A).

52. Remove fuse box fixing screws.

53. Remove BCM fixing screw.
54. Remove instrument panel assembly fixing screws and mounting bolt.

55. Disconnect harness connector LH and RH

56. Remove instrument panel assembly.

CAUTION:

Cover shift selector upper surface with a shop cloth to prevent it from being damaged.
When removing instrument panel assembly, 2 workers are required to prevent it from dropping.

57. Remove the following parts after removing instrument panel assembly:

• Passenger airbag module. Refer to

SR-19, "Removal and Installation"

.

• Center ventilator duct. Refer  to

VTL-13, "CENTER VENTILATOR DUCT : Removal and Installation"

.

• Side defroster nozzle. Refer to

VTL-14, "SIDE DEFROSTER NOZZLE : Removal and Installation"

.

• Front defroster nozzle. Refer to

VTL-14, "CENTER DEFROSTER NOZZLE : Removal and Installation"

.

• Side defroster grille. Refer to

VTL-15, "SIDE DEFROSTER GRILLE : Removal and Installation"

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Never use the steering wheel mounting nut after removal, replace with new nut.
Never use the driver airbag module mouting bolts after removal, replace with new bolts.
Never use the passenger airbag module mouting bolts after removal, replace with new bolts.

JMJIA9785ZZ

JMJIA9626ZZ

JMJIA9627ZZ

IP-18

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

CENTER CONSOLE ASSEMBLY

Exploded View

INFOID:0000000010464151

CENTER CONSOLE

E1JIA0292ZZ

CENTER CONSOLE ASSEMBLY

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Removal and Installation

INFOID:0000000010502013

REMOVAL

WARNING:

Before servicing,turn ignition OFF, disconnect battery negative terminal and wait for 3 minutes or
more.

CAUTION:

Always use a remover tool that is made of plastic.

1.

Put selector lever in N position (CVT models.)

2.

Remove selector lever knob. Refer to

TM-25, "Removal and Installation"

 (RS6F94R),

TM-83, "Removal

and Installation"

 (RS6F95R),

TM-143, "Removal and Installation"

 (RS6F52A),

TM-617, "Removal and

Installation"

 (CVT models)

3.

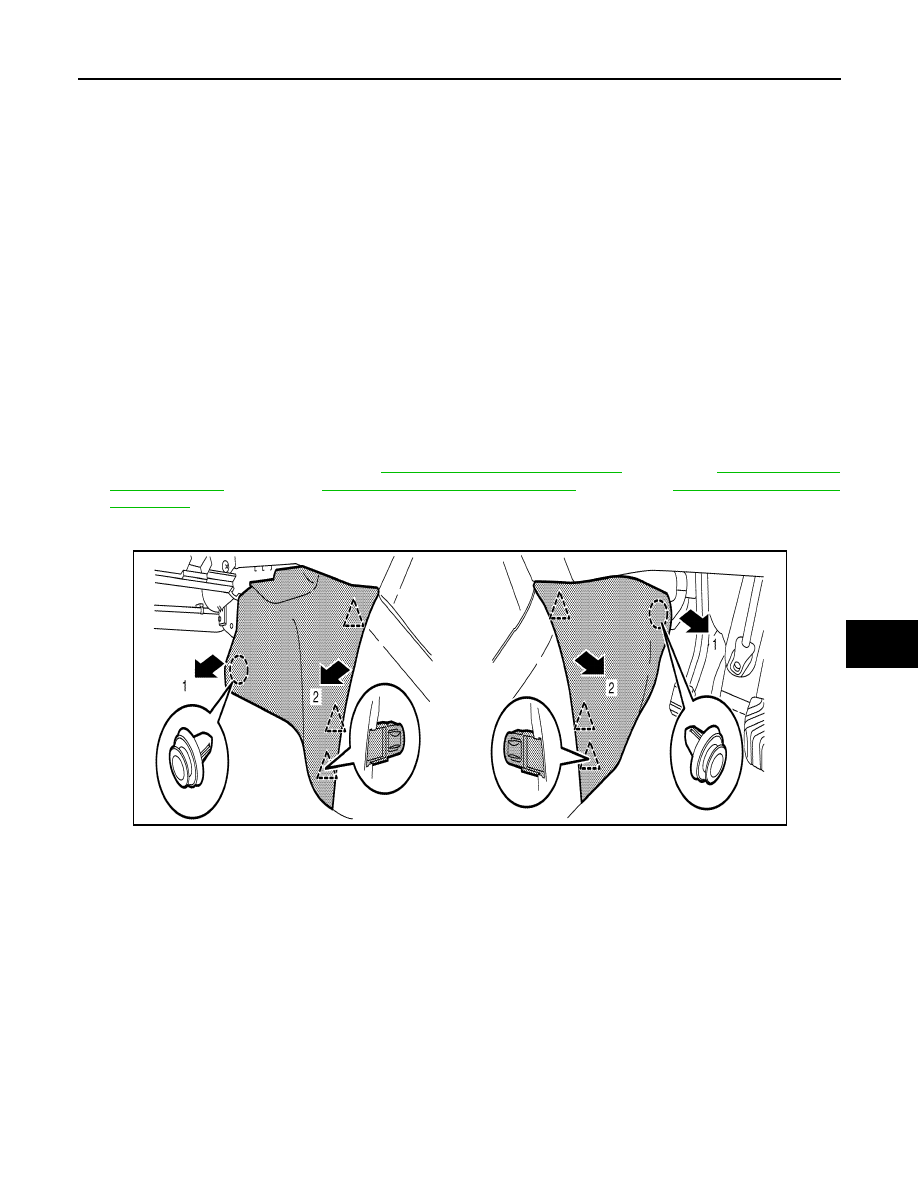

Disengage instrument lower cover fixing clips and pawls according to numerical order indicated by arrows
as shown in the figure.

4.

Remove instrument lower cover (LH/RH).

5.

Remove console panel (LH/RH).

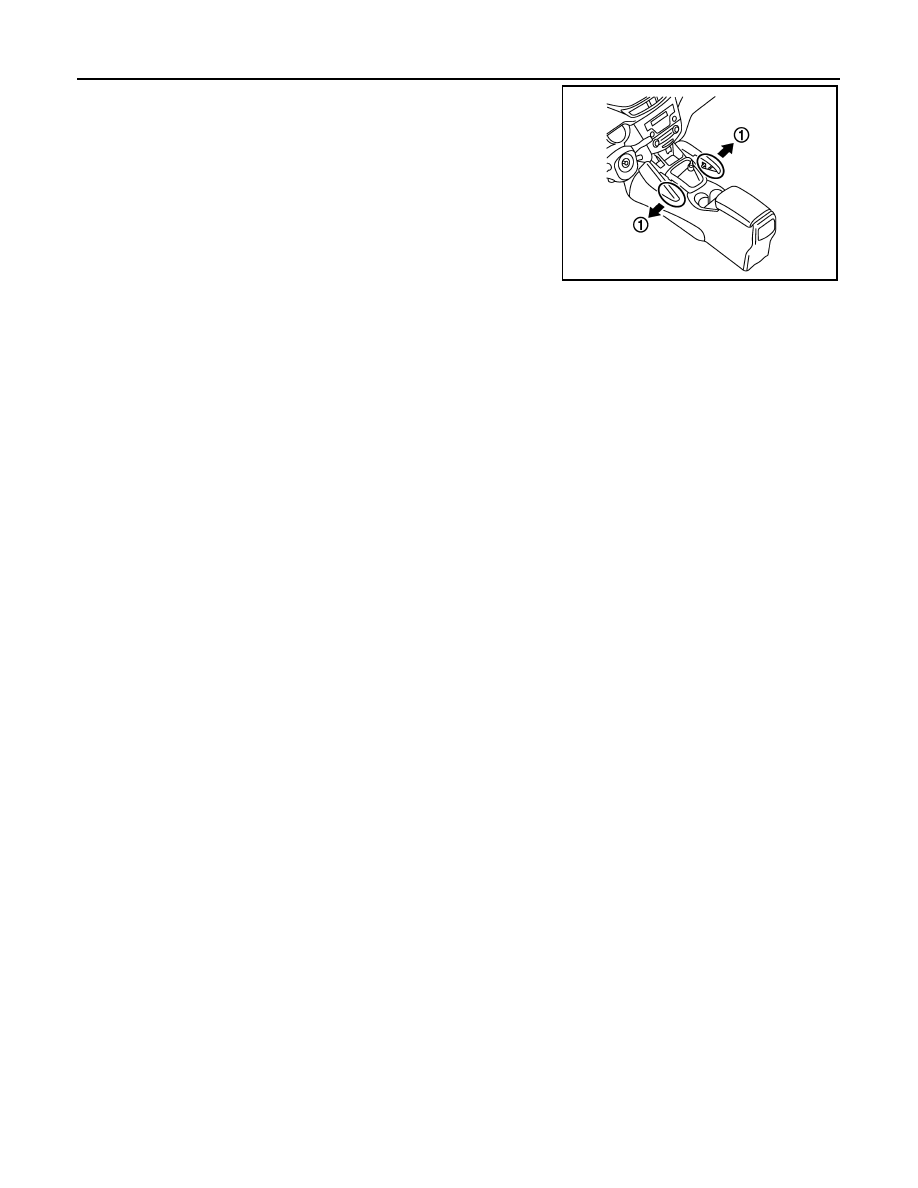

• Disengage console panel fixing metal clips;

Start at rear 3 clip portion (2):
Partially unclip parts to allow minimum sufficient access to remove console finisher assembly.

CAUTION:

Be careful not to damage panel console LH/RH from fixing structure.

CAUTION:

1.

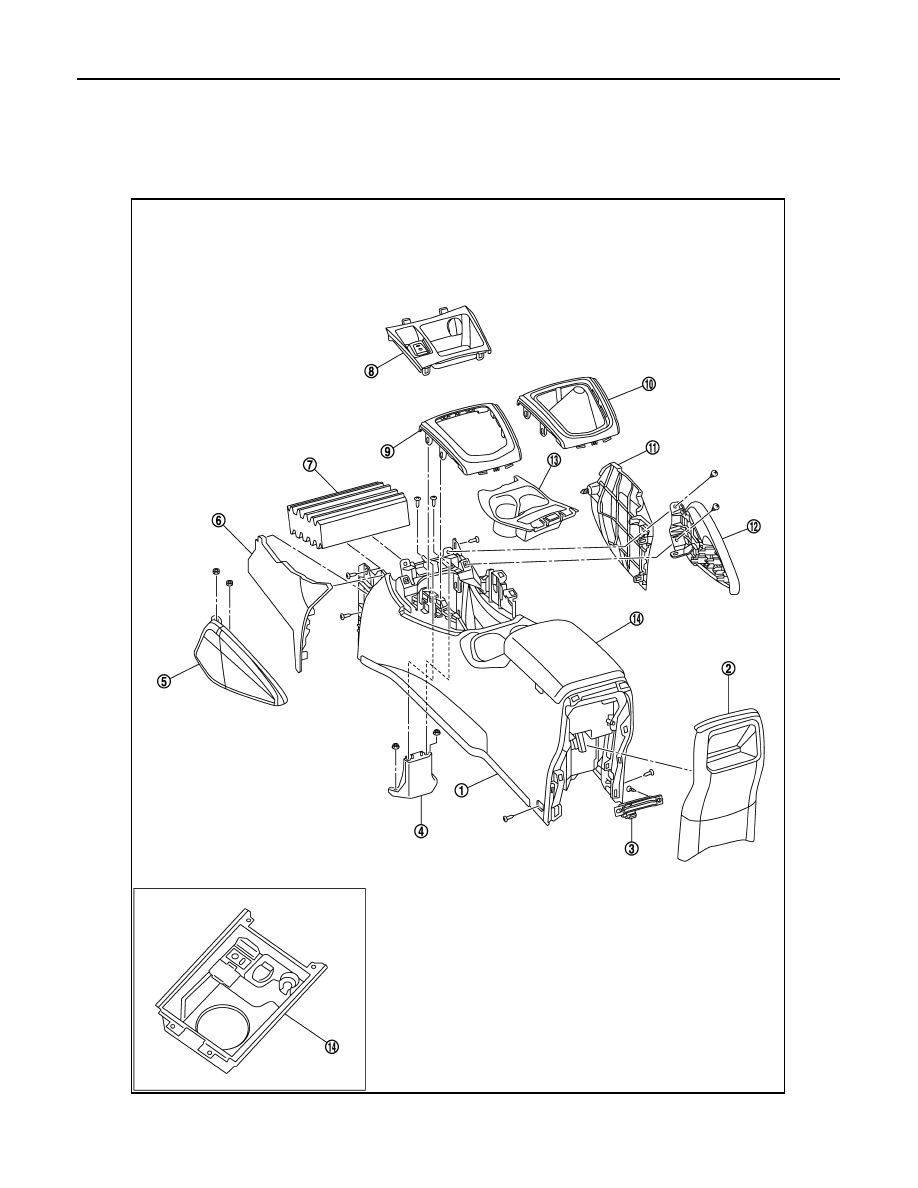

Center console assembly

2.

Center console rear finisher as-
sembly

3.

Inside key antenna

4.

Console bracket

5.

Console panel (if equipped)

6.

Instrument panel lower cover
(LH)

7.

Dash lower insulator (if equipped)

8.

Upper console finisher

9.

Console finisher assembly (CVT
models)

10. Console finisher assembly (MT models) 11. Instrument panel lower cover (RH) 12. Console panel finisher (RH)

13. Cup holder

14. Power socket assembly

JMJIA9741ZZ

IP-20

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

Be careful not to disengage metal clips from console
panel.

• Disengage auto control console finisher upper fixing pawls and metal clips;
• Disconnect harness connectors;
• Remove auto control console finisher and console finisher upper as a set.
• Remove console panel fixing screws;
• Disconnect harness connectors;
• Disengage console panel fixing metal clips;
• Remove console panel.

6.

Remove rear console finisher.
• Disengage rear console finisher fixing metal clips.
• Disconnect harness connector (if equipped).
• Remove rear console finisher.

7.

Disconnect harness connectors.

8.

Remove harness fixing clip.

9.

Disengage cup holder assembly fixing metal clips.

10. Disconnect harness connectors.
11. Remove cup holder assembly.

12. Remove center console assembly fixing screws.

13. Remove center console assembly.

INSTALLATION

Installation is in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000010464153

Disassembly

1.

Remove instrument lower cover (RH/LH).
• Remove clips

2.

Remove rear console finisher assembly.
• Disconnect harness connectors.
• Remove screws.

3.

Remove instrument panel center cover.

4.

Remove lower dash insulator (if equipped).

Assembly

Assemble in the reverse order of disassembly.

E1JIA0314ZZ
