Qashqai J11. Driveline - part 15

DRIVE PINION

DLN-225

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

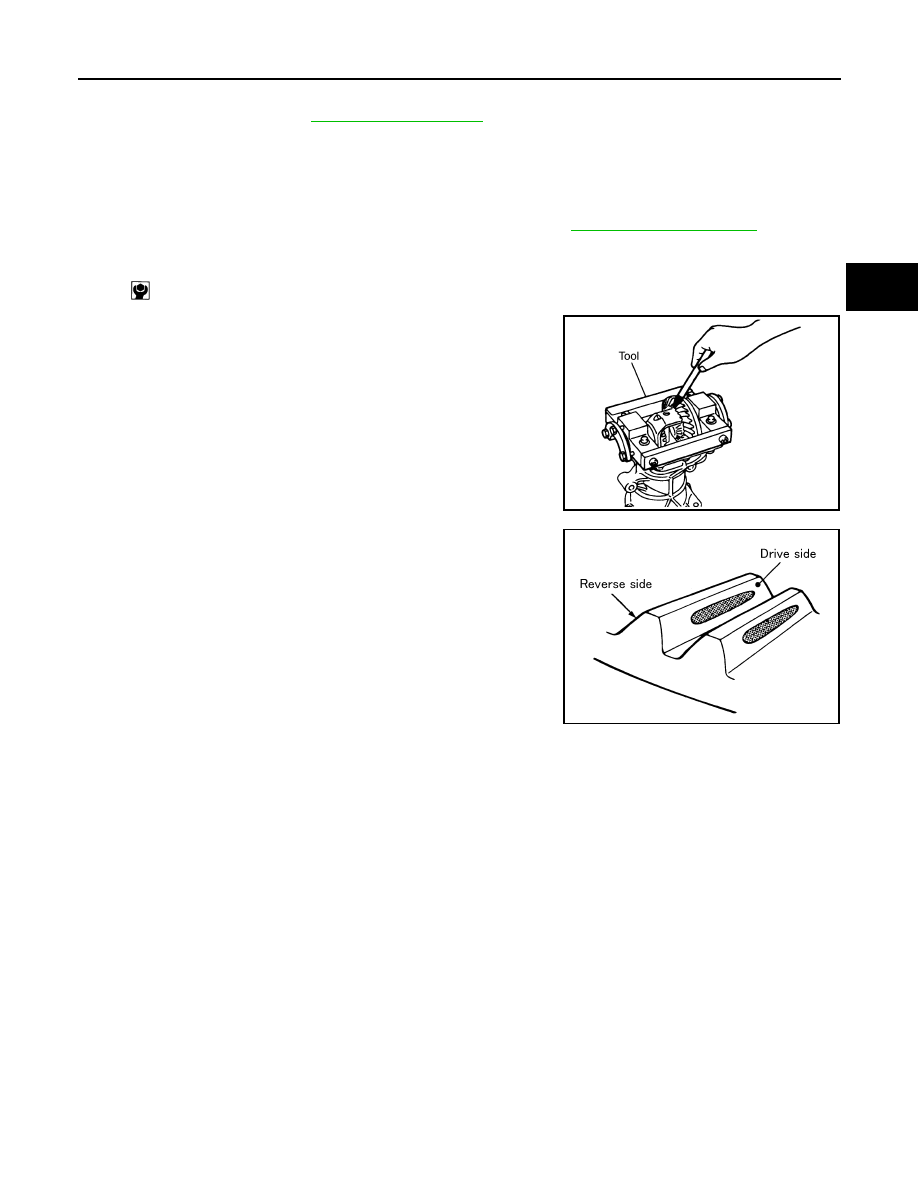

TOOTH CONTACT

1.

Remove rear cover. Refer to

DLN-214, "Disassembly"

.

2.

Following the procedure below, install a dummy cover set (SST: KV389L0010) to gear carrier.

a.

Set dummy cover shims to the right and left side bearing adjusting shims.

b.

Temporarily tighten dummy cover to gear carrier.

c.

Position dummy cover spacers to dummy cover.

d.

Tighten rear cover mounting bolts to the specified torque. Refer to

DLN-219, "Exploded View"

.

e.

Tighten dummy cover spacer mounting bolts evenly to the specified torque.

3.

Apply red lead to drive gear.

CAUTION:

Apply red lead to both the faces of 3 to 4 gears at 4 loca-
tions evenly spaced on drive gear.

4.

Rotate drive gear back and forth several times, check drive pin-
ion gear to drive gear tooth contact.

CAUTION:

Check tooth contact on drive side and reverse side.

: 5.9 N·m (0.6 kg-m, 52 in-lb)

PDIA0051E

SDIA0570E

DLN-226

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

DRIVE PINION

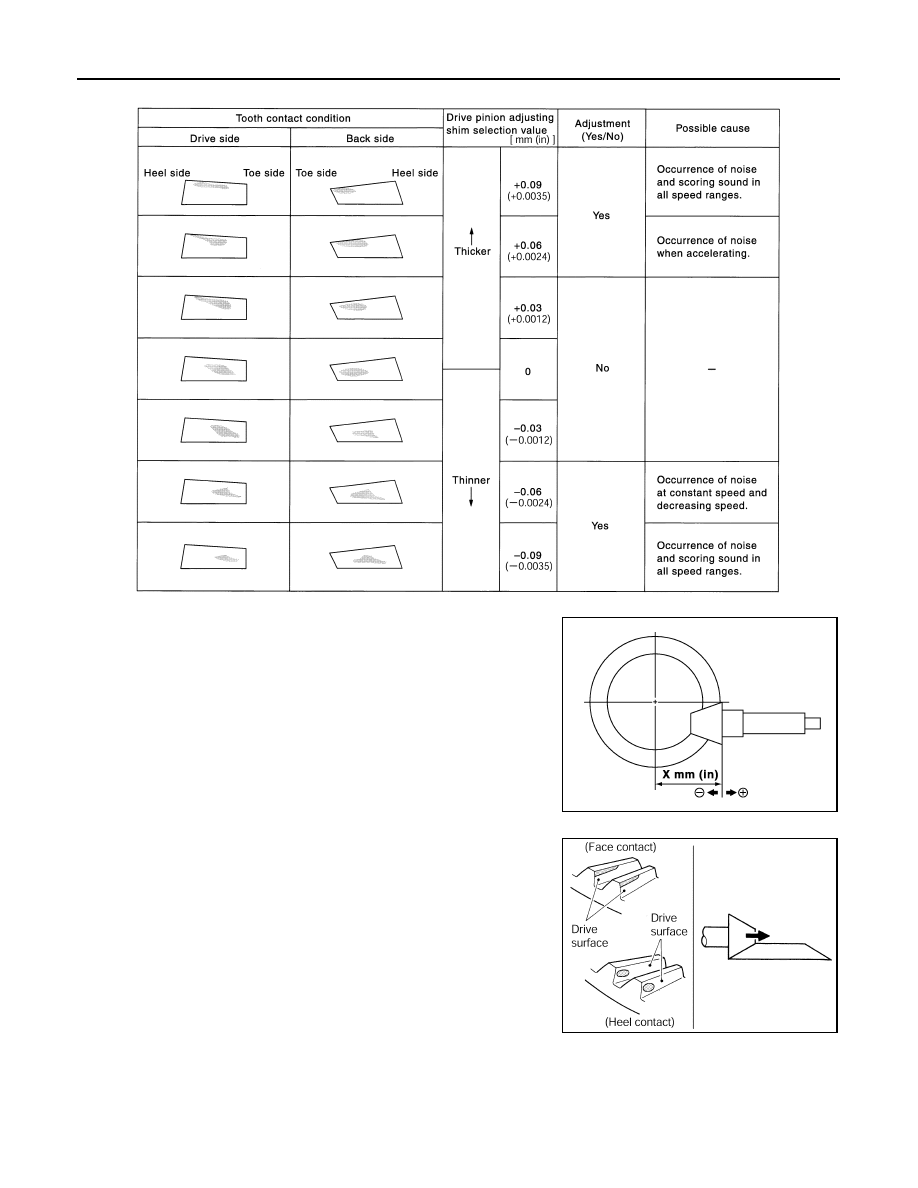

Tooth Contact Judgment Guide

5.

If tooth contact is improperly adjusted, follow the procedure
below to adjust the pinion height (dimension X).

• If the tooth contact is near the face (face contact), or near the

heel (heel contact), thicken drive pinion gear adjusting shim to
move drive pinion closer to drive gear.

SDIA2549E

SDIA0517E

PDIA0440E

DRIVE PINION

DLN-227

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

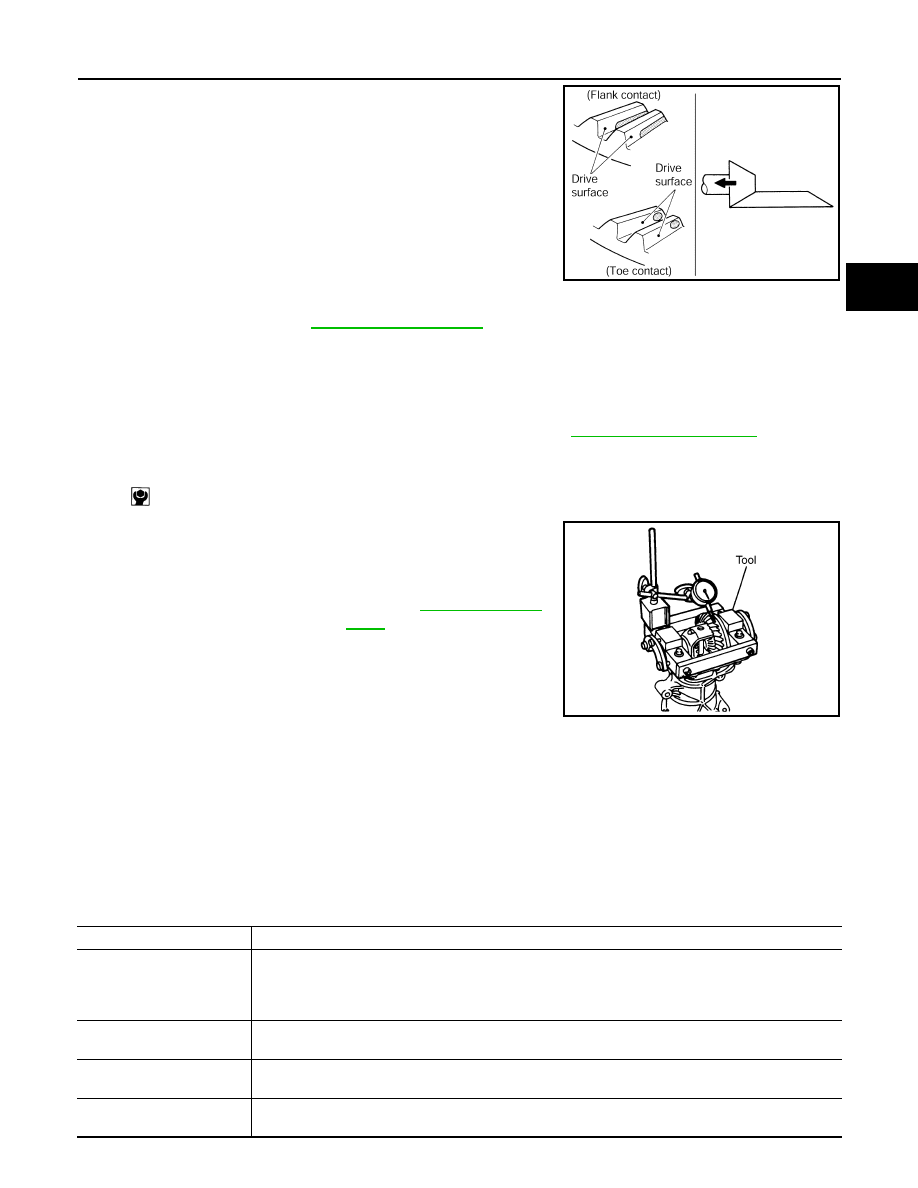

• If the tooth contact is near the flank (flank contact), or near the

toe (toe contact), thin drive pinion gear adjusting shim to move
drive pinion farther from drive gear.

BACKLASH

1.

Remove rear cover. Refer to

DLN-214, "Disassembly"

.

2.

Following the procedure below, install a dummy cover set (SST: KV389L0010) to gear carrier.

a.

Set dummy cover shims to the right and left side bearing adjusting shims.

b.

Temporarily tighten dummy cover to gear carrier.

c.

Position dummy cover spacers to dummy cover.

d.

Tighten rear cover mounting bolts to the specified torque. Refer to

DLN-219, "Exploded View"

.

e.

Tighten dummy cover spacer mounting bolts evenly to the specified torque.

3.

Fit a dial indicator to the drive gear face to measure the back-
lash.

• If the backlash is outside of the specified value, change the

thickness of side bearing adjusting shims.

Inspection After Disassembly

INFOID:0000000010288422

Clean up the disassembled parts. Then, inspect if the parts are worn or damaged. If so, follow the measures
below.

PDIA0441E

: 5.9 N·m (0.6 kg-m, 52 in-lb)

Standard

Backlash

: Refer to

DLN-229, "Back-

lash"

.

When the backlash is large:

Make drive gear back adjusting shims thicker, and drive
gear front adjusting shims thinner.

When the backlash is small:

Make drive gear back adjusting shims thinner, and
drive gear front adjusting shims thicker.

PDIA0049E

Content

Conditions and Measures

Hypoid gear

• If the gear teeth do not mesh or line-up correctly, determine the cause and adjust or replace as nec-

essary.

• If the gears are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new

drive gear and drive pinion as a set.

Bearing

If any chipped (by friction), pitted, worn, rusted or scratched mark, or unusual noise from the bearing is
observed, replace as a bearing assembly (as a new set).

Side gear and Pinion mate
gear

• If any cracks or damage on the surface of the tooth is found, replace.
• If any worn or chipped mark on the contact sides of the thrust washer is found, replace.

Side gear thrust washer and
pinion mate thrust washer

If it is chipped (by friction), damaged, or unusually worn, replace.

DLN-228

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

DRIVE PINION

Differential case

If any wear or crack on the contact sides of the differential case is found, replace.

Companion flange

If any chipped mark (about 0.1 mm, 0.004 in) or other damage on the contact sides of the lips of the com-
panion flange is found, replace.

Content

Conditions and Measures

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-229

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000010288423

Drive Gear Runout

INFOID:0000000010288424

Unit: mm (in)

Differential Side Gear Clearance

INFOID:0000000010288425

Unit: mm (in)

Preload Torque

INFOID:0000000010288426

Unit: N·m (kg-m, in-lb)

Backlash

INFOID:0000000010288427

Unit: mm (in)

Companion Flange Runout

INFOID:0000000010288428

Unit: mm (in)

Applied model

4WD

R9M

MR20DDT

MT

CVT

Final drive model

R145

Gear ratio

2.466

Number of teeth (Drive gear/Drive pinion)

37/15

Oil capacity (Approx.)

 (lmp pt)

0.55 (1)

Number of pinion gears

2

Drive pinion adjustment spacer type

Collapsible

Item

Limit

Drive gear back face runout

0.05 (0.0020)

Item

Standard

Side gear backlash (Clearance between side gear and differential
case)

0.2 (0.008) or less

(Each gear should rotate smoothly without excessive resistance

during differential motion.)

Item

Standard

Pinion bearing (P

1

)

0.69 – 1.18 (0.07 – 0.12, 7 – 10)

Side bearing (P

2

)

0.64 – 0.98 (0.07 – 0.09, 6 – 8)

Side bearing to pinion bearing (Total preload)
(Total preload = P

1

 + P

2

)

1.33 – 2.16 (0.14 – 0.22, 12 – 19)

Item

Standard

Drive gear to drive pinion gear

0.10 – 0.15 (0.0039 – 0.0059)

Item

Limit

Companion flange face

0.13 (0.0051)

Inner side of the companion flange

0.19 (0.0075)
