BLOWER MOTOR

Exploded View

INFOID:0000000010451823

Refer to

HA-40, "Exploded View"

.

Removal and Installation

INFOID:0000000010451824

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Disconnect blower motor connector and remove fixing screw.

3.

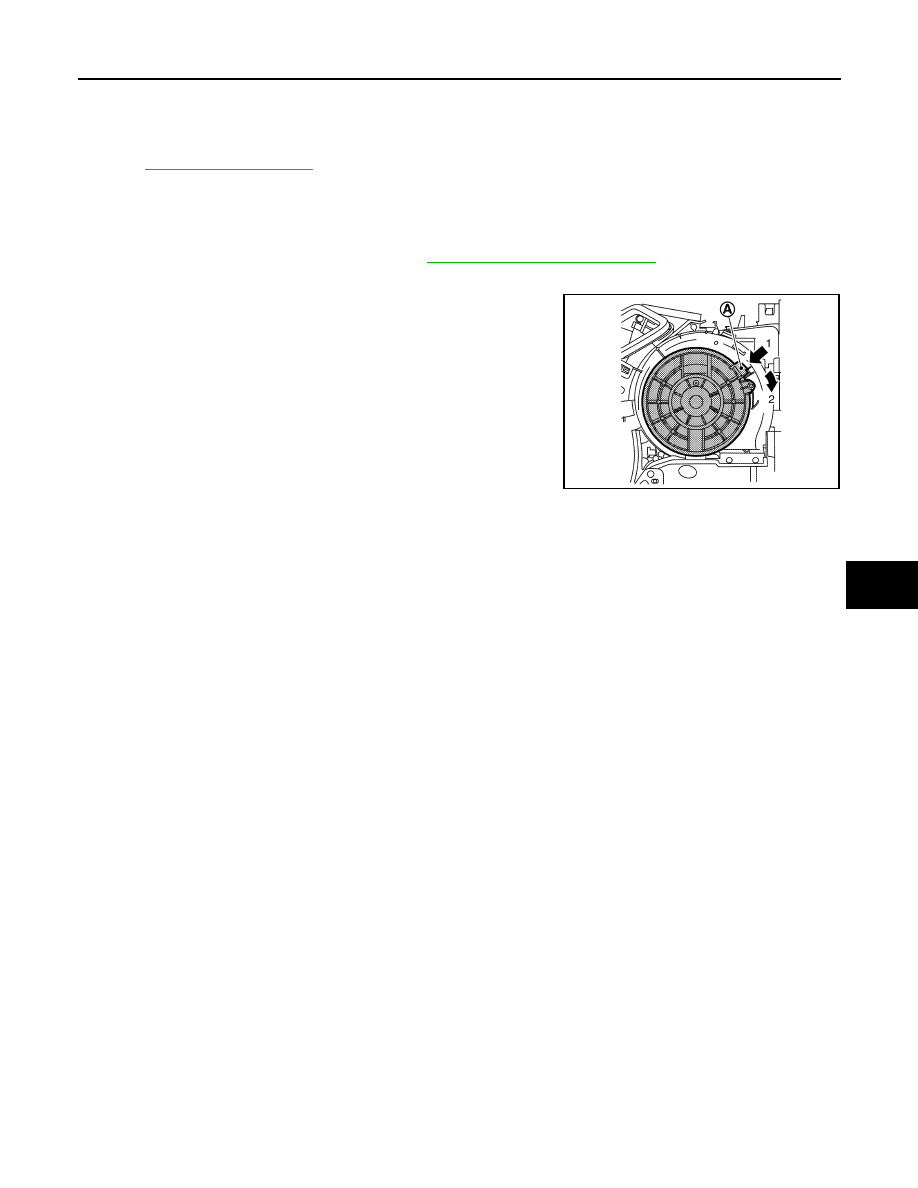

Press flange holding hook (A), and then turn blower motor clock-
wise according numerical order 1

→

2 indicated by arrows as

shown in the figure.

4.

Pull outside, and then remove blower motor.

INSTALLATION

Install in the reverse order of removal.

JMIIA3373ZZ

VTL-18

< REMOVAL AND INSTALLATION >

BLOWER MOTOR

BLOWER MOTOR

Exploded View

INFOID:0000000010451823

Refer to

HA-39, "Exploded View"

.

Removal and Installation

INFOID:0000000010451824

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Disconnect blower motor connector and remove fixing screw.

3.

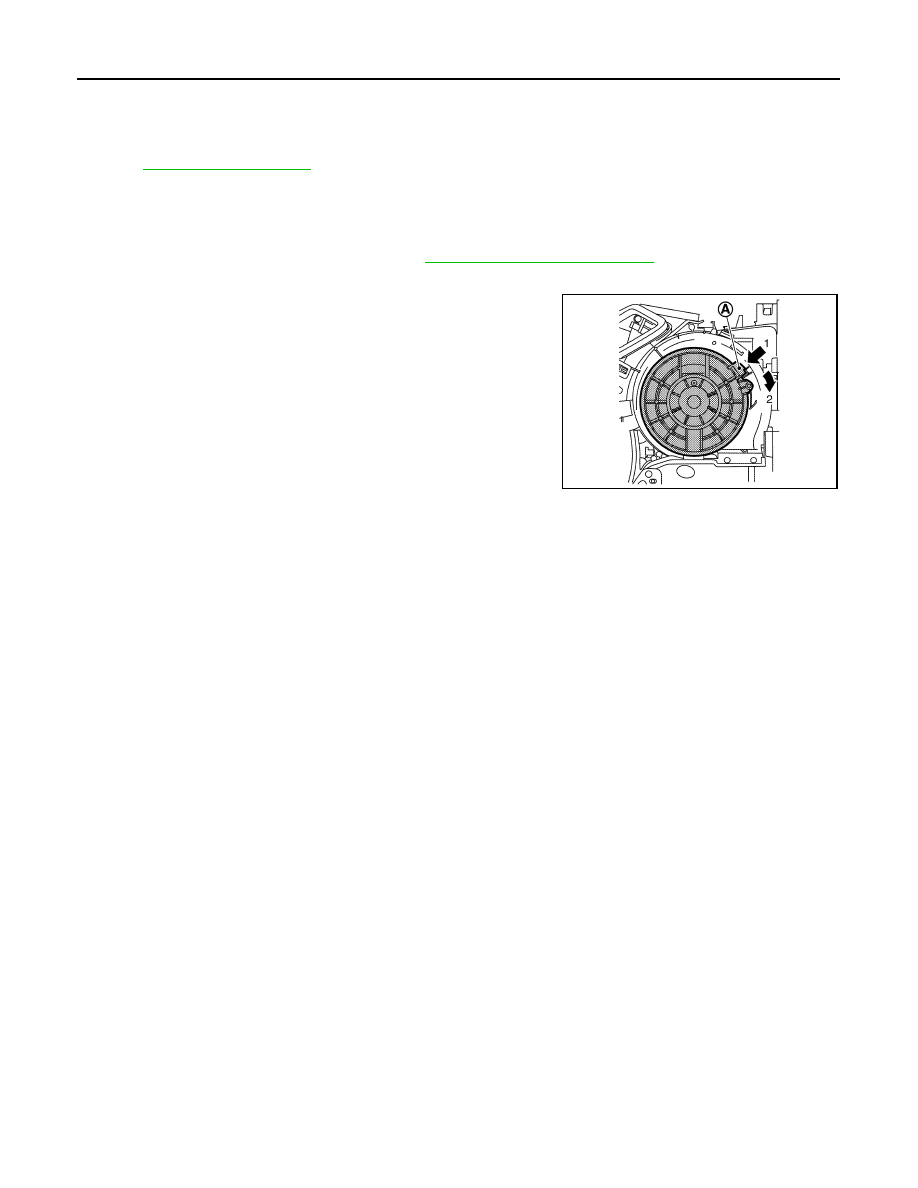

Press flange holding hook (A), and then turn blower motor clock-
wise according numerical order 1

→

2 indicated by arrows as

shown in the figure.

4.

Pull outside, and then remove blower motor.

INSTALLATION

Install in the reverse order of removal.

JMIIA3373ZZ

AIR CONDITIONER FILTER

VTL-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

AIR CONDITIONER FILTER

Exploded View

INFOID:0000000010451825

Refer to

HA-39, "Exploded View"

.

Removal and Installation

INFOID:0000000010451826

REMOVAL

Remove filter cover LH (RHD models) or filter cover RH (LHD models), and then remove air conditioner filter.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• If the filter is deformed/damaged when removing, replace it with a new one. Deformed/damaged filter

may deteriorate the dust collecting performance.

• When installing, handle the filter with extreme care to avoid deforming/damaging.

Replacement

INFOID:0000000010451827

Replace Air conditioner filter.
Refer to

VTL-20, "Air Conditioner Filter"

.

VTL-20

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Air Conditioner Filter

INFOID:0000000010451828

Replacement interval

•

MA-8, "HRA2DDT : Periodic Maintenance"

 (HRA2DDT)

•

MA-22, "MR20DD : Periodic Maintenance"

 (MR20DD)

•

MA-29, "K9K : Periodic Maintenance"

 (K9K)

•

MA-37, "R9M : Periodic Maintenance"

 (R9M)
