Qashqai J11. Starting system - part 3

STARTER MOTOR

STR-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

K9K : Removal and Installation

INFOID:0000000010324191

REMOVAL

1.

Disconnect the battery cable from the negative terminal. Refer to

PG-154, "Exploded View"

.

2.

Remove air inlet tube. Refer to

EM-428, "Exploded View"

.

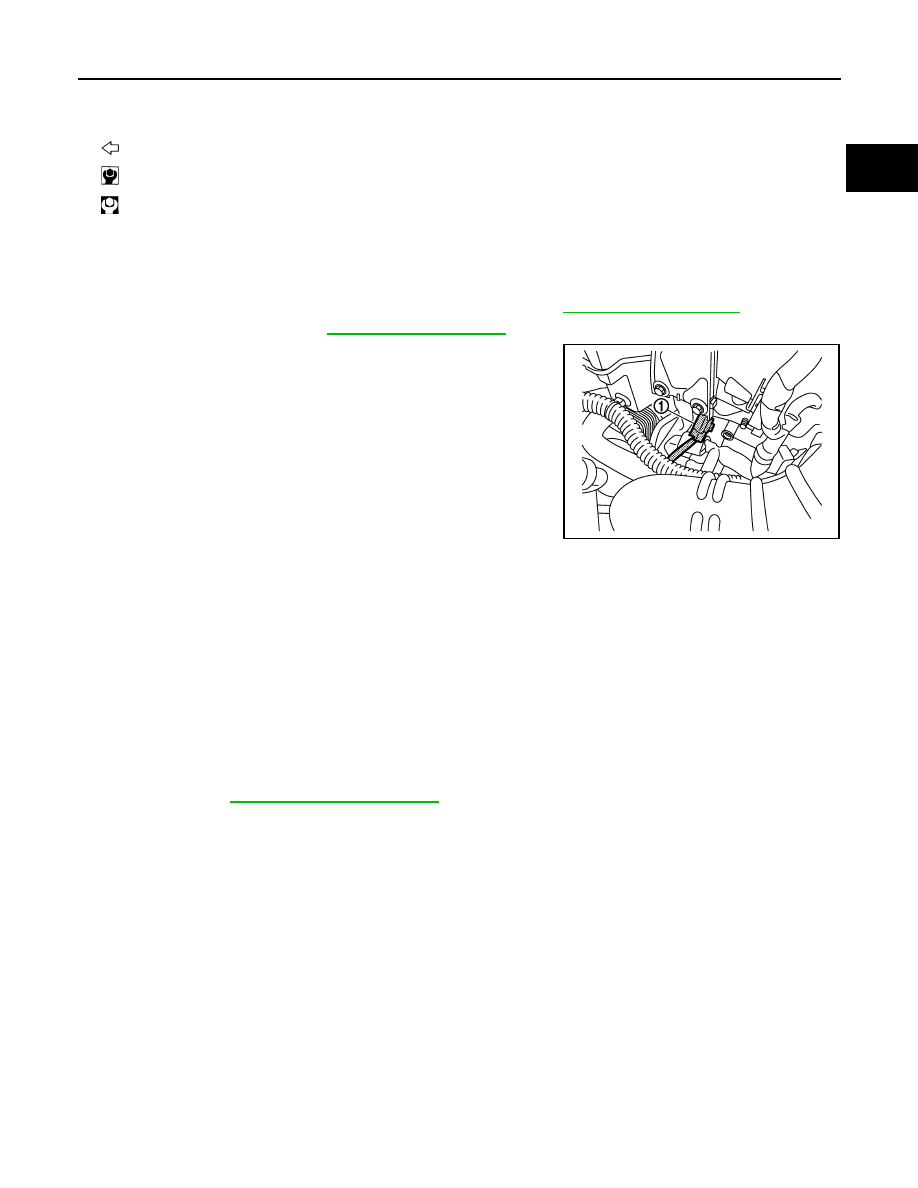

3.

Disconnect the fuel rail pressure (FRP) sensor harness connec-
tor (1).

4.

Remove “S” terminal nut and “S” terminal harness.

5.

Remove “B” terminal nut and “B” terminal harness.

6.

Remove starter motor mounting bolts.

7.

Remove starter motor upward from the vehicle.

CAUTION:

For models with STOP/START SYSTEM, never erase the starter operation counter except when
replacing starter motor.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Be careful to tighten “B” terminal nut to the specified torque.
• Erase the starter operation counter when the starter motor for models with STOP/START SYSTEM is

replaced. Refer to

ECK-146, "Work Procedure"

.

• Replace the engine restart relay and the fuel pump relay when the starter motor models with STOP/

START SYSTEM is replaced.

R9M

1.

Starter motor

2.

“B” terminal nut

3.

“S” terminal nut

4.

Starter motor mounting bolt

  : Vehicle front

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMBIA4599ZZ

STR-34

< REMOVAL AND INSTALLATION >

STARTER MOTOR

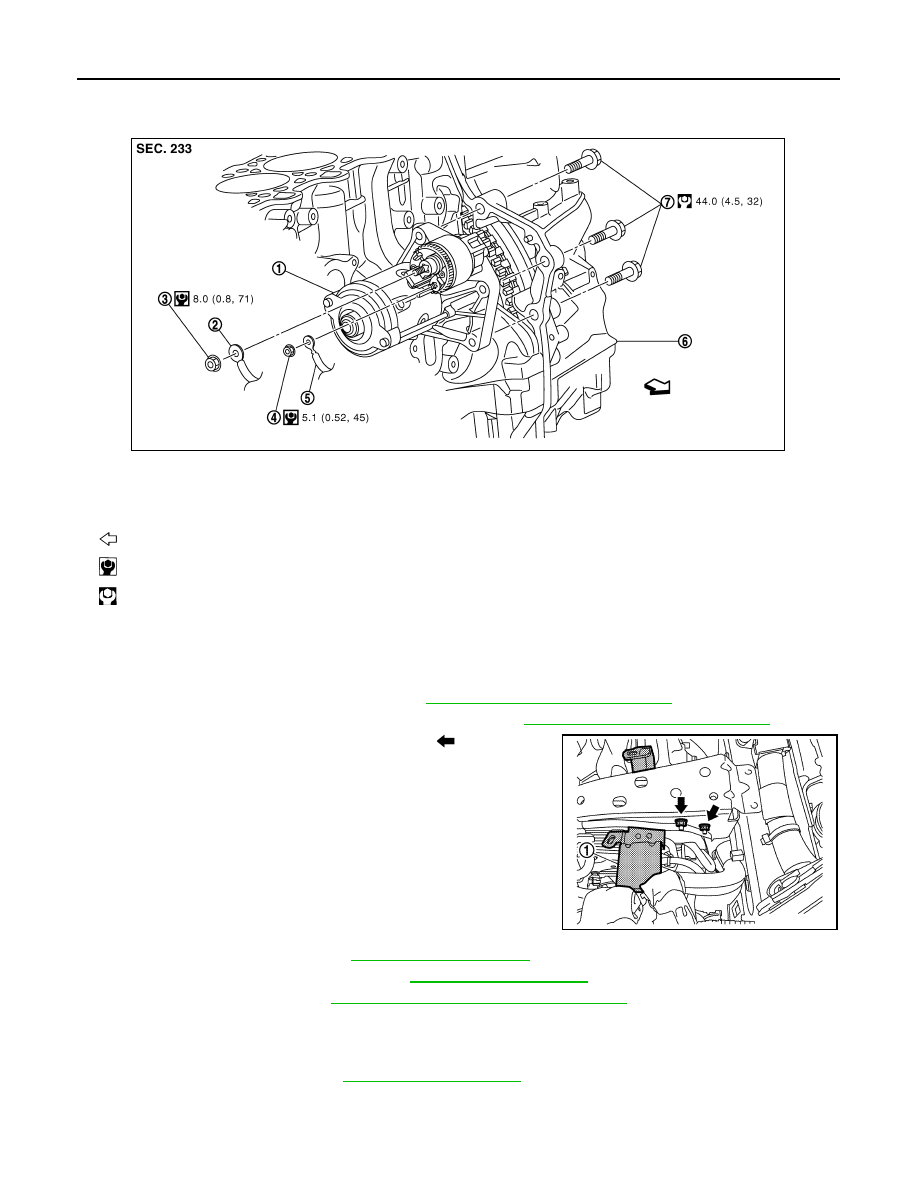

R9M : Exploded View

INFOID:0000000010324196

R9M : Removal and Installation

INFOID:0000000010324197

REMOVAL

1.

Remove the battery and battery tray. Refer to

PG-155, "Removal and Installation"

.

2.

Remove the ECM (TCM) bracket and ECM (TCM). Refer to

TM-632, "Removal and Installation"

.

3.

Remove the harness bracket mounting nuts (

) and remove

the harness bracket (1) from the vehicle.

4.

Remove the air inlet tube. Refer to

EM-530, "Exploded View"

.

5.

Remove the radiator hose (lower). Refer to

CO-125, "Exploded View"

.

6.

Remove the alternator. Refer to

CHG-33, "R9M : Removal and Installation"

.

7.

Remove the oil level gauge and oil level gauge guide.

CAUTION:

Cover the openings to avoid entry of foreign materials.

8.

Remove the water hose. Refer to

CO-133, "Exploded View"

.

1.

Starter motor

2.

“B” terminal harness

3.

“B” terminal nut

4.

“S” terminal nut

5.

“S” terminal harness

6.

Transmission housing

7.

Starter motor mounting bolt

: Vehicle front

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMBIA4245GB

JSDIA5410ZZ

STARTER MOTOR

STR-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

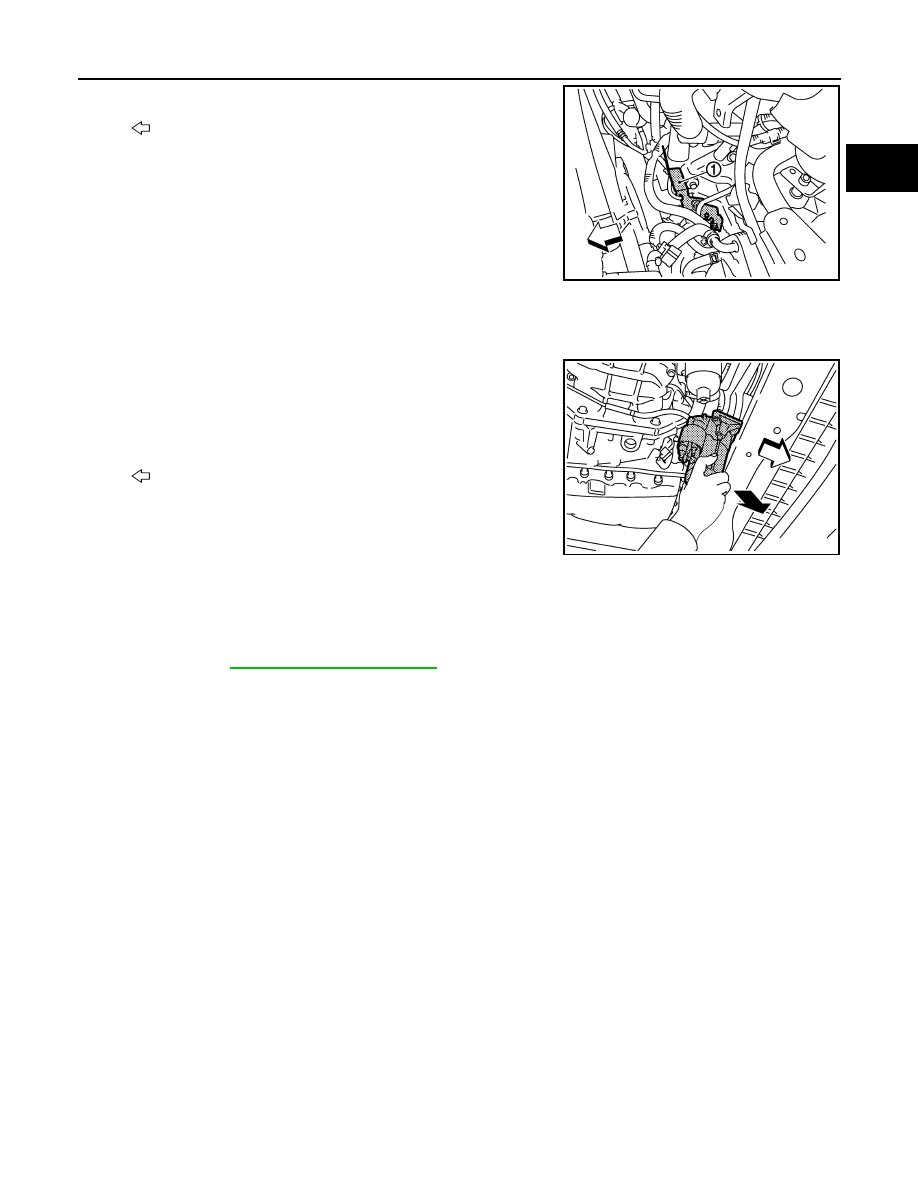

9.

Remove harness bracket (1).

10. Remove “B” terminal nut (A) and “B” terminal harness.

11. Remove “S” terminal nut (B) and “S” terminal harness.

12. Remove starter motor mounting bolts.
13. Remove starter motor (1) downward from the vehicle.

CAUTION:

For models with STOP/START SYSTEM, never erase the
starter operation counter except when replacing starter
motor.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Be careful to tighten “B” terminal nut to the specified torque.
• Erase the starter operation counter when the starter motor for models with STOP/START SYSTEM is

replaced. Refer to

EC9-155, "Work Procedure"

.

• Replace the engine restart relay and the fuel pump relay when the starter motor models with STOP/

START SYSTEM is replaced.

: Vehicle front

JMBIA4601ZZ

: Vehicle front

JMBIA4602ZZ

STR-36

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Starter Motor

INFOID:0000000010201146

Engine

HR

K9K

Type

M000TD0371

M000TD0375

M000T46571

0 001 170 605

MITUBISHI make

BOSCH make

Reduction gear type

System voltage

[V]

12

No-load

Terminal voltage

[V]

11.5

—

Current

[A]

Less than 110

Less than 110

Less than 40

—

Revolution

[rpm]

More than 2,800

More than 2,800

More than 5,000

—

Minimum  diameter  of  commutator

[mm  (in)]

—

—

—

—

Minimum  length  of  brush

[mm  (in)]

—

—

—

—

Brush  spring  tension

[N  (kg,  lb)]

—

—

—

—

Clearance between bearing metal
and armature shaft

[mm  (in)]

—

—

—

—

Clearance “L” between pinion front
edge and pinion stopper

[mm  (in)]

—

—

—

—

Engine

R9M

MR20DD

MR16DDT

Type

0 001 170 607

S114 - 971

S116 - 001

BOSCH make

HITACHI make

Reduction gear type

System voltage

[V]

12

No-load

Terminal voltage

[V]

—

11

Current

[A]

—

Less than 110

Revolution

[rpm]

—

More than 3,300

More than 3,500

Minimum diameter of commutator

[mm (in)]

—

28.0 (1.102)

—

Minimum length of brush

[mm (in)]

—

10.5 (0.413)

—

Brush spring tension

[N (kg, lb)]

—

16.2 (1.65, 3.6)

—

Clearance between bearing metal and ar-
mature shaft

[mm (in)]

—

Less than 0.2

(0.008)

—

Clearance “L” between pinion front edge
and pinion stopper

[mm (in)]

—

0.3 - 2.5 (0.012 -

0.098)

—
