PASSENGER AIR BAG CUTOFF FUNCTION

The passenger air bag module can change ON/OFF of the function by operating passenger air bag cutoff
switch. The passenger air bag cutoff switch is located in the left side of glove box. The indicators in indicator
unit turn on/off according to the passenger air bag cutoff switch state.
• When passenger air bag cutoff switch is turned to the ON position, the passenger air bag module is enabled

and could inflate for certain types of collision. And front passenger air bag on indicator turn on.

• When the switch is turned to the OFF position, the passenger air bag module is disabled and will not inflate.

And front passenger air bag off indicator turn on.

NOTE:
The driver side air bag module always reminds enabled and is not affected by the passenger air bag cutoff
switch.

Curtain air bag module RH

—

Collision detection output function

SRS configuration

Frontal collision

Rear collision

Left side collision

Right side collision

SRC-18

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (AIR BAG)

DIAGNOSIS SYSTEM (AIR BAG)

CONSULT Function

INFOID:0000000010377821

APPLICATION ITEM

CONSULT performs the following functions.

SELF-DIAG RESULT

Refer to

SRC-19, "DTC Index"

Diagnosis mode

Description

Self Diagnostic Result

• Self-diagnosis result is displayed.
• “No DTC” is displayed when repair is completed by part replacement or other operations.
• “SELF-DIAG RESULT [MEMORY]” is displayed until “Erase” performed.

Data Monitor

This item is displayed, but cannot be supported.

ECU Identification

Air bag diagnosis sensor unit ECU discriminated number (identification number) or part number is
displayed. Air bag diagnosis sensor unit has individual ECU discriminated number (identification
number) or part number based on model and equipment.

TROUBLE DIAG RECORD

With TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be
displayed on CONSULT screen.

DIAGNOSIS SENSOR UNIT

SRC-19

< ECU DIAGNOSIS INFORMATION >

SRC

ECU DIAGNOSIS INFORMATION

DIAGNOSIS SENSOR UNIT

DTC Index

INFOID:0000000010377822

DTC

Diagnostic item

Reference page

U1000–01

CAN COMM CIRCUIT

SRC-40, "DTC Logic"

U1010–49

CONTROL UNIT (CAN)

SRC-41, "DTC Logic"

B0001–00

DRIVER AIRBAG MODULE

SRC-42, "DTC Description"

B0001–09

B0001–11

B0001–12

B0001–13

B0001–1A

B0010–09

ASSIST A/B MODULE

SRC-45, "DTC Description"

B0010–11

B0010–12

B0010–13

B0010–1A

B0020–09

SIDE A/B MODULE LH

SRC-47, "DTC Description"

B0020–11

B0020–12

B0020–13

B0020–1A

B0021–09

CURTAIN A/B MODULE LH

SRC-49, "DTC Description"

B0021–11

B0021–12

B0021–13

B0021–1A

B0028–09

SIDE A/B MODULE RH

SRC-51, "DTC Description"

B0028–11

B0028–12

B0028–13

B0028–1A

B0029–09

CURTAIN A/B MODULE RH

SRC-53, "DTC Description"

B0029–11

B0029–12

B0029–13

B0029–1A

SRC-20

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

B0091–11

B-PILLAR SAT SEN LH

SRC-55, "DTC Description"

B0091–23

B0091–24

B0091–25

B0091–28

B0091–81

B0091–86

B0091–88

B0091–93

B0094–11

CRASH ZONE SENS

SRC-57, "DTC Description"

B0094–23

B0094–24

B0094–25

B0094–28

B0094–81

B0094–86

B0094–88

B0094–93

B0096–11

B-PILLAR SAT SEN RH

SRC-59, "DTC Description"

B0096–23

B0096–24

B0096–25

B0096–28

B0096–81

B0096–86

B0096–88

B0096–93

B00D2–04

PASS A/B ON INDCTR CIRC

SRC-61, "DTC Description"

B00D2–11

B00D2–12

B00D2–13

B00D2–15

B00D5–04

PASS A/B ON INDCTR CIRC

SRC-63, "DTC Description"

B00D5–11

B00D5–12

B00D5–13

B00D5–15

B00DF–52

PASS A/B DEACT SW

SRC-65, "DTC Description"

DTC

Diagnostic item

Reference page

DIAGNOSIS SENSOR UNIT

SRC-21

< ECU DIAGNOSIS INFORMATION >

SRC

B0099–11

SATELLITE SENSOR

SRC-67, "DTC Description"

B0099–23

B0099–24

B0099–25

B0099–28

B0099–81

B0099–86

B0099–88

B0099–93

B1400–00

CONTROL UNIT

SRC-69, "DTC Description"

B1401–00

B1402–00

B1403–00

B1404–00

B1405–00

B1406–00

CONTROL UNIT

SRC-71, "DTC Description"

B1407–00

B1408–00

B1409–00

B1410–00

B1411–00

CONTROL UNIT

SRC-73, "DTC Description"

B1412–00

B1413–00

B1414–00

B1415–00

B1416–00

CONTROL UNIT

SRC-75, "DTC Description"

B1417–00

B1418–00

B1419–00

B1420–00

B1421–00

FRONTAL COLLISION

SRC-77, "DTC Description"

B1422–00

SIDE COLLISION

SRC-78, "DTC Description"

B1425–00

REAR COLLISION

SRC-79, "DTC Description"

B1427–54

CONFIG SETTING

SRC-80, "DTC Description"

B1427–55

B142A–16

IGNITION VOLTAGE

SRC-81, "DTC Description"

B142A–17

B1430–09

PRE-TEN FRONT LH

SRC-83, "DTC Description"

B1430–11

B1430–12

B1430–13

B1430–1A

DTC

Diagnostic item

Reference page

SRC-22

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

B1431–09

PRE-TEN FRONT RH

SRC-85, "DTC Description"

B1431–11

B1431–12

B1431–13

B1431–1A

B1432–09

PRE-TEN FRONT LH 2

SRC-87, "DTC Description"

B1432–11

B1432–12

B1432–13

B1432–1A

B1433–09

PRE-TEN FRONT RH 2

SRC-89, "DTC Description"

B1433–11

B1433–12

B1433–13

B1433–1A

DTC

Diagnostic item

Reference page

SRS AIR BAG SYSTEM

SRC-23

< WIRING DIAGRAM >

SRC

WIRING DIAGRAM

SRS AIR BAG SYSTEM

LHD

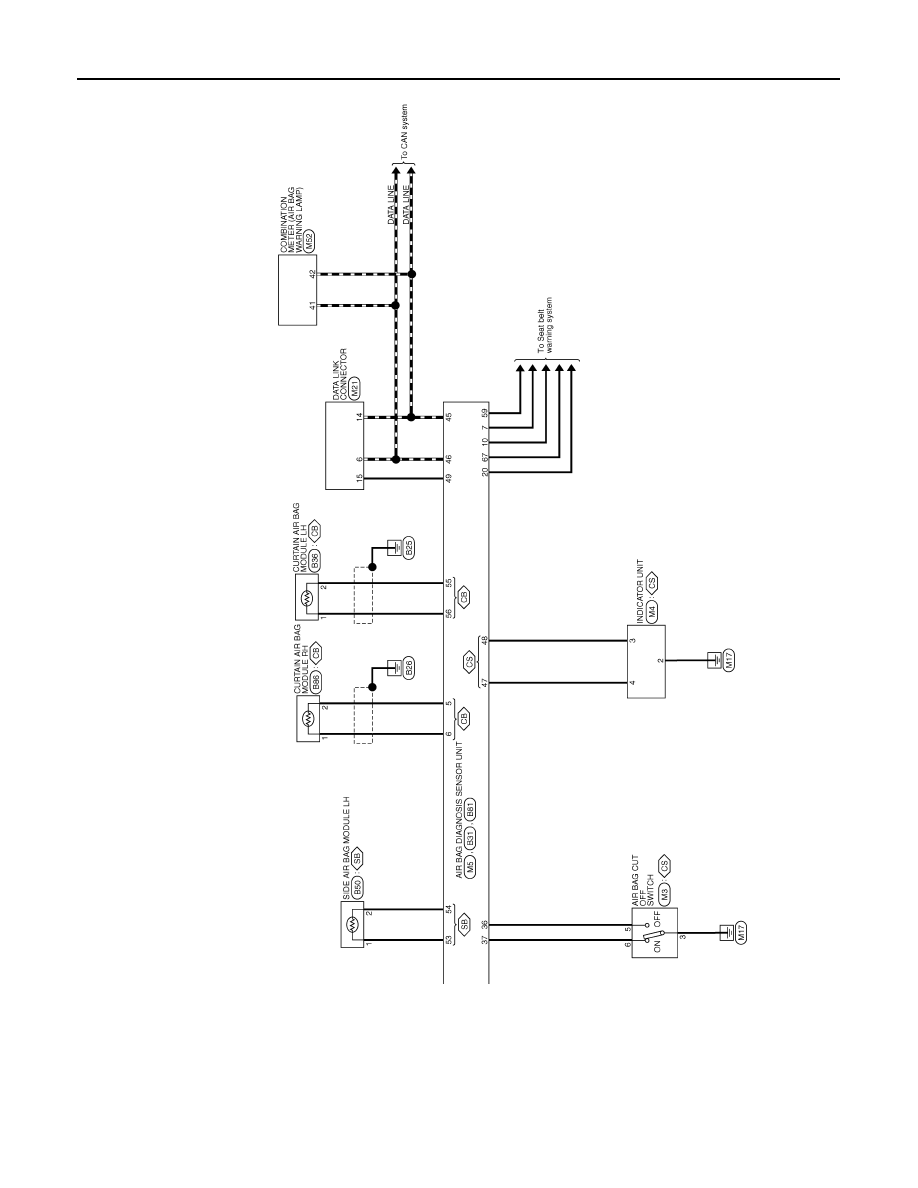

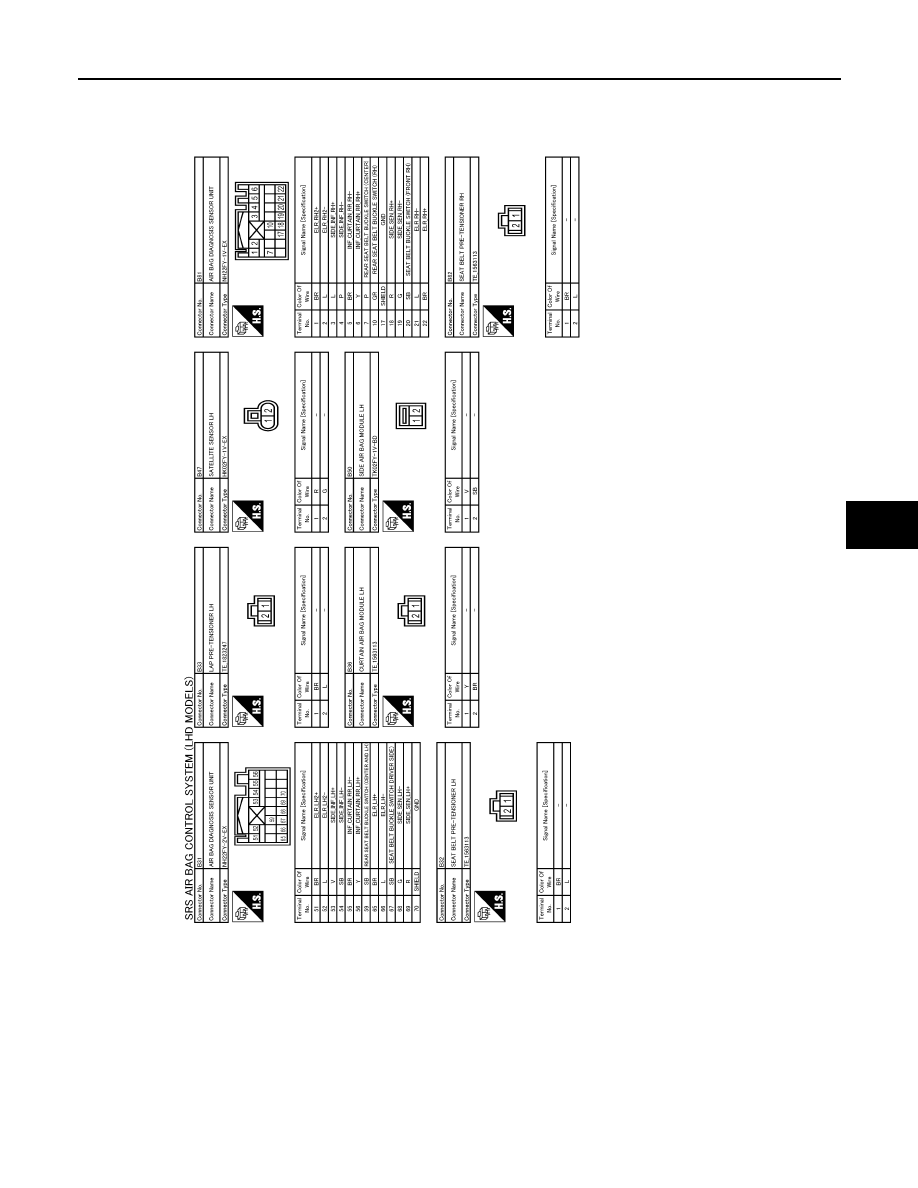

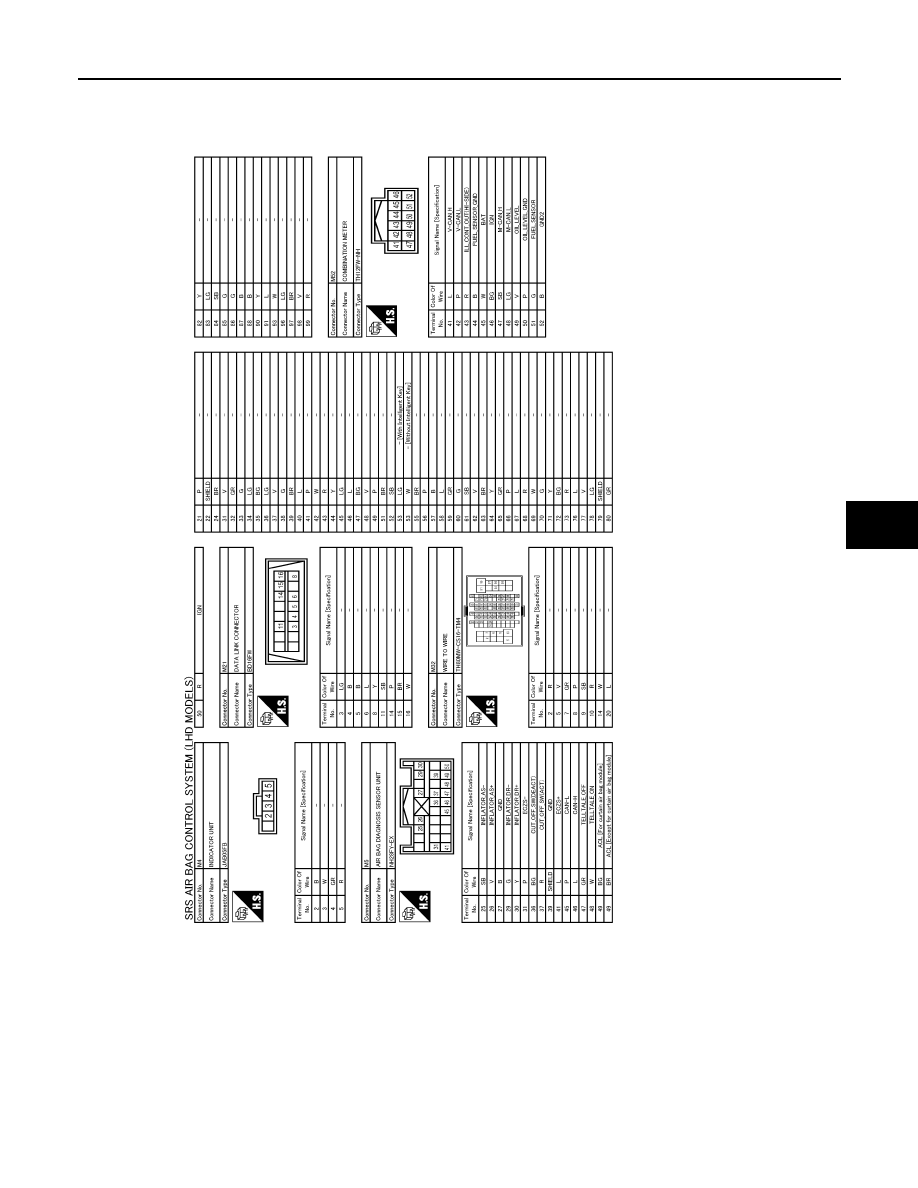

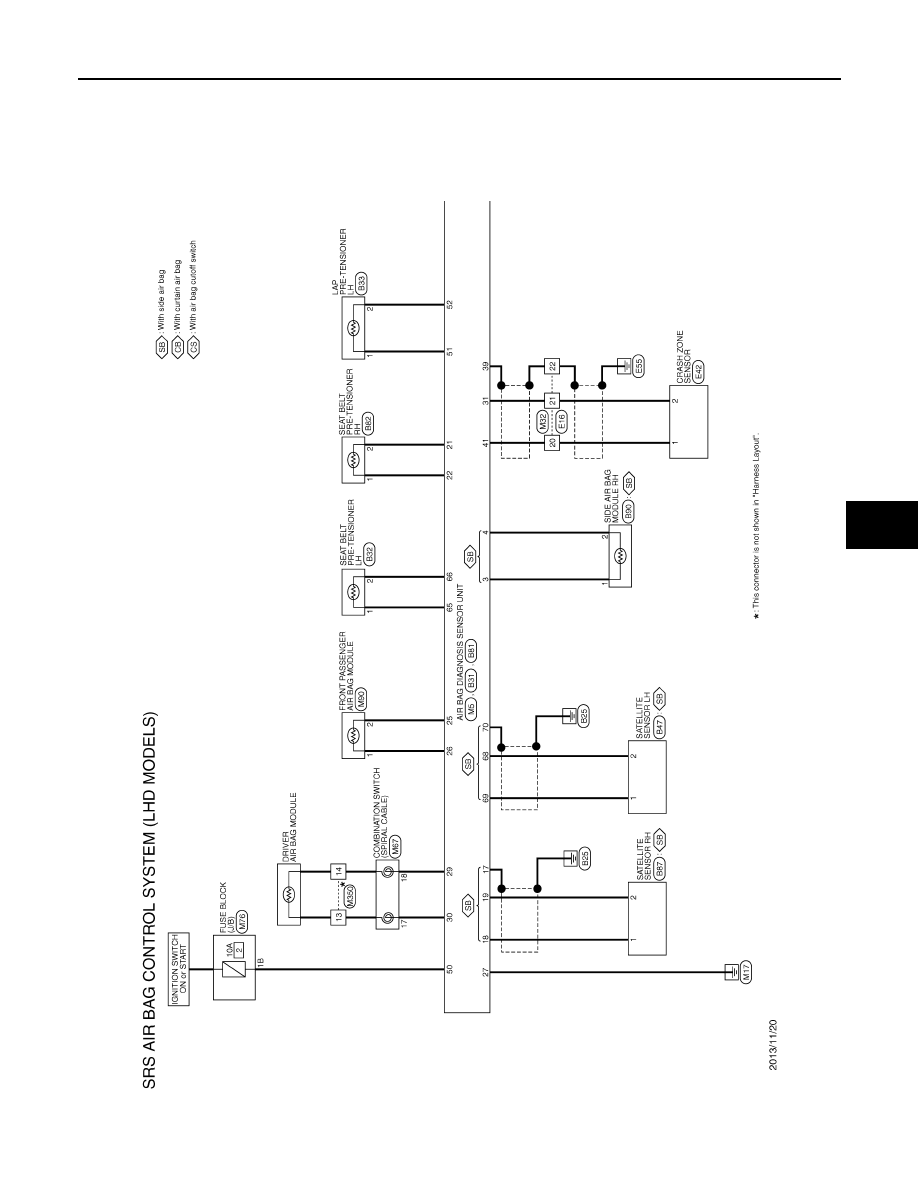

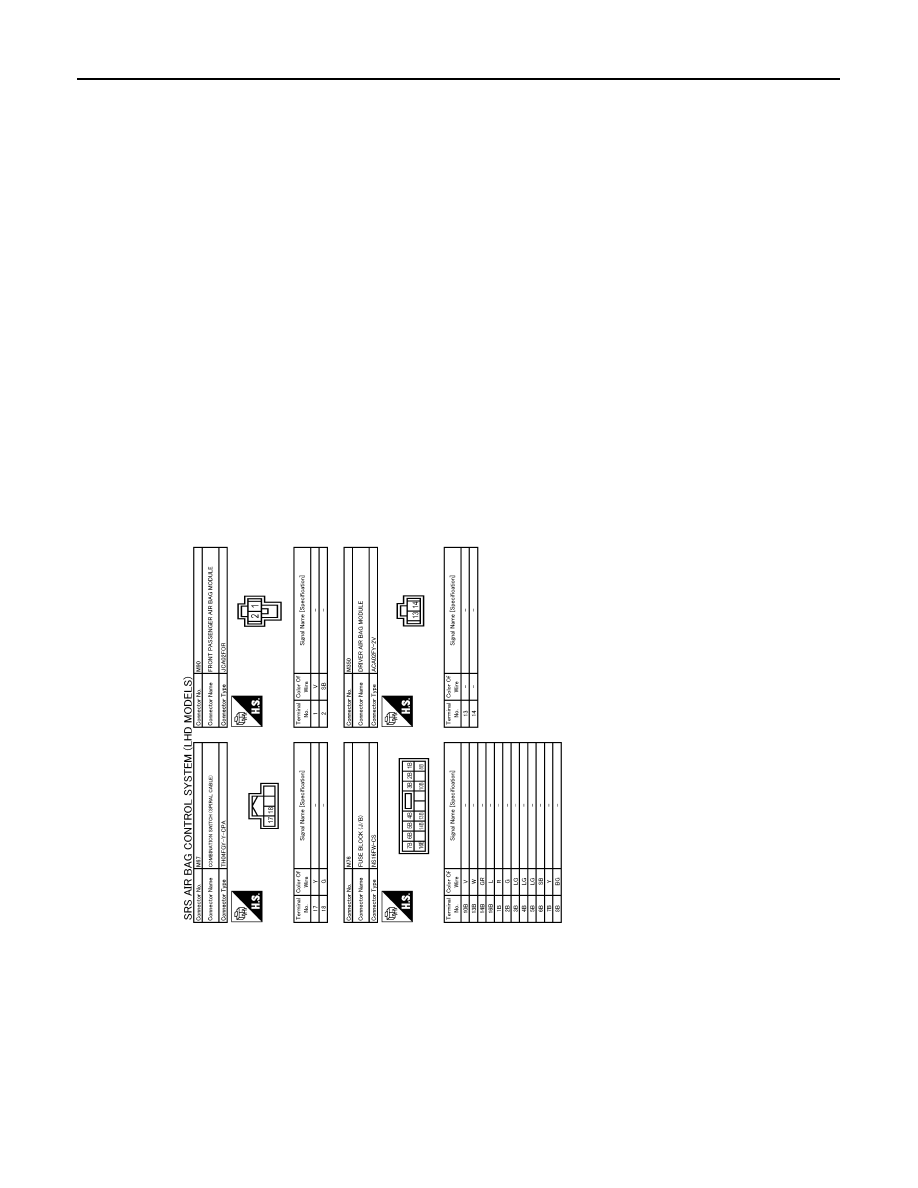

LHD : Wiring Diagram

INFOID:0000000010377823

JRHWC1560GB

SRC-24

< WIRING DIAGRAM >

SRS AIR BAG SYSTEM

JRHWC1828GB

SRS AIR BAG SYSTEM

SRC-25

< WIRING DIAGRAM >

SRC

JRHWC1577GB

SRC-26

< WIRING DIAGRAM >

SRS AIR BAG SYSTEM

JRHWC1578GB

SRS AIR BAG SYSTEM

SRC-27

< WIRING DIAGRAM >

SRC

JRHWC1579GB

SRC-28

< WIRING DIAGRAM >

SRS AIR BAG SYSTEM

RHD

JRHWC1580GB

SRS AIR BAG SYSTEM

SRC-29

< WIRING DIAGRAM >

SRC

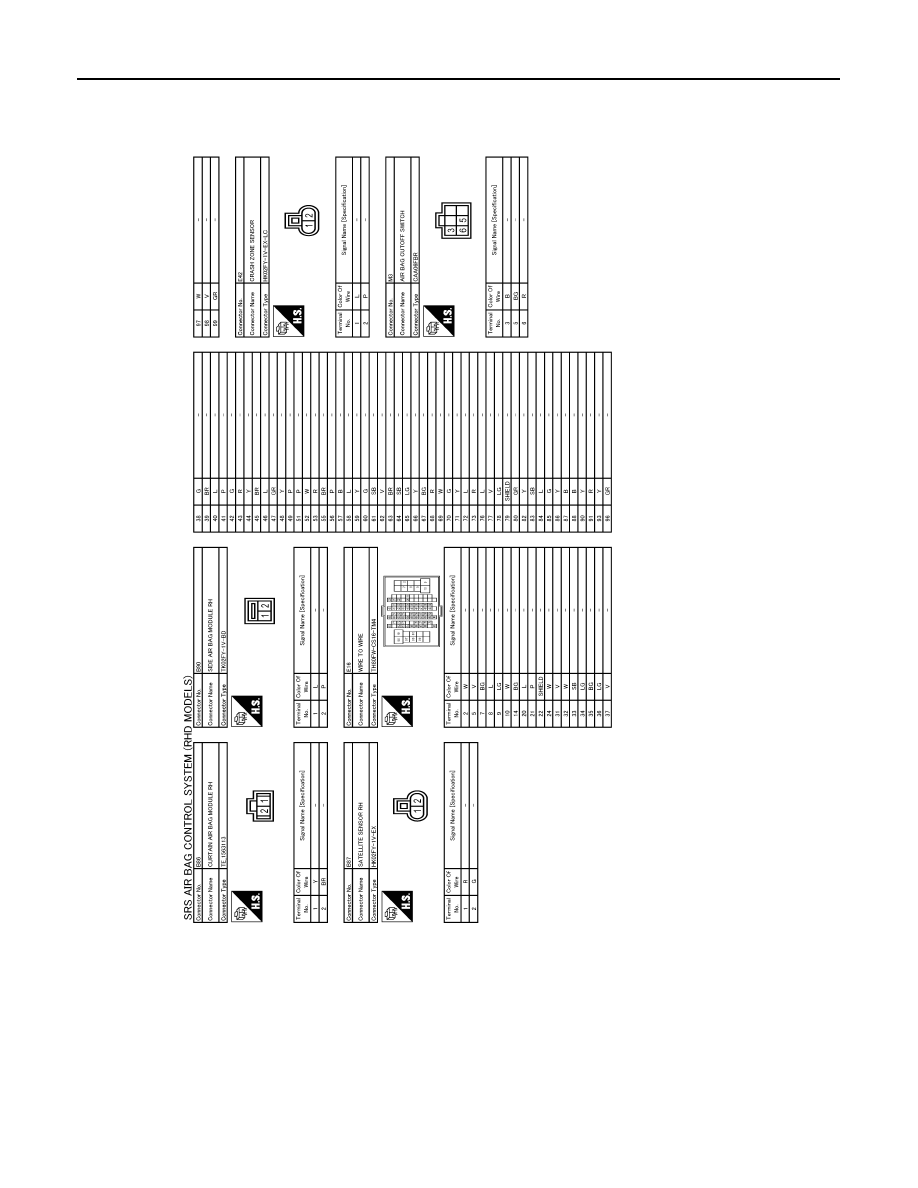

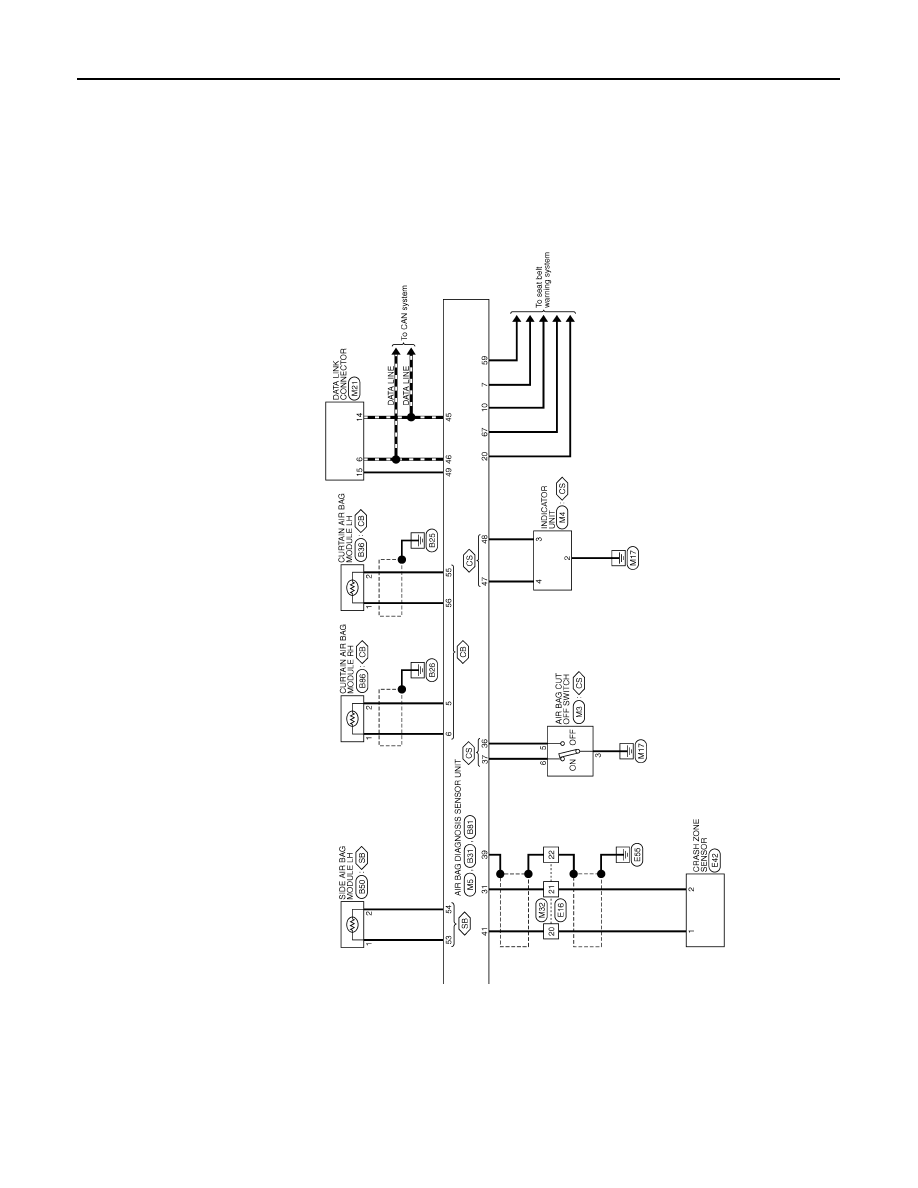

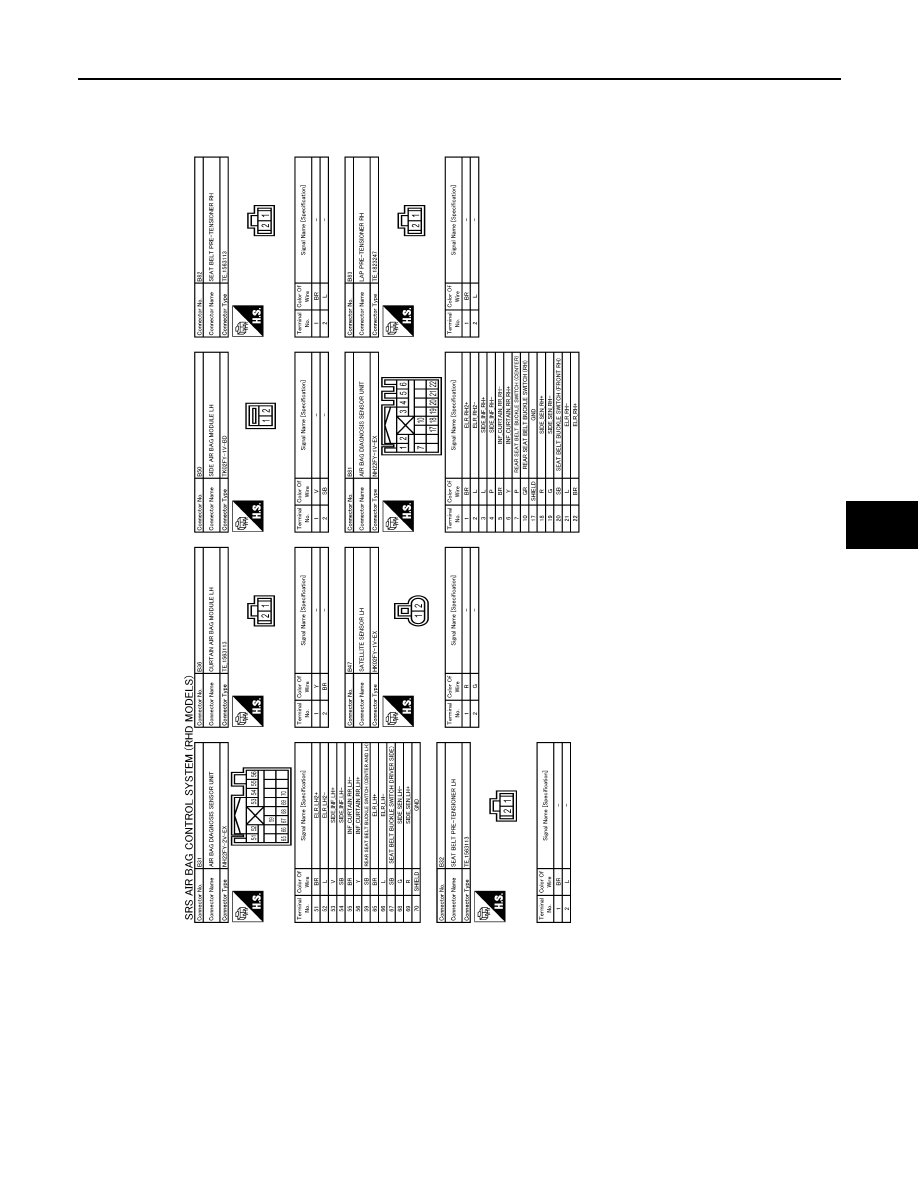

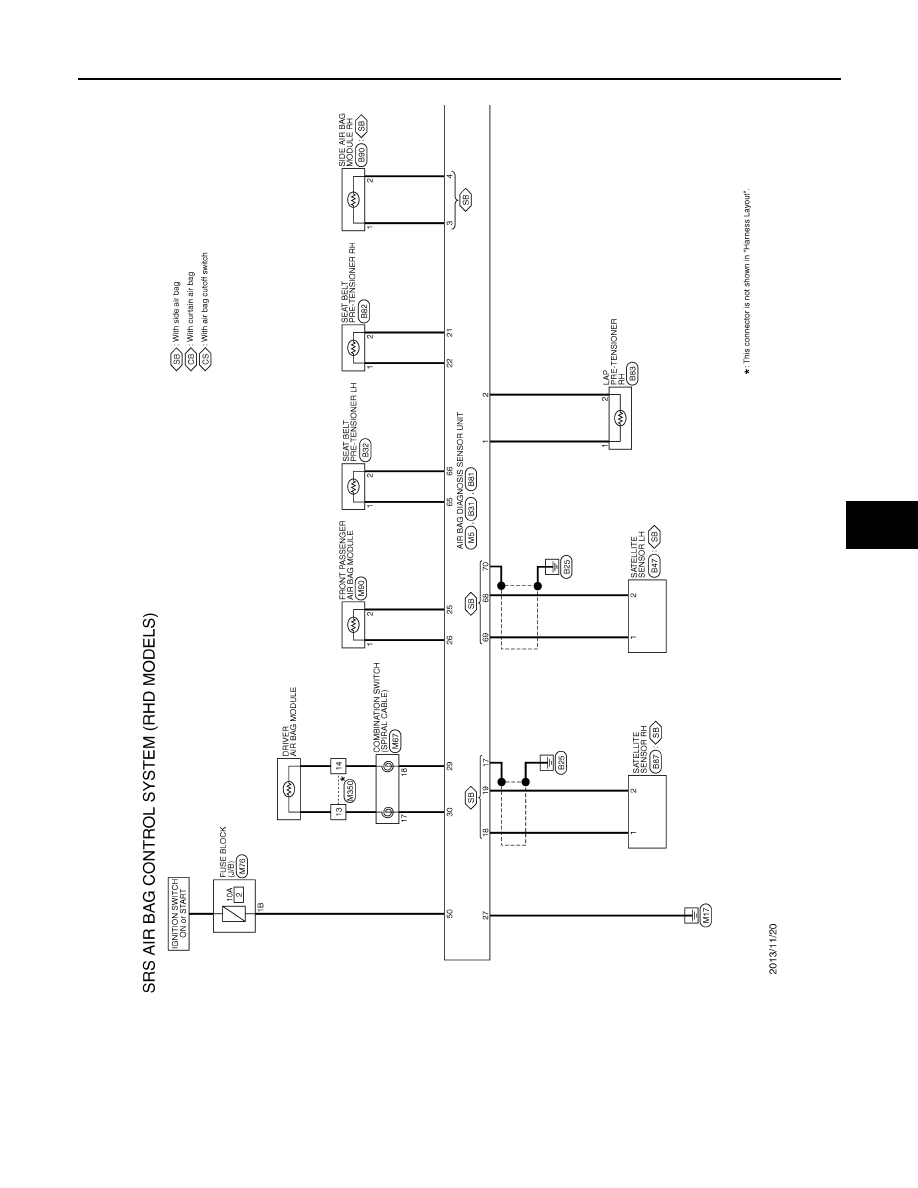

RHD : Wiring Diagram

INFOID:0000000010502954

JRHWC1562GB

SRC-30

< WIRING DIAGRAM >

SRS AIR BAG SYSTEM

JRHWC1563GB

SRS AIR BAG SYSTEM

SRC-31

< WIRING DIAGRAM >

SRC

JRHWC1581GB

SRC-32

< WIRING DIAGRAM >

SRS AIR BAG SYSTEM

JRHWC1582GB
