Qashqai J11. Sonar system - part 2





SN

SONAR SYSTEM

SN-17

< WIRING DIAGRAM >

[WITHOUT PARKING SPACE MEASUREMENT]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWE0838GB

SN-18

< WIRING DIAGRAM >

[WITHOUT PARKING SPACE MEASUREMENT]

SONAR SYSTEM

JRNWE0839GB

SN

SONAR SYSTEM

SN-19

< WIRING DIAGRAM >

[WITHOUT PARKING SPACE MEASUREMENT]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWE0840GB

SN-20

< WIRING DIAGRAM >

[WITHOUT PARKING SPACE MEASUREMENT]

SONAR SYSTEM

JRNWE0841GB

SN

SONAR SYSTEM

SN-21

< WIRING DIAGRAM >

[WITHOUT PARKING SPACE MEASUREMENT]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWE0842GB

SN-22

< WIRING DIAGRAM >

[WITHOUT PARKING SPACE MEASUREMENT]

SONAR SYSTEM

JRNWE0843GB

SN

SONAR SYSTEM

SN-23

< WIRING DIAGRAM >

[WITHOUT PARKING SPACE MEASUREMENT]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWE0844GB

SN-24

< WIRING DIAGRAM >

[WITHOUT PARKING SPACE MEASUREMENT]

SONAR SYSTEM

JRNWE0845GB

SN

DIAGNOSIS AND REPAIR WORKFLOW

SN-25

< BASIC INSPECTION >

[WITHOUT PARKING SPACE MEASUREMENT]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000010435921

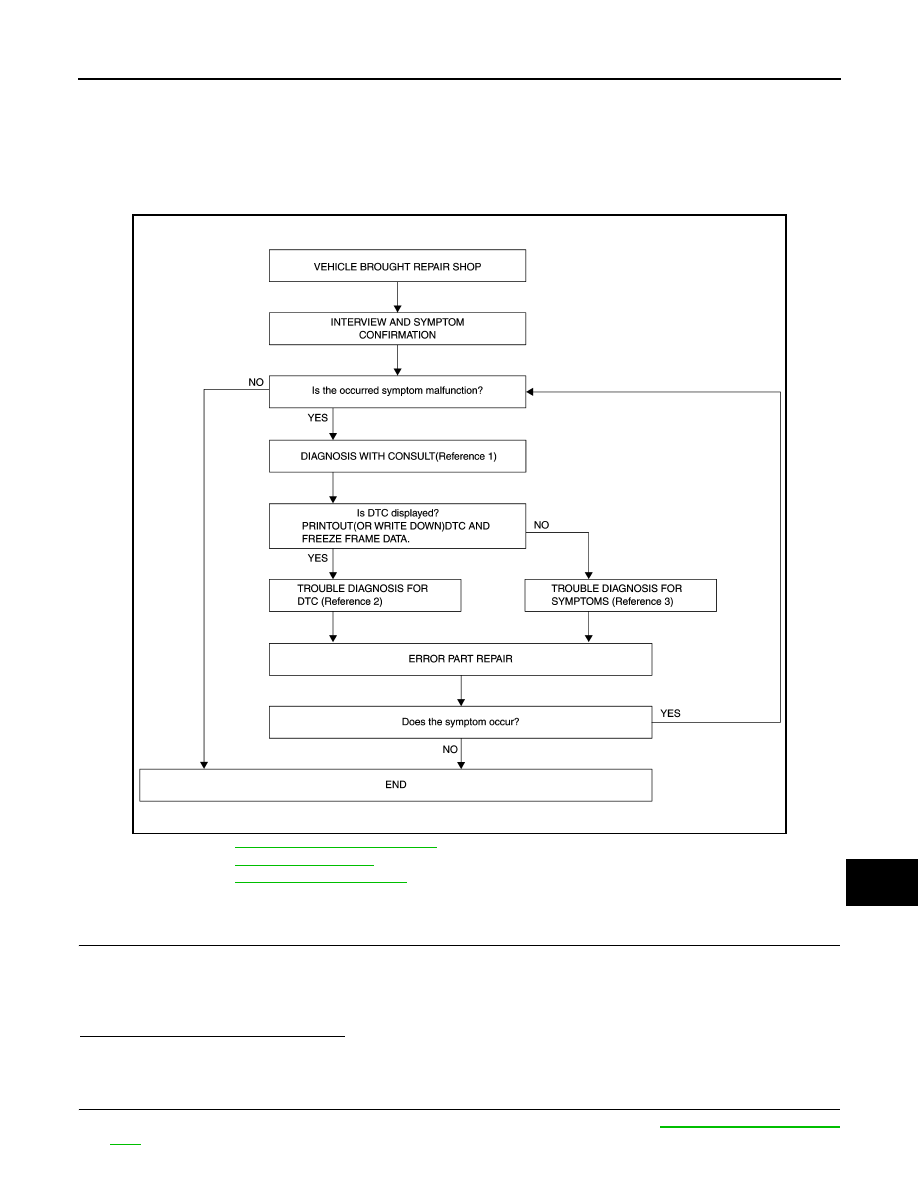

OVERALL SEQUENCE

Reference 1: Refer to

SN-10, "CONSULT Function"

.

Reference 2: Refer to

SN-14, "DTC Index"

.

Reference 3: Refer to

SN-47, "Symptom Table"

.

DETAILED FLOW

1.

INTERVIEW AND SYMPTOM CONFIRMATION

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

Is the occurred symptom malfunction?

YES

>> GO TO 2.

NO

>> Inspection End.

2.

DIAGNOSIS WITH CONSULT

1.

Connect CONSULT and perform Self Diagnostic Result for SONAR. Refer to

SN-10, "CONSULT Func-

tion"

.

JSNIA4482GB

SN-26

< BASIC INSPECTION >

[WITHOUT PARKING SPACE MEASUREMENT]

DIAGNOSIS AND REPAIR WORKFLOW

NOTE:
Skip to step 4 of the diagnosis procedure if SONAR is not displayed.

2.

When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

Is DTC displayed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

TROUBLE DIAGNOSIS FOR DTC

1.

Check the DTC indicated in the self-diagnosis results.

2.

Perform the relevant diagnosis referring to the DTC Index. Refer to

SN-14, "DTC Index"

.

>> GO TO 5.

4.

TROUBLE DIAGNOSIS FOR SYMPTOMS

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

SN-47, "Symptom Table"

.

>> GO TO 5.

5.

ERROR PART REPAIR

1.

Repair or replace the identified malfunctioning parts.

2.

Perform Self Diagnostic Result for SONAR with CONSULT.
NOTE:
Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC
has been indicated in the self-diagnosis results.

3.

Check that the symptom does not occur.

Does the symptom occur?

YES

>> GO TO 1.

NO

>> Inspection End.

SN

INSPECTION AND ADJUSTMENT

SN-27

< BASIC INSPECTION >

[WITHOUT PARKING SPACE MEASUREMENT]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING SONAR CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING SONAR CONTROL UNIT : Description

INFOID:0000000010435922

BEFORE REPLACEMENT

When replacing sonar control unit, save or print current vehicle specification with CONSULT configuration
before replacement.
NOTE:
If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-
ing sonar control unit.

AFTER REPLACEMENT

CAUTION:

When replacing sonar control unit, you must perform “After Replace ECU” with CONSULT.
• Complete the procedure of “After Replace ECU” in order.
• If you set incorrect “After Replace ECU”, incidents might occur.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

ADDITIONAL SERVICE WHEN REPLACING SONAR CONTROL UNIT : Work Proce-
dure

INFOID:0000000010435923

1.

SAVING VEHICLE SPECIFICATION

-CONSULT

Enter “Re/Programming, Configuration” and perform “Before Replace ECU” to save or print current vehicle
specification.
NOTE:
If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-
ing sonar control unit.

>> GO TO 2.

2.

REPLACE SONAR CONTROL UNIT

Replace sonar control unit. Refer to

SN-51, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT

1.

Enter "Re/Programming, Configuration".

2.

If “Before Replace ECU” operation was performed, an "Operation Log Selection" screen will automatically
be displayed. Select the applicable file from the "Saved Data List" and press “Confirm” to write vehicle
specification. Refer to

SN-28, "CONFIGURATION (SONAR CONTROL UNIT) : Work Procedure"

.

3.

If “Before Replace ECU” operation was not performed, select "After Replace ECU" or "Manual Configura-
tion" to write vehicle specification. Refer to

SN-28, "CONFIGURATION (SONAR CONTROL UNIT) : Work

Procedure"

.

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the sonar control unit is normal.

>> Work End.

CONFIGURATION (SONAR CONTROL UNIT)

SN-28

< BASIC INSPECTION >

[WITHOUT PARKING SPACE MEASUREMENT]

INSPECTION AND ADJUSTMENT

CONFIGURATION (SONAR CONTROL UNIT) : Description

INFOID:0000000010435924

Vehicle specification needs to be written with CONSULT. Configuration has three functions as follows:

CAUTION:

• When replacing sonar control unit, you must perform “Select Saved Data List” or "After Replace

ECU" with CONSULT.

• Complete the procedure of “Select Saved Data List” or "After Replace ECU" in order.
• If you set incorrect “Select Saved Data List” or "After Replace ECU", incidents might occur.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.
• Never perform “Select Saved Data List” or "After Replace ECU" except for new sonar control unit.

CONFIGURATION (SONAR CONTROL UNIT) : Work Procedure

INFOID:0000000010435925

1.

WRITING MODE SELECTION

CONSULT

Select “Reprogramming, Configuration” of sonar control unit.

When writing saved data>>GO TO 2.
When writing manually>>GO TO 3.

2.

PERFORM “SAVED DATA LIST”

CONSULT

Automatically “Operation Log Selection” window will display if “Before Replace ECU” was performed. Select
applicable file from the “Save Data List” and press “Confirm”.

>> Work End.

3.

PERFORM “AFTER REPLACE ECU” OR “MANUAL CONFIGURATION”

CONSULT

1.

Select “After Replace ECU” or “Manual Configuration”.

2.

Identify the correct model and configuration list. Refer to

SN-29, "CONFIGURATION (SONAR CONTROL

UNIT) : Configuration List"

.

3.

Confirm and/or change setting value for each item.

CAUTION:

Thoroughly read and understand the vehicle specification. ECU control may not operate normally
if the setting is not correct.

4.

Select “Next”.

CAUTION:

Make sure to select “Next”, confirm each setting value and press “OK” even if the indicated con-
figuration of brand new sonar control unit is same as the desirable configuration. If not, configura-
tion which is set automatically by selecting vehicle model can not be memorized.

5.

When "Completed", select "End".

>> GO TO 4.

4.

OPERATION CHECK

Confirm that each function controlled by sonar control unit operates normally.

>> Work End.

Function

Description

"Before Replace ECU"

• Reads the vehicle configuration of current sonar control unit.
• Saves the read vehicle configuration.

"After Replace ECU"

Writes the vehicle configuration with manual selection.

"Select Saved Data List"

Writes the vehicle configuration with saved data.

SN

INSPECTION AND ADJUSTMENT

SN-29

< BASIC INSPECTION >

[WITHOUT PARKING SPACE MEASUREMENT]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CONFIGURATION (SONAR CONTROL UNIT) : Configuration List

INFOID:0000000010435926

CAUTION:

Thoroughly read and understand the vehicle specification. Incorrect settings may result in abnormal
control of ECU.

: Items which confirm vehicle specifications

MANUAL SETTING ITEM

Items

Setting value

BCI FUNCTION

WITH

 WITHOUT

SN-30

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT PARKING SPACE MEASUREMENT]

U1000 CAN COMM CIRCUIT

DTC/CIRCUIT DIAGNOSIS

U1000 CAN COMM CIRCUIT

DTC Logic

INFOID:0000000010435927

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000010435928

1.

PERFORM SELF DIAGNOSTIC RESULT

1.

Turn ignition switch ON and wait for 2 seconds or more.

2.

Perform Self Diagnostic Result for SONAR.

Is CAN COMM CIRCUIT displayed?

YES

>> Refer to

LAN-28, "Trouble Diagnosis Flow Chart"

.

NO

>> Refer to

GI-44, "Intermittent Incident"

.

CONSULT Display

DTC Detection Condition

Possible Cause

CAN COMM CIRCUIT
[U1000]

Sonar control unit is not transmitting or receiving
CAN communication signal for 2 seconds or
more.

CAN communication system.

SN

U1010 CONTROL UNIT (CAN)

SN-31

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT PARKING SPACE MEASUREMENT]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U1010 CONTROL UNIT (CAN)

DTC Logic

INFOID:0000000010435929

DTC DETECTION LOGIC

CONSULT Display

DTC Detection Condition

Possible Cause

CONTROL UNIT (CAN)
[U1010]

CAN initial diagnosis malfunction is detected.

Replace the sonar control unit if the malfunction
occurs constantly.
Refer to

SN-51, "Removal and Installation"

.

SN-32

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT PARKING SPACE MEASUREMENT]

B2720 CORNER SENSOR [RL]

B2720 CORNER SENSOR [RL]

DTC Logic

INFOID:0000000010435930

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000010435931

Regarding Wiring Diagram information, refer to

SN-16, "Wiring Diagram"

.

1.

CHECK REAR SONAR CORNER SENSOR LH CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect sonar control unit connector and rear sonar corner sensor LH connector.

3.

Check continuity between sonar control unit connector M59 and rear sonar corner sensor LH connector
B116.

4.

Check continuity between sonar control unit connector M59 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK REAR SONAR CORNER SENSOR LH SIGNAL CIRCUIT SHORT TO BATTERY

1.

Turn ignition switch ON.

2.

Check voltage between sonar control unit connector M59 and ground.

Is the inspection result normal?

YES

>> Replace rear corner sonar sensor LH. Refer to

SN-49, "REAR SENSOR : Removal and Installa-

tion - Rear Sonar Sensors"

.

NO

>> Repair or replace harness or connectors.

CONSULT Display

DTC Detection Condition

Possible Cause

REAR LEFT SIDE EXTER-
NAL SENSOR
[B2720]

• Sensor is not configured.
• Sensor is open or short circuited.
• Sensor element malfunction.

• Sensor configuration.
• Harness or connectors.
• Rear sonar sensor LH outer.

Sonar control unit

Rear sonar sensor LH

Continuity

Connector

Terminal

Connector

Terminal

M59

22

B116

2

Yes

14

1

Sonar control unit

Ground

Continuity

Connector

Terminal

M59

22

No

Sonar control unit

Ground

Voltage

(Approx.)

Connector

Terminal

M59

22

0V















Content      ..      1      2      3      ..
