Qashqai J11. Parking brake system - part 9





U1060 VEHICLE SPEED

PB-129

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

U1060 VEHICLE SPEED

DTC Description

INFOID:0000000010833715

DTC DETECTION LOGIC

POSSIBLE CAUSE

• CAN communication line
• ABS actuator and electric unit (control unit) system
• Electric parking brake control module

FAIL-SAFE

• Automatic apply and release are prohibited.
• Brake force is degraded.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If “DTC CONFIRMATION PROCEDURE” has been previously conducted, always turn the ignition switch OFF
and wait at least 10 seconds before conducting the next test.

>> GO TO 2.

2.

CHECK DTC DETECTION

With CONSULT

1.

Turn the ignition switch OFF to ON.

CAUTION:

Be sure to wait for 10 seconds after turning ignition switch OFF or ON.

2.

Push the parking brake switch.

CAUTION:

• Set the select lever in the P position.
• Depress the brake pedal.

3.

Pull the parking brake switch.

4.

Perform self-diagnosis for “EHS/PKB”.

Is DTC “U1060” detected?

YES

>> Proceed to

PB-129, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

NO-2

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010833716

1.

ERFORM SELF-DIAGNOSIS (1)

With CONSULT

Perform self-diagnosis for “ABS”.

Is DTC detected?

YES

>> Check the DTC. Refer to

BRC-54, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK DATA MONITOR (1)

With CONSULT

1.

Turn the ignition switch OFF to ON.

CAUTION:

Be sure to wait for 10 seconds or more after turning the ignition switch OFF.

DTC

Display Item

(Trouble diagnosis content)

Malfunction detected condition

U1060

VEHICLE SPPED
(Vehicle speed)

When CAN communication signal with wheel speed signal from ABS actuator and
electric unit (control unit) is not continuously received for 2 seconds or more.

PB-130

< DTC/CIRCUIT DIAGNOSIS >

U1060 VEHICLE SPEED

2.

Select “ABS” and “DATA MONITOR” according to this order.

3.

Check the following monitor item. Refer to

BRC-48, "Reference Value"

.

-

“RR LH SENSOR”

-

“RR RH SENSOR”

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check the ABS actuator and electric unit (control unit) system. Refer to

BRC-82, "Diagnosis Pro-

cedure"

.

3.

PERFORM SELF-DIAGNOSIS (2)

With CONSULT

1.

Turn the ignition switch OFF to ON.

CAUTION:

Be sure to wait for 10 seconds or more after turning the ignition switch OFF.

2.

Erase self-diagnosis result for “EHS/PKB”.

3.

Repeat the parking brake switch operation (pull and push) five times.

4.

Perform self-diagnosis for “EHS/PKB”.

Is DTC “U1060”, “U1000” detected?

YES (“U1060”)>>Replace the electric parking brake control module. Refer to

PB-141, "Removal and Installa-

tion"

.

YES (“U1000”)>>Proceed to

LAN-28, "Trouble Diagnosis Flow Chart"

.

NO

>> INSPECTION END

U1061 IPDM E/R SYSTEM

PB-131

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

U1061 IPDM E/R SYSTEM

DTC Description

INFOID:0000000010833717

DTC DETECTION LOGIC

POSSIBLE CAUSE

• IPDM E/R
• Electric parking brake control module

FAIL-SAFE

Automatic release is prohibited.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If “DTC CONFIRMATION PROCEDURE” has been previously conducted, always turn the ignition switch OFF
and wait at least 10 seconds before conducting the next test.

>> GO TO 2.

2.

CHECK DTC DETECTION

With CONSULT

1.

Turn the ignition switch OFF to ON.

CAUTION:

Be sure to wait for 10 seconds after turning ignition switch OFF or ON.

2.

Push the parking brake switch.

CAUTION:

• Set the select lever in the P position.
• Depress the brake pedal.

3.

Pull the parking brake switch.

4.

Perform self-diagnosis for “EHS/PKB”.

Is DTC “U1061” detected?

YES

>> Proceed to

PB-131, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

NO-2

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010833718

1.

ERFORM SELF-DIAGNOSIS (1)

With CONSULT

Perform self-diagnosis for “IPDM E/R”.

Is DTC detected?

YES

>> Check the DTC. Refer to

PCS-37, "DTC Index"

.

NO

>> GO TO 2.

2.

PERFORM SELF-DIAGNOSIS (2)

With CONSULT

1.

Turn the ignition switch OFF to ON.

CAUTION:

Be sure to wait for 10 seconds or more after turning the ignition switch OFF.

2.

Erase self-diagnosis result for “EHS/PKB”.

DTC

Display Item

(Trouble diagnosis content)

Malfunction detected condition

U1061

IPDM E/R SYSTEM
(Intelligent power distribution
module engine room system)

When a malfunction is detected in IPDM E/R

PB-132

< DTC/CIRCUIT DIAGNOSIS >

U1061 IPDM E/R SYSTEM

3.

Repeat the parking brake switch operation (pull and push) five times.

4.

Perform self-diagnosis for “EHS/PKB”.

Is DTC “U1061”, “U1000” detected?

YES (“U1061”)>>Replace the electric parking brake control module. Refer to

PB-141, "Removal and Installa-

tion"

.

YES (“U1000”)>>Proceed to

LAN-28, "Trouble Diagnosis Flow Chart"

.

NO

>> INSPECTION END

POWER SUPPLY AND GROUND CIRCUIT

PB-133

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000010833719

1.

CHECK ELECTRIC PARKING BRAKE CONTROL MODULE IGNITION POWER SUPPLY

1.

Turn the ignition switch OFF.

2.

Disconnect the electric parking brake control module harness connector.

3.

Check the voltage between electric parking brake control module harness connector and ground.

4.

Turn the ignition switch ON

5.

Check the voltage between electric parking brake control module harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK ELECTRIC PARKING BRAKE CONTROL MODULE IGNITION POWER SUPPLY CIRCUIT

1.

Turn the ignition switch OFF.

2.

Check 10A fuse (#30).

3.

Check the continuity between electric parking brake control module harness connector and fuse block (J/
B) harness connector.

Is the inspection result normal?

YES

>> Perform trouble diagnosis for ignition power supply.

NO

>> Repair or replace error-detected parts.

3.

CHECK MOTOR POWER SUPPLY

1.

Turn the ignition switch OFF.

2.

Check the voltage between electric parking brake control module harness connector and ground.

3.

Turn the ignition switch ON

4.

Check the voltage between electric parking brake control module harness connector and ground.

Is the inspection result normal?

Electric parking brake control module

Voltage

Connector

Terminal

M29

22

Ground

Approx. 0 V

Electric parking brake control module

Voltage

Connector

Terminal

M29

22

Ground

 16 V

Electric parking brake control module

Fuse block (J/B)

Continuity

Connector

Terminal

Connector

Terminal

M29

22

M77

7B

Existed

Electric parking brake control module

Voltage

Connector

Terminal

M29

13

Ground

 16 V

15

Electric parking brake control module

Voltage

Connector

Terminal

M29

13

Ground

 16 V

15

PB-134

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

YES

>> GO TO 5.

NO

>> GO TO 4.

4.

CHECK MOTOR POWER SUPPLY CIRCUIT

1.

Turn the ignition switch OFF.

2.

Check the 30A fuse (#41) and 30A fuse (#38).

3.

Check the continuity and short circuit between electric parking brake control module harness connector
terminal (13) and 30A fuse (#41).

4.

Check the continuity and short circuit between electric parking brake control module harness connector
terminal (15) and 30A fuse (#38).

Is the inspection result normal?

YES

>> Perform trouble diagnosis for battery power supply.

NO

>> Repair or replace error-detected parts.

5.

CHECK ELECTRIC PARKING BRAKE CONTROL MODULE GROUND CIRCUIT

1.

Turn the ignition switch OFF.

2.

Check for continuity between electric parking brake control module harness connector and the ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace error-detected parts.

6.

CHECK TERMINAL

Check electric parking brake control module pin terminals for damage or loose connection with harness con-
nector.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair or replace error-detected parts.

Electric parking brake control module

Continuity

Connector

Terminal

M29

28

Ground

Existed

30

ELECTRIC PARKING BRAKE INDICATOR LAMP

PB-135

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

ELECTRIC PARKING BRAKE INDICATOR LAMP

Component Function Check

INFOID:0000000010833720

1.

CHECK ELECTRIC PARKING BRAKE INDICATOR LAMP FUNCTION

Check that electric parking brake indicator lamp in combination meter turns ON/OFF when parking brake is
operated.
NOTE:
Electric parking brake indicator lamp turns ON when parking brake is operated (when parking brake switch is
pull).

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

PB-135, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010833721

1.

CHECK ELECTRIC PARKING BRAKE CONTROL MODULE POWER SUPPLY AND GROUND CIRCUIT

Perform the trouble diagnosis for electric parking brake control module power supply and ground circuit. Refer
to

PB-133, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace error-detected parts.

2.

PERFORM SELF-DIAGNOSIS

With CONSULT

1.

Turn the ignition switch OFF to ON.

CAUTION:

Be sure to wait for 10 seconds or more after turning the ignition switch OFF.

2.

Repeat the parking brake switch operation (pull and push) five times.

3.

Perform self-diagnosis for “EHS/PKB”.

Is DTC detected?

YES

>> Check the DTC. Refer to

PB-30, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK ELECTRIC PARKING BRAKE INDICATOR LAMP SIGNAL

With CONSULT

1.

Select “EHS/PKB” and “DATA MONITOR” according to this order.

2.

Check the following monitor item. Refer to

PB-23, "Reference Value"

.

-

“PB WARNING 1”

-

“PB WARNING 2”

-

“PB WARNING 3”

-

“PB WARNING 4”

-

“PB WARNING 5”

Is the inspection result normal?

YES

>> Replace the combination meter. Refer to

MWI-86, "Removal and Installation"

.

NO

>> Replace the electric parking brake control module. Refer to

PB-141, "Removal and Installation"

.

PB-136

< SYMPTOM DIAGNOSIS >

PARKING BRAKE DOES NOT RELEASE

SYMPTOM DIAGNOSIS

PARKING BRAKE DOES NOT RELEASE

Description

INFOID:0000000010833577

When the parking brake cannot be released by the parking brake switch.

Diagnosis Procedure

INFOID:0000000010833578

1.

PERFORM THE SELF-DIAGNOSIS

With CONSULT

Perform self-diagnosis for “EHS/PKB”.

Is DTC detected?

YES

>> Check the DTC. Refer to

PB-30, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK REAR DISC BRAKE DRAG

Check if the rear disc brake is dragging.

BR-16, "DISC ROTOR : Inspection"

.

Is the rear disc brake dragging?

YES

>> Check the rear disc brake system. Refer to

BR-16, "DISC ROTOR : Inspection"

.

NO

>> GO TO 3.

3.

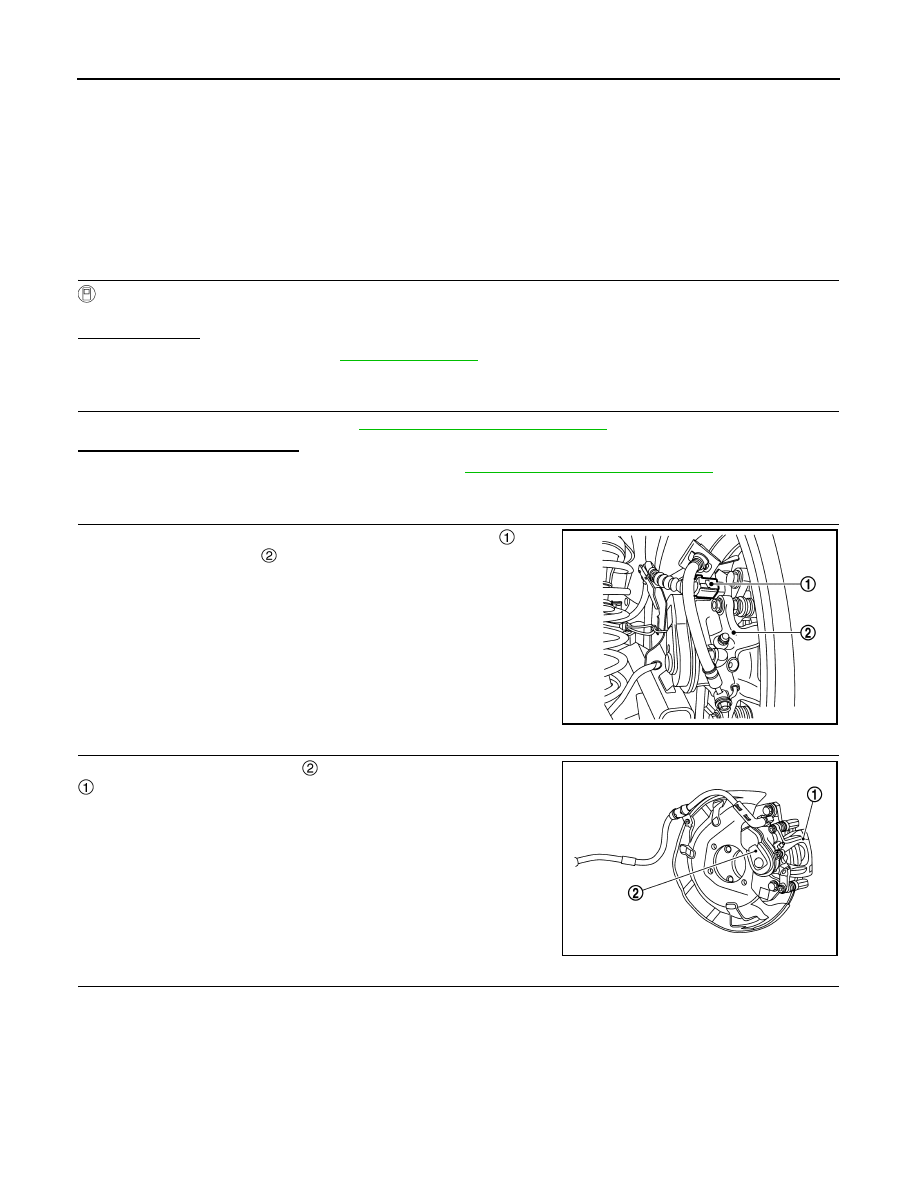

DISCONNECT PARKING BRAKE ACTUATOR HARNES CONNECTOR

1.

Disconnect parking brake actuator harness connector

 from

rear caliper assembly

.

>> GO TO 4.

4.

REMOVE PARKING BRAKE ACTUATOR

Remove parking brake actuator

 from rear brake caliper assembly

.

>> GO TO 5.

5.

RELEASE OF PARKING BRAKE

JSFIA2443ZZ

JSFIA2426ZZ

PARKING BRAKE DOES NOT RELEASE

PB-137

< SYMPTOM DIAGNOSIS >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

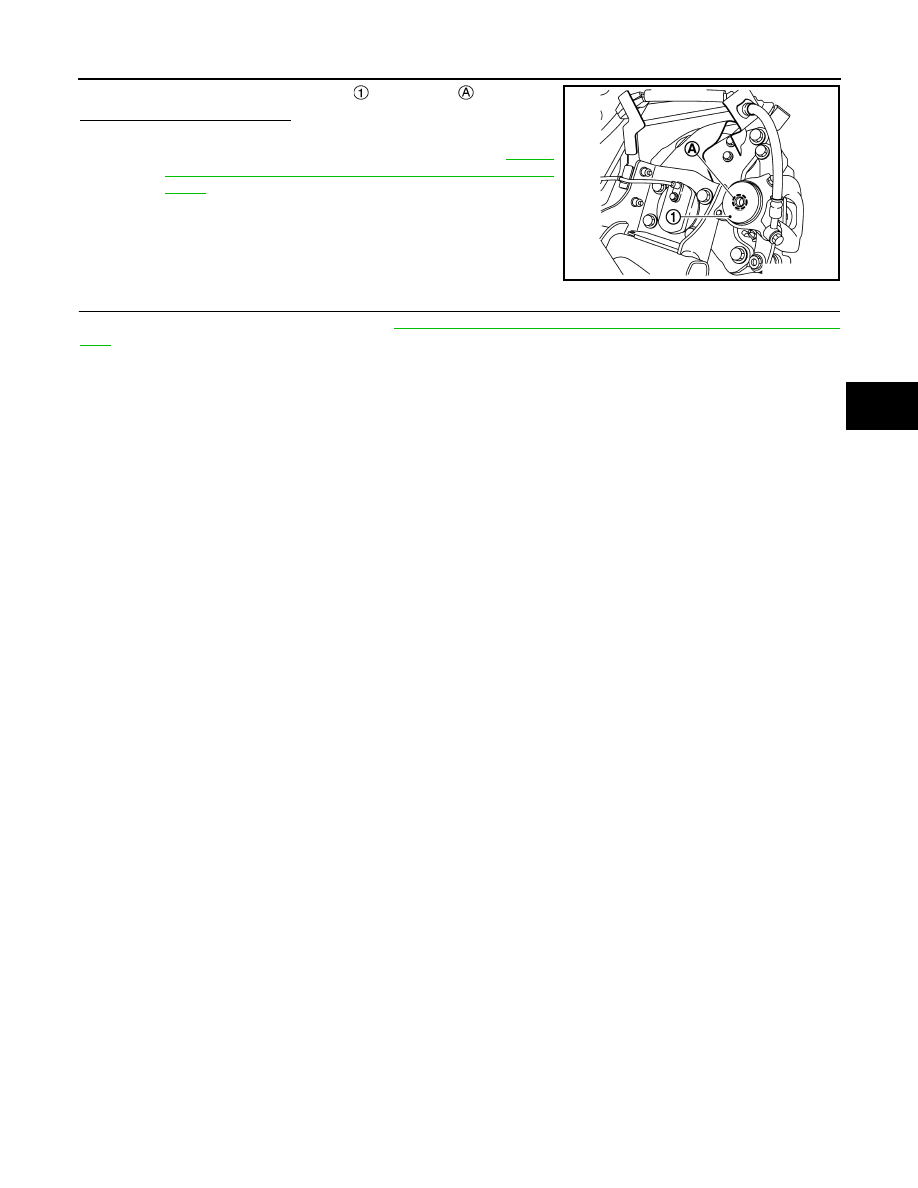

Rotate the rear brake caliper assembly

 spindle part

 clockwise.

Is the parking brake released?

YES

>> GO TO 6.

NO

>> Check the rear brake caliper assembly. Refer to

BR-46,

"BRAKE CALIPER ASSEMBLY : Inspection and Adjust-
ment"

.

6.

REPLACE REAR CALIPER ASSEMBLY

Replace the rear caliper assembly. Refer to

BR-43, "BRAKE CALIPER ASSEMBLY : Removal and Installa-

tion"

.

CAUTION:

Never reuse the parking brake actuator.

>> End of work.

JSFIA2444ZZ

PB-138

< SYMPTOM DIAGNOSIS >

PARKING BRAKE DOES NOT OPERATE

PARKING BRAKE DOES NOT OPERATE

Description

INFOID:0000000010833579

The parking brake is not applied even when the parking brake switch is pulled.

Diagnosis Procedure

INFOID:0000000010833580

1.

PERFORM THE SELF-DIAGNOSIS

With CONSULT

Perform self-diagnosis for “EHS/PKB”.

Is DTC detected?

YES

>> Check the DTC. Refer to

PB-30, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK PARKING BRAKE ACTUATOR

Pull or push parking brake switch, check operation sound of parking brake actuator.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

CHECK REAR DISC BRAKE SYSTEM

Check the rear disc brake system.

BR-16, "DISC ROTOR : Inspection"

.

Is the inspection result normal?

YES

>> Replace the electric parking brake control module. Refer to

PB-141, "Removal and Installation"

.

NO

>> Repair or replace the rear disc brake system. Refer to

BR-43, "BRAKE CALIPER ASSEMBLY :

Removal and Installation"

.

THE BRAKING FORCE OF PARKING BRAKE IS LOW

PB-139

< SYMPTOM DIAGNOSIS >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

THE BRAKING FORCE OF PARKING BRAKE IS LOW

Description

INFOID:0000000010833581

The parking brake braking force is low and the vehicle moves backward when parked on an incline.

Diagnosis Procedure

INFOID:0000000010833582

1.

REAPPLY THE PARKING BRAKE (1)

1.

Pull the parking brake switch, and apply the parking brake.

2.

Pull the parking brake switch again.

Is the vehicle moving backward?

YES

>> GO TO 2.

NO

>> NORMAL

2.

PERFORM THE SELF-DIAGNOSIS

With CONSULT

Perform self-diagnosis for “EHS/PKB”.

Is any DTC detected?

YES

>> Check the DTC. Refer to

PB-30, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK REAR DISC BRAKE SYSTEM

Check the rear disc brake system.
• Rear brake pad: Refer to

BR-16, "BRAKE PAD : Inspection"

.

• Rear disc rotor: Refer to

BR-16, "DISC ROTOR : Inspection"

.

• Rear brake caliper (and parking brake actuator): Refer to

BR-46, "BRAKE CALIPER ASSEMBLY : Inspec-

tion and Adjustment"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>>

Repair or replace error-detected pars.

• Rear brake pad: Refer to

BR-16, "BRAKE PAD : Inspection"

.

• Rear disc rotor: Refer to

BR-16, "DISC ROTOR : Inspection"

.

• Rear brake caliper (and parking brake actuator): Refer to

BR-46, "BRAKE CALIPER ASSEM-

BLY : Inspection and Adjustment"

.

4.

REAPPLY THE PARKING BRAKE (2)

Pull the parking brake switch again.

Is the vehicle moving backward?

YES

>> Replace the electric parking brake control module. Refer to

PB-141, "Removal and Installation"

.

NO

>> NORMAL

PB-140

< SYMPTOM DIAGNOSIS >

THE BRAKING FORCE OF PARKING BRAKE IS HIGH

THE BRAKING FORCE OF PARKING BRAKE IS HIGH

Description

INFOID:0000000010833583

The parking brake breaking force is too high.

Diagnosis Procedure

INFOID:0000000010833584

1.

PERFORM THE SELF-DIAGNOSIS

With CONSULT

Perform self-diagnosis for “EHS/PKB”.

Is any DTC detected?

YES

>> Check the DTC. Refer to

PB-30, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK REAR DISC BRAKE SYSTEM (1)

Check if the rear disc brake is dragging.

BR-16, "DISC ROTOR : Inspection"

.

Is the rear disc brake dragging?

YES

>> Check the rear disc brake system. Refer to

BR-16, "DISC ROTOR : Inspection"

.

NO

>> GO TO 3.

3.

CHECK REAR DISC BRAKE SYSTEM (2)

1.

Depress the brake pedal 3 times or more.

2.

Drive the vehicle at approx. 30 km/h (19 MPH) or more.

3.

Stop the vehicle.

4.

Depress the brake pedal 3 times or more again.

Is the braking force of parking brake is high?

YES

>> Replace the rear brake caliper assembly. Refer to

BR-46, "BRAKE CALIPER ASSEMBLY :

Inspection and Adjustment"

.

NO

>> INSPECTION END

ELECTRIC PARKING BRAKE CONTROL MODULE

PB-141

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

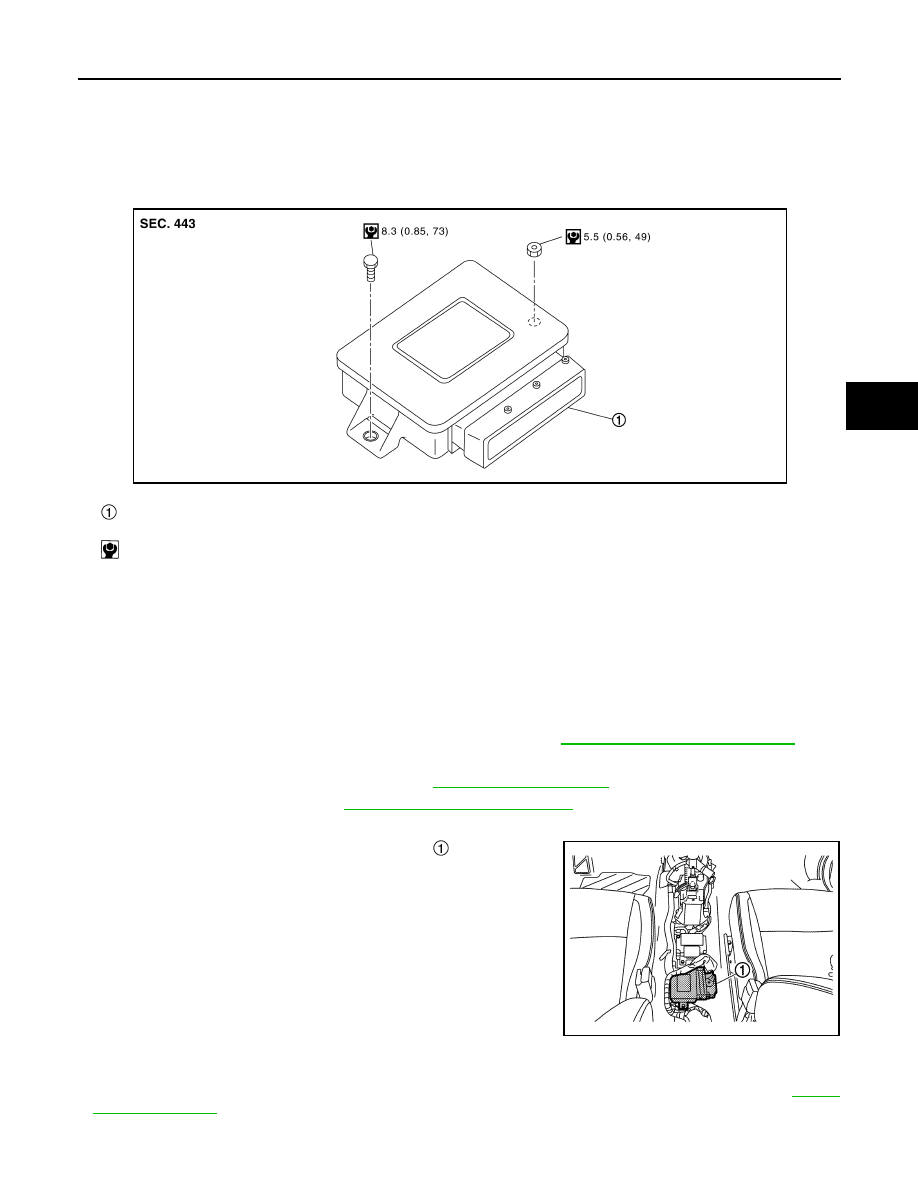

REMOVAL AND INSTALLATION

ELECTRIC PARKING BRAKE CONTROL MODULE

Exploded View

INFOID:0000000010833571

Removal and Installation

INFOID:0000000010833572

REMOVAL

1.

Turn the ignition switch ON.

CAUTION:

Never start the engine.

2.

Release the parking brake.

CAUTION:

If the brake cannot be released, release it manually. Refer to

PB-136, "Diagnosis Procedure"

.

3.

Turn the ignition switch OFF.

4.

Disconnect battery negative terminal. Refer to

PB-44, "Work Procedure"

.

5.

Remove center console. Refer to

IP-19, "Removal and Installation"

.

6.

Disconnect electric parking brake control module harness connector.

7.

Remove electric parking brake control module

.

CAUTION:

Never drop removed parts.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Must be perform additional service when replacing electric parking brake control module. Refer to

PB-45,

"Work Procedure"

.

Electric parking brake control mod-
ule

: N·m (kg-m, in-lb)

JSFIA2484GB

JSFIA2485ZZ

PB-142

< REMOVAL AND INSTALLATION >

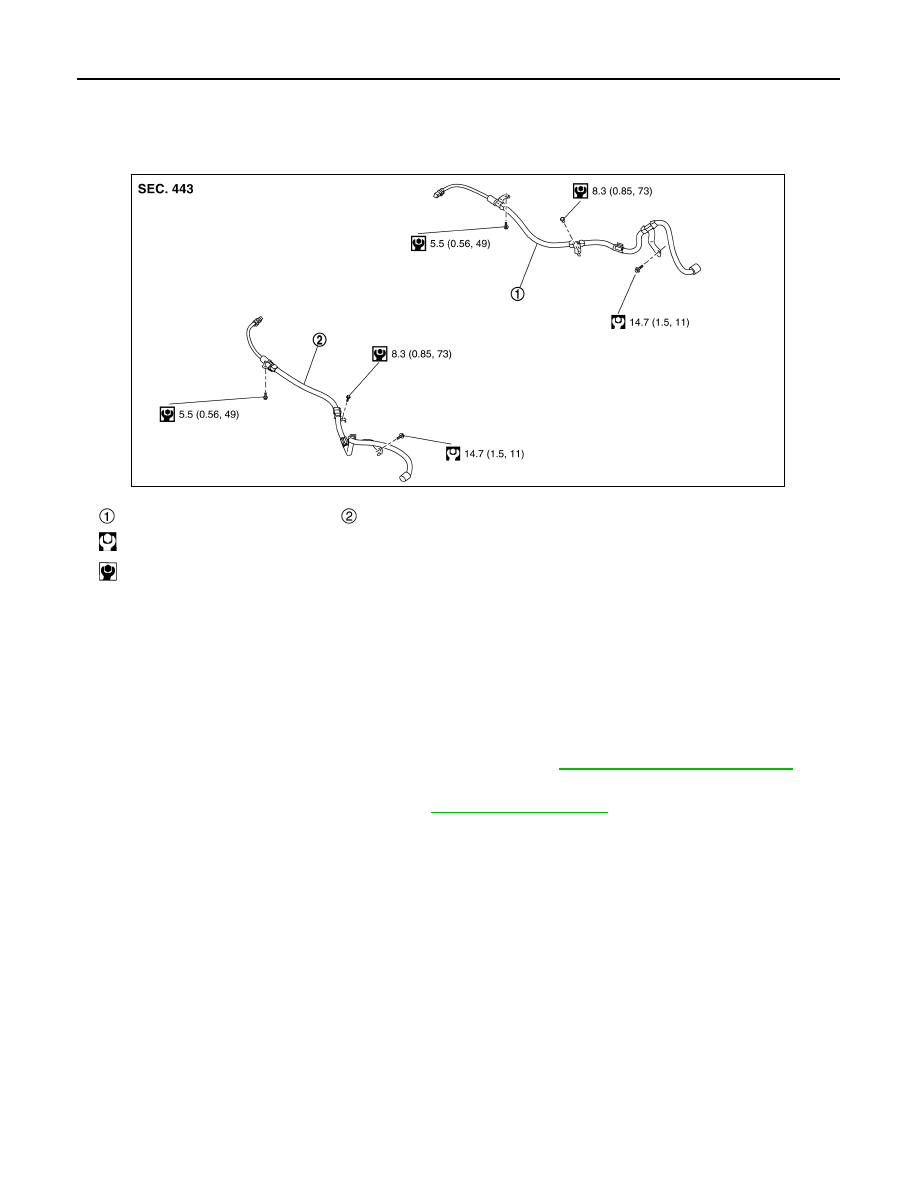

PARKING BRAKE CONTROL

PARKING BRAKE CONTROL

Exploded View

INFOID:0000000010833573

Removal and Installation

INFOID:0000000010833574

REMOVAL

1.

Turn the ignition switch ON.

CAUTION:

Never start the engine.

2.

Release the parking brake.

CAUTION:

If the brake cannot be released, release it manually. Refer to

PB-136, "Diagnosis Procedure"

.

3.

Turn the ignition switch OFF.

4.

Disconnect battery negative terminal. Refer to

PB-44, "Work Procedure"

.

5.

Remove rear tires.

6.

Disconnect parking brake actuator harness connector.

7.

Remove parking brake actuator harness mounting bolts.

8.

Remove parking brake actuator harness from the vehicle.

INSTALLATION

Install the reverse order of the removal.

Parking brake actuator harness RH

Parking brake actuator harness LH

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JSFIA2487GB

PARKING BRAKE ACTUATOR

PB-143

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PARKING BRAKE ACTUATOR

Exploded View

INFOID:0000000010471527

Removal and Installation

INFOID:0000000010318199

REMOVAL

1.

Turn the power switch ON.

2.

Release the parking brake.

3.

Turn the power switch OFF.

4.

Disconnect 12V battery negative terminal. Refer to

PB-5, "Precautions for Removing Battery Terminal"

.

5.

Remove rear wheel. Refer to

WT-63, "Removal and Installation"

.

6.

Disconnect parking brake actuator harness connector.

7.

Remove parking brake actuator from vehicle.

CAUTION:

To prevent damage to the parts, never drop remove parts.

1.

Bolt

2.

Actuator

3.

Sliding pin bolt

4.

Cap

5.

Bleeder valve

6.

Cylinder body

7.

Piston

8.

Piston boot

9.

Sliding pin boot

10.

Bushing

11. Torque member

12.

Outer shim

13.

Outer pad

14. Inner pad

15.

Inner shim

 : Apply rubber grease.

: Apply brake fluid.

Refer to

GI-4, "Components"

 for symbols not described on the above.

E1FIA0155GB

PB-144

< REMOVAL AND INSTALLATION >

PARKING BRAKE ACTUATOR

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform parking brake actuator ASSEMBLY CHECK,when electric parking brake control unit is removed and

installed, or replaced. Refer to

PB-45, "Work Procedure"

.

• Perform parking brake actuator AX-SENSOR CALIBRATION, when electric parking brake control unit is

removed and installed, or replaced. Refer to

PB-49, "Work Procedure"

.

• Perform adjustment after installation. Refer to

PB-144, "Inspection"

.

Inspection

INFOID:0000000010318200

ADJUSTMENT AFTER INSTALLATION

1.

Pull the parking brake switch 2 times and check that the electric parking brake indicator in combination
meter turns ON.

2.

Turn the power switch OFF and wait 20 minutes.

3.

Turn the power switch ON.

CAUTION:

Never set the vehicle to READY.

4.

Check that the electric parking brake indicator lamp in combination meter turns ON.

5.

Push parking brake switch to release electric parking brake.

6.

Check that the electric parking brake indicator lamp in combination meter turns OFF.

PARKING BRAKE SWITCH

PB-145

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PARKING BRAKE SWITCH

Removal and Installation

INFOID:0000000010833576

REMOVAL

1.

Remove the console finisher assembly. Refer to

IP-18, "Exploded View"

.

2.

Remove parking brake switch.

INSTALLATION

Install in the reverse order of removal.















Content      ..     7      8      9
