When replacing fuel line parts, be sure to observe the following.
• Put a “CAUTION: FLAMMABLE” sign in the workshop.
• Be sure to work in a well ventilated area and furnish workshop with a CO

fire extinguisher.

• Never smoke while servicing fuel system. Keep open flames and sparks away from the work area.

CAUTION:

• Use gasoline required by the regulations for octane number. Refer to

GI-35, "Fuel"

• Before removing fuel line parts, perform out the following procedures:
- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in

safe area.

- Release fuel pressure from the fuel lines. Refer to

ECH-121, "Work Procedure"

- Disconnect the battery cable from the negative terminal.
• Always replace O-ring and clamps with new ones.
• Never kink or twist tubes when they are being installed.
• Never tighten hose clamps excessively to avoid damaging hoses.
• After installing tubes, check there is no fuel leakage at connections in the following steps.
- Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then check

for fuel leakage at connections.

- Start engine and rev it up and check for fuel leakage at connections.
• Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the

“MI” may come on.

FL-4

< PREPARATION >

[HRA2DDT]

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000010430517

Tool number
Tool name

Description

KV101207S0
Lock ring wrench

Removing and Installing lock ring

FUEL SYSTEM

FL-5

< PERIODIC MAINTENANCE >

[HRA2DDT]

PERIODIC MAINTENANCE

FUEL SYSTEM

Inspection

INFOID:0000000010418977

Inspect fuel lines, fuel filler cap and fuel tank for improper attach-
ment, leaks, cracks, damage, loose connections, chafing or deterio-
ration.
If necessary, repair or replace damaged parts.

Quick Connector

INFOID:0000000010418978

CAUTION:

• After connecting fuel tube quick connectors, make sure quick connectors are secure.
• Ensure that connector and resin tube do not contact any adjacent parts.

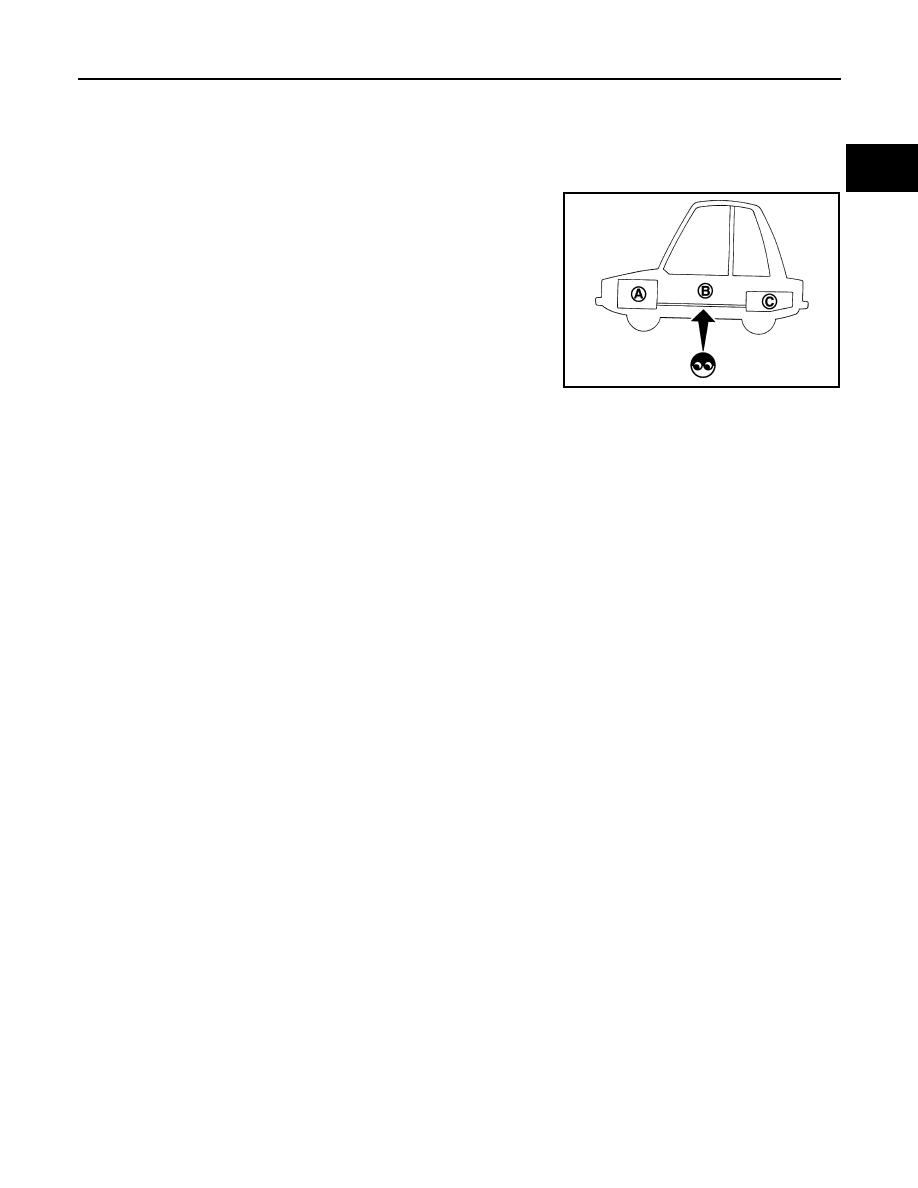

: Engine

: Fuel line

: Fuel tank

JPBIA0129ZZ

FL-6

< REMOVAL AND INSTALLATION >

[HRA2DDT]

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

REMOVAL AND INSTALLATION

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

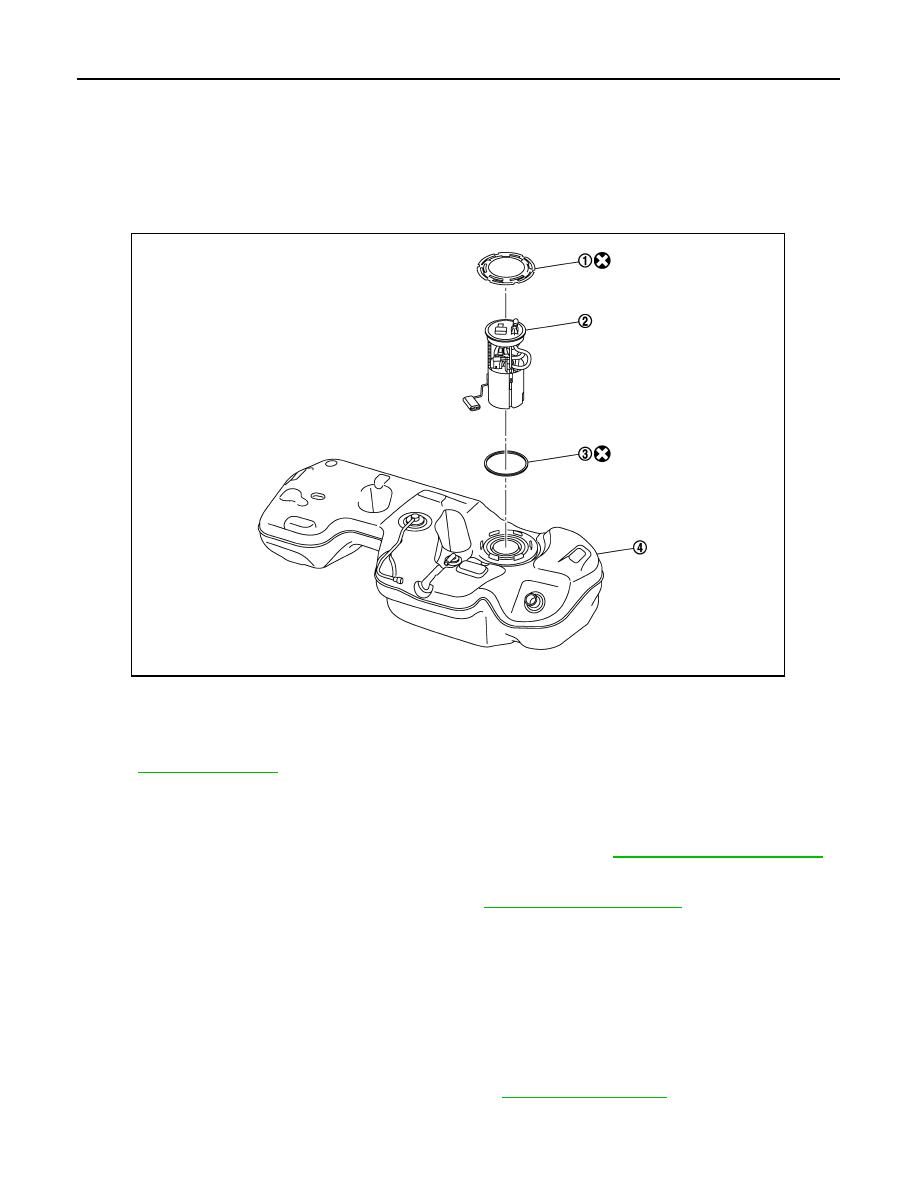

Exploded View

INFOID:0000000010418979

Removal and Installation

Refer to

GI-4, "Components"

for symbol marks in the figure.

Removal and Installation

INFOID:0000000010421504

WARNING:

Read “General Precautions” when working on the fuel system. Refer to

FL-3, "General Precautions"

REMOVAL

Release the fuel pressure from the fuel lines. Refer to

ECH-121, "Work Procedure"

Check fuel level on a level ground. If the fuel level is at 1/2 or higher, drain enough fuel so that the level on
the fuel gauge is at half or below.
• This is to prevent overflow of fuel from the tank when the fuel level sensor unit, fuel filter and fuel pump

assembly is removed

• In the event of malfunction in fuel pump, insert a hose measuring less than 20mm (0.79 in) in diameter

into fuel filler tube through fuel filler opening to draw fuel from filler tube.

- Disconnect fuel filler hose from fuel filler tube. Refer to

FL-10, "Exploded View"

- Insert hose into fuel tank through fuel filler hose to draw fuel from fuel tank.

Disconnect batterie cable from negative terminal.

Lock ring

Fuel level sensor unit, fuel filter and fuel pump
assembly

O-ring

Fuel tank

E1BIA1122GB

Guideline

: Draw approximately 27 liters (6 Imp gal) from a full-tank con-
dition.

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-7

< REMOVAL AND INSTALLATION >

[HRA2DDT]

Open fuel filler lid and filler cap to release the pressure inside fuel tank.

Remove rear seat. Refer to

SE-35, "Removal and Installation"

Remove inspection hole cover.

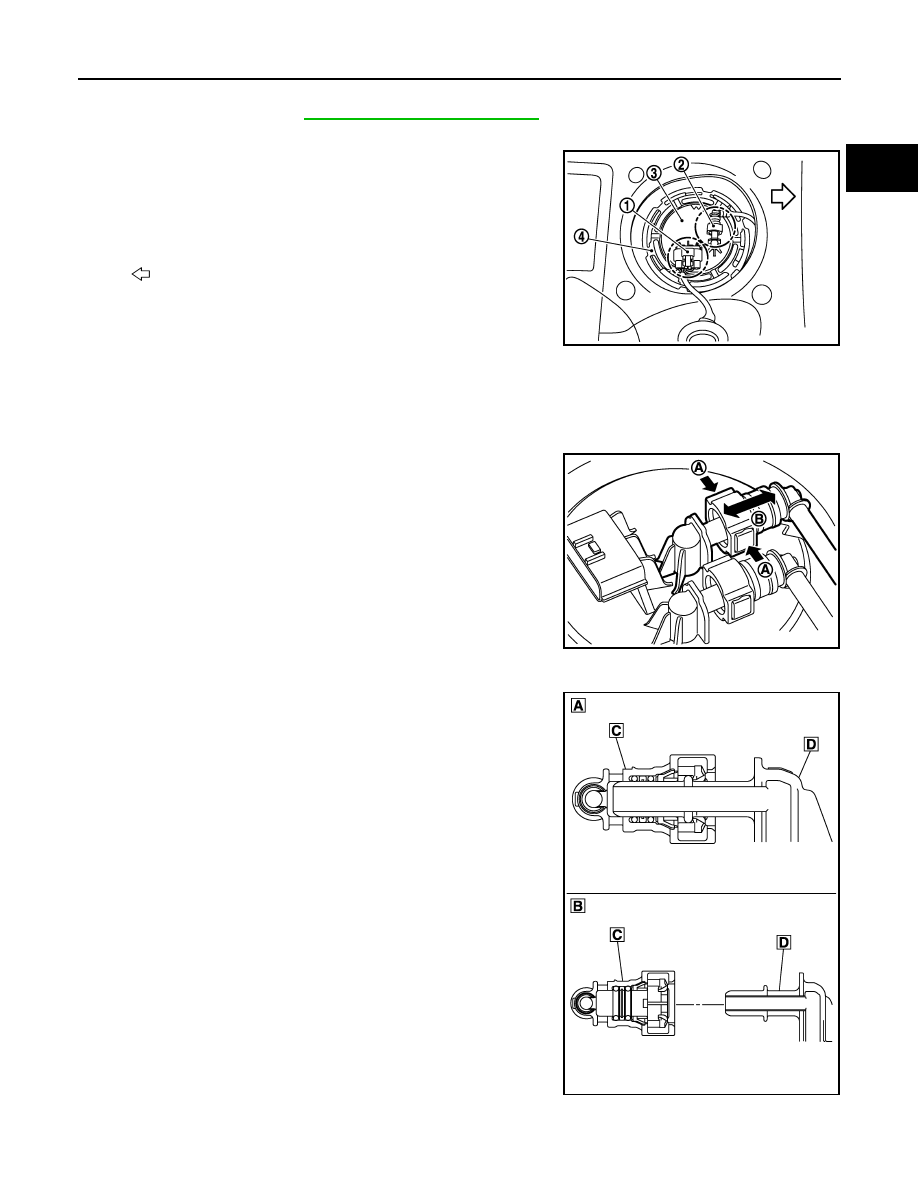

Disconnect harness connector and fuel feed tube.

• Remove quick connector in the following procedures.
- NOTE:

• The figure show the process of quick connector disconnection. Parts arround quick connector could

have a different shape compare to the figure.

- Hold the sides of quick connector, press tabs and pull out fuel

feed tube.

- If quick connector sticks to tube of main fuel level sensor unit,

push and pull quick connectors several times until they start to
move. Then disconnect them by pulling.

CAUTION:

• Quick connector can be disconnected when the tabs are

depressed completely. Never twist it more than neces-
sary.

• Never use any tools to disconnected quick connector.
• Keep resin tube away from heat. Be especially careful

when welding near the resin tube.

• Prevent acid liquid such as battery electrolyte, etc. from

getting on resin tube.

• Never bend or twist resin tube during installation and dis-

connection.

• Never insert plug, preventing damage to O–ring in quick

connector.

• To keep the connecting portion clean and to avoid dam-

age and foreign materials, cover them completely with
plastic bags or something similar.

: Harness connector

: Quick connector

: Fuel level sensor unit, fuel filter and fuel pump assembly

: Lock ring

: Vehicle front

E1BIA1123ZZ

: Push in tabs

: Pull

E1BIA1191ZZ

: Connection (cross-section)

: Disconnection (cross-section)

: Quick connector

: Hard tube

E1BIA1190ZZ

FL-8

< REMOVAL AND INSTALLATION >

[HRA2DDT]

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

Use lock ring wrench [SST: KV101207S0] (A) to remove lock
ring.

CAUTION:

• To prevent lock ring wrench from being detached,

securely hold down spinner handle (B) by hand.

• To reduce impact caused by removal operation, use long

spinner handle [handle length: 60 cm (23.62 in) or more]
and slowly turn it counterclockwise.

Remove fuel level sensor unit, fuel filter and fuel pump assembly
(1).

CAUTION:

• Never bend float arm (2) during removal.
• Never pollute the residual fuel inside of the tank. Draw out

avoiding inclination by supporting with a cloth.

• Never cause impacts such by dropping when handling

components.

INSTALLATION

Note to the following, and install in the reverse order of removal.

Fuel Level Sensor Unit

Install new O-ring to fuel tank without any twist.

Install the fuel gauge on the fuel tank with the fuel gauge top sur-
face (A) faced the front of the vehicle.

CAUTION:

• Never allow O-ring to drop.
• Never bend float arm during installing.

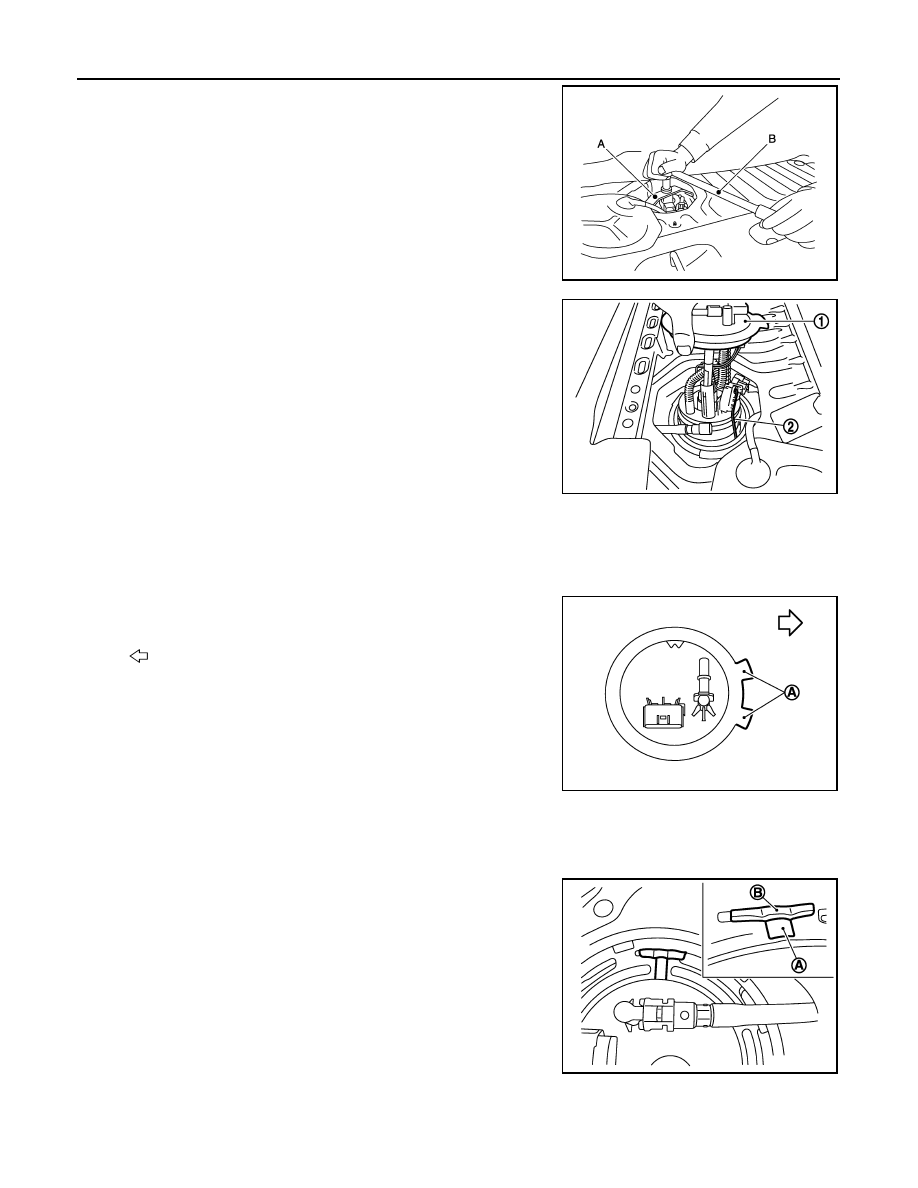

Install lock ring for fuel level sensor unit, fuel filter and fuel pump assembly with lock ring wrench [SST:
KV101207S0] by turning clockwise.

CAUTION:

• Install lock ring horizontally.
• Turn the lock ring (A) until it is engaged in the fuel tank

side (B) as shown in the figure.

Quick Connector

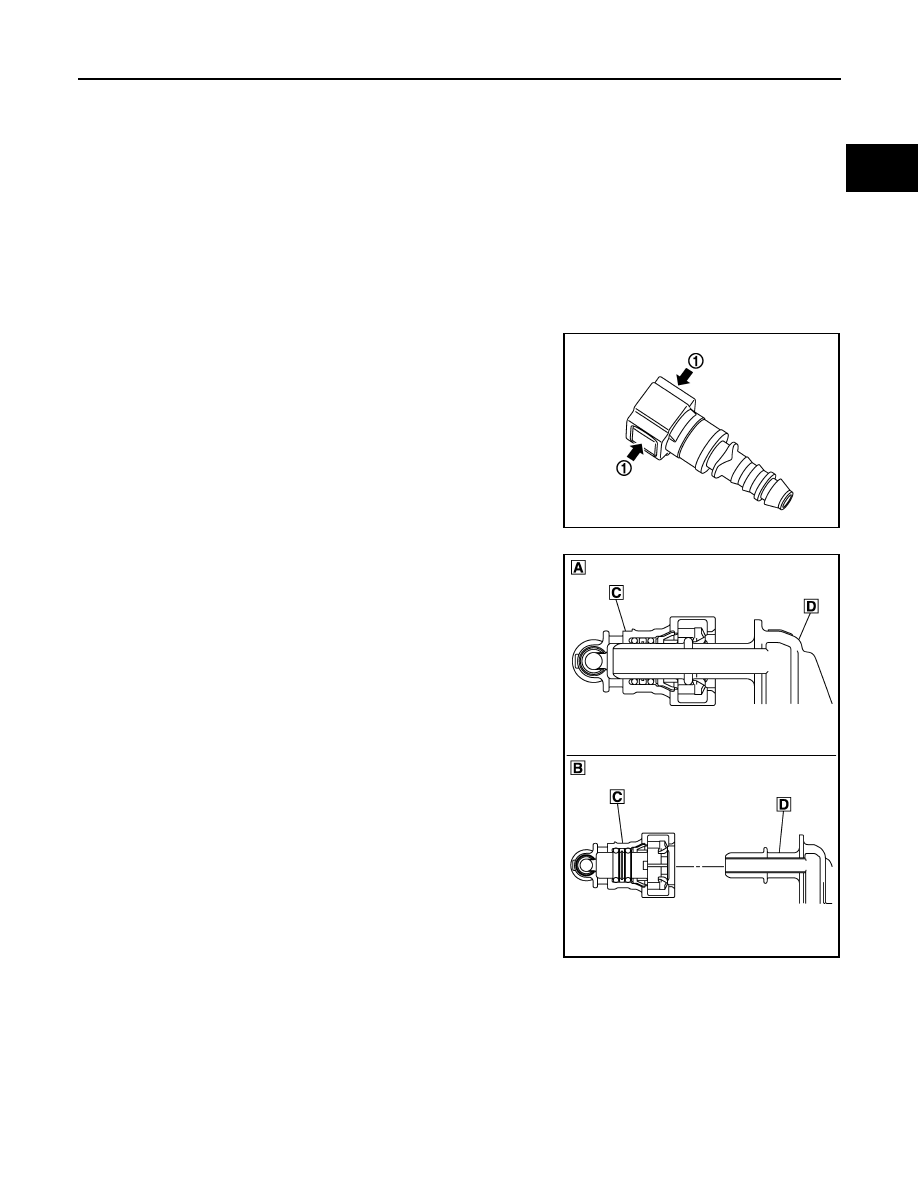

• Connect quick connector as follows:
1.

Check the connection for damage or any foreign materials.

JSBIA1633ZZ

JPBIA3557ZZ

: Vehicle front

E1BIA1124ZZ

JPBIA3559ZZ

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-9

< REMOVAL AND INSTALLATION >

[HRA2DDT]

Align the connector with the tube, then insert the connector straight into the tube until a “click” sound is
heard.

After connecting, check that the connection is secured with following procedures.
• Visually confirm that the two tabs are connected to the connector.

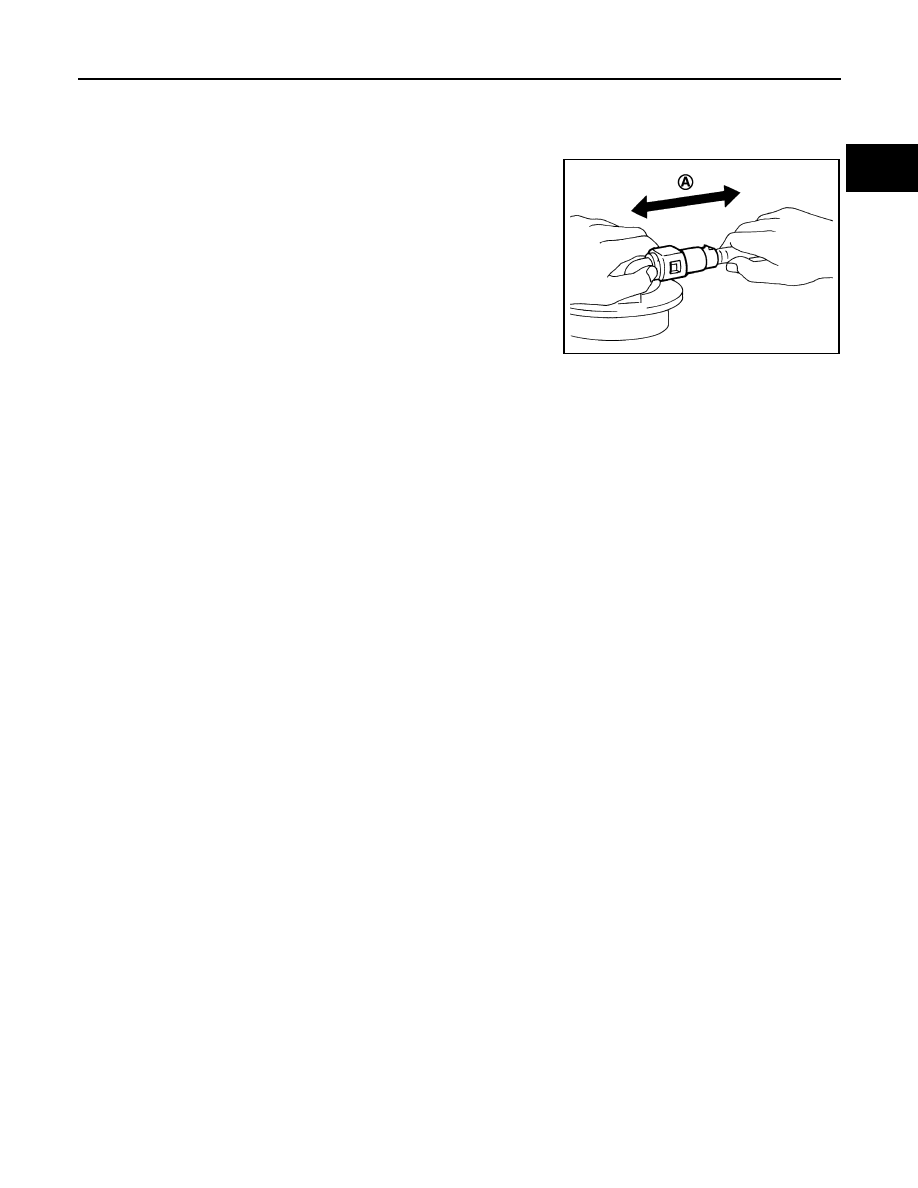

• Pull (A) the tube and the connector to check that they are

securely connected.

Reattach harness connector.

Inspection

INFOID:0000000010418981

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leaks.
1.

Turn ignition switch “ON” (with engine stopped), then check connections for leaks by applying fuel pres-
sure to fuel piping.

Start engine and let it idle and make sure there are no fuel leaks at the fuel system connections.

JPBIA0140ZZ

FL-10

< REMOVAL AND INSTALLATION >

[HRA2DDT]

FUEL TANK

FUEL TANK

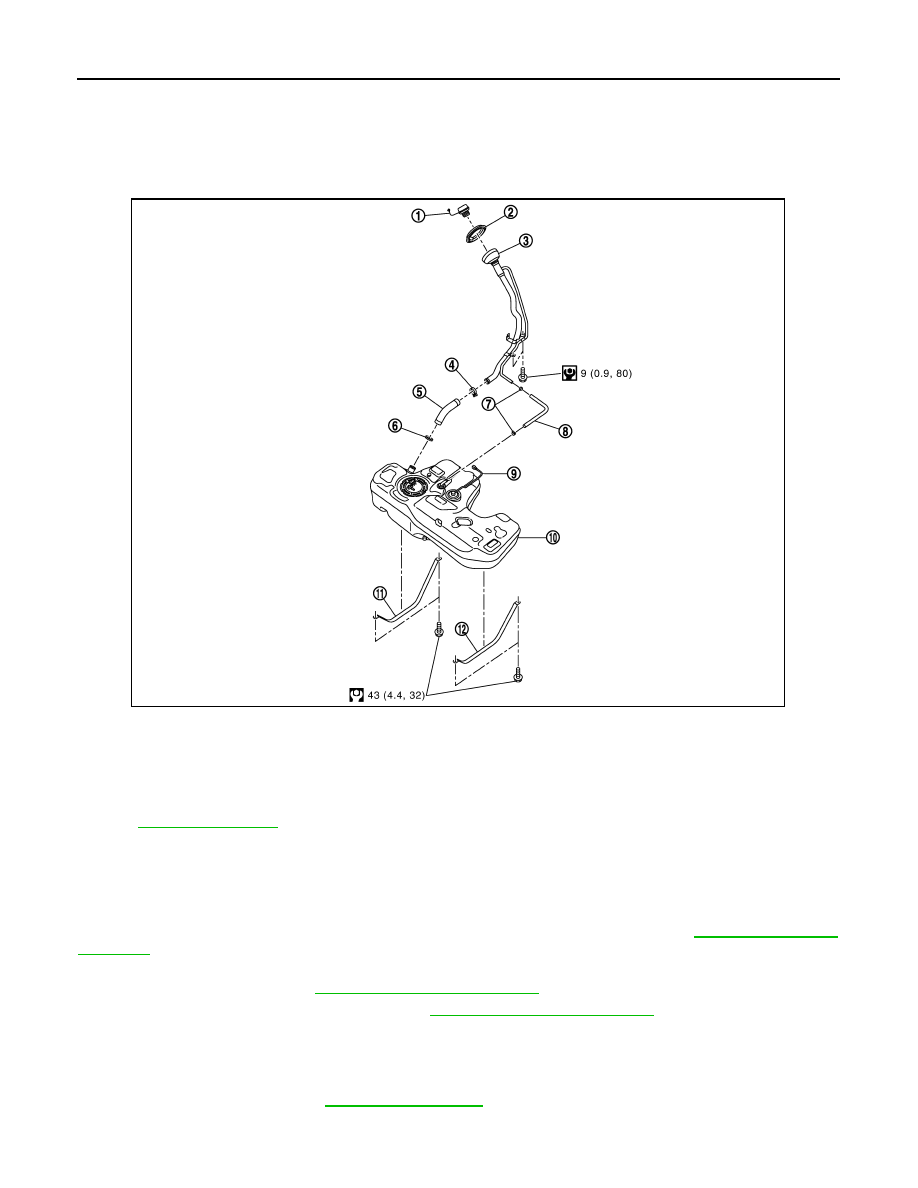

Exploded View

INFOID:0000000010418985

Refer to

GI-4, "Components"

for symbol marks in the figure.

Removal and Installation

INFOID:0000000010418986

REMOVAL

WARNING:

Be sure to read “General Precautions” when working on the fuel system. Refer to

FL-3, "General Pre-

cautions"

Perform the steps 1 to 7 of “REMOVAL” in “ FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL
PUMP ASSEMBLY”. Refer to

FL-6, "Removal and Installation"

Drain fuel from fuel tank if necessary. Refer to

FL-6, "Removal and Installation"

CAUTION:

• Fuel tank will become unstable whilst removing. Fuel should be drained from tank prior to

removal to reduce this effect.

• Situate vehicle on a flat and solid surface.

Remove main muffler. Refer to

EX-6, "Exploded View"

Remove vent hose from filler tube.

Fuel filler cap

Grommet

Fuel filler tube

Clamp

Fuel filler hose

Clamp

Vent hose

EVAP hose

10. Fuel tank

11.

Fuel tank band (RH)

12. Fuel tank band (LH)

E1BIA1121GB

FUEL TANK

FL-11

< REMOVAL AND INSTALLATION >

[HRA2DDT]

Remove fuel filler hose from fuel tank.

CAUTION:

• Do not remove fuel filler hose from fuel filler tube to prevent interference with suspension when

installing.

• If removal of fuel filler hose from fuel filler tube is necessary use mating marks to ensure correct

orientation.

Disconnect EVAP hose.
• Remove quick connector in the following procedures.
- Hold the sides of quick connector, press tabs and disconnect EVAP hose.
- If quick connector sticks to tube, push and pull quick connectors several times until they start to move.

Then disconnect them by pulling.

CAUTION:

• Quick connector can be disconnected when the tabs (1)

are depressed completely. Never twist it more than neces-
sary.

• Never use any tools to disconnected quick connector.

• Keep resin tube away from heat. Be especially careful

when welding near the resin tube.

• Prevent acid liquid such as battery electrolyte, etc. from

getting on resin tube.

• Never bend or twist resin tube during installation and dis-

connection.

• Never insert plug, preventing damage to O–ring in quick

connector.

• To keep the connecting portion clean and to avoid dam-

age and foreign materials, cover them completely with
plastic bags or something similar.

E1BIA1192ZZ

: Connection (cross-section)

: Disconnection (cross-section)

: Quick connector

: Hard tube

E1BIA1190ZZ

FL-12

< REMOVAL AND INSTALLATION >

[HRA2DDT]

FUEL TANK

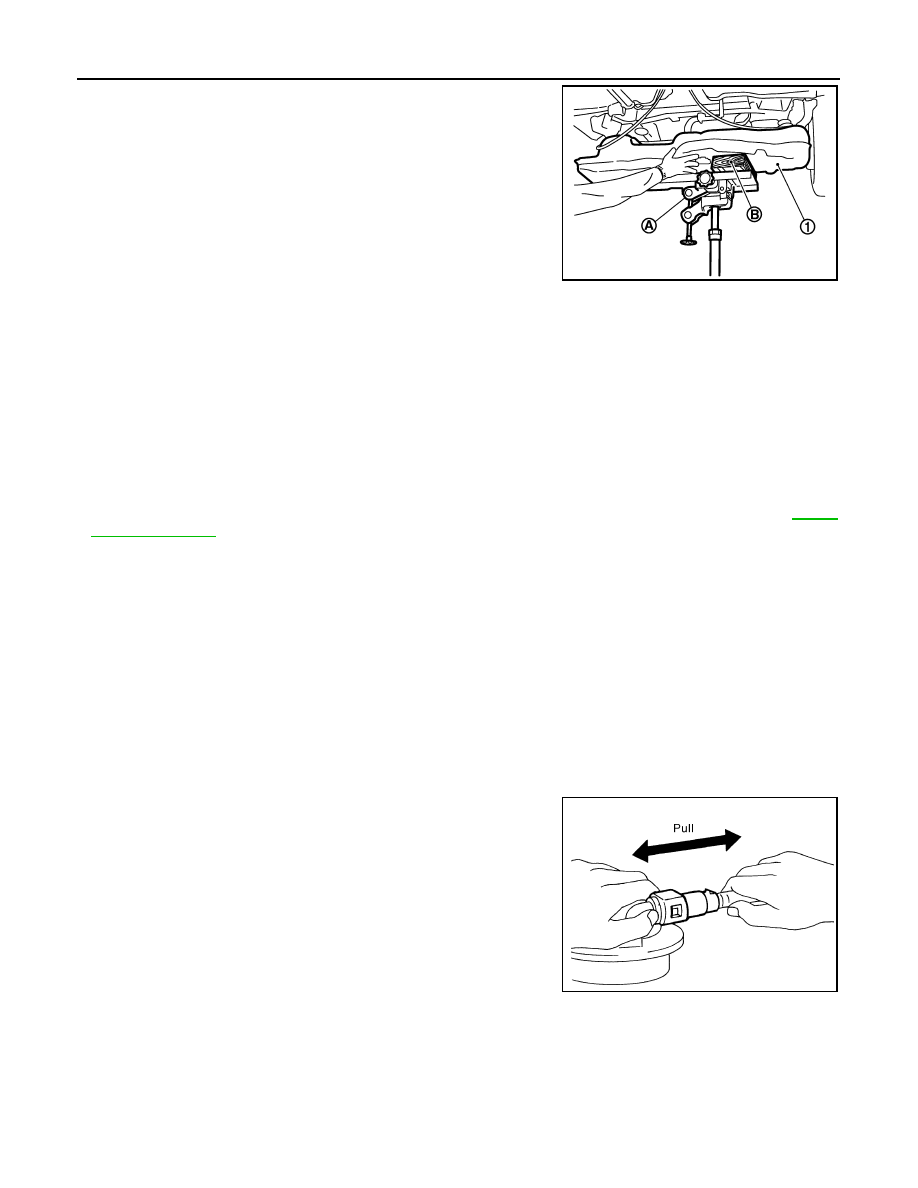

Support center of fuel tank (1) with transmission jack (A) and
piece of wood (B).

CAUTION:

• Make sure the tank bottom surface is supported well

enough to prevent an unstable condition when lowering
the tank.

• Make sure to hold it securely as tank surface may not be

flat.

Remove fuel tank band (RH and LH).

Lower transmission jack carefully to remove fuel tank while holding it by hand.

CAUTION:

Make sure to avoid any interference with surrounding component that may cause damage.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Make sure hose clamps and hoses clips are not secured on top of the filler tube bulges.
• Make sure all quick connectors and their mating part are free of foreign matter, check for damage.
• Ensure the tank bands are correctly assembled as per their identification marks "L" and "R".
• Make sure that the torques of the mounting bolts are correct as per exploded view. Refer to

FL-10,

"Exploded View"

• Make sure that when installing the connectors, the confirmation click sound is heard. Pull back on

the connector to ensure proper engagement.

Fuel Filler Hose

• Insert fuel filler hose to the length below.

• Be sure hose clamp is not placed on swelled area of fuel filler tube.
• Tighten fuel filler hose clamp so that the remaining length of screw thread becomes to the following.

EVAP Hose

Check connections for damage or foreign material.

Align the matching side connection part with the center of shaft,
and insert connector straight until it clicks.

After connecting, pull out quick connector and centralized under-
floor piping by hand. Make sure connections are secure.

Inspection

INFOID:0000000010418987

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leaks.
1.

Turn ignition switch “ON” (with engine stopped), and check connections for leakage by applying fuel pres-
sure to fuel piping.

PBIC3792E

: 35 mm (1.38 in)

Fuel filler tube side

: 7 - 11 mm (0.28 - 0.43 in)

Fuel tank side

: 5 - 9 mm (0.20 - 0.35 in)

PBIC1653E

FUEL TANK

FL-13

< REMOVAL AND INSTALLATION >

[HRA2DDT]

Start engine and rev it up and make sure there are no fuel leaks at the fuel system tube and hose connec-
tions.

FL-14

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HRA2DDT]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Tank

INFOID:0000000010418991

Standard and Limit

Fuel tank capacity

Approximate 55 (12-1/8 Imp gal)

Fuel recommendation

Refer to

GI-35, "Fuel"

PRECAUTIONS

FL-15

< PRECAUTION >

[MR20DD]

PRECAUTION

PRECAUTIONS

General Precautions

INFOID:0000000010683781

WARNING:

When replacing fuel line parts, be sure to observe the following.
• Put a “CAUTION: FLAMMABLE” sign in the workshop.
• Be sure to work in a well ventilated area and furnish workshop with a CO

fire extinguisher.

• Never smoke while servicing fuel system. Keep open flames and sparks away from the work area.

CAUTION:

• Use gasoline required by the regulations for octane number. Refer to

GI-35, "Fuel"

• Before removing fuel line parts, perform out the following procedures:
- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in

safe area.

- Release fuel pressure from the fuel lines. Refer to

ECH-121, "Work Procedure"

for fuel leakage at connections.

- Start engine and rev it up and check for fuel leakage at connections.
• Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the

“MI” may come on.

FL-16

< PREPARATION >

[MR20DD]

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000010683799

Tool number
Tool name

Description

KV99104700
Lock ring wrench

Removing and installing lock ring

ZZA0122D

Content .. 1 2 ..
