CYLINDER BLOCK

EM-465

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Remove main bearing cap and bearings, and using the scale on

the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the standard is
the same as that described in “Method by Calculation”.

FLYWHEEL INSPECTION

For a dual mass flywheel which has worked: presence of a free rotation angle. This angle is measured by fix-
ing the primary flywheel and turning the secondary flywheel. The dual mass flywheel free rotation angle must
not exceed 15

°

 or 30mm (1.2 in) in linear movement measured on the edge.

JPBIA0231ZZ

EM-466

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

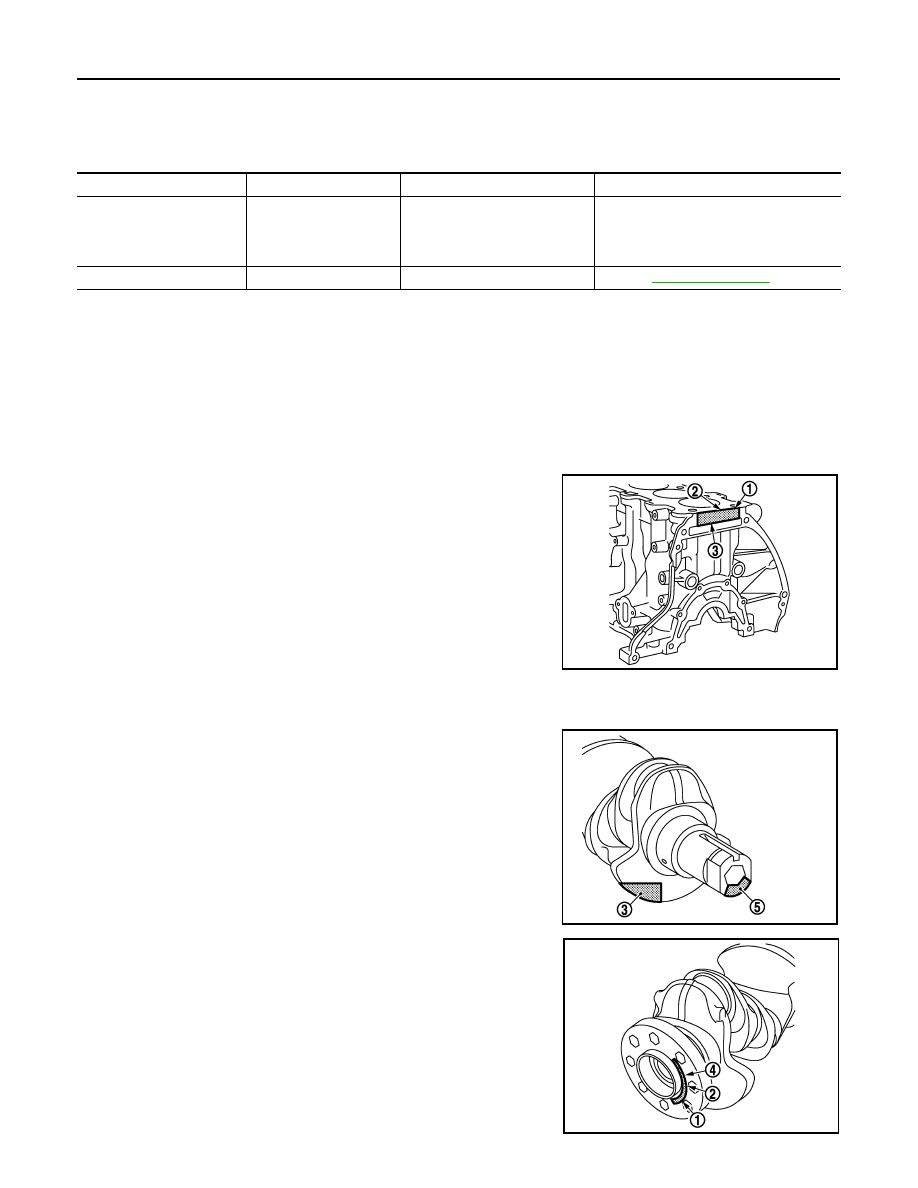

HOW TO SELECT PISTON AND BEARING

HOW TO SELECT PISTON AND BEARING

Description

INFOID:0000000010282027

• The identification grade stamped on each part is the grade for the dimension measured in new condition.

This grade cannot apply to reused parts.

• For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the

measurement with the values of each selection table.

• For details of the measurement method of each part, the reuse standards and the selection method of the

selective fitting parts, refer to the text.

Main Bearing

INFOID:0000000010282028

WHEN NEW CYLINDER BLOCK AND CRANKSHAFT ARE USED

1.

“Main Bearing Selection Table” rows correspond to main bearing
housing grade on rear side of cylinder block.
• * This engine only has one cylinder bore grade.

(1) : cylinder block bearing diameter category:

• Identification by letter of the crankshaft bearing diameter,
• the order of the marking letters goes from the bearing on the

timing end to the bearing on  the flywheel end.

• (2) : cylinder diameter category.
• (3) : marking only for factory use.

WORKING OUT THE CLASS OF MAIN BEARING (ORIGINAL FITMENT)

Marking (1) On The Crankshaft

Identify the category of crankshaft main journal diameter (A) with
checking the marking of crankshaft as shown in the figures.
NOTE:
The marking has 5 digits. Left end is the diameter category of No. 1
bearing (flywheel side) and right end is the diameter category of No.
5 bearing (sprocket side).

Selection points

Selection parts

Selection items

Selection methods

Between cylinder block and
crankshaft

Main bearing

Main bearing grade
(bearing thickness)

Determined by match of cylinder block
bearing housing grade (inner diameter of
housing) and crankshaft journal grade
(outer diameter of journal)

Piston protrusion

Piston

Piston grade (piston height)

Refer to

EM-459, "Inspection"

.

E1BIA0564ZZ

E1BIA0542ZZ

E1BIA0543ZZ

HOW TO SELECT PISTON AND BEARING

EM-467

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Detail of the marking (1):
(1) : Line indicating the diameter category of the journal.
- identification by letters corresponding to the diameter of the journal
- the order of the marking letters goes from the bearing on the timing end to the bearing on the flywheel end,
(2) :Line indicating the diameter class of the crankpins,
(3), (4) : Last five numbers of the crankshaft part number,
(5): Line reserved for the factory.

Table Of Journal Diameter Classes

Unit: mm (in)

WHEN CYLINDER BLOCK AND CRANKSHAFT ARE REUSED

1.

Measure the dimensions of the cylinder block main bearing housing inner diameter and crankshaft main
journal diameter individually. Refer to

EM-459, "Inspection"

.

2.

Apply the measured dimension to “Main Bearing Selection Table”.

3.

Read the symbol at the cross point of selected row and column in “Main Bearing Selection Table”.

4.

Apply the symbol obtained from “Main Bearing Grade Table” to select main bearing.

MAIN BEARING SELECTION TABLE

B* = Blue (bearing shell colour mark)
N** = Black (bearing shell colour mark)
J*** = Yellow (bearing shell colour mark)

Table of distribution of upper journals 1, 2, 4 and 5

Journal class mark on the crankshaft

Journal diameter

A,B,C

 51.485 - 51.487 (2.0270)

D, E

51.488 - 51.489 (2.0271)

F, G, H

51.490 - 51.492 (2.0272)

K, L, M

51.495 - 51.497 (2.0274)

N, O

51.498 - 51.499 (2.0275)

P, Q, R

51.500 - 51.502 (2.0276)

S, T

 51.503 - 51.504 (2.0277)

U

 51.505 (2.0278)

Cylinder block bearing diameter class mark

A

B

C

E

H

J

K

L

M

P

S

T

U

Z

EM-468

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

HOW TO SELECT PISTON AND BEARING

Table of the distribution of lower journals 1, 2, 4 and 5

B* = Blue (bearing shell colour mark)
N** = Black (bearing shell colour mark)
J*** = Yellow (bearing shell colour mark)

Crank
shaft
jour-
nal di-
amet
er
class
mark

A

B*

B

B

C

N**

B

D

N

B

E

N

B

F

N

B

G

N

B

H

N

B

I

N

B

J

N

B

K

N

B

L

N

B

M

J***

N

B

N

J

N

O

J

N

P

J

N

Q

J

N

R

J

N

S

J

N

T

J

N

U

J

N

Cylinder block bearing diameter class mark

Cylinder block bearing diameter class mark

A

B

C

E

H

J

K

L

M

P

S

T

U

Z

HOW TO SELECT PISTON AND BEARING

EM-469

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Table of the distribution of upper journal 3

W* = White (bearing shell colour mark)
N** = Black (bearing shell colour mark)
J*** = Yellow (bearing shell colour mark)

Crank
shaft
jour-
nal di-
amet
er
class
mark

A

N**

B*

B

N

B

C

N

B

D

N

B

E

N

B

F

N

B

G

N

B

H

J***

N

B

I

J

N

J

J

N

K

J

N

L

J

N

M

J

N

N

J

N

O

J

N

P

J

N

Q

J

N

R

J

N

S

J

T

J

U

J

Cylinder block bearing diameter class mark

Cylinder block bearing diameter class mark

A

B

C

E

H

J

K

L

M

P

S

T

U

Z

EM-470

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

HOW TO SELECT PISTON AND BEARING

Table of the distribution of lower journals 3

W* = White (bearing shell colour mark)
N** = Black (bearing shell colour mark)
J*** = Yellow (bearing shell colour mark)

Crank
shaft
jour-
nal di-
amet
er
class
mark

A

N**

B

N

C

J***

N

D

J

N

E

J

N

F

J

N

G

J

N

H

J

N

I

J

N

J

J

N

K

J

N

L

J

N

M

W***

J

N

N

W

J

O

W

J

P

W

J

Q

W

J

R

W

J

S

W

J

T

W

J

U

W

J

Cylinder block bearing diameter class mark

Cylinder block bearing diameter class mark

A

B

C

E

H

J

K

L

M

P

S

T

U

Z

HOW TO SELECT PISTON AND BEARING

EM-471

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Example:

• diameter category of journal No. 1 marked on the crankshaft = N,
• diameter category of crankshaft bearing No.1 marked on the cylinder block = M,
• thickness class to of the upper and lower bearing shells of bearing No. 1 to refit = Black Mark.

Identification of the crankshaft bearing shells

Crank
shaft
jour-
nal di-
amet
er
class
mark

A

J***

N**

B

J

B

C

J

B

D

J

B

E

J

B

F

J

B

G

J

B

H

W*

J

B

I

W

J

J

W

J

K

W

J

L

W

J

M

W

J

N

W

J

O

W

J

P

W

J

Q

W

J

R

W

J

S

W

T

W

U

W

Cylinder block bearing diameter class mark

Marking

Colour Mark

Thickness mm(in)

Lower shell bearing

33281R or 4

Blue

1.989(0.0783)

3875R or 3

Black

1.985(0.0781)

37686R or 2

Yellow

1.981(0.0780)

31153R or 1

White

1.977(0.0787)

Upper bearing shell bearing

53785R or 4

Blue

1.989(0.0783)

54889R or 3

Black

1.985(0.0781)

56848R or 2

Yellow

1.981(0.0780)

53368R or 1

White

1.977(0.0787)

EM-472

< SERVICE DATA AND SPECIFICATIONS (SDS)

[R9M]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000010282029

GENERAL SPECIFICATIONS

Unit: degree

Drive Belts

INFOID:0000000010282030

DRIVE BELT

Intake Manifold

INFOID:0000000010282031

INTAKE MANIFOLD

Unit: mm (in)

Exhaust Manifold

INFOID:0000000010282032

EXHAUST MANIFOLD

Unit: mm (in)

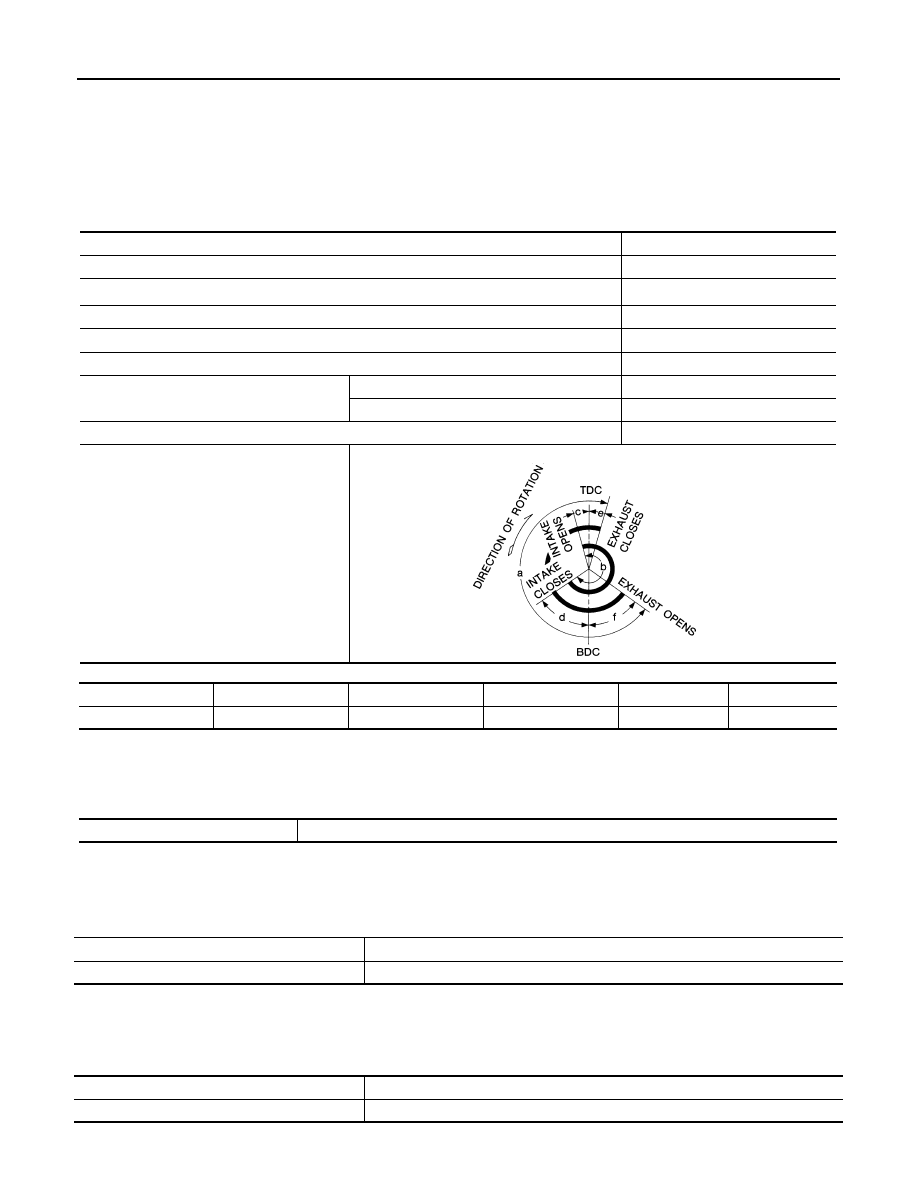

Engine type

R9M

Cylinder arrangement

In-line 4

Displacement

cm

3

 (cu in)

1,598 (97.51)

Bore and stroke

mm (in)

80.0 x 79.5 (3.1496 x 3.1299)

Valve arrangement

DOHC

Firing order

1-3-4-2

Number of piston rings

Compression

2

Oil

1

Compression ratio

15.4

Valve timing

a

b

c

d

e

f

198

187

- 11

18

- 17

35

EM120

Tension of drive belt

Belt tensioning is not necessary, as it is automatically adjusted by drive belt auto-tensioner.

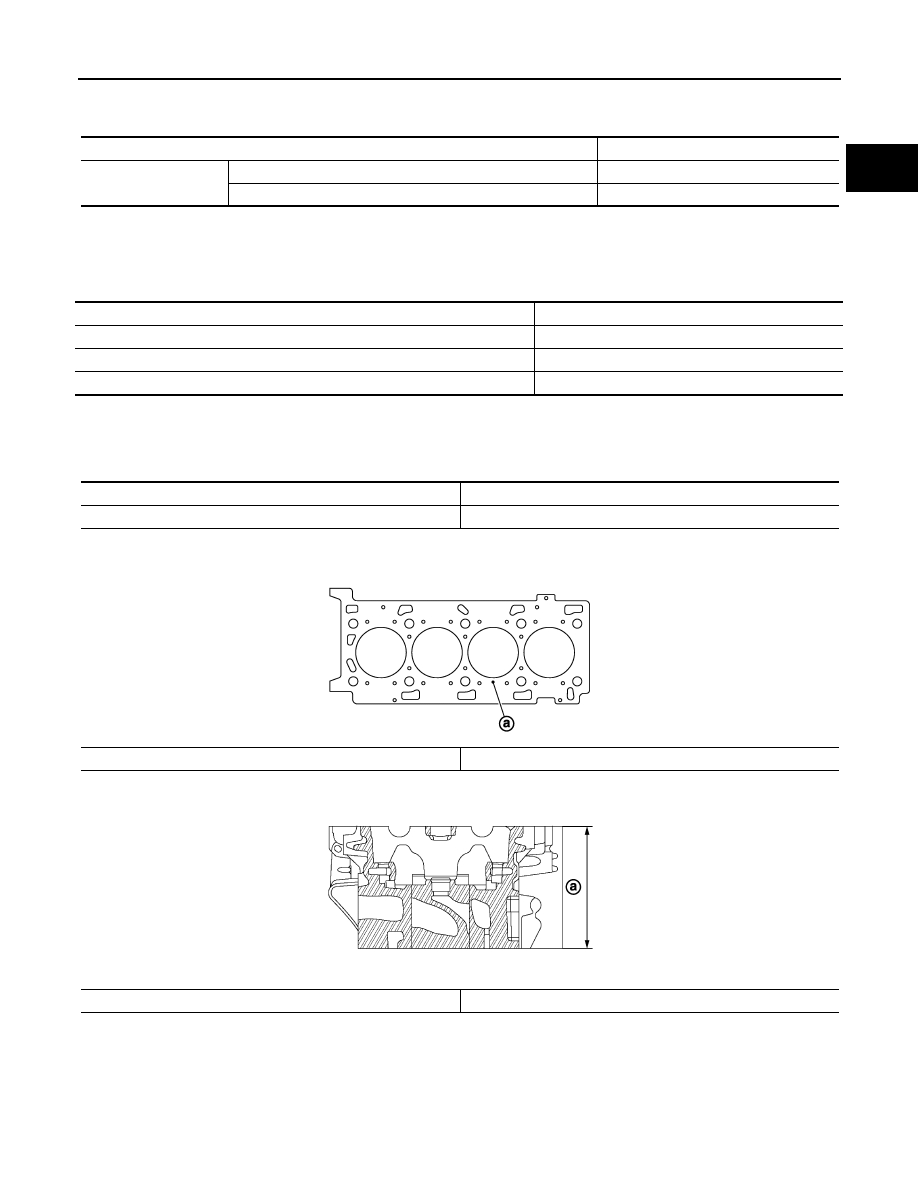

Items

Standard

Surface distortion

0.05 (0.0020)

Items

Standard

Surface distortion

0.7 (0.028)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-473

< SERVICE DATA AND SPECIFICATIONS (SDS)

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Turbocharger

INFOID:0000000010282033

Camshaft

INFOID:0000000010282034

CAMSHAFT

Unit: mm (in)

Cylinder Head

INFOID:0000000010282035

CYLINDER HEAD

Unit: mm (in)

VALVE DIMENSIONS

Valve rod moving length

Value of vacuum

25 kPa (250 mbar, 187.525 mmHg, 7.3825 inHg)

2.95 - 5.95 mm (0.1161 - 0.2343 in)

More than 60 kPa (600 mbar, 450.06 mmHg, 17.718 inHg)

The rod should not move

Items

Standard

Camshaft journal diameter

24.979 - 25.000 (0.9834 - 0.9843)

Cylinder head housing and camshaft bracket inner diameter

25.040 - 25.061 (0.9858 - 0.9867)

Camshaft journal oil clearance

0.060 (0.0024)

Items

Standard

Head surface distortion

0.05 (0.0020)

Cylinder head gasket thickness “a”

1.116 - 1.184 (0.0439 - 0.0466)

Normal cylinder head height “a”

131.5 (5.18)

JPBIA0791ZZ

JPBIA0792ZZ

EM-474

< SERVICE DATA AND SPECIFICATIONS (SDS)

[R9M]

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

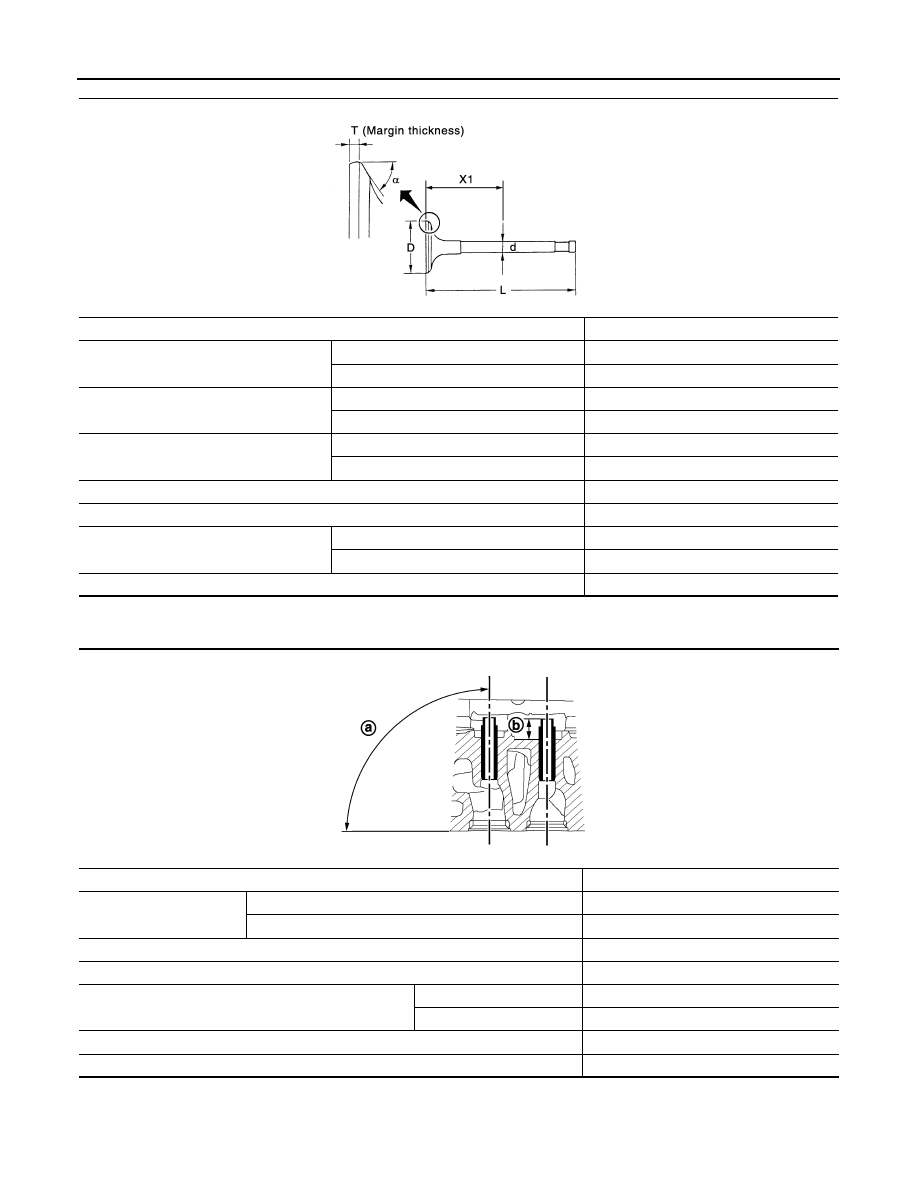

VALVE GUIDE

Unit: mm (in)

VALVE SEAT

Item

Standard

Valve head diameter “D”

Intake

23.38 - 23.62 (0.9205 - 0.9299)

Exhaust

23.28 - 23.62 (0.9165 - 0.9260)

Valve length “L”

Intake

104.17 (4.1)

Exhaust

104.06 (4.097)

Valve stem diameter “d”

Intake

5.970 - 5.985 (0.2350 - 0.2356)

Exhaust

5.955 - 5.970 (0.2344 - 0.2350)

Measuring point “X1”

35.0 (1.378)

Valve seat angle “

α

45

°

- 45

°

15

Valve margin “T”

Intake

1.84 (0.072)

Exhaust

1.35 (0.531)

Valve lift amount

8.0 (0.315)

E1BIA0064ZZ

Items

Standard

Valve guide

Outer diameter

11.033 - 11.044 (0.4344 - 0.4348)

Inner diameter (Finished size)

6.000 - 6.018 (0.2362 - 0.2369)

Cylinder head valve guide hole diameter

10.987 - 11.013 (0.4326 - 0.4336)

Interference fit of valve guide

0.020 - 0.057 (0.0008 - 0.0022)

Valve guide clearance

Intake

0.015 - 0.048 (0.0006 - 0.0019)

Exhaust

0.030 - 0.063 (0.0012 - 0.0025)

Valve guide angle “a”

90

°

Projection length “b”

14.0 (0.551)

JPBIA0586ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-475

< SERVICE DATA AND SPECIFICATIONS (SDS)

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Unit: mm (in)

*

1

: Machining data

VALVE SPRING

Cylinder Block

INFOID:0000000010282036

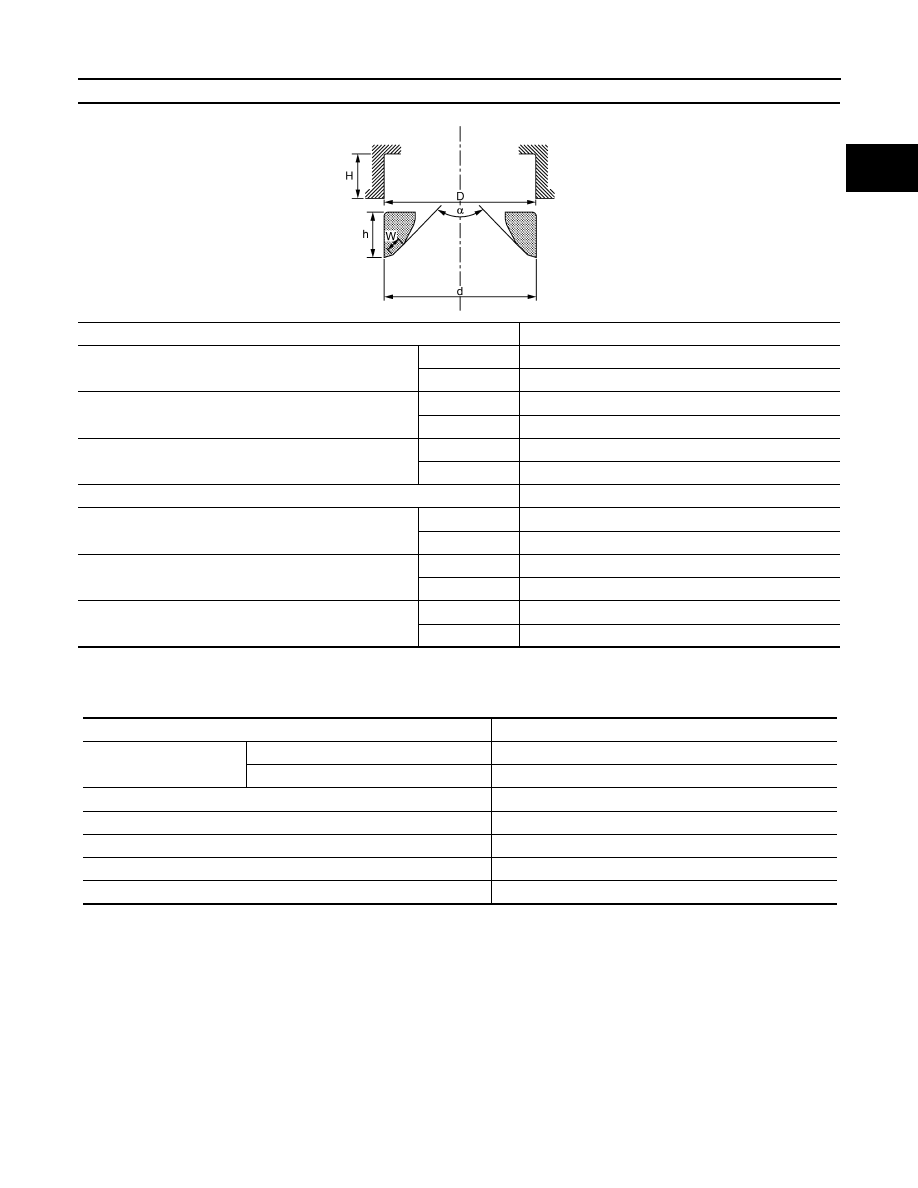

CRANKSHAFT

Items

Standard

Cylinder head seat recess diameter “D”

Intake

28.163 - 28.191 (1.1088 - 1.1099)

Exhaust

26.986 - 27.014 (1.0624 - 1.0635)

Valve seat outer diameter “d”

Intake

28.276 - 28.292 (1.1132 - 1.1139)

Exhaust

27.076 - 27.092 (1.0660 - 1.0666)

Valve seat interference fit

Intake

0.085 - 0.129 (0.0033 - 0.0051)

Exhaust

0.062 - 0.106 (0.0024 - 0.0042)

Angle “

α

89

°

30

Contacting width “W”*

1

Intake

1.40 (0.0551)

Exhaust

1.544 (0.0608)

Height “h”

Intake

4.56 - 4.64 (0.1795 -0.1827)

Exhaust

4.905 - 4.985 (0.1931 - 0.1963)

Depth “H”

Intake

6.95 (0.2736)

Exhaust

7.25 (0.2854)

JPBIA0787ZZ

Free height

46.90 mm (1.8465 in)

Pressure height

200 - 220 N (20.4 - 22.4 kg, 45 - 49 lb)

 34.90 mm (1.3740 in)

353 - 387 N (36.0 - 39.5 kg, 79 - 87 lb)

26.90 mm (1.0591 in)

Full pressed height

24.40 mm (0.9606 in)

Diameter of the wire

2.78 - 2.82 mm (0.1094 - 0.1110 in)

Inner diameter

13.90 - 14.30 mm (0.5472 - 0.5630 in)

Outer diameter

19.50 - 19.90 mm (0.7677 - 0.7835 in)

Valve spring squareness

1.4 mm (0.055 in)

EM-476

< SERVICE DATA AND SPECIFICATIONS (SDS)

[R9M]

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

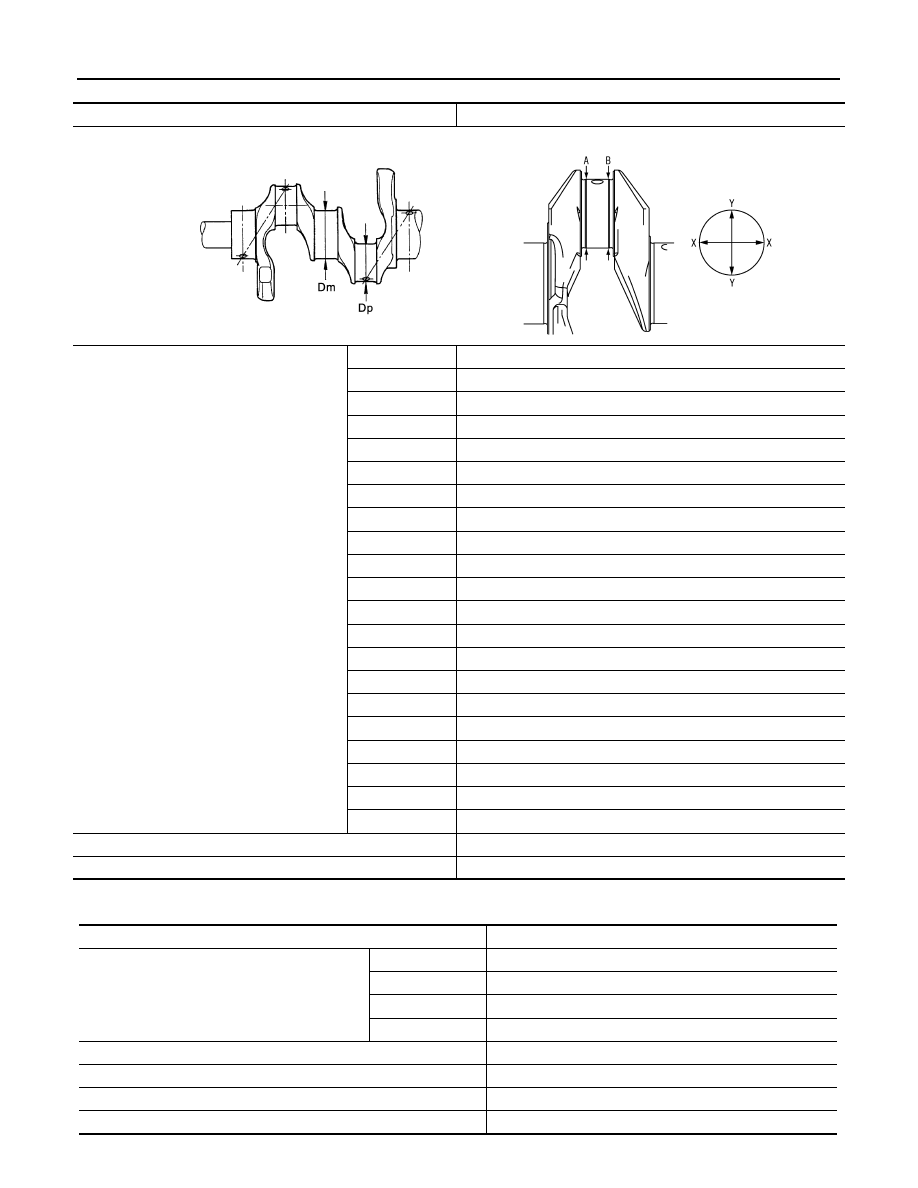

CONNECTING ROD

Unit: mm (in)

Item

Standard

Crankshaft main journal diameter “Dm”

GRADE mark A

51.485 (2.0270)

GRADE mark B

51.486 (2.0270)

GRADE mark C

51.487 (2.0270)

GRADE mark D

51.488 (2.0271)

GRADE mark E

51.489 (2.0271)

GRADE mark F

51.490 (2.0272)

GRADE mark G

51.491 (2.0272)

GRADE mark H

51.492 (2.0272)

GRADE mark I

51.493 (2.0273)

GRADE mark J

51.494 (2.0273)

GRADE mark K

51.495 (2.0274)

GRADE mark L

51.496 (2.0274)

GRADE mark M

51.497 (2.0274)

GRADE mark N

51.498 (2.0275)

GRADE mark O

51.499 (2.0275)

GRADE mark P

51.500 (2.0276)

GRADE mark Q

51.501 (2.0276)

GRADE mark R

51.502 (2.2048)

GRADE mark S

51.503 (2.2048)

GRADE mark T

51.504 (2.2049)

GRADE mark U

51.505 (2.2049)

Crankshaft pin journal diameter “Dp”

48.000 - 48.020 (1.8898 - 1.8905)

Crankshaft end play

0.112 - 0.438 (0.004 - 0.0172)

E1BIA0067ZZ

PBIC3459J

Item

Standard

Center distance (big end and small end)

Grade 1

127.17 - 127.185 (5.0067 - 5.0073)

Grade 2

127.185 - 127.2 (5.0073 - 5.0079)

Grade 3

127.2 - 127.215 (5.0079 - 5.0098)

Grade 4

127.215 - 127.23 (5.0098 - 5.001)

Connecting rod big end diameter

51.58 - 51.600 (2.0307 - 2.0315)

Connecting rod bushing end diameter

32.02 - 32.04 (1.1819 - 1.1827)

Connecting rod bushing end oil clearance

0.020 - 0.038 (0.0008 - 0.0015)

Connecting rod side clearance

0.021 - 0.48 (0.0083 - 0.0189)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-477

< SERVICE DATA AND SPECIFICATIONS (SDS)

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

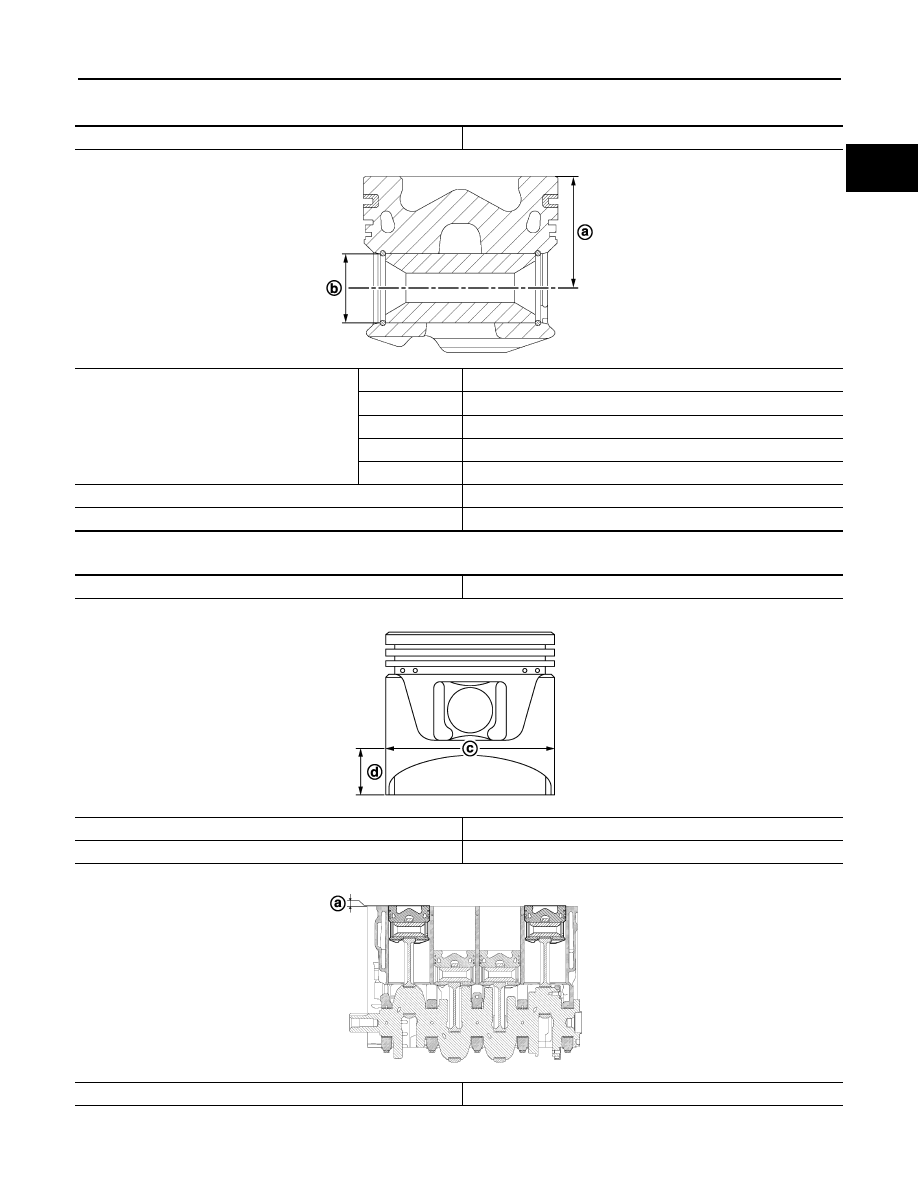

PISTON PROTRUSION GRADE

Unit: mm (in)

AVAILABLE PISTON

Item

Standard

Piston height “a”

Grade R

45.911 (1.8075)

Grade S

45.946 (1.8089)

Grade T

45.981 (1.8103)

Grade U

46.016 (1.8116)

Grade X

46.031 (1.8130)

Piston pin hole diameter “b”

32.012 - 32.017 (1.2603 - 1.2605)

Piston to cylinder bore clearance

0.192 - 0.236 (0.0076 - 0.0093)

JPBIA0767ZZ

Item

Standard

Piston skirt diameter “c”

79.835 mm (3.1431 in)

Measure point “d”

42 mm (1.6535 in)

Piston protrusion "a"

0.387 - 0.551 mm (0.0159 - 0.0217 in)

JPBIA0784ZZ

JPBIA0640ZZ

EM-478

< SERVICE DATA AND SPECIFICATIONS (SDS)

[R9M]

SERVICE DATA AND SPECIFICATIONS (SDS)

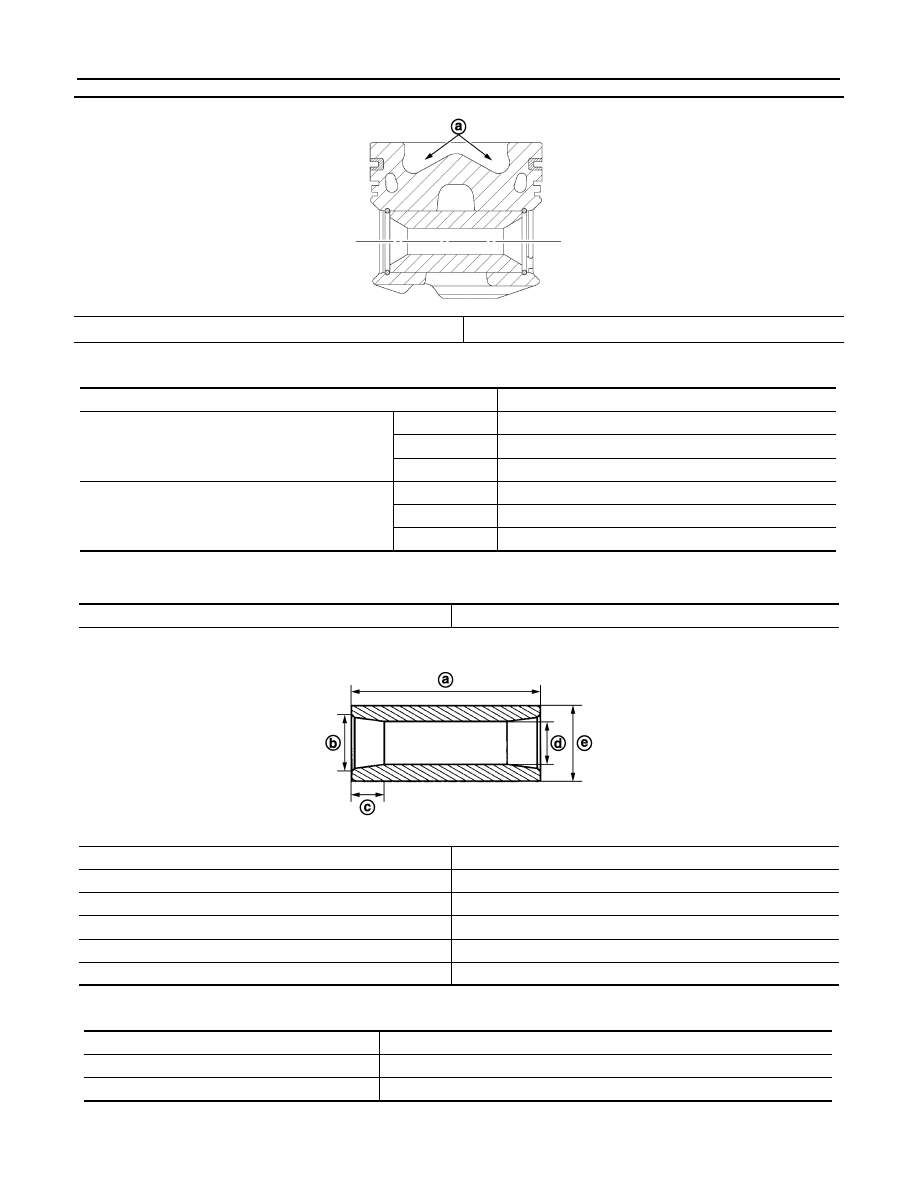

PISTON RING

Unit: mm (in)

PISTON PIN

Unit: mm (in)

CYLINDER BLOCK

Unit: mm (in)

Capacity of combustion chamber“a”

24.65 - 25.35 cm

3

 (1.5041 - 1.546 cu in)

JPBIA0633ZZ

Items

Standard

Piston ring side clearance

Top

0.09 - 0.13 (0.0035 - 0.0051)

2nd

0.08 - 0.12 (0.0031 - 0.0047)

Oil ring

0.05 (0.002)

Piston ring end gap

Top

0.2 - 0.35 (0.0079 - 0.0138)

2nd

0.7 - 0.9 (0.0276 - 0.0354)

Oil ring

0.25 - 0.50 (0.0098 - 0.0197)

Items

Standard

Length “a”

59.85 (2.3563)

Diameter of chamfer “b”

23.85 - 24.15 (0.9390 - 0.9508)

Length of the chamfer “c”

8.7 (0.343)

Piston pin inner diameter “d”

13.8 - 14.1 (0.543 - 0.555)

Piston pin outer diameter ’“e”

29.995 - 30.005 (1.1809 -1.1813)

Piston to piston pin oil clearance

0.012 - 0.023 (0.0005 - 0.0009)

JPBIA0768ZZ

Item

Standard

Cylinder block top surface distortion

0.05 (0.0020)

Cylinder bore inner diameter

80.004 - 84.034 (3.1498 - 3.1509)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-479

< SERVICE DATA AND SPECIFICATIONS (SDS)

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Main Bearing

INFOID:0000000010282037

MAIN BEARING GRADE TABLE

MAIN BEARING OIL CLEARANCE

Unit: mm (in)

Connecting Rod Bearing

INFOID:0000000010282038

CONNECTING ROD BEARING OIL CLEARANCE

Unit: mm (in)

Cylinder block main bearing
housing inner diameter

Grade mark A

55.4975 - 55.4985 (2.1849 - 2.185)

Grade mark B

55.4985 - 55.4995 (2.185)

Grade mark C

55.4995 - 55.5005 (2.185 - 2.1851)

Grade mark E

55.5005 - 55.5015 (2.1851)

Grade mark H

55.5015 - 55.5025 (2.1851)

Grade mark J

55.5025 - 55.5035 (2.1851 - 2.1852)

Grade mark K

55.5035 - 55.5045 (2.1852)

Grade mark L

55.5045 - 55.5055 (2.1852 - 2.1853)

Grade mark M

55.5055 - 55.5065 (2.1853)

Grade mark P

55.5065 - 55.5075 (2.1853)

Grade mark S

55.5075 - 55.5085 (2.1853 - 2.1854)

Grade mark T

55.5085 - 55.5095 (2.1854)

Grade mark U

55.5095 - 55.5105 (2.1854)

Grade mark Z

55.5105 - 55.5115 (2.1854 - 2.1855)

Marking

Thickness Identification

color

Lower shell

bearing

33281R or 4

1.989 mm (0.0783 in)

Blue

38751R or 3

1.985 mm (0.0781 in)

Black

37686R or 2

1.981 mm (0.0780 in)

Yellow

31153R or 1

1.977 mm (0.0778 in)

White

Upper shell

bearing

53785R or 4

1.989 mm (0.0783 in)

Blue

54889 or 3

1.985 mm (0.0781 in)

Black

7527 (upper)

1.981 mm (0.0780 in)

Yellow

7521 (lower)

1.977 mm (0.0778 in)

White

Main bearing oil clearance

Standard

0.035 - 0.065 (0.0014 - 0.0026)

Connecting rod bearing oil clearance

Standard

 0.053 - 0.093 (0.0021 - 0.0037)
