The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000010305339

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition switch in the

″

LOCK

″

position.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing work. If

DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.

OPERATION PROCEDURE

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

position. At this time, the

steering lock will be released.

Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.

Perform the necessary repair operation.

When the repair work is completed, return the ignition switch to the

″

LOCK

″

position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

Perform a self-diagnosis check of all control units using CONSULT.

BR-6

< PRECAUTION >

[LHD]

PRECAUTIONS

Precaution for Brake System

INFOID:0000000010305340

WARNING:

Clean any dust from the front brake and rear brake with a vacuum dust collector. Never blow with com-
pressed air.

CAUTION:

• Only use “DOT 4” brake fluid. Refer to

MA-59, "Fluids and Lubricants"

• Never reuse drained brake fluid.
• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface.

• Always clean with new brake fluid when cleaning the master cylinder, brake caliper and other com-

ponents.

• Never use mineral oils such as gasoline or light oil to clean. They may damage rubber parts and

cause improper operation.

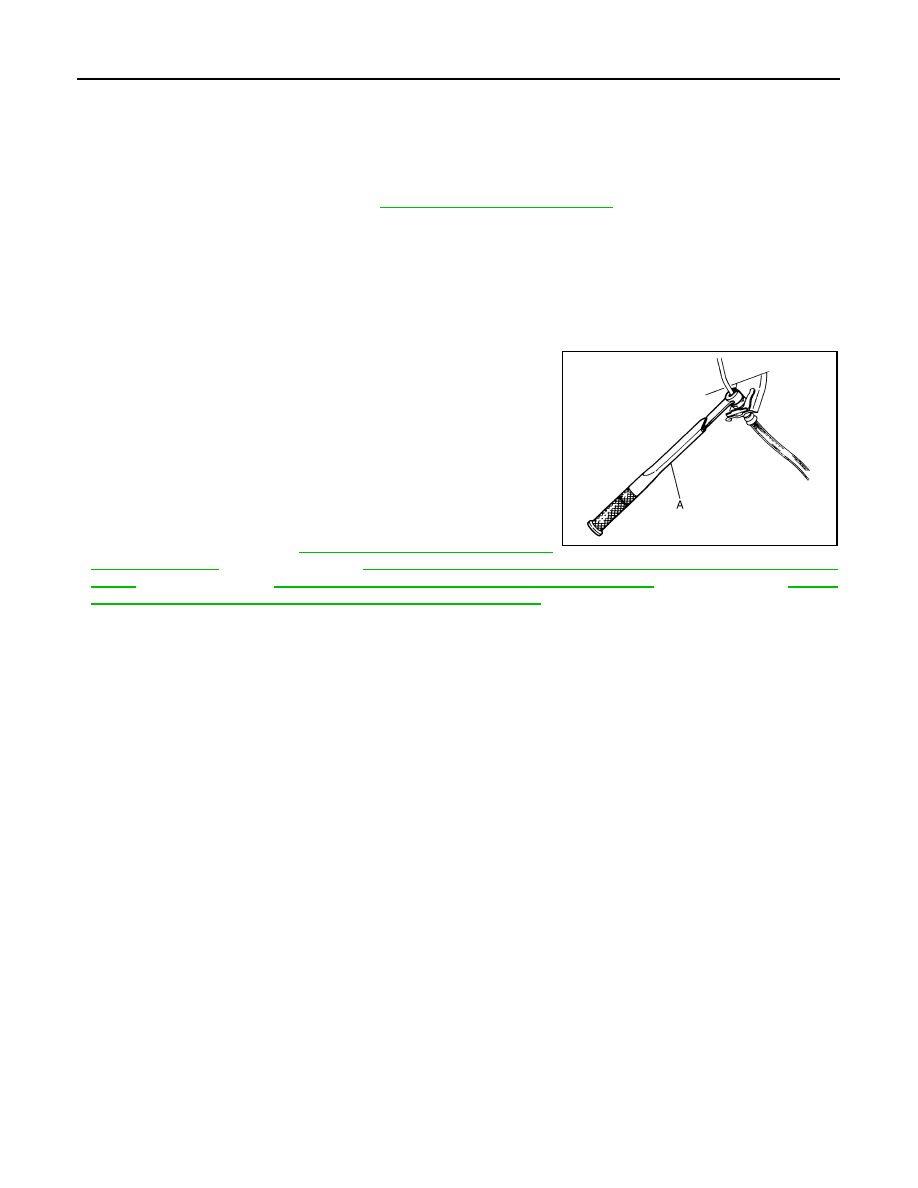

• Always loosen the brake tube flare nut with a flare nut wrench.
• Tighten the brake tube flare nut to the specified torque with

flare nut torque wrench (A).

• Always confirm the specified tightening torque when install-

ing the brake pipes.

• Turn the ignition switch OFF and disconnect the ABS actuator

and electric unit (control unit) connector or the battery nega-
tive terminal before performing the work.

• Check that no brake fluid leakage is present after replacing

the parts.

• Burnish the brake contact surfaces after refinishing or replac-

ing rotors, after replacing pads, or if a soft pedal occurs at
very low mileage. Refer to

BR-36, "BRAKE PAD : Inspection

and Adjustment"

(front brake pad),

BR-39, "BRAKE CALIPER ASSEMBLY : Inspection and Adjust-

ment"

(front disc rotor),

BR-42, "BRAKE PAD : Inspection and Adjustment"

(rear brake pad),

BR-46,

"BRAKE CALIPER ASSEMBLY : Inspection and Adjustment"

(rear disc rotor).

JPFIA0061ZZ

PREPARATION

BR-7

< PREPARATION >

[LHD]

PREPARATION

Commercial Service Tool

INFOID:0000000010305341

Tool name

Description

Pin punch
a: 4 mm (0.16 in) dia.

Removing and installing reservoir tank
pin

NT410

BR-8

< PERIODIC MAINTENANCE >

[LHD]

BRAKE PEDAL

PERIODIC MAINTENANCE

BRAKE PEDAL

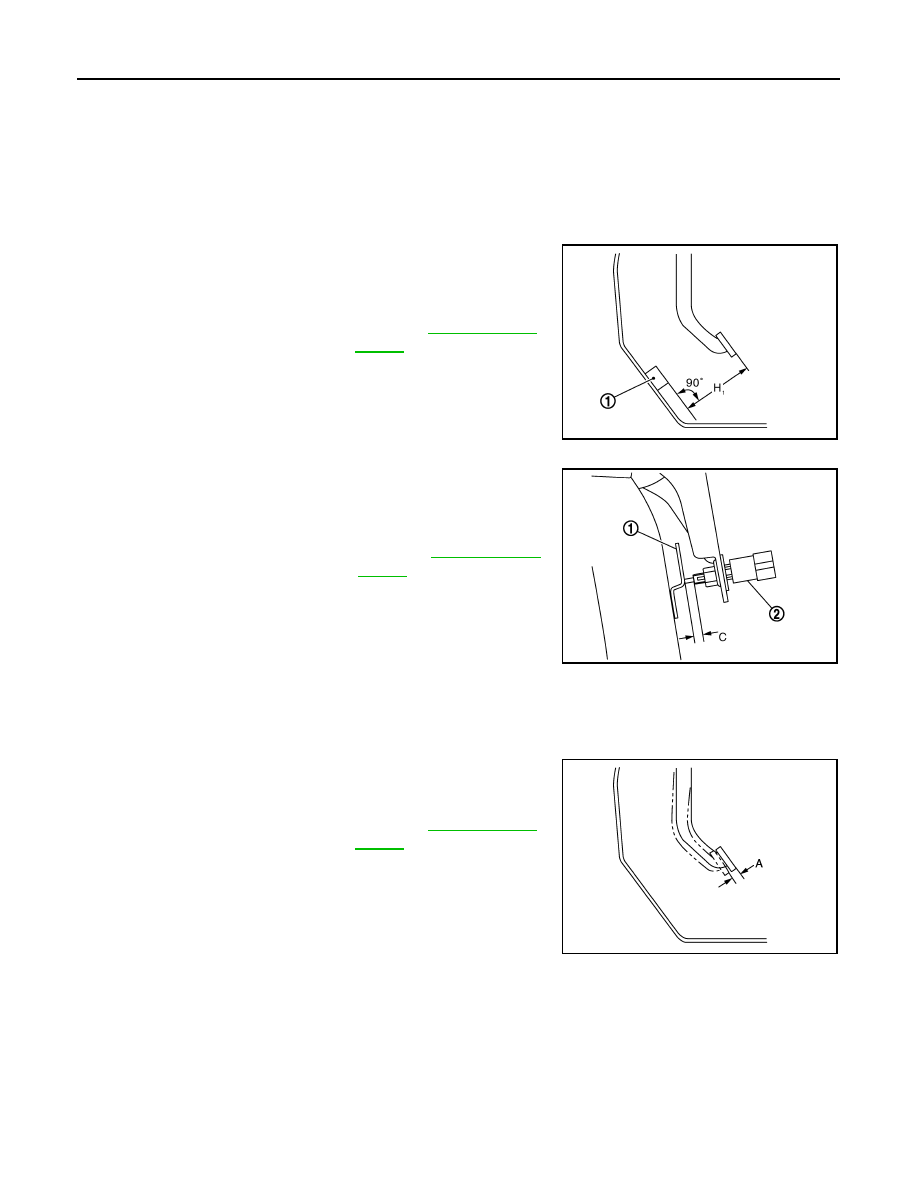

Inspection and Adjustment

INFOID:0000000010305342

INSPECTION

Brake Pedal Height

Check the height (H

) between the accelerator pedal stopper (1) and

the brake pedal upper surface.

CAUTION:

Remove the floor trim.

ASCD brake Switch and Stop Lamp Switch

Check the clearance (C) between bracket (1) and ASCD brake
switch/stop lamp switch (2) threaded end.

CAUTION:

The stop lamp must be turned off when the brake pedal is
released.
NOTE:
Pull the brake pedal pad to make the clearance between bracket and ASCD brake switch/stop lamp switch
threaded end.

Brake Pedal Play

Press the brake pedal. Check the brake pedal play (A).

Depressed Brake Pedal Height

Standard

Brake pedal height (H

)

: Refer to

BR-47, "Brake

Pedal"

JPFIA0119ZZ

Standard

Clearance (C) between
bracket and ASCD brake
switch/stop lamp switch
threaded end

: Refer to

BR-47, "Brake

Pedal"

JPFIA0206ZZ

Standard

Pedal play (A)

: Refer to

BR-47, "Brake

Pedal"

JPFIA0121ZZ

BRAKE PEDAL

BR-9

< PERIODIC MAINTENANCE >

[LHD]

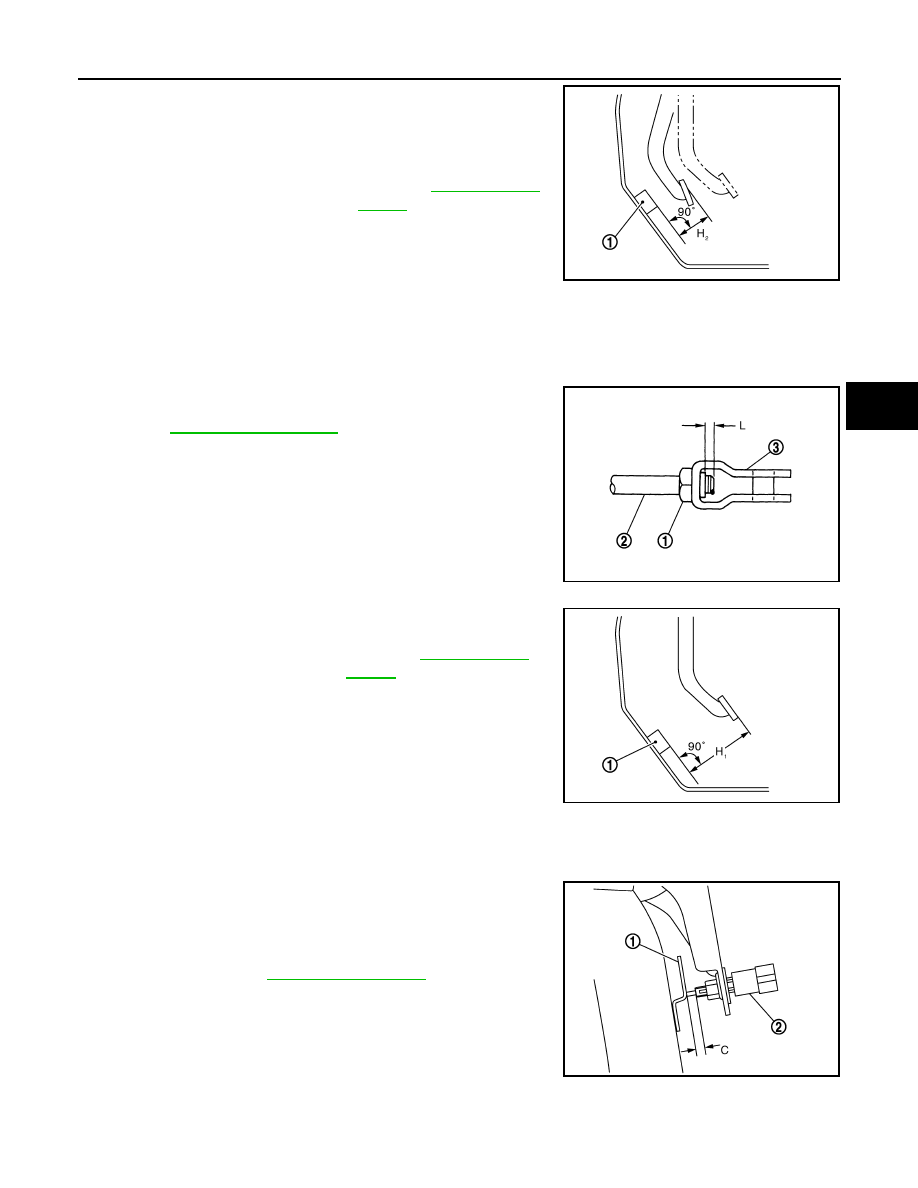

Check the height between the accelerator pedal stopper (1) and the
brake pedal upper surface (H

) when depressing the brake pedal at

490 N (50 kg, 110 lb) while turning engine ON.

CAUTION:

Remove the floor trim.

ADJUSTMENT

Brake Pedal Height

Disconnect the harness connector from ASCD brake switch and stop lamp switch.

Turn the ASCD brake switch and stop lamp switch 45

counterclockwise.

Loosen the input rod lock nut (1). Adjust the brake pedal to the
specification. Tighten the input rod lock nut to the specification.
Refer to

BR-29, "Exploded View"

CAUTION:

The threaded end of the input rod (2) must project to the
inner side (L) of the clevis (3).

ASCD brake Switch and Stop Lamp Switch

Disconnect the harness connector from ASCD brake switch and stop lamp switch.

Turn the ASCD brake switch and stop lamp switch 45

counterclockwise.

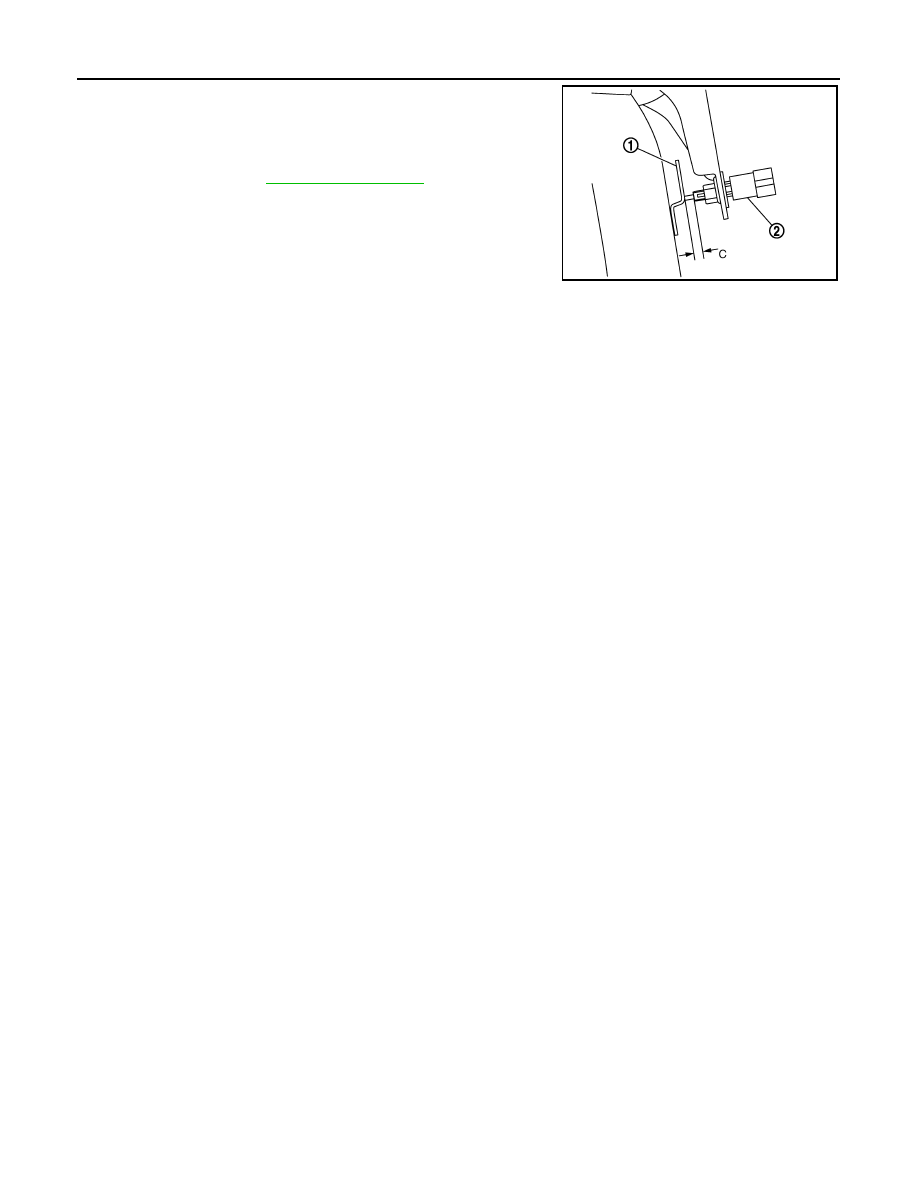

Press-fit ASCD brake switch/stop lamp switch (2) until ASCD
brake switch/stop lamp switch hits the bracket (1) 45

clockwise.

CAUTION:

• The clearance (C) between the bracket and ASCD brake

switch/stop lamp switch threaded end must be the speci-
fied value. Refer to

BR-47, "Brake Pedal"

• The stop lamp must be turned off when the brake pedal is

released.

Brake Pedal Play

Disconnect the harness connector from ASCD brake switch and stop lamp switch.

Turn the ASCD brake switch and stop lamp switch 45

counterclockwise.

Standard

Depressed brake pedal
height (H

)

: Refer to

BR-47, "Brake

Pedal"

JPFIA0120ZZ

JPFIA0003ZZ

Standard

Brake pedal height (H

)

: Refer to

BR-47, "Brake

Pedal"

JPFIA0119ZZ

JPFIA0206ZZ

BR-10

< PERIODIC MAINTENANCE >

[LHD]

BRAKE PEDAL

Press-fit ASCD brake switch/stop lamp switch (2) until ASCD
brake switch/stop lamp switch hits the bracket (1) 45

clockwise.

CAUTION:

• The clearance (C) between the bracket and ASCD brake

switch/stop lamp switch threaded end must be the speci-
fied value. Refer to

BR-47, "Brake Pedal"

• The stop lamp must be turned off when the brake pedal is

released.

JPFIA0206ZZ

BRAKE FLUID

BR-11

< PERIODIC MAINTENANCE >

[LHD]

BRAKE FLUID

Inspection

INFOID:0000000010305343

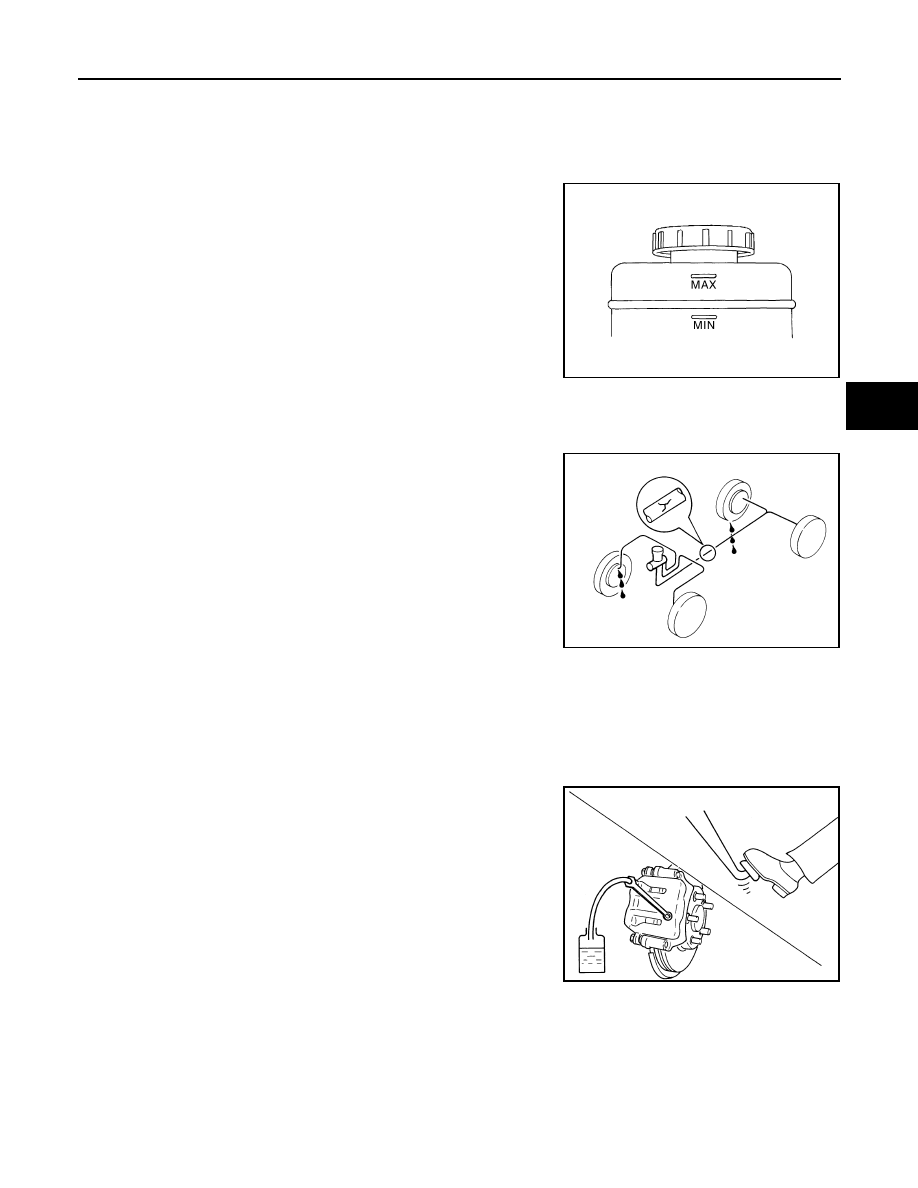

BRAKE FLUID LEVEL

• Check that the fluid level in the reservoir tank is within the specified

range (MAX – MIN lines).

• Visually check for any brake fluid leakage around the reservoir

tank.

• Check the brake system for any leakage if the fluid level is

extremely low (lower than MIN).

• Check the brake system for fluid leakage if the warning lamp

remains illuminated even after the parking brake is released.

BRAKE LINE

Check brake line (tubes and hoses) for cracks, deterioration or other damage. Replace any damaged
parts.

Check for fluid leakage by fully depressing brake pedal while
engine is running.

CAUTION:

If leakage occurs around joints, retighten or, if necessary,
replace damaged parts.

Draining

INFOID:0000000010305344

CAUTION:

• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface.

• Turn the ignition switch OFF and disconnect the ABS actuator and electric unit (control unit) con-

nector or the battery negative terminal before draining.

Connect a vinyl tube to the bleed valve.

Depress the brake pedal and loosen the bleeder valve to gradu-
ally discharge brake fluid.

Refilling

INFOID:0000000010305345

CAUTION:

Turn the ignition switch OFF and disconnect the ABS actuator and electric unit (control unit) connec-
tor or the battery negative terminal before refilling.

JPFIA0007ZZ

SBR389C

BRA0007D

BR-12

< PERIODIC MAINTENANCE >

[LHD]

BRAKE FLUID

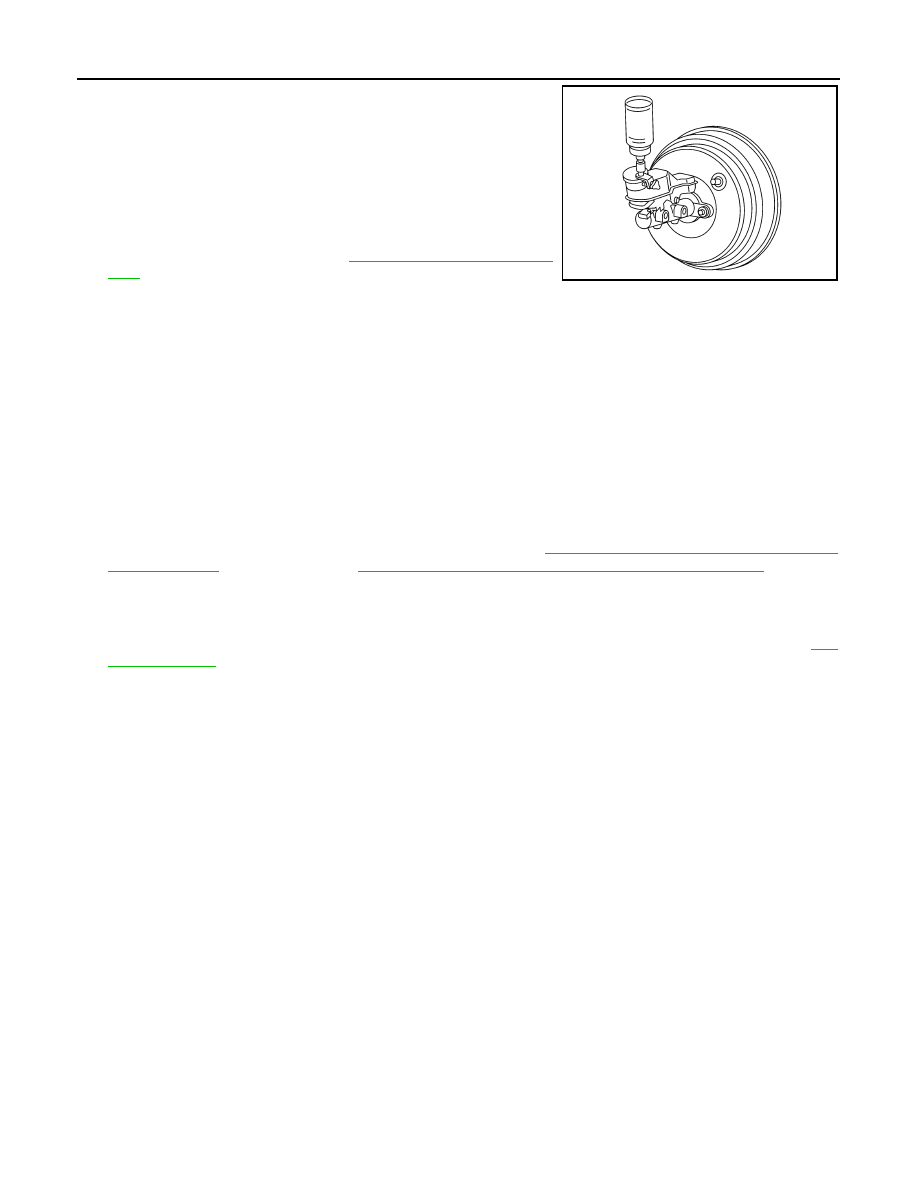

Check that there is no foreign material in the reservoir tank, and
refill with new brake fluid.

CAUTION:

Never reuse drained brake fluid.

Loosen the bleeder valve, slowly depress the brake pedal to the
full stroke, and then release the pedal. Repeat this operation at
intervals of 2 or 3 seconds until all brake fluid is discharged.
Then close the bleeder valve with the brake pedal depressed.
Repeat the same work on each wheel.

Perform the air bleeding. Refer to

BR-12, "Bleeding Brake Sys-

tem"

Bleeding Brake System

INFOID:0000000010305346

CAUTION:

• Turn the ignition switch OFF and disconnect the ABS actuator and electric unit (control unit) con-

nector or the battery negative terminal before performing the work.

• Monitor the fluid level in the reservoir tank during the air bleeding.
• Always use new brake fluid for refilling. Never reuse the drained brake fluid.

Connect a vinyl tube to the bleeder valve of the rear right brake.

Fully depress the brake pedal 4 to 5 times.

Loosen the bleeder valve and bleed air with the brake pedal depressed, and then quickly tighten the
bleeder valve.

Repeat steps 2 and 3 until all of the air is out of the brake line.
In case of EPB rear caliper, operate parking brake 5 times to bleed the air.

Tighten the bleeder valve to the specified torque. Refer to

BR-37, "BRAKE CALIPER ASSEMBLY :

Exploded View"

(front disc brake),

BR-43, "BRAKE CALIPER ASSEMBLY : Exploded View"

(rear disc

brake).

Perform steps 1 to 5 for the rear right brake

→

front left brake

→

rear left brake

→

and front right brake in

order.

Check that the fluid level in the reservoir tank is within the specified range after air bleeding. Refer to

BR-

11, "Inspection"

PFIA0403J

BRAKE MASTER CYLINDER

BR-13

< PERIODIC MAINTENANCE >

[LHD]

BRAKE MASTER CYLINDER

Inspection

INFOID:0000000010305347

FLUID LEAK

Check for brake fluid leakage from the master cylinder mounting face, reservoir tank mounting face and brake
tube connections.

BR-14

< PERIODIC MAINTENANCE >

[LHD]

BRAKE BOOSTER

BRAKE BOOSTER

Inspection

INFOID:0000000010305348

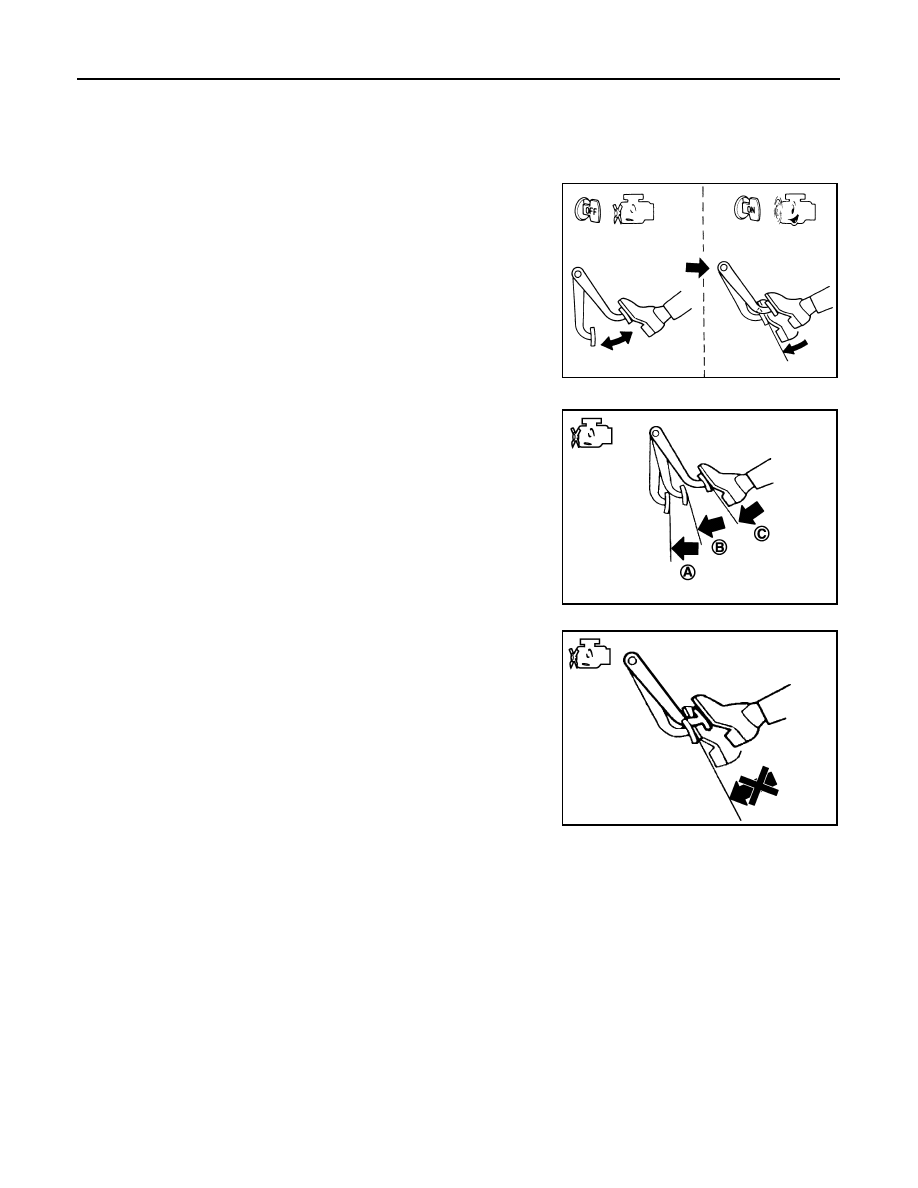

OPERATION

Depress the brake pedal several times at 5-second intervals with the
engine stopped. Start the engine with the brake pedal fully
depressed. Check that the clearance between brake pedal and dash
lower panel decreases.
NOTE:
A slight impact with a small click may be felt on the pedal when the
brake pedal is fully depressed. This is a normal phenomenon due to
the brake system operation.

AIR TIGHT

• Idle the engine for 1 minute to apply vacuum to the brake booster,

and stop the engine. Then depress the brake pedal several times
at 5-second intervals until the accumulated vacuum is released to
atmospheric pressure. Check that the clearance between brake
pedal and dash lower panel gradually increases (A

→

C) each

time the brake pedal is depressed during this operation.

• Depress the brake pedal with the engine running. Then stop the

engine while holding down the brake pedal. Check that the brake
pedal stroke does not change after holding down the brake pedal
for 30 seconds or more.
NOTE:
A slight impact with a small click may be felt on the pedal when the
brake pedal is fully depressed. This is a normal phenomenon due
to the brake system operation.

BRA0037D

JPFIA0043ZZ

JPFIA0044ZZ

FRONT DISC BRAKE

BR-15

< PERIODIC MAINTENANCE >

[LHD]

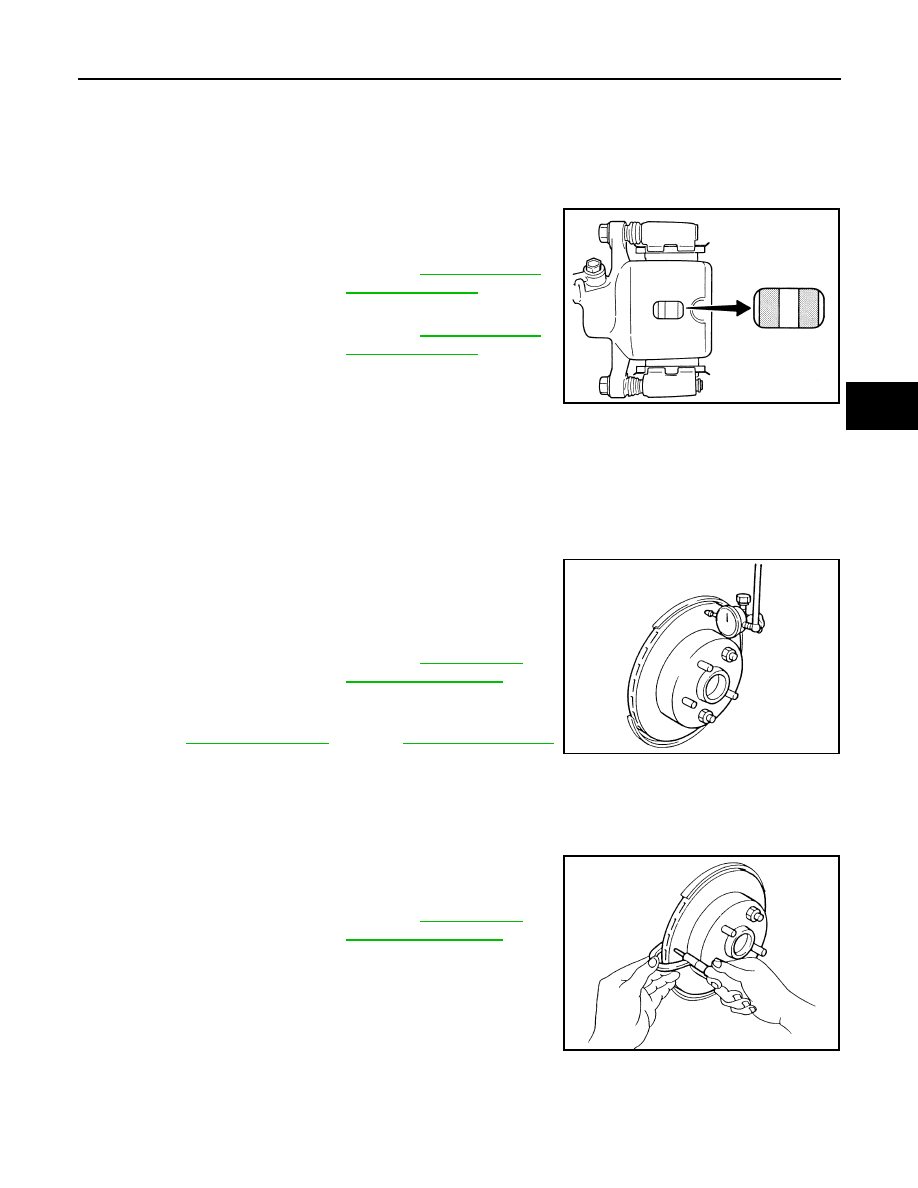

FRONT DISC BRAKE

BRAKE PAD

BRAKE PAD : Inspection

INFOID:0000000010305349

PAD WEAR

Check pad thickness from an inspection hole on cylinder body.
Check using a scale if necessary.

DISC ROTOR

DISC ROTOR : Inspection

INFOID:0000000010305350

APPEARANCE

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace if there are.

RUNOUT

Fix the disc rotor to the wheel hub and bearing assembly with
wheel nuts (2 points at least).

Inspect the runout with a dial gauge. [Measured at 10 mm (0.39
in) inside the disc edge.]

NOTE:
Check the wheel bearing axial end play before the inspection.
Refer to

FAX-8, "Inspection"

(2WD),

FAX-47, "Inspection"

(4WD).

Find the installation position with a minimum runout by shifting the disc rotor-to-wheel hub and bearing
assembly installation position by one hole at a time if the runout exceeds the limit value.

Replace or lathe the disc rotor if the runout exceeds the limit even after the above operation.

THICKNESS

Check the thickness of the disc rotor using a micrometer. Replace
the disc rotor if the thickness is below the wear limit.

Standard thickness

: Refer to

BR-15, "BRAKE

PAD : Inspection"

Wear limit thickness

: Refer to

BR-15, "BRAKE

PAD : Inspection"

BRA0010D

Runout limit

: Refer to

BR-15, "DISC

ROTOR : Inspection"

SBR019B

Wear limit thickness

: Refer to

BR-15, "DISC

ROTOR : Inspection"

SBR020B

BR-16

< PERIODIC MAINTENANCE >

[LHD]

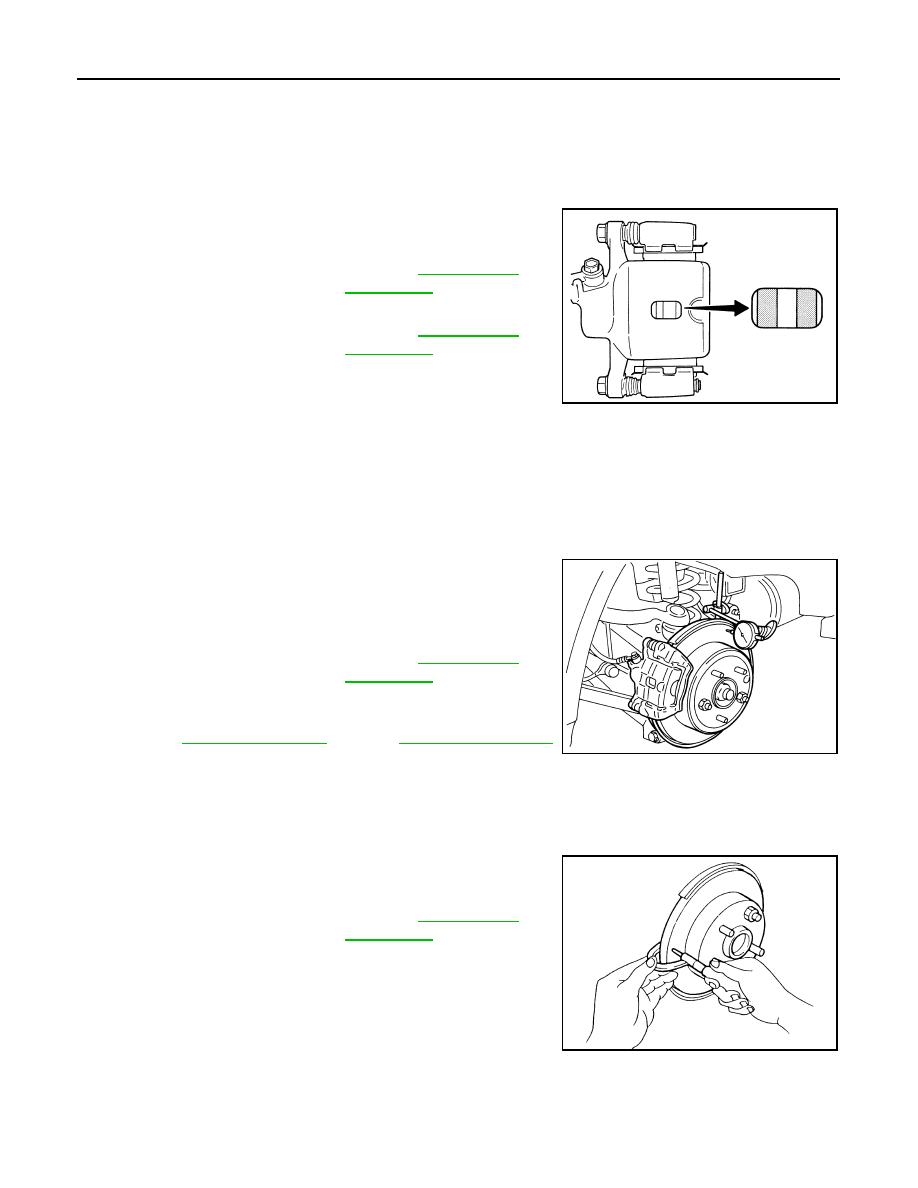

REAR DISC BRAKE

REAR DISC BRAKE

BRAKE PAD

BRAKE PAD : Inspection

INFOID:0000000010305351

PAD WEAR

Check pad thickness from an inspection hole on cylinder body.
Check using a scale if necessary.

DISC ROTOR

DISC ROTOR : Inspection

INFOID:0000000010305352

APPEARANCE

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace if there are.

RUNOUT

Fix the disc rotor to the wheel hub and bearing assembly with
wheel nuts (2 points at least).

Inspect the runout with a dial gauge. [Measured at 10 mm (0.39
in) inside disc edge.]

NOTE:
Check the wheel bearing axial end play before the inspection.
Refer to

RAX-3, "Inspection"

(2WD),

RAX-10, "Inspection"

(4WD).

Find the installation position with a minimum runout by shifting the disc rotor-to-wheel hub and bearing
assembly installation position by one hole at a time if the runout exceeds the limit value.

Replace or lathe the disc rotor if the runout exceeds the limit even after the above operation.

THICKNESS

Check the thickness of the disc rotor using a micrometer. Replace
the disc rotor if the thickness is below the wear limit.

Standard thickness

: Refer to

BR-47, "Rear

Disc Brake"

Wear limit thickness

: Refer to

BR-47, "Rear

Disc Brake"

BRA0010D
