STEERING WHEEL

ST-7

< BASIC INSPECTION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

BASIC INSPECTION

STEERING WHEEL

Inspection

INFOID:0000000010438961

NEUTRAL POSITION STEERING WHEEL

1.

Check that steering gear assembly, steering column assembly and steering wheel are installed in the cor-
rect position.

2.

Check wheel alignment within specification. Refer to

FSU-7, "Wheel Alignment Inspection"

.

3.

Set vehicle to the straight-ahead position and confirm steering wheel is in the neutral position.
• Loosen outer socket lock nut and turn inner socket to left and right equally to make fine adjustments if

steering wheel is not in the neutral position.

CAUTION:

If the adjustment is performed by using the inner socket, check wheel alignment after the adjust-
ment. Refer to

FSU-7, "Wheel Alignment Inspection"

.

ST-8

< REMOVAL AND INSTALLATION >

STEERING WHEEL

REMOVAL AND INSTALLATION

STEERING WHEEL

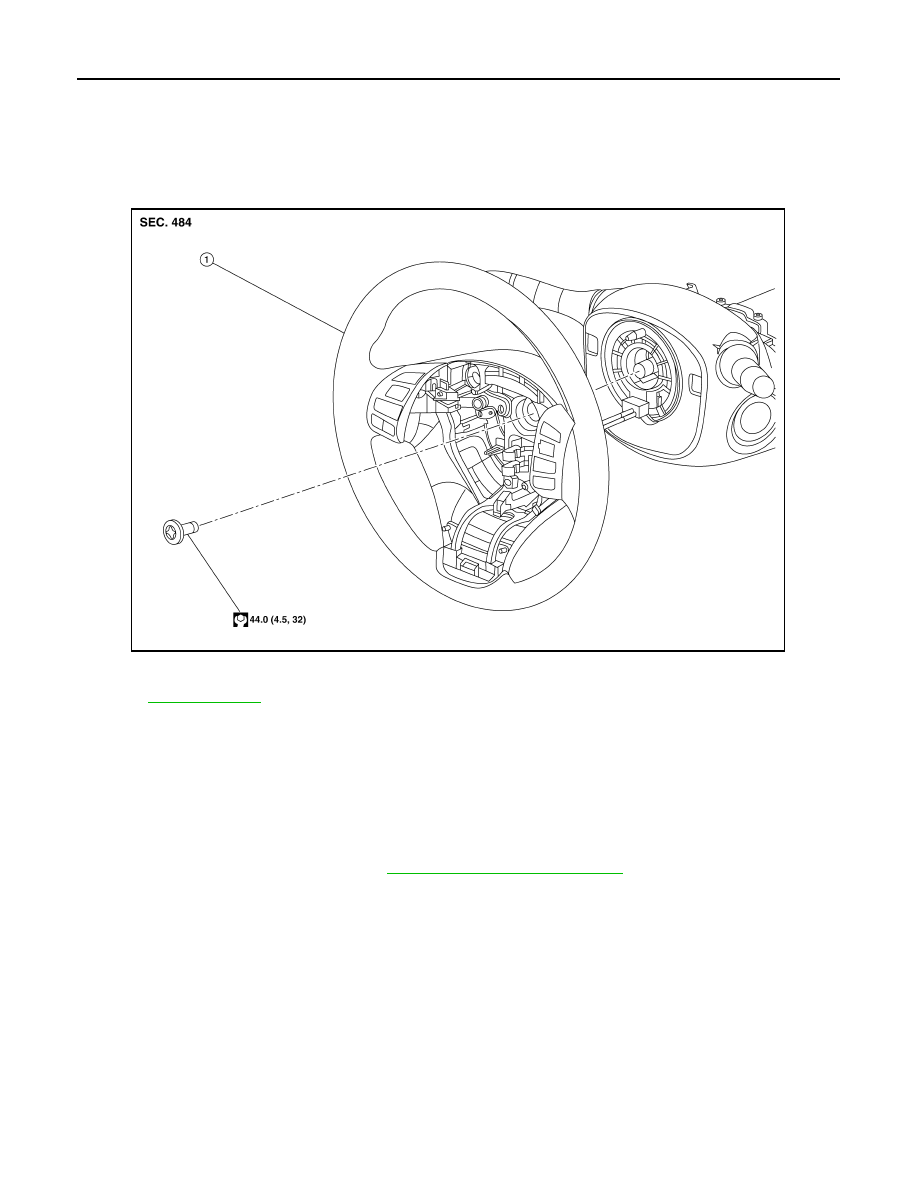

Exploded View

INFOID:0000000010438964

Removal and Installation

INFOID:0000000010438965

REMOVAL

NOTE:
When reconnecting spiral cable, fix cable with a tape so that fixing case and rotating part keep aligned. This
will omit neutral position alignment procedure during spiral cable installation.

1.

Set vehicle to the straight-ahead position.

2.

Remove driver air bag module. Refer to

SR-14, "Removal and Installation"

.

3.

Remove steering wheel bolt after steering is locked.

CAUTION:

Never reuse steering wheel lock bolt.

4.

Disconnect harness connector.

1.

Steering wheel

Refer to

GI-4, "Components"

 for symbols in the figure.

AWGIA0318ZZ

STEERING WHEEL

ST-9

< REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

5.

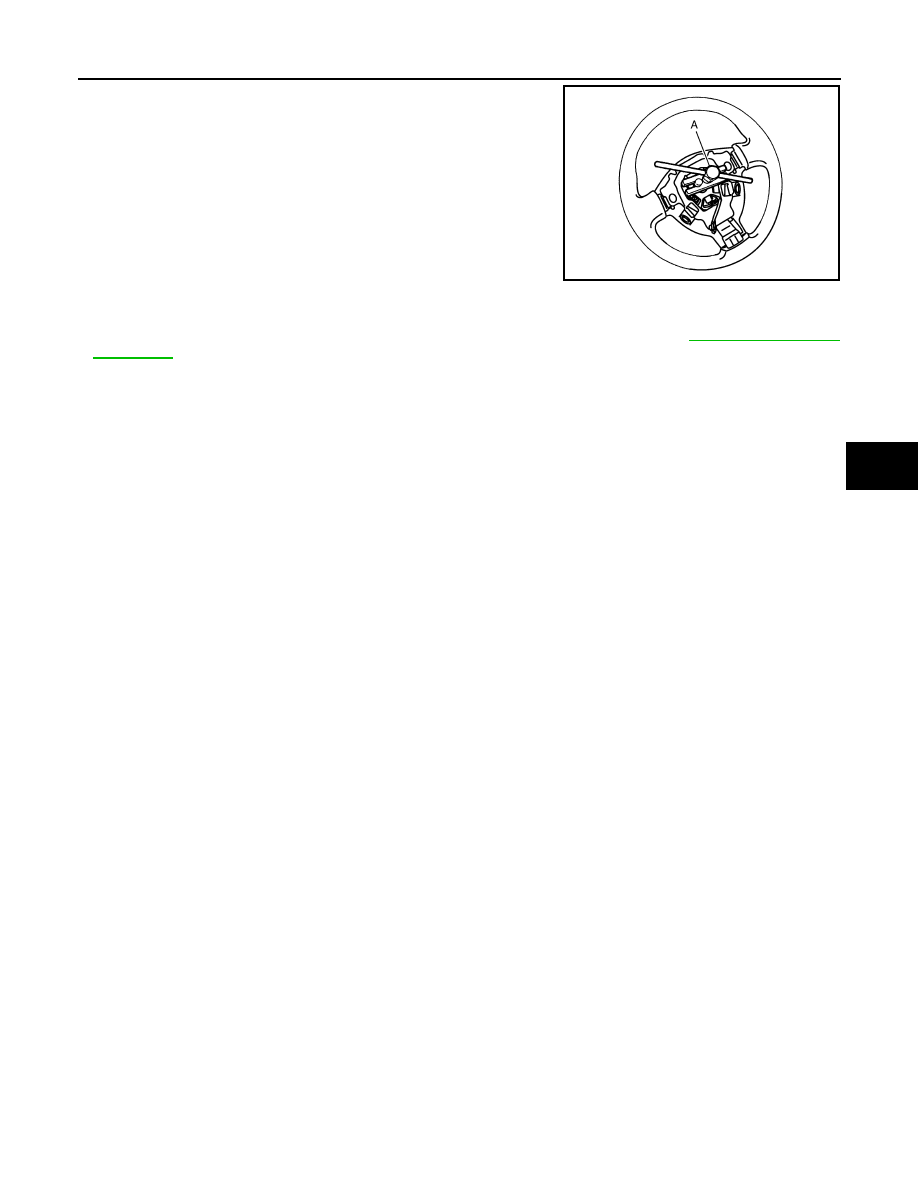

Remove steering wheel with the steering wheel puller (A) (SST:
ST27180001).

INSTALLATION

Note the following, and install in the reverse order of removal.
• Check the spiral cable neutral position after replacing or rotating spiral cable. Refer to

SR-17, "Removal and

Installation"

.

CAUTION:

• Never twist spiral cable excessively after it becomes tight. (Twisting may cause the cable to be torn

off.)

• Never reuse steering wheel lock bolt.

SGIA1524J

ST-10

< REMOVAL AND INSTALLATION >

STEERING COLUMN

STEERING COLUMN

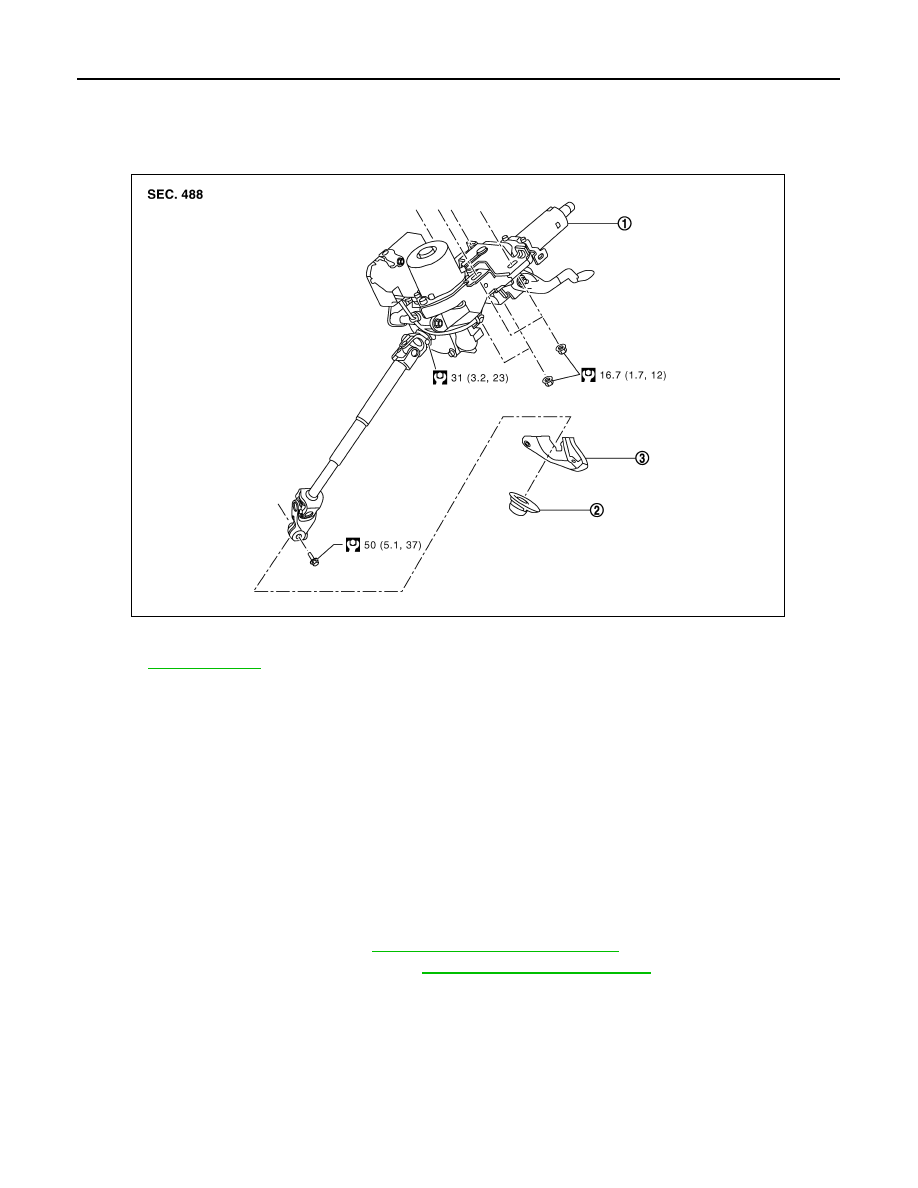

Exploded View

INFOID:0000000010438966

Removal and Installation

INFOID:0000000010438967

CAUTION:

• While removing the steering column assembly, never unlock the tilt lever.
• Never impact on the axis when removing steering column assembly.
• Be careful when removing steering column assembly from the vehicle because it is heavy.
• Keep steering column assembly away from magnetic sources.
• Never disassemble steering column assembly. It is not separable.
• While removing the steering column assembly, never move the steering gear.
• When removing the steering column assembly, be careful not to allow the intermediate shaft to turn.

REMOVAL

1.

Set vehicle to the straight-ahead position.

2.

Place the tilt to the highest level.

3.

Remove combination switch. Refer to

MWI-80, "Removal and Installation"

.

4.

Remove instrument lower panel LH. Refer to

IP-13, "Removal and Installation"

.

5.

Disconnect each switch harness connectors installed to steering column assembly.

6.

Remove bolt and separate steering column from steering gear pinion shaft.

CAUTION:

Never move the steering gear during removal and installation of the steering column.

7.

Remove nuts and remove steering column.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

1.

Steering column

2.

Floor cover

3.

Floor seal

Refer to

GI-4, "Components"

 for symbols in the figure.

E1GIA0093GB
